Medical arm with 100 mm short pivot for screen, floor or ceiling column mount

Product number: WM 222.100C - Medical arm with 100 mm short pivot for screen, floor or ceiling column mount

Product sheet PDF

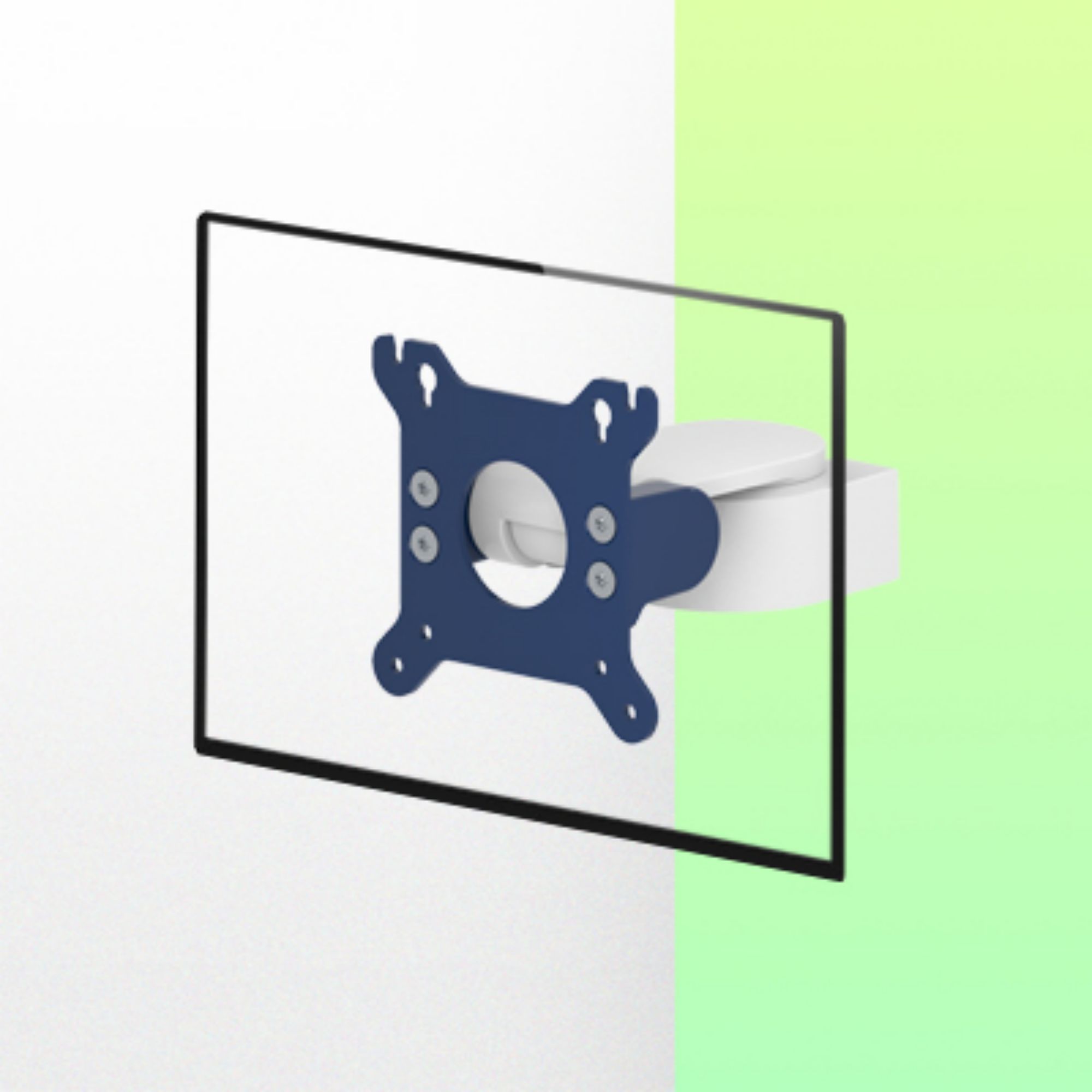

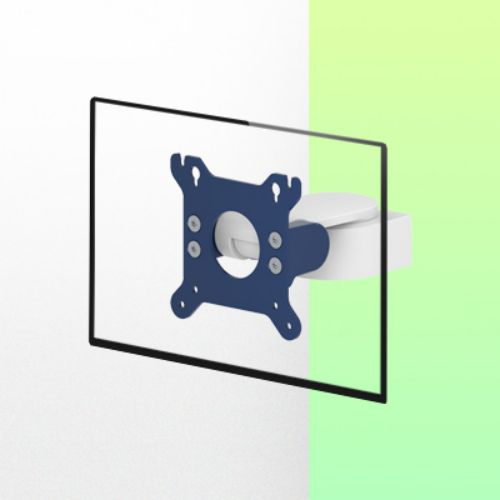

This mini medical arm with a short 100 mm pivot allows the LCD screen to be perfectly fixed, oriented and adjusted.

It is coated with an anti-microbial agent that provides hygiene and cleaning down to the last detail.

Its modern design has been specially designed for healthcare environments.

Technical specifications:

* Built-in cable entry

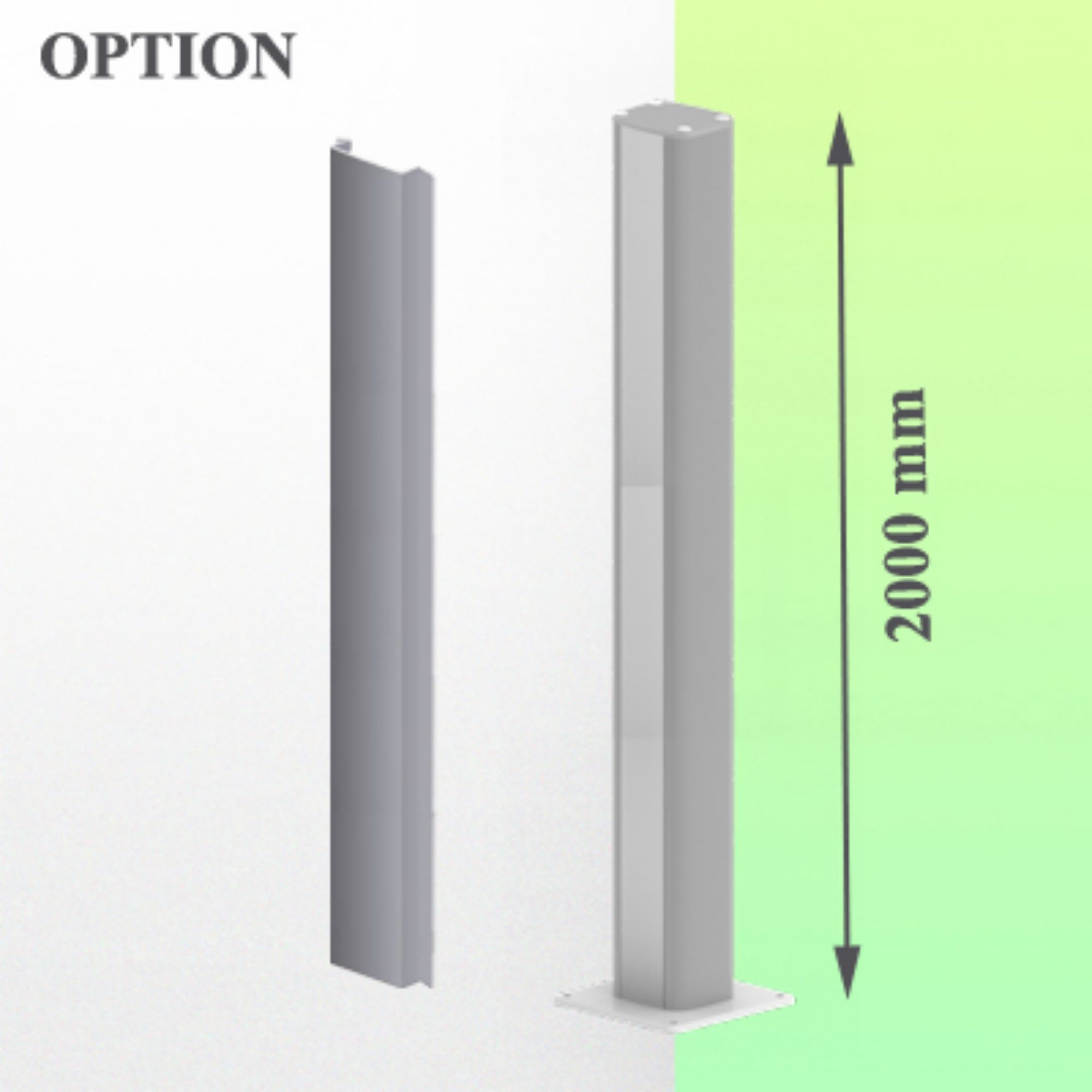

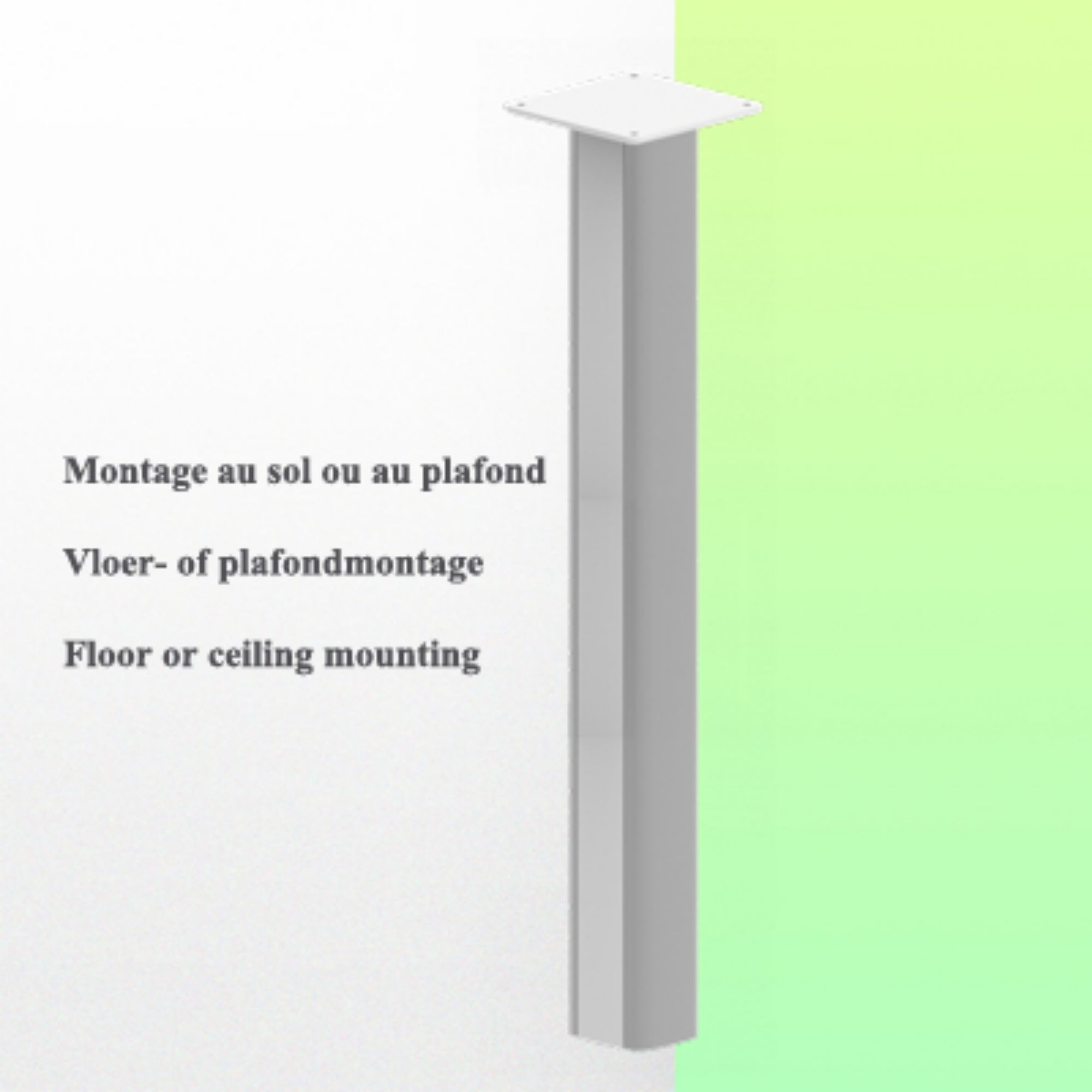

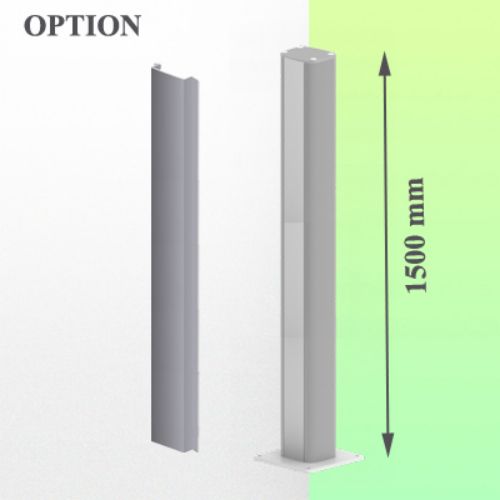

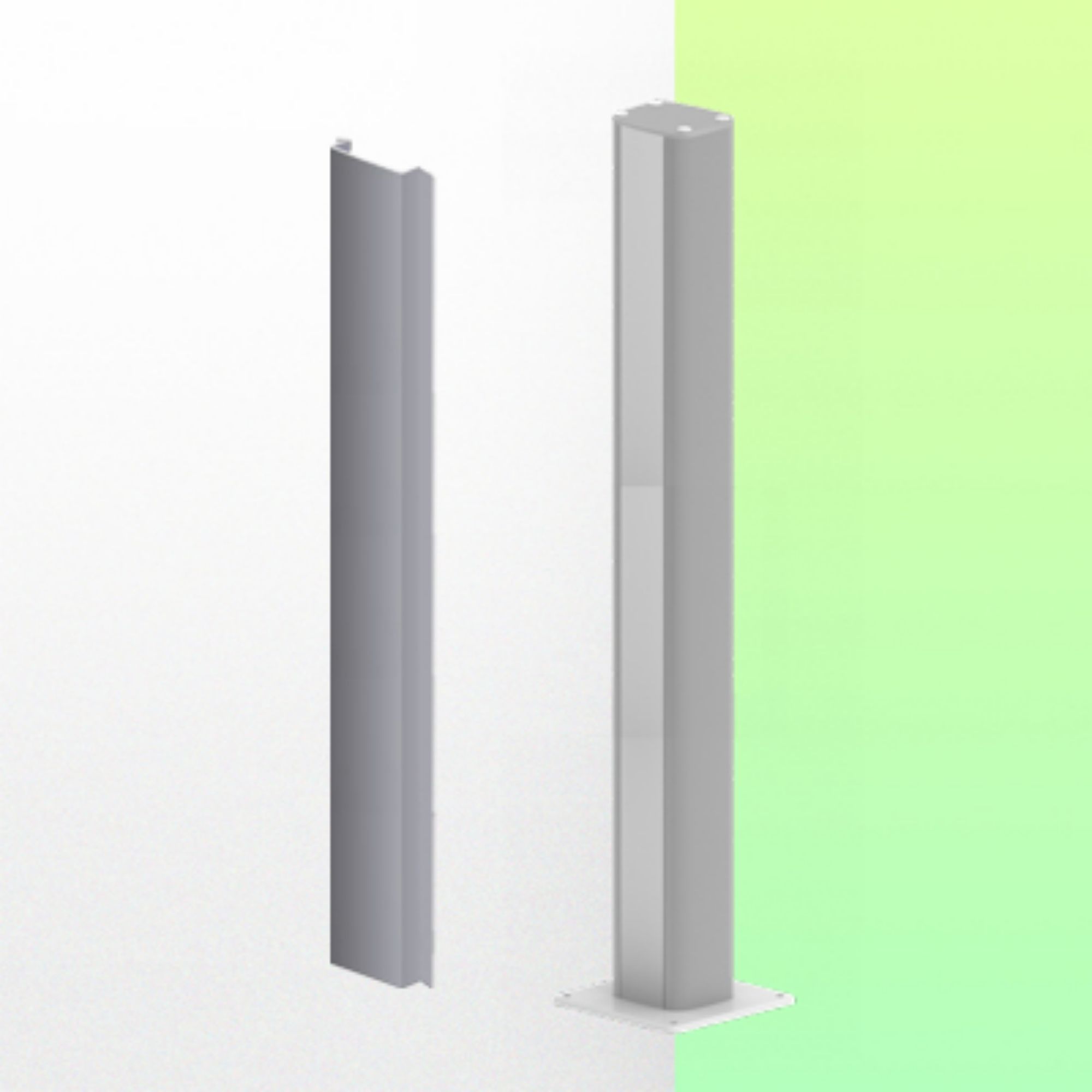

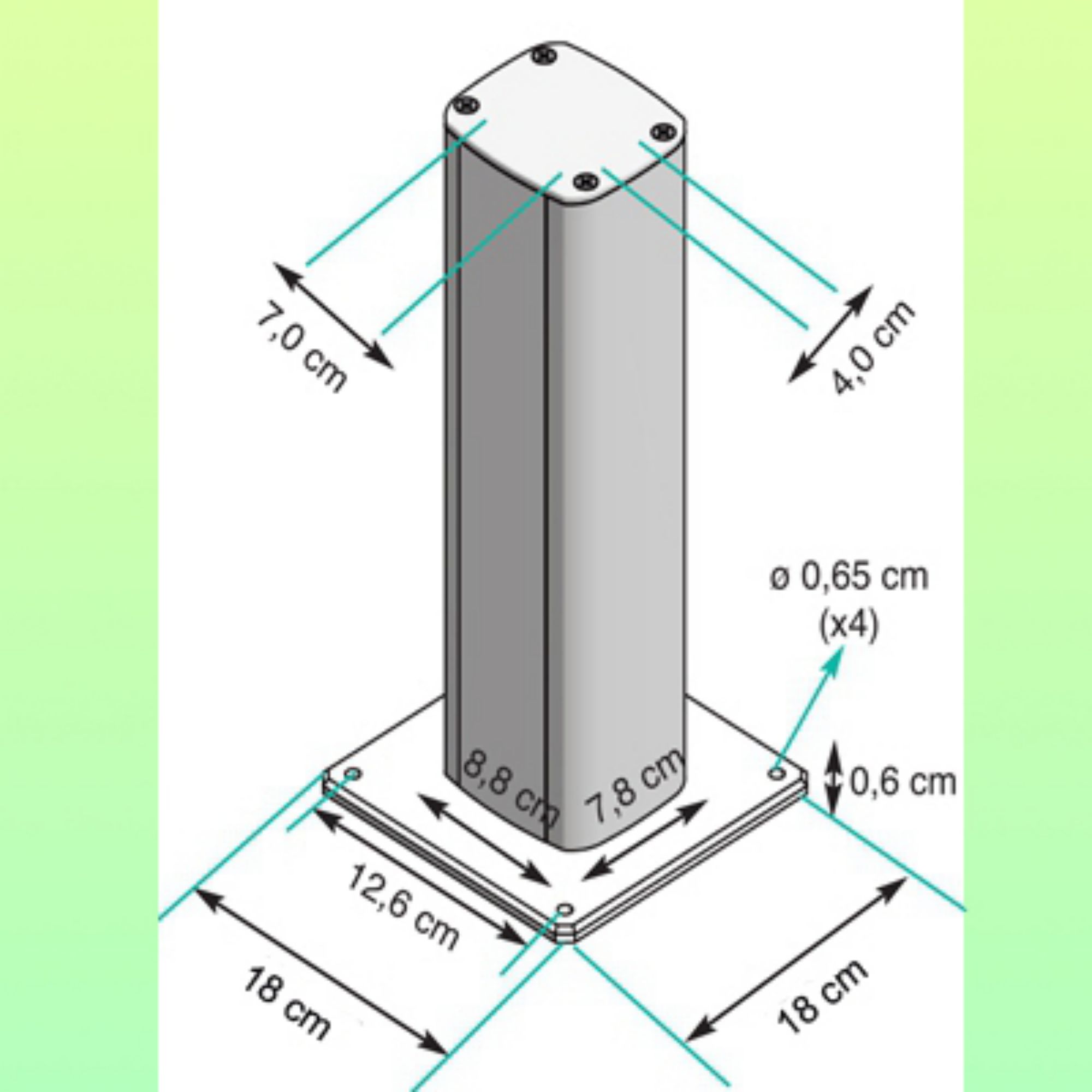

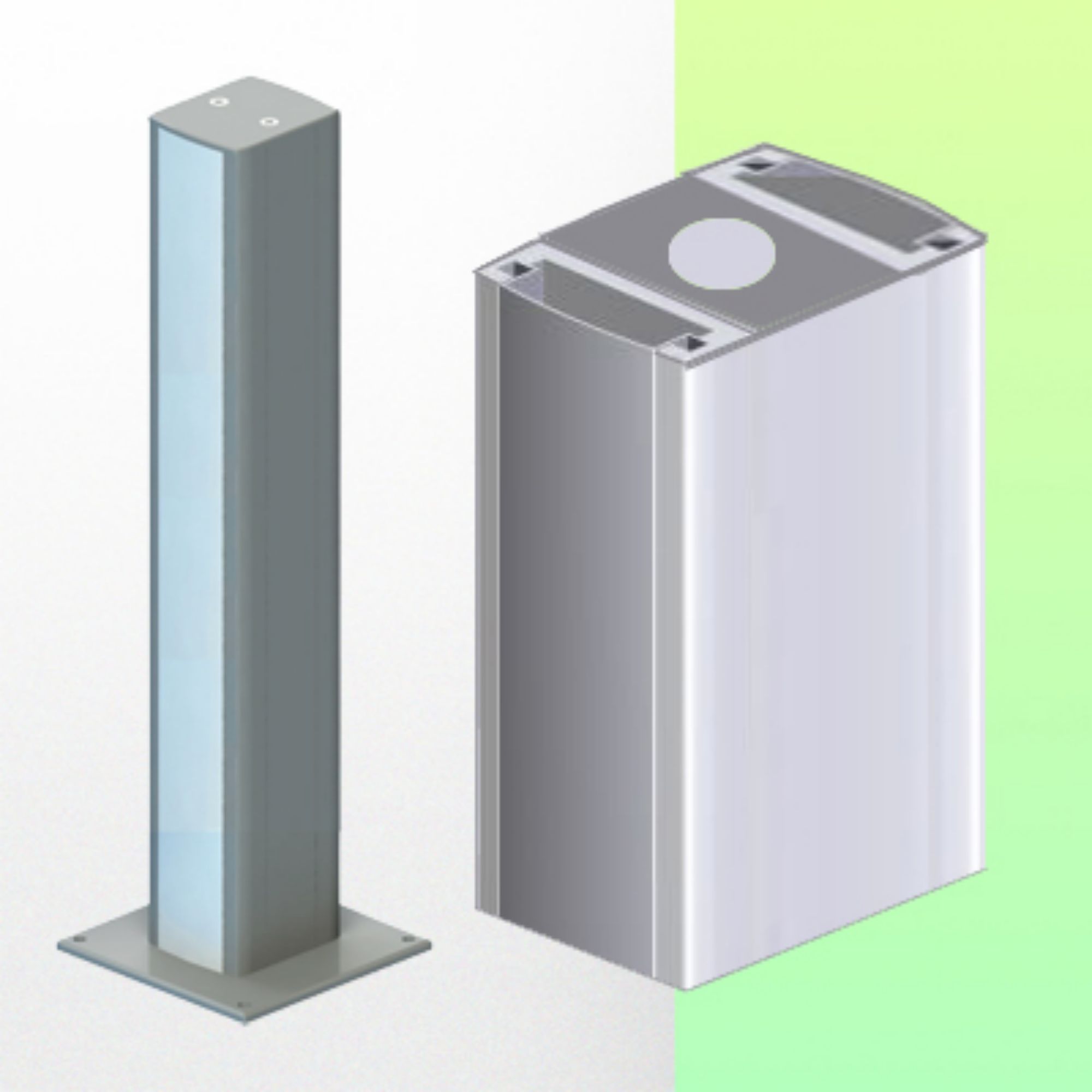

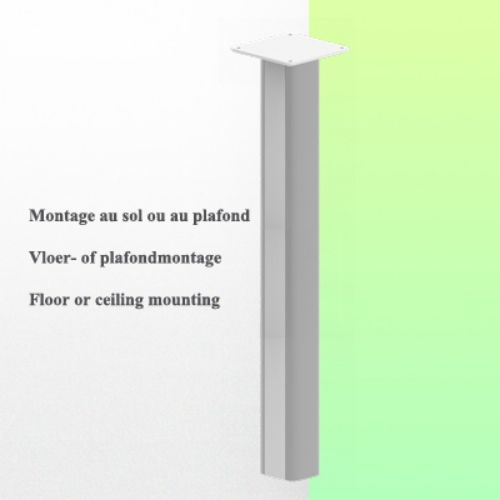

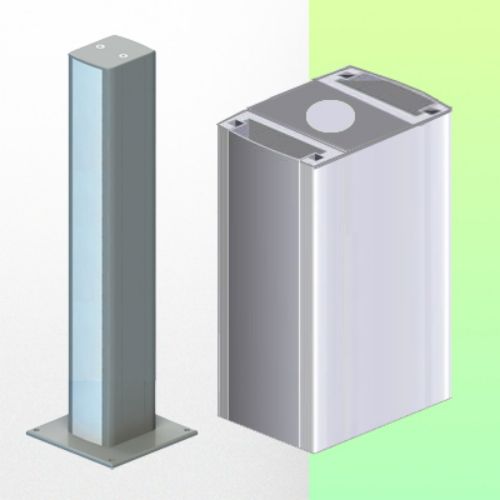

* Optional floor or ceiling columns are available in various heights (1500 - 2000 mm).

* These columns can be easily cut to size.

* All cables are also routed through the column. (See Option)

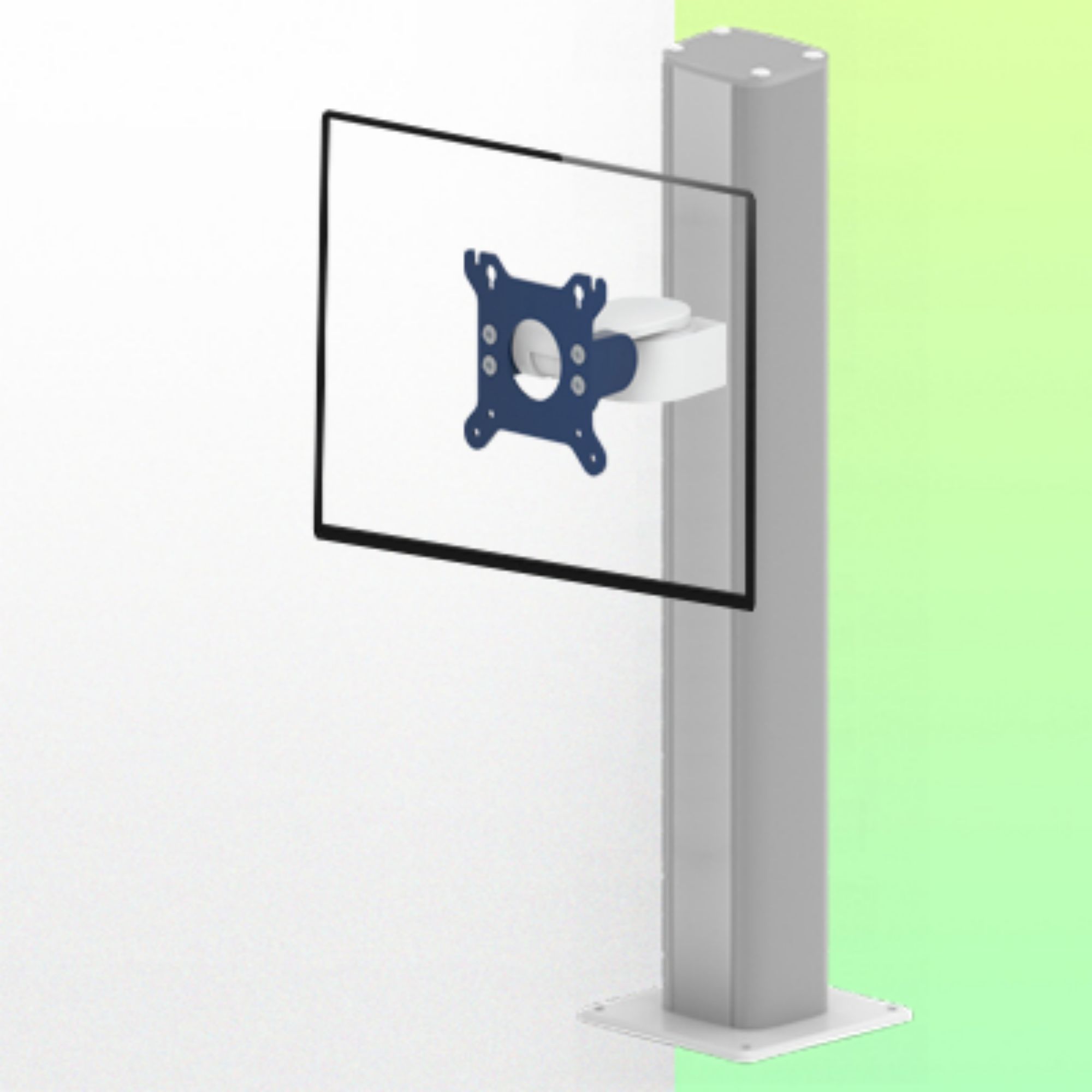

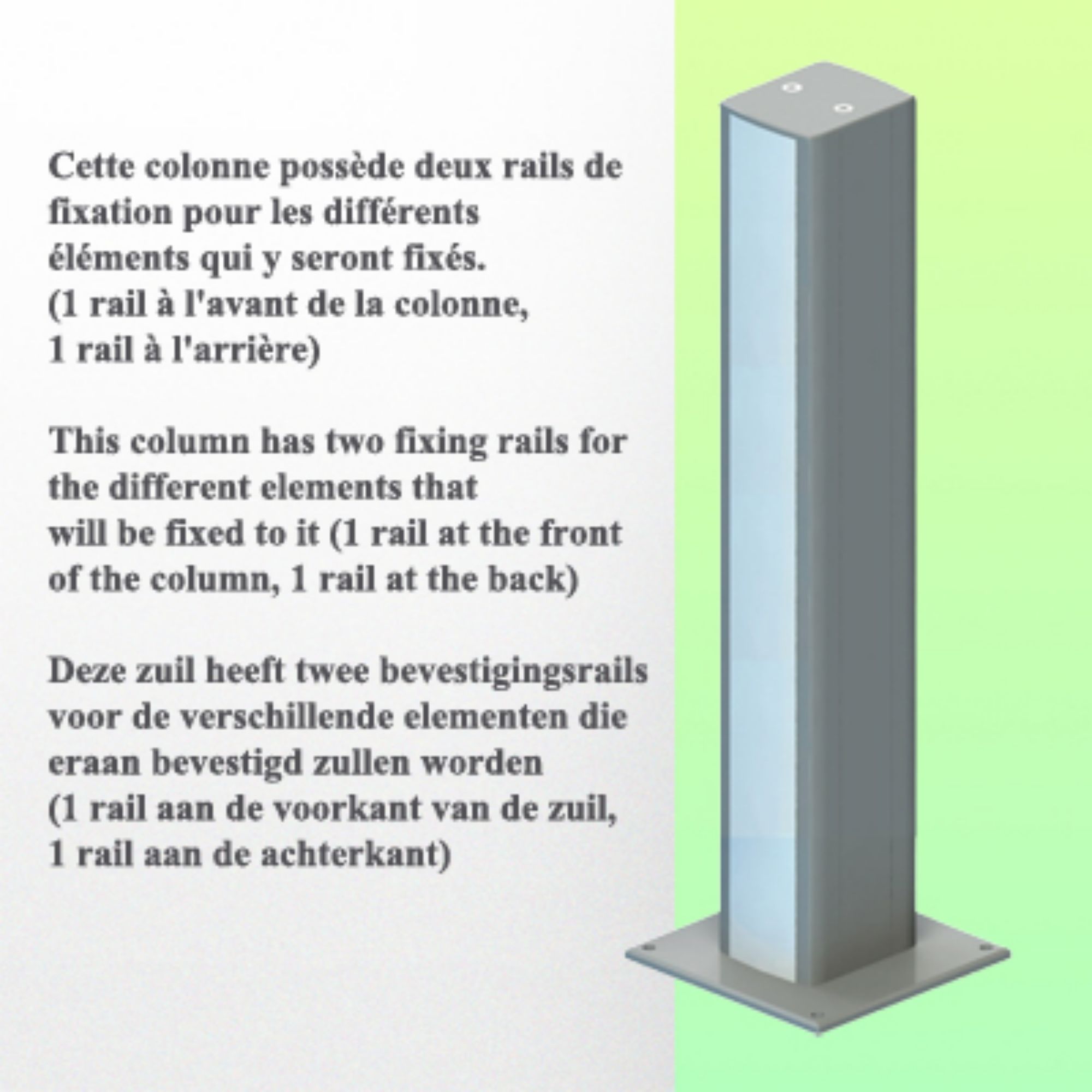

* This mini pivot arm simply slides into the column rail and then adjusts to the desired height and is fixed.

* Rotating head.

* The head of this mini arm complies with the standard for screen mounting:

VESA MIS-D 75 mm and 100 mm.

* Compatible with screens weighing up to 18 Kg.

* Touch screen stability.

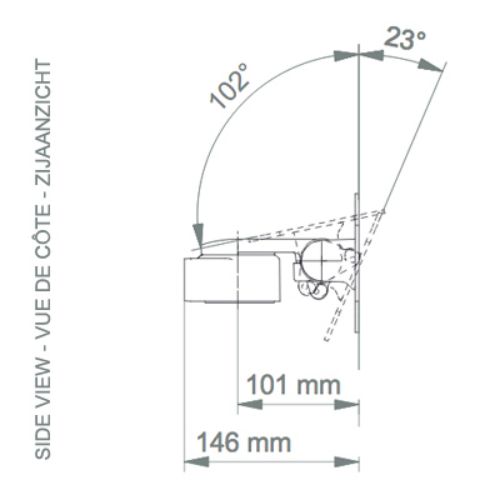

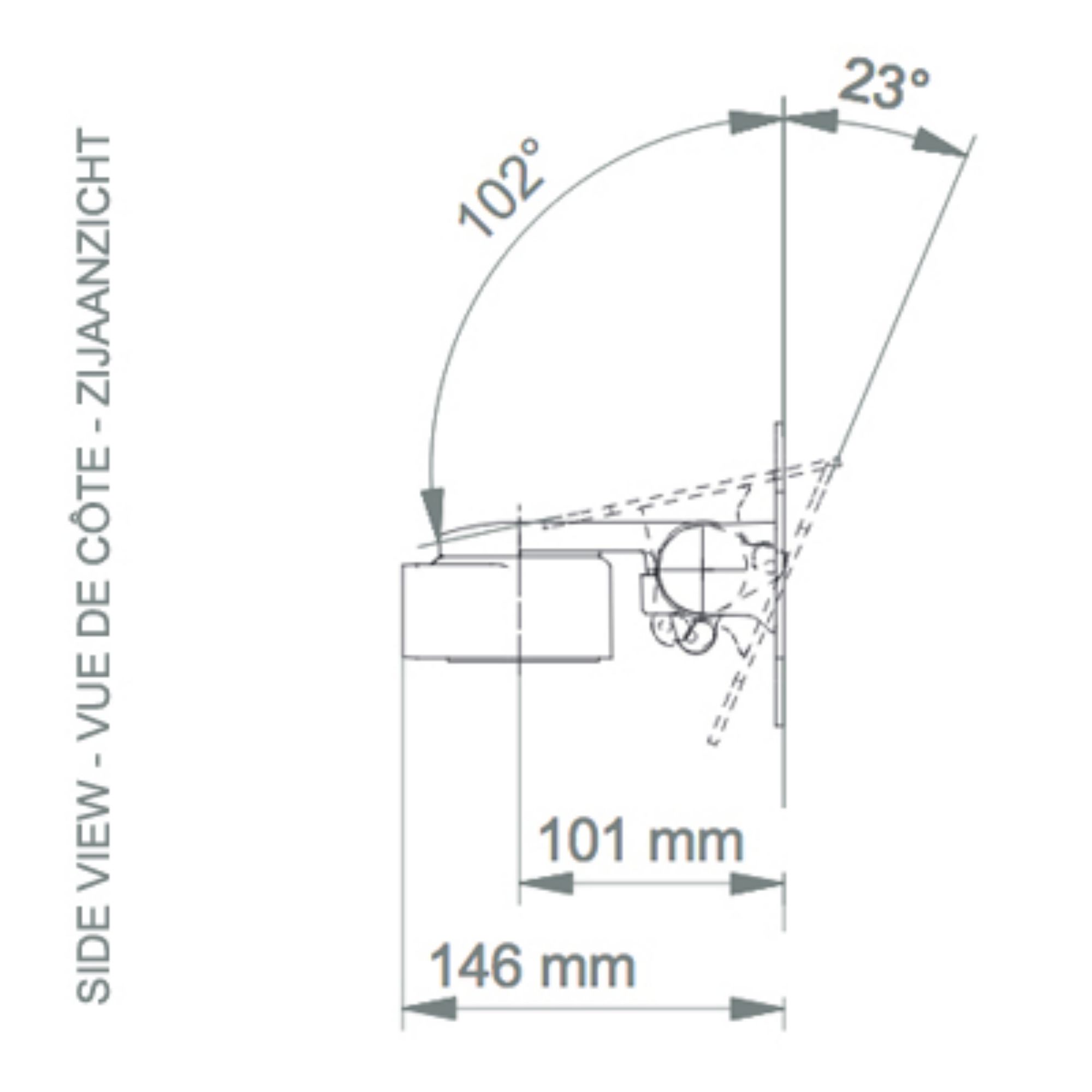

* Screen tilt: 50° down and 100° up

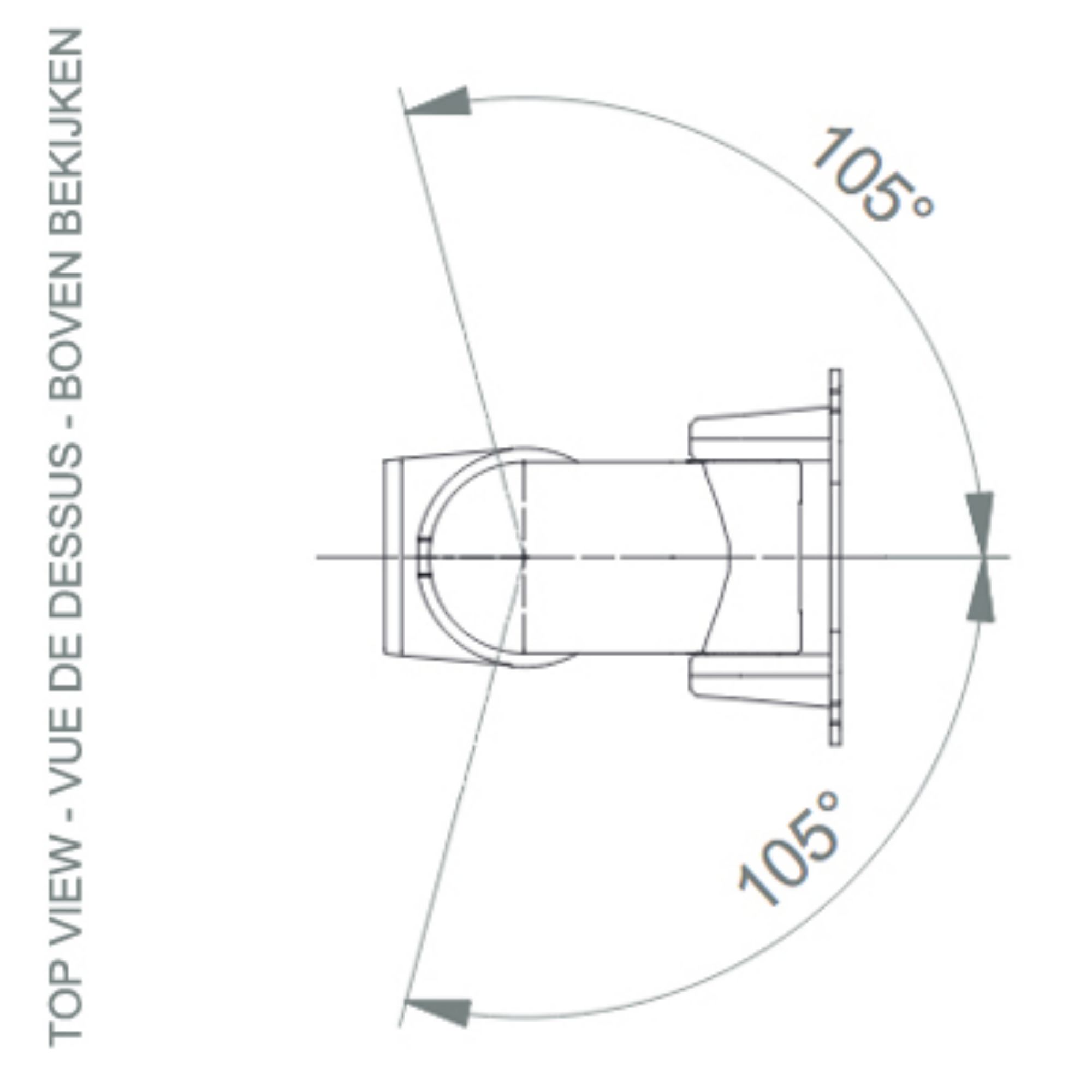

* Screen rotation: 105° right, 105° left.

* Total length 146 mm

* Compatible with multimedia terminals (TMM)

* Colour RAL 5013 cobalt blue and RAL 9016 traffic white

* Warranty: 5 years
