Medical arm with 100 mm short pivot for screen, Mounting on Mindray Medical Supply Device

Product number: WM 222.107 - Medical arm with 100 mm short pivot for screen,

Mounting on Mindray Medical Supply Device

Product sheet PDF

This mini medical arm with a short 100 mm pivot allows the LCD screen to be perfectly fixed, oriented and adjusted.

It is coated with an anti-microbial agent that provides hygiene and cleaning down to the last detail.

Its modern design has been specially designed for healthcare environments.

Technical specifications:

* Built-in cable entry

* Mounting on Mindray Medical Supply Device

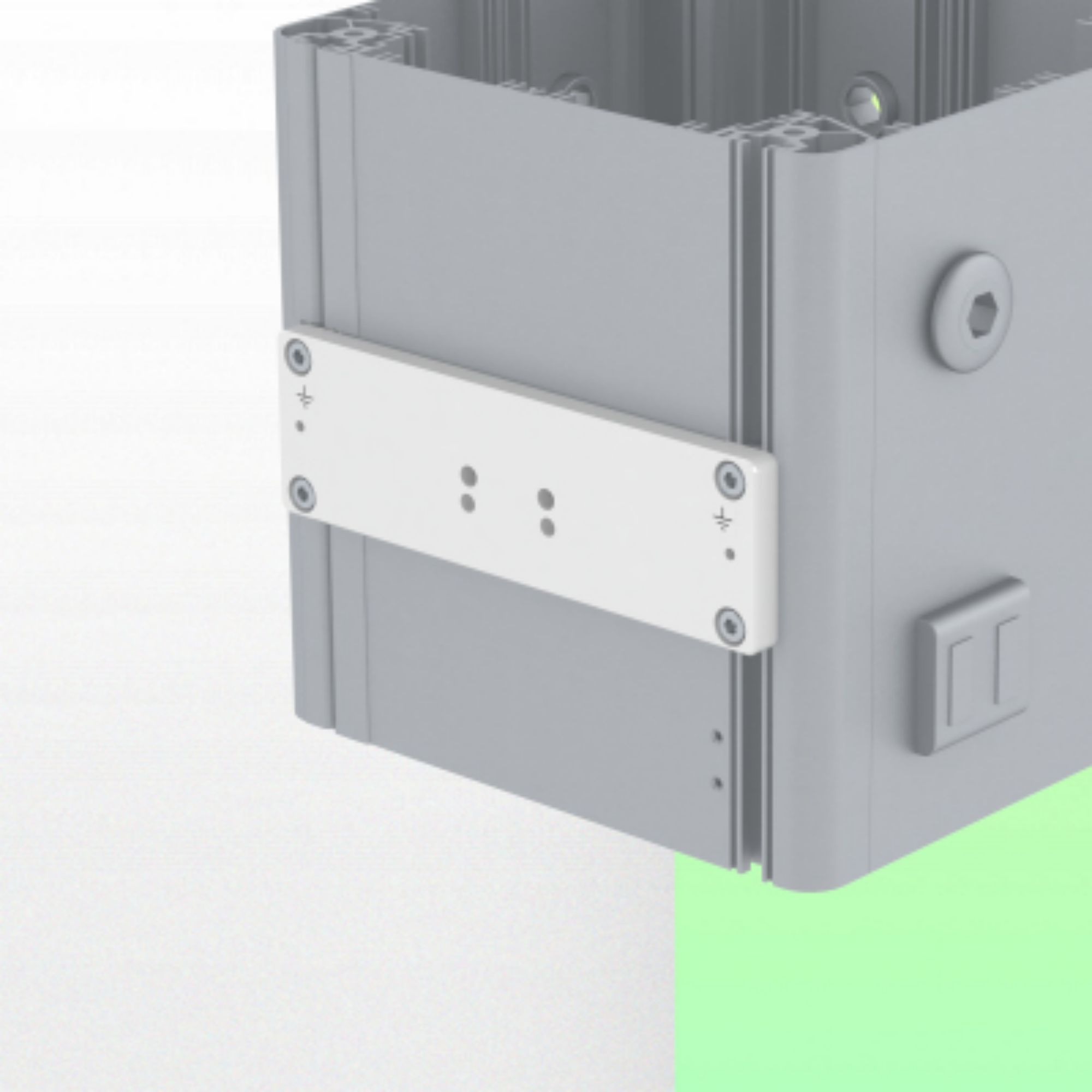

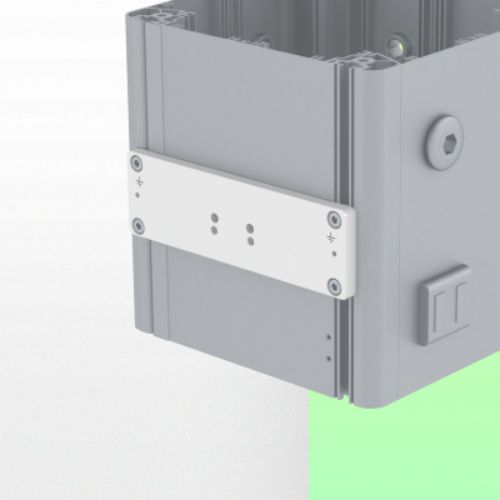

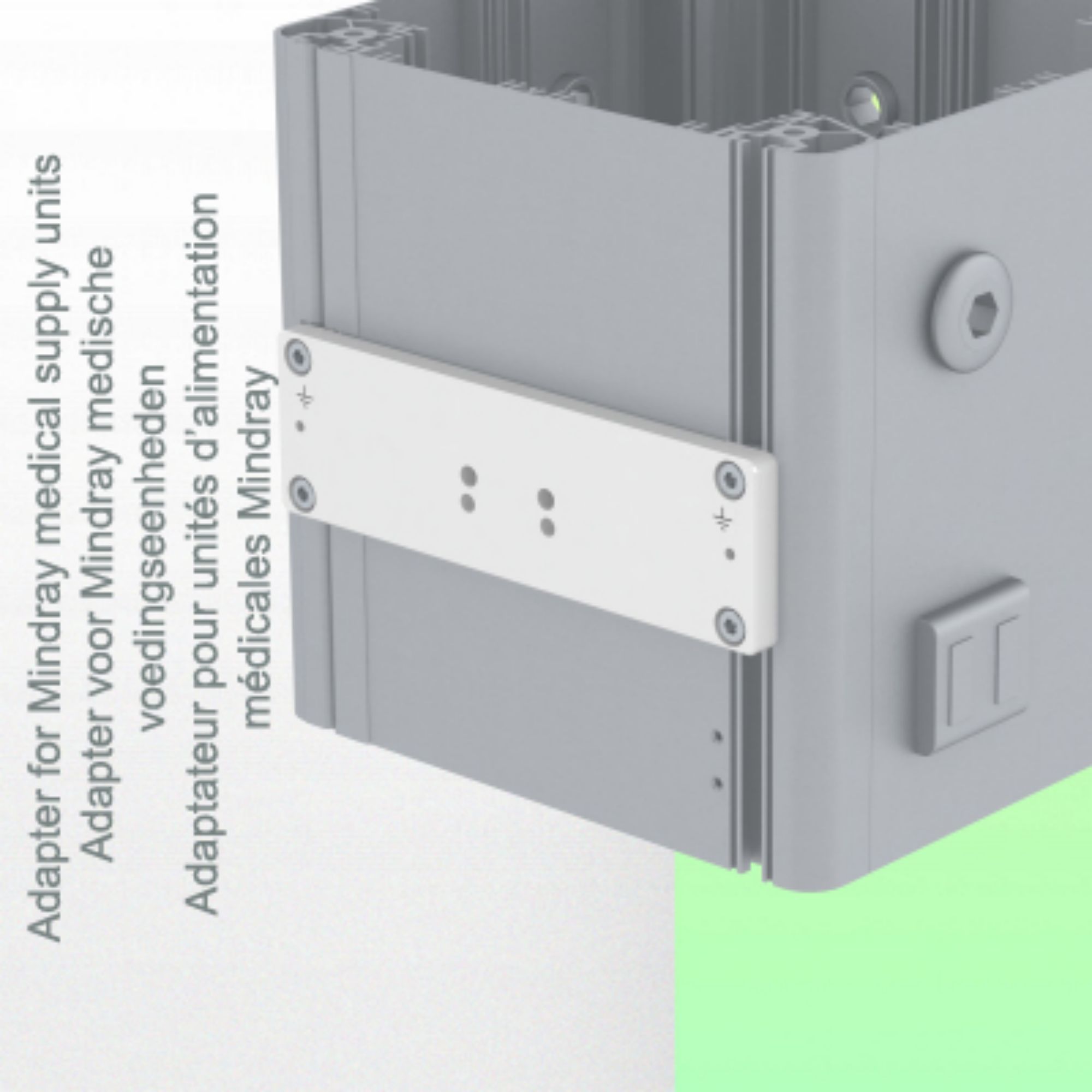

* This mini swivel arm simply attaches to the Mindray unit using the adapter and adjusts to the desired height and fixed.

* Rotating head.

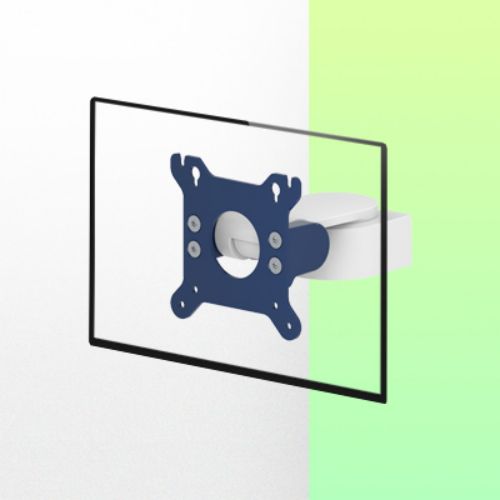

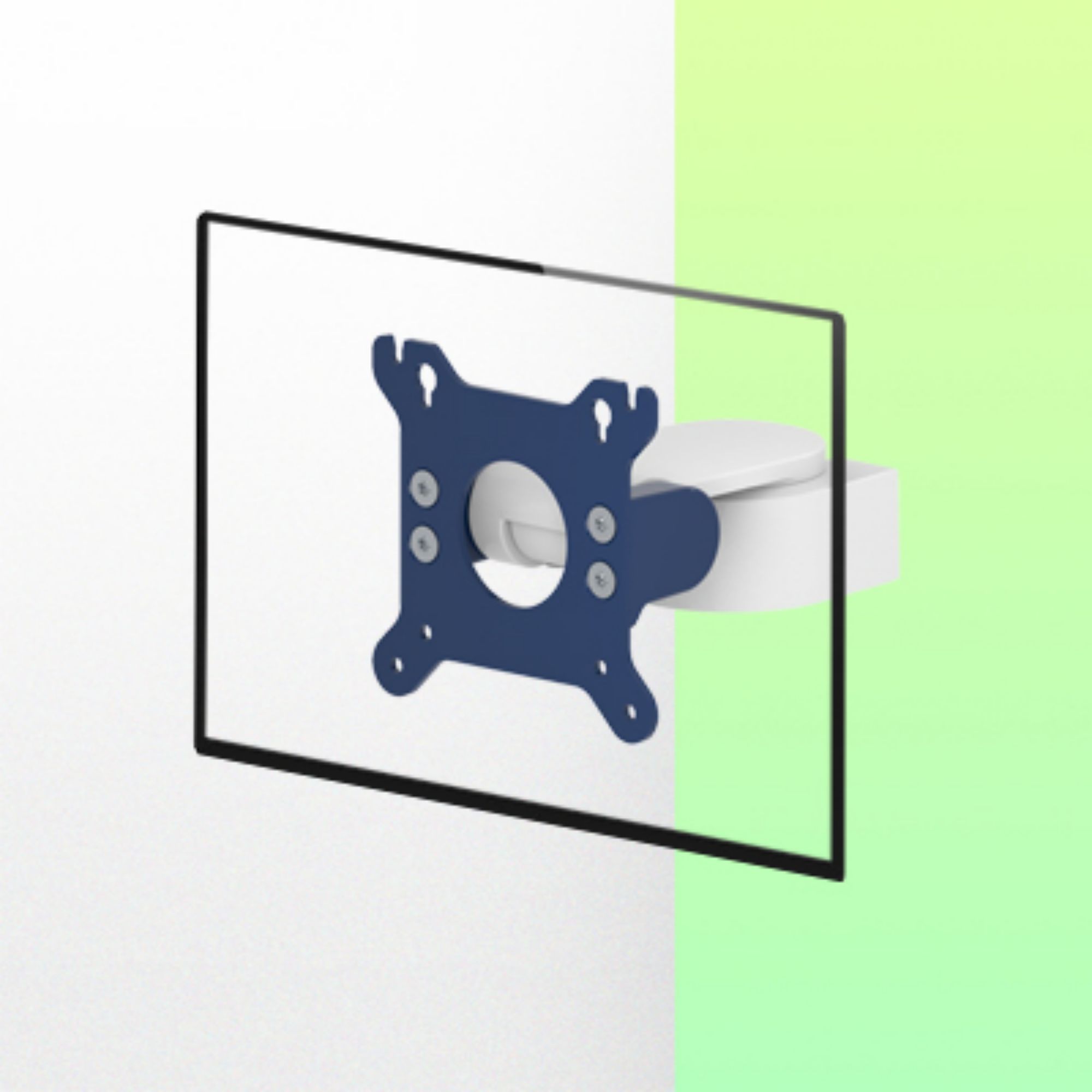

* The head of this mini arm complies with the standard for screen mounting: VESA MIS-D 75 mm and 100 mm.

* Compatible with screens weighing up to 18 Kg.

* Touch screen stability.

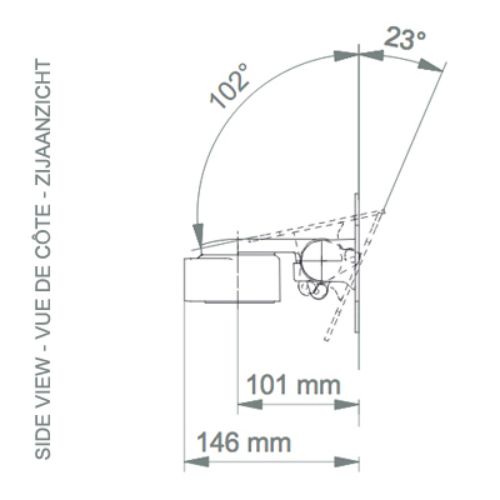

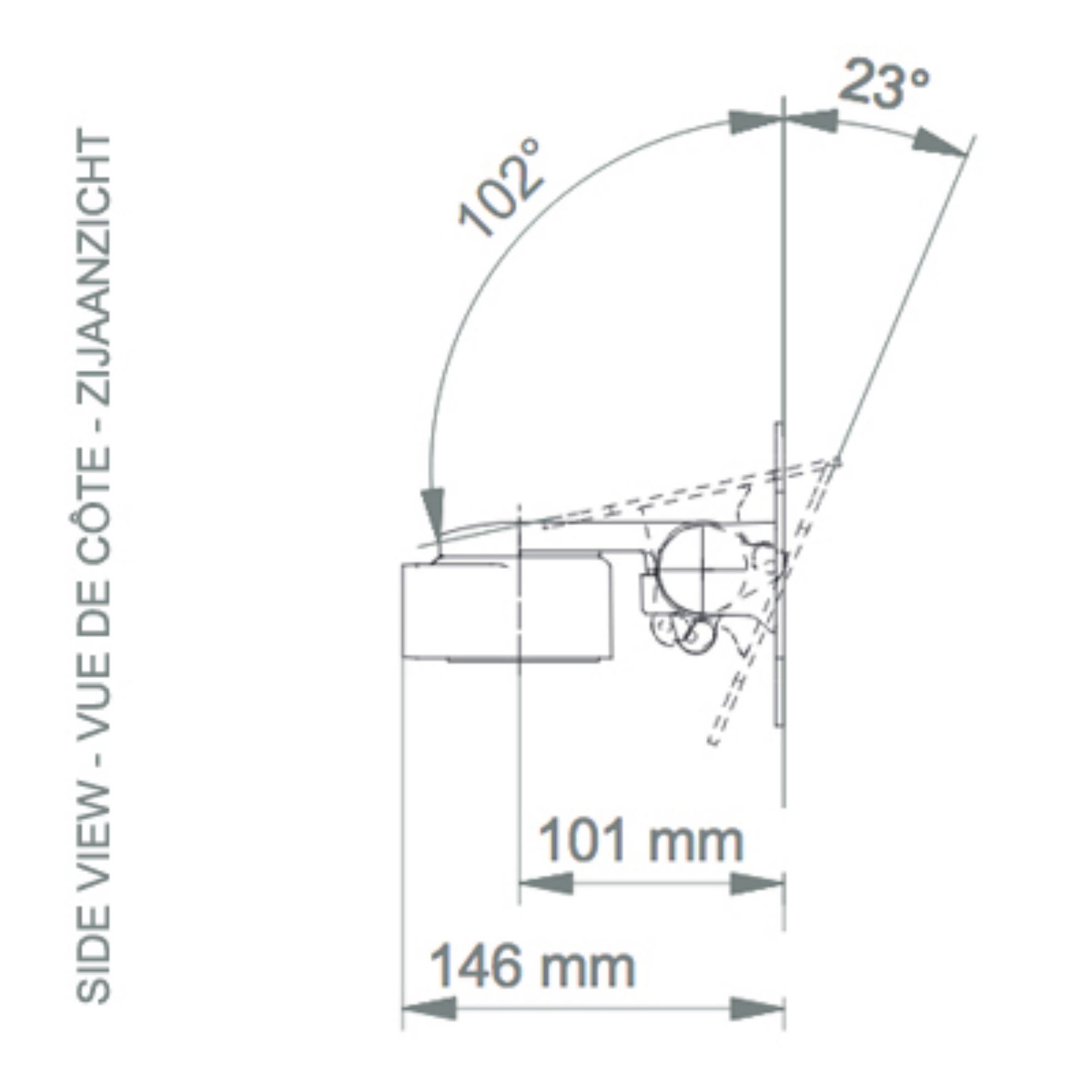

* Screen tilt: 50° down and 100° up

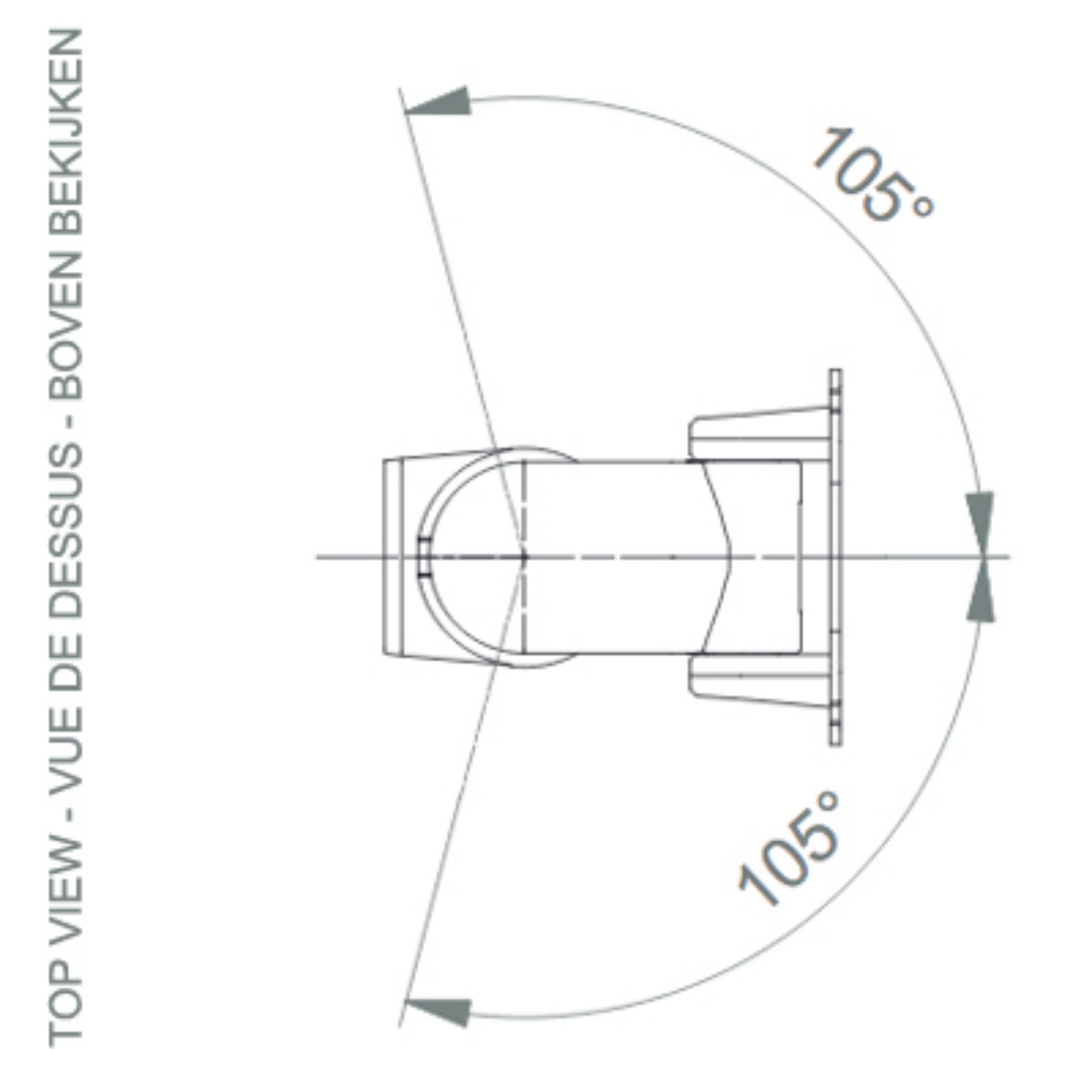

* Screen rotation: 105° right, 105° left.

* Total length 146 mm

* Compatible with multimedia terminals (TMM)

* Colour RAL 5013 cobalt blue and RAL 9016 traffic white

* Warranty: 5 years
