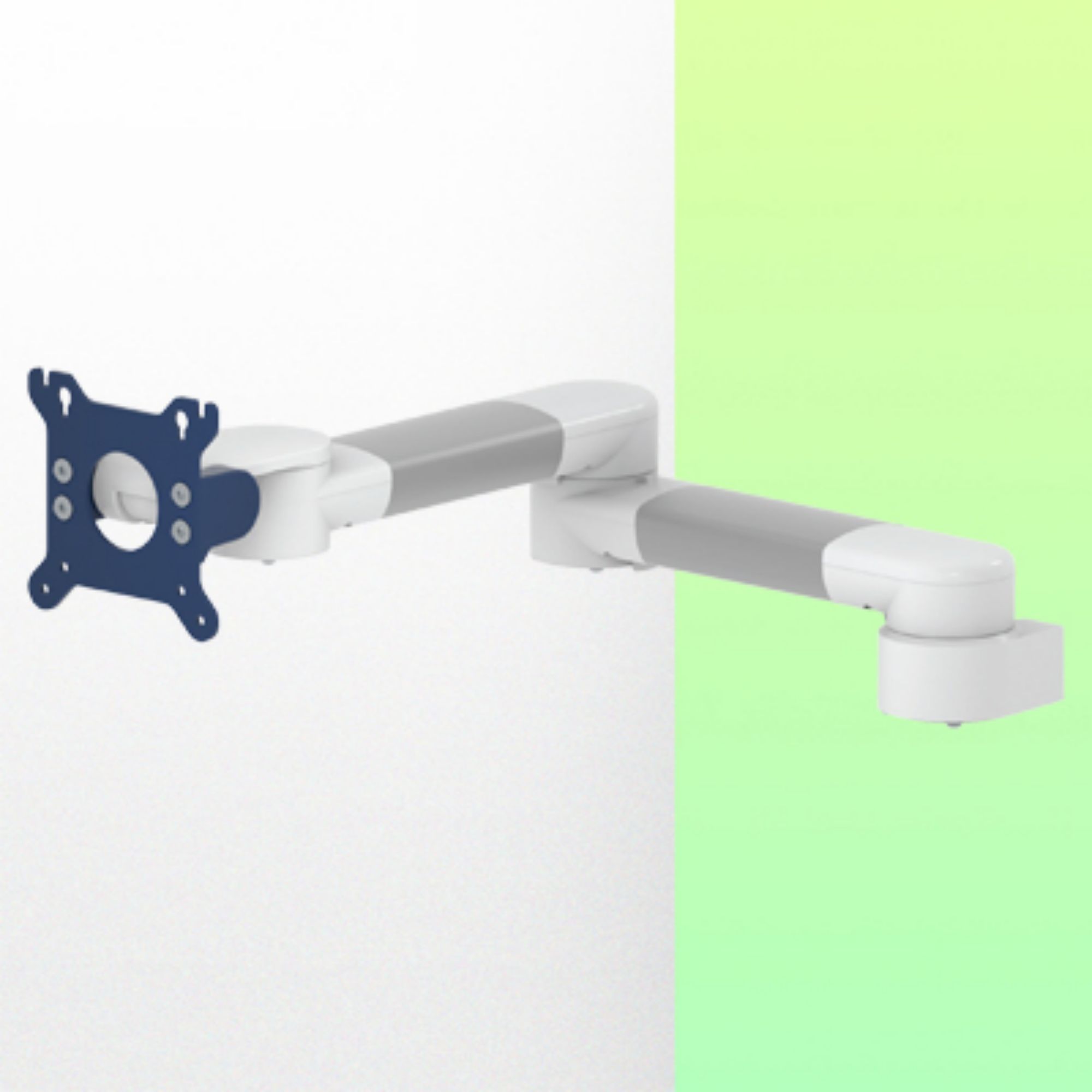

2 x 300 mm swivelling Horizontal Medical Arm for screen (light applications up to 8 Kg), wall mounting on vertical sliding rail

Product number: WM 222.120 - 2 x 300 mm swivelling Horizontal Medical Arm for screen (light applications up to 8 Kg),

wall mounting on vertical sliding rail

Product sheet PDF

The extension allows the swivel arm to go further into the room and closer to the patient or the intended work area.

It can be folded against its mounting point for clean storage when not in use.

Suitable for devices up to 8 kg.

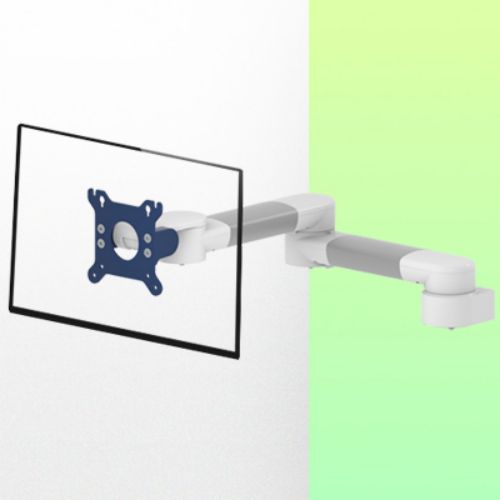

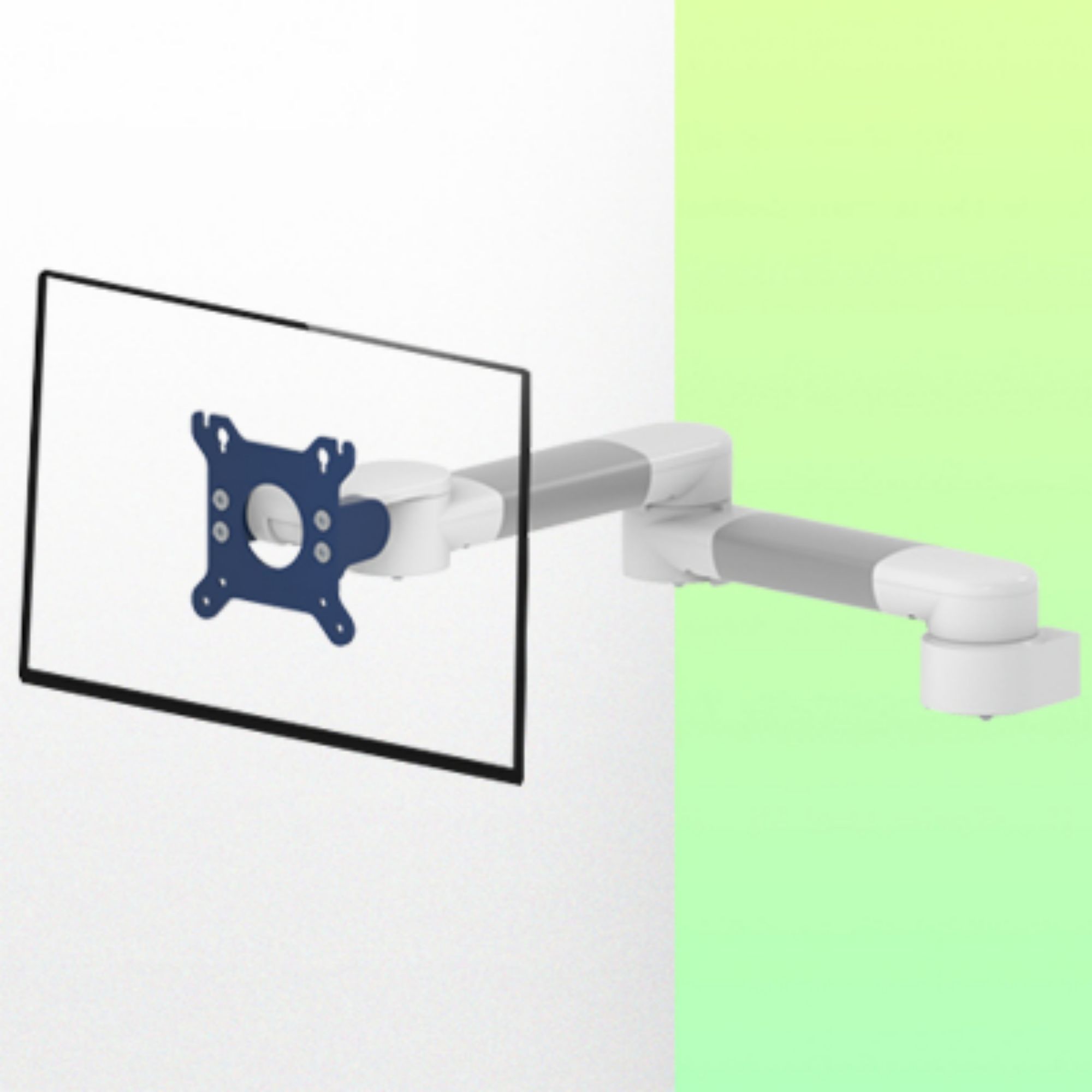

This 2 x 300 mm swivelling Horizontal Arm allows the LCD screen to be perfectly fixed, oriented and adjusted. It is coated with an anti-microbial agent for hygiene and cleaning down to the last detail.

Its modern design has been specially designed for healthcare environments.

Technical specifications:

* Built-in cable entry

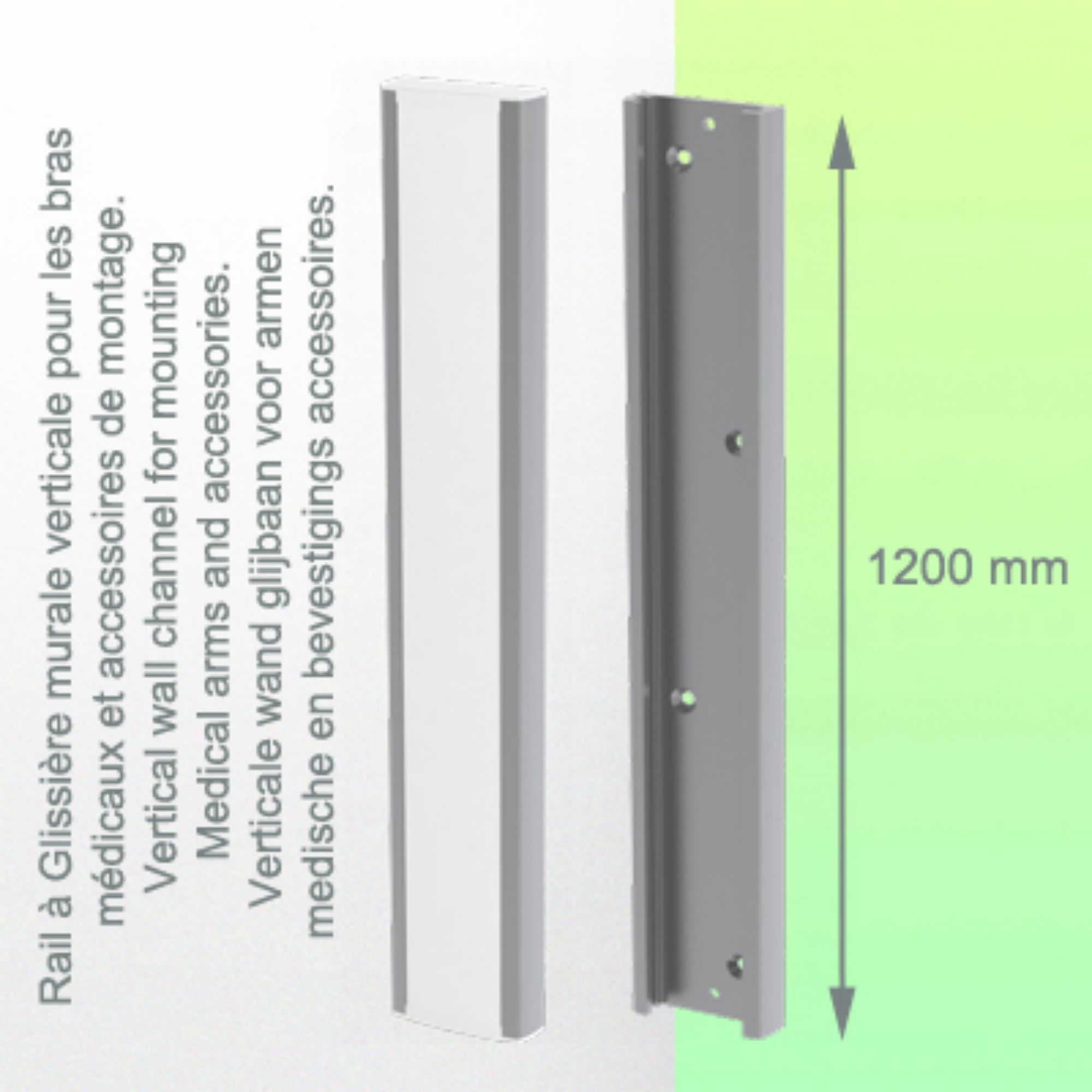

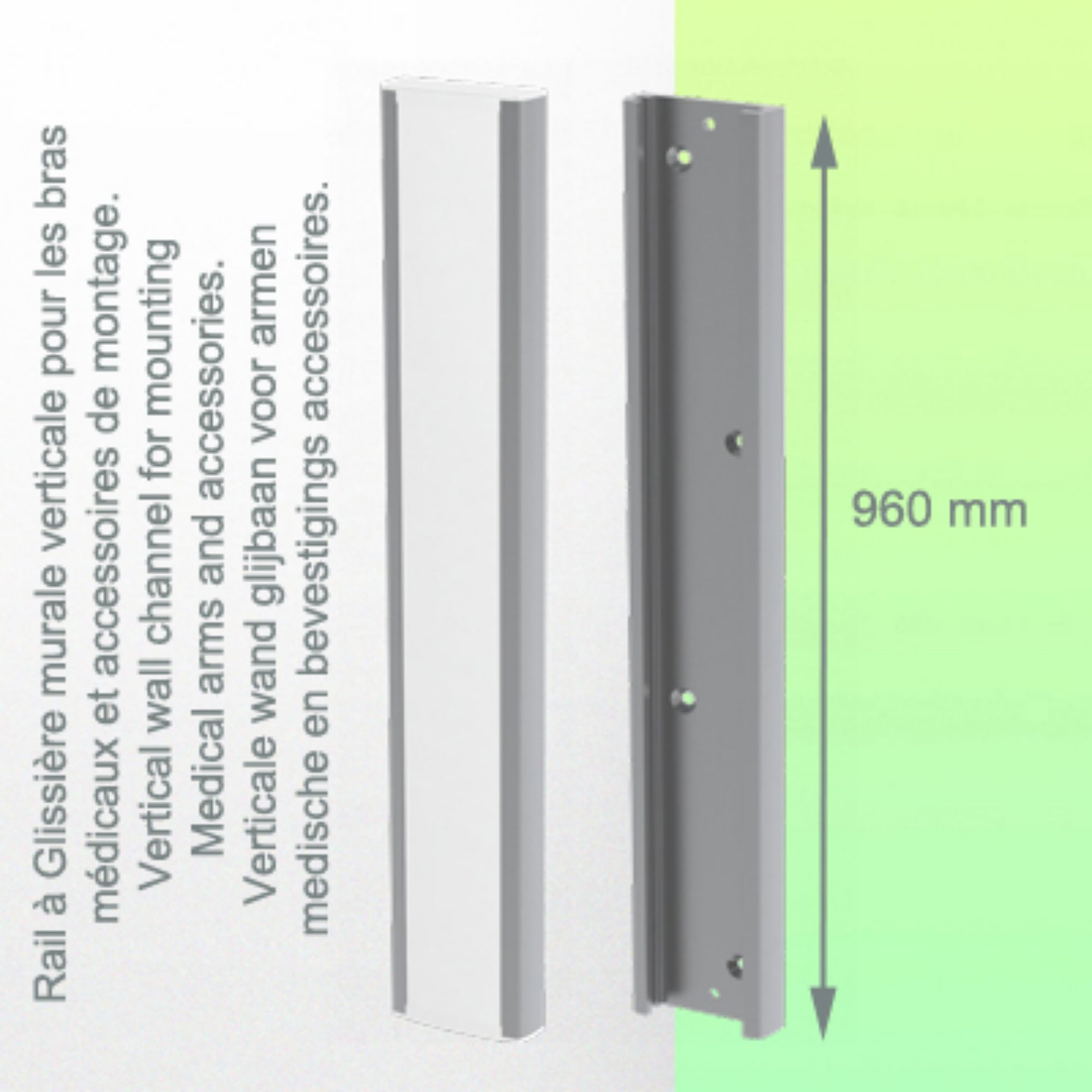

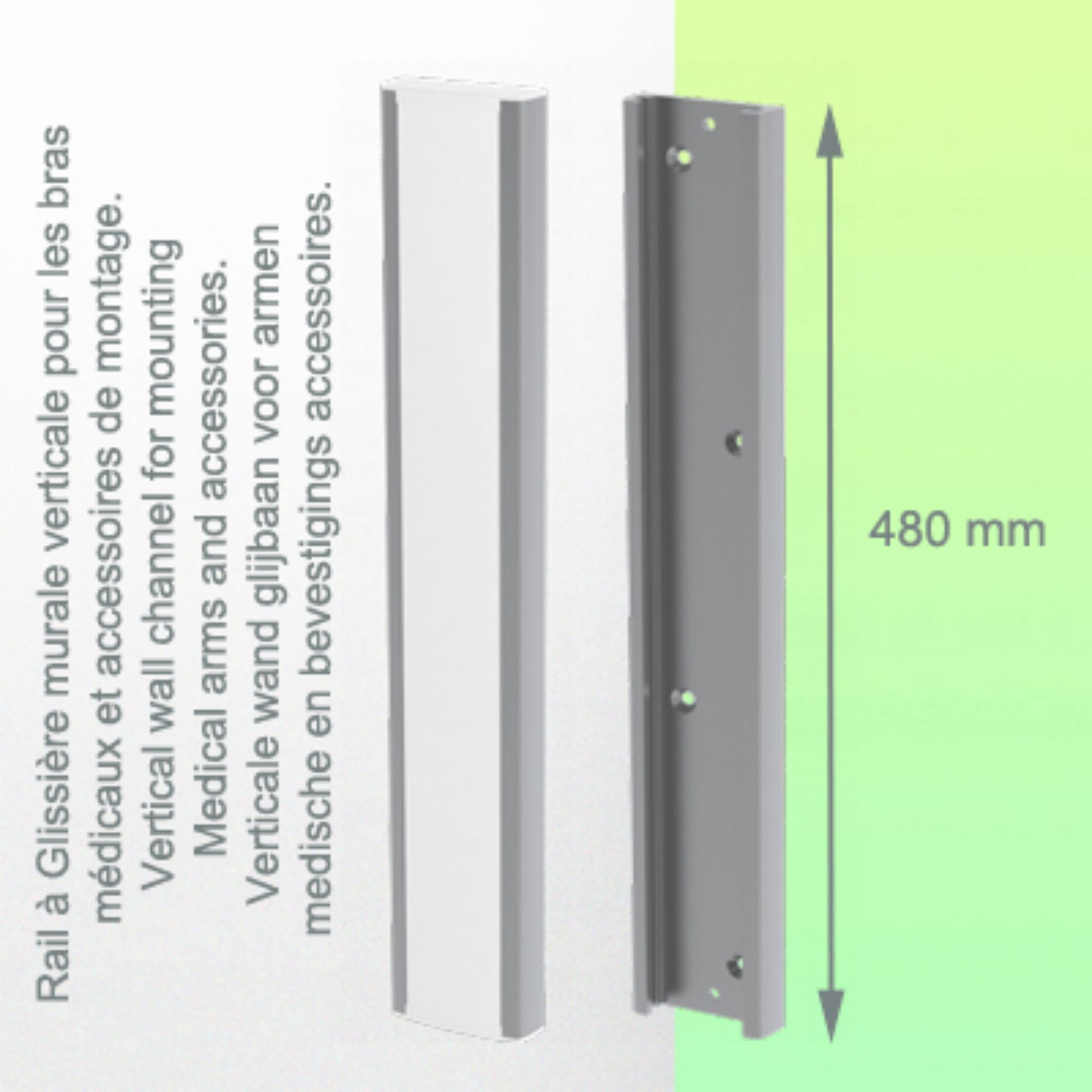

* Optional Vertical Wall Slide Rail mounting, available in various lengths
(480 mm - 720 mm - 960 mm - 1200 mm)

* These wall rails can be easily cut to size.

* All cables also run in the wall rail.

(See rail options below)

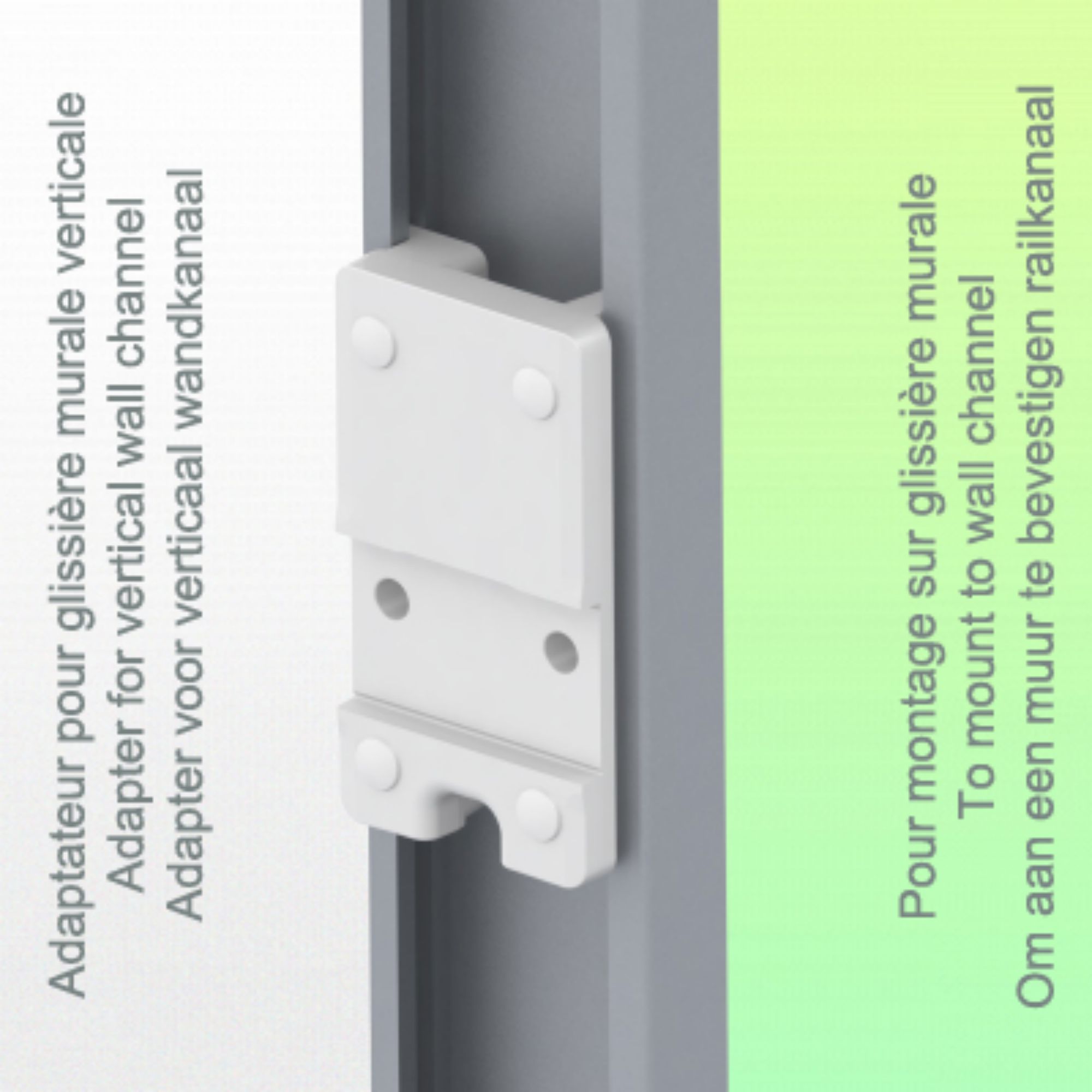

* This 2 x 300 mm swivelling Horizontal Arm simply slides into the wall rail and then adjusts to the desired height and secures.

* It has no height adjustment.

* The head of this arm complies with the VESA MIS-D 75 mm and 100 mm screen mounting standard.

* Compatible with screens weighing up to 8 kg

* Touch screen stability.

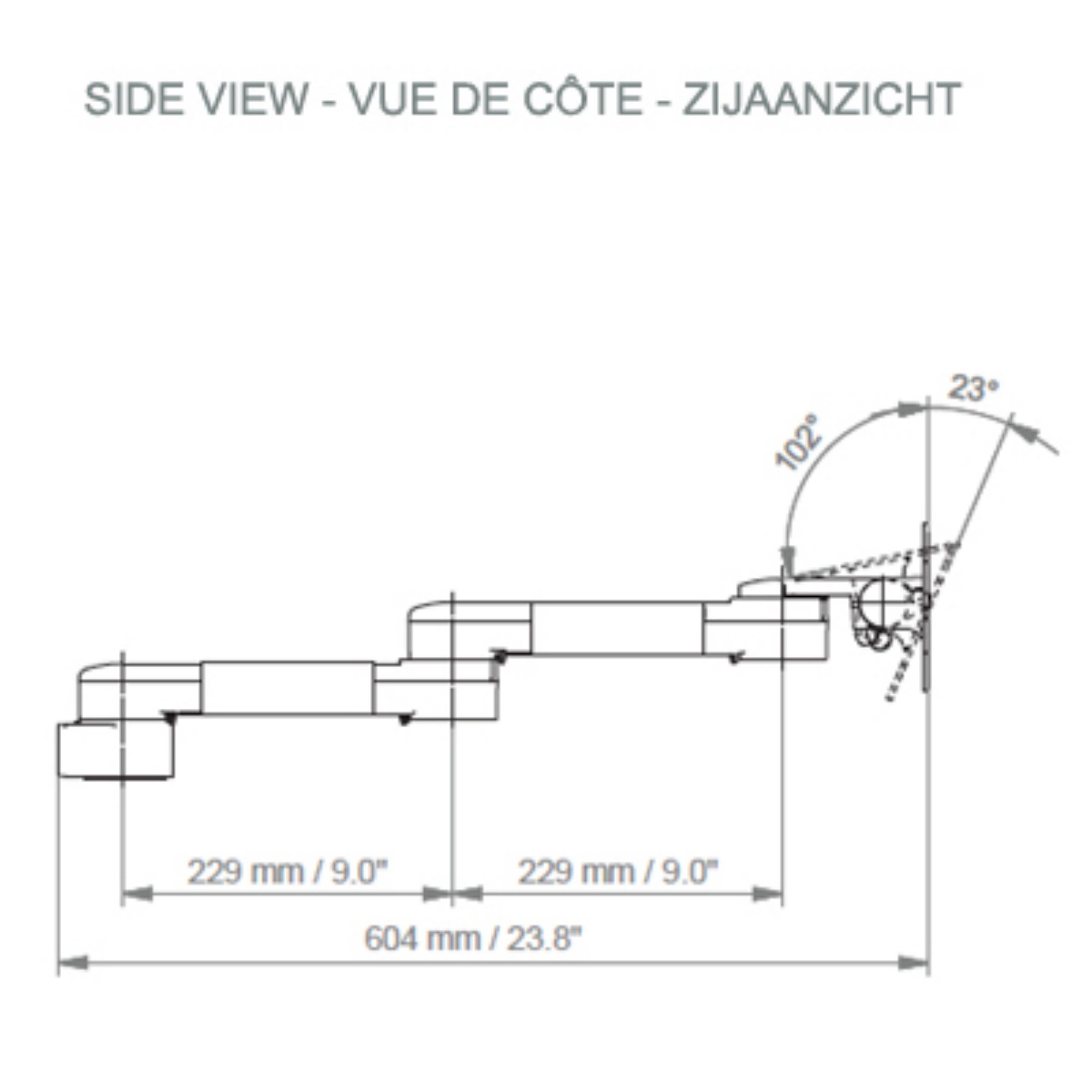

* Screen tilt: 50° down and 100° up

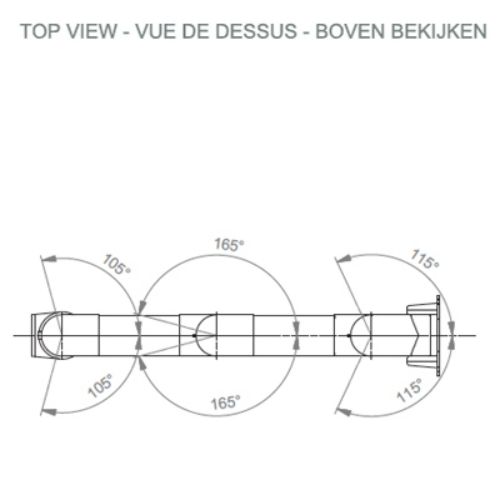

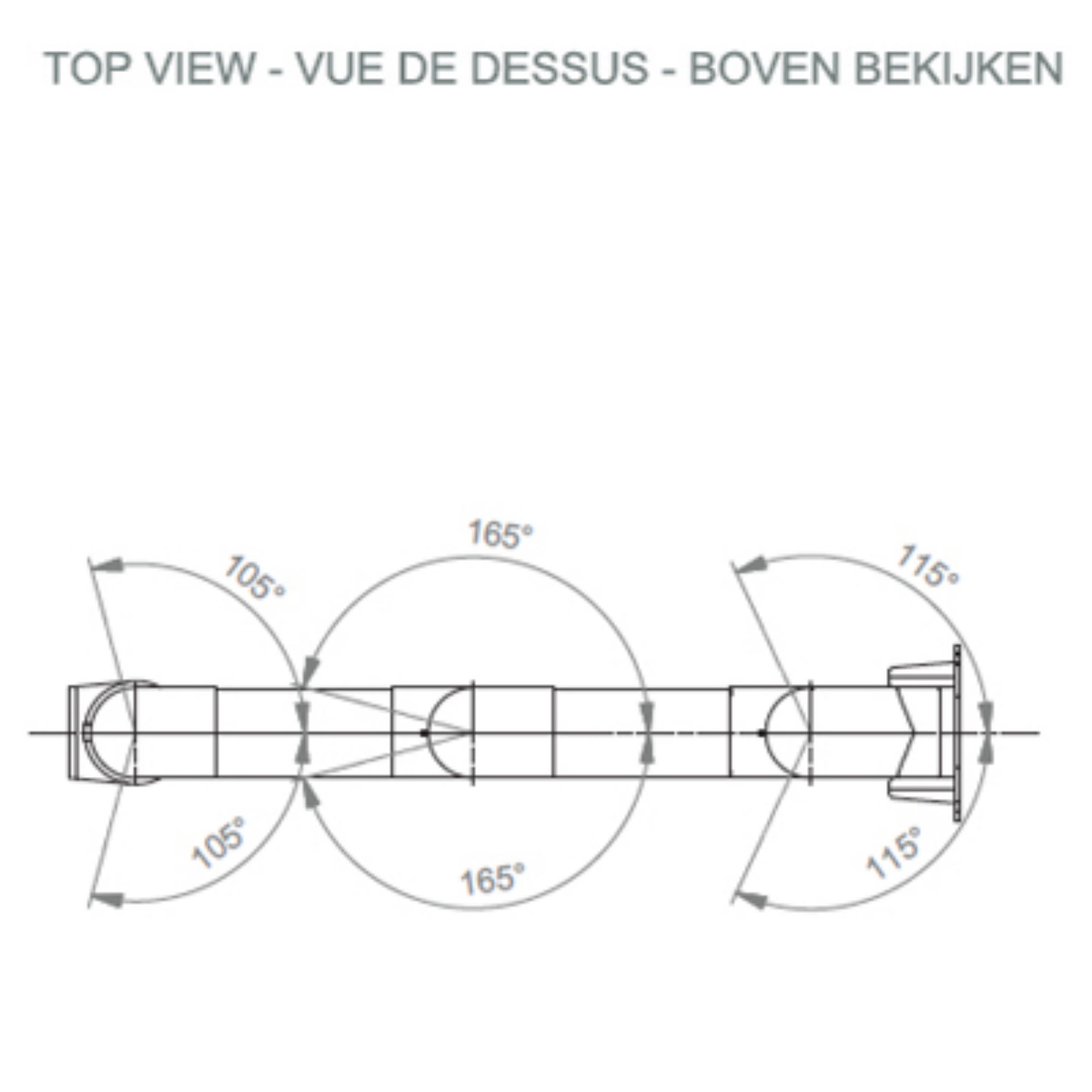

* Screen rotation: 110° right, 110° left.

* Total length 604 mm

* Colour RAL 5013 cobalt blue and RAL 9016 traffic white

* Warranty: 5 years.
