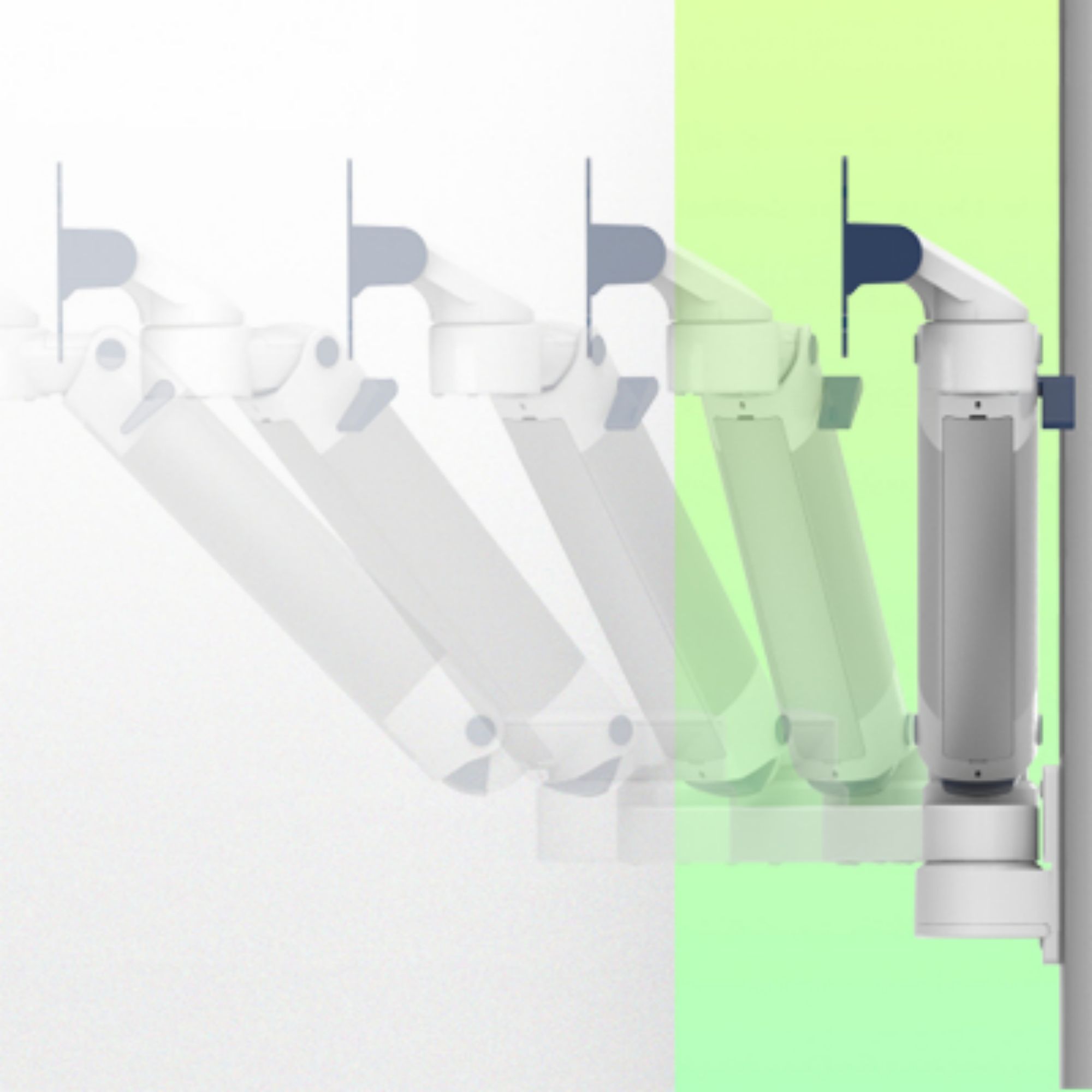

Height-adjustable medical arm, length 300 mm,

wall-mounted on a vertical sliding rail.

Supported weight balancing range from 2 to 5 Kg.

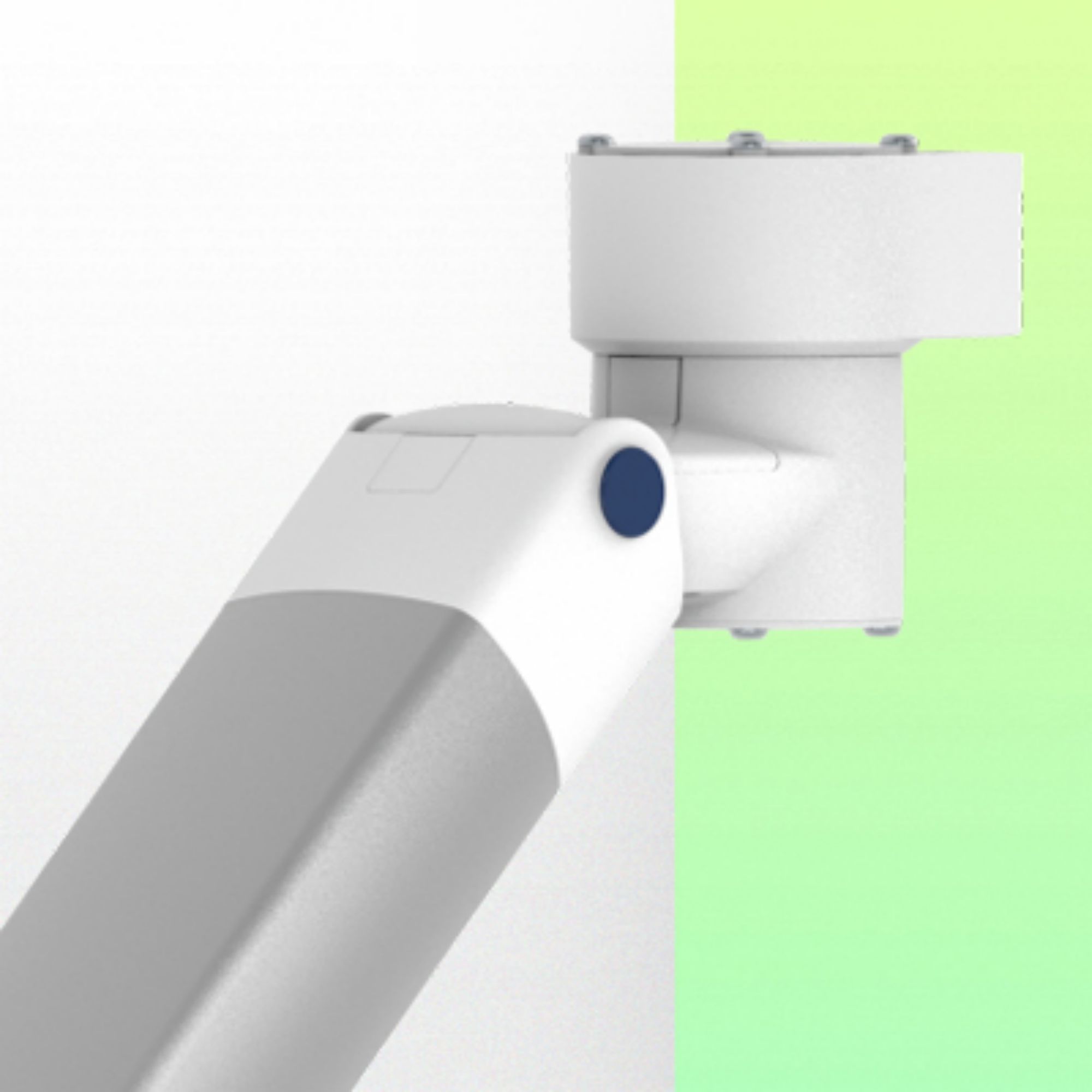

Overhead mount

Product number: WM 222.240 - Height-adjustable medical arm,

length 300 mm, wall-mounted on a vertical sliding rail.

Supported weight balancing range from 2 to 5 Kg.

Overhead mount

Product sheet PDF

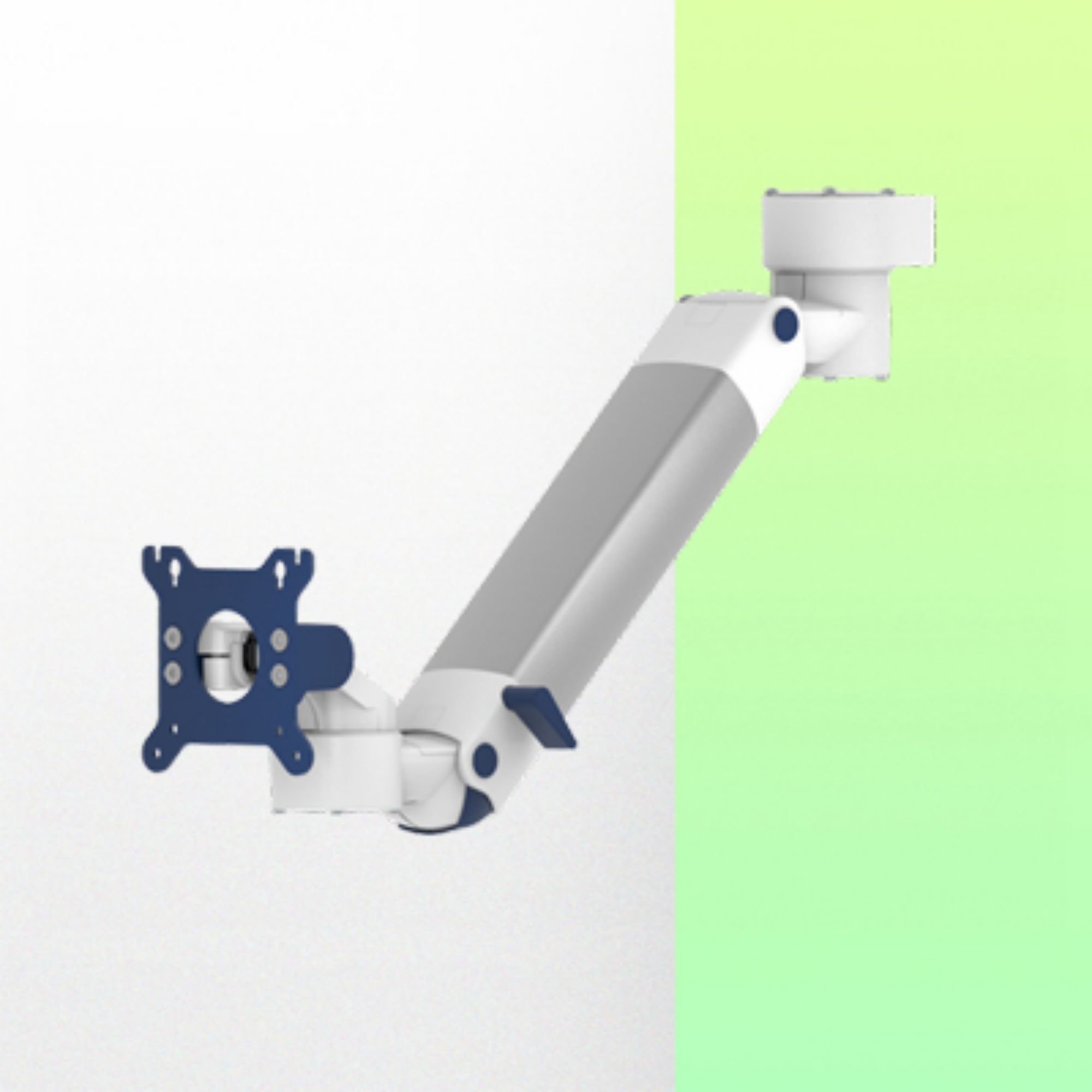

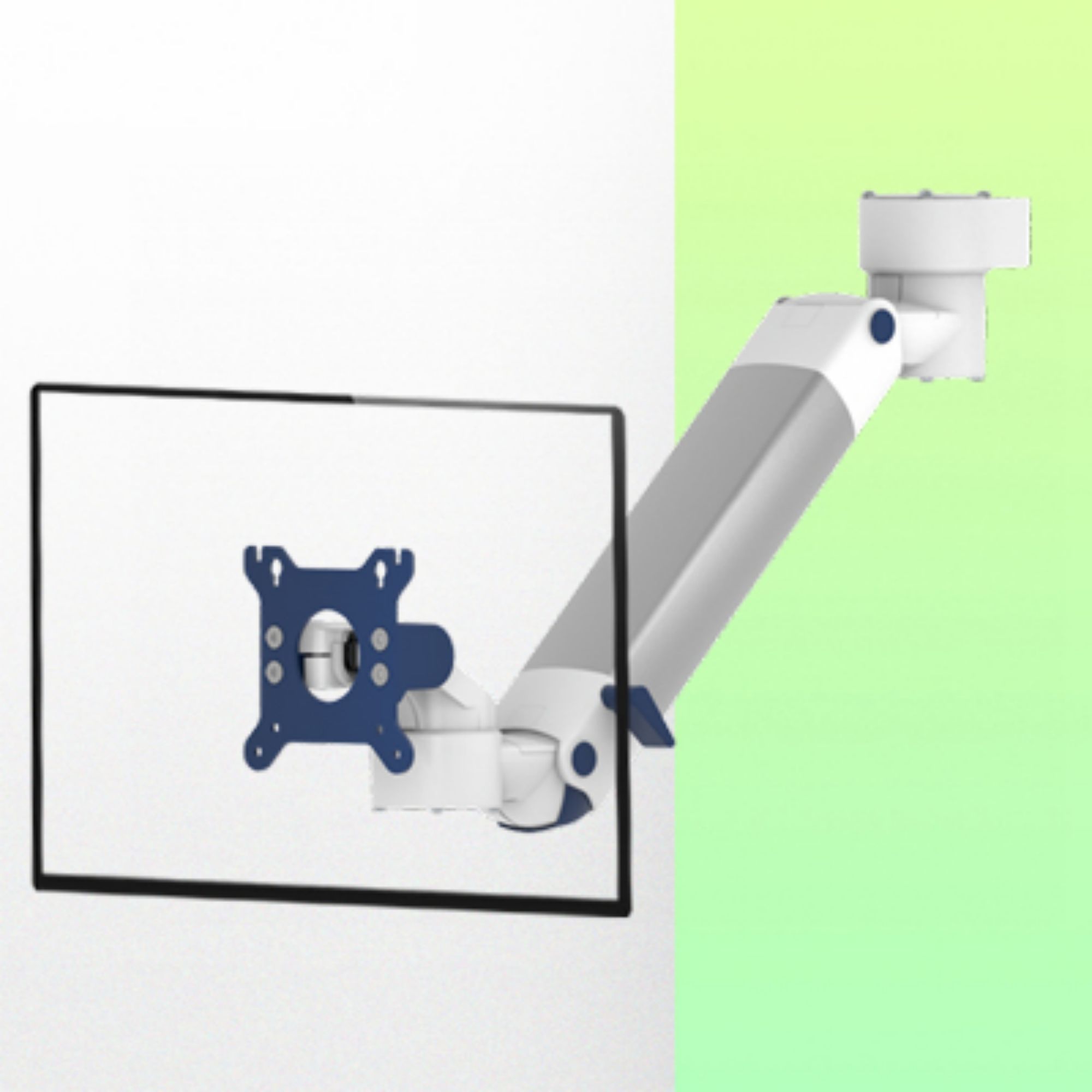

This mini medical arm with a short 100 mm pivot allows the LCD monitor to be fixed, oriented and adjusted perfectly. It is coated with an anti microbial agent to ensure hygiene and cleaning in every detail. Its modern design has been specially developed for healthcare environments.

Technical specifications:

* Integrated cable channel

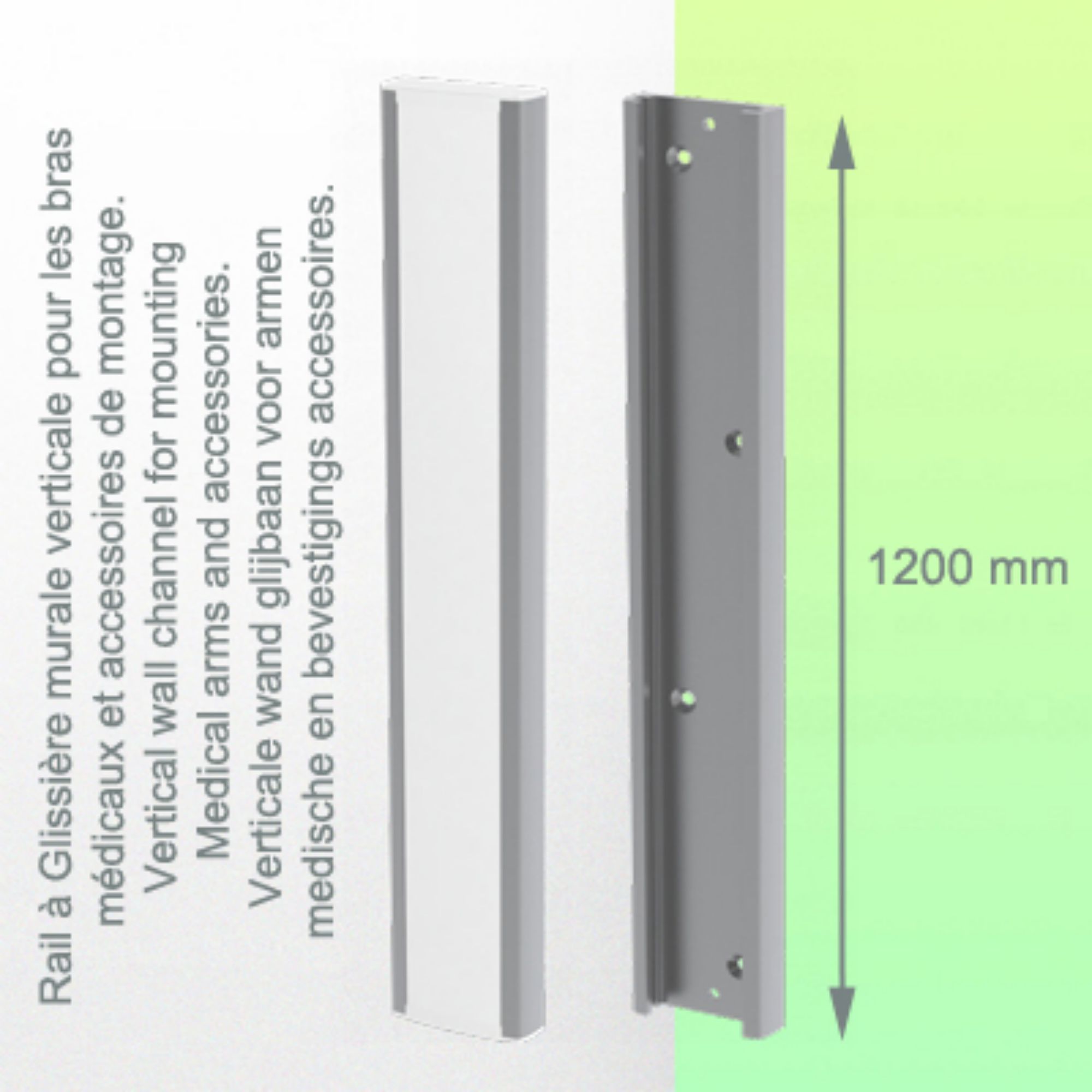

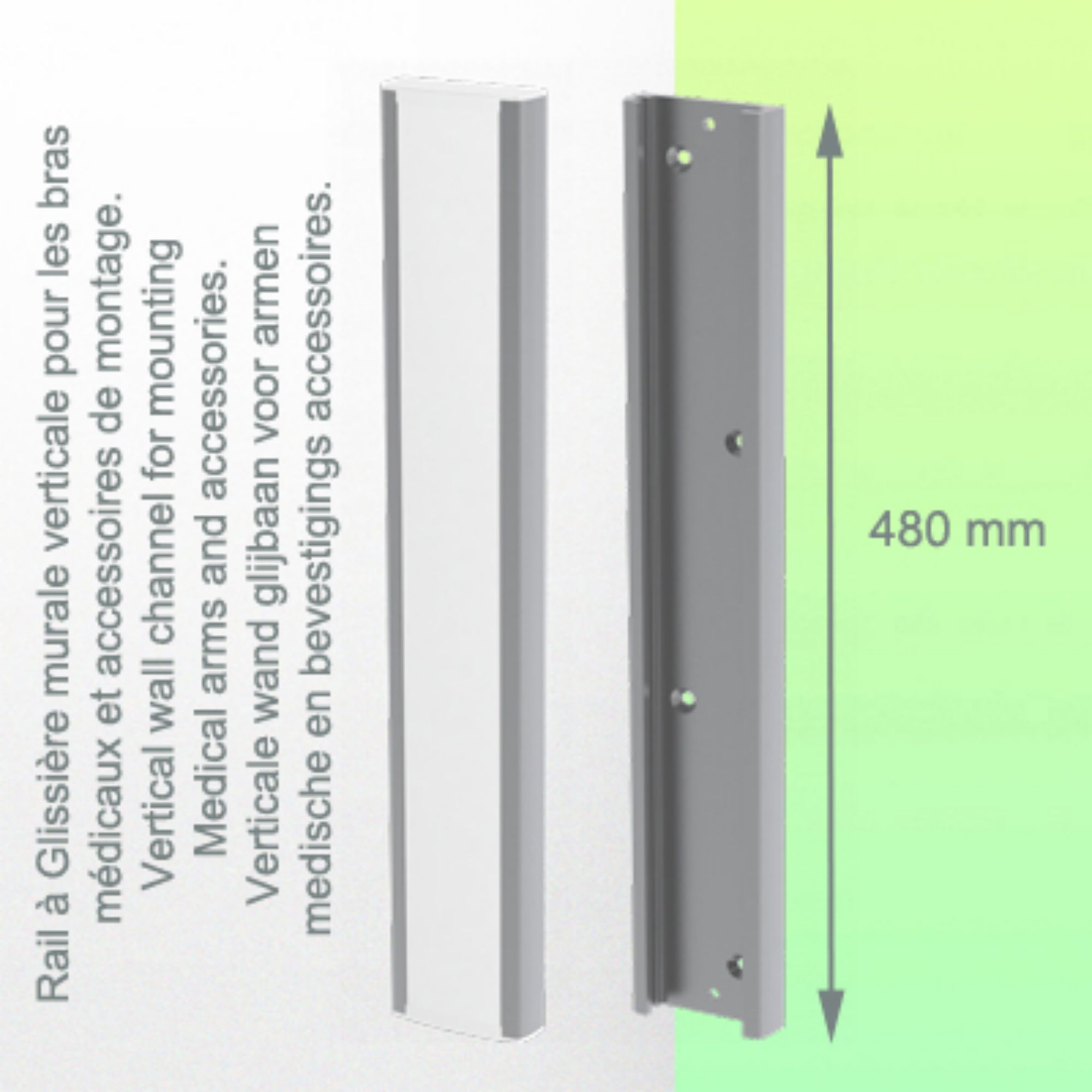

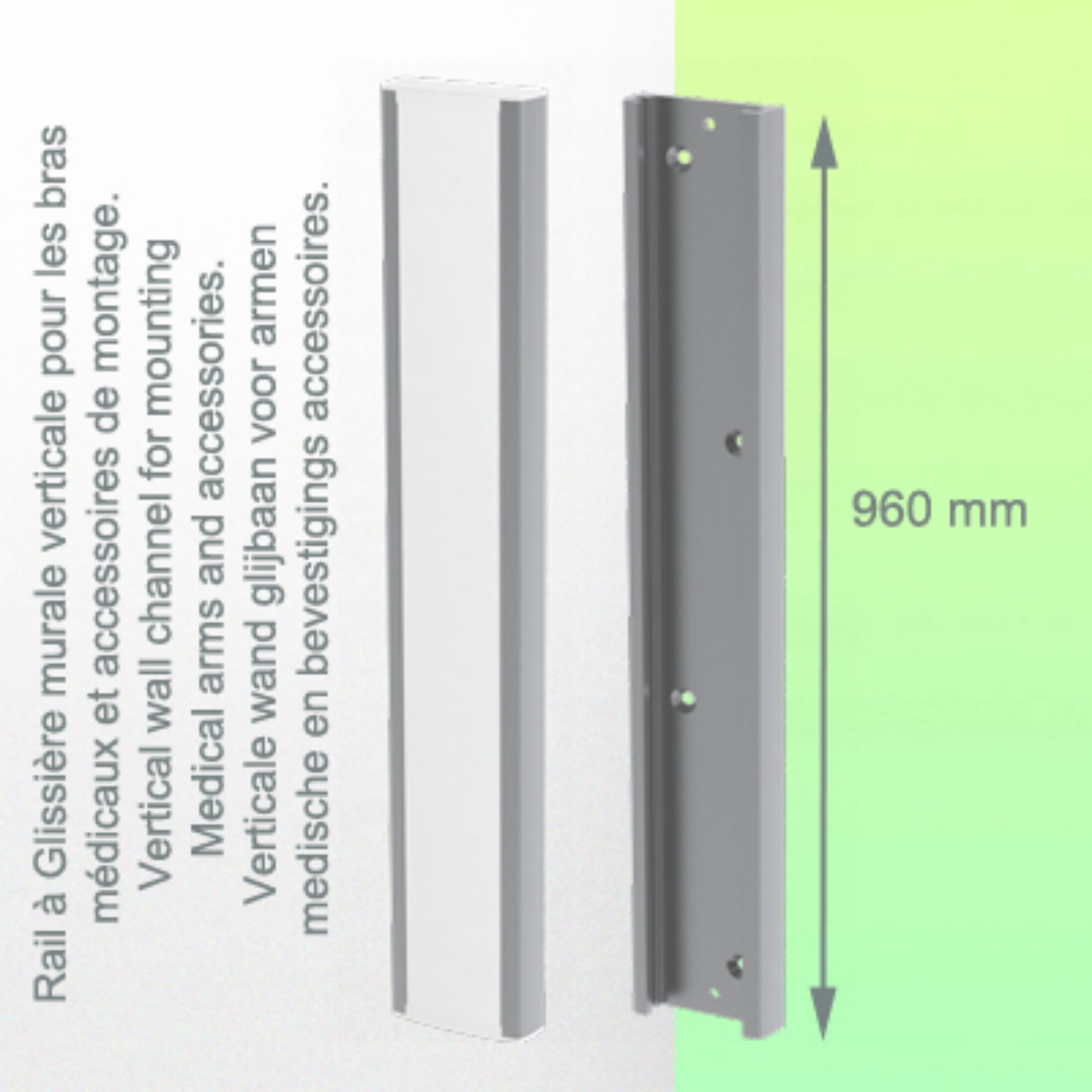

* Optional Vertical Wall Rail mounting, of which several lengths are available
(480 mm - 720 mm - 960 mm - 1200 mm)

* These wall rails can be easily cut to size. All cables are also routed through the wall rail.

(See rail options below)

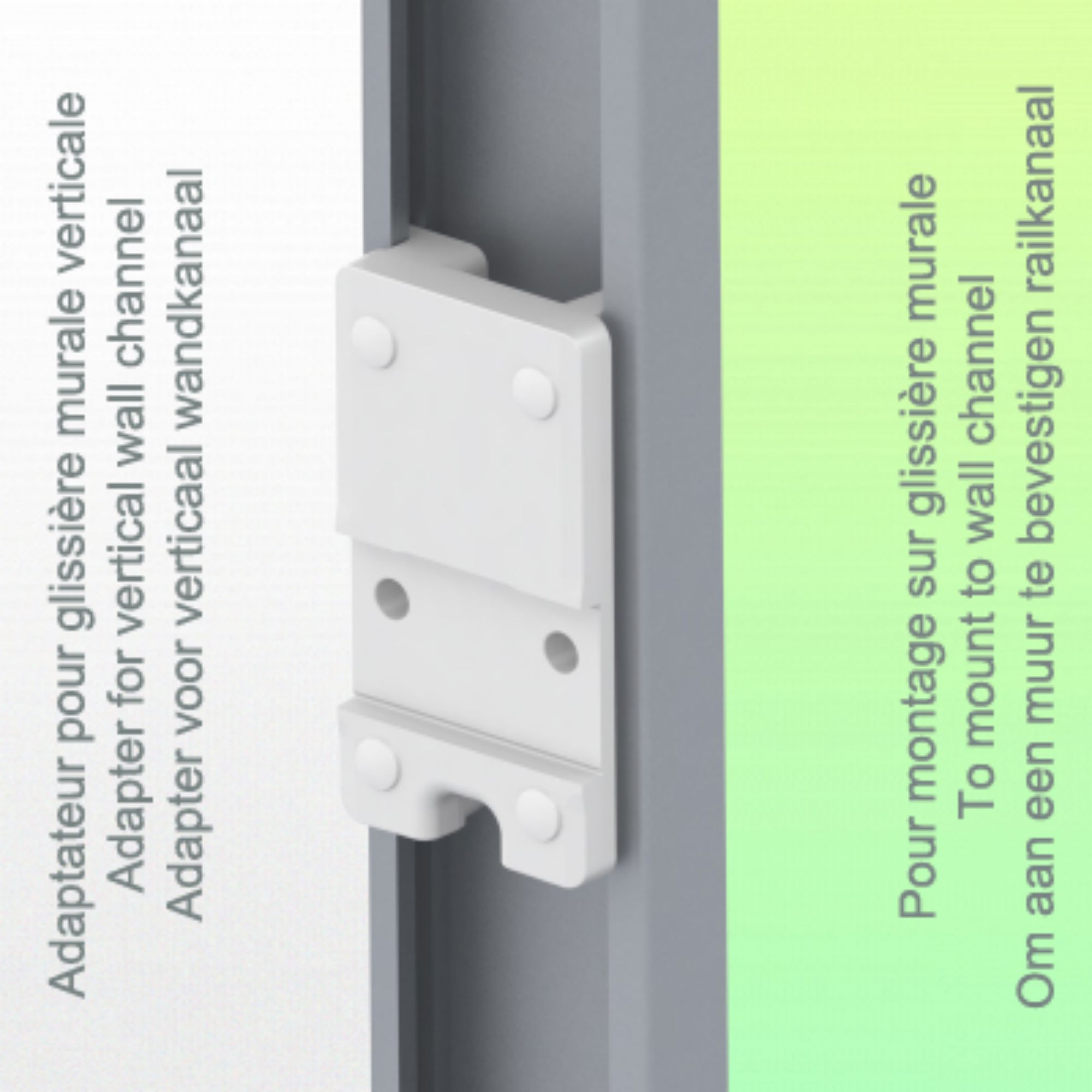

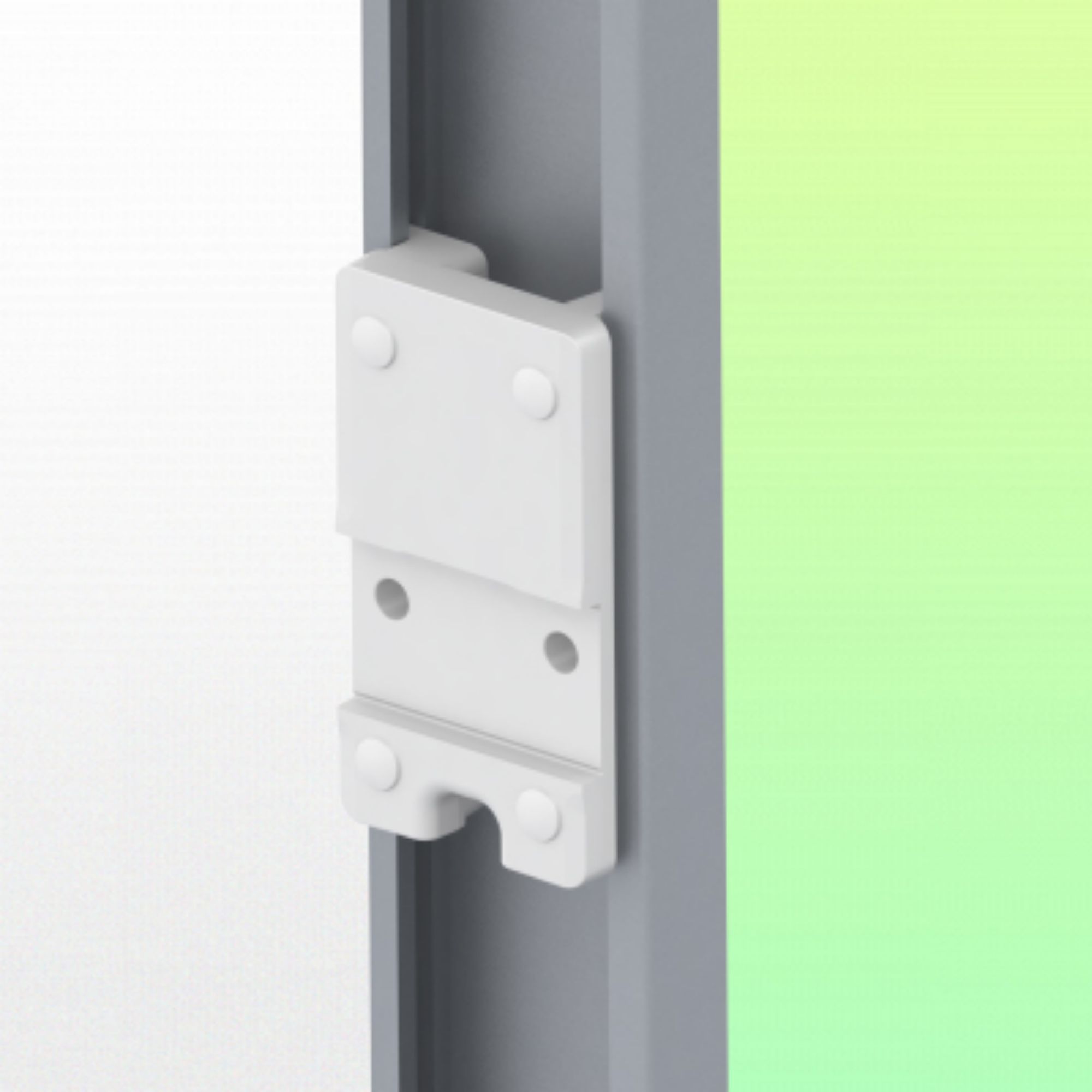

* This mini swivel arm simply slides into the wall rail and then adjusts to the required height and is fixed. Rotating Head.

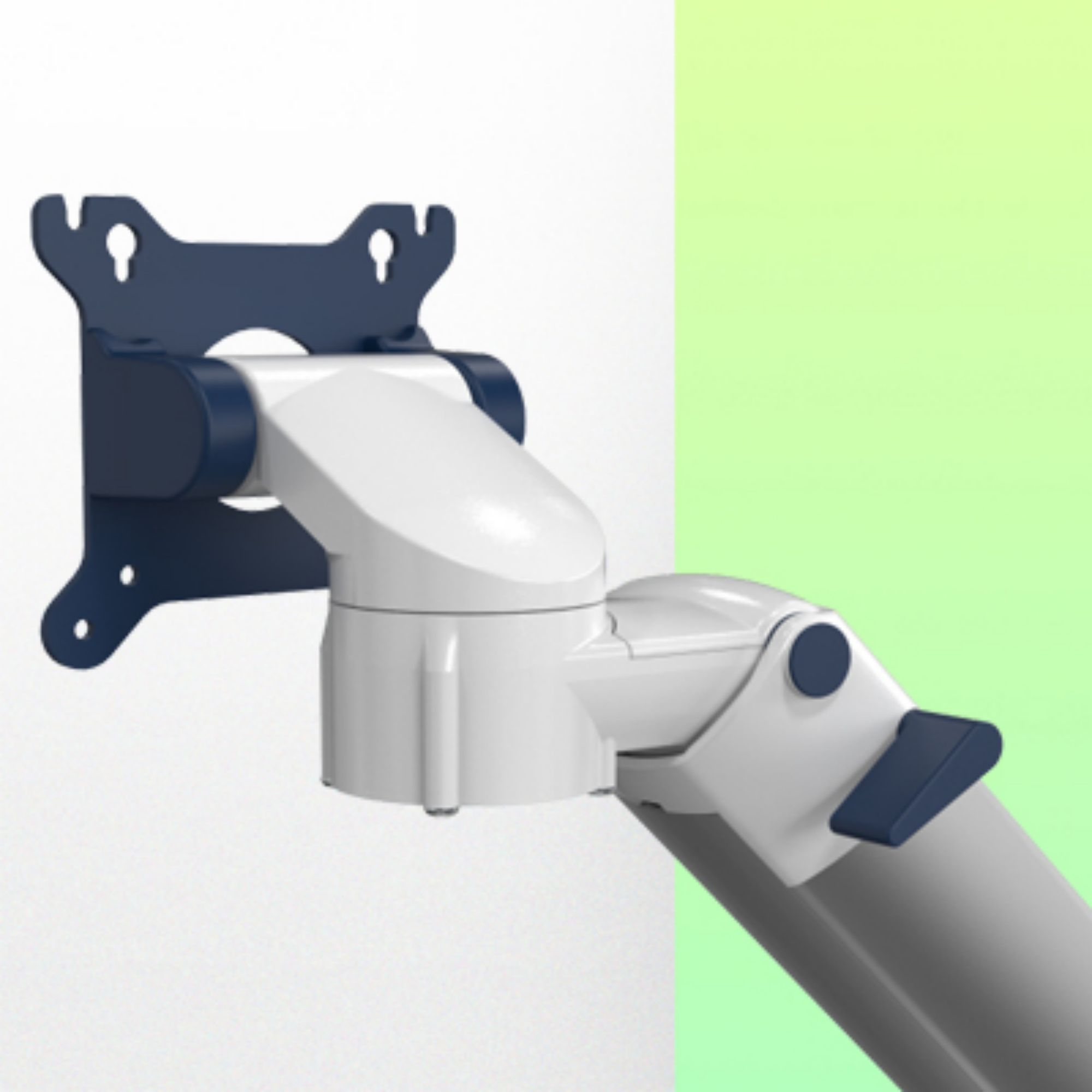

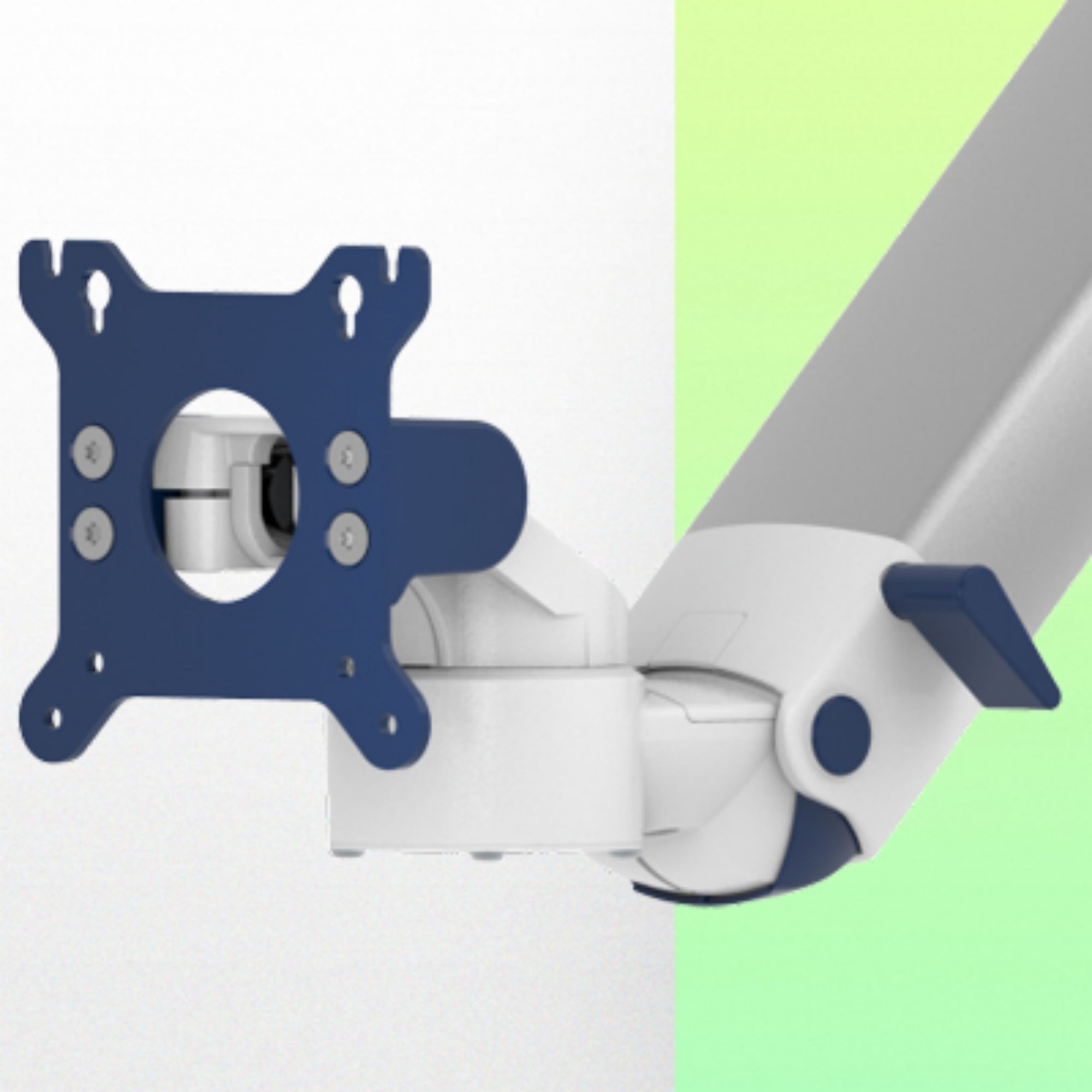

* The head of this mini arm conforms to the VESA MIS-D 75mm and 100mm screen mounting standards

* Compatible with screens weighing up to 18 kg.

* Stability of the touch screen.

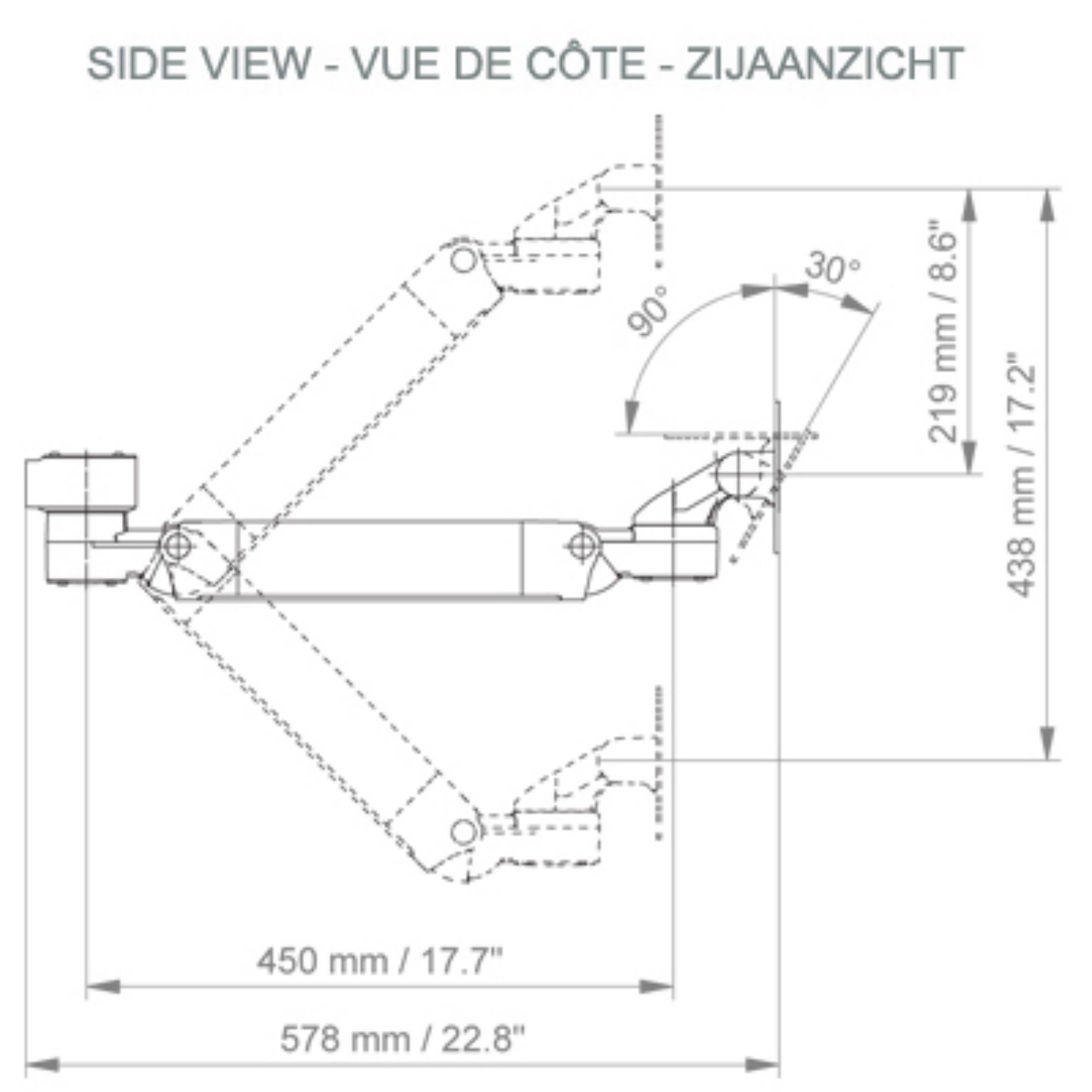

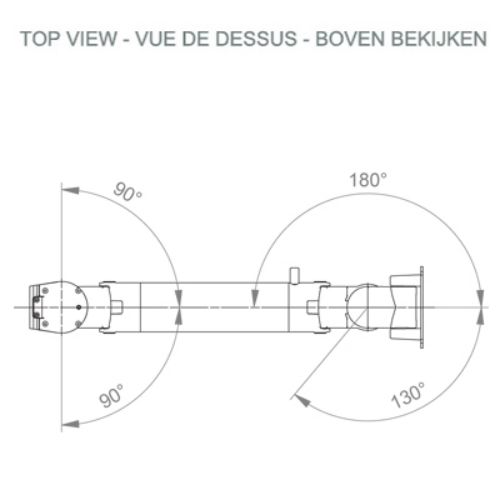

* Screen tilt: 50° down and 100° up

* Screen rotation: 105° to the right, 105° to the left.

* Total length 146 mm

* Compatible with multimedia terminals (TMM)

* Colour: RAL 5013 cobalt blue and RAL 9016 traffic white

* Warranty: 5 years
