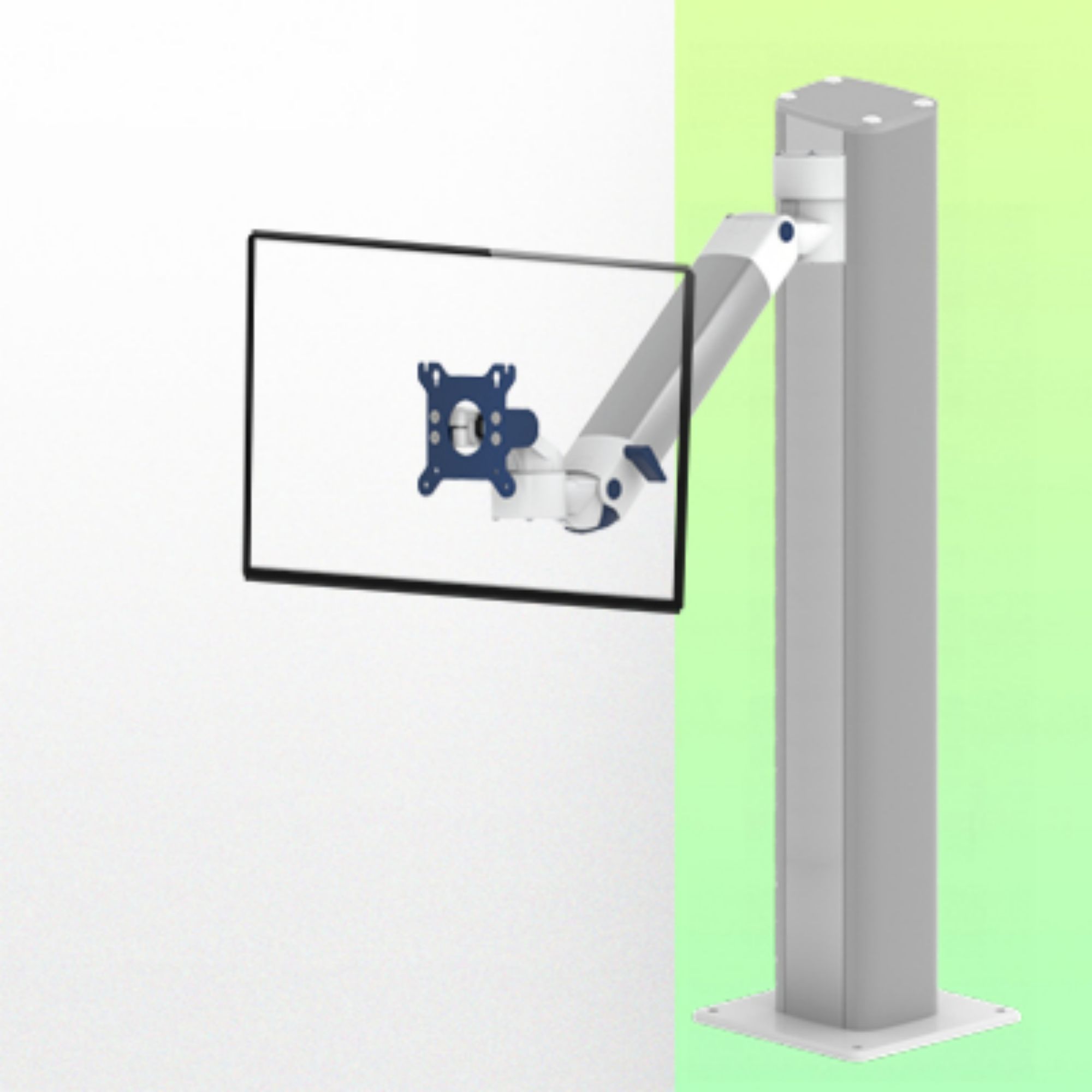

Height-adjustable medical arm, length 300 mm,

floor or ceiling column mount.

Supported weight balancing range from 16 to 22 Kg.

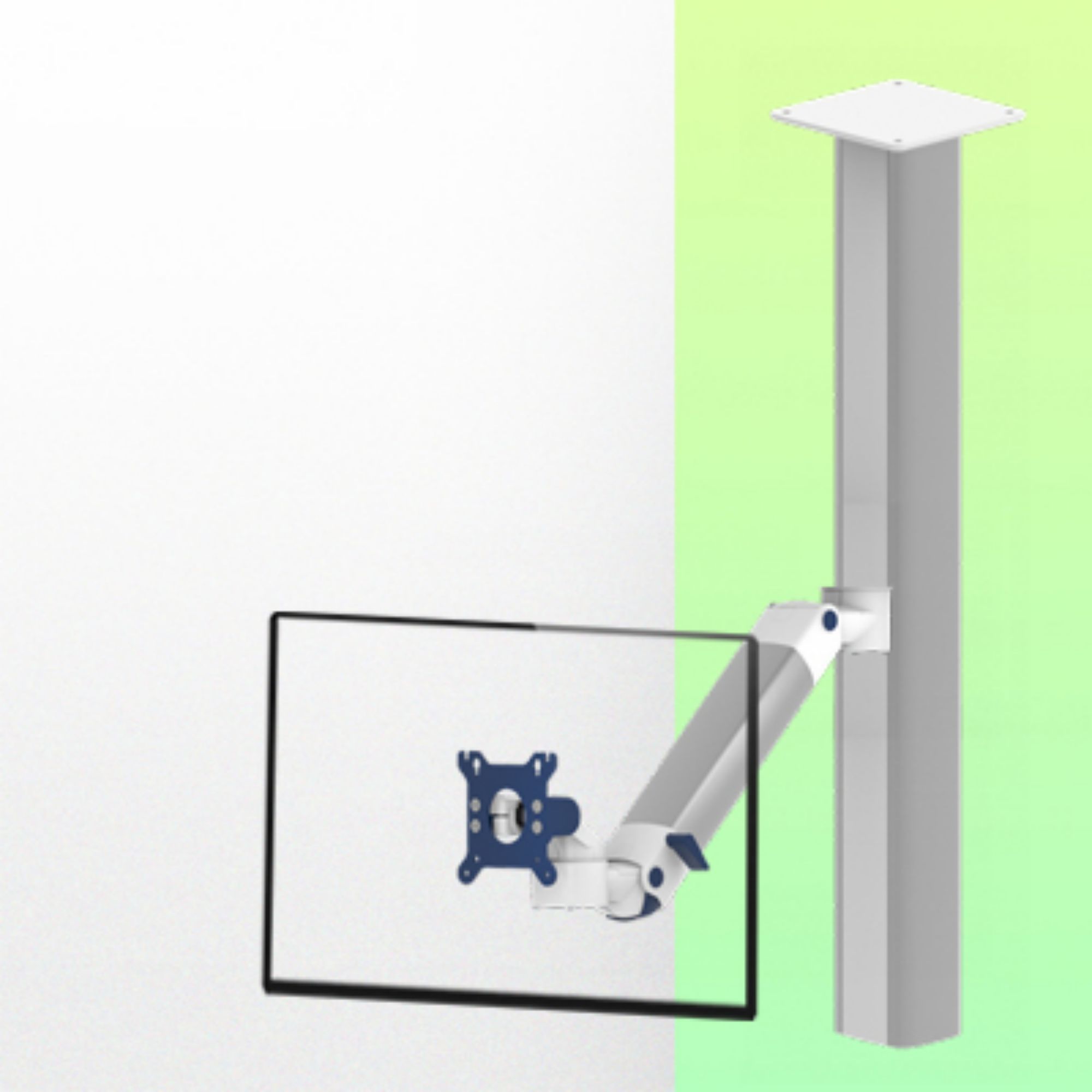

Overhead mount

Product number: WM 222.244C - Height-adjustable medical arm, length 300 mm,

floor or ceiling column mount.

Supported weight balancing range from 16 to 22 Kg.

Overhead mount

Product sheet PDF

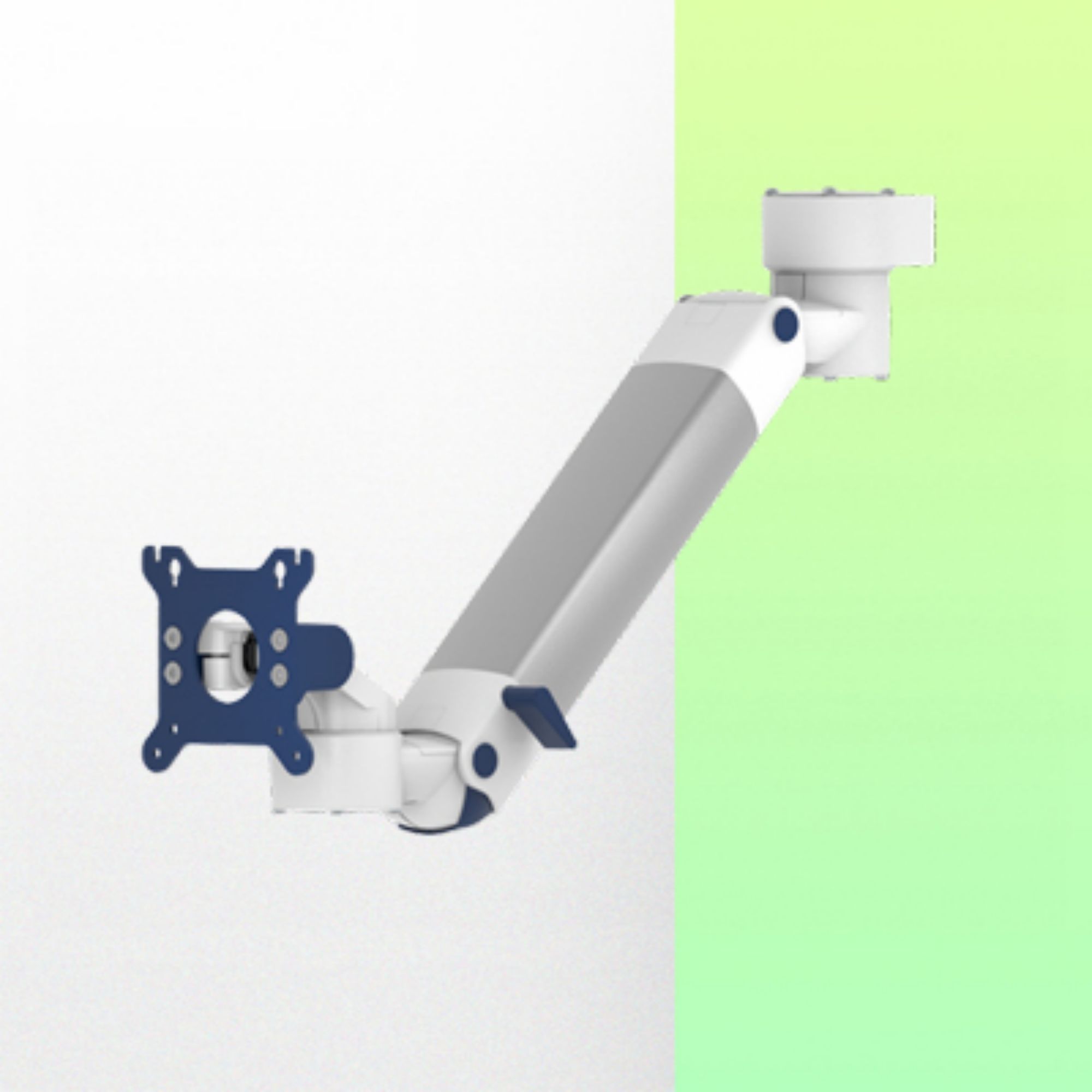

Designed to gain those crucial few centimeters in its lowest position, when the only available mounting point is high up.

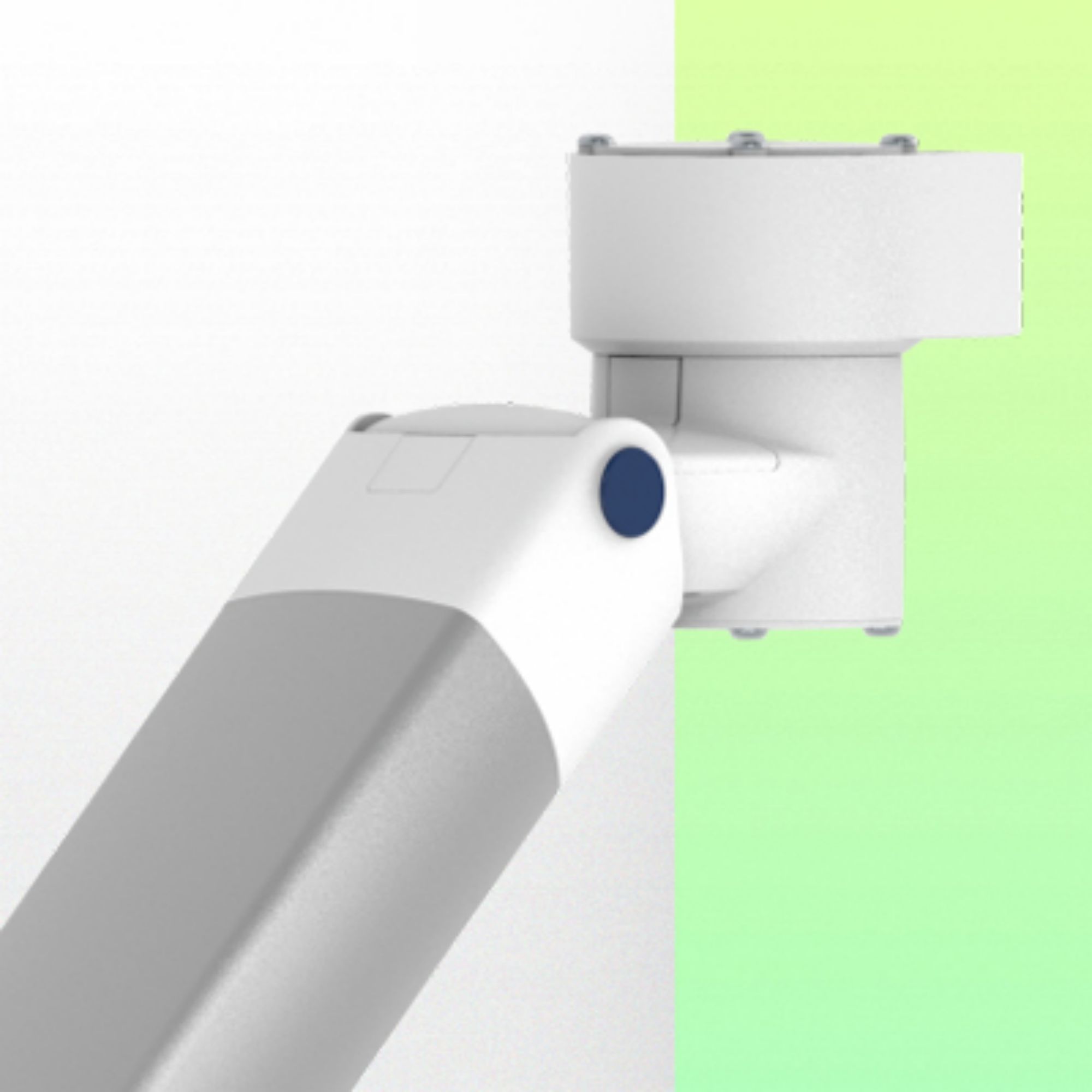

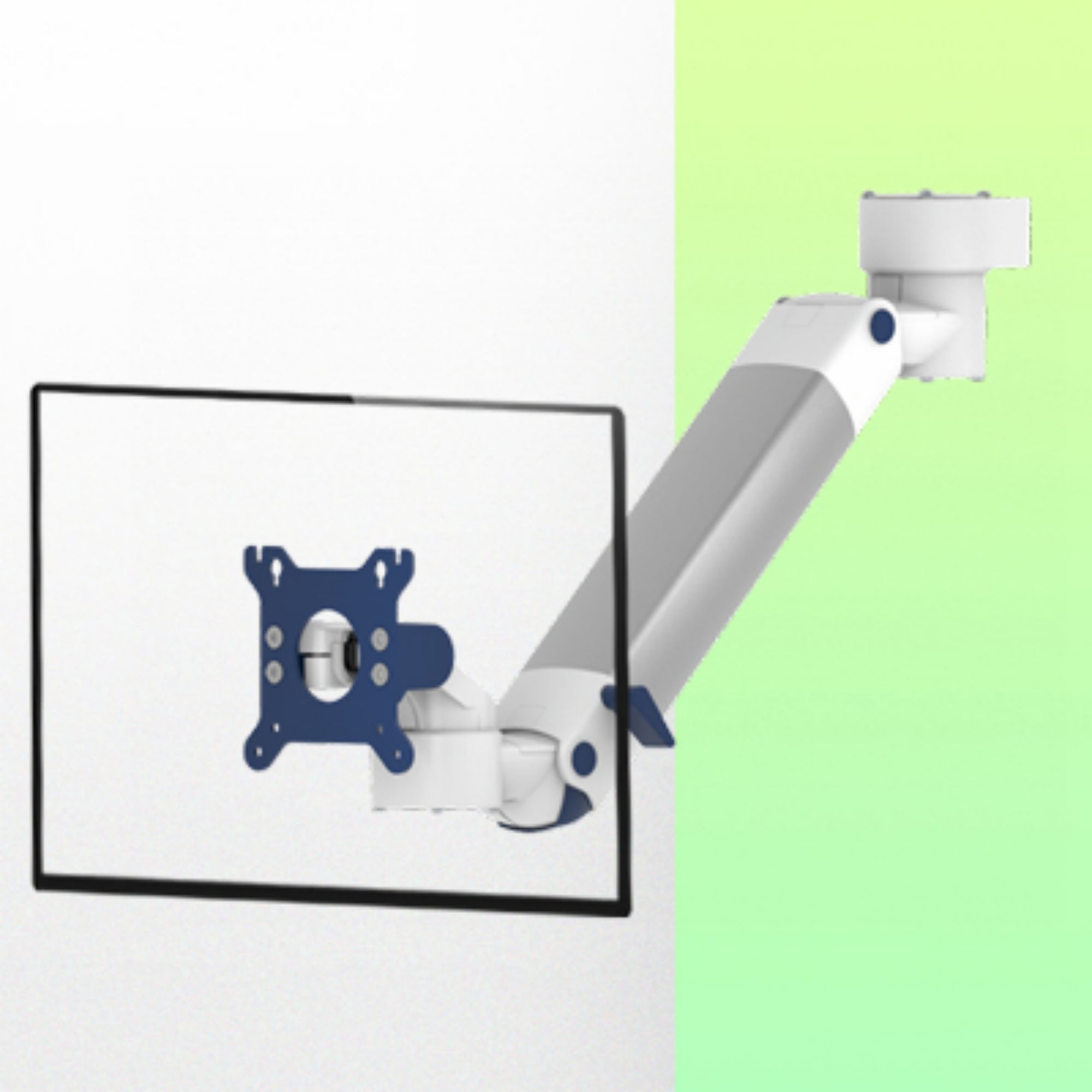

The arm descends from the first joint and can be adjusted in height for ergonomic ease.

Ideal when the only available mounting position is out of reach.

Perfect for attachment to pendants, booms and horizontal rails that are mounted above supply ducts.

Technical specifications:

* Integrated cable entry

* Equipotential bonding

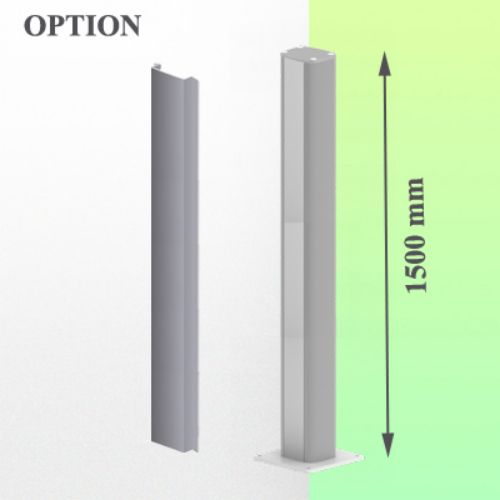

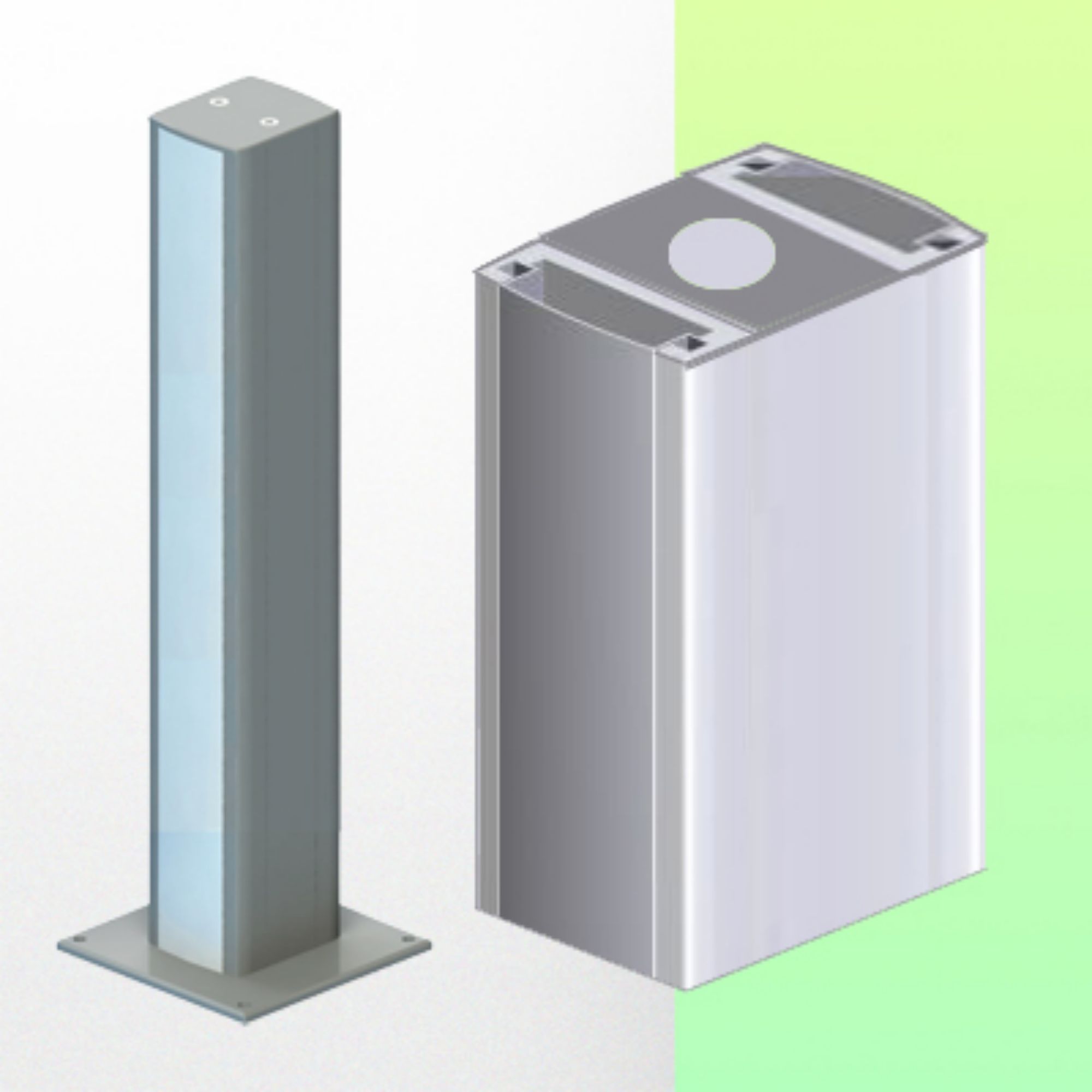

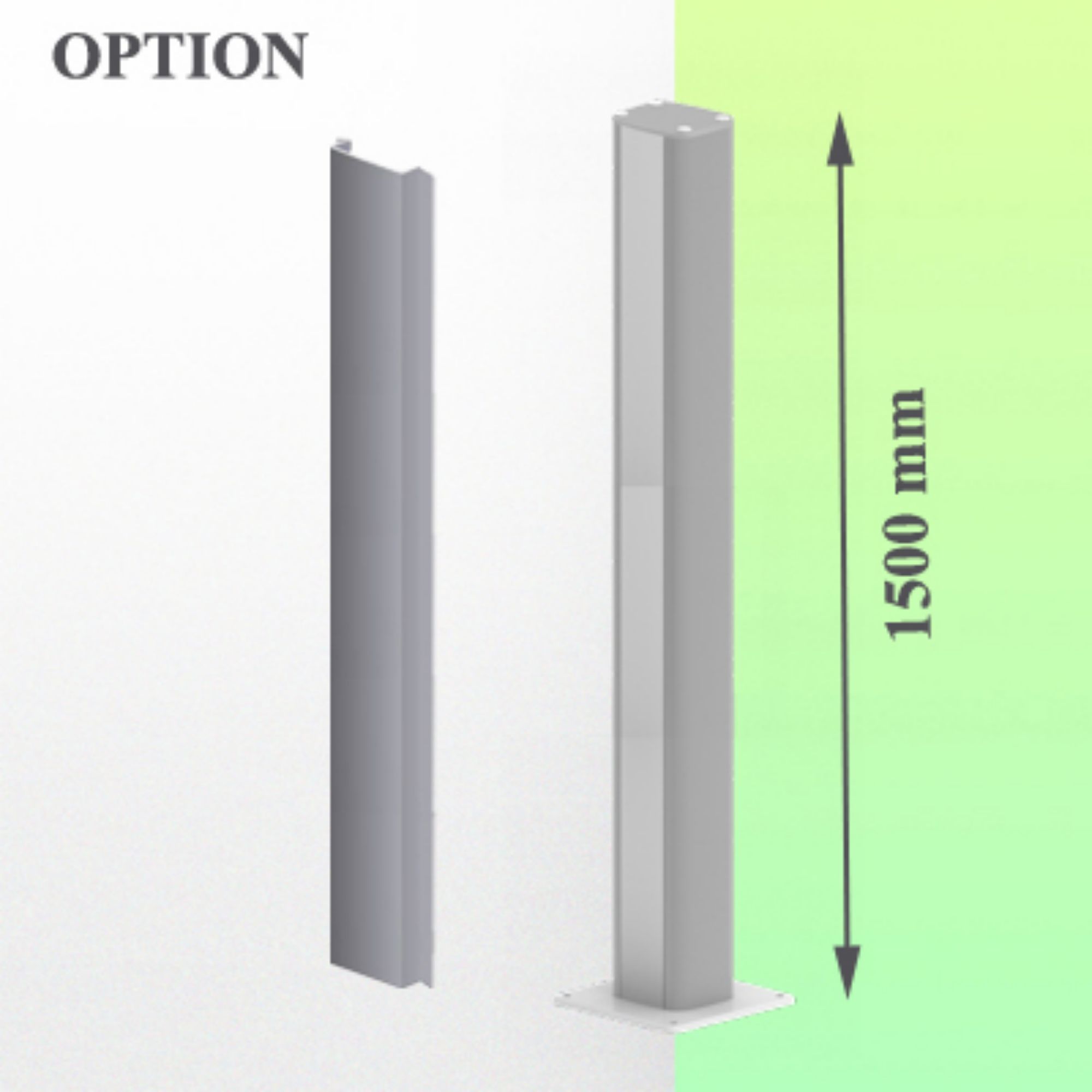

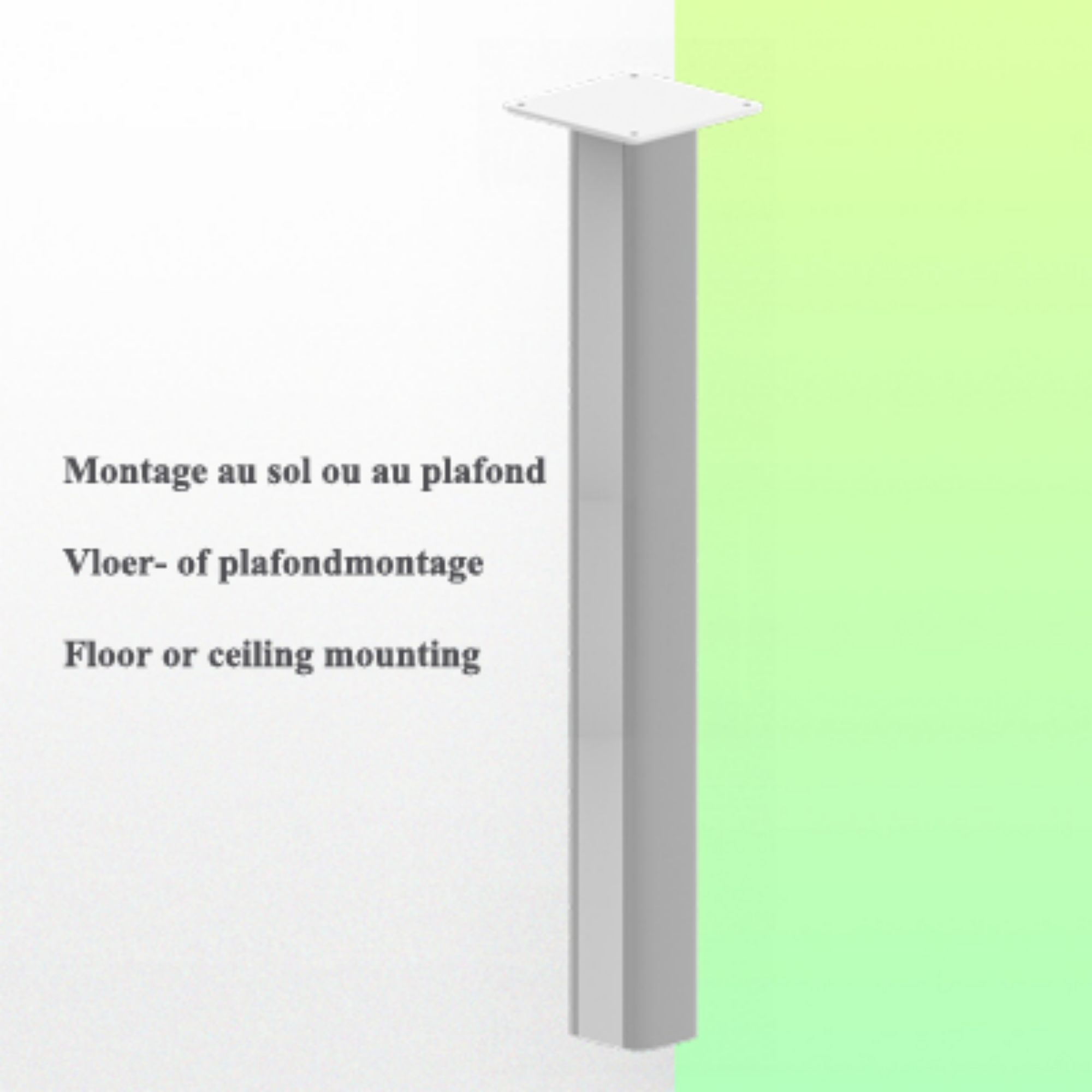

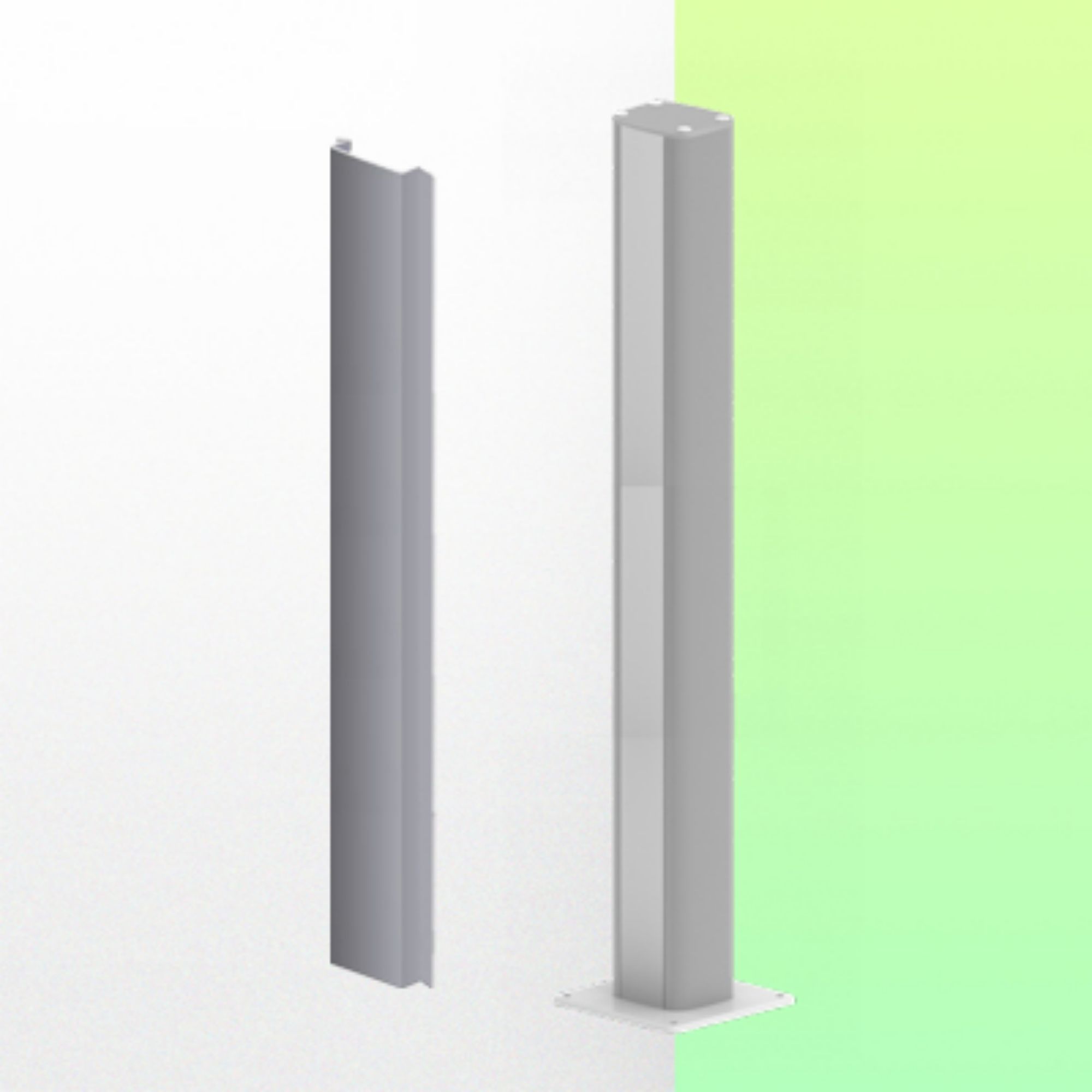

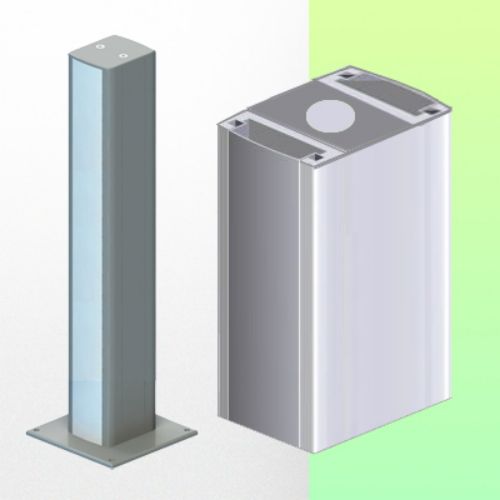

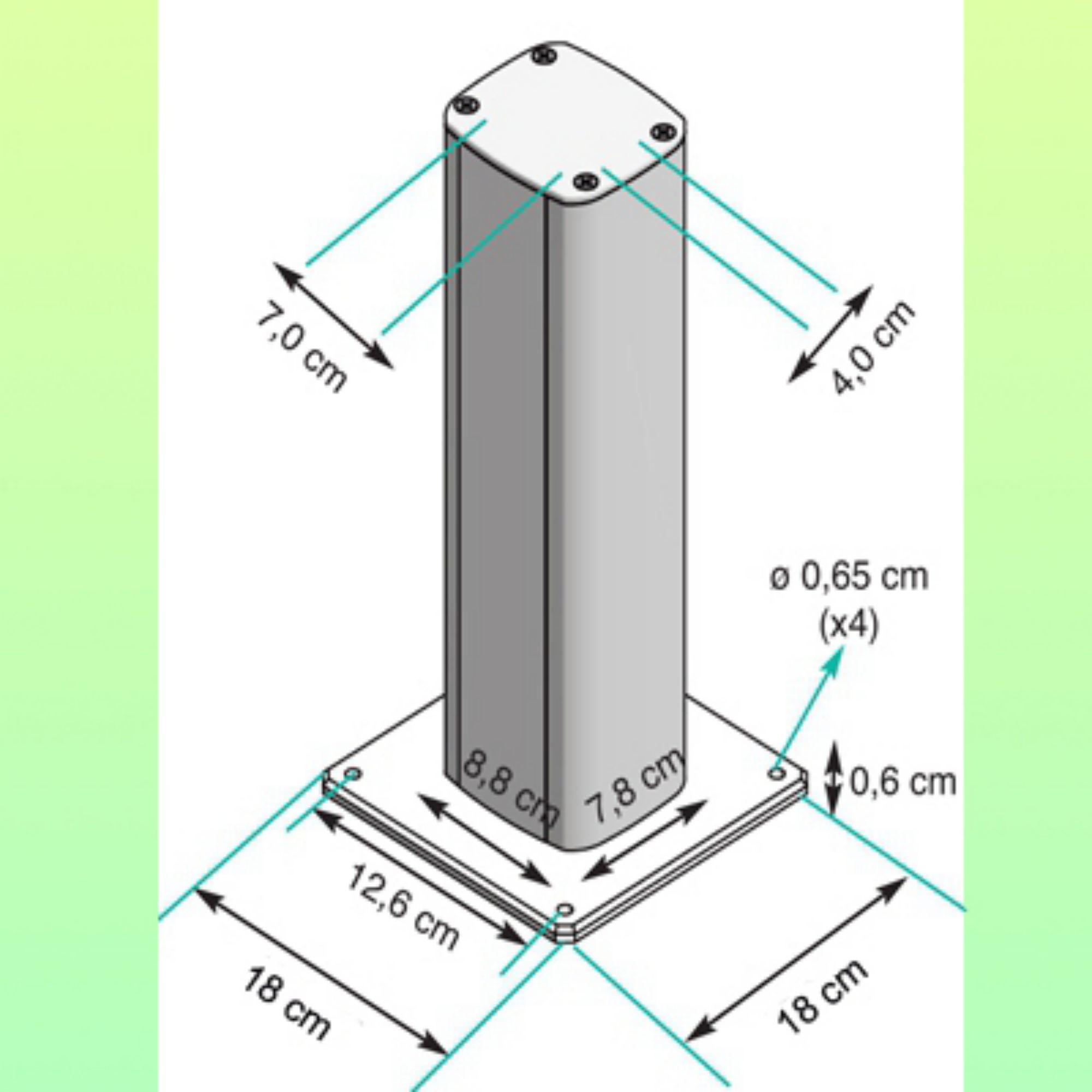

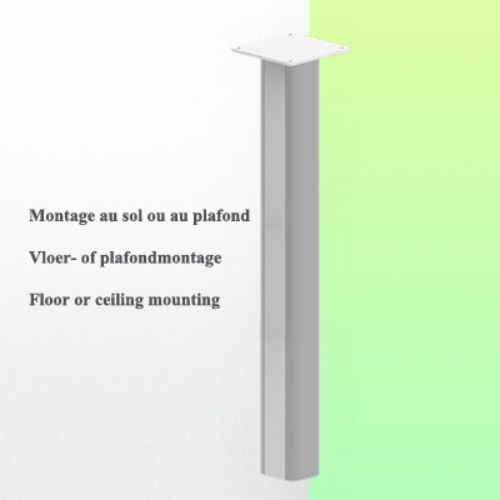

* Optional floor or ceiling columns are available in various heights (1500 - 2000 mm).

* These columns can be easily cut to size.

* All cables are also routed through the column. (See Option)

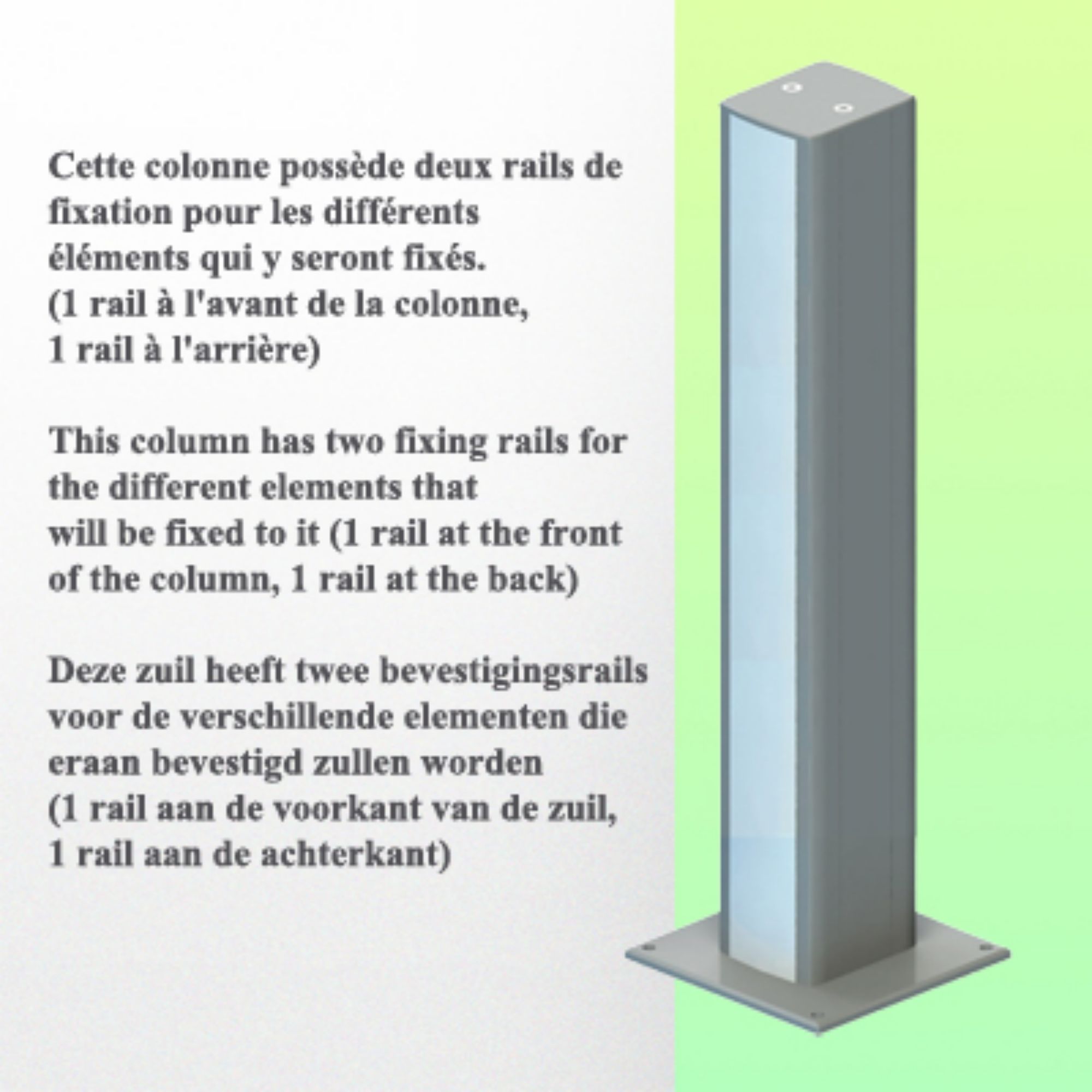

* This 300 mm Horizontal Arm with gas spring simply slides into the column rail and then adjusts to the desired height and is fixed in place.

* It has a height adjustment safety stop button, which allows the arm to remain in the selected position.

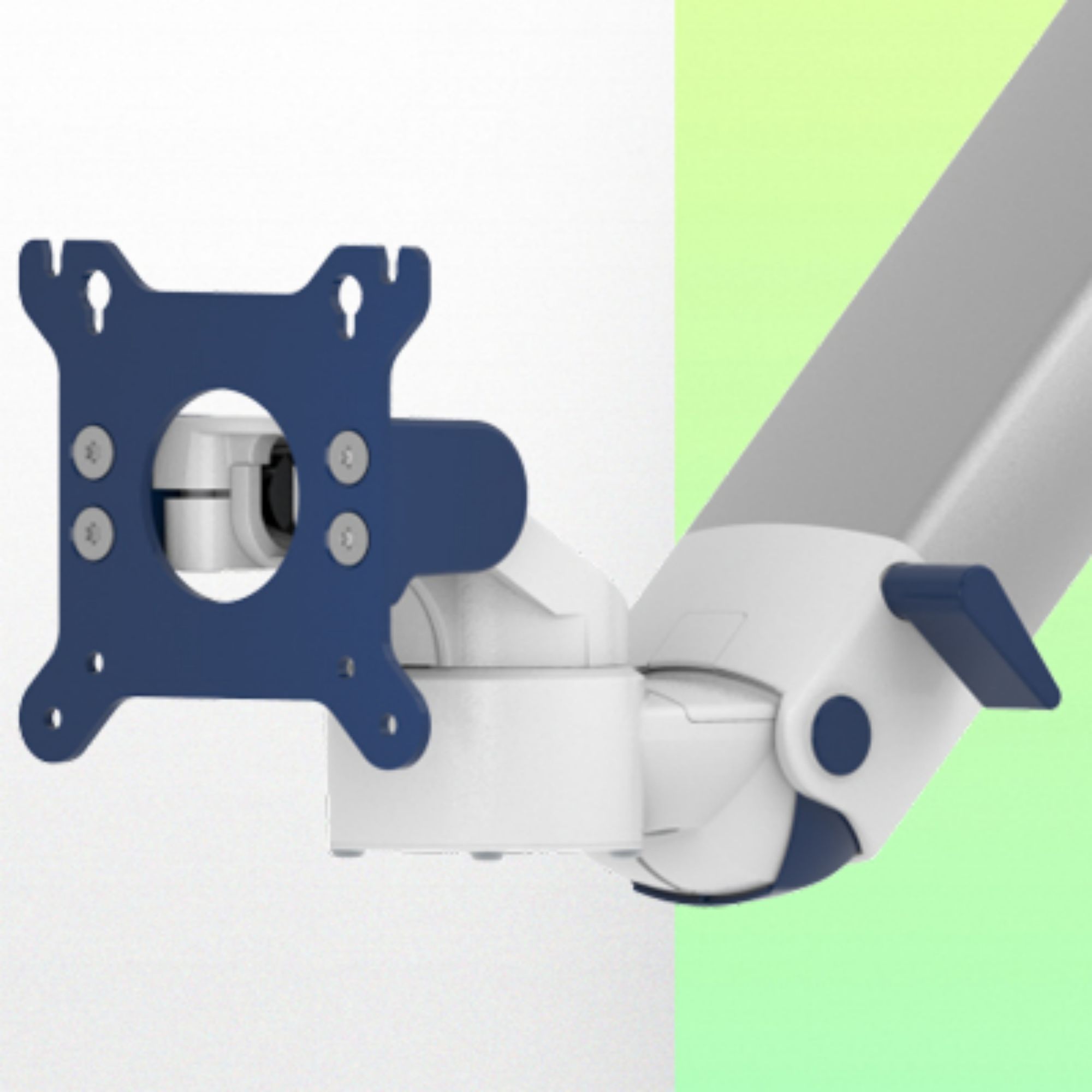

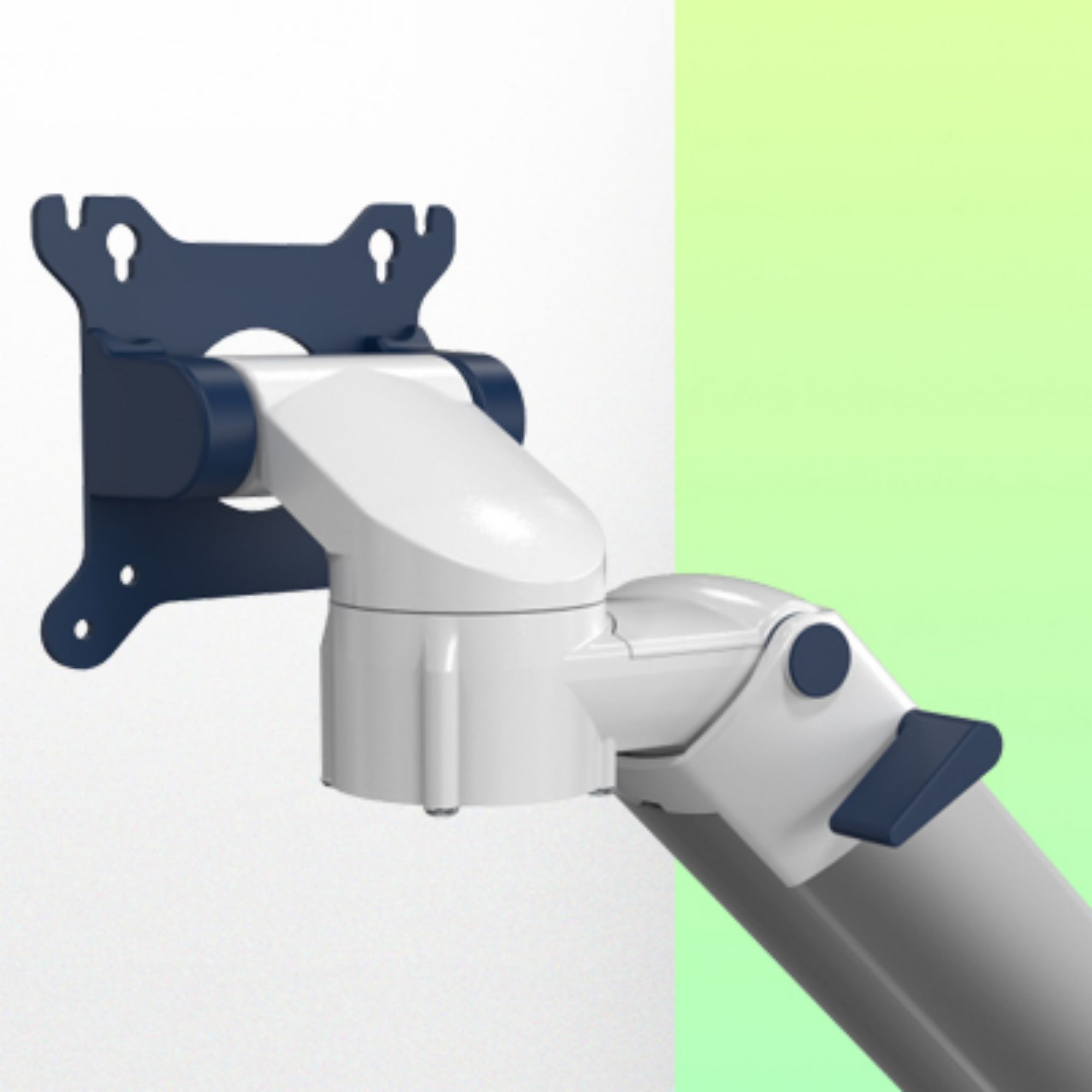

* The head of this arm complies with the VESA MIS-D 75 mm and 100 mm screen mounting standard.

* Compatible with screens weighing no more than 16-22 Kg.

* Touch screen stability.

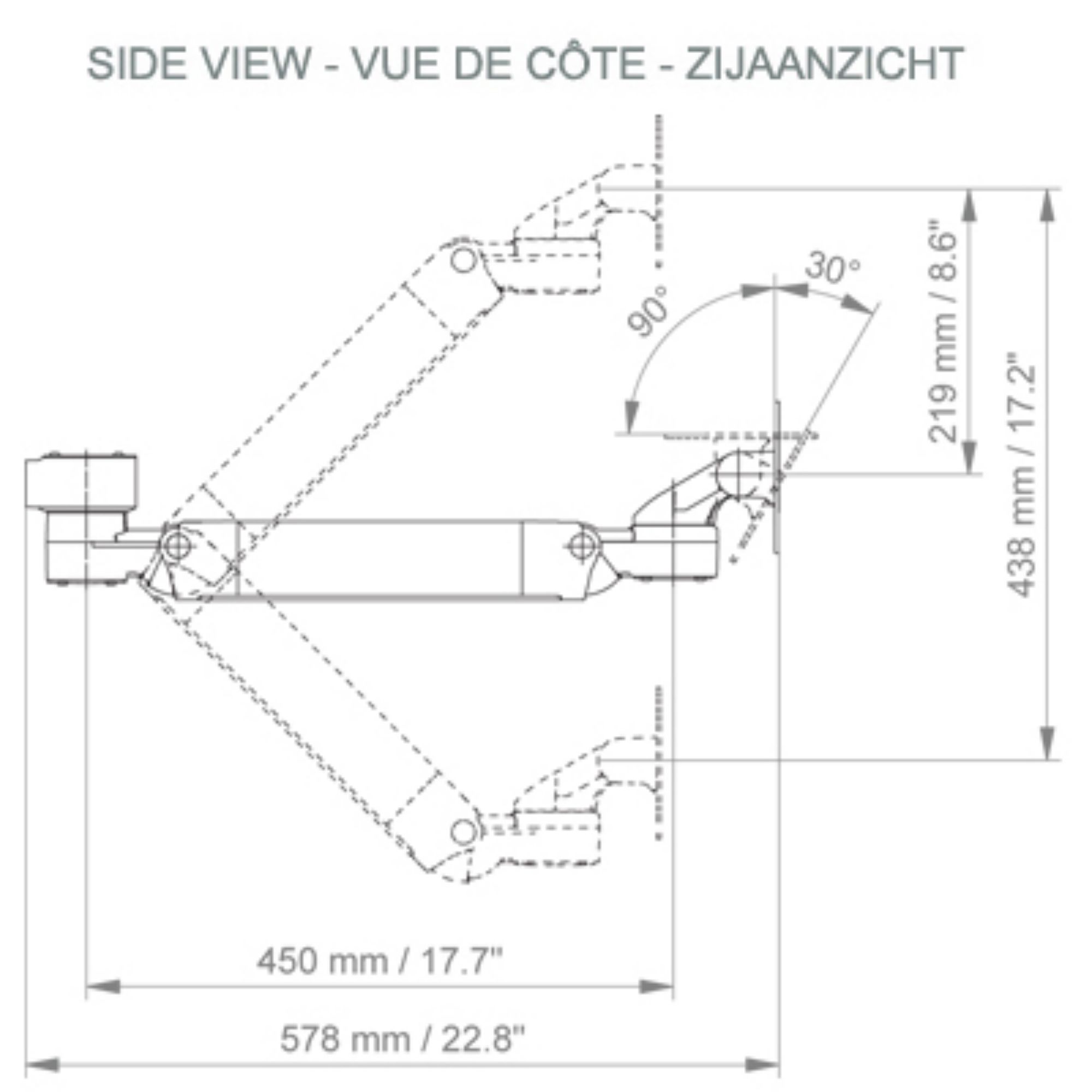

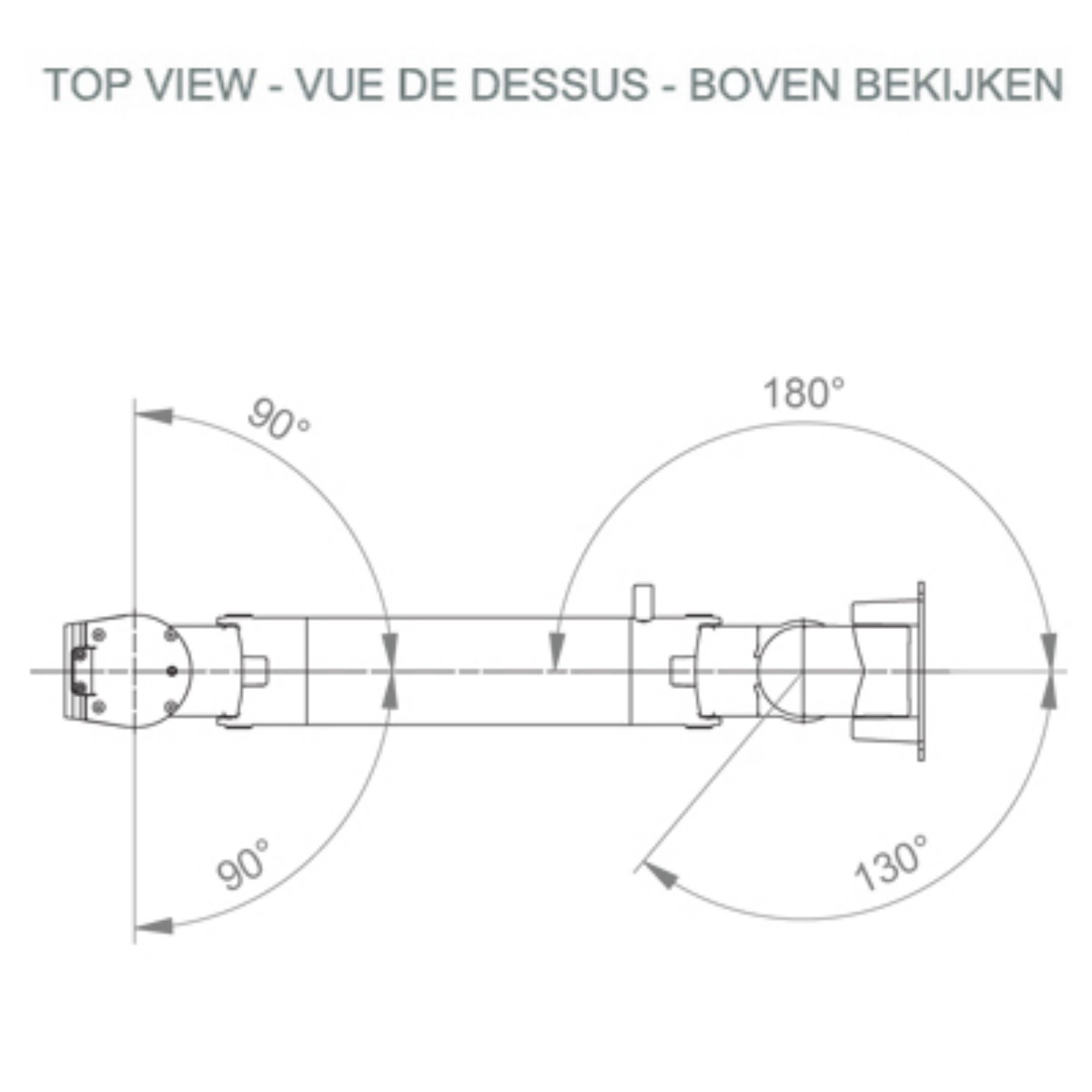

* Screen tilt: 30° down and 90° up

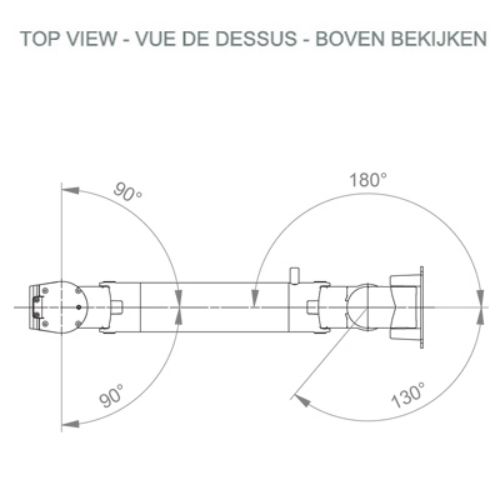

* Screen rotation: 130° right, 180° left.

* Arm rotation: 90° right, 90° left

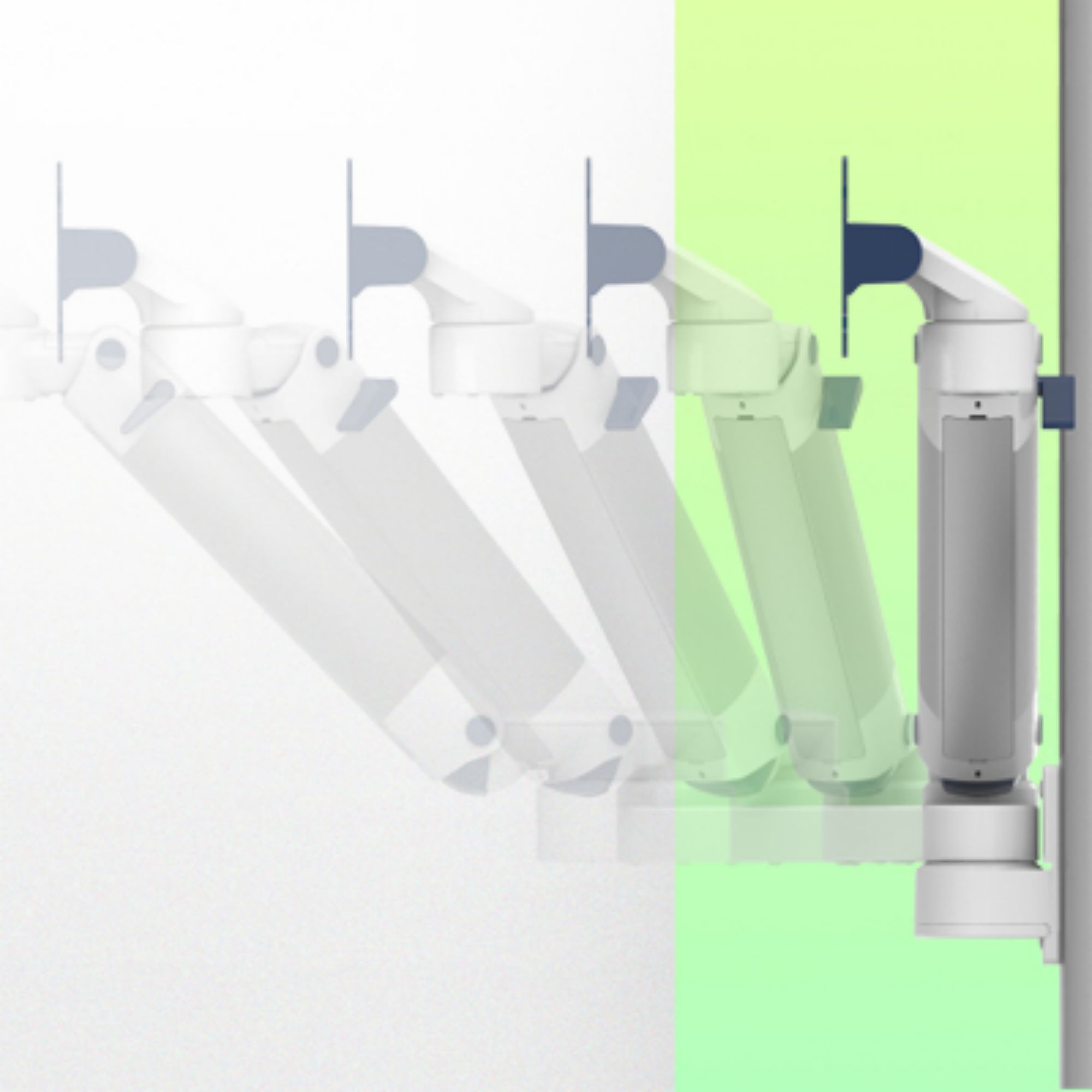

* Height adjustment: 45° down, 45° up

* Total length 578 mm

* All our medical arms are CE, ROHS, Medical Grade, Regulations MDD 93/42 ECC compliant.

* Colour RAL 5013 cobalt blue and RAL 9016 traffic white

* Warranty: 5 years
