Medical Arm Combo Standard 300 mm swivel for screen and keyboard,

(Weight supported up to 18 Kg),

Din Horizontal rail fixation

Product number: WM 225.118 - Medical Arm Combo Standard 300 mm swivel for screen and keyboard,

(Weight supported up to 18 Kg),

Din Horizontal rail fixation

Product sheet PDF

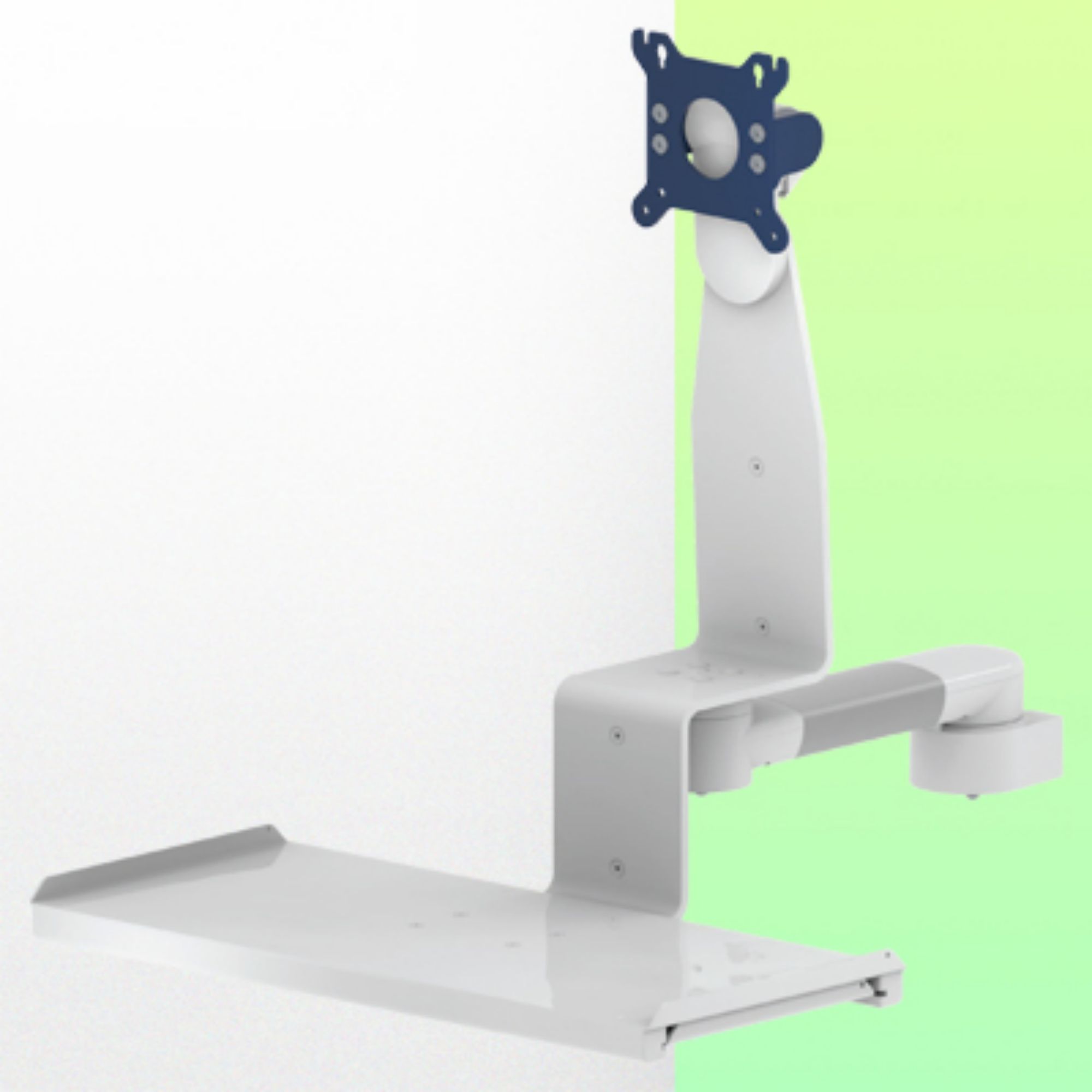

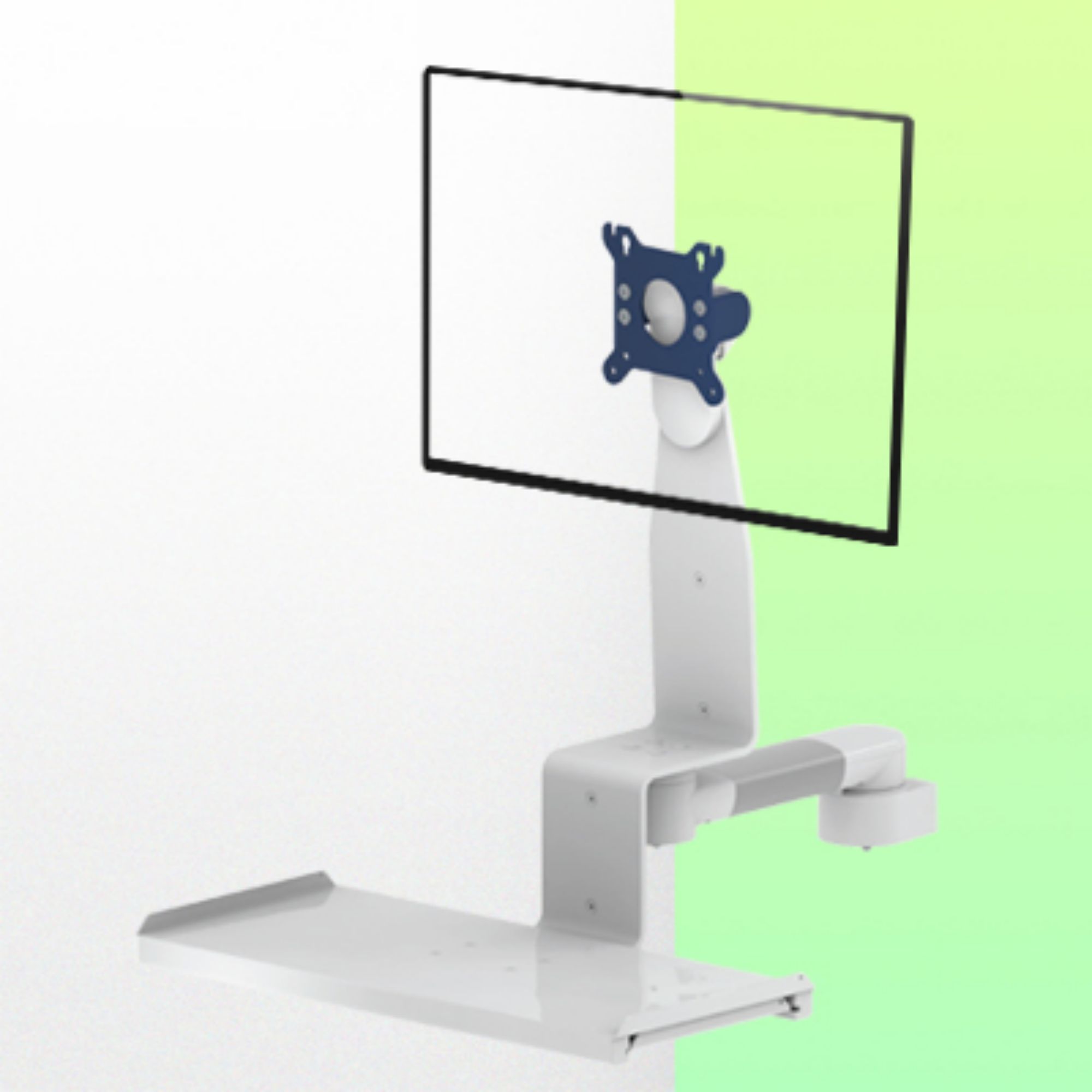

The 300 mm long Combo Medical Arm can be used to mount, orientate and adjust a monitor perfectly.

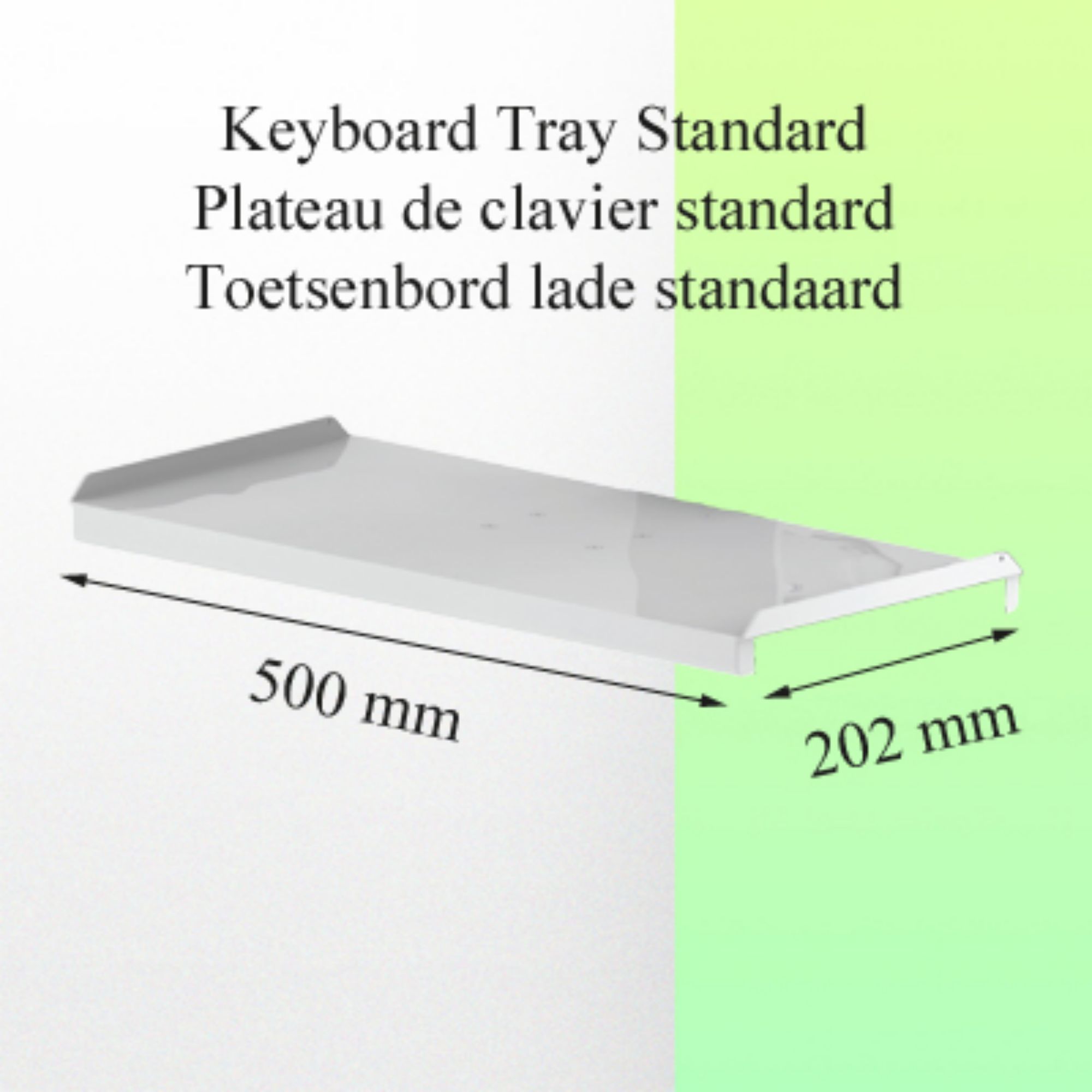

The supplied 500 x 202 mm keyboard holder can accommodate a standard keyboard and mouse.

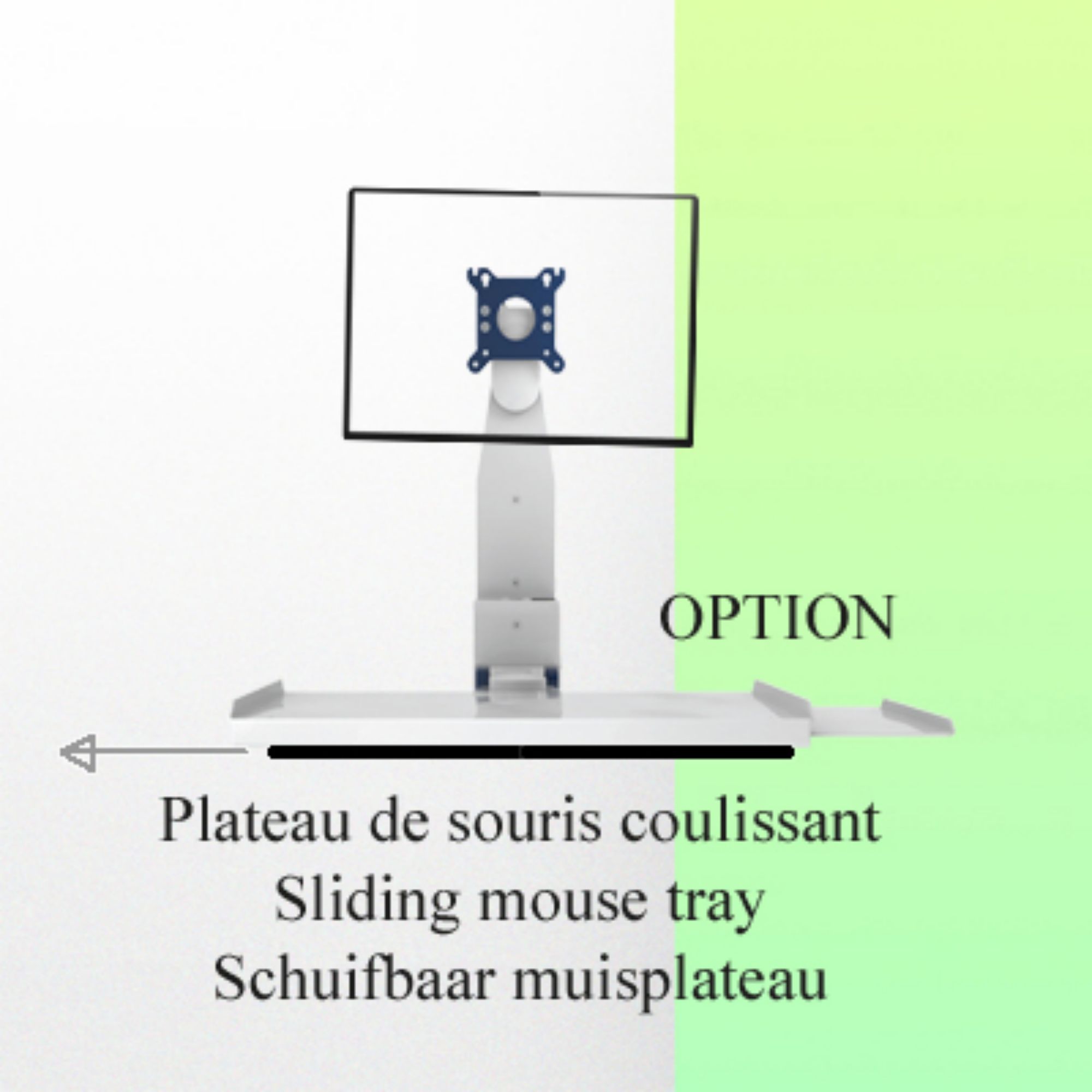

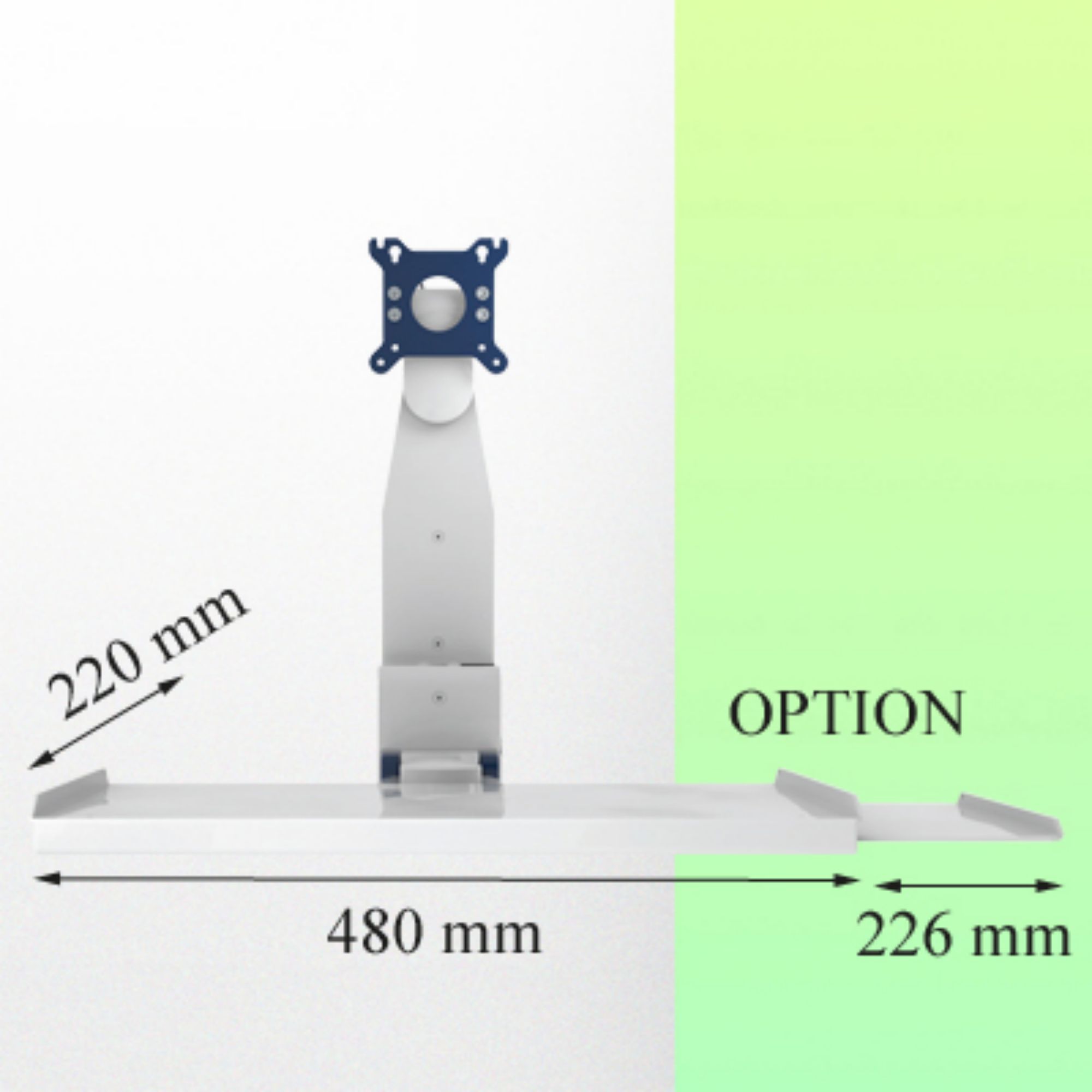

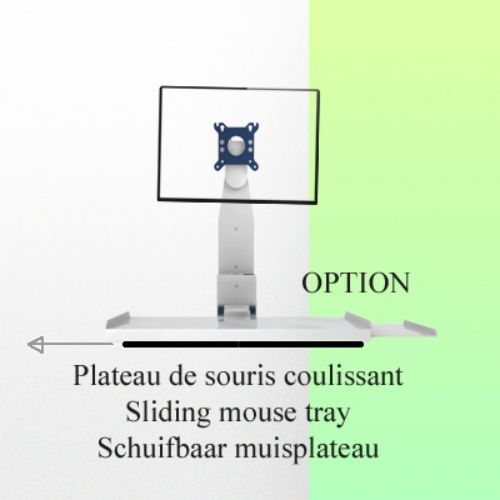

As an option, it can be equipped with a stand with a sliding right/left mouse tray with dimensions of 480 x 220 mm for the keyboard and 226 x 220 mm for the mouse or with a large keyboard stand with dimensions of 580 x 200 mm.

Technical specifications:

* Integrated cable management

* Standard 500 x 202 mm keyboard support

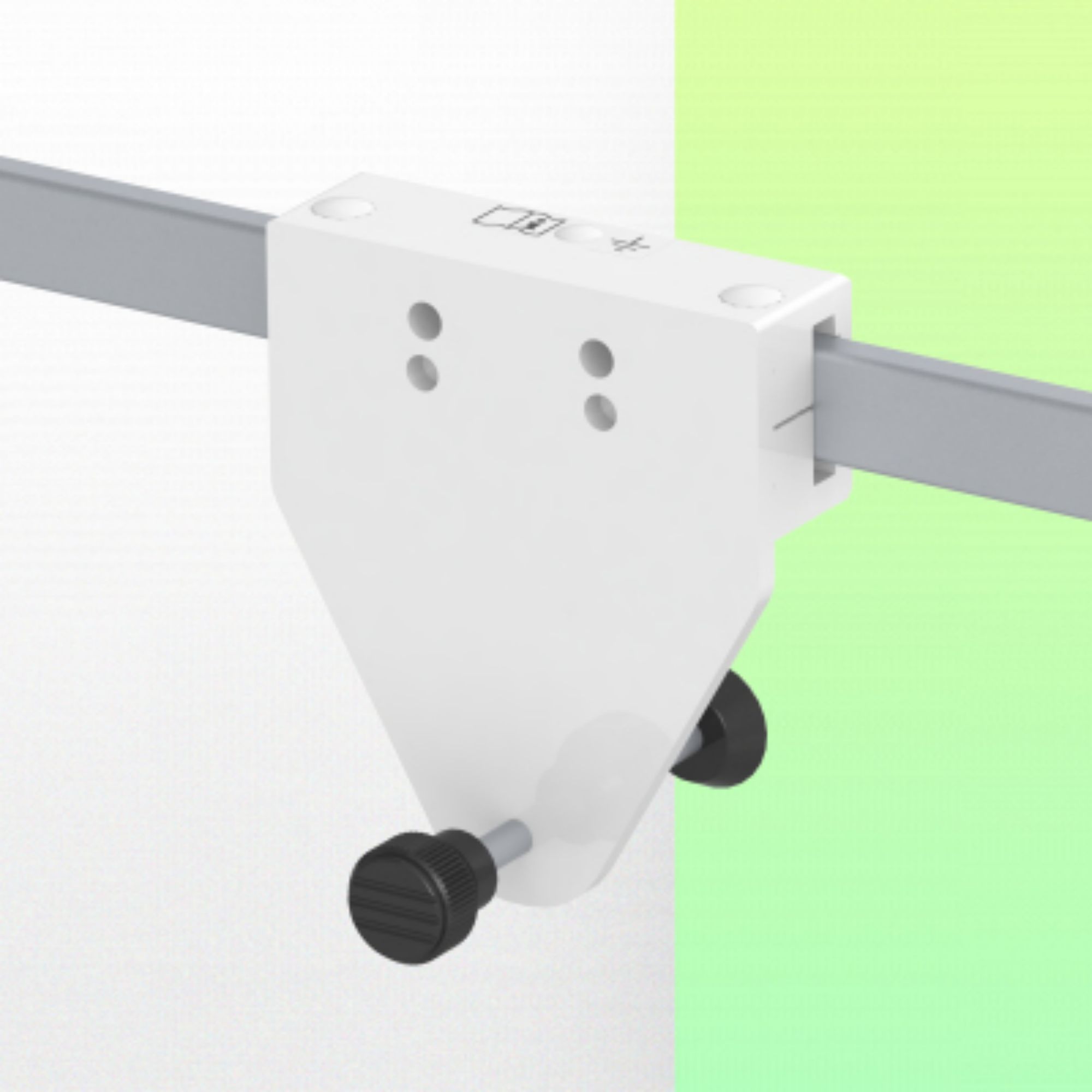

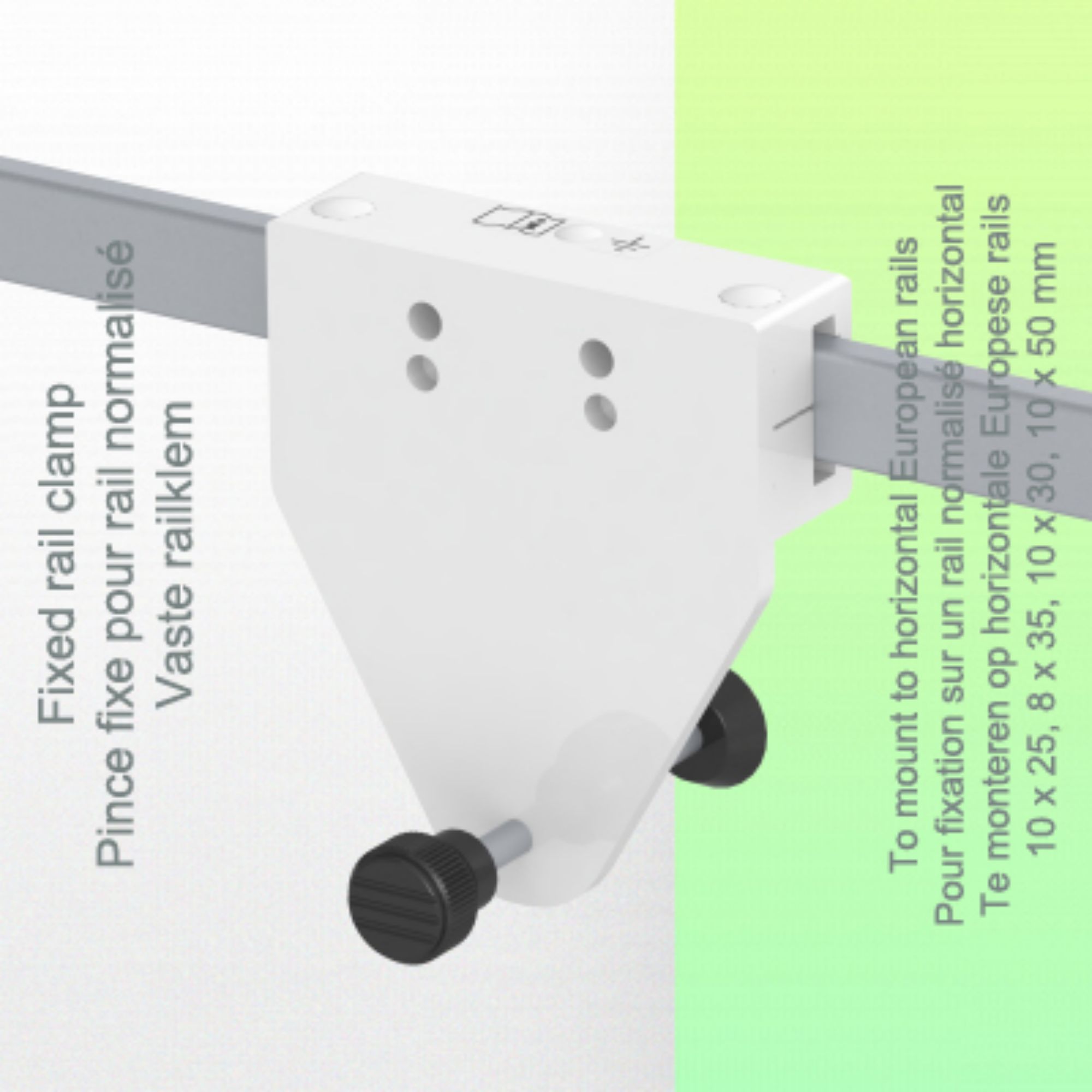

* Mounting on Din rail Universal clamp included (10x25 mm, 8x35 mm, 10x30 mm, 10 x 50 mm )

* This medical arm simply attaches to the Din rail and then adjusts to the rail and clamped with the two clamps.

* It has no height adjustment.

* The head of this arm complies with the VESA 75/100mm screen mounting standard.

* Compatible with equipment weighing up to 18kg.

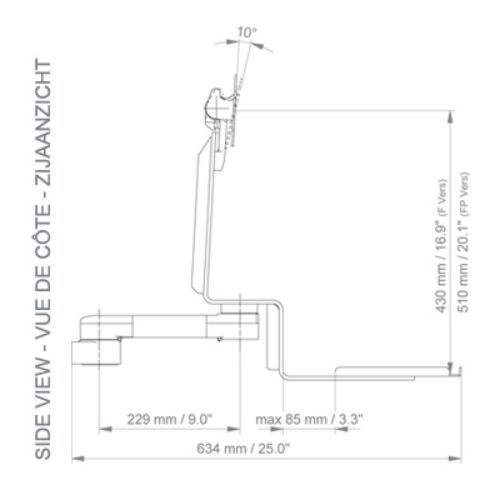

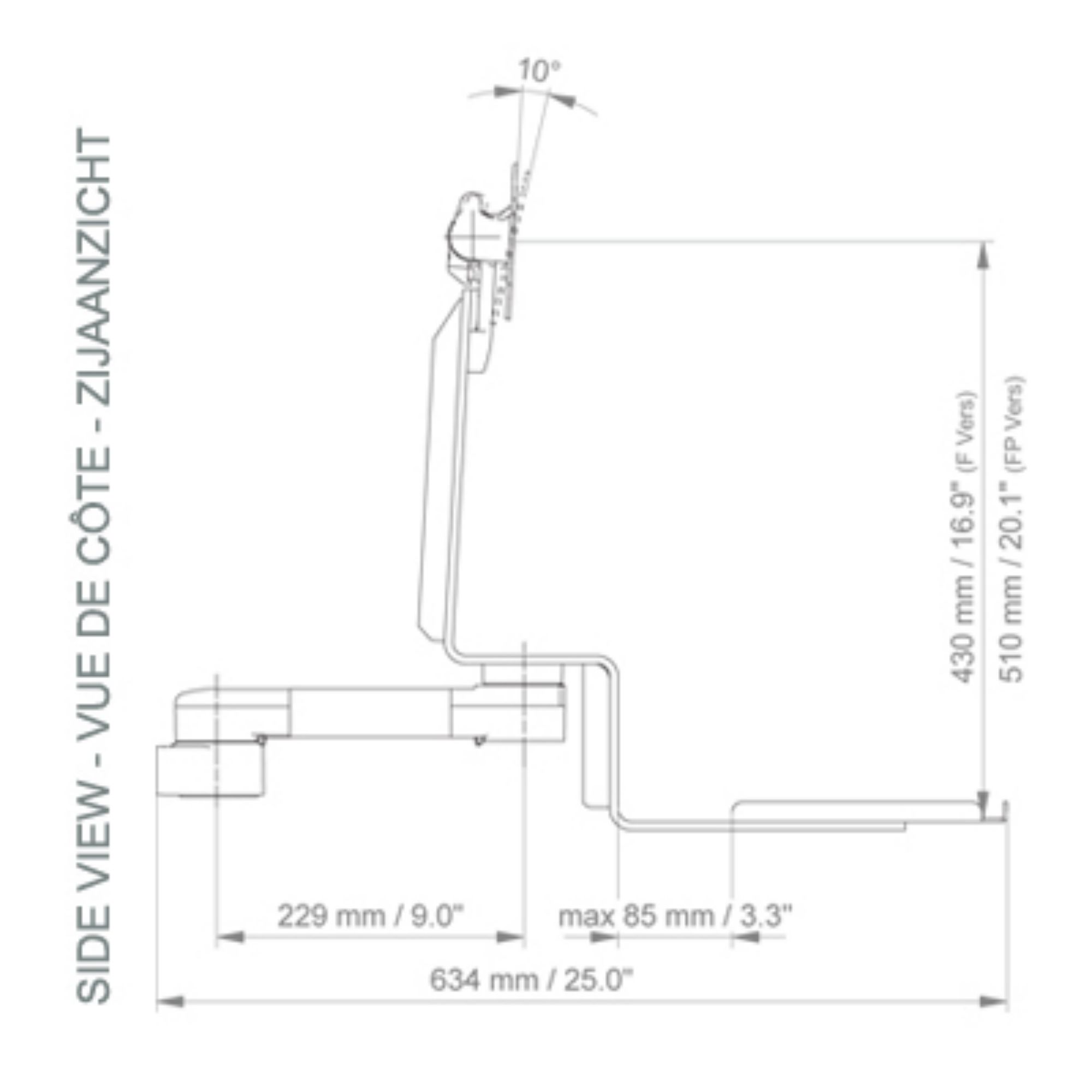

* Screen tilt: 10°

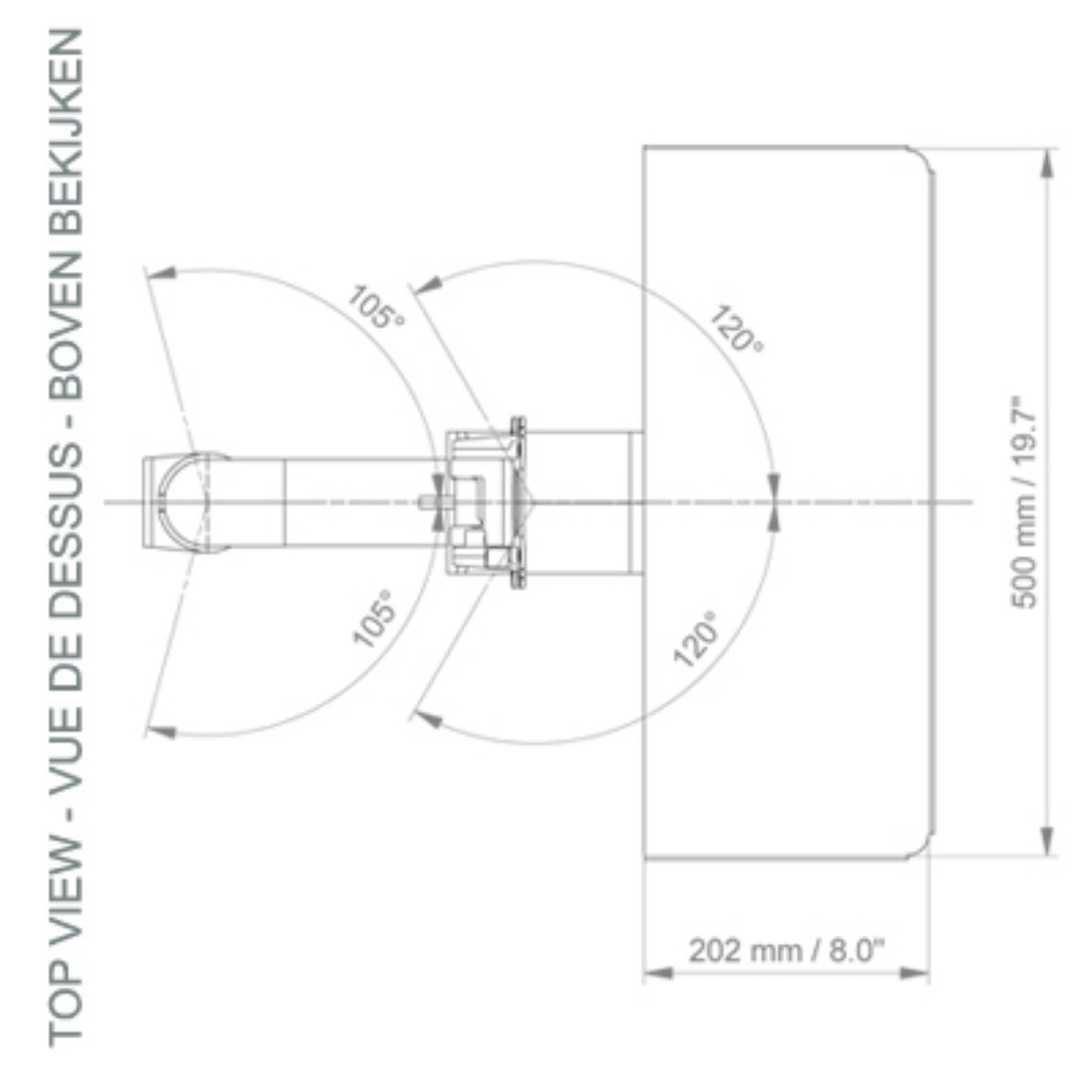

* Arm rotation: 105° right, 105° left.

* Keyboard support rotation: 120° right, 120° left

* Total length of the configuration 634 mm

* Colour RAL 5013 cobalt blue and RAL 9016 traffic white

* Warranty: 5 years
