Medical Arm Combo Standard 300 mm swivel for screen and keyboard,

(Weight supported up to 18 Kg),

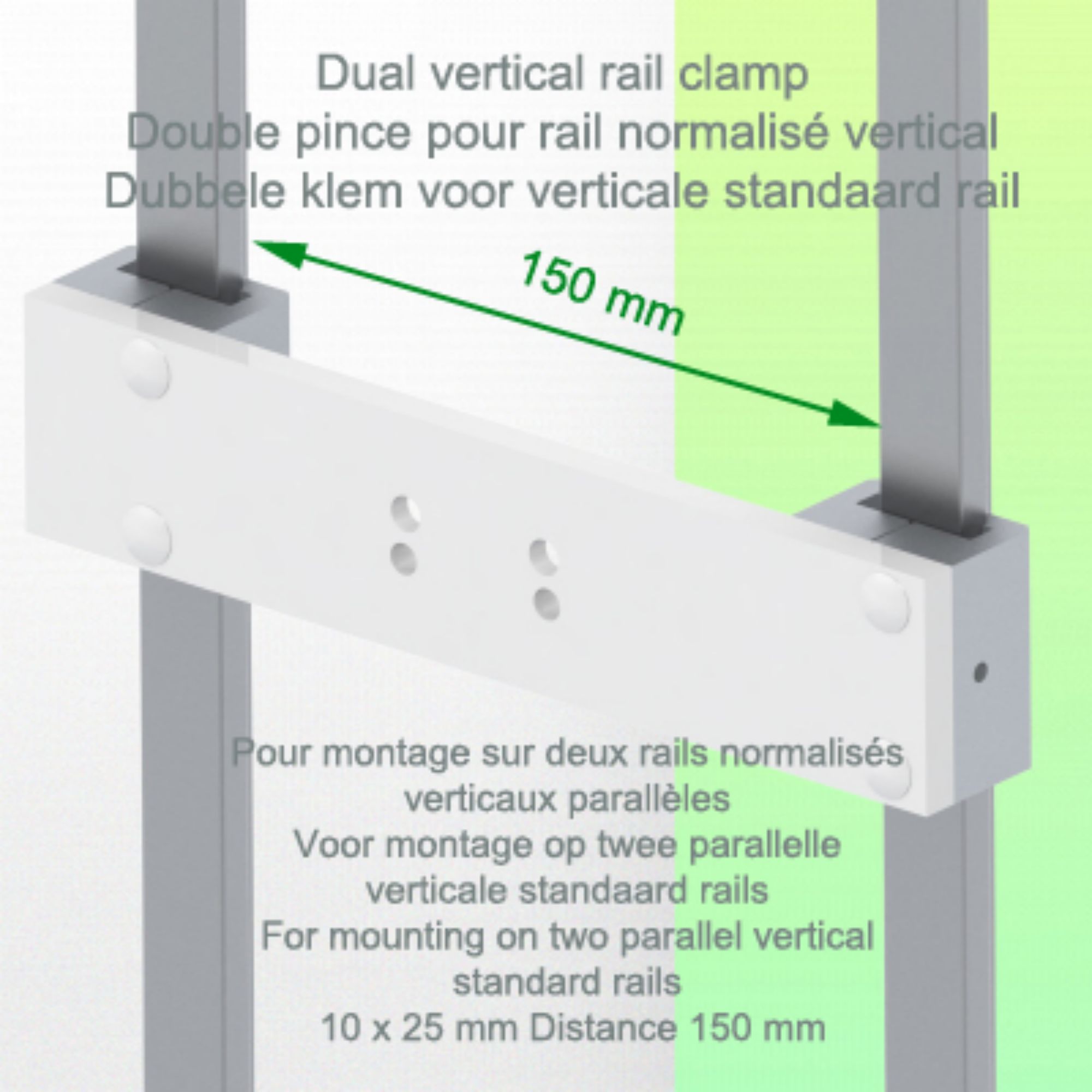

Double Din vertical rail mounting. 10 x 25 mm distance 150 mm

Product number: WM 225.130 - Medical Arm Combo Standard 300 mm swivel for screen and keyboard,

(Weight supported up to 18 Kg),

Double Din vertical rail mounting. 10 x 25 mm distance 150 mm

Product sheet PDF

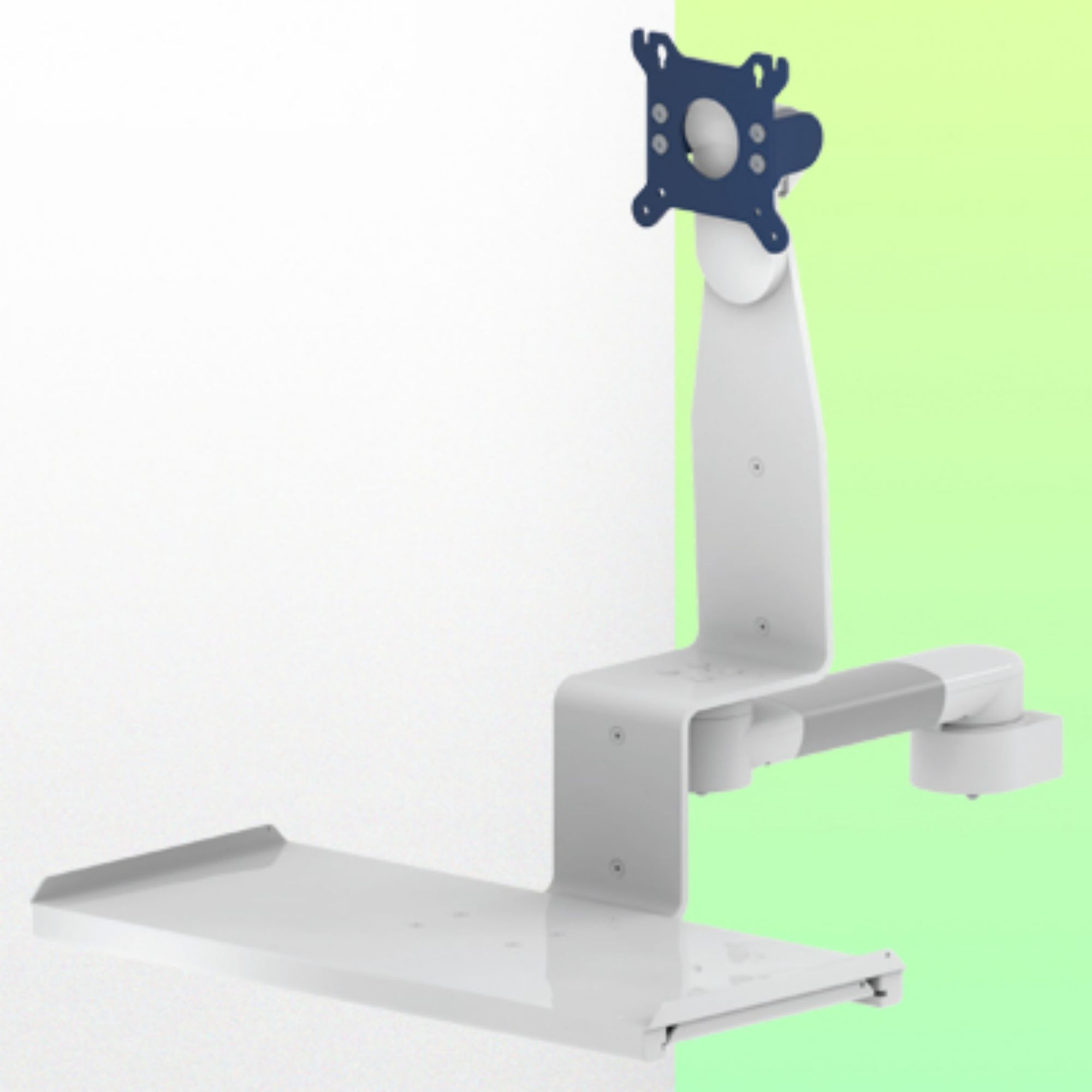

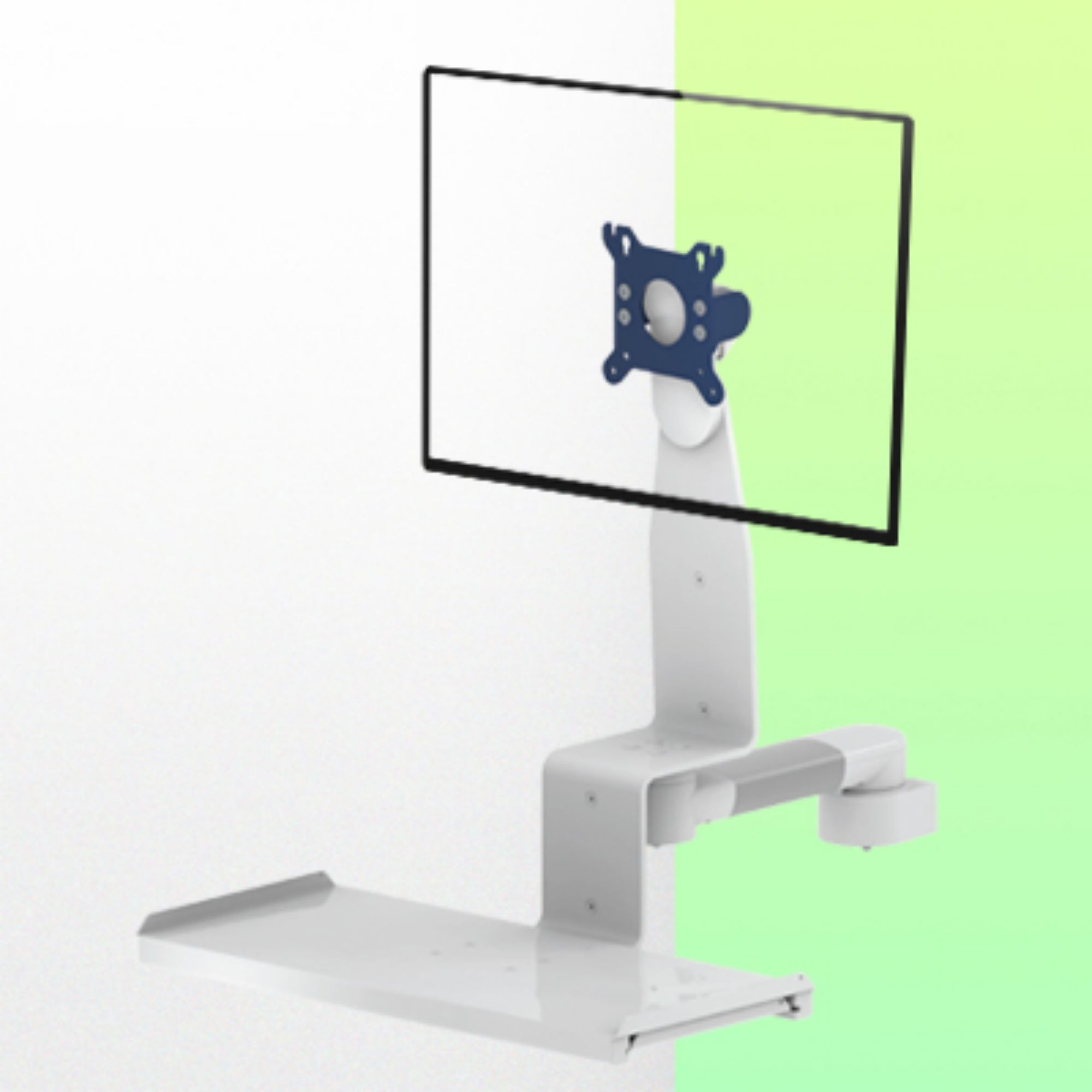

The 300 mm long Combo Medical Arm can be used to mount, orientate and adjust a monitor perfectly. The supplied 500 x 202 mm keyboard holder can accommodate a standard keyboard and mouse.

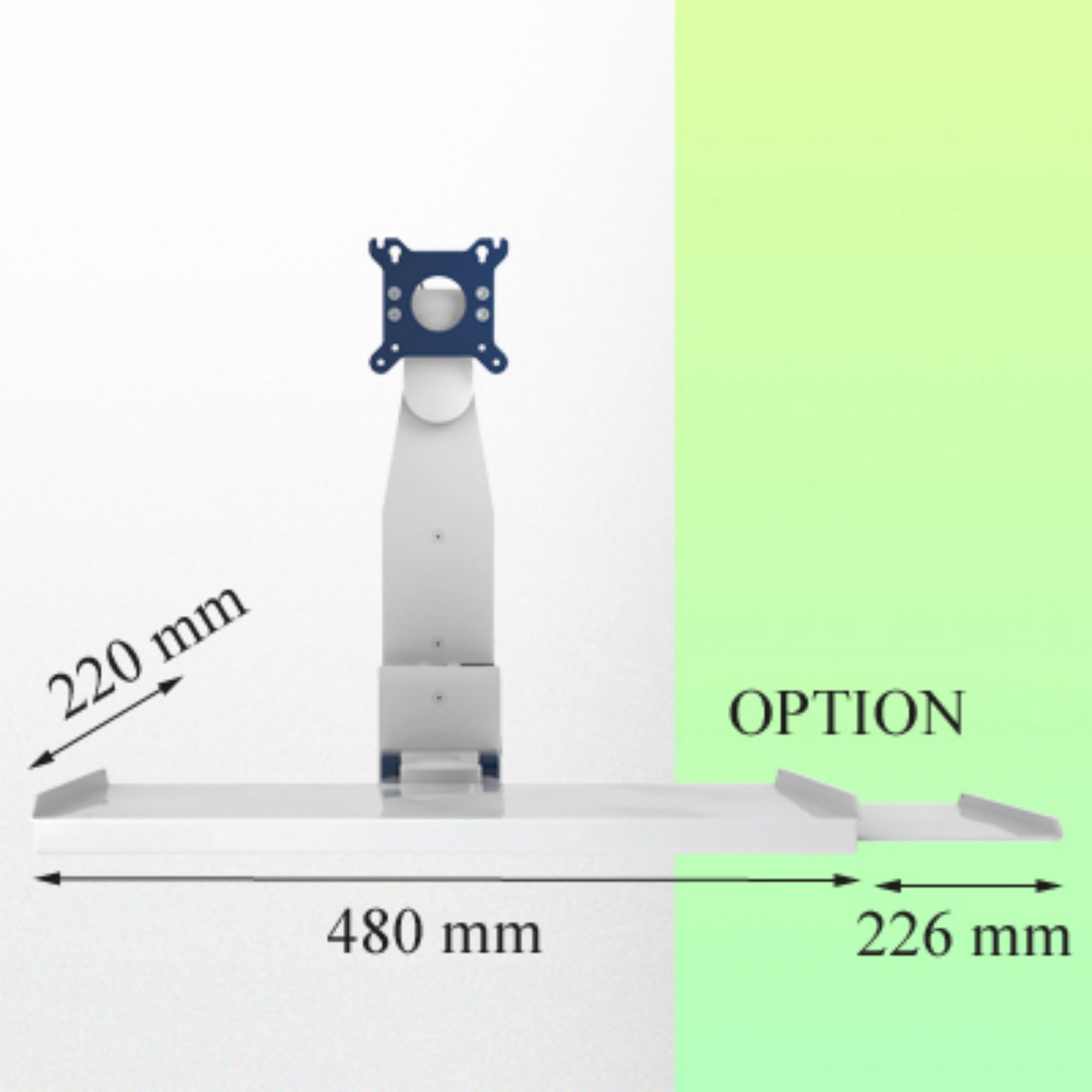

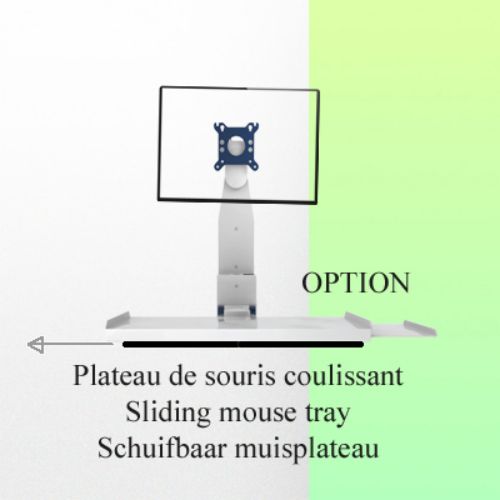

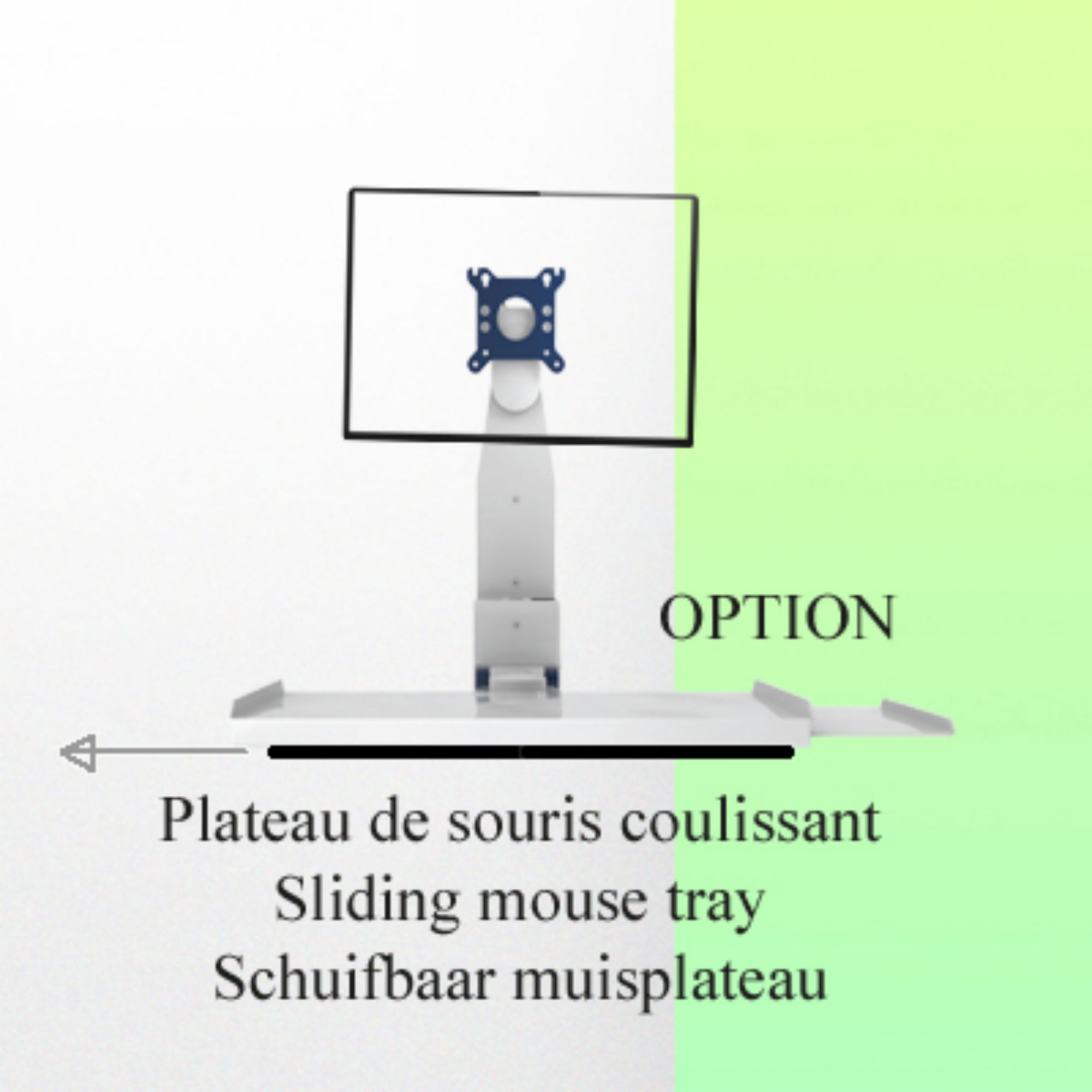

As an option, it can be equipped with a stand with a sliding right/left mouse tray with dimensions of 480 x 220 mm for the keyboard and 226 x 220 mm for the mouse or with a large keyboard stand with dimensions of 580 x 200 mm.

Technical specifications:

* Integrated cable management

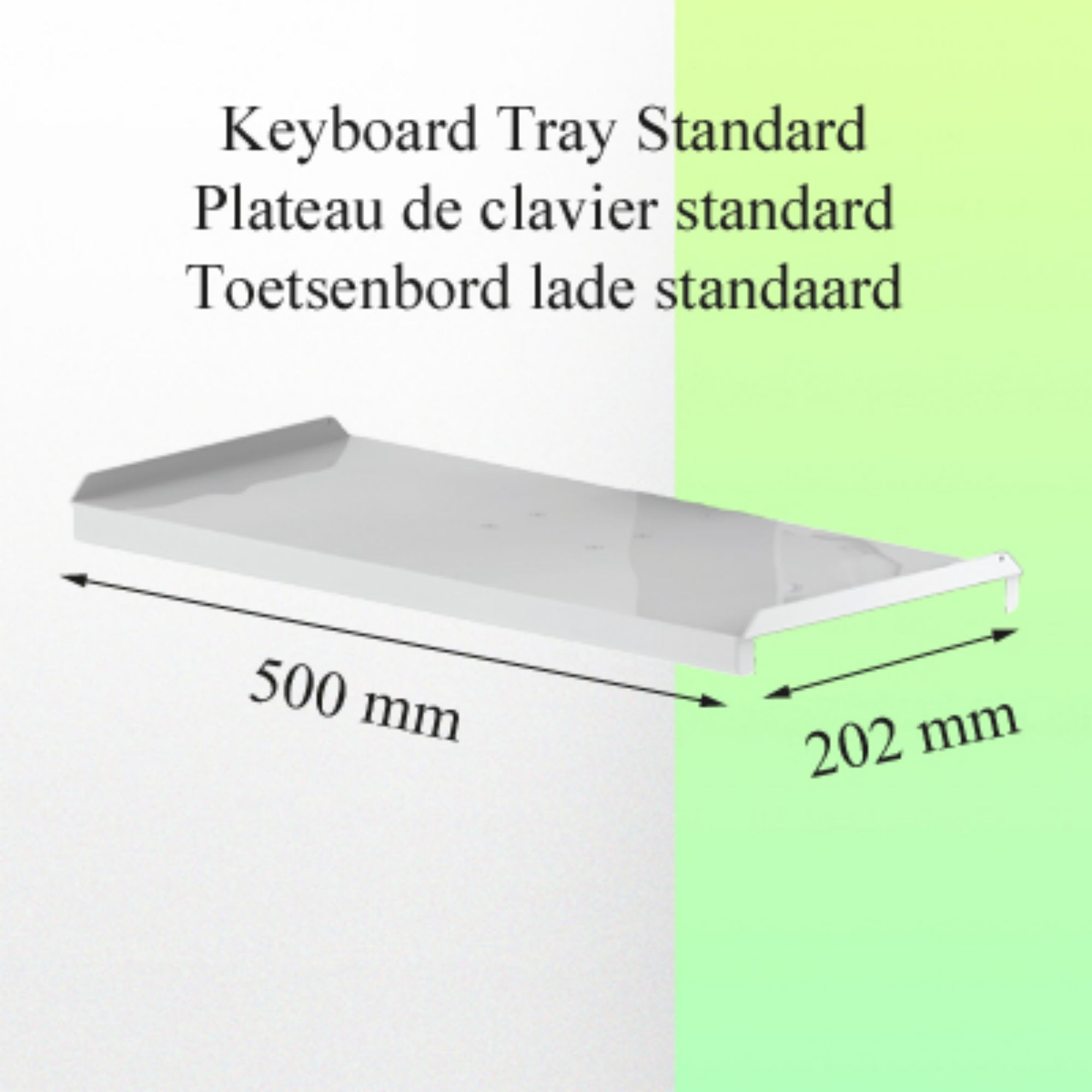

* Standard 500 x 202 mm keyboard support

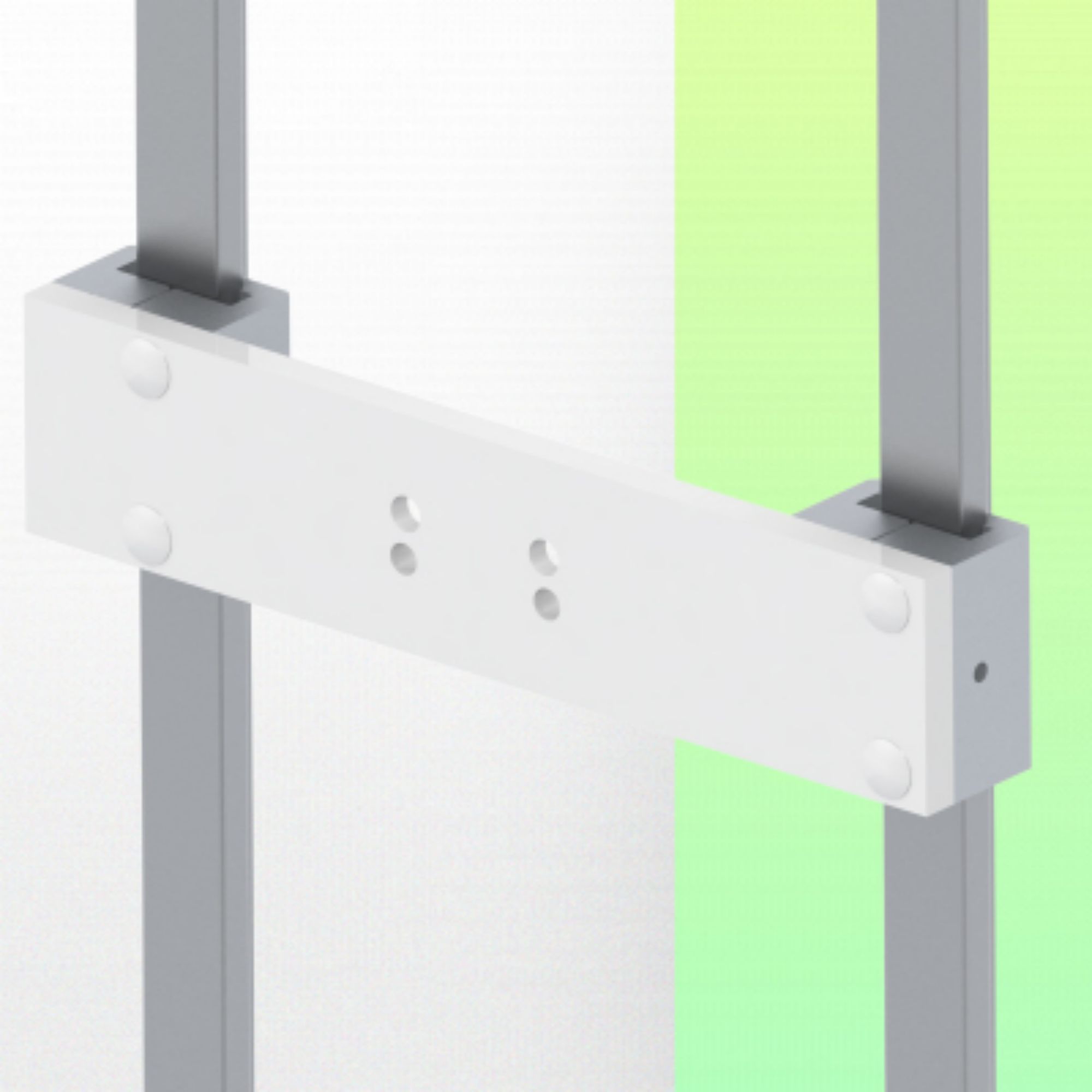

* Mounting on Double Din rail vertical Universal clamp included (10x25 mm, 8x35 mm, 10x30 mm, 10 x 50 mm )

* This medical arm simply attaches to the Din rail and then adjusts to the rail and clamped with the two clamps.

* It has no height adjustment.

* The head of this arm complies with the VESA 75/100mm screen mounting standard.

* Compatible with equipment weighing up to 18kg.

* Screen tilt: 10°

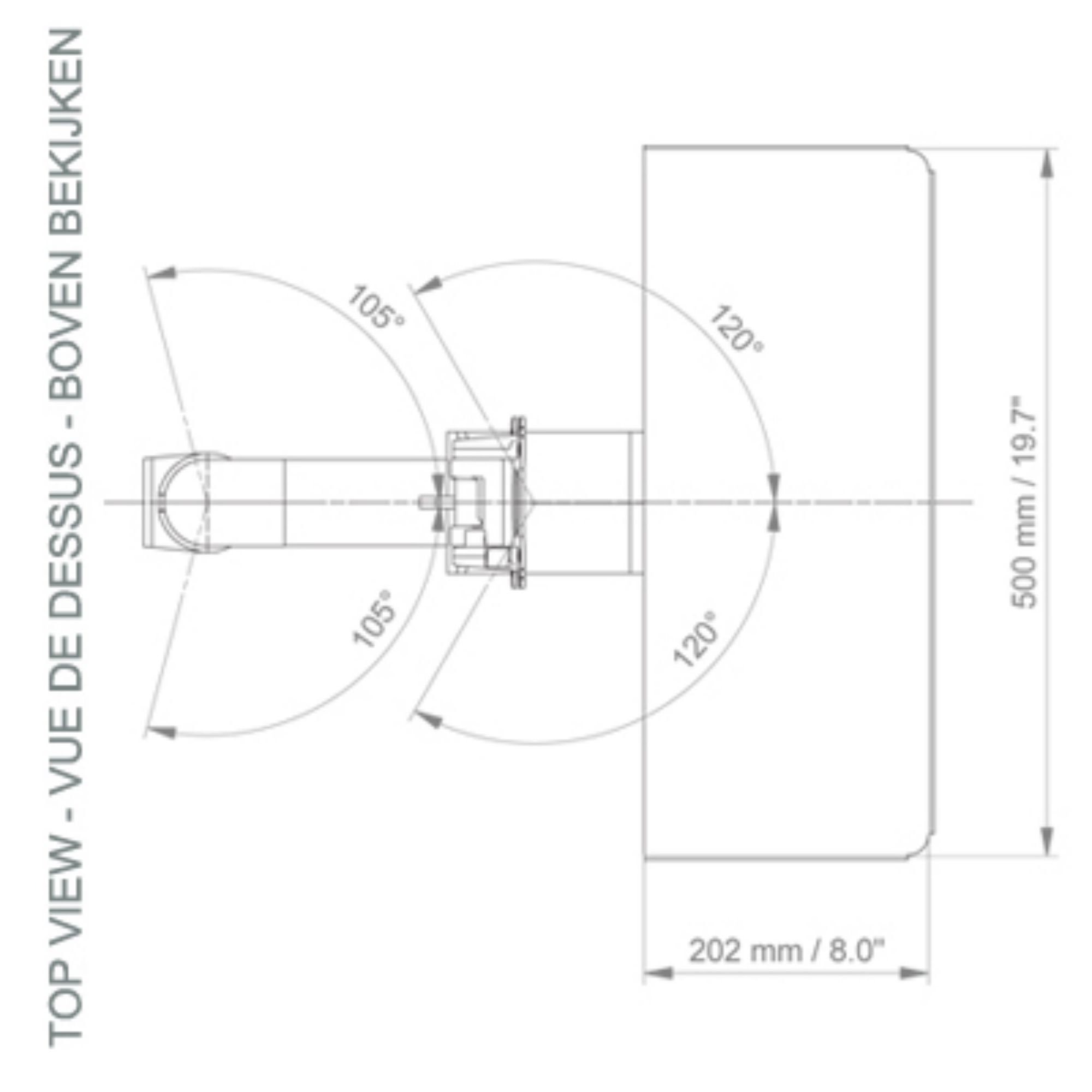

* Arm rotation: 105° right, 105° left.

* Keyboard support rotation: 120° right, 120° left

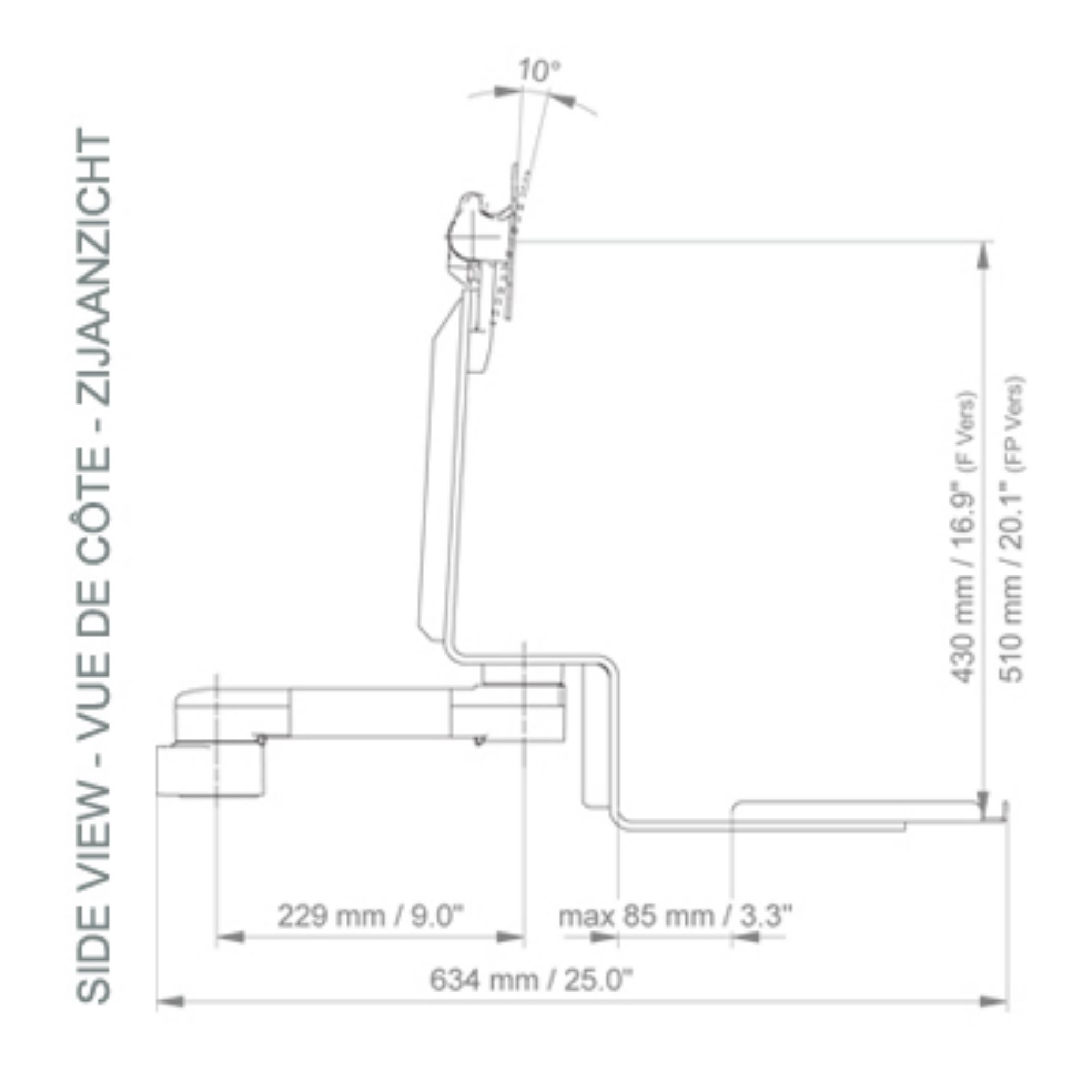

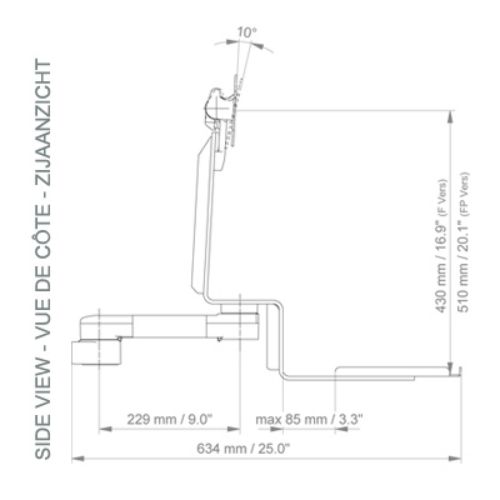

* Total length of the configuration 634 mm

* Colour RAL 5013 cobalt blue and RAL 9016 traffic white

* Warranty: 5 years
