Medical Combo arm Standard adjustable in height by 300 mm,

Variable Pole Mount from 23 to 40 mm.

Supported weight balancing range from 13 to 16 Kg

Product number: WM 225.153 - Medical Combo arm Standard adjustable in height by 300 mm,

Variable Pole Mount from 23 to 40 mm.

Supported weight balancing range from 13 to 16 Kg

Product sheet PDF

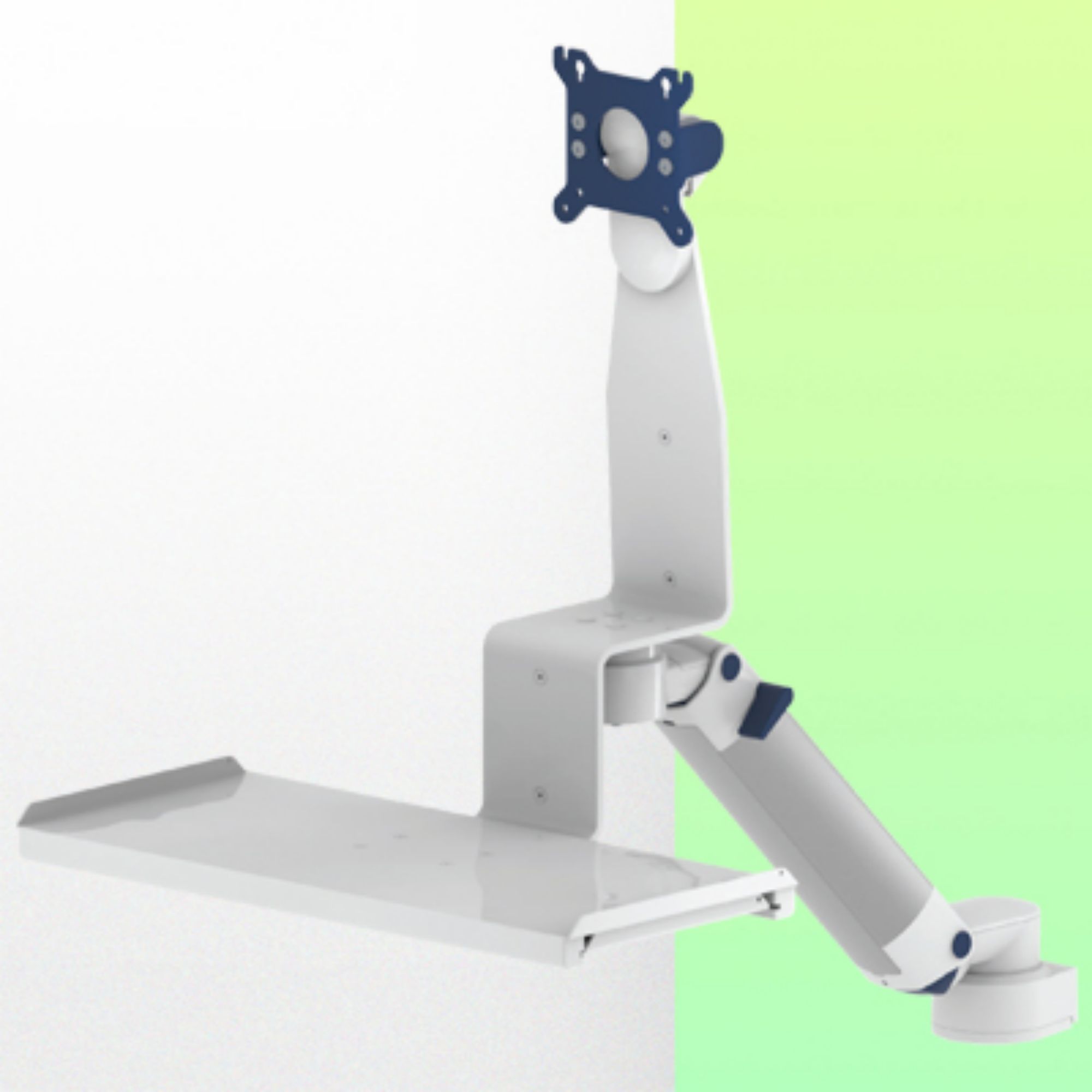

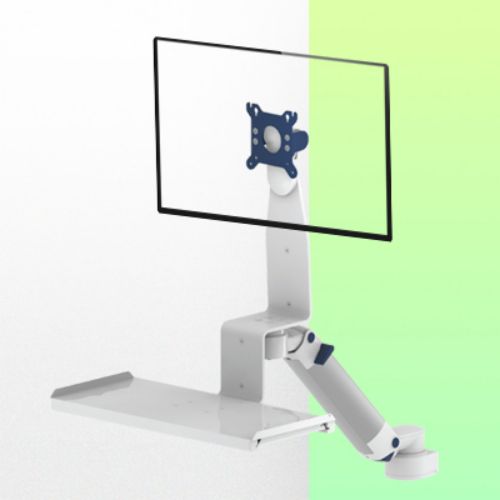

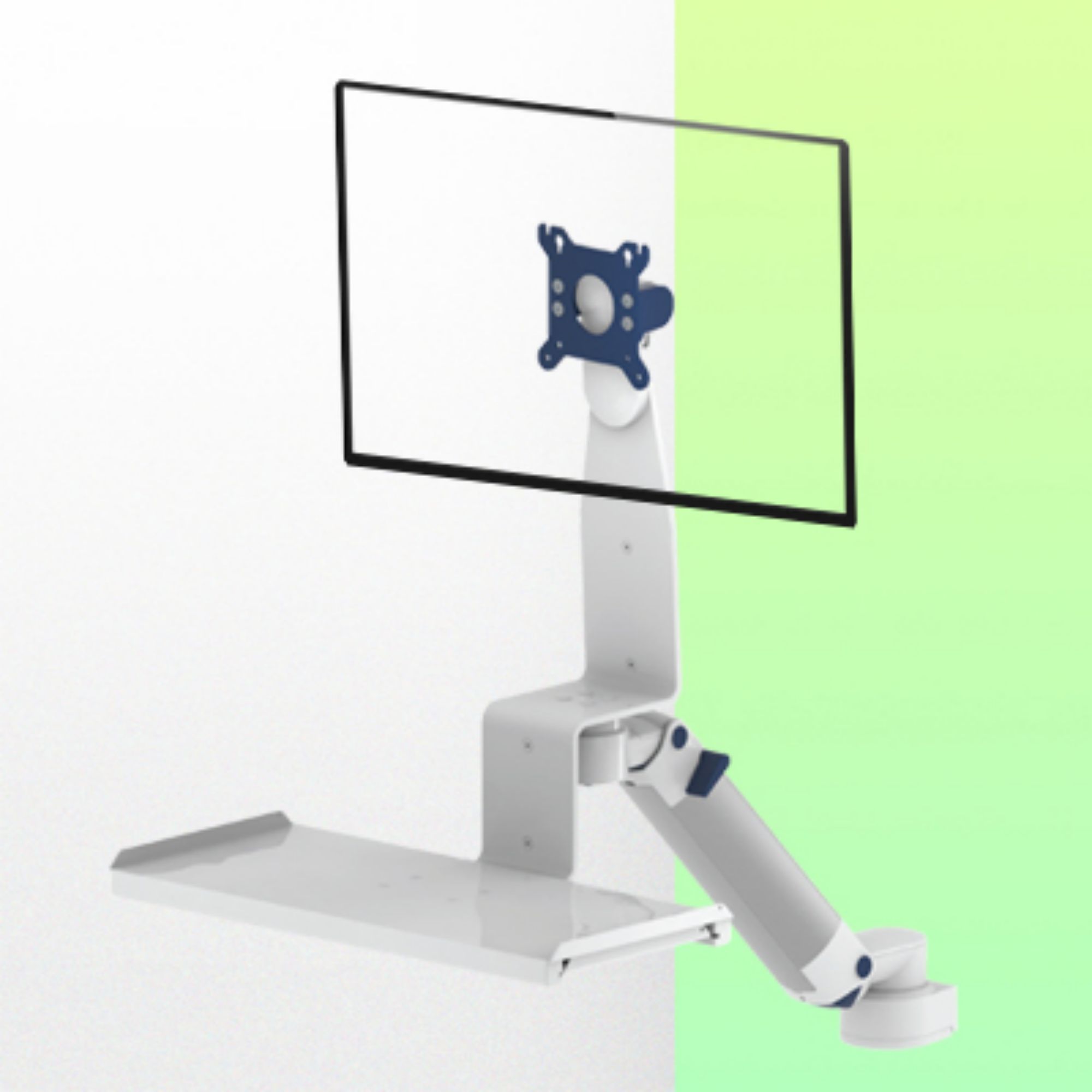

This 300 mm long height adjustable Combo Medical Arm allows to fix, orientate and adjust perfectly a screen, its keyboard support with dimensions of 500 x 202 mm delivered with this configuration allows to welcome a standard keyboard as well as a mouse.

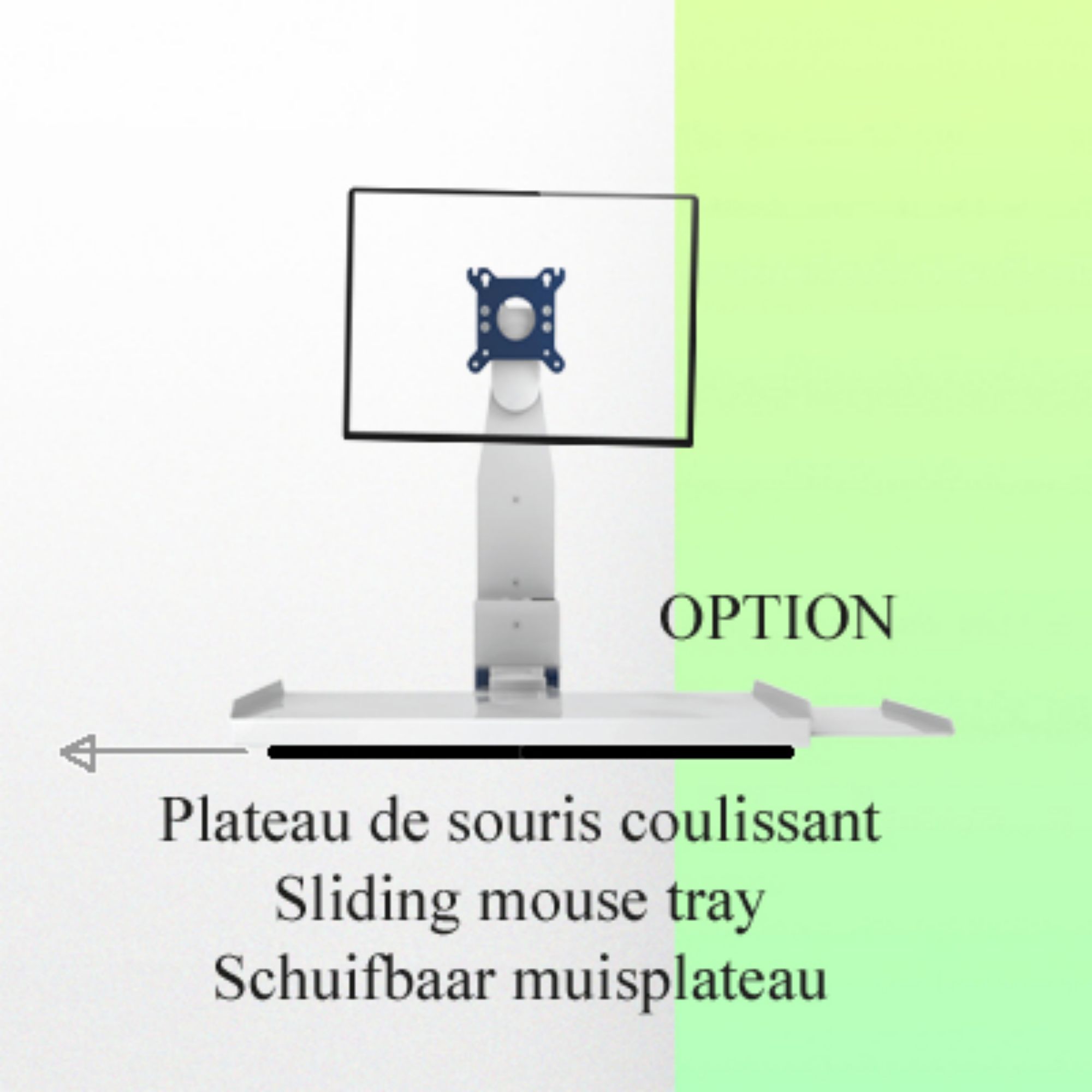

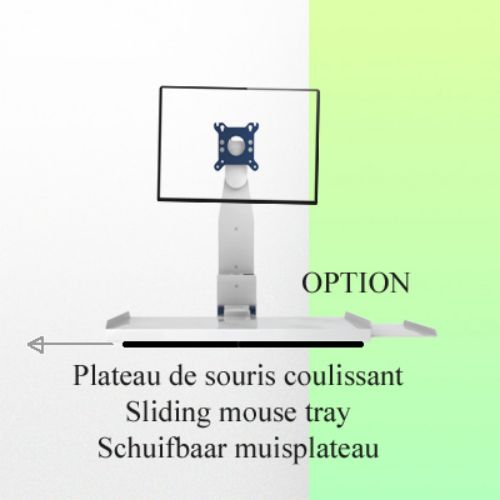

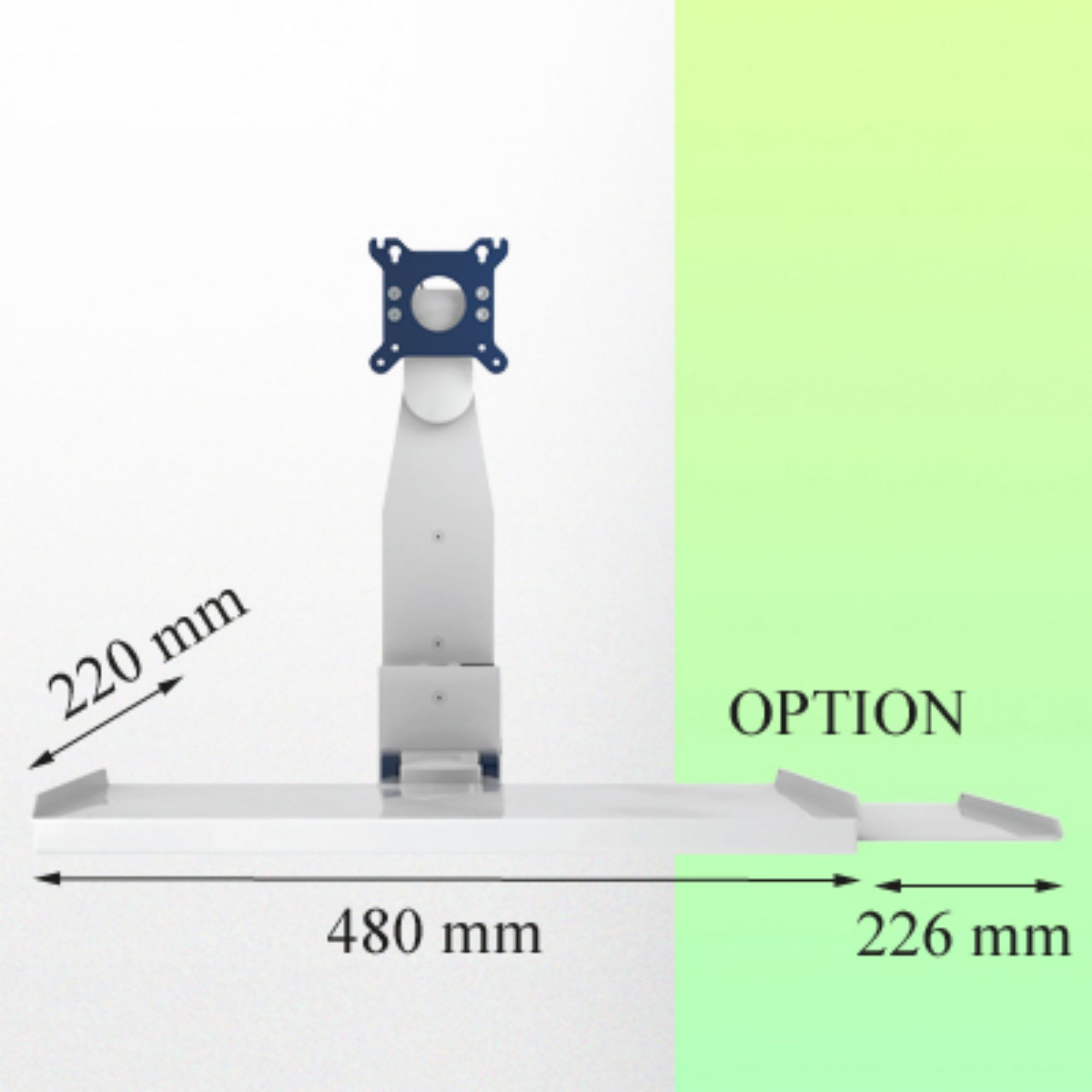

As an option, it can be equipped with a stand with a sliding right/left mouse tray with dimensions of 480 x 220 mm for the keyboard and 226 x 220 mm for the mouse, or with a large keyboard stand with dimensions of 580 x 200 mm.

It has a safety stop button for the height adjustment, which allows the arm to remain in the selected position.

Technical specifications:

* Integrated cable management

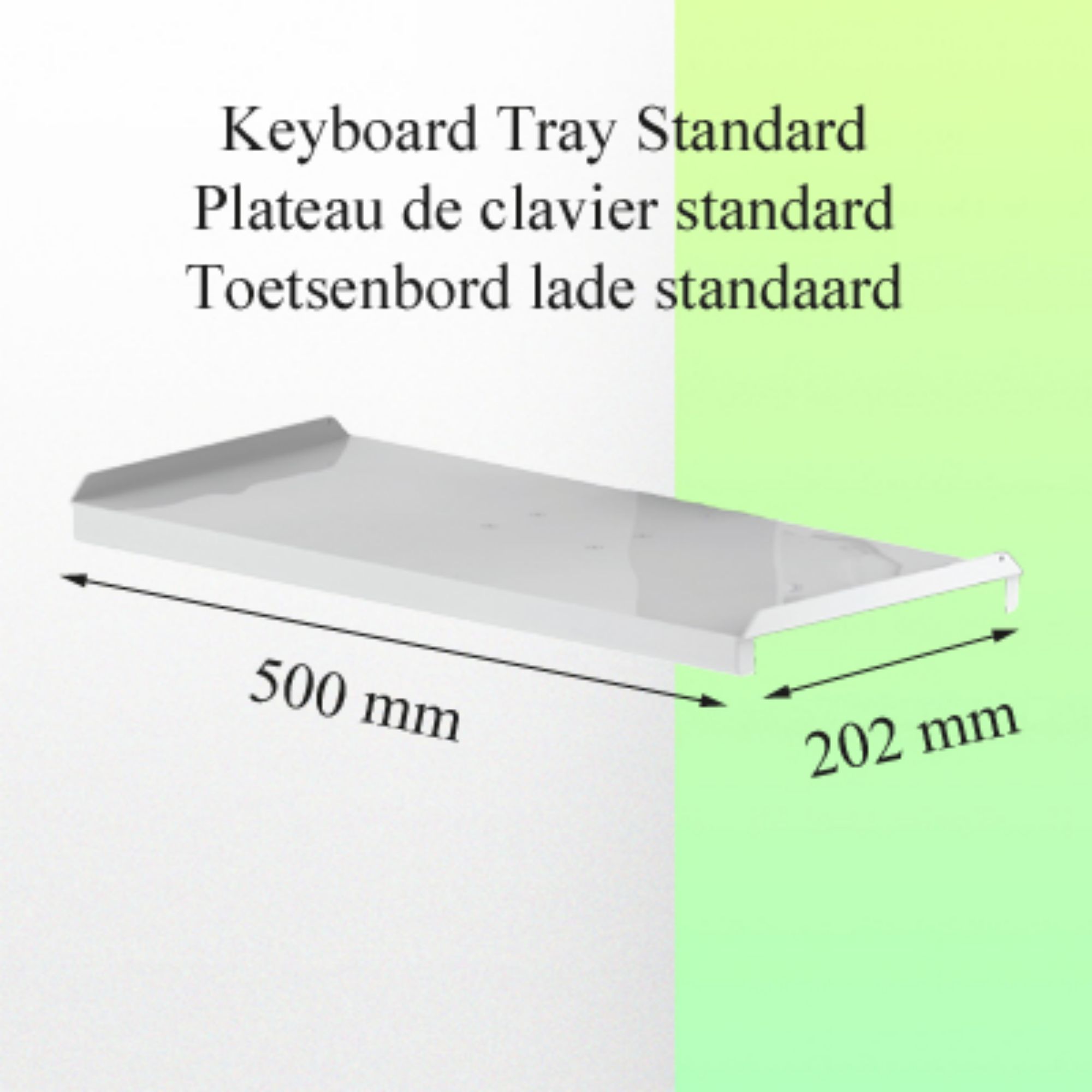

* Standard keyboard support 500 x 202 mm

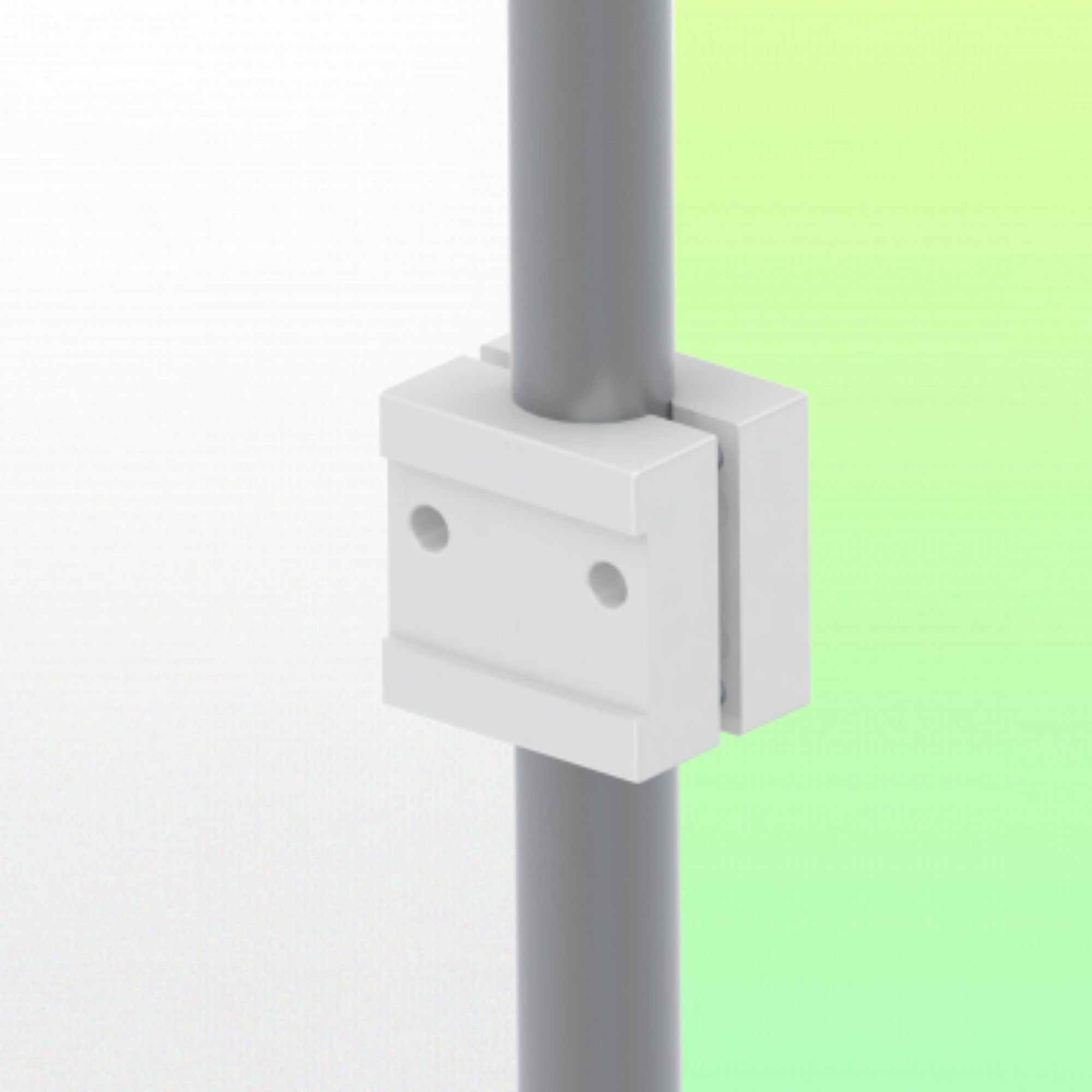

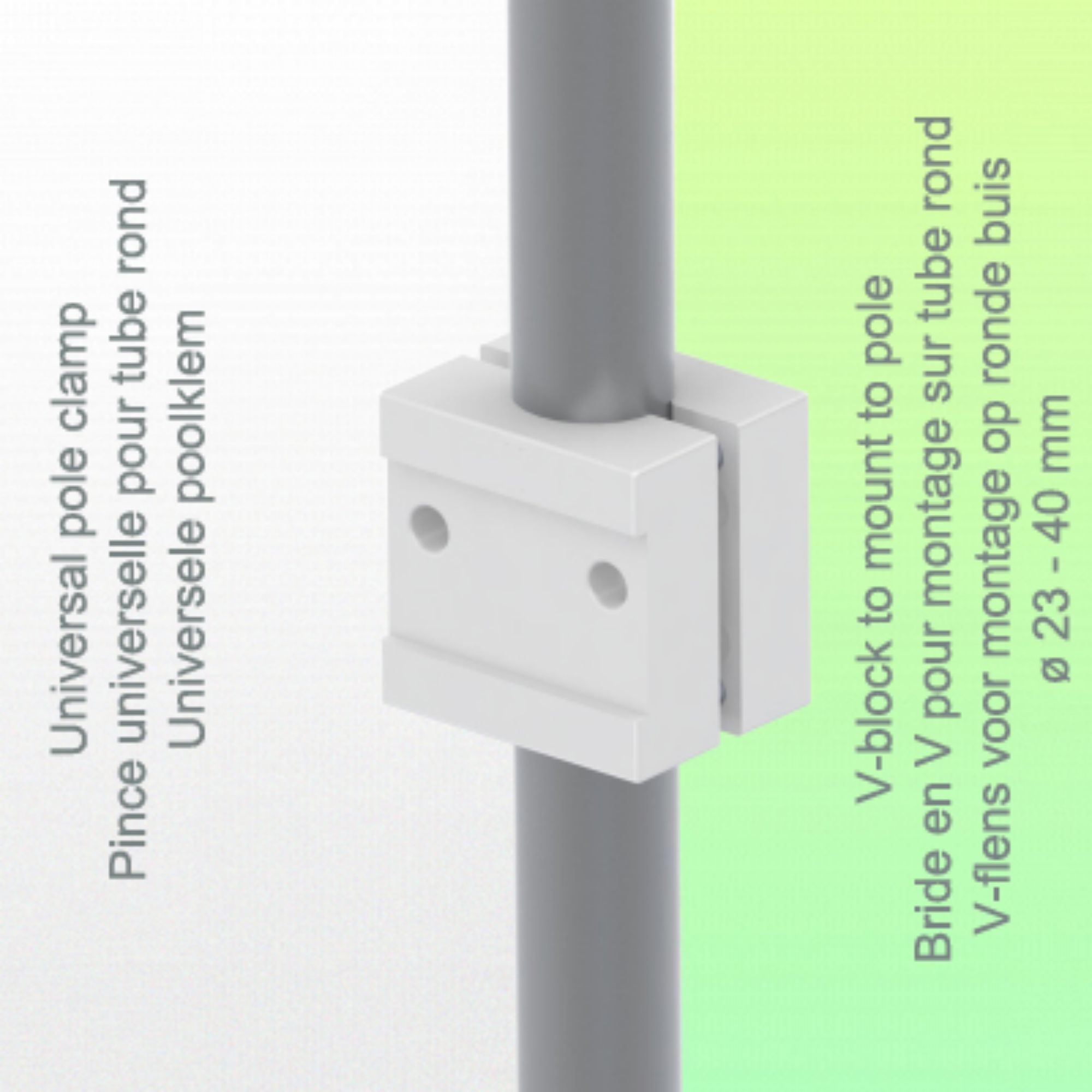

* Pole mount Variable from 23 to 40 mm

* This standard Combo Arm with height adjustment 300 mm long simply clips into the pole and then adjusts to the desired height and fixed.

* The head of this arm conforms to the VESA 75/100mm screen mounting standard

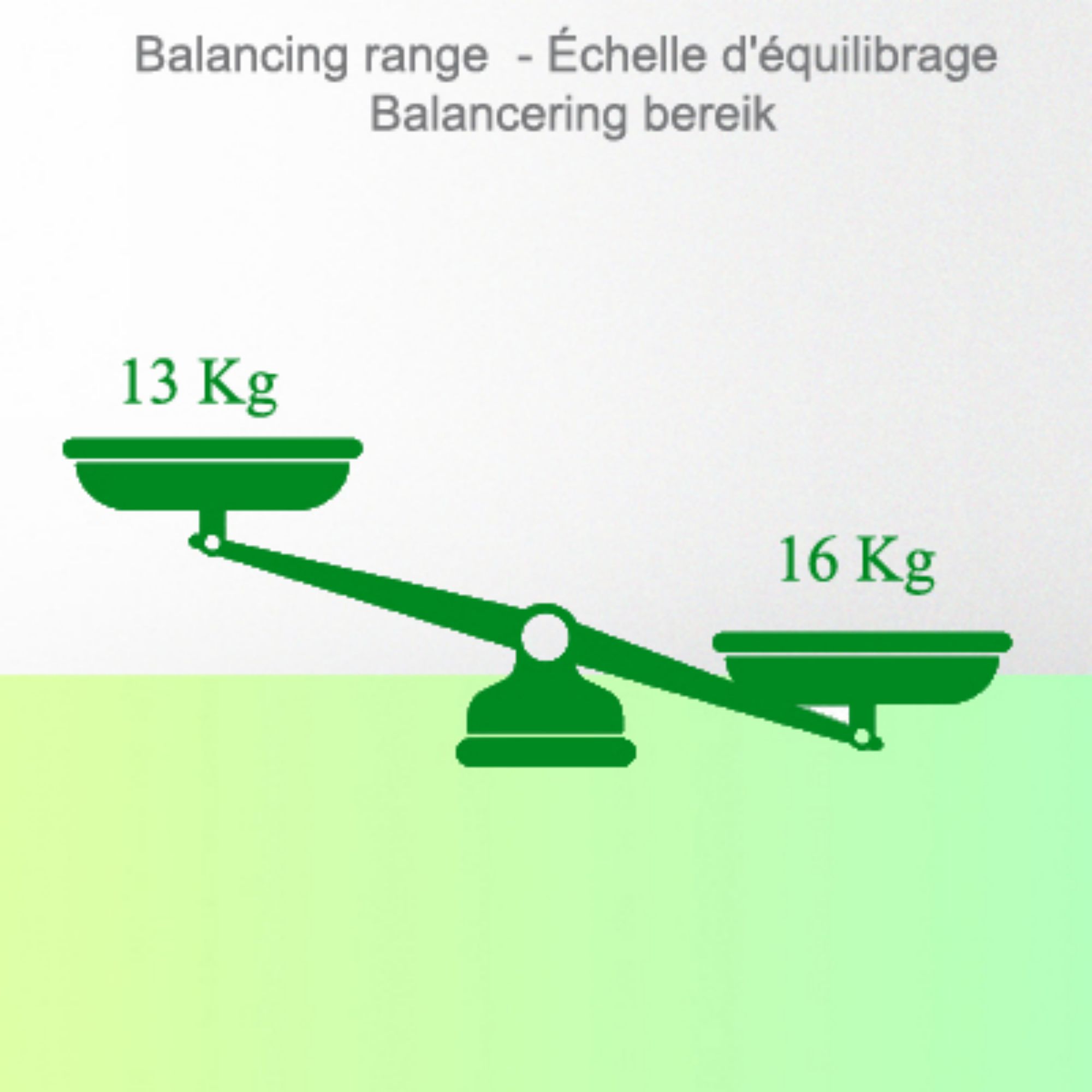

* Compatible with equipment weighing up to 13 - 16 kg

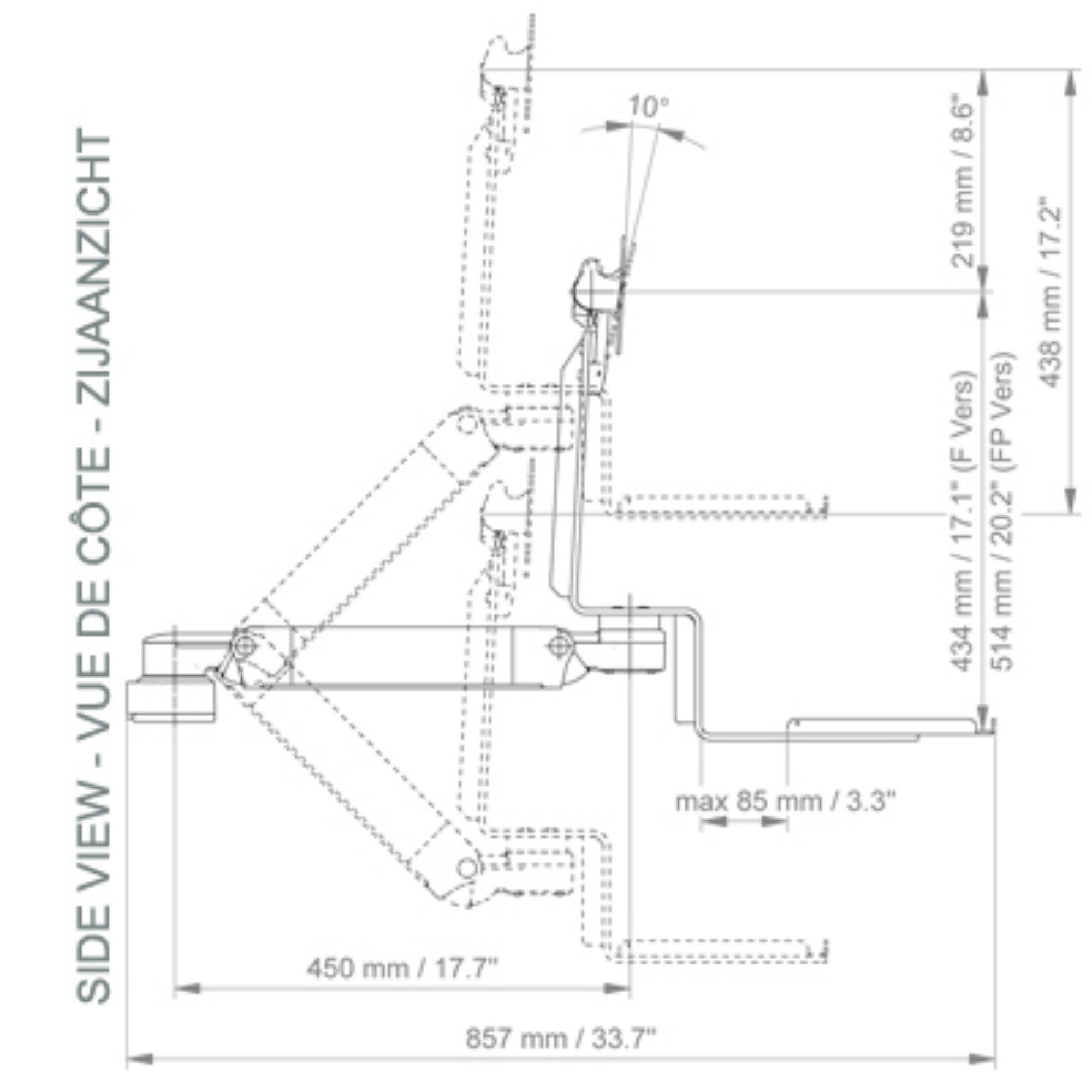

* Screen tilt: 10°

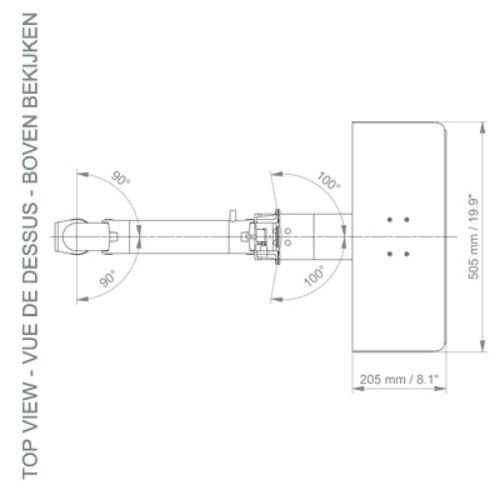

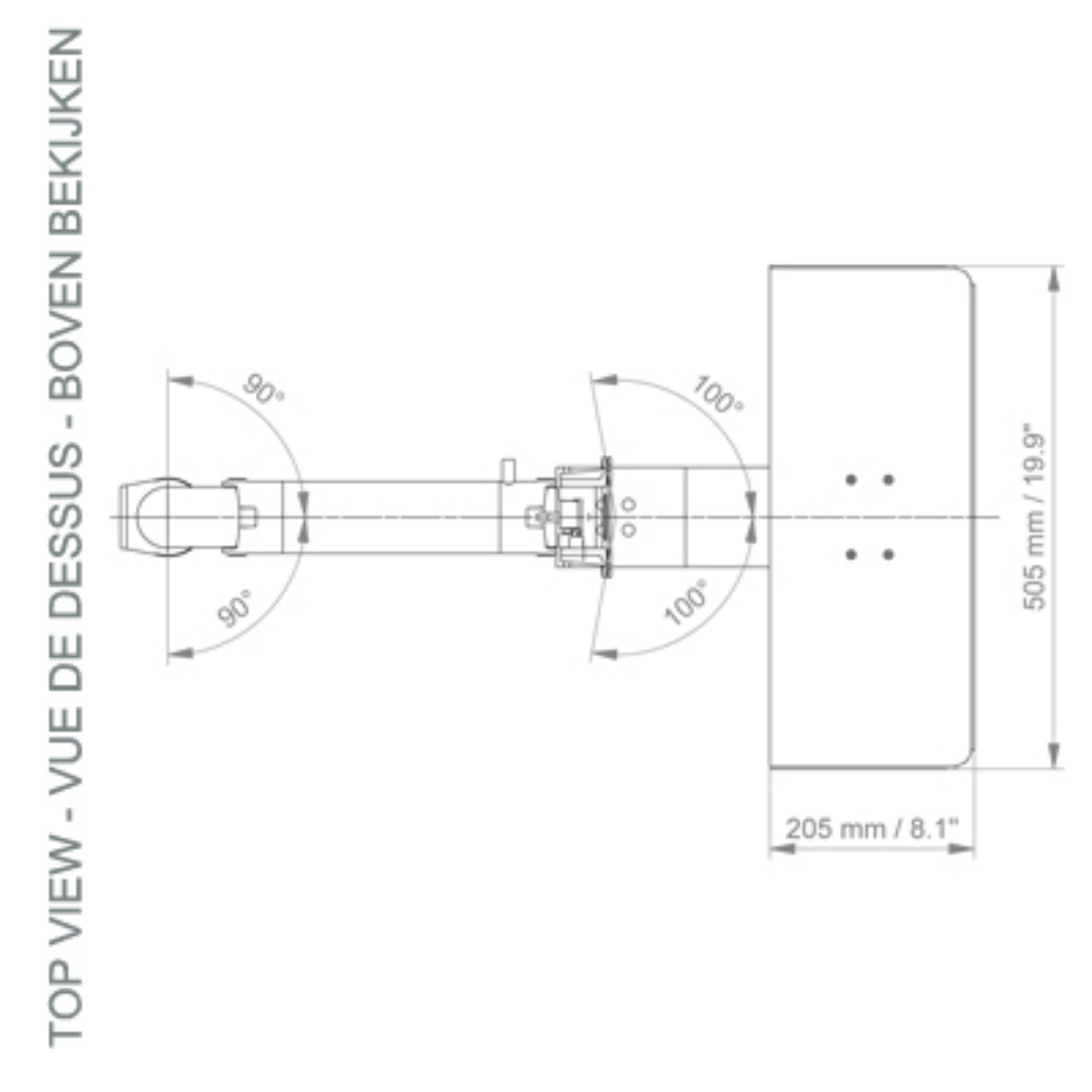

* Arm rotation: 90° to the right, 90° to the left from the mounting point

* Keyboard and screen support rotation: 100° to the right, 100° to the left

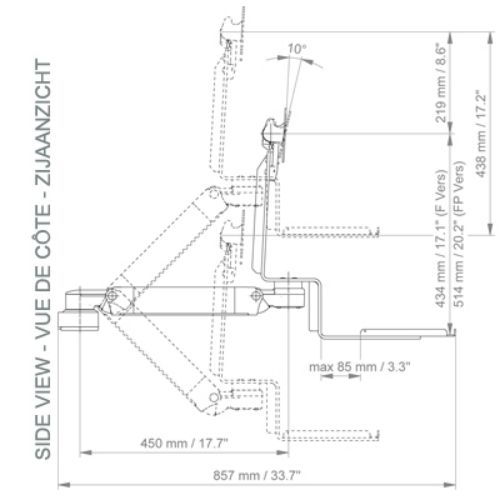

* Total length of the configuration 857 mm

* Colour RAL 5013 cobalt blue and RAL 9016 traffic white

* Warranty: 5 years
