Medical Combo arm Standard adjustable in height by 2 x 300 mm,

floor or ceiling column mounting.

Supported weight of balance scale from 2,5 to 5,5 Kg

Product number: WM 225.176 - Medical Combo arm Standard adjustable in height by 2 x 300 mm,

floor or ceiling column mounting.

Supported weight of balance scale from 2,5 to 5,5 Kg

Product sheet PDF

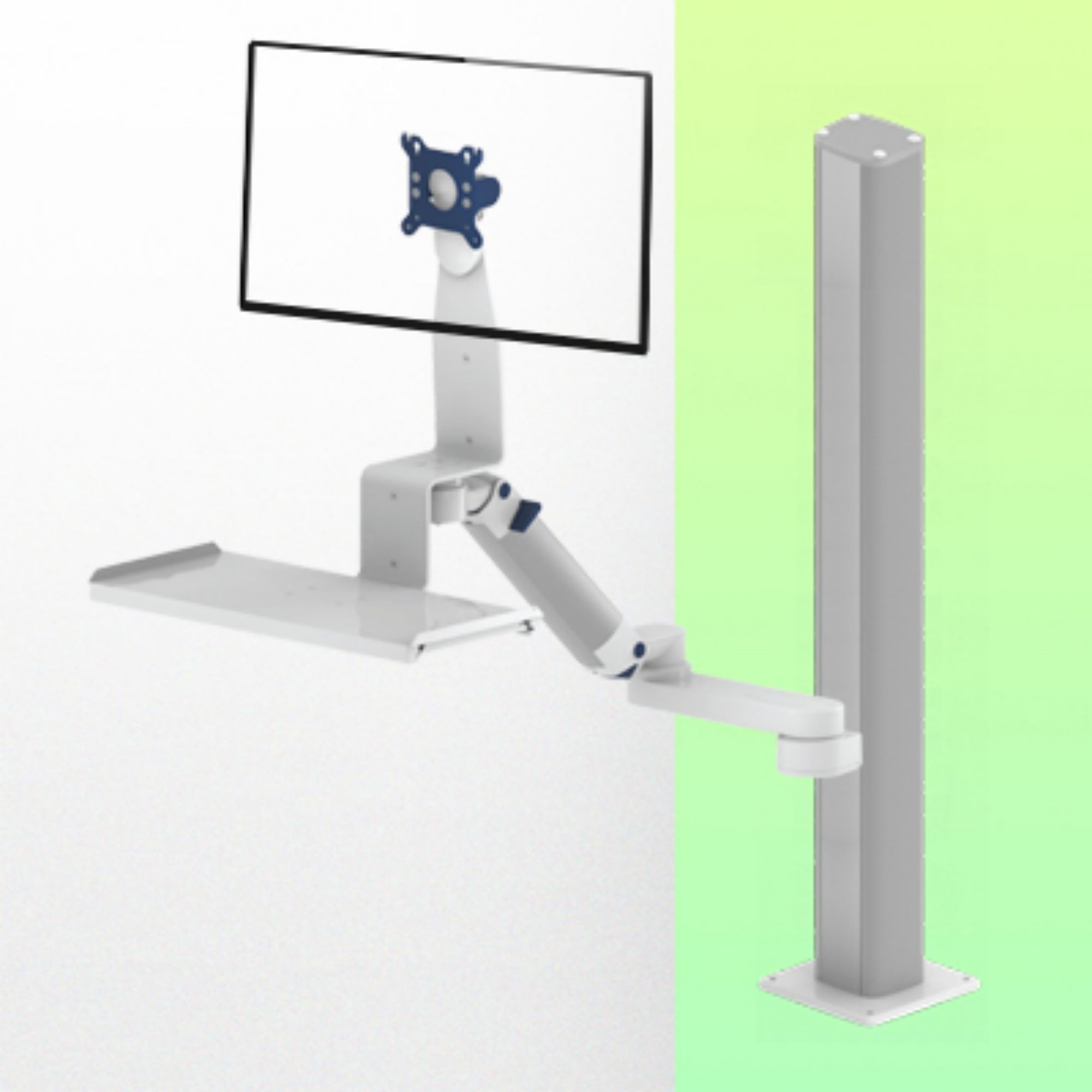

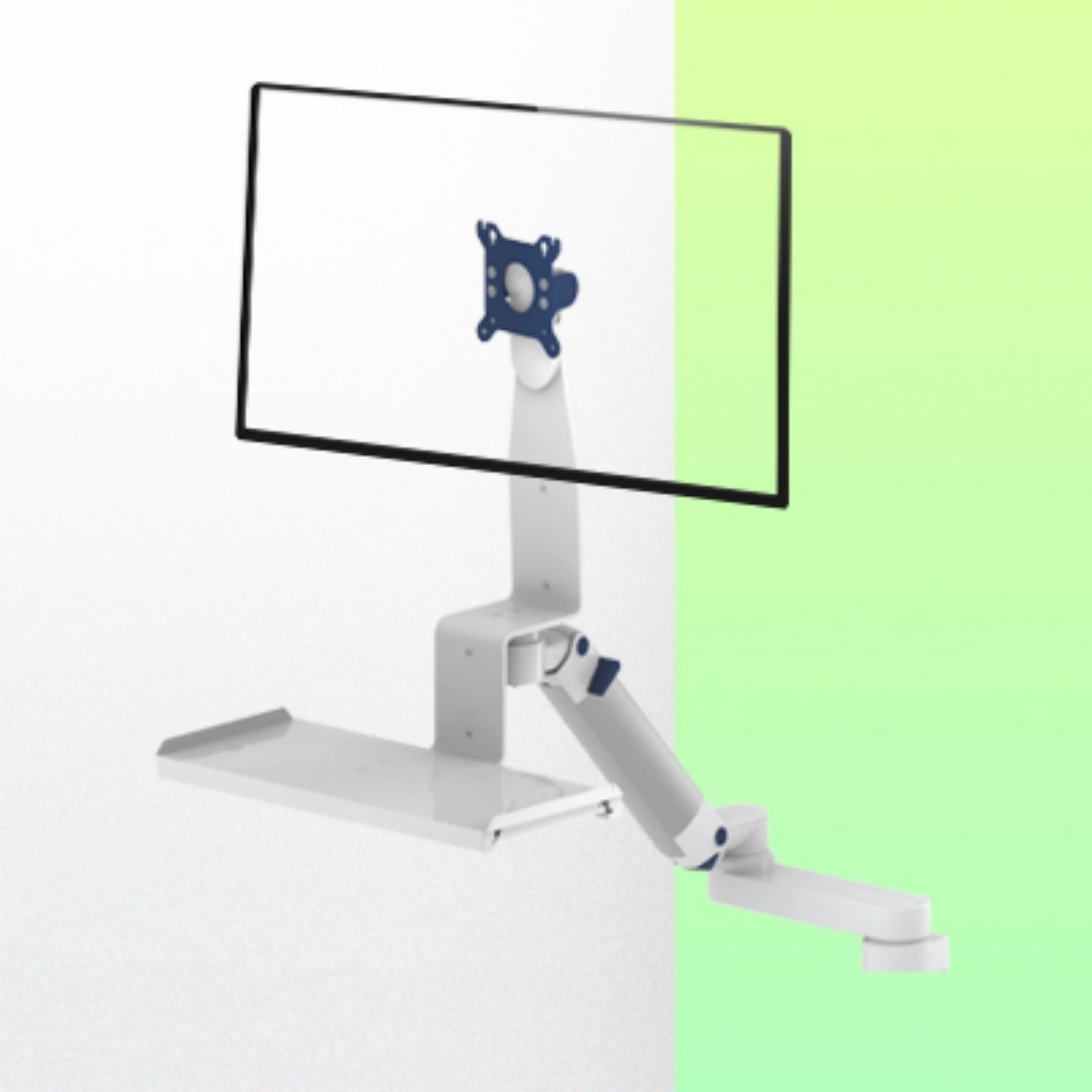

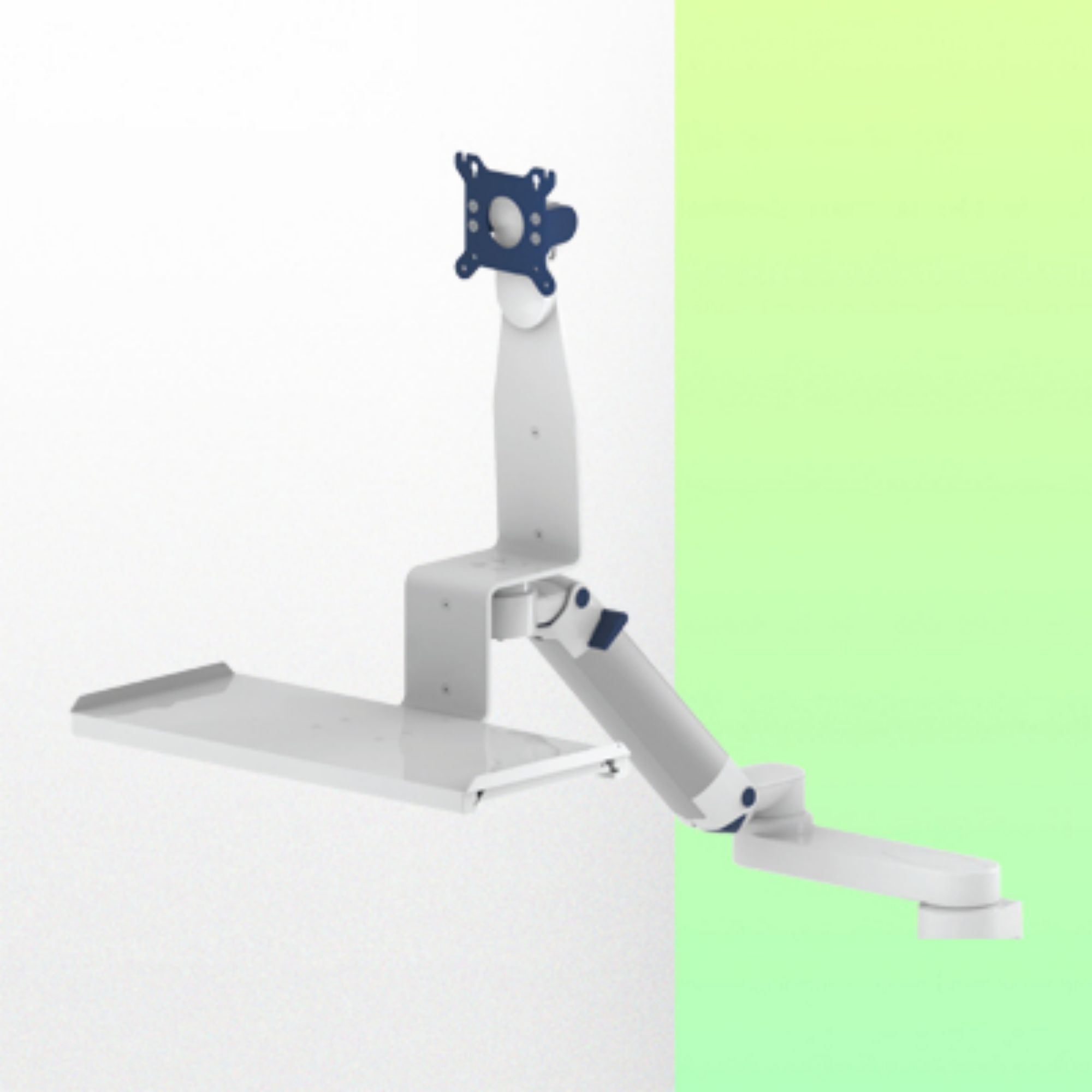

This 2 x 300 mm long height adjustable Combo Medical Arm allows to fix, orientate and adjust perfectly a screen, its keyboard support with dimensions of 500 x 202 mm delivered with this configuration allows to welcome a standard keyboard as well as a mouse.

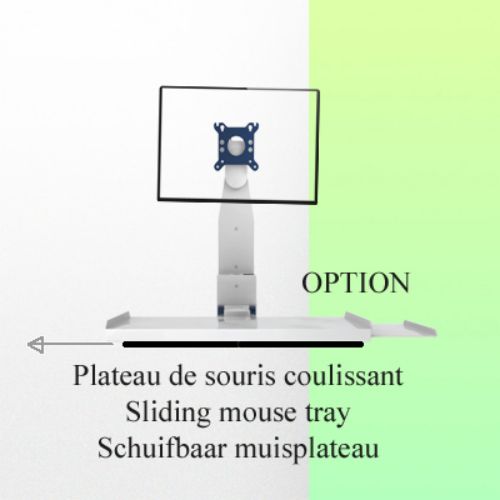

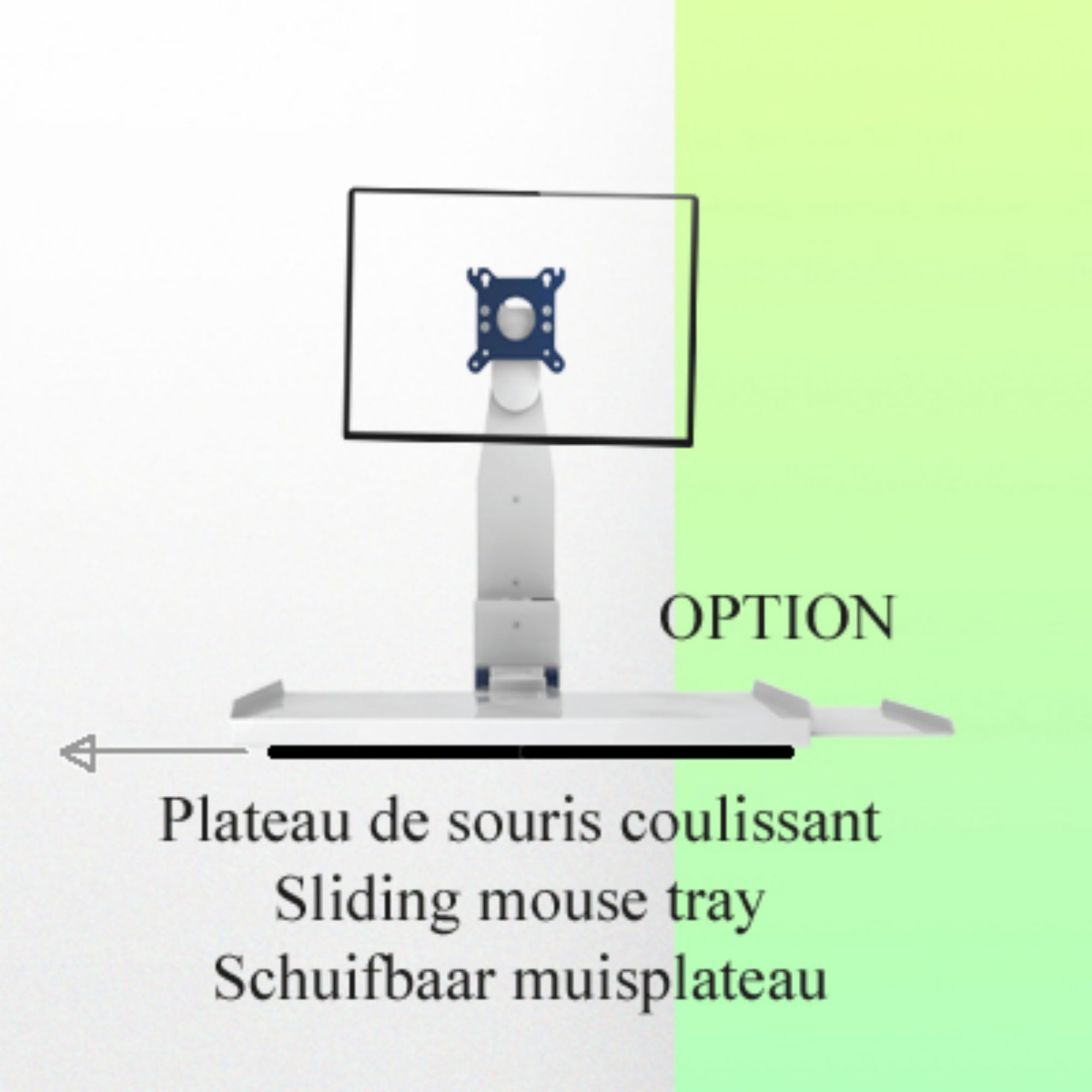

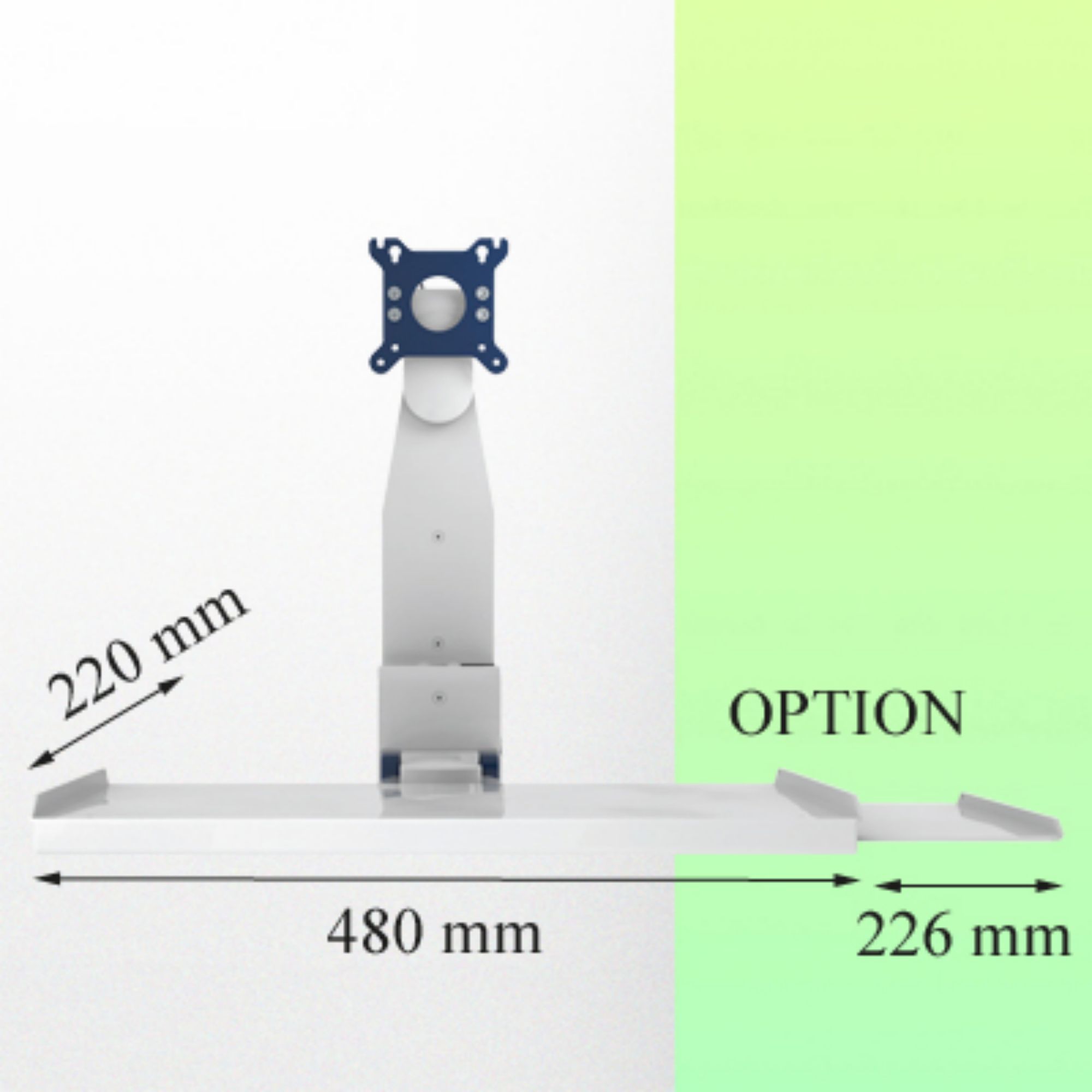

As an option, it can be equipped with a stand with a sliding right/left mouse tray with dimensions of 480 x 220 mm for the keyboard and 226 x 220 mm for the mouse, or with a large keyboard stand with dimensions of 580 x 200 mm.

It has a safety stop button for the height adjustment, which allows the arm to remain in the selected position.

Technical specifications:

* Integrated cable management

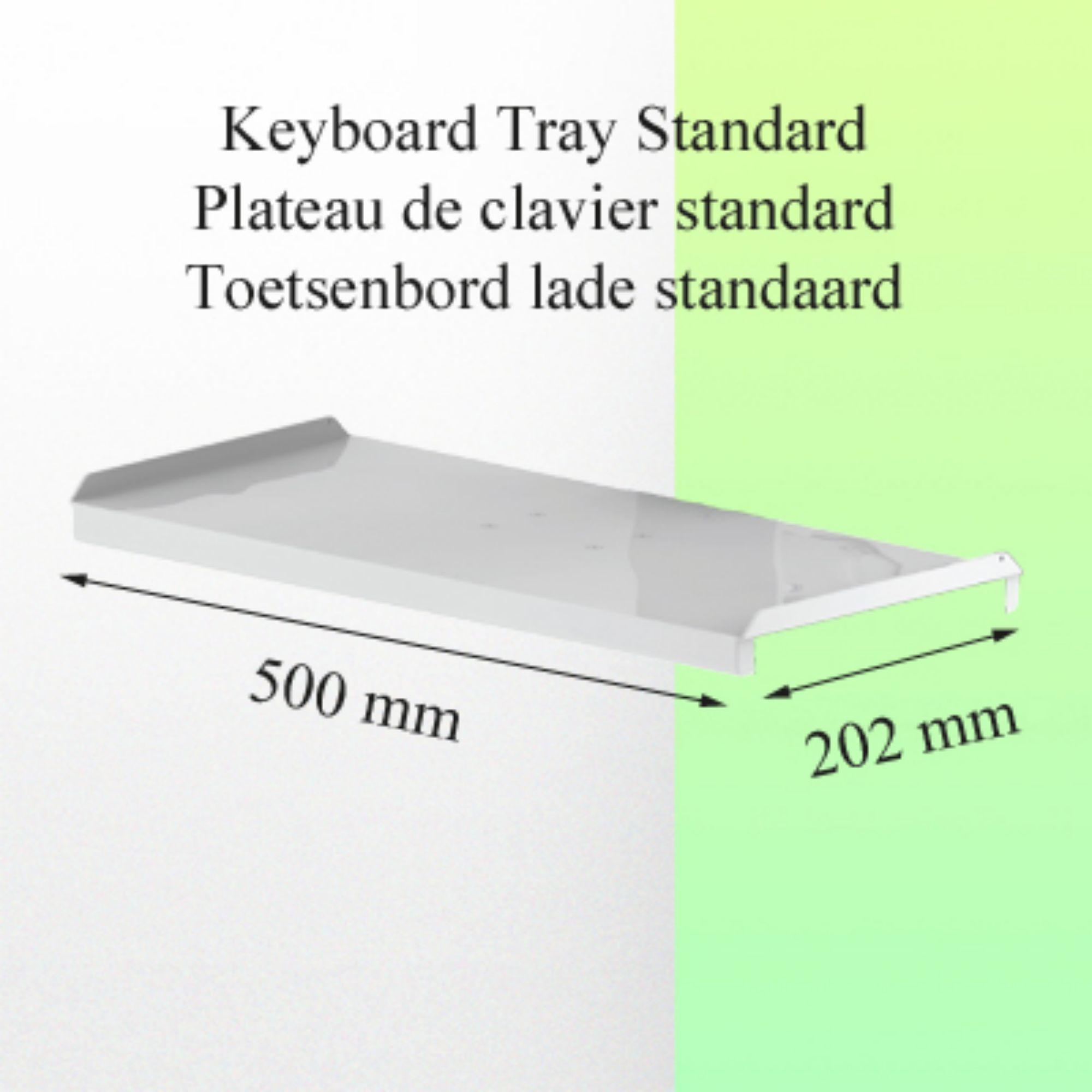

* Standard keyboard support 500 x 202 mm

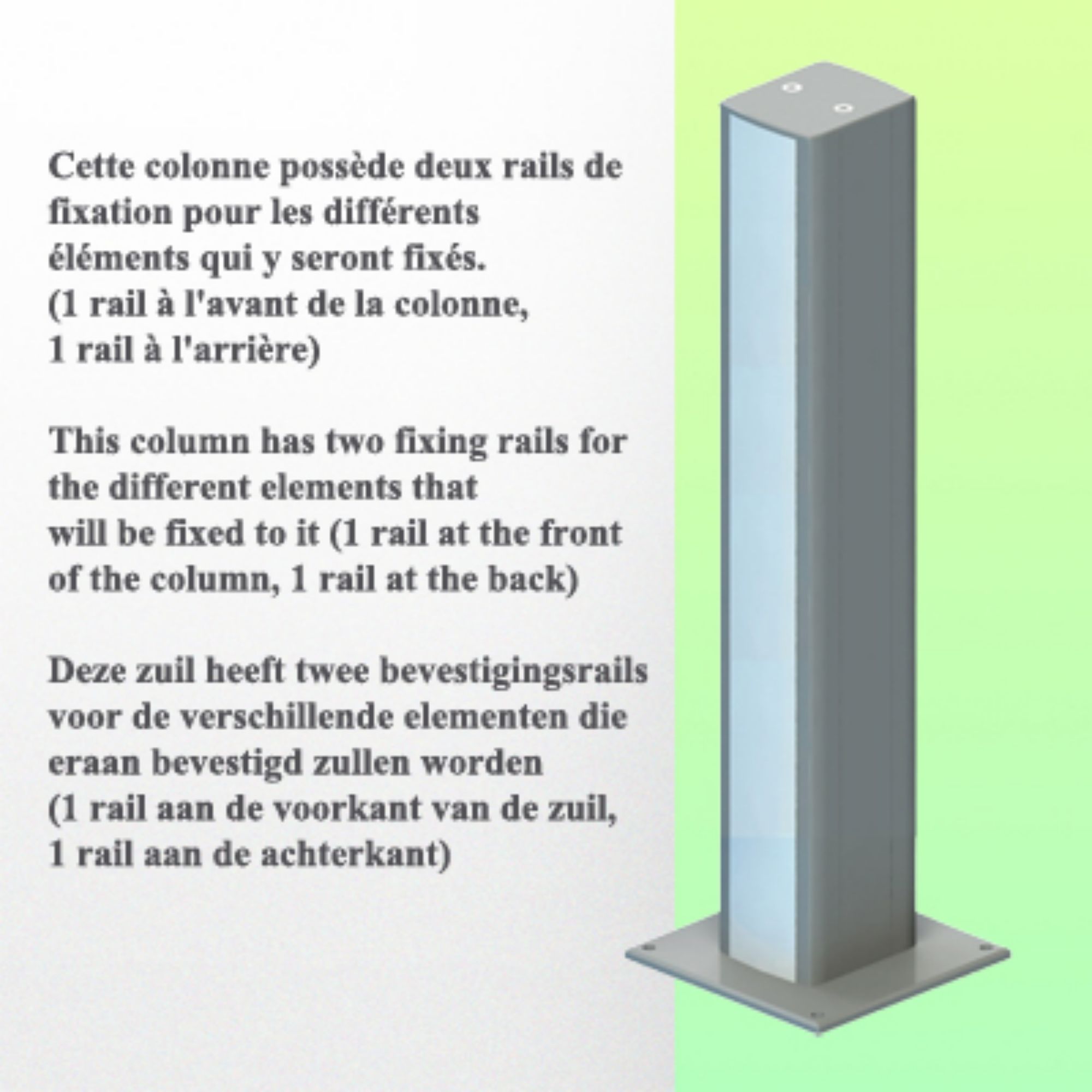

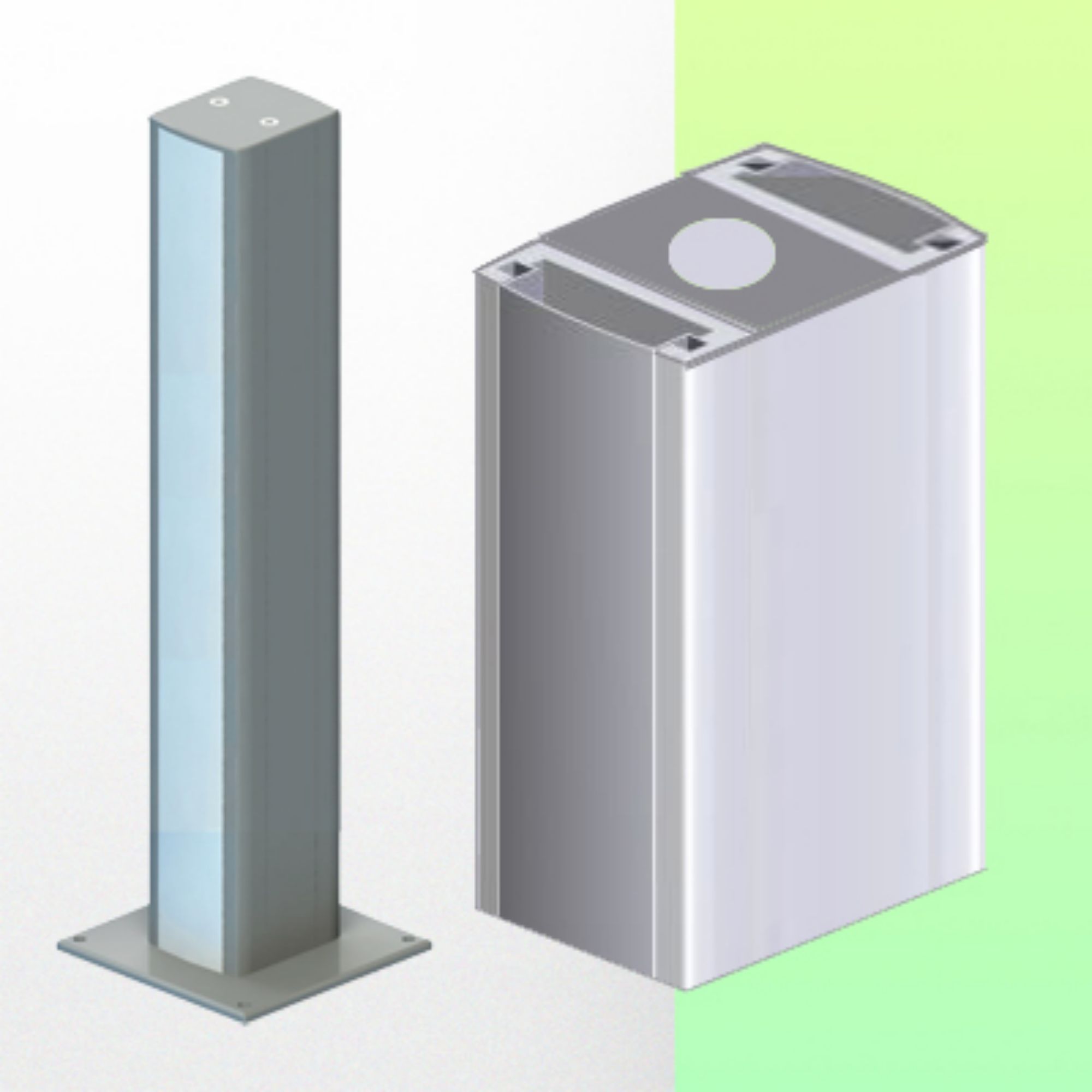

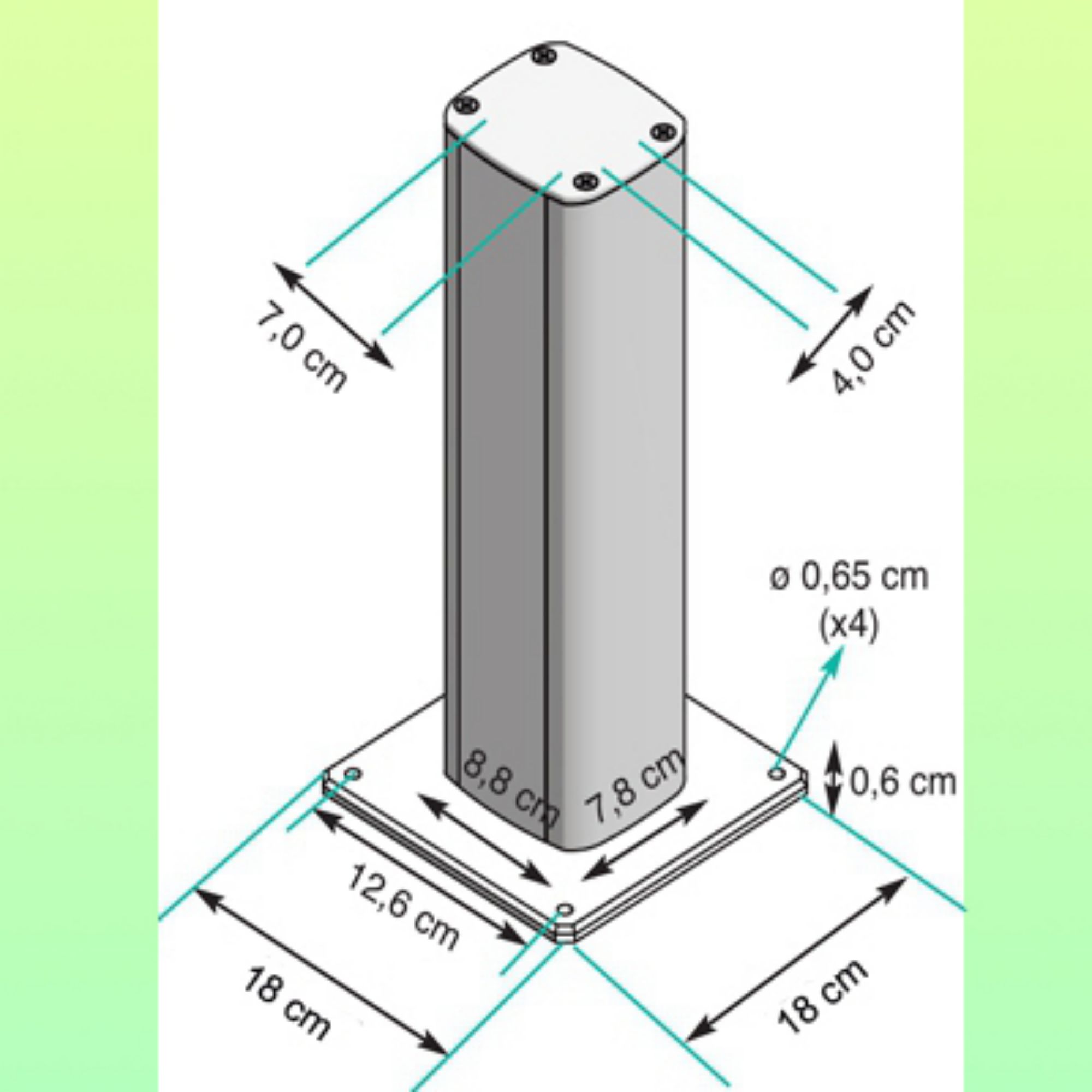

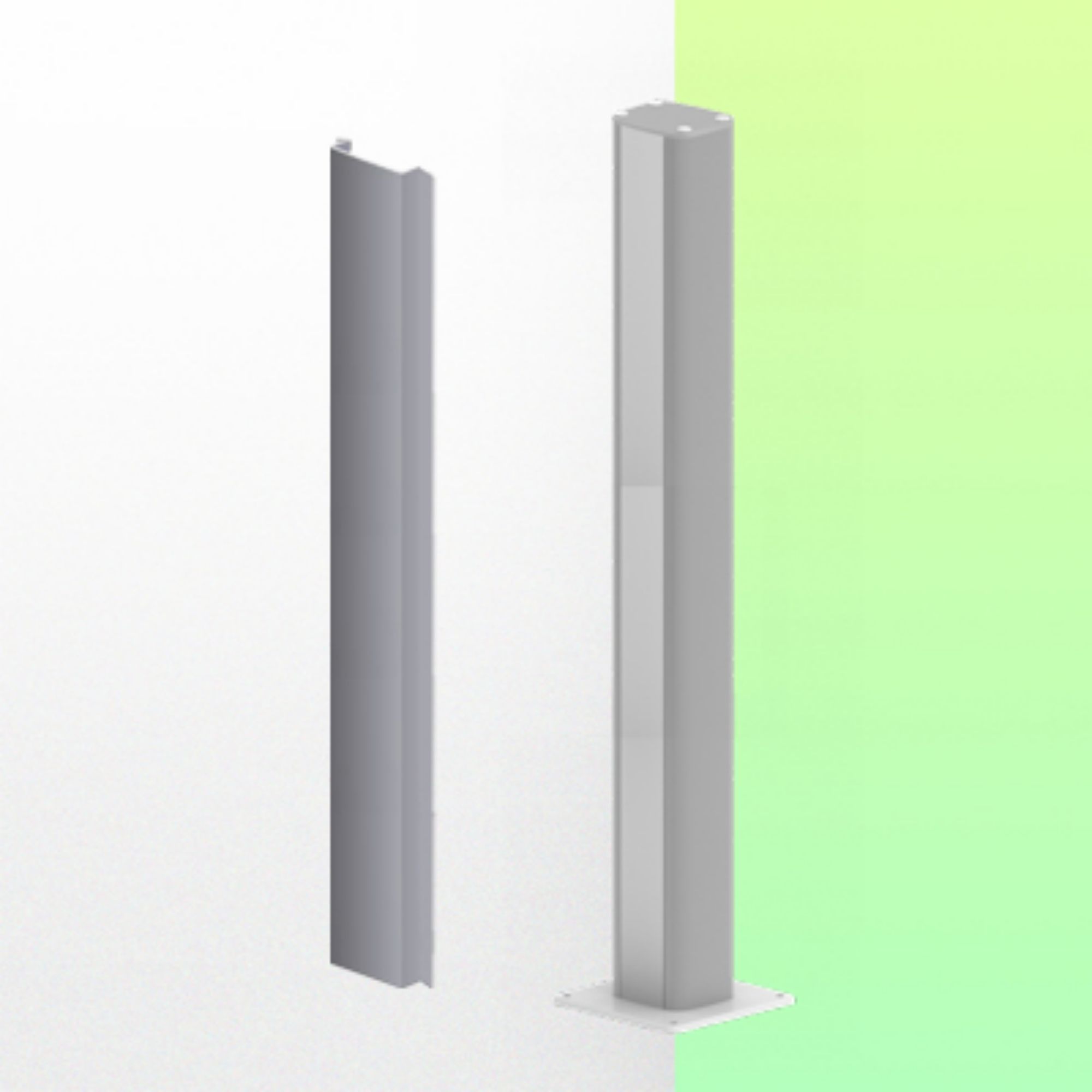

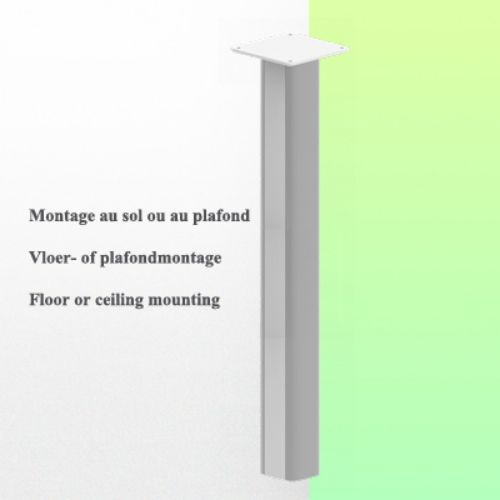

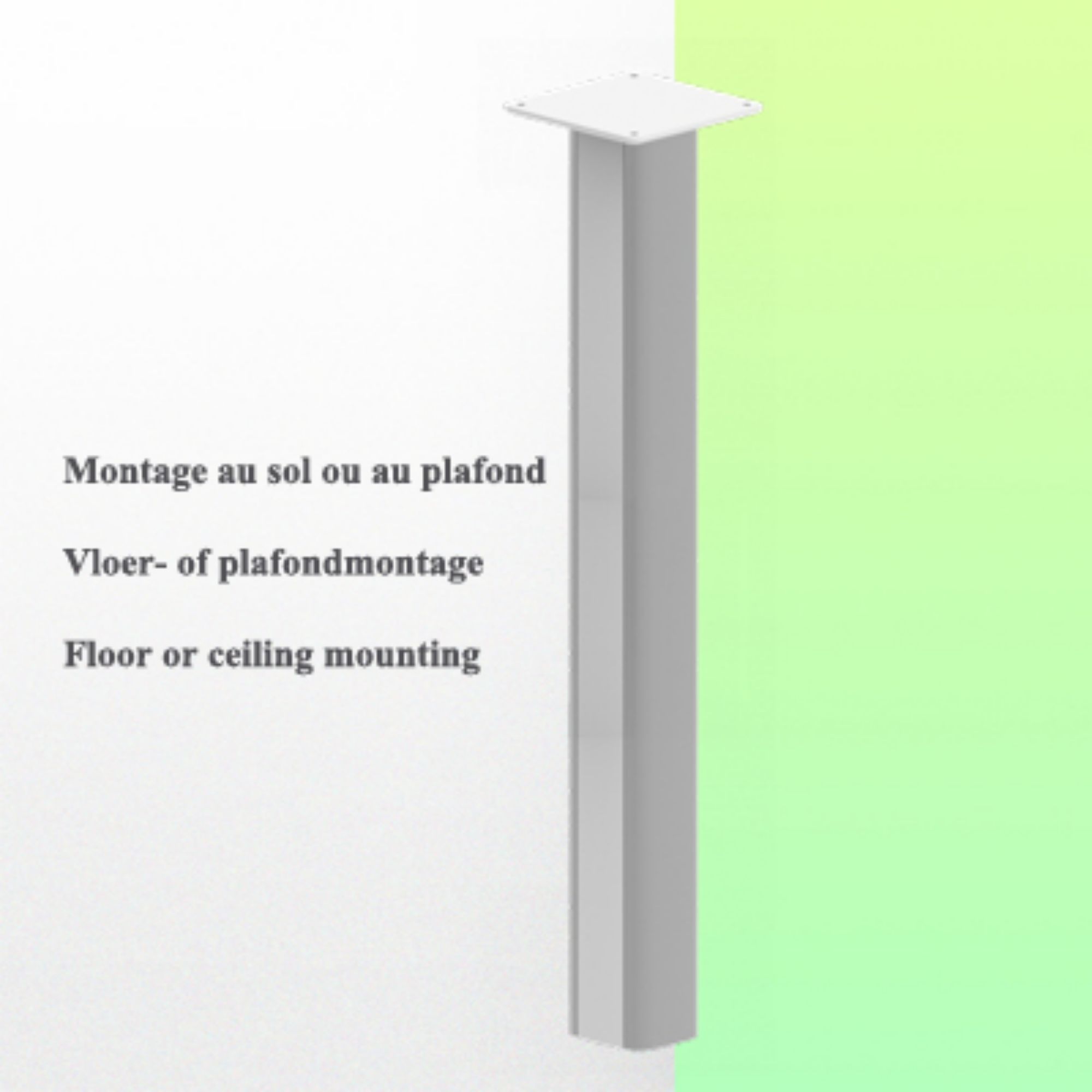

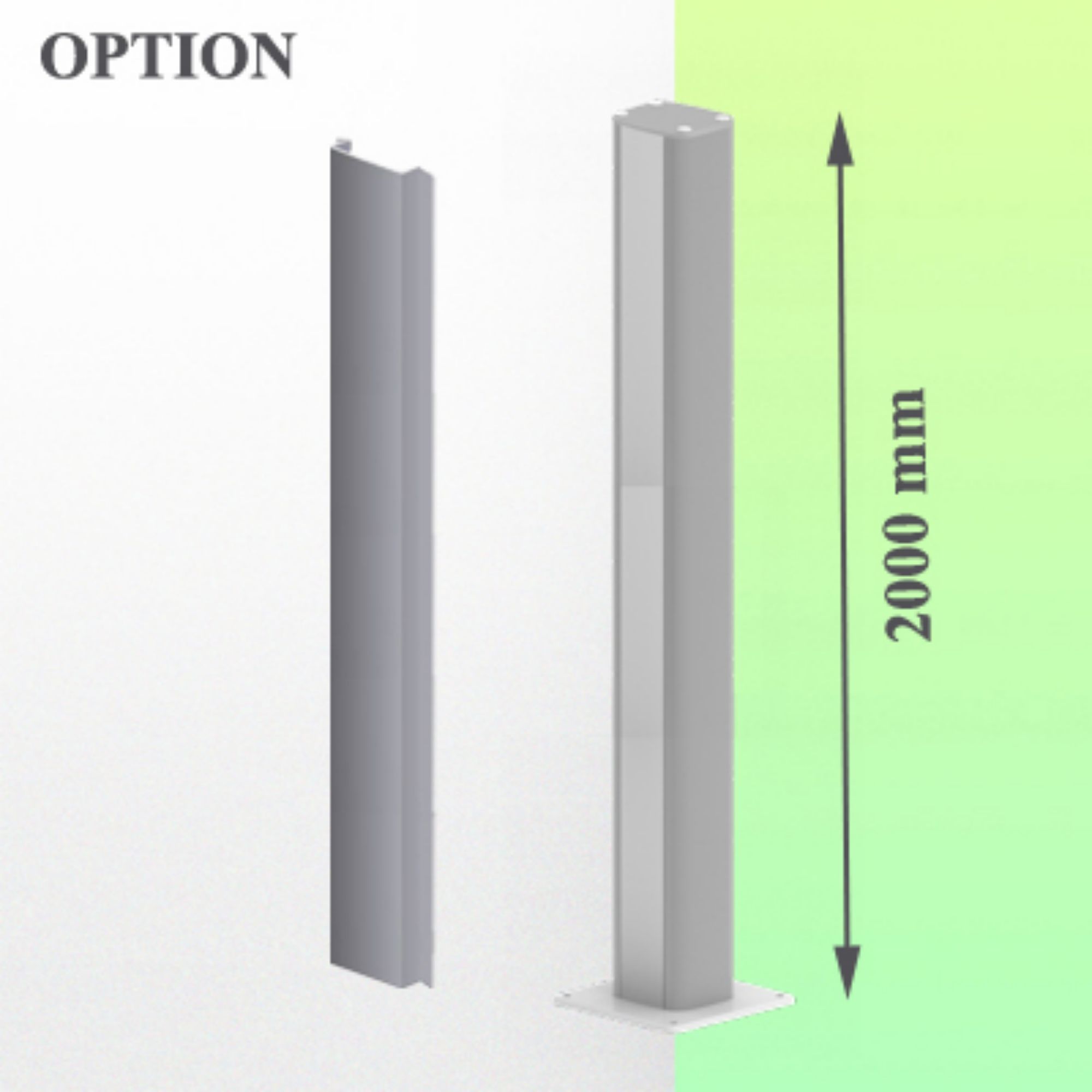

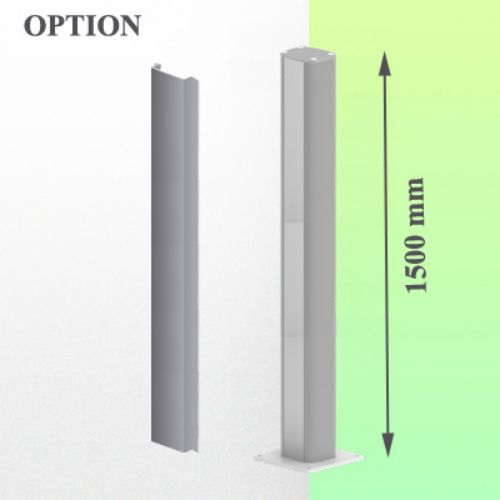

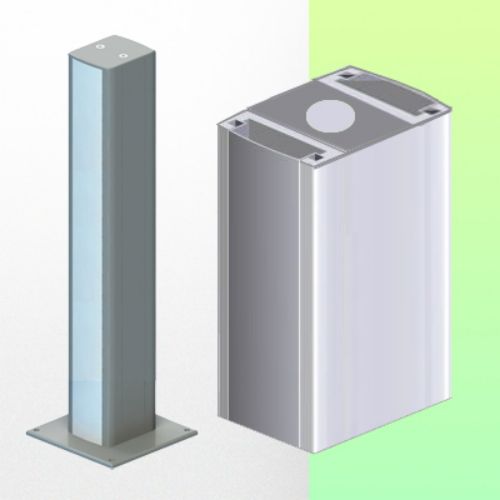

* Optional floor or ceiling columns are available in various heights (1500 - 2000 mm).

* These columns can be easily cut to size.

* All cables are also routed through the column.

* This standard Combo Arm with height adjustment is 2 x 300 mm long and simply slides into the rail and then adjusts to the required height and is fixed

* The head of this arm complies with the screen mounting standard: VESA 75/100 mm

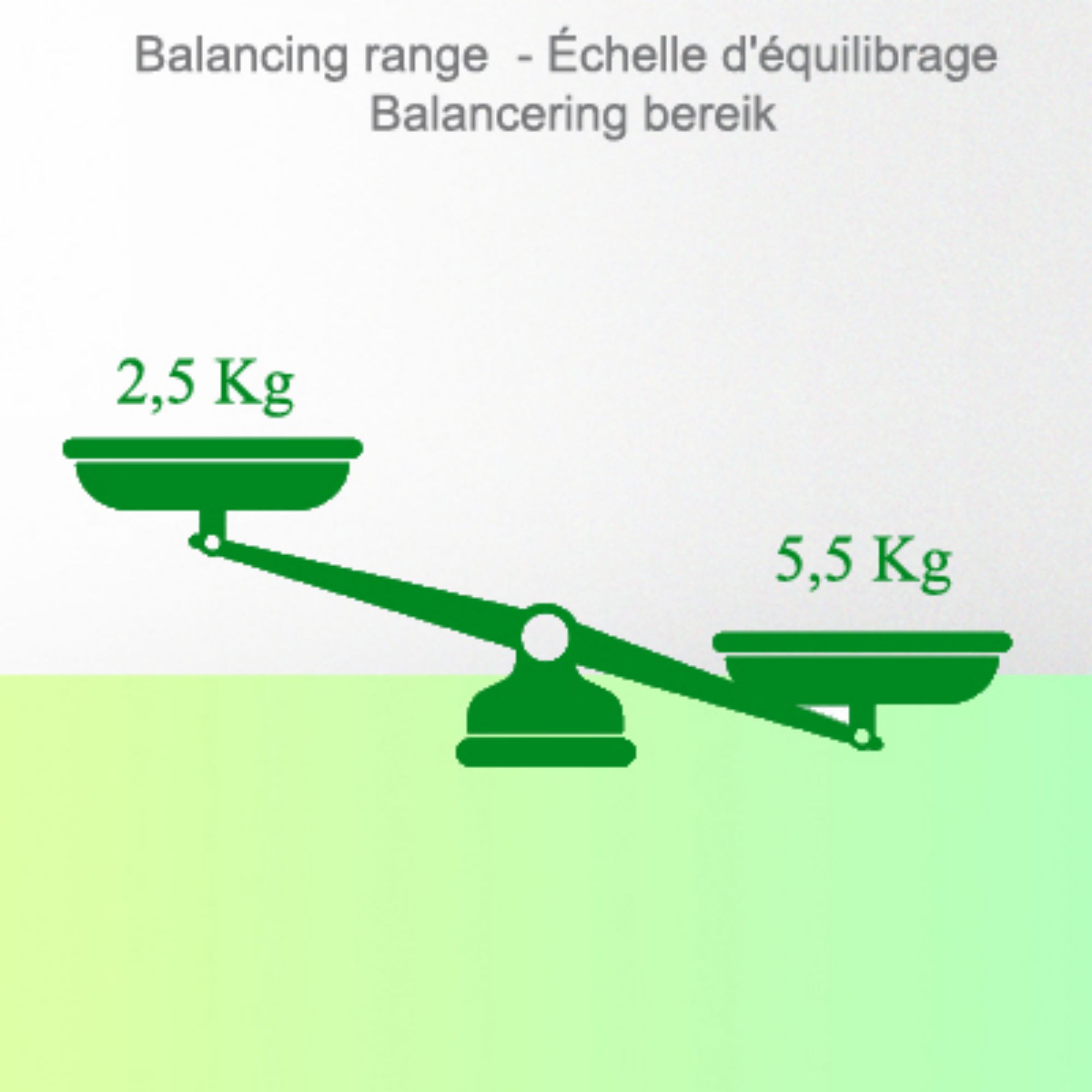

* Compatible with equipment weighing up to 2.5 - 5.5 kg.

* Tilting of the screen: 10°

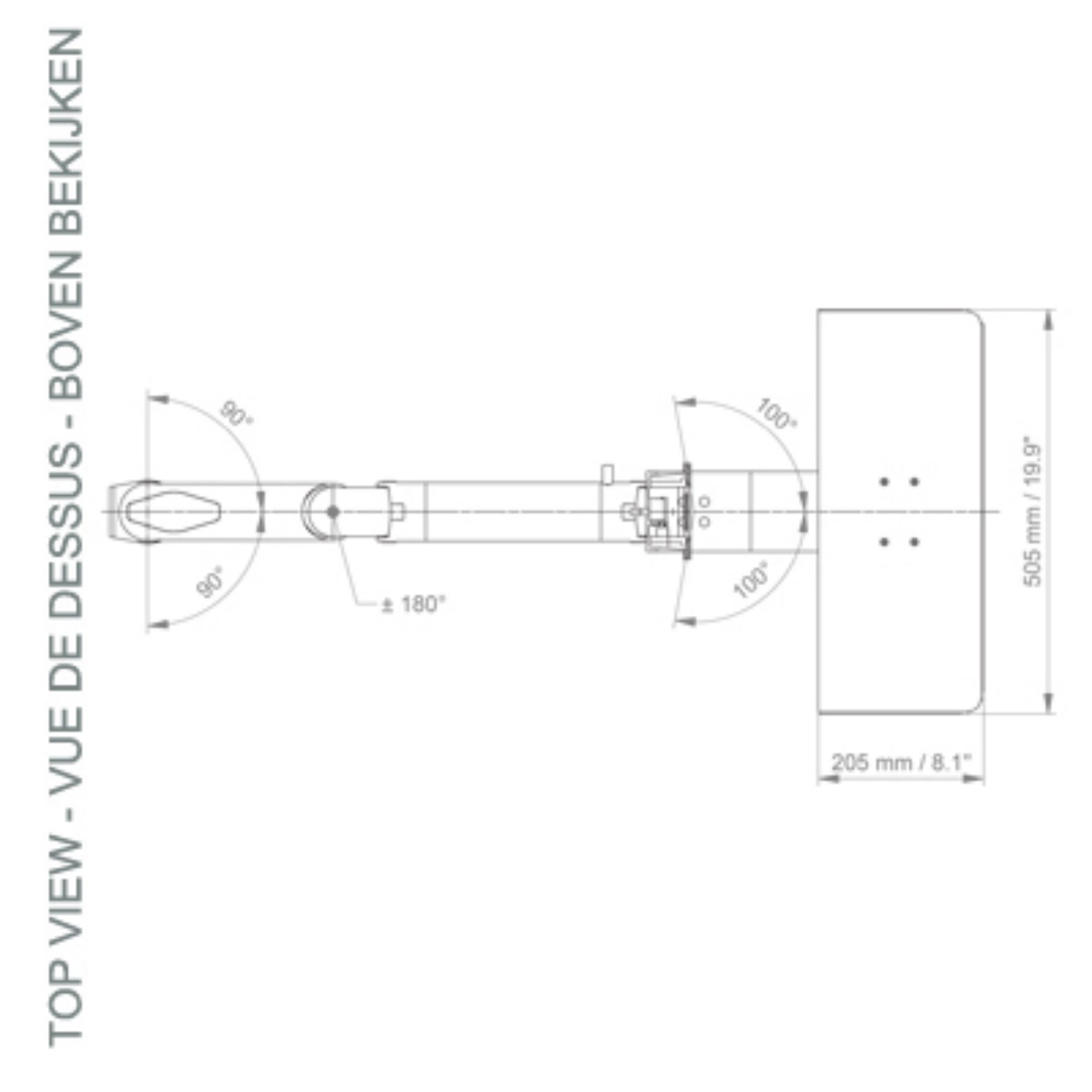

* Rotation of the arm: 90° to the right, 90° to the left from the fixing point

* Rotation of the keyboard and screen support: 100° to the right, 100° to the left

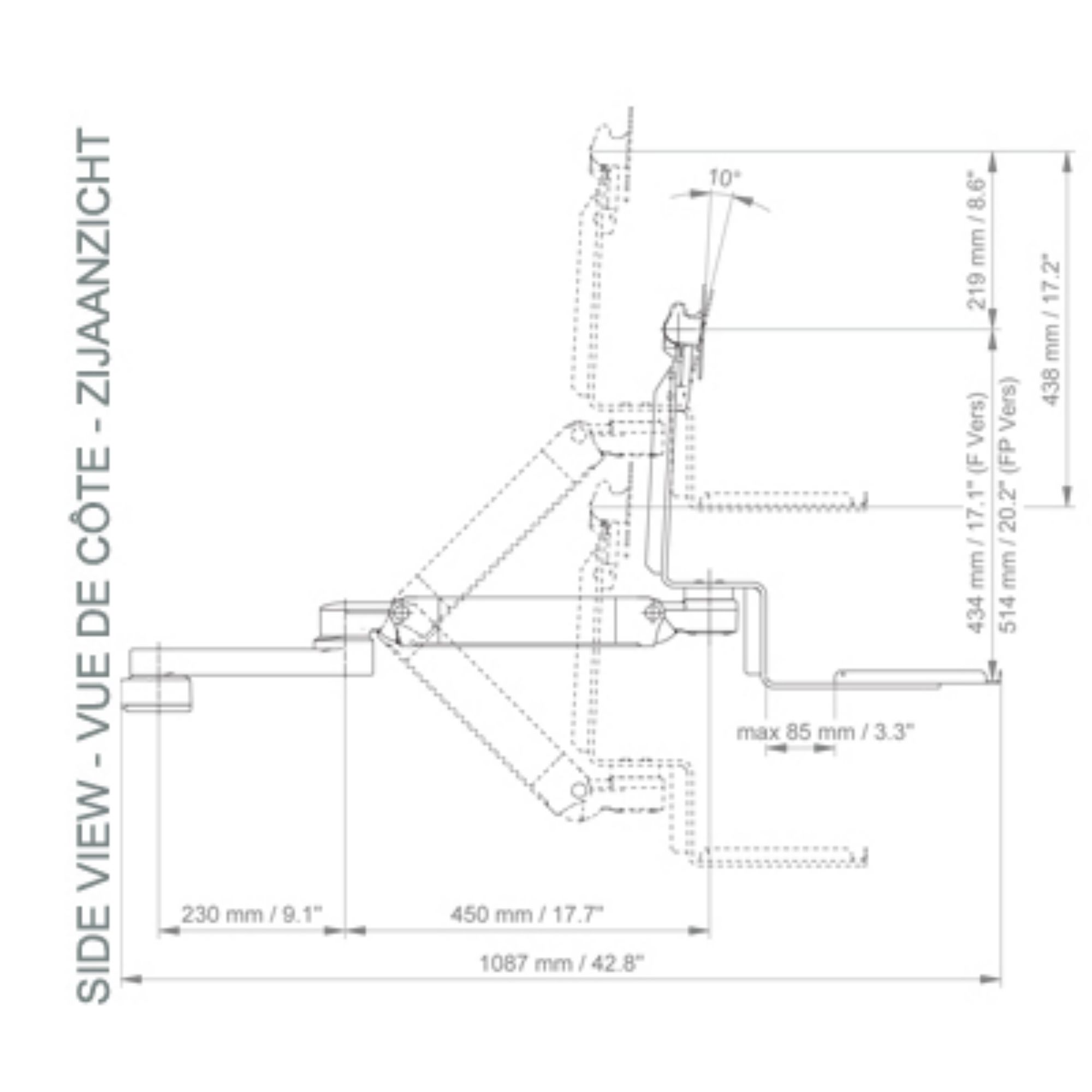

* Total length of the configuration 1083 mm.

* Rotation of the central axis between the two arms 180°.

* Colour RAL 5013 cobalt blue and RAL 9016 traffic white

* Warranty: 5 years
