Medical Combo arm Standard adjustable in height by 2 x 300 mm,

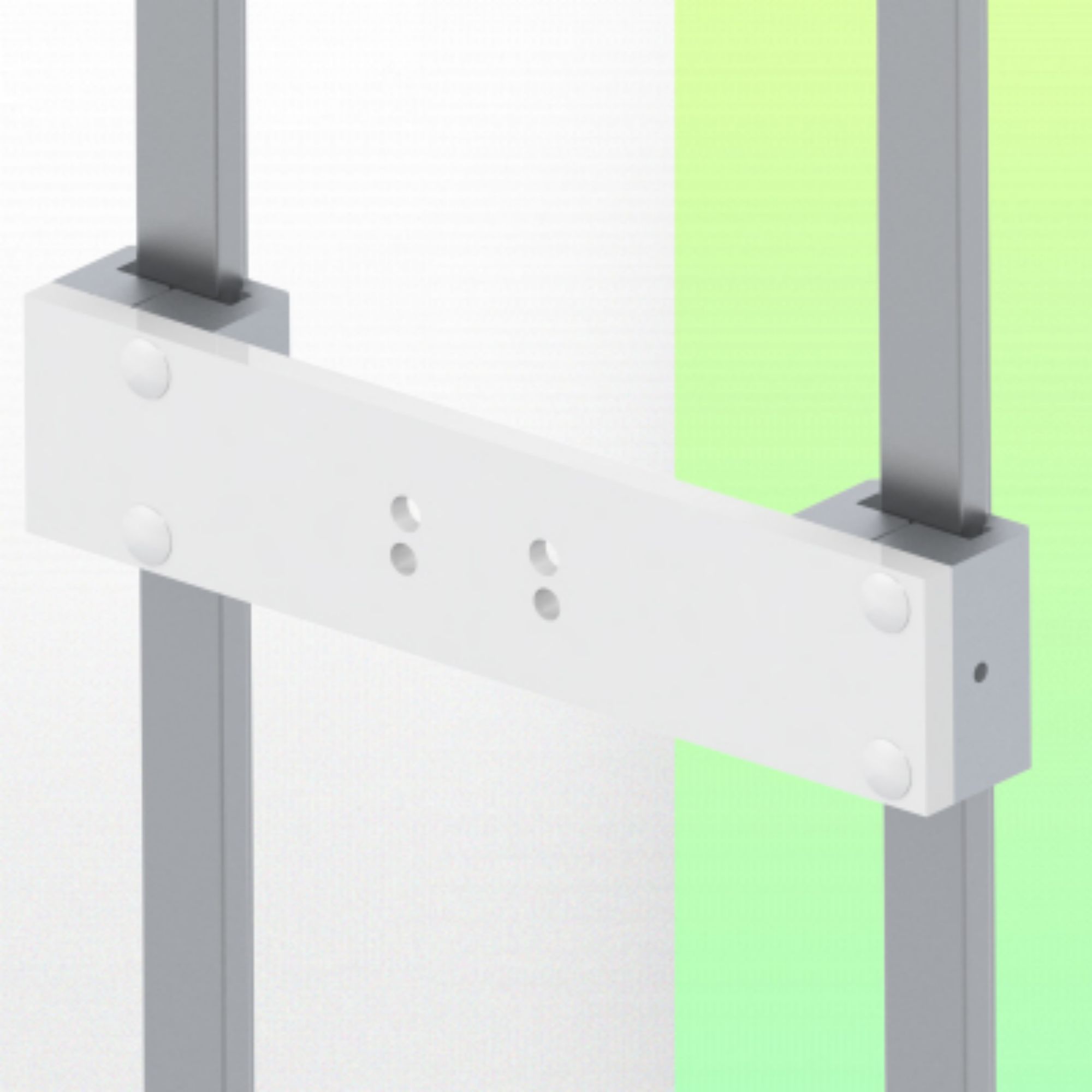

Mounting on double European Din Rail Vertical 10 x 25 mm distance 225 mm.

Supported weight balancing range from 2,5 to 5,5 Kg

Product number: WM 225.196 - Medical Combo arm Standard adjustable in height by 2 x 300 mm,

Mounting on double European Din Rail Vertical 10 x 25 mm distance 225 mm.

Supported weight balancing range from 2,5 to 5,5 Kg

Product sheet PDF

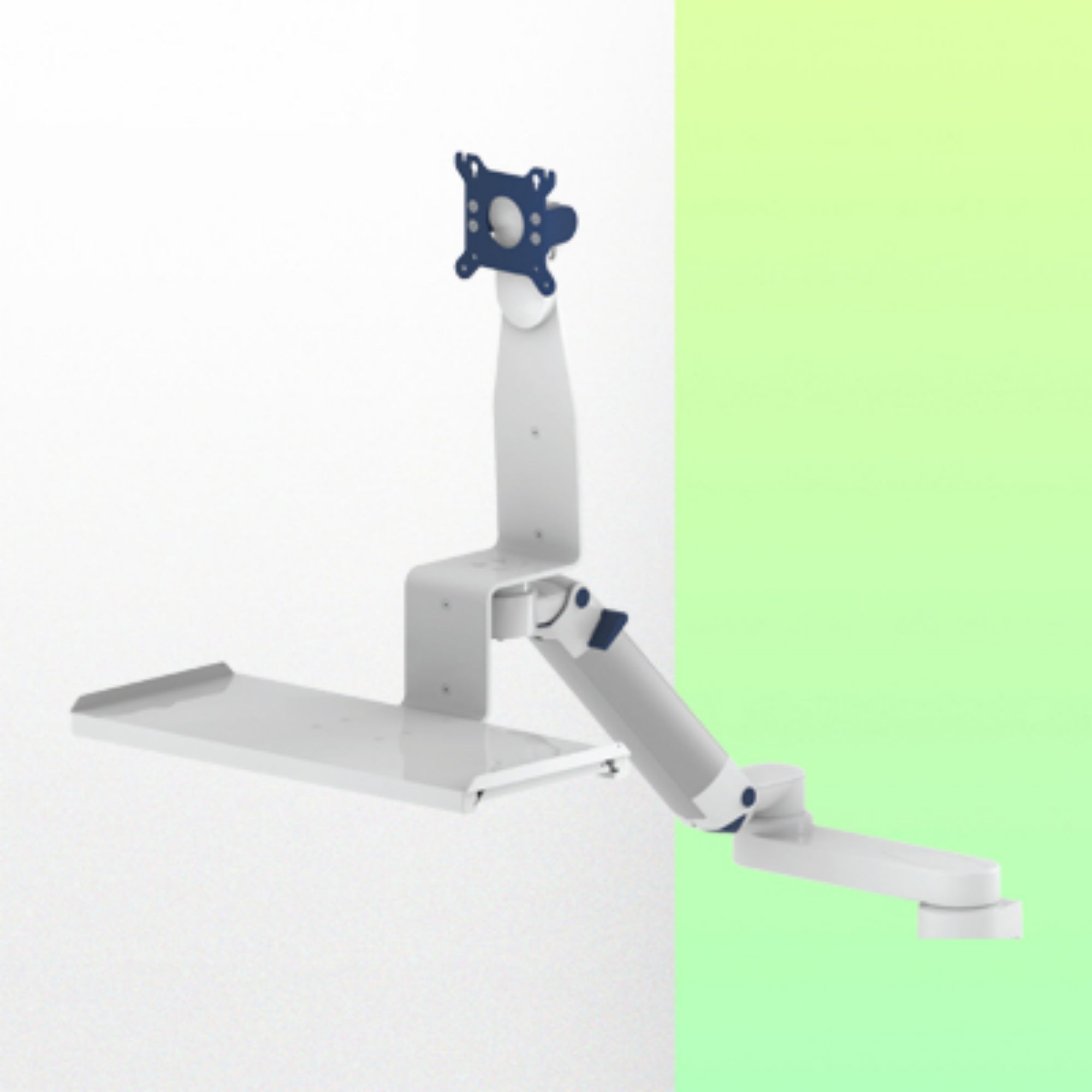

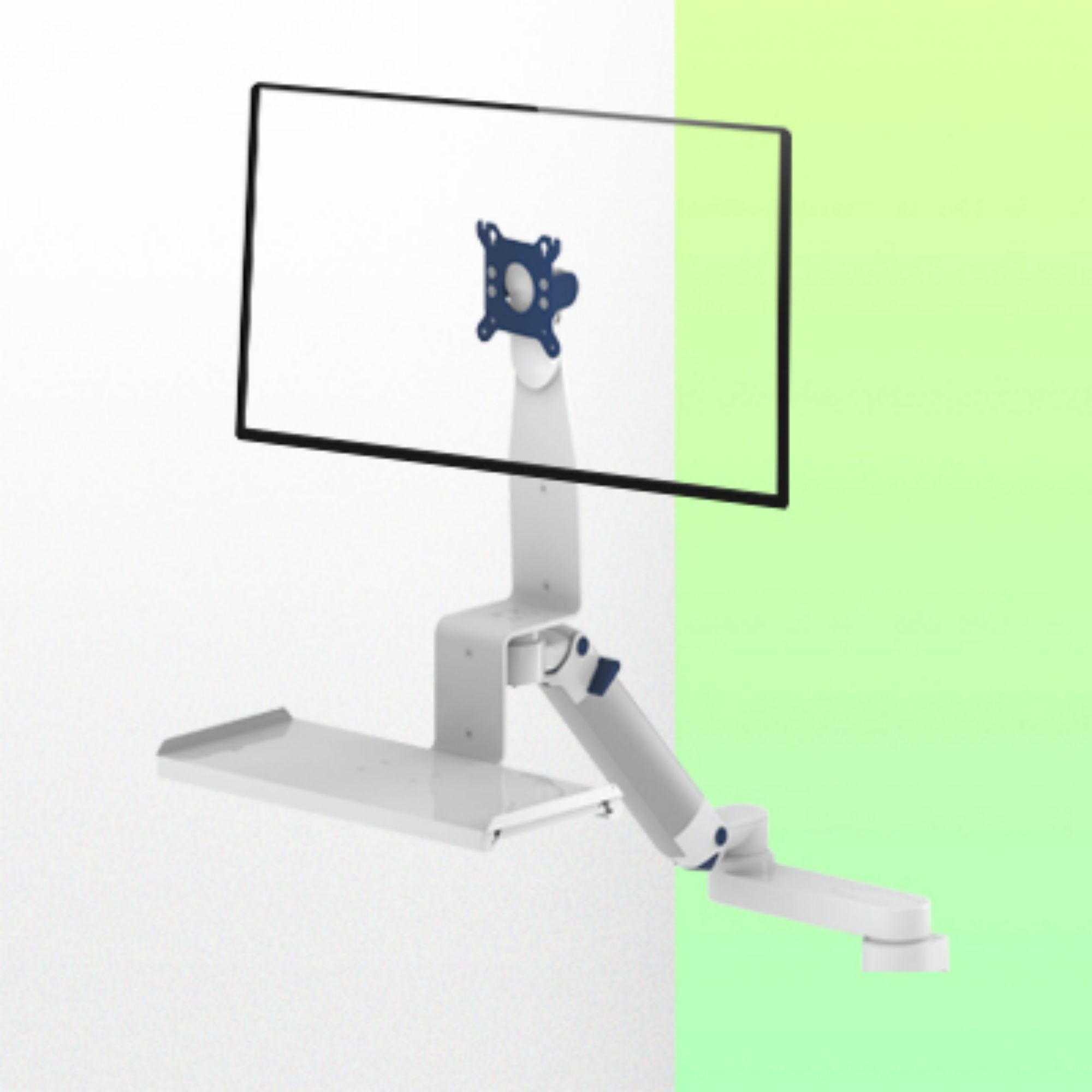

This 2 x 300 mm long height adjustable Combo Medical Arm allows to fix, orientate and adjust perfectly a screen, its keyboard support with dimensions of 500 x 202 mm delivered with this configuration allows to welcome a standard keyboard as well as a mouse.

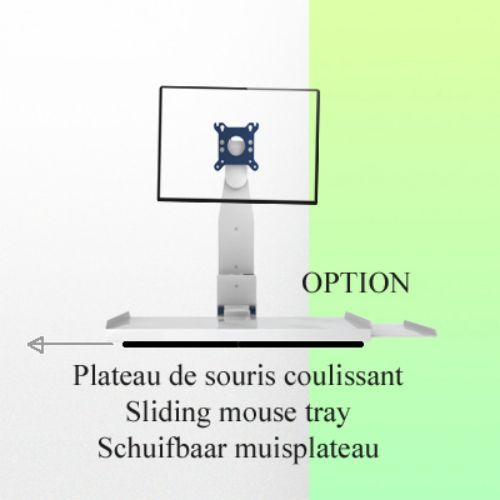

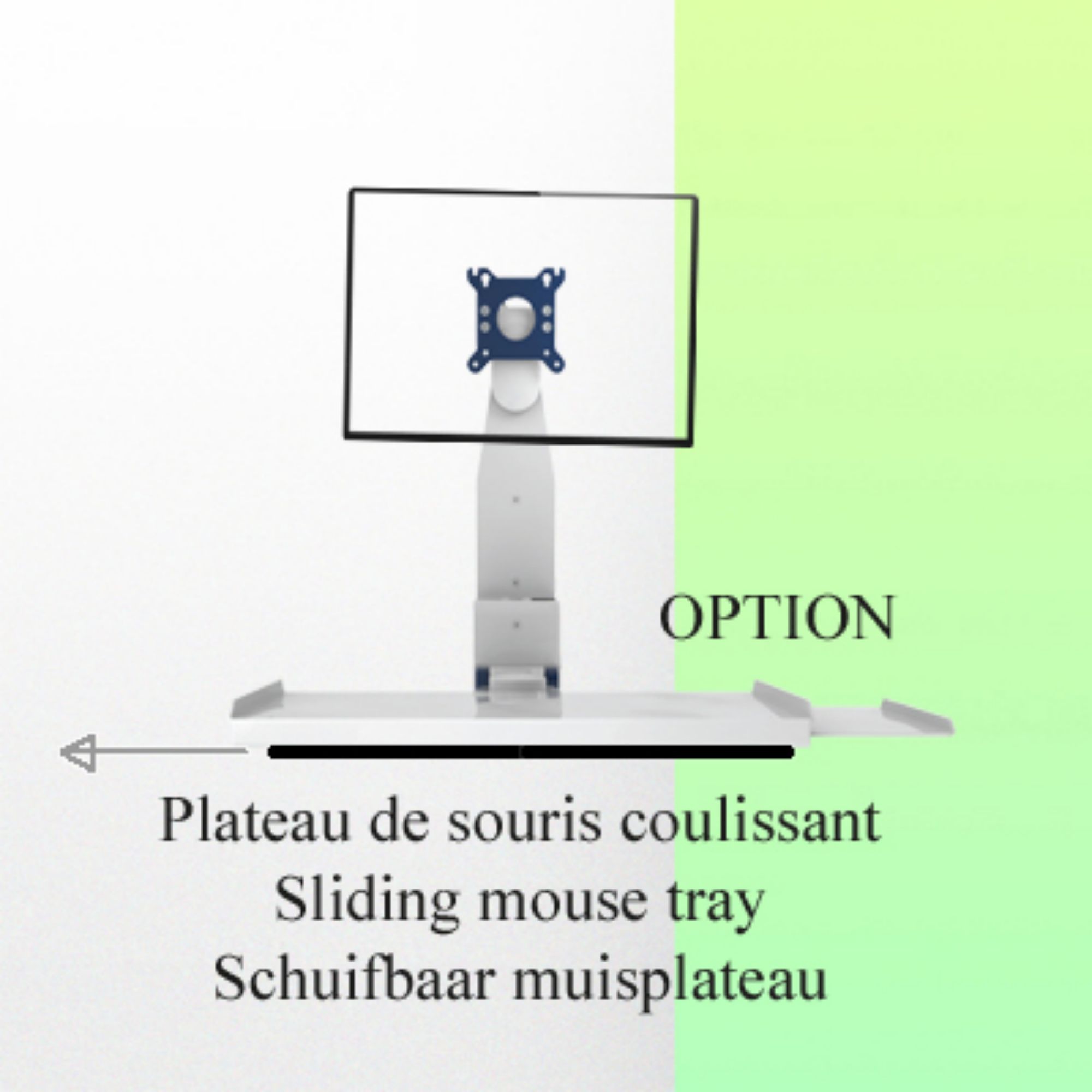

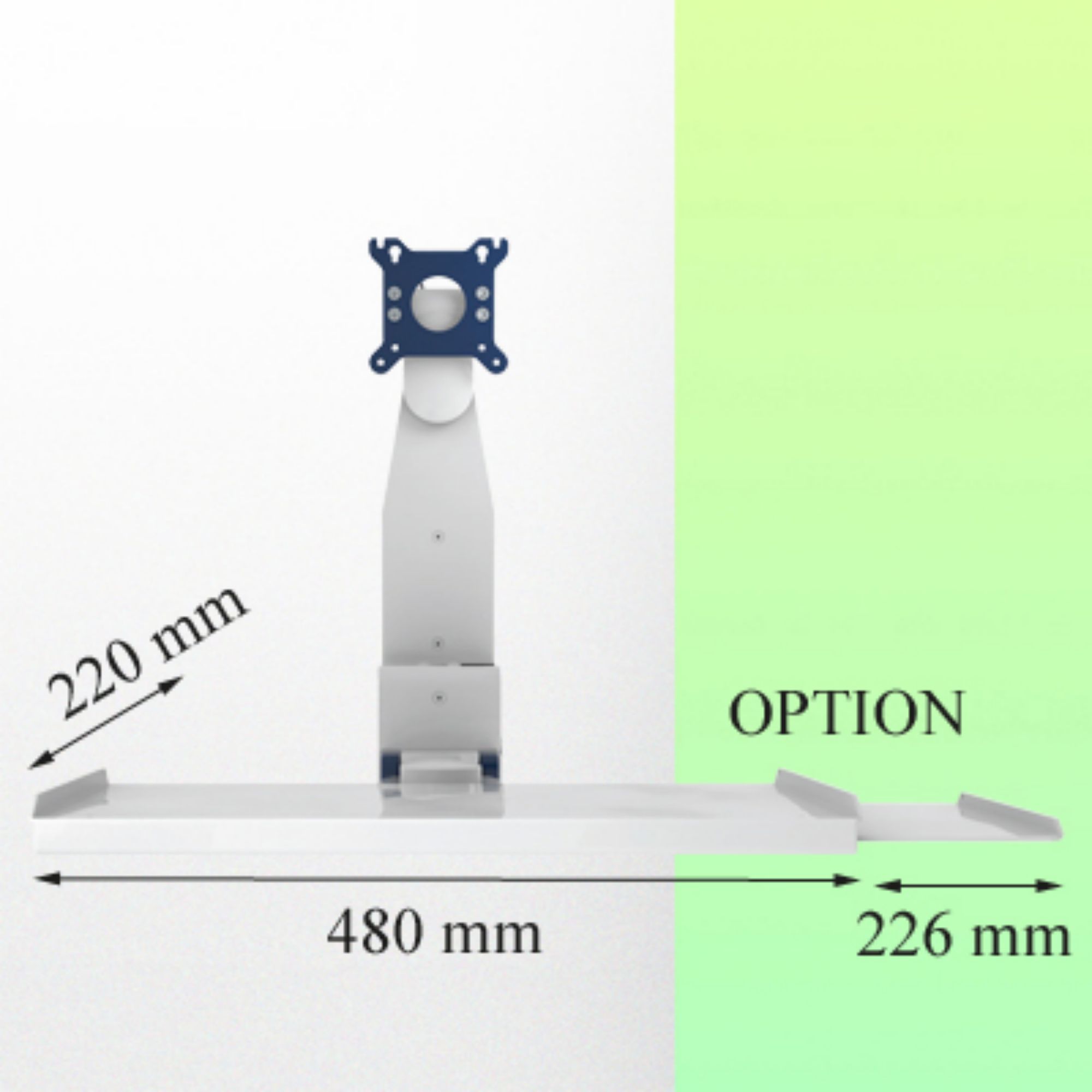

As an option, it can be equipped with a stand with a sliding right/left mouse tray with dimensions of 480 x 220 mm for the keyboard and 226 x 220 mm for the mouse, or with a large keyboard stand with dimensions of 580 x 200 mm.

It has a safety stop button for the height adjustment, which allows the arm to remain in the selected position.

Technical specifications:

* Integrated cable channel

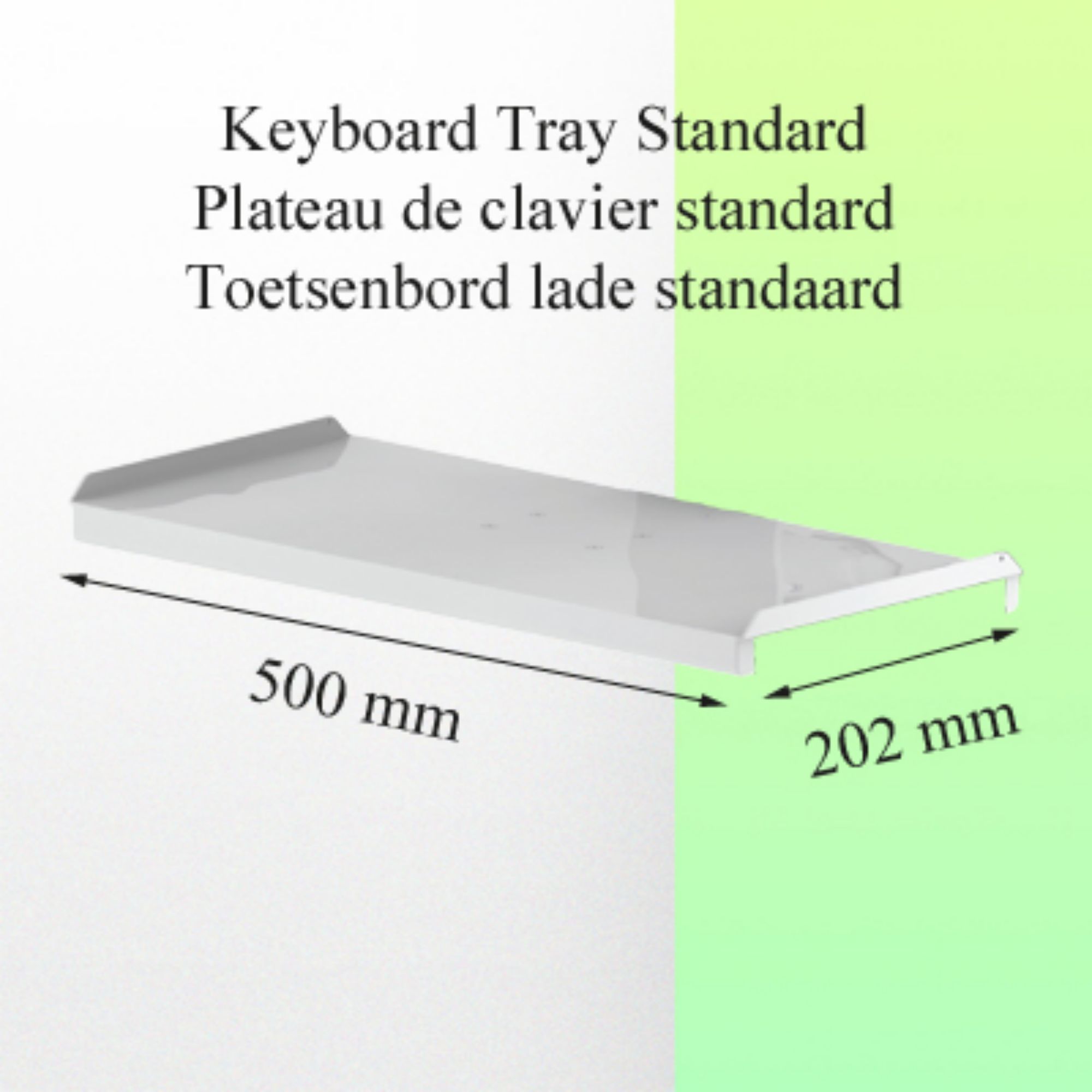

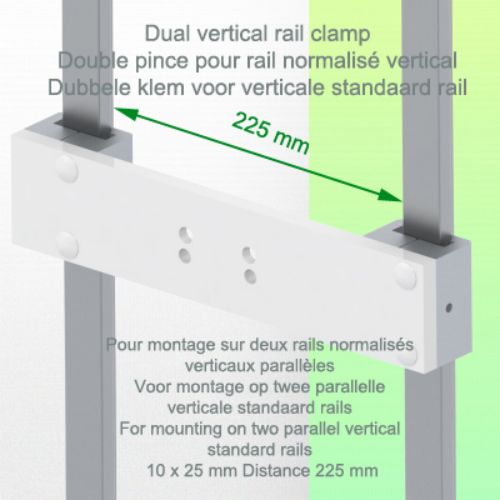

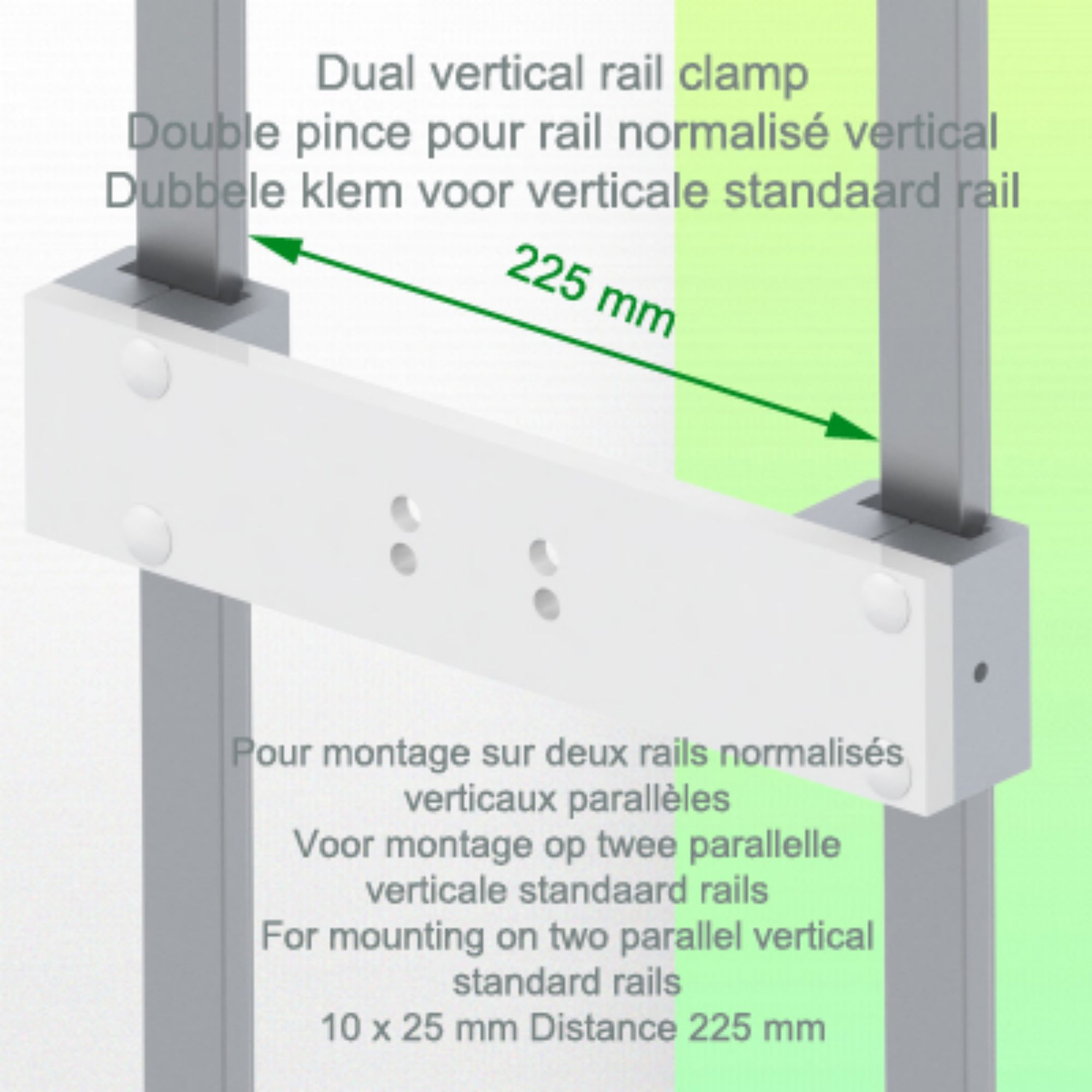

* Standard keyboard support 500 x 202 mm Fixing on Dual Din Vertical Rail Standard 10 x 25, 8 x 35, 10 x 30, 10 x 50 mm distance 225 mm.

* This standard Combo Arm with height adjustment is 2 x 300mm long and simply clips into the Din vertical Rail and then adjusts to the required height and is fixed

* The head of this arm conforms to the VESA 75/100mm screen mounting standard

* Compatible with equipment weighing up to 2,5 - 5,5 Kg

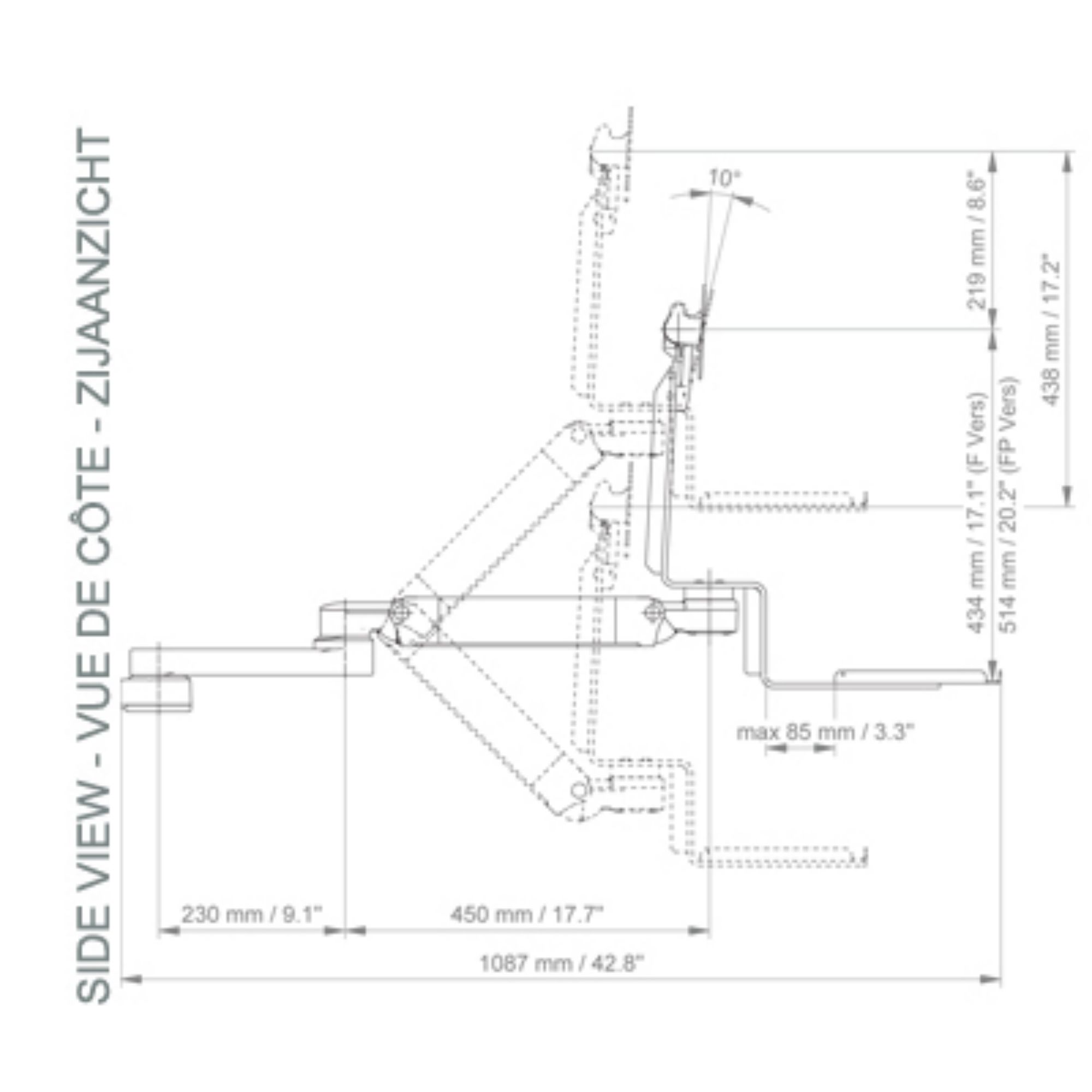

* Tilting of the screen: 10°

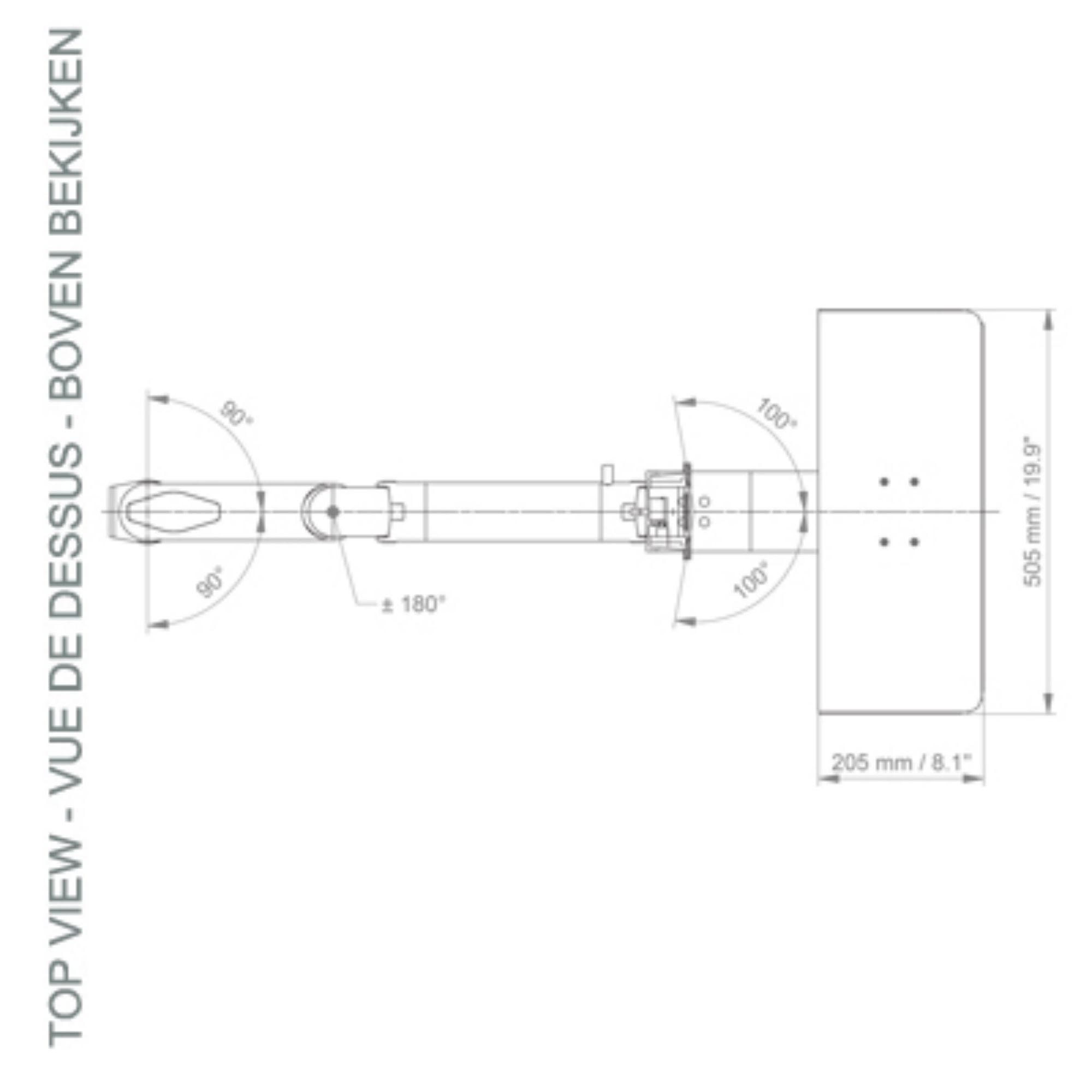

* Rotation of the arm: 90° to the right, 90° to the left from the fixing point

* Rotation of the keyboard and screen support: 100° to the right, 100° to the left.

* Rotation of the central axis between the two arms 180°.

* Total length of the configuration 1087 mm

* Colour RAL 5013 cobalt blue and RAL 9016 traffic white

* Warranty: 5 years
