Medical Combo arm Standard adjustable in height by 2 x 300 mm,

Mounting on Amico medical device pendants and headwalls.

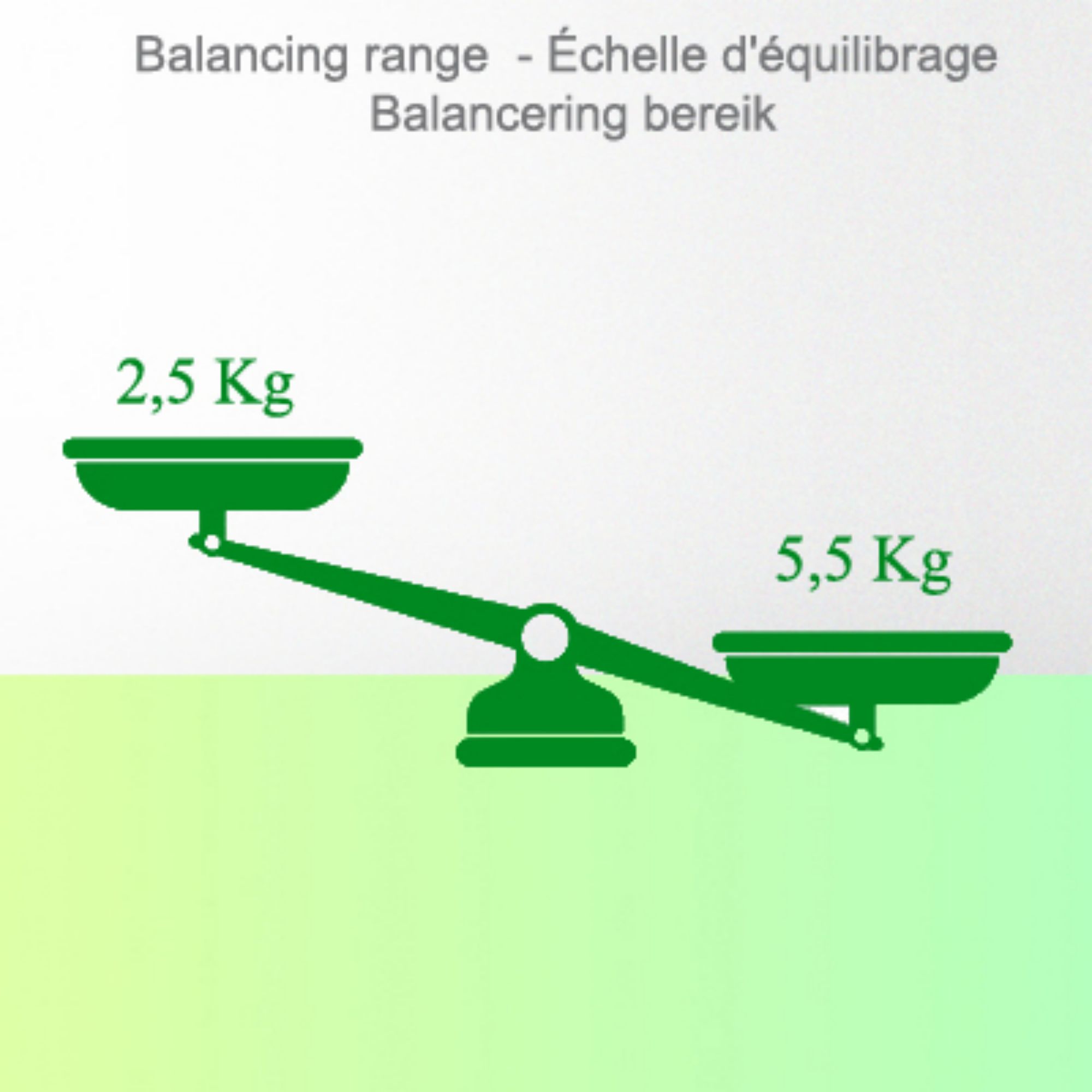

Supported weight balancing range from 2,5 to 5,5 Kg

Product number: WM 225.212 - Medical Combo arm Standard adjustable in height by 2 x 300 mm,

Mounting on Amico medical device pendants and headwalls.

Supported weight balancing range from 2,5 to 5,5 Kg

Product sheet PDF

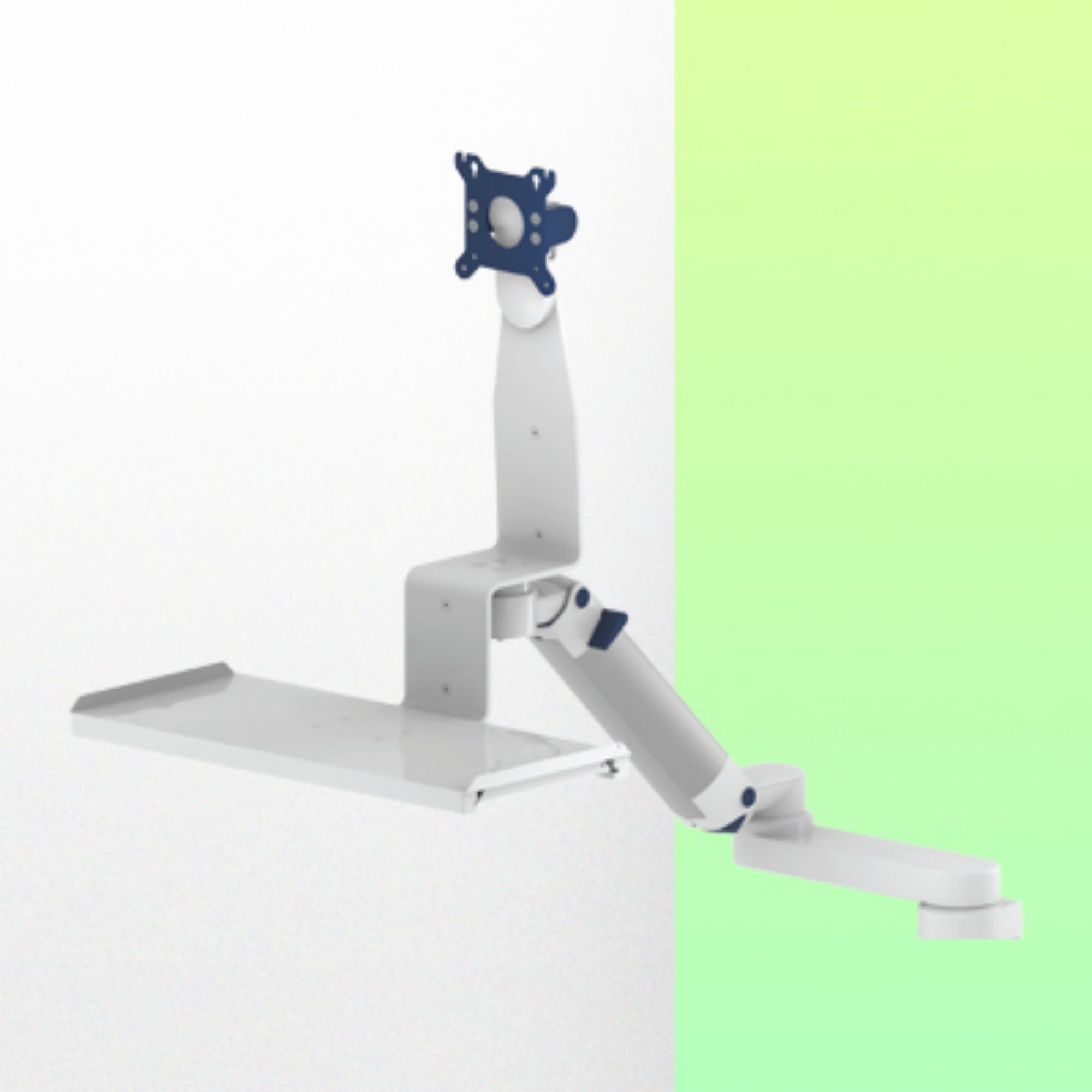

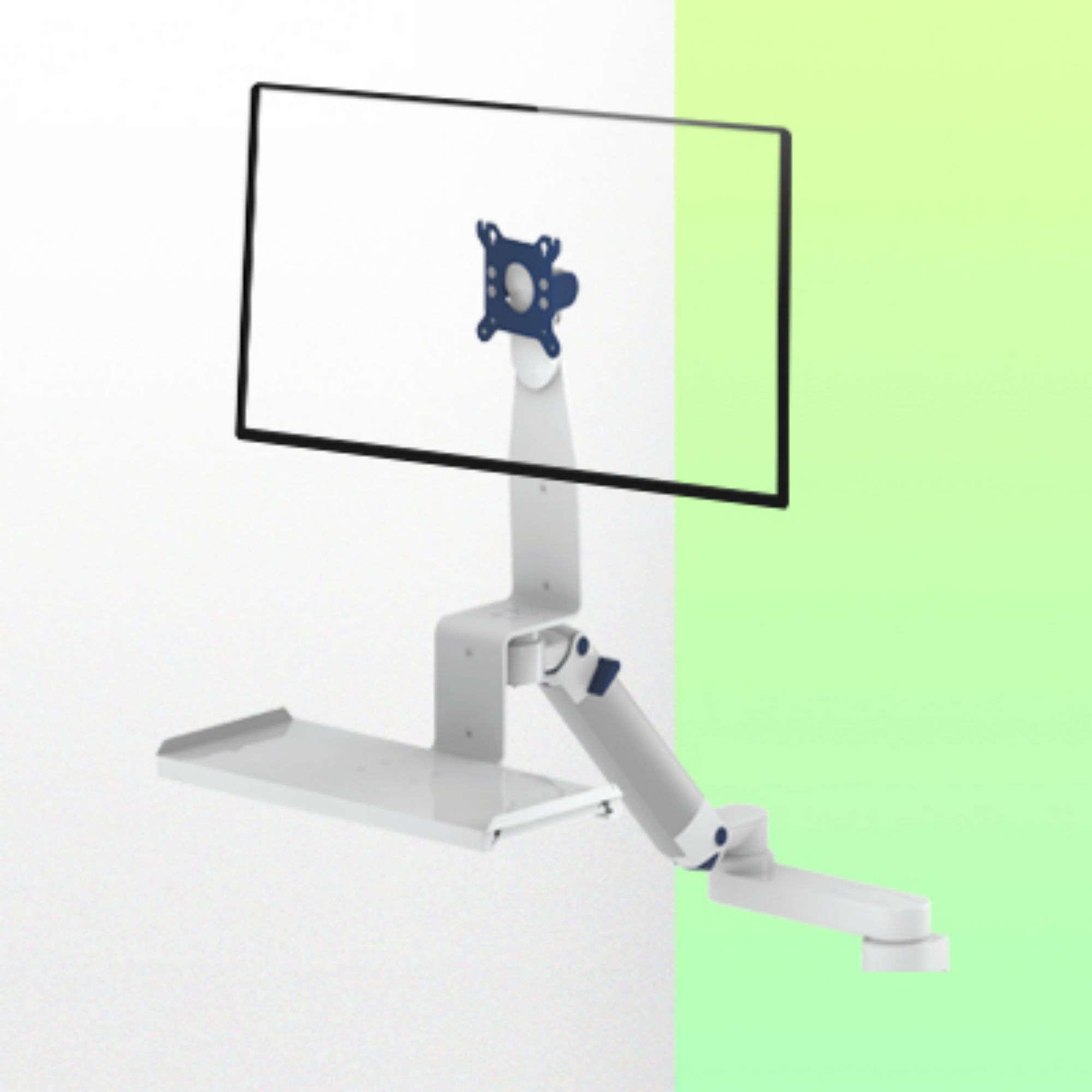

This 2 x 300 mm long height adjustable Combo Medical Arm allows to fix, orientate and adjust perfectly a screen, its keyboard support with dimensions of 500 x 202 mm delivered with this configuration allows to welcome a standard keyboard as well as a mouse.

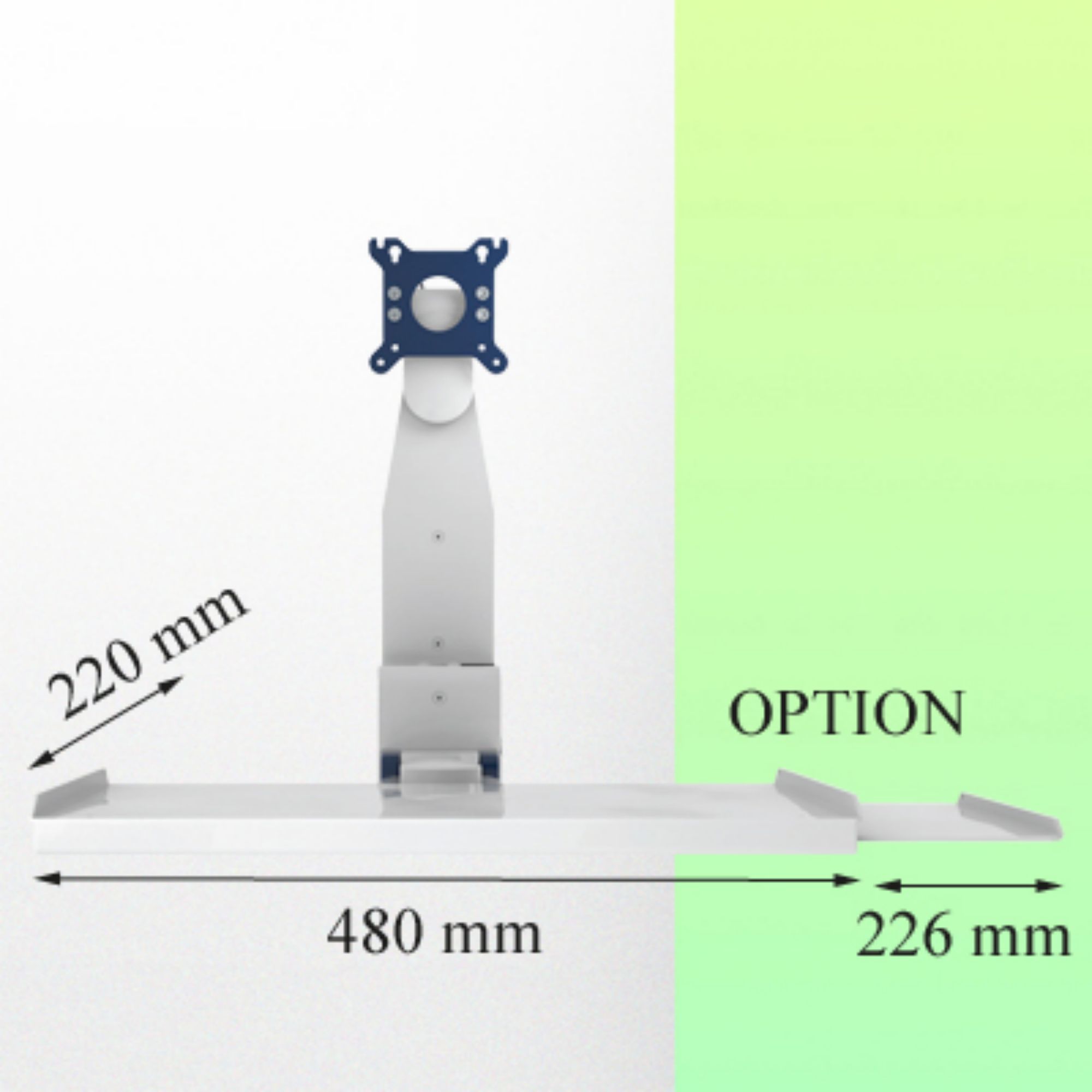

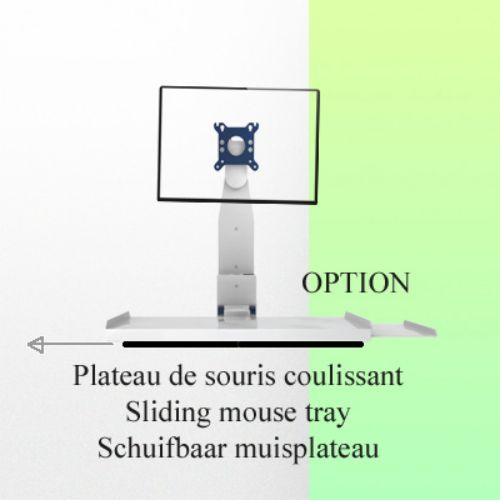

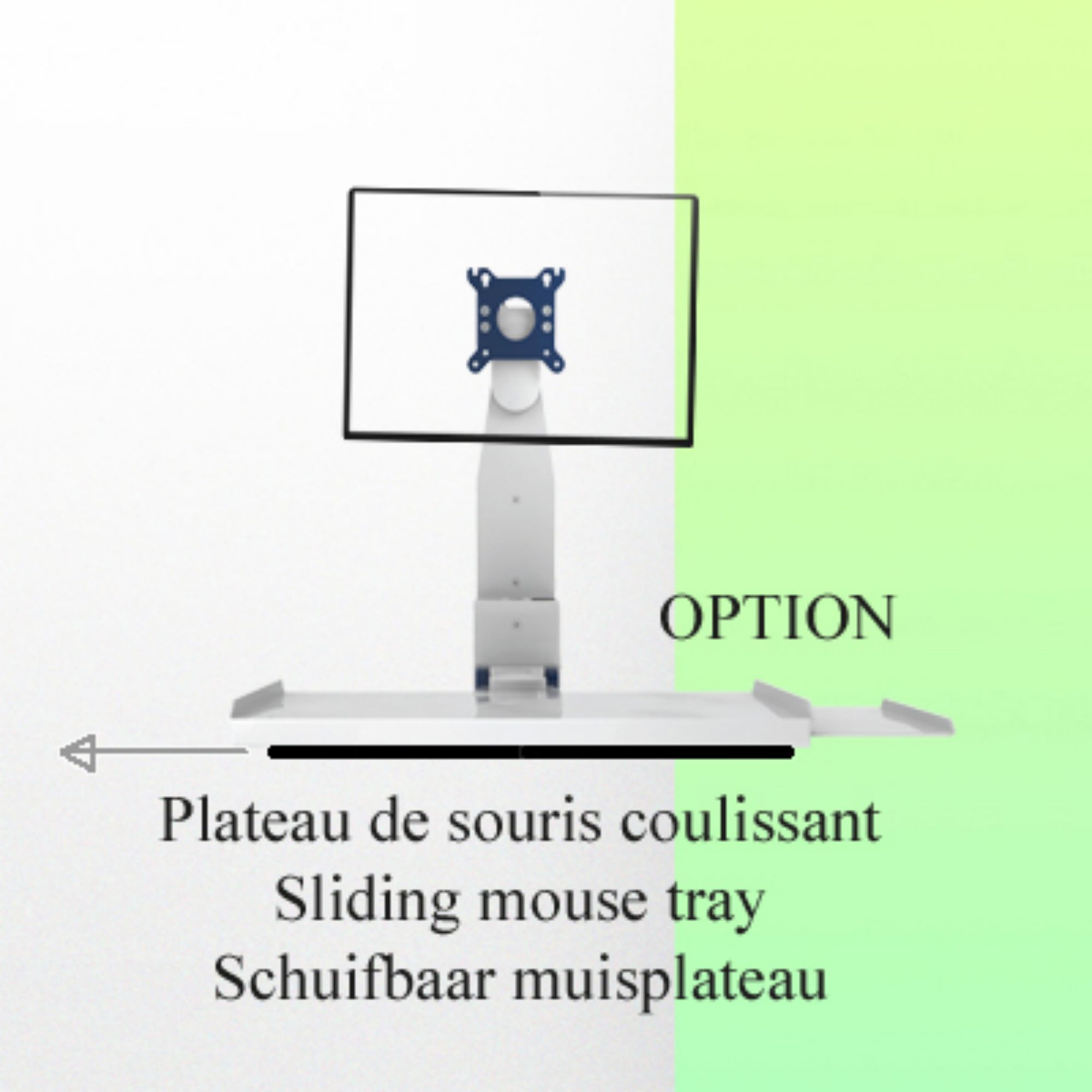

As an option, it can be equipped with a stand with a sliding right/left mouse tray with dimensions of 480 x 220 mm for the keyboard and 226 x 220 mm for the mouse, or with a large keyboard stand with dimensions of 580 x 200 mm.

It has a safety stop button for the height adjustment, which allows the arm to remain in the selected position.

Technical specifications:

* Integrated cable management

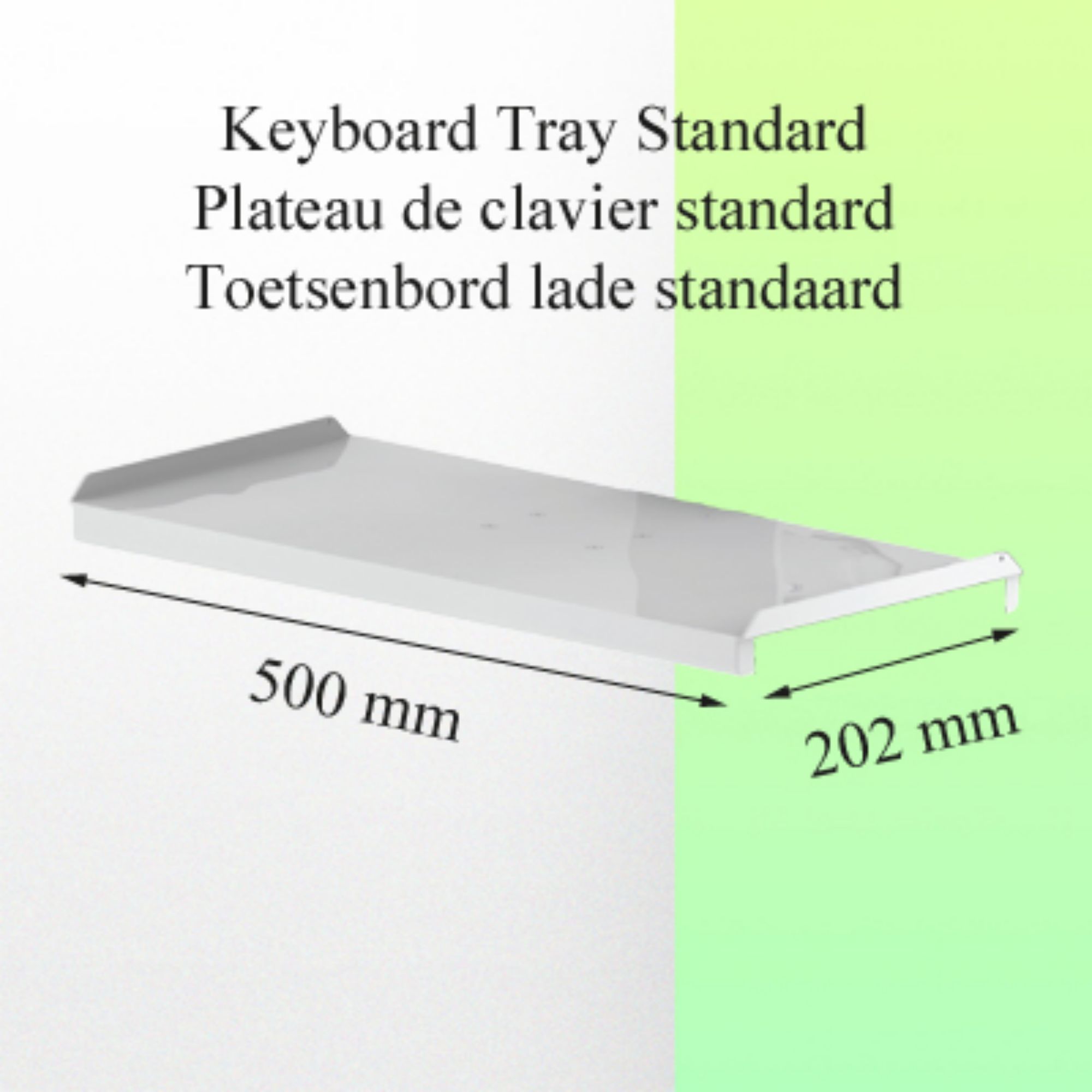

* Standard keyboard support of 500 x 202 mm

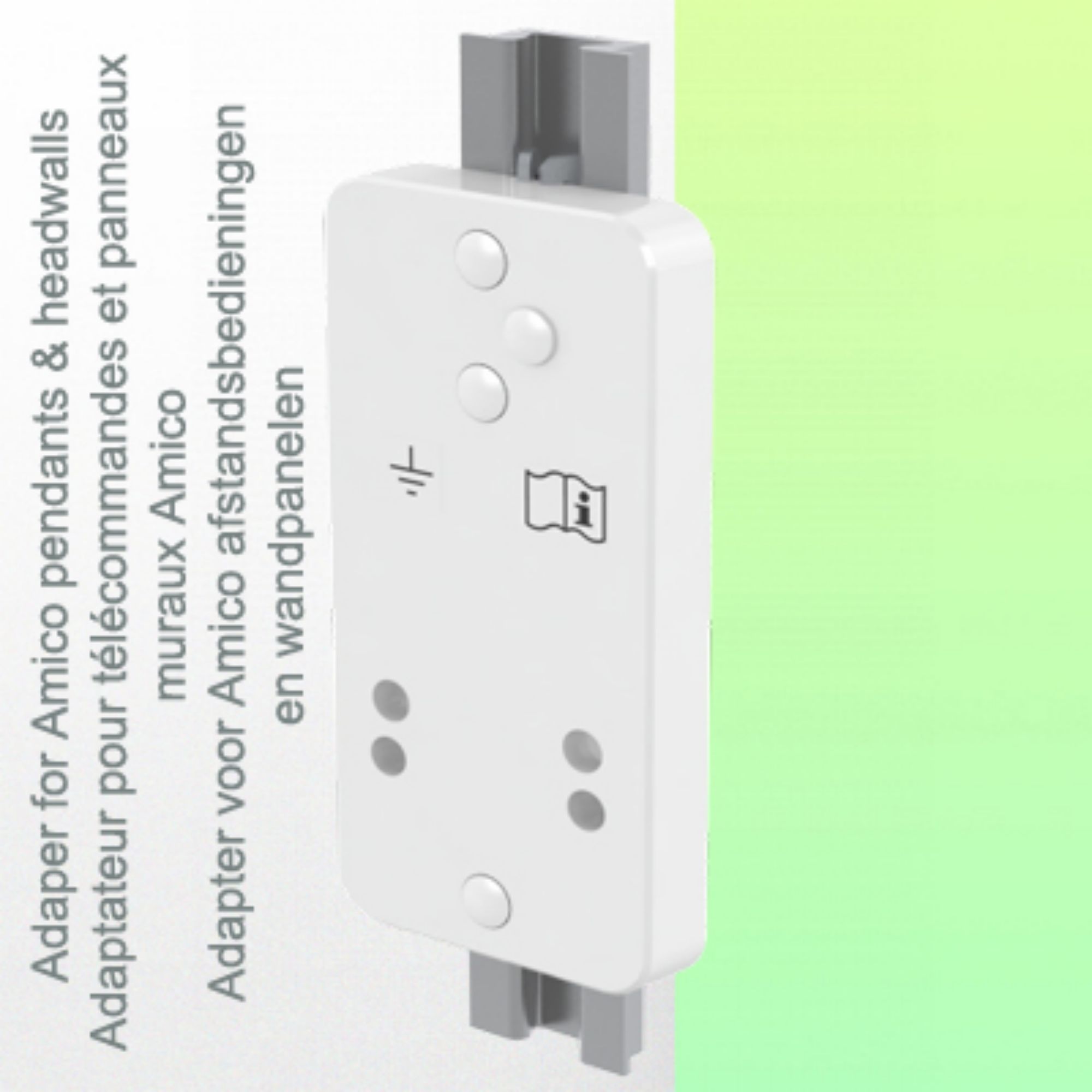

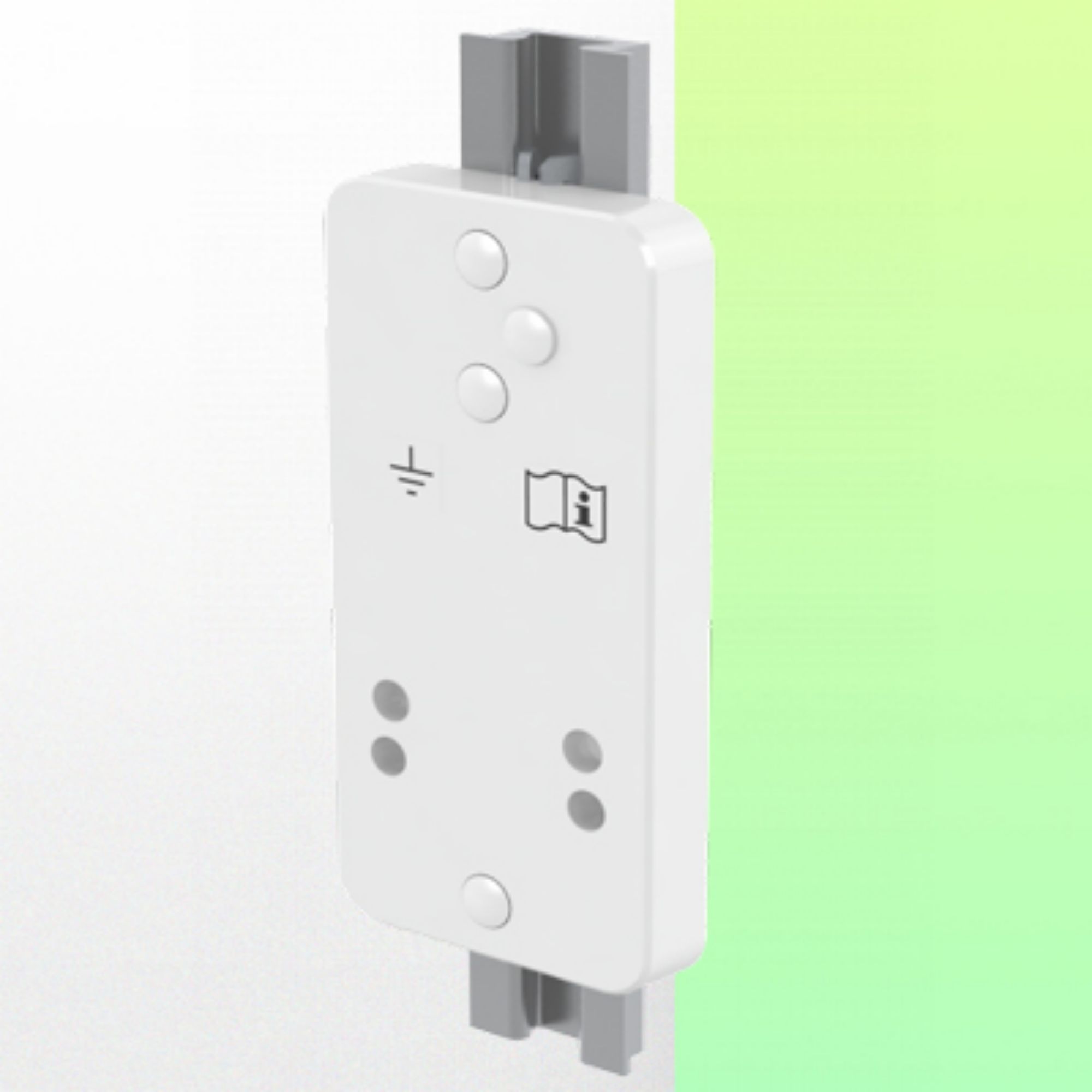

* This standard Combo Arm with height adjustment of 2 x 300 mm in length simply attaches to the Rail with the Amico adapter and then adjusts and fixes.

* The head of this arm conforms to the VESA 75/100mm screen mounting standard

* Compatible with equipment weighing up to 2,5 - 5,5 Kg

* Screen tilt: 10°

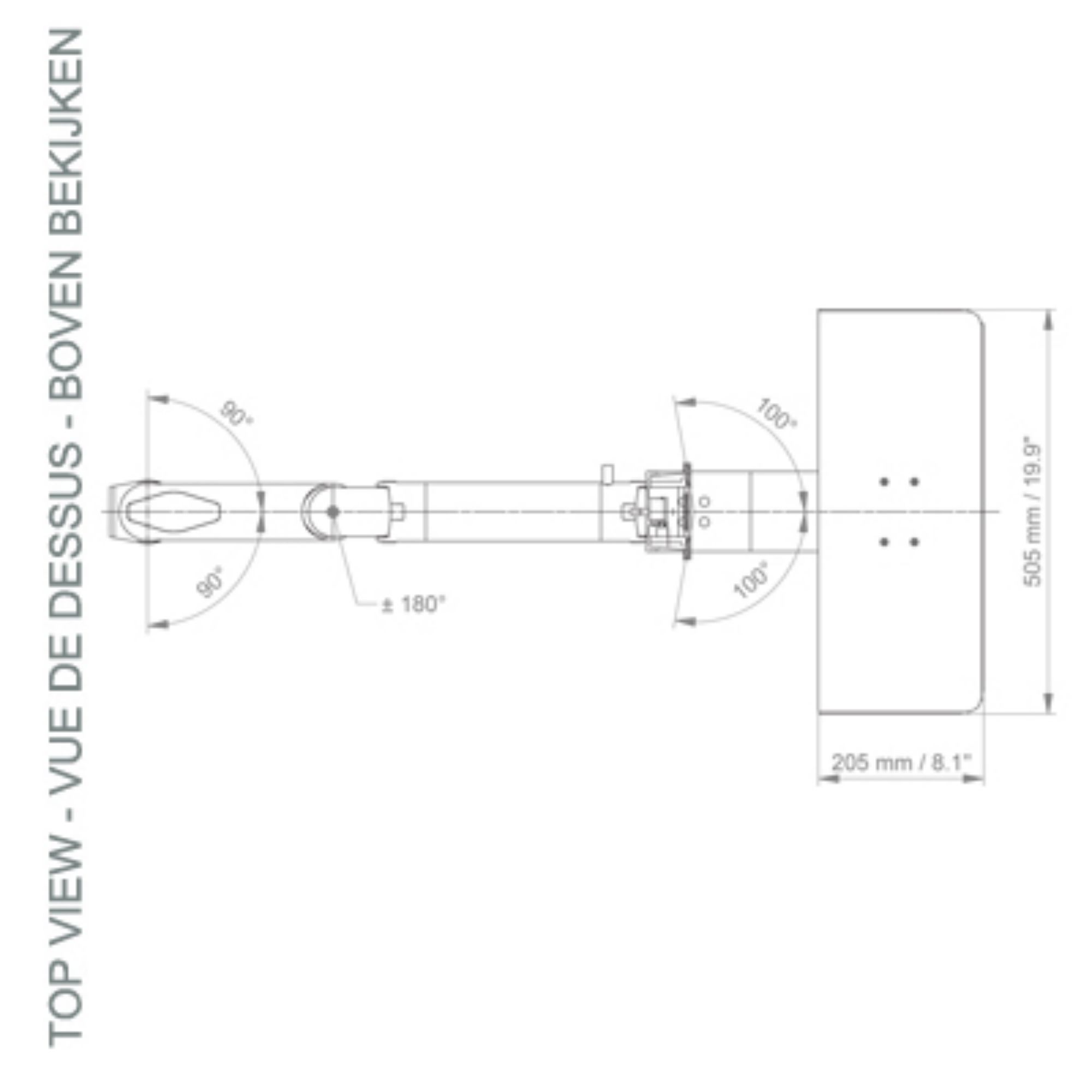

* Arm rotation: 90° to the right, 90° to the left from the mounting point

* Keyboard and screen support rotation: 100° to the right, 100° to the left.

* Rotation of the central axis between the two arms 180°.

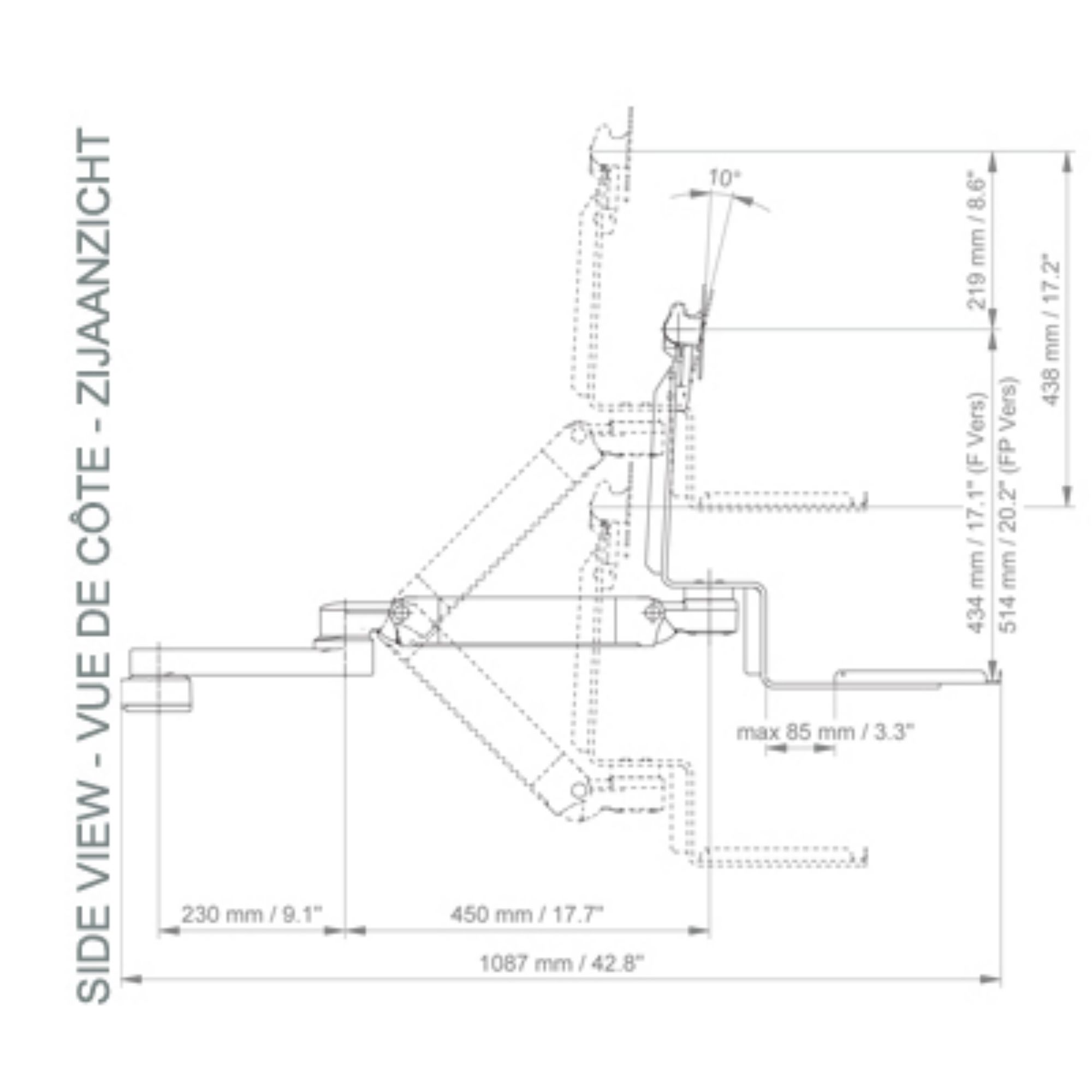

* Total length of the configuration 1087 mm

* Colour RAL 5013 cobalt blue and RAL 9016 traffic white

* Warranty: 5 years
