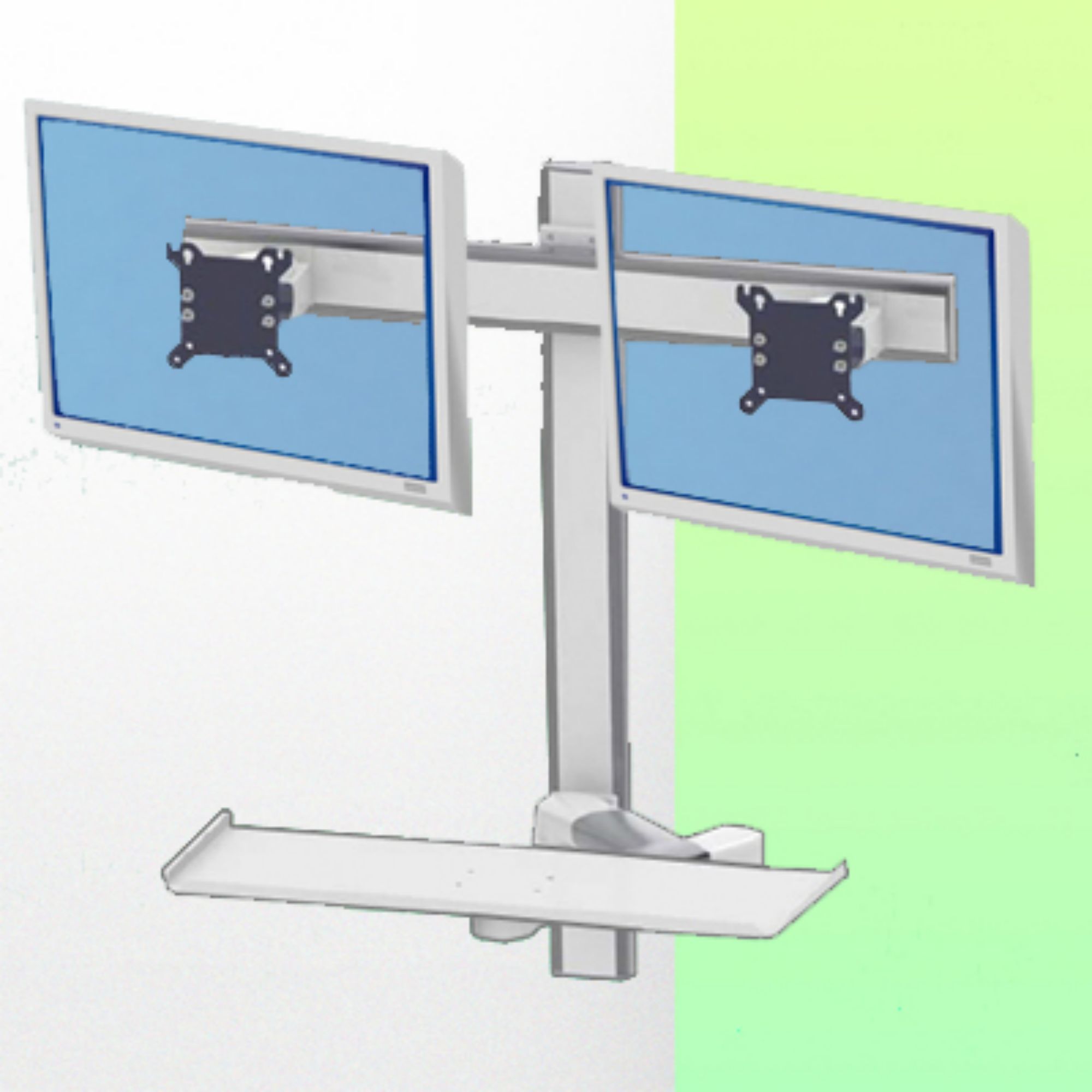

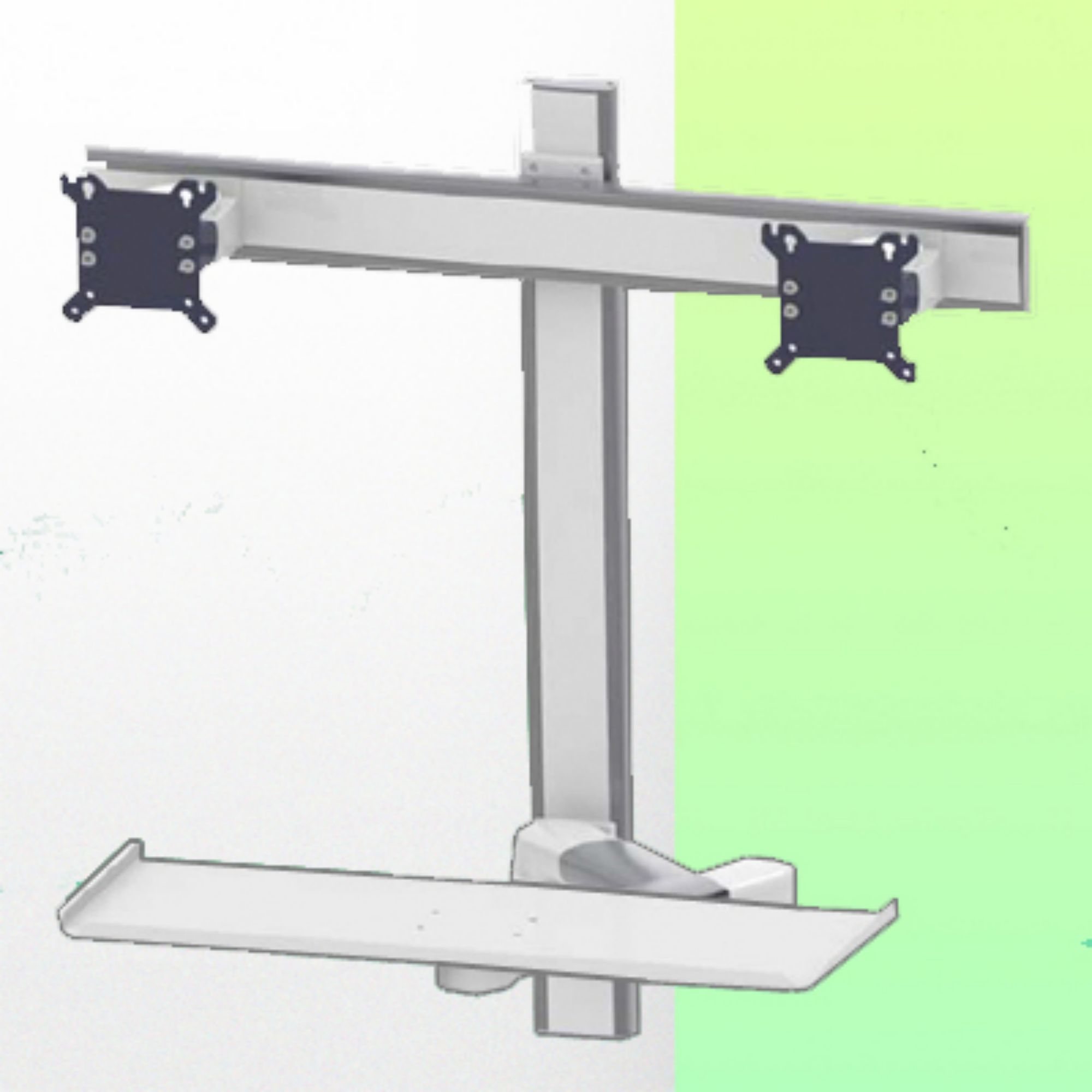

Medical Arm Combo Slim Line Foldable for 2 screens and keyboard, Rail 960 mm,

Wall Mounting, Weight capacity 20 Kg

Product number: WM 226.192 - Medical Arm Combo Slim Line Foldable for 2 screens and keyboard, Rail 960 mm,

Wall Mounting, Weight capacity 20 Kg

Product sheet PDF

This Slim Line folding arm is a true space-saving workstation without compromise.

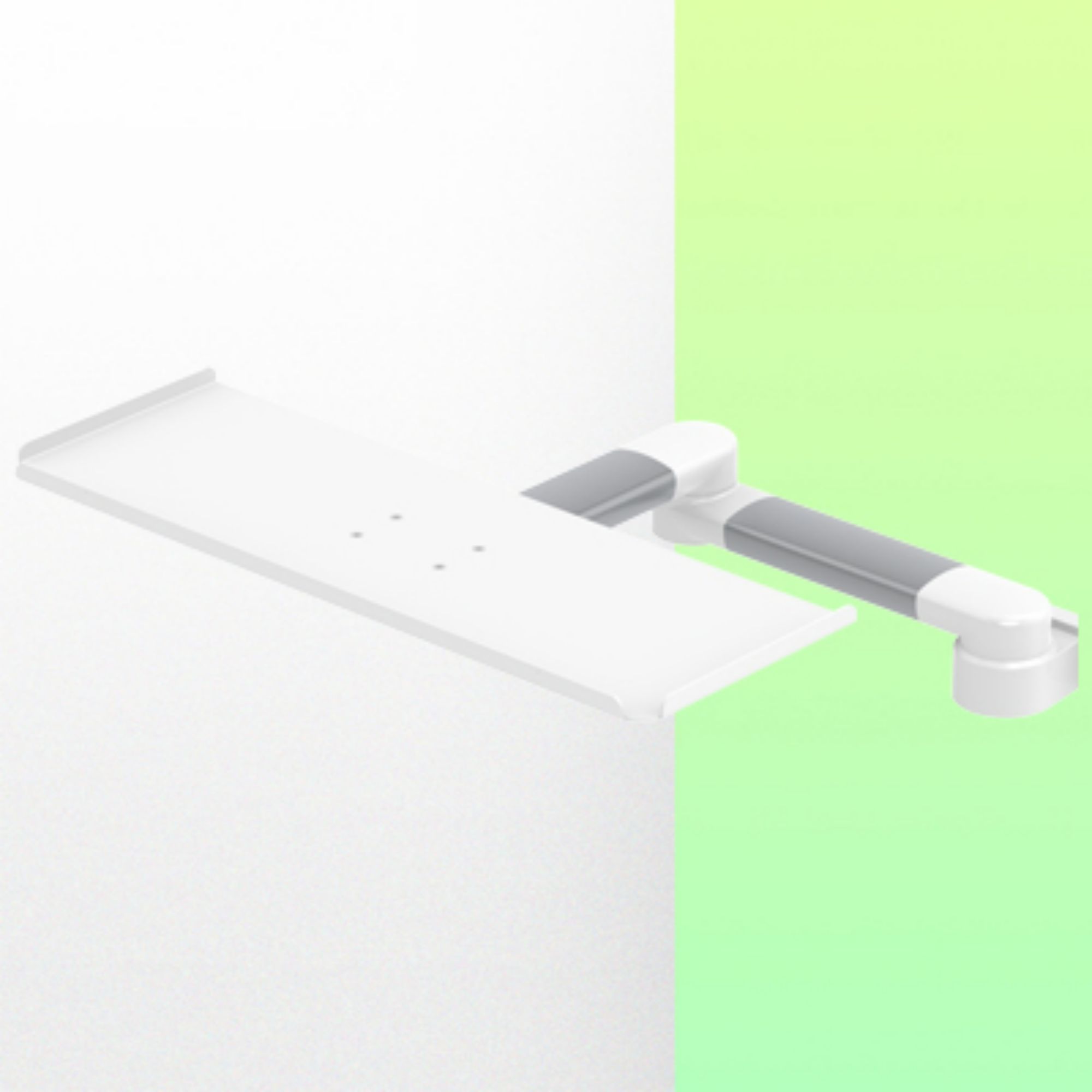

Its keyboard/mouse holder is mounted on a double arm, making it the ideal solution where space is at a premium.

It is coated with an anti-microbial agent to ensure hygiene and cleanliness in every detail.

Its screen swivel is VESA 75/100 compliant.

Its modern design has been specially developed for healthcare environments.

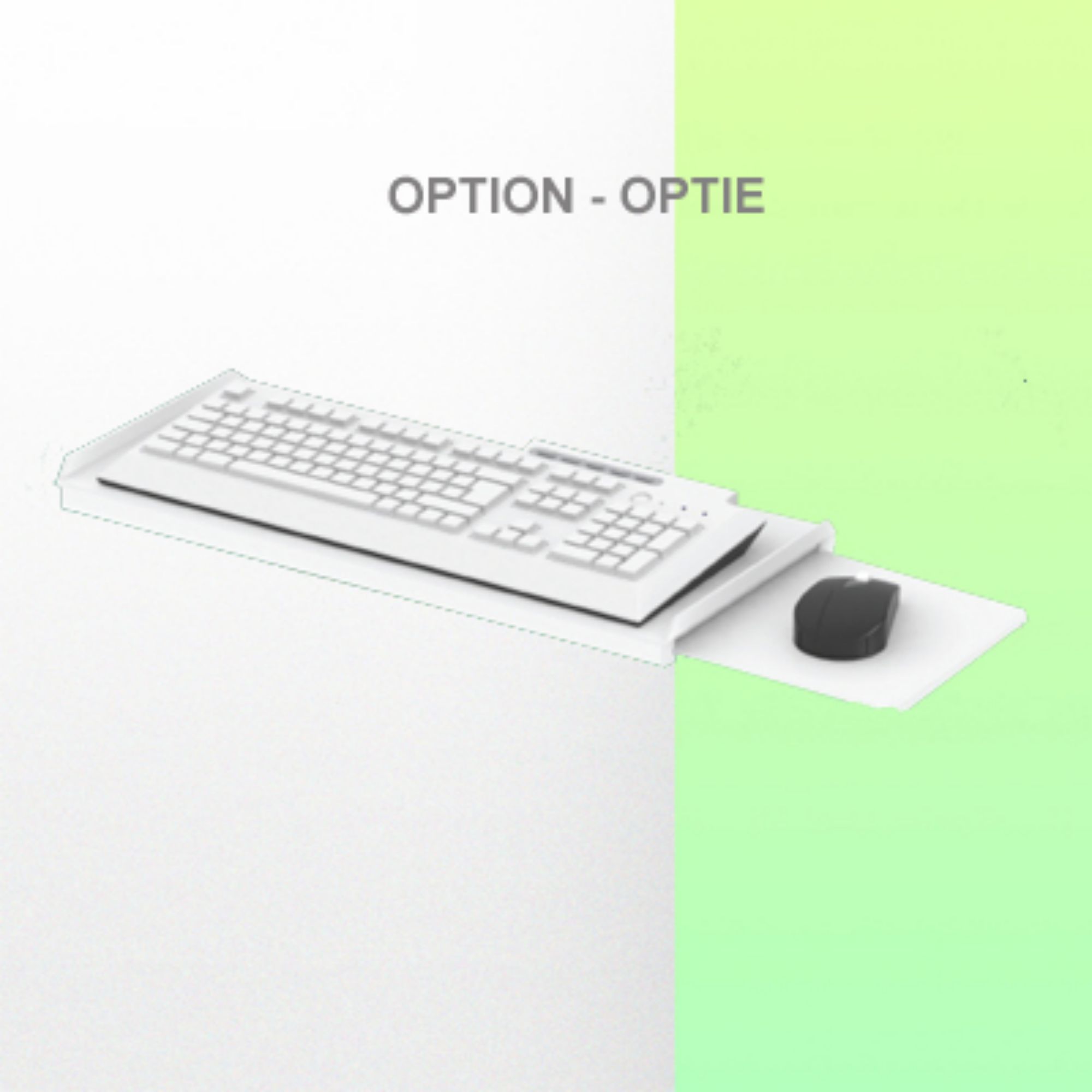

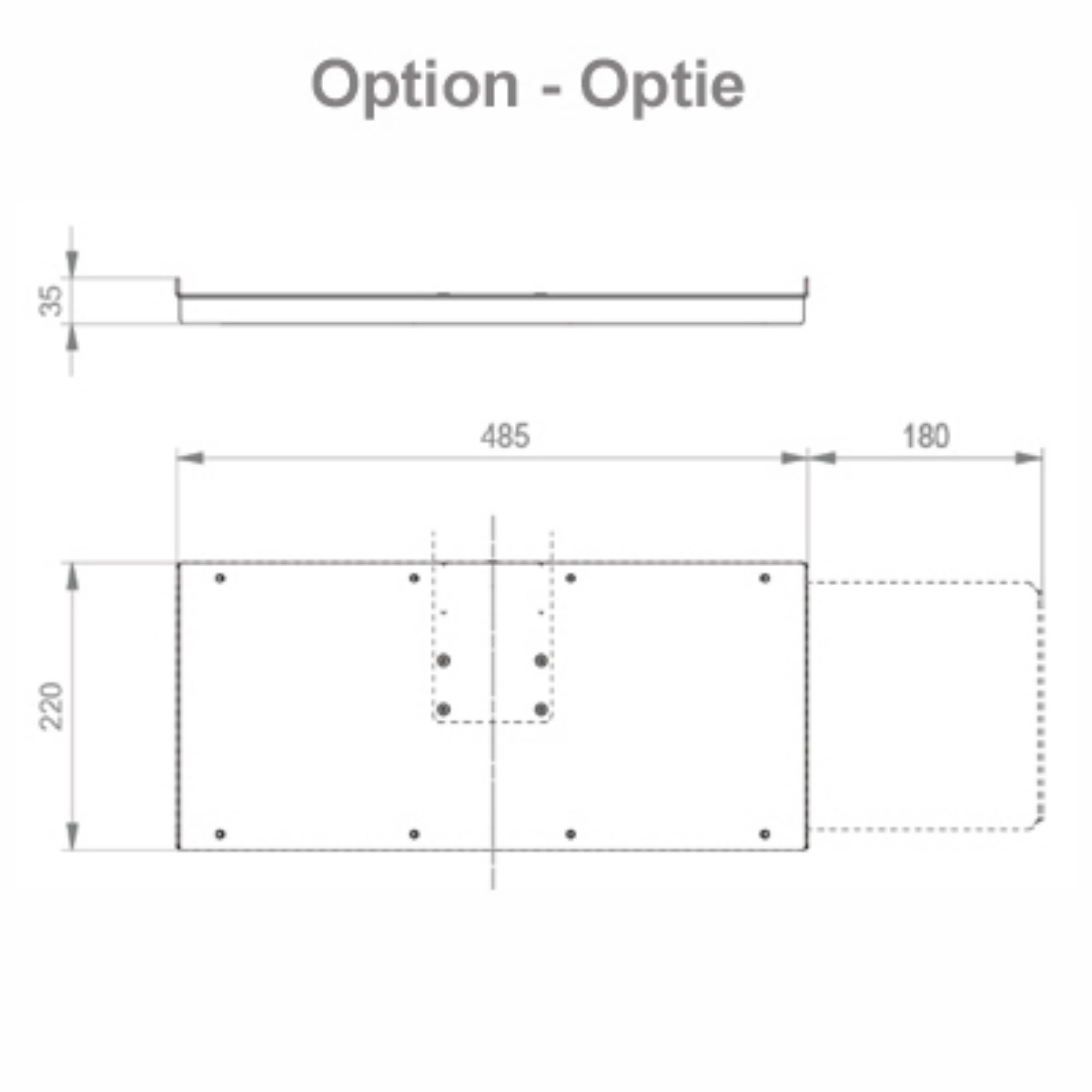

Optionally, it can be equipped with a right/left sliding mouse tray with keyboard dimensions of 480 x 220 mm and mouse dimensions of 226 x 220 mm or a large keyboard tray with dimensions of 580 x 200 mm

Technical specifications:

* Integrated cable management

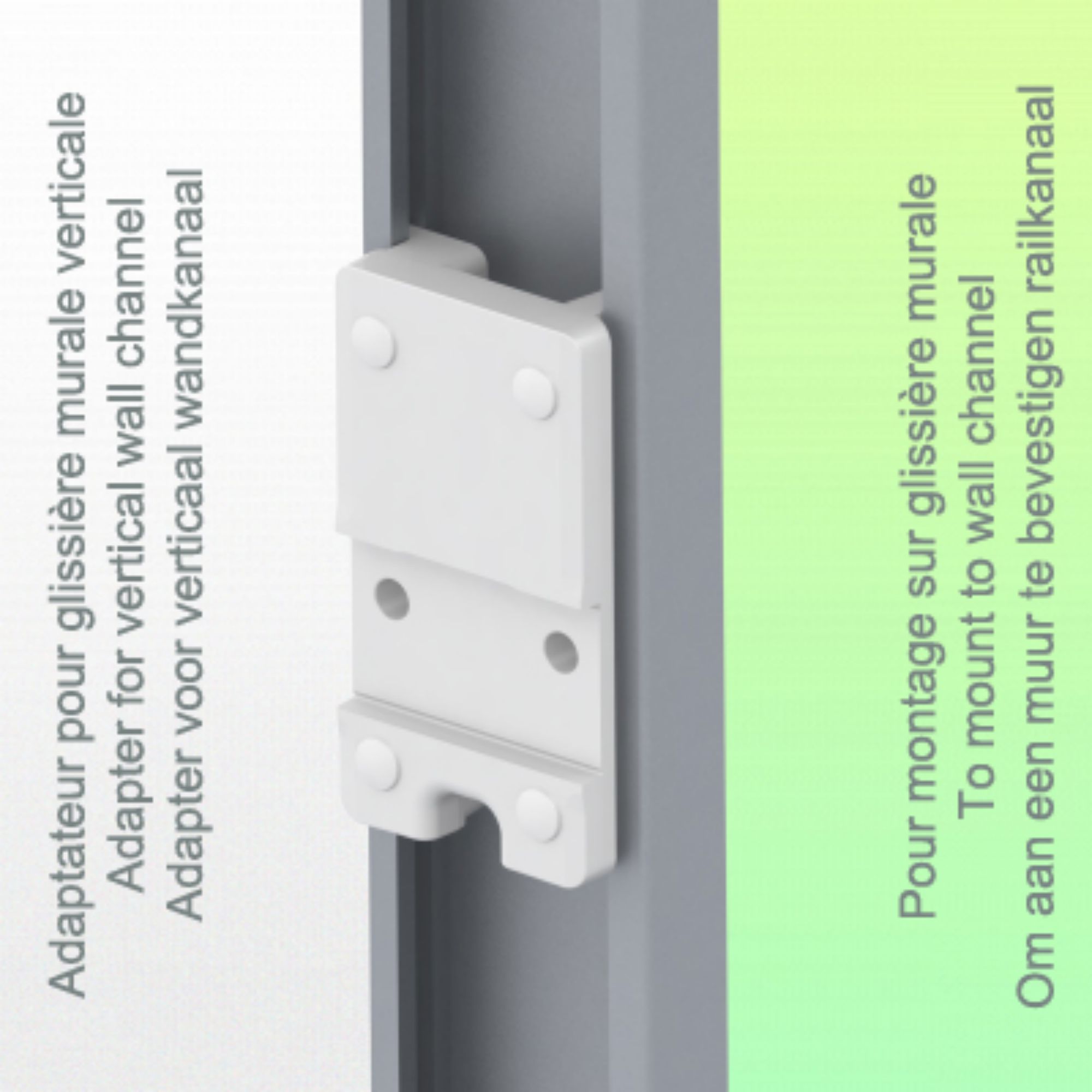

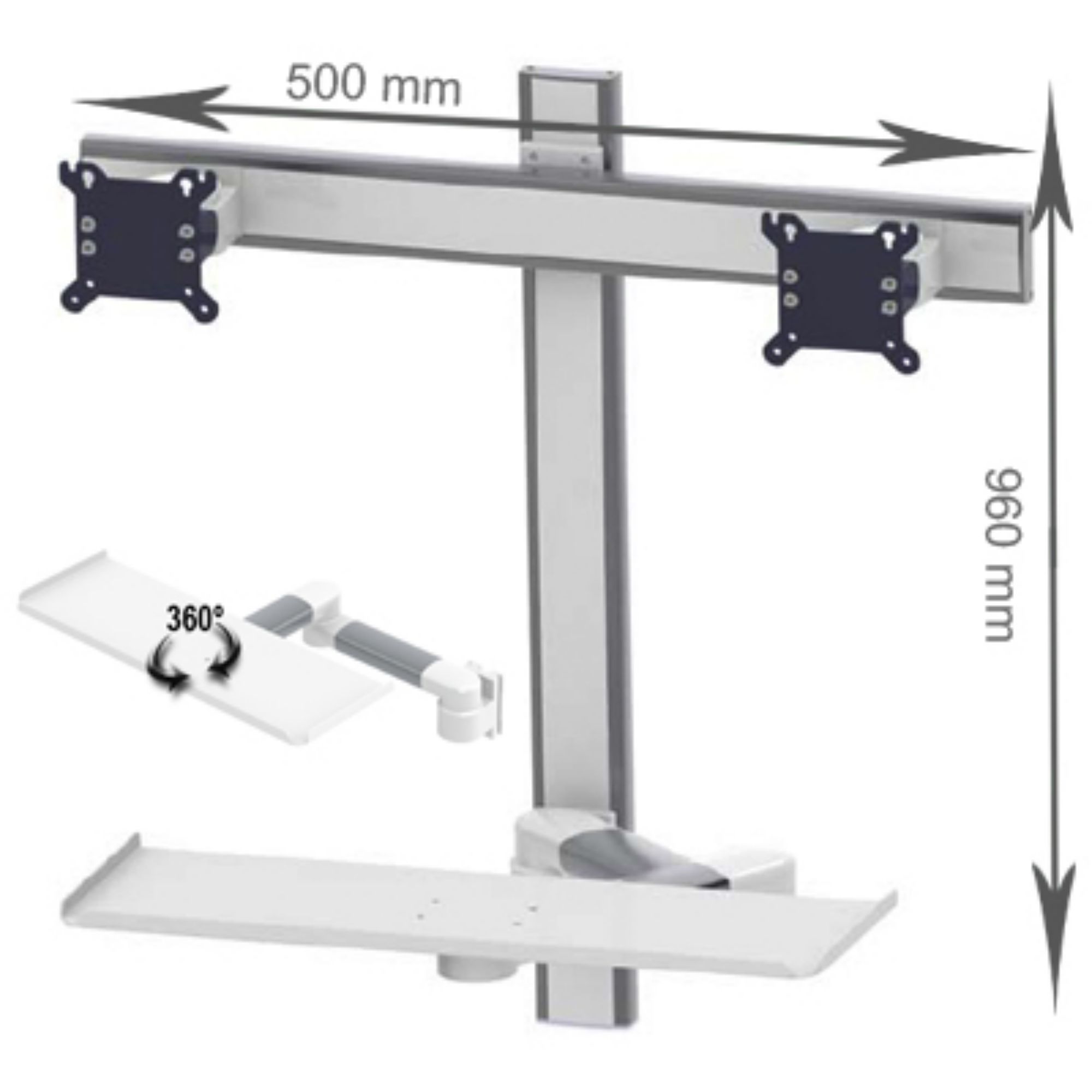

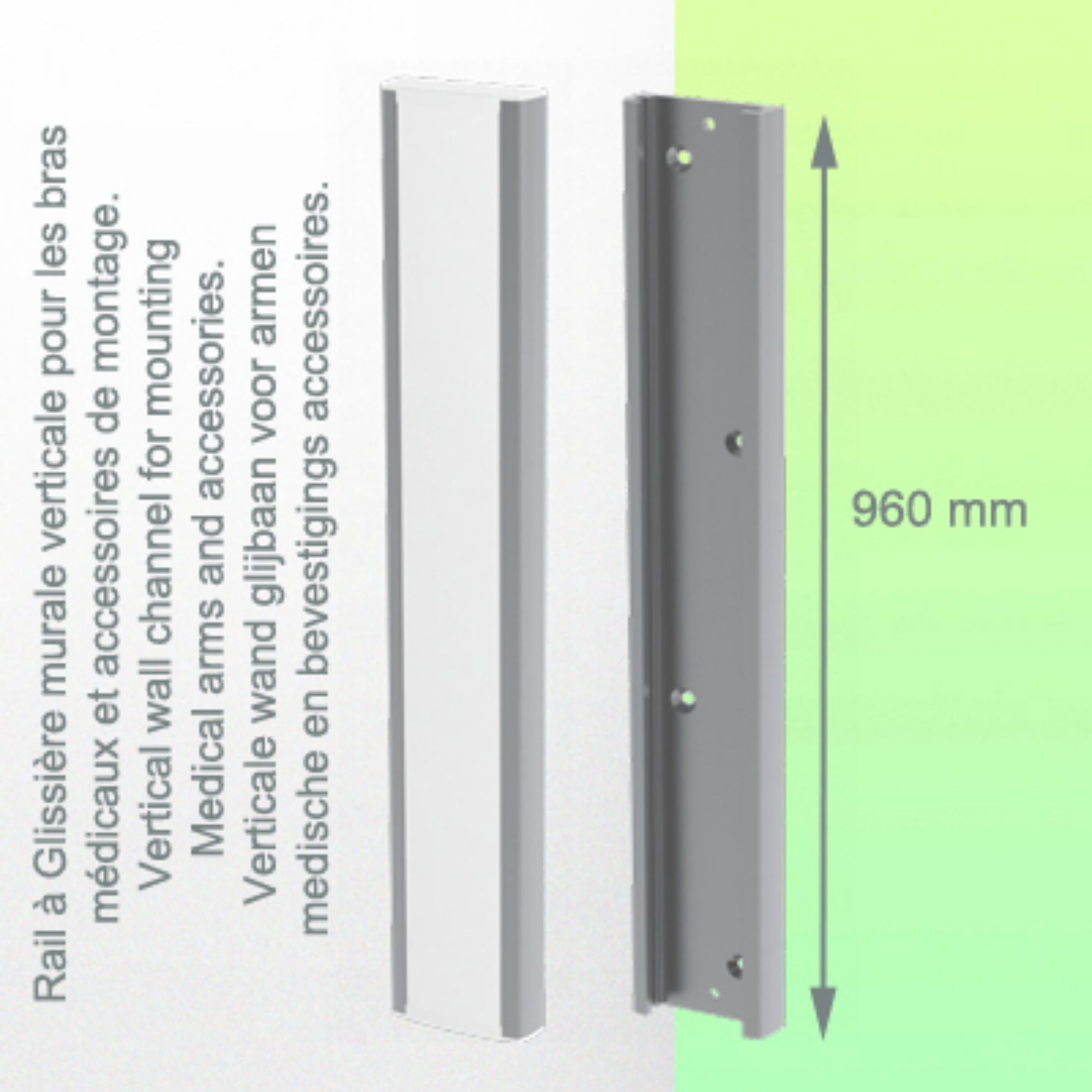

* Mounting on a 960 mm vertical wall rail included in this configuration.

* This wall rail can be easily cut to size.

* All cables are also routed through this wall rail.

* All components simply slide into the wall rail and then adjust to the required height and secure.

* Optional: Adjustable PC stand from 85 to 150 mm.

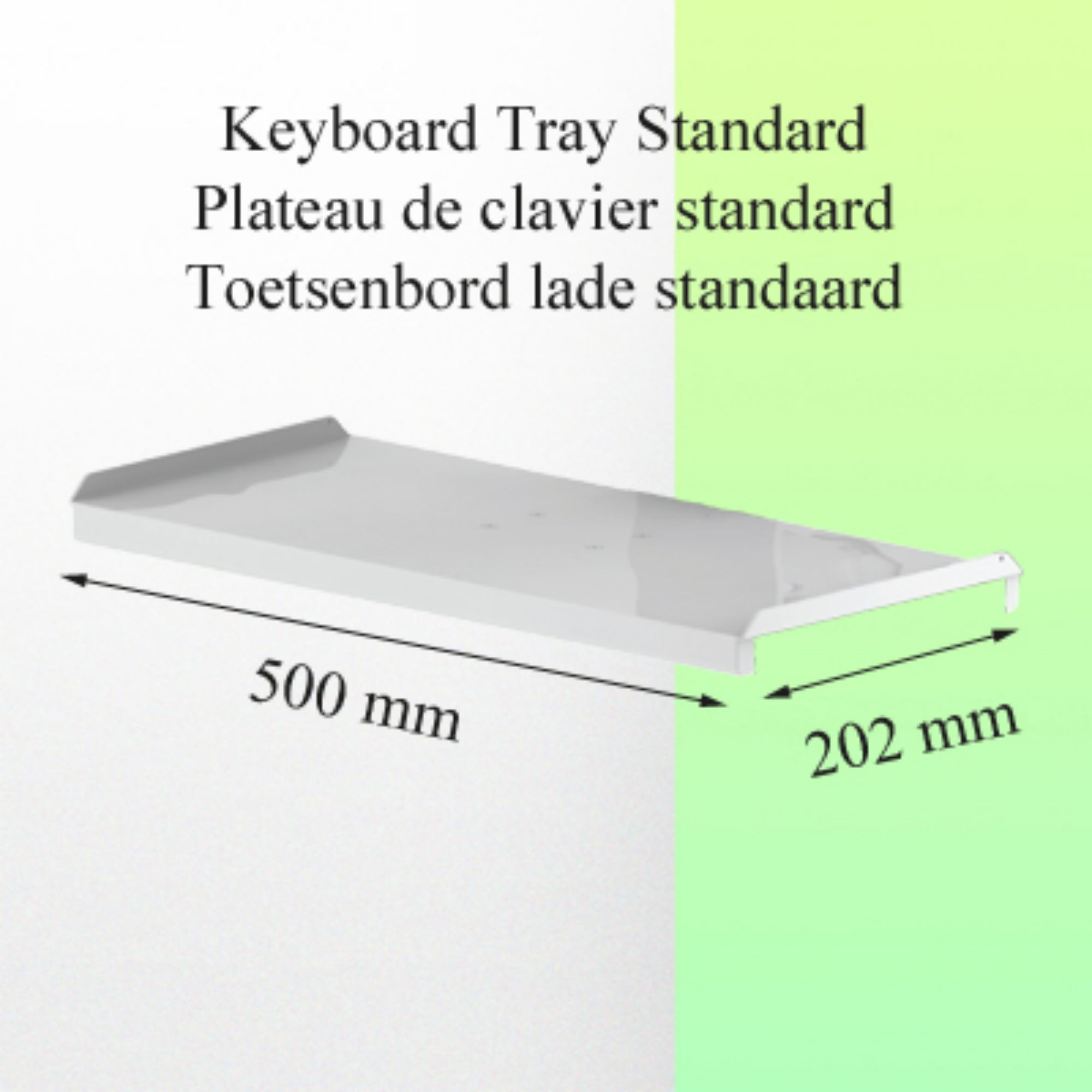

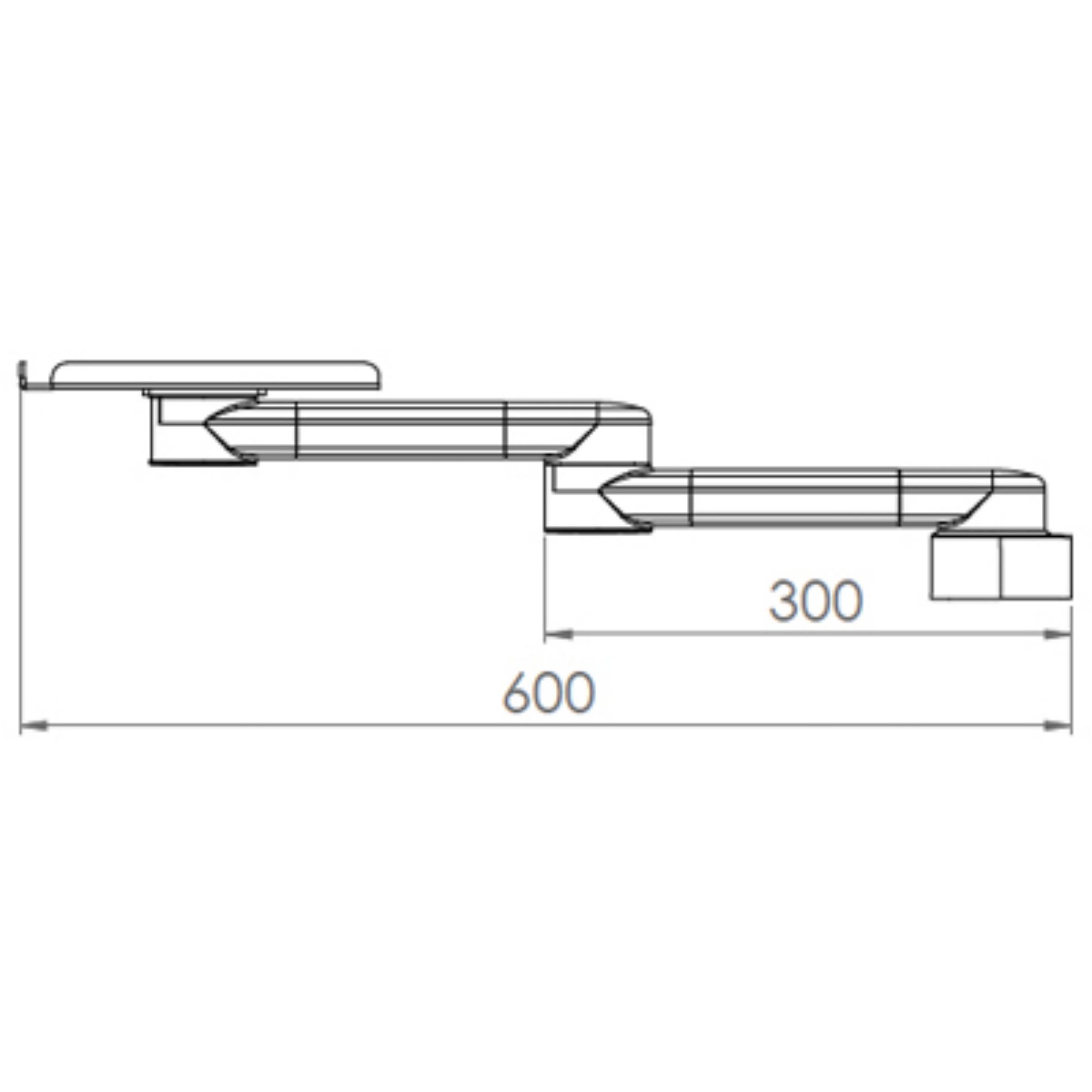

* The keyboard/mouse stand has dimensions of 580mm x 200mm and is mounted on a double arm.

* It also allows the rotation of the keyboard 110° to the right, 110° to the left.

* Its folding ball joint is ideal for saving space.

* Compatible with monitors and PCs weighing up to 10 kg.

* Stability of the touch screen.

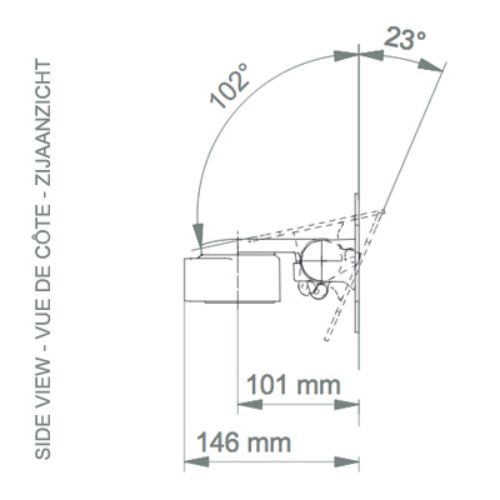

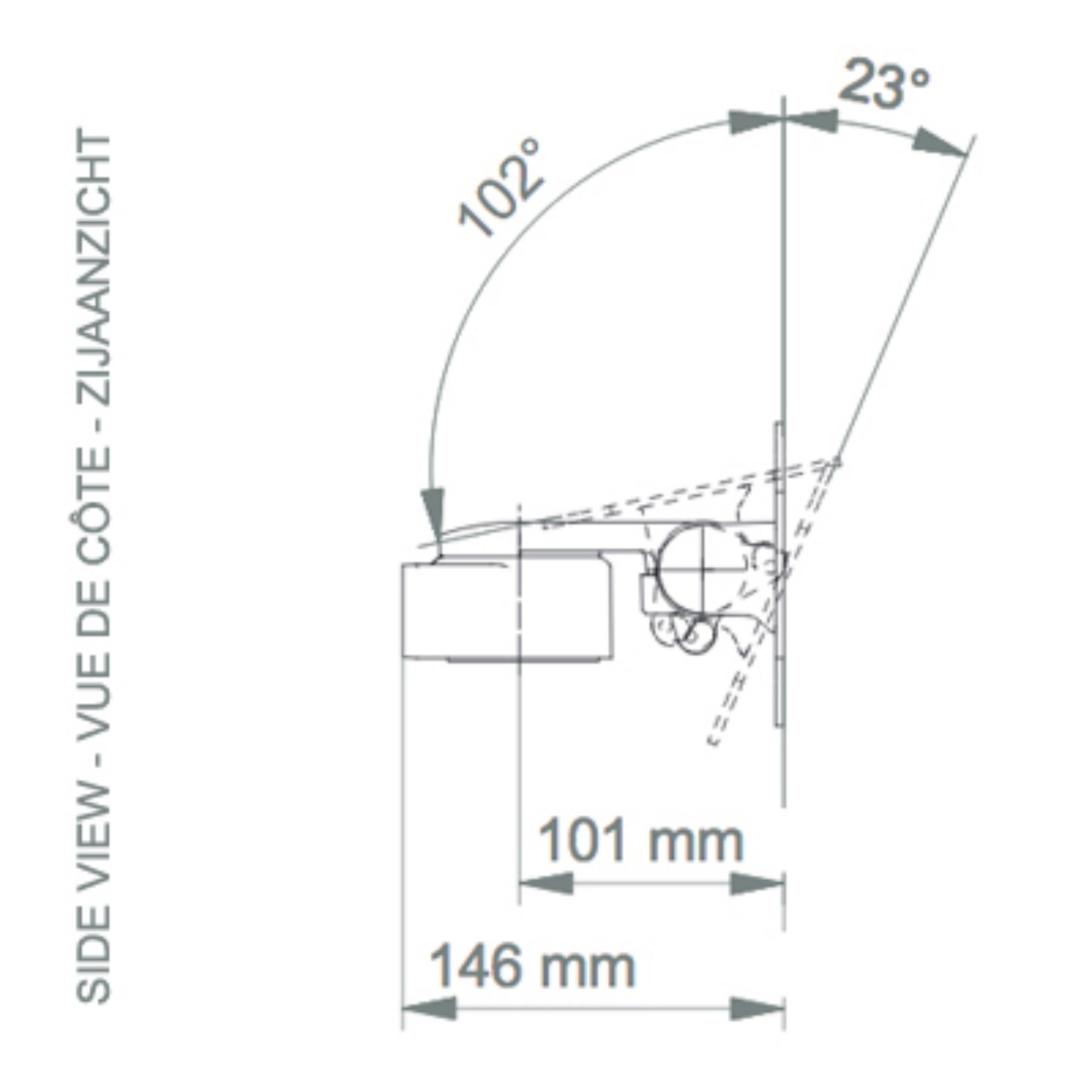

* Screen support tilt: 12°

* Screen support rotation: 105° right, 105° left.

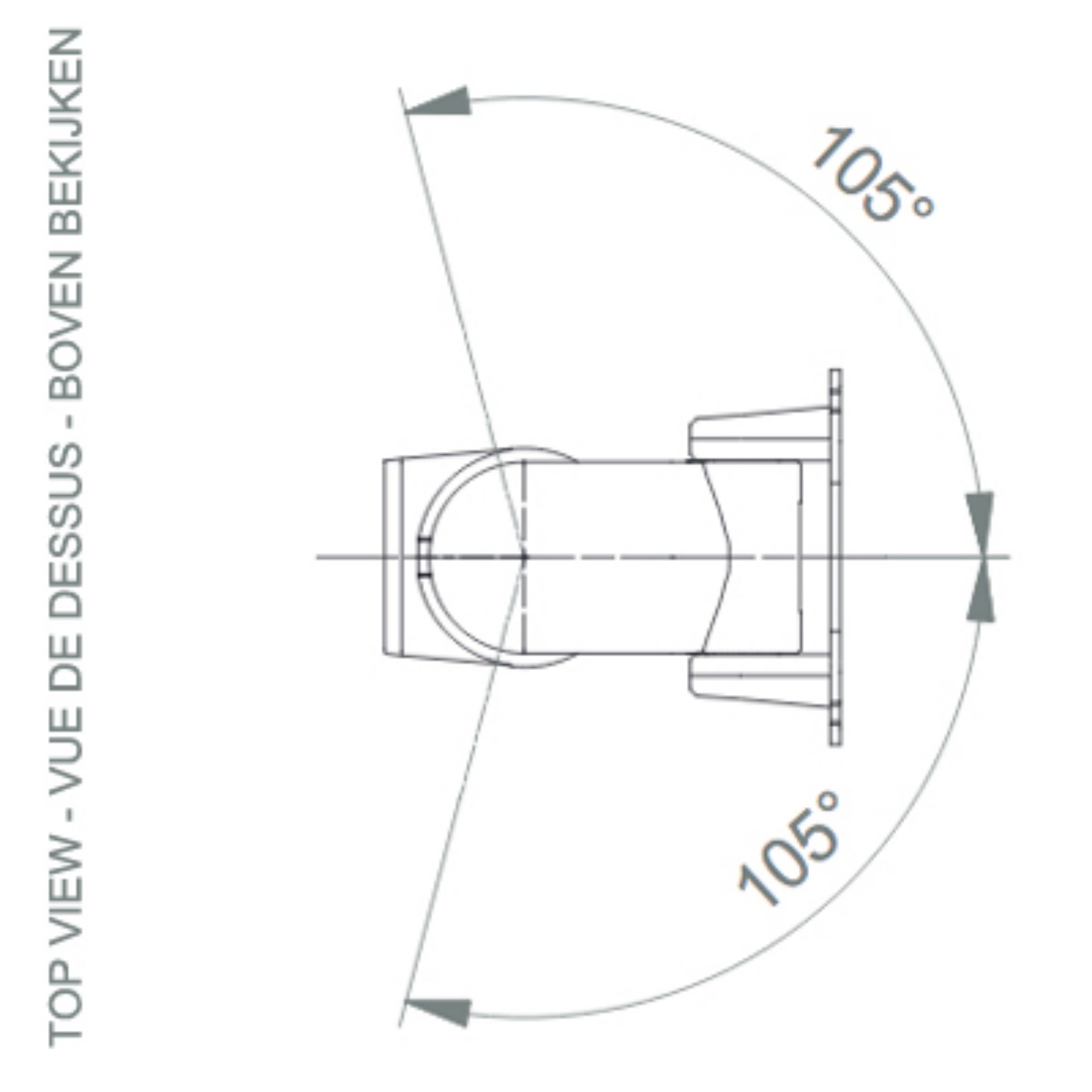

* Arm rotation: 105° right, 105° left.

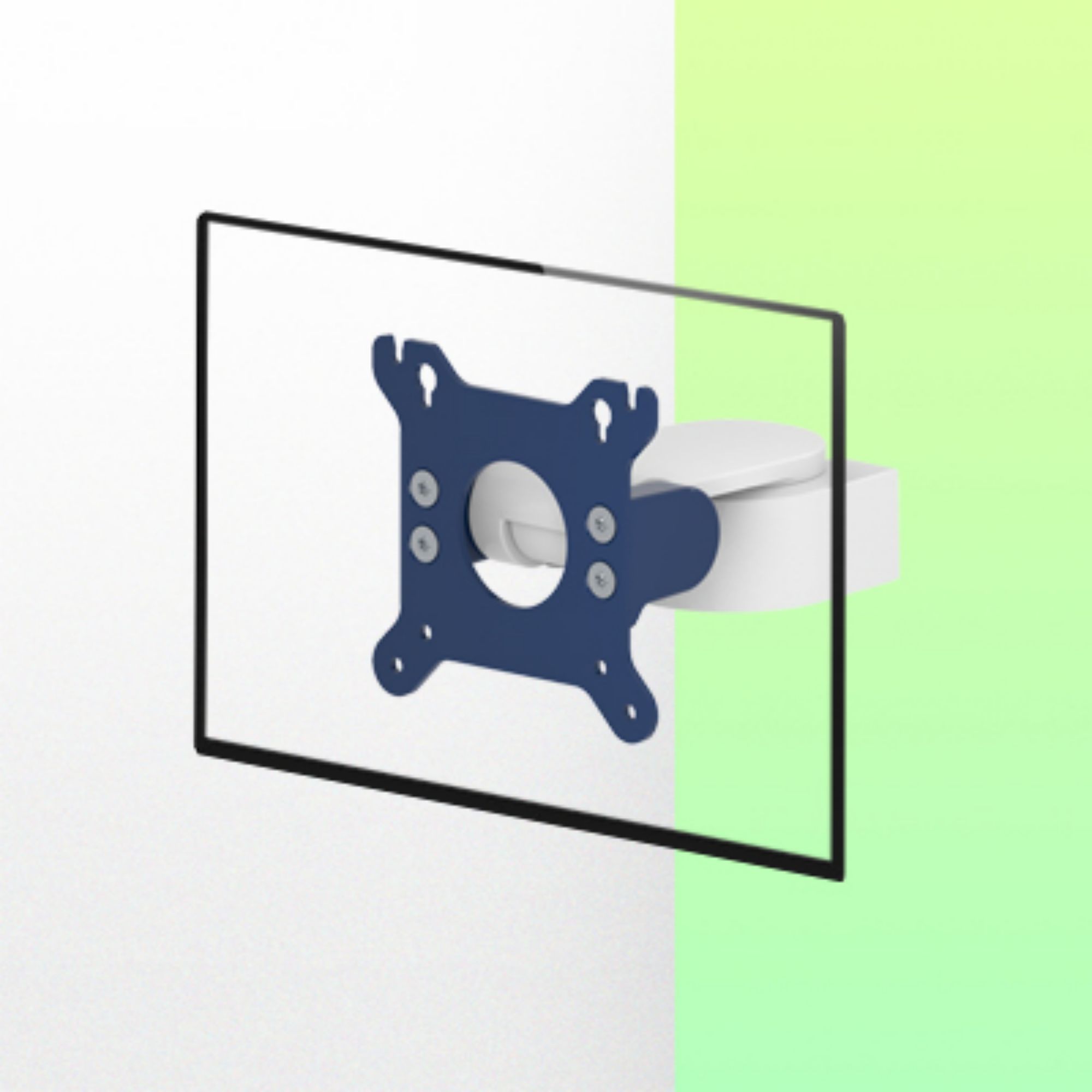

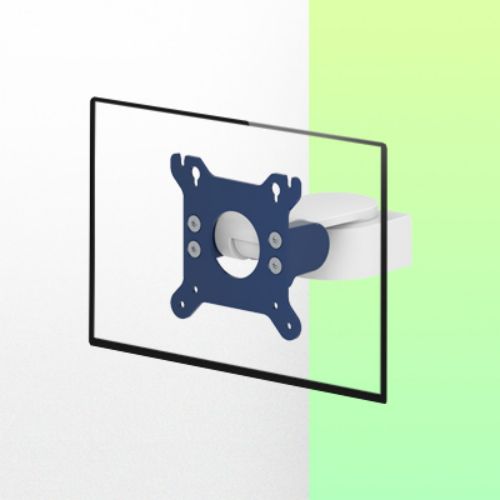

* The screen support complies with the VESA MIS-D 75 mm and 100 mm screen mounting standard

* Small footprint: 100 mm x 960 mm 580 mm (folded system)

* Color RAL 7024 (Graphite Grey) and White

* All our medical arms are in compliance with: CE, ROHS, Medical Grade, Regulations MDD 93/42 ECC.

* Warranty: 5 years
