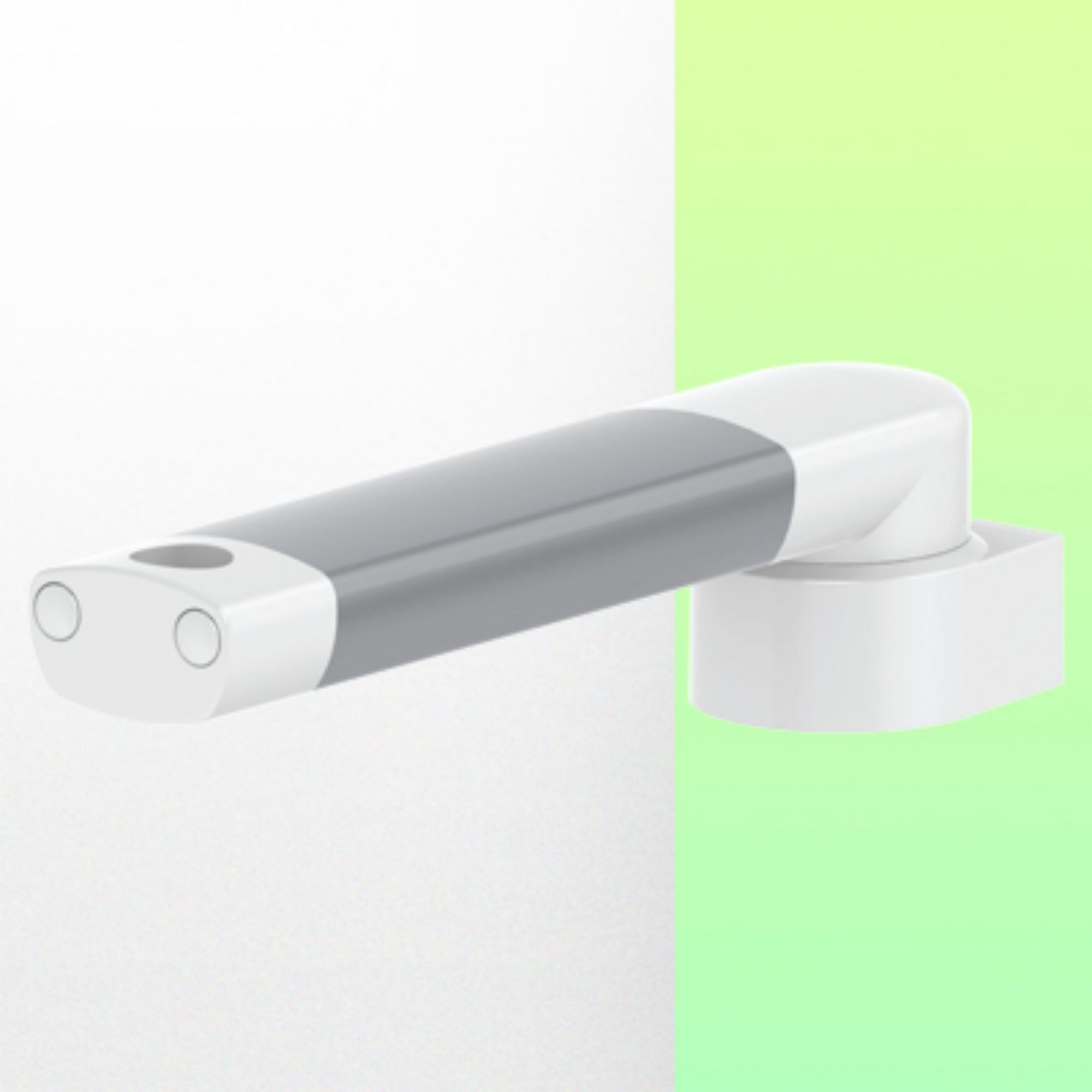

Medical swivel arm for infusion pump stand 261 mm,

For mounting to fixed tube ø 35 mm

Product number: WM 227.132 - Medical swivel arm for infusion pump stand 261 mm,

For mounting to fixed tube ø 35 mm

Product sheet PDF

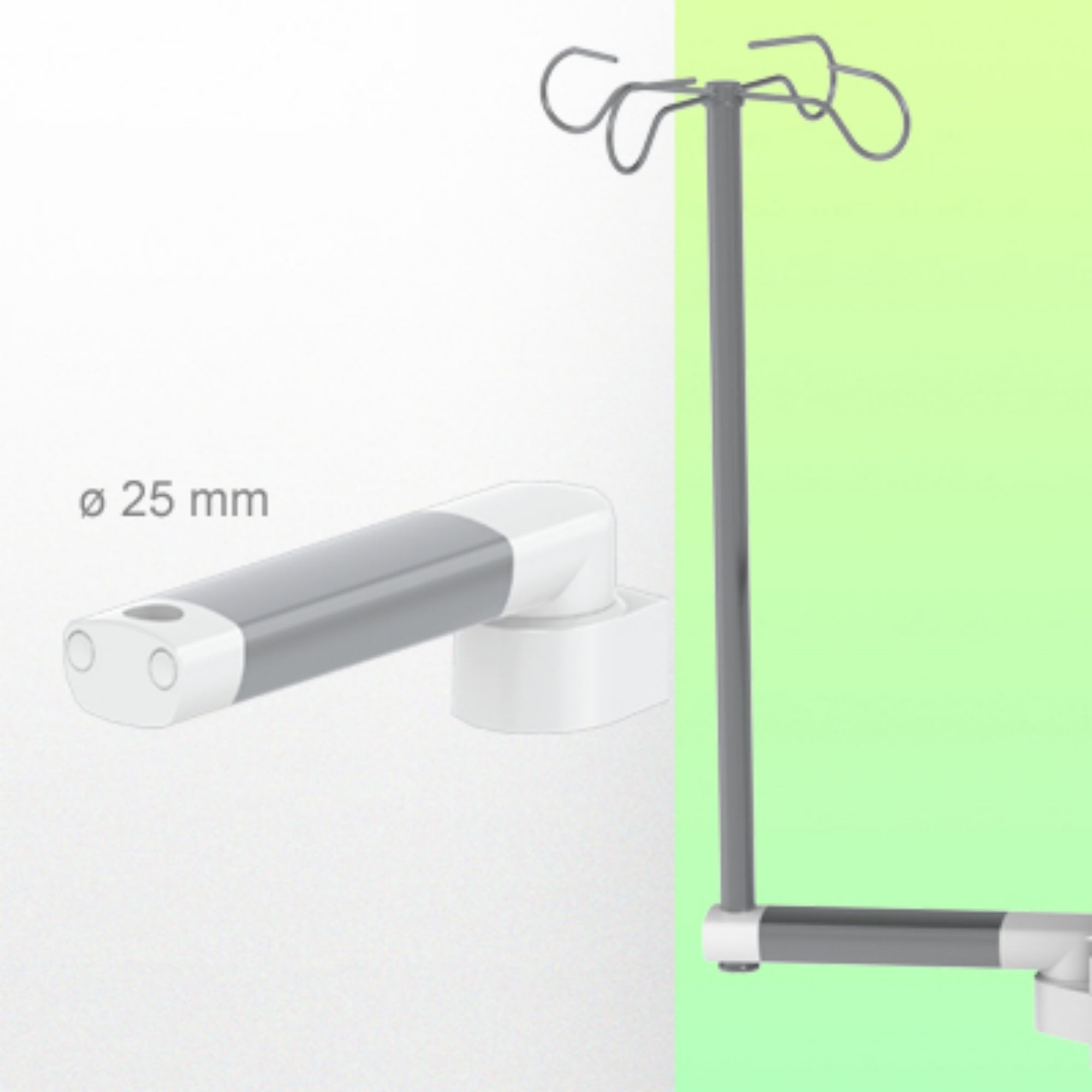

This standard 261mm long infusion pump stand swivel arm allows a 25mm diameter infusion pole or a pole of the same diameter to be fixed, oriented and adjusted perfectly.

Optional lengths of 321mm and 421mm are available.

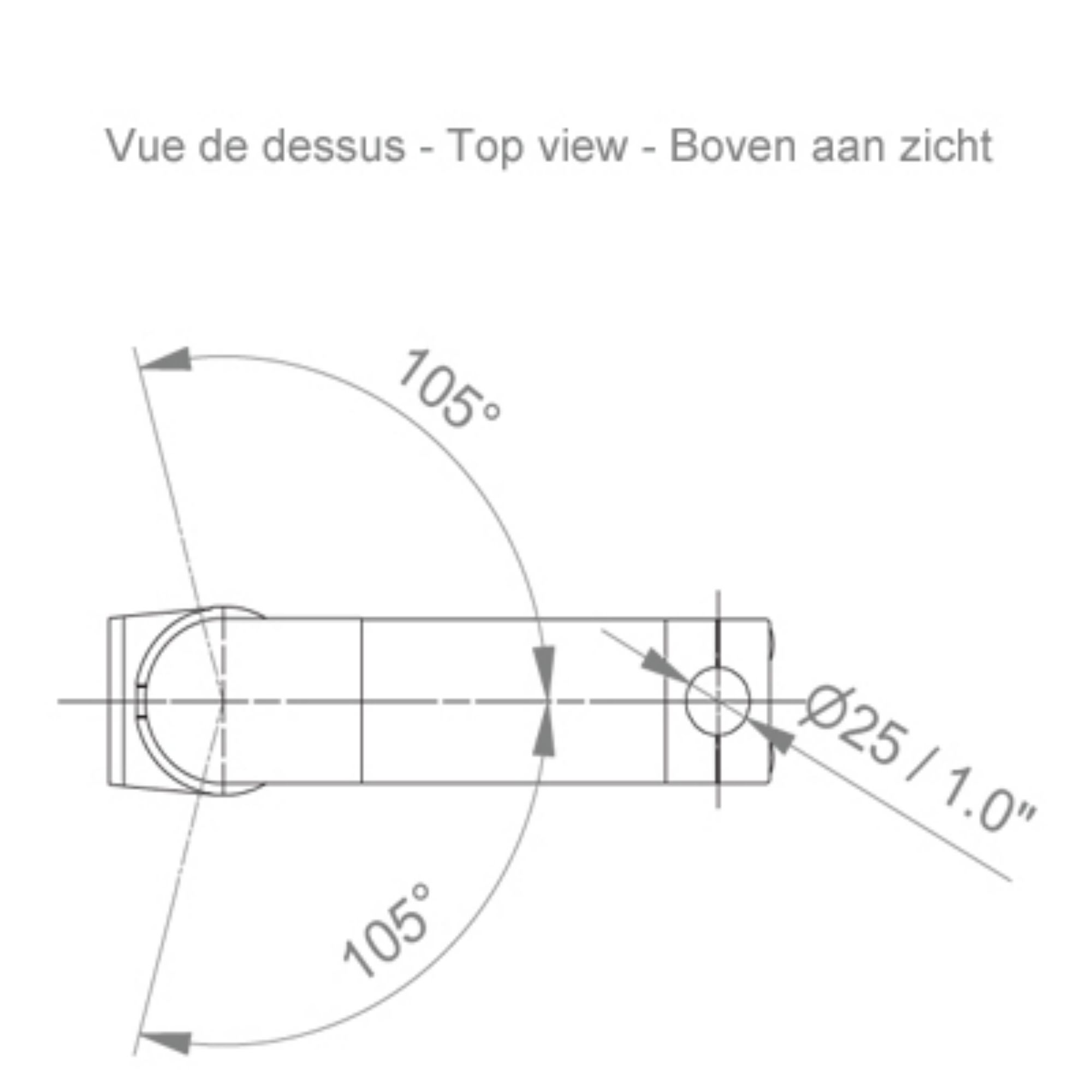

Axis of rotation from mounting: 105° right and 105° left

Maximum supported weight 30 kg including infusion pump.

Technical data:

* Arm rotation: 105° right, 105° left.

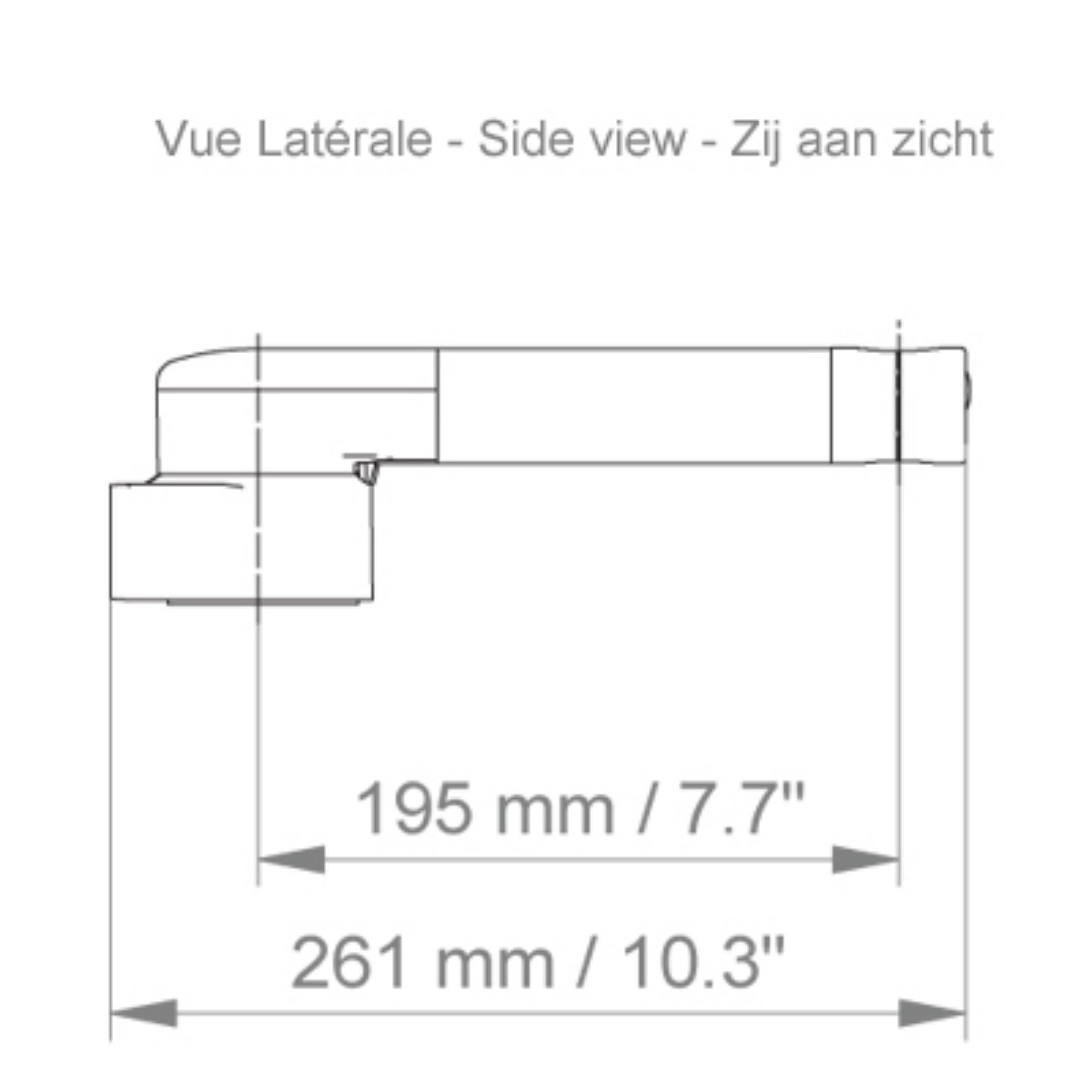

* Length of the arm 261 mm

* Weight supported by the arm: 30 Kg

* Color RAL RAL 9002 grey-white

* All our medical arms are in conformity: CE, ROHS, Medical Grade, Regulations MDD 93/42 ECC.

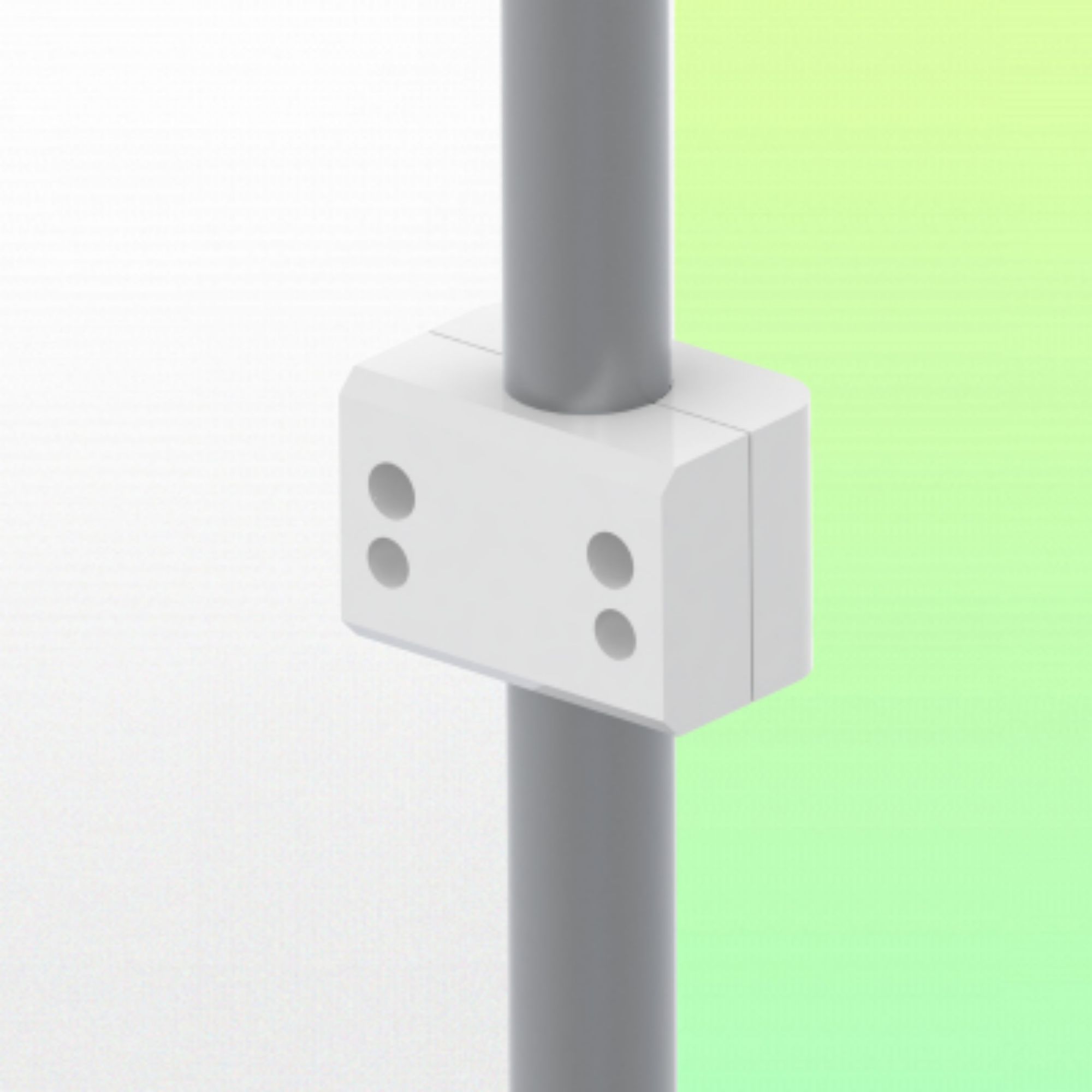

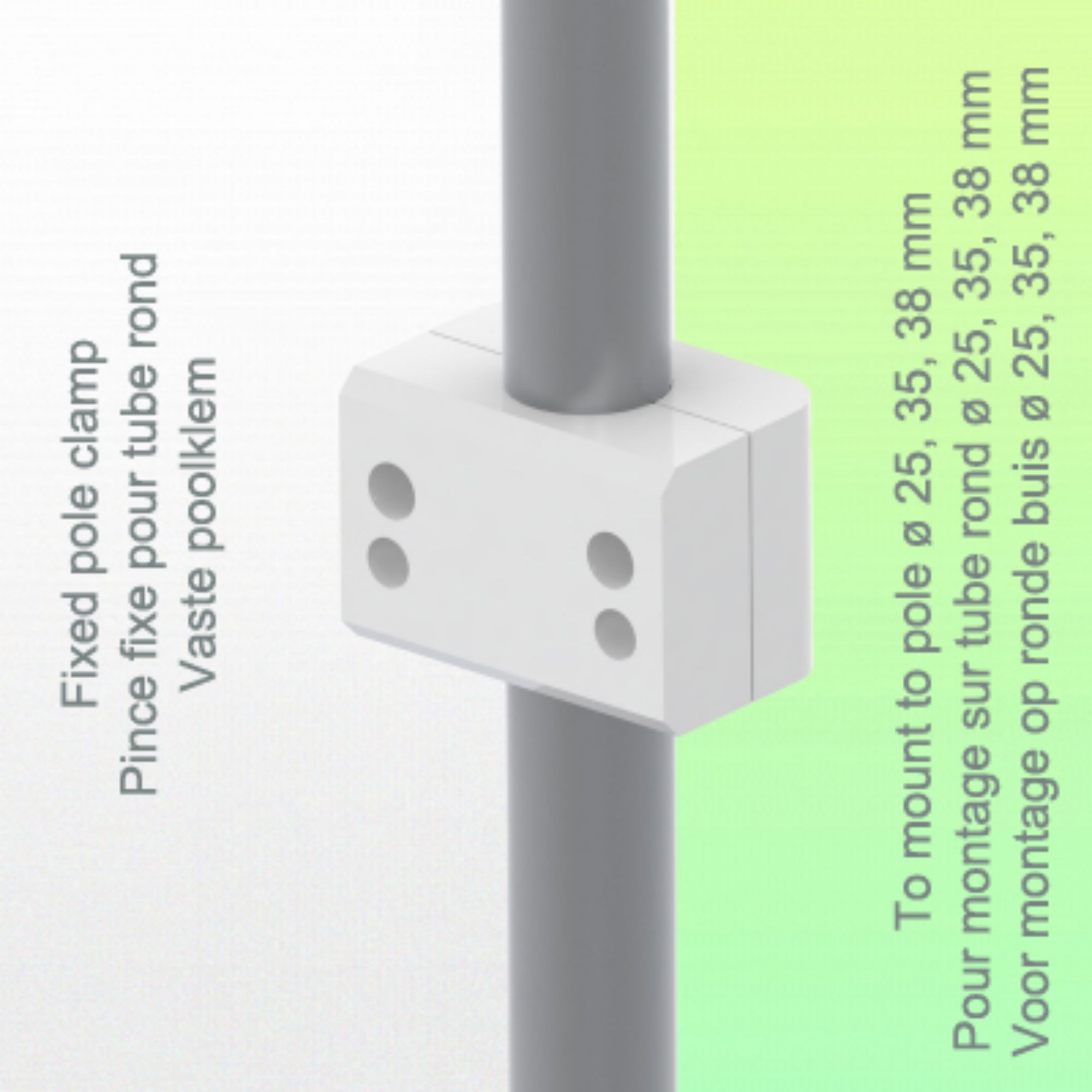

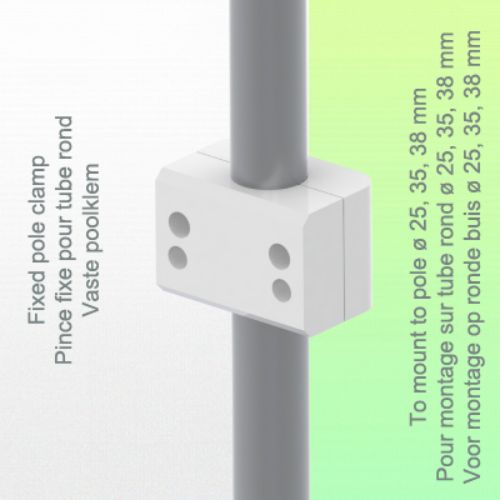

* Fixed tube adapter ø 35 mm included in this configuration

* Fixing head for 25 mm diameter tube

* Warranty: 5 years

( See options for infusion pump stand in the accessories section)
