386 mm Horizontal Medical Arm for monitoring 5" plate adaptor,

and Nihon Kohden Interface

floor or ceiling column mounting.

Nihon Kohden monitoring compatible.

Product number: WM 250.103NK - 386 mm Horizontal Medical Arm for monitoring 5" plate adaptor,

and Nihon Kohden Interface

floor or ceiling column mounting.

Nihon Kohden monitoring compatible.

Product sheet PDF

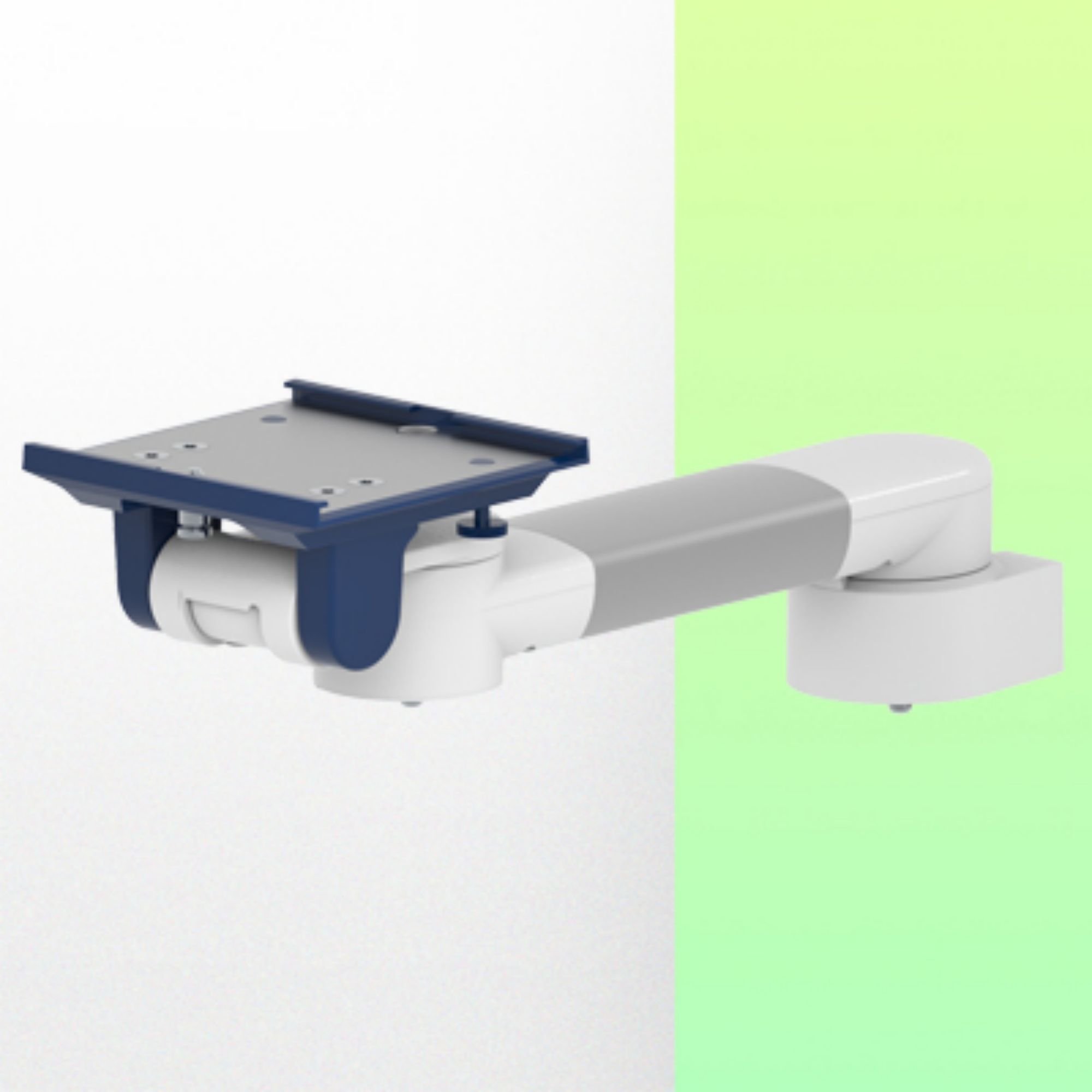

This 386 mm Horizontal Arm allows the monitor to be fixed, oriented and adjusted perfectly.

It is coated with an anti-microbial agent to ensure hygiene and cleanliness down to the smallest detail. Its modern design has been specially developed for healthcare environments.

Technical specifications:

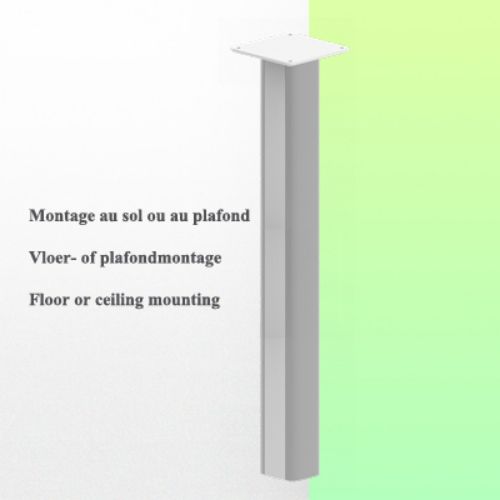

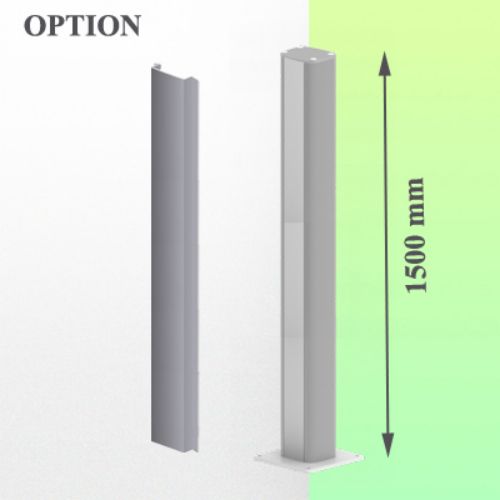

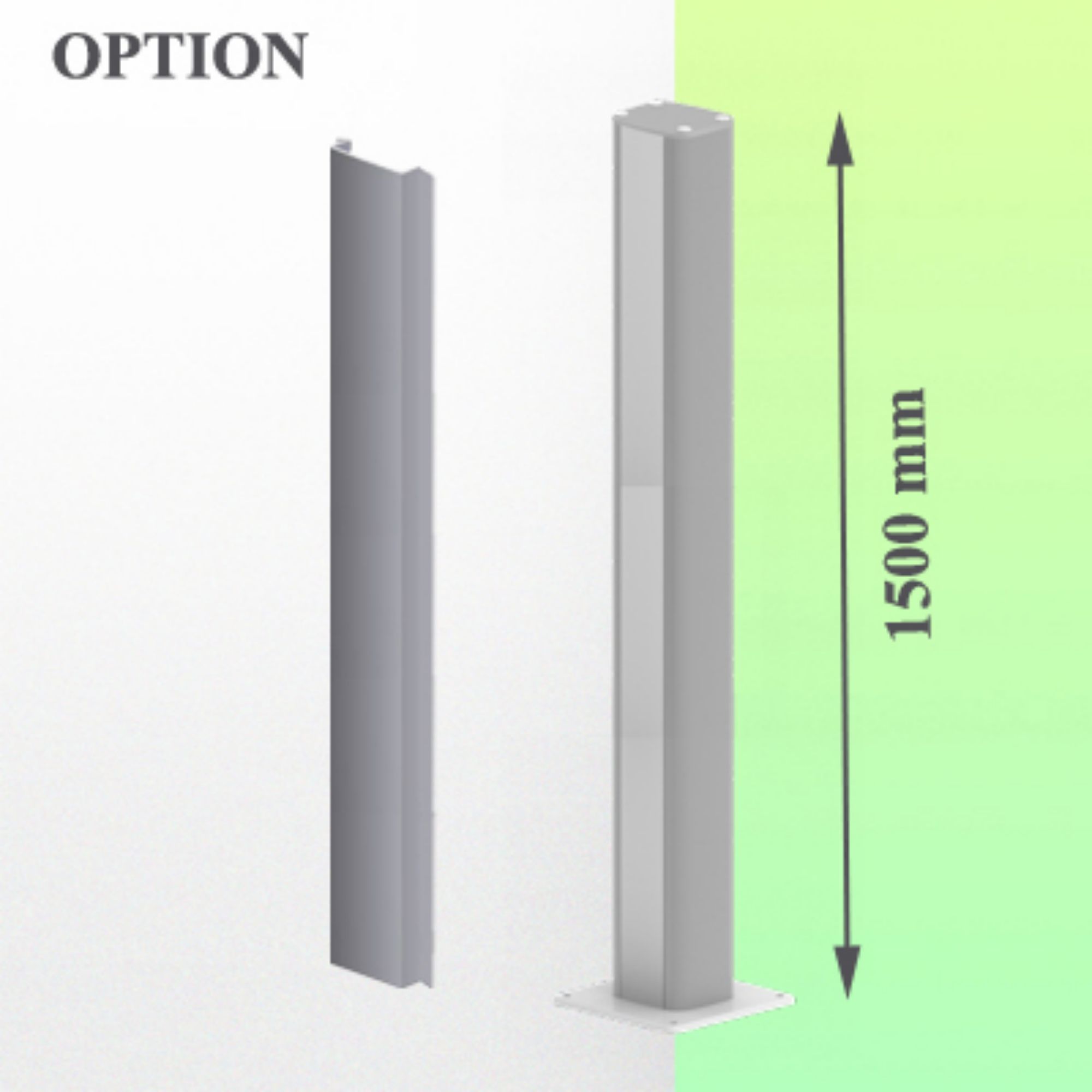

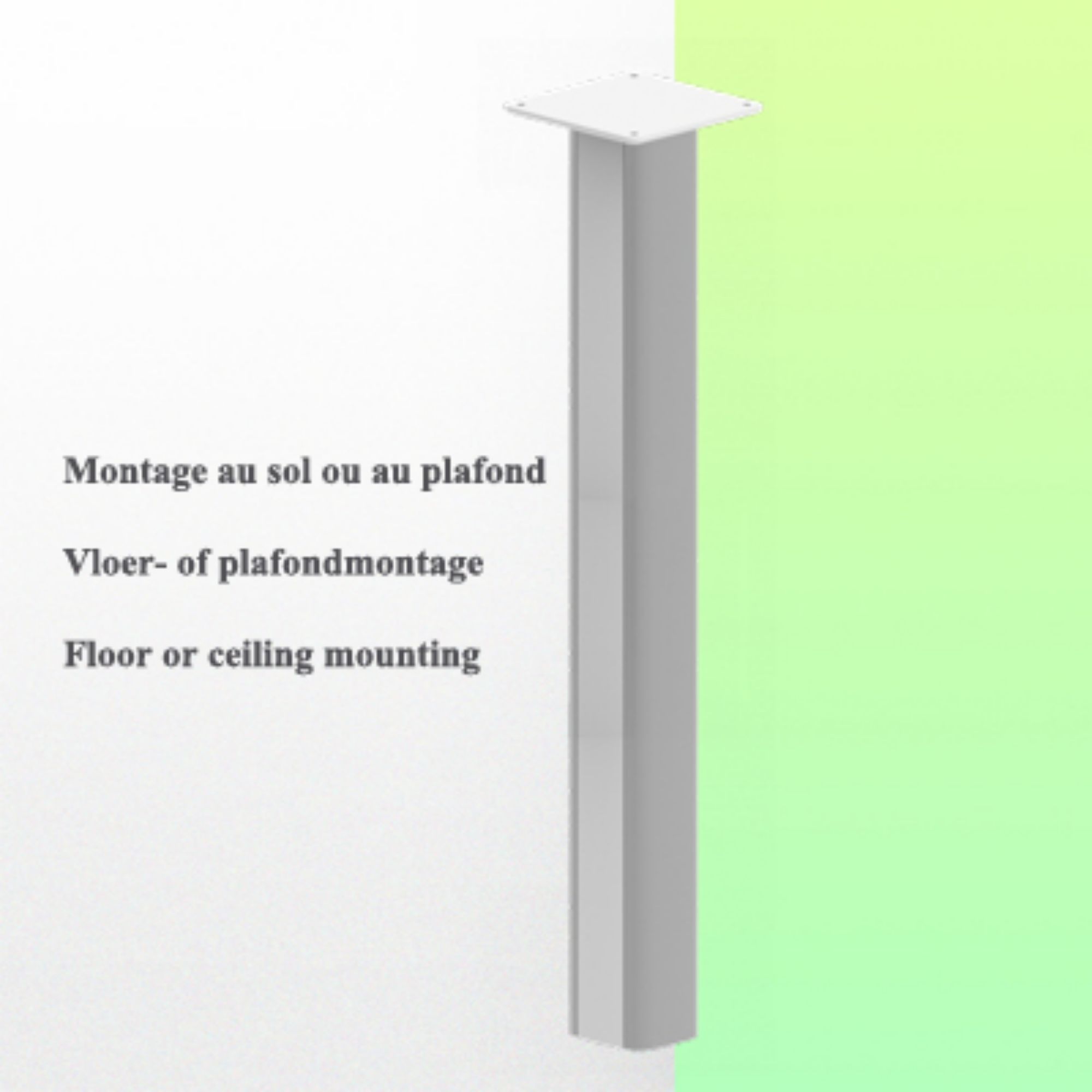

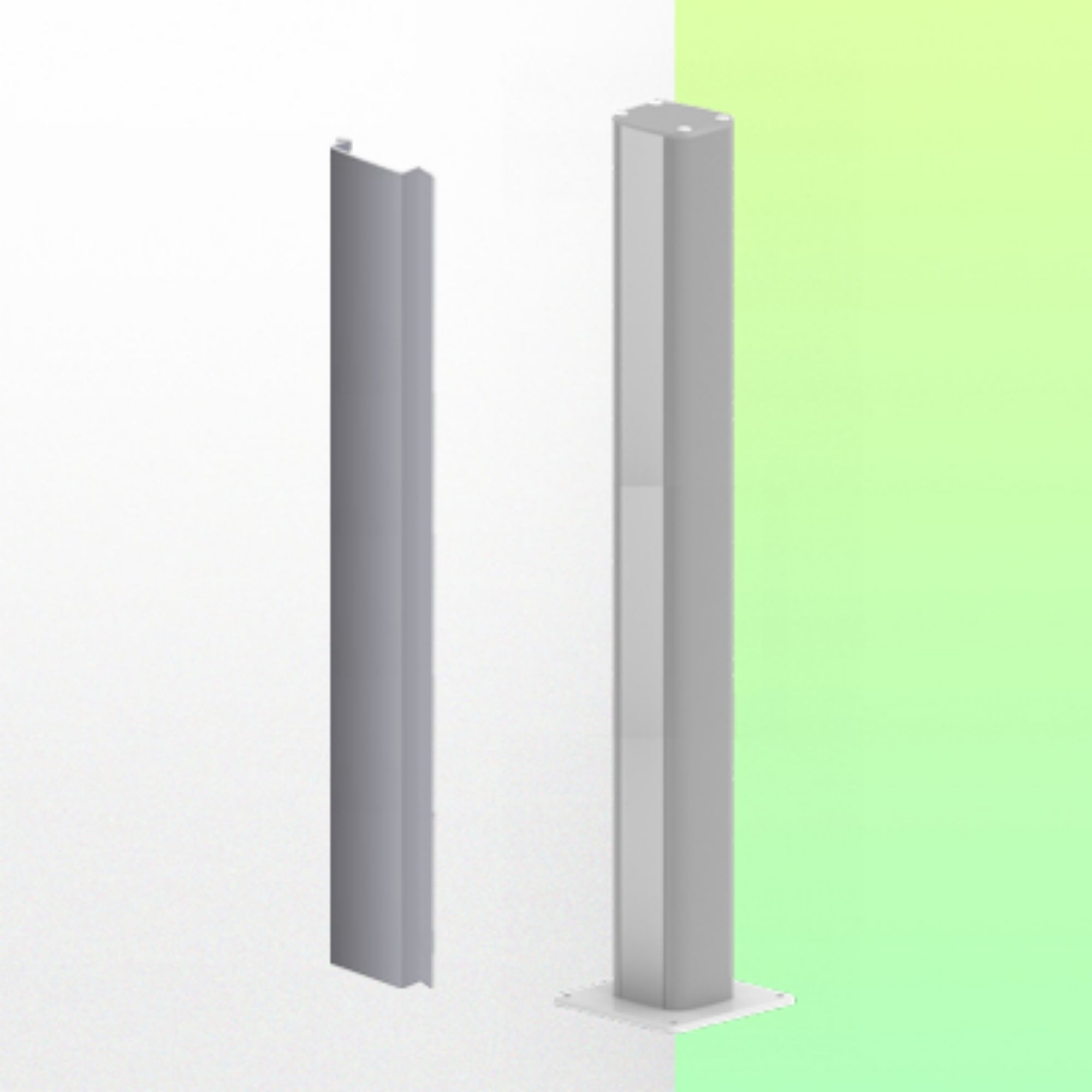

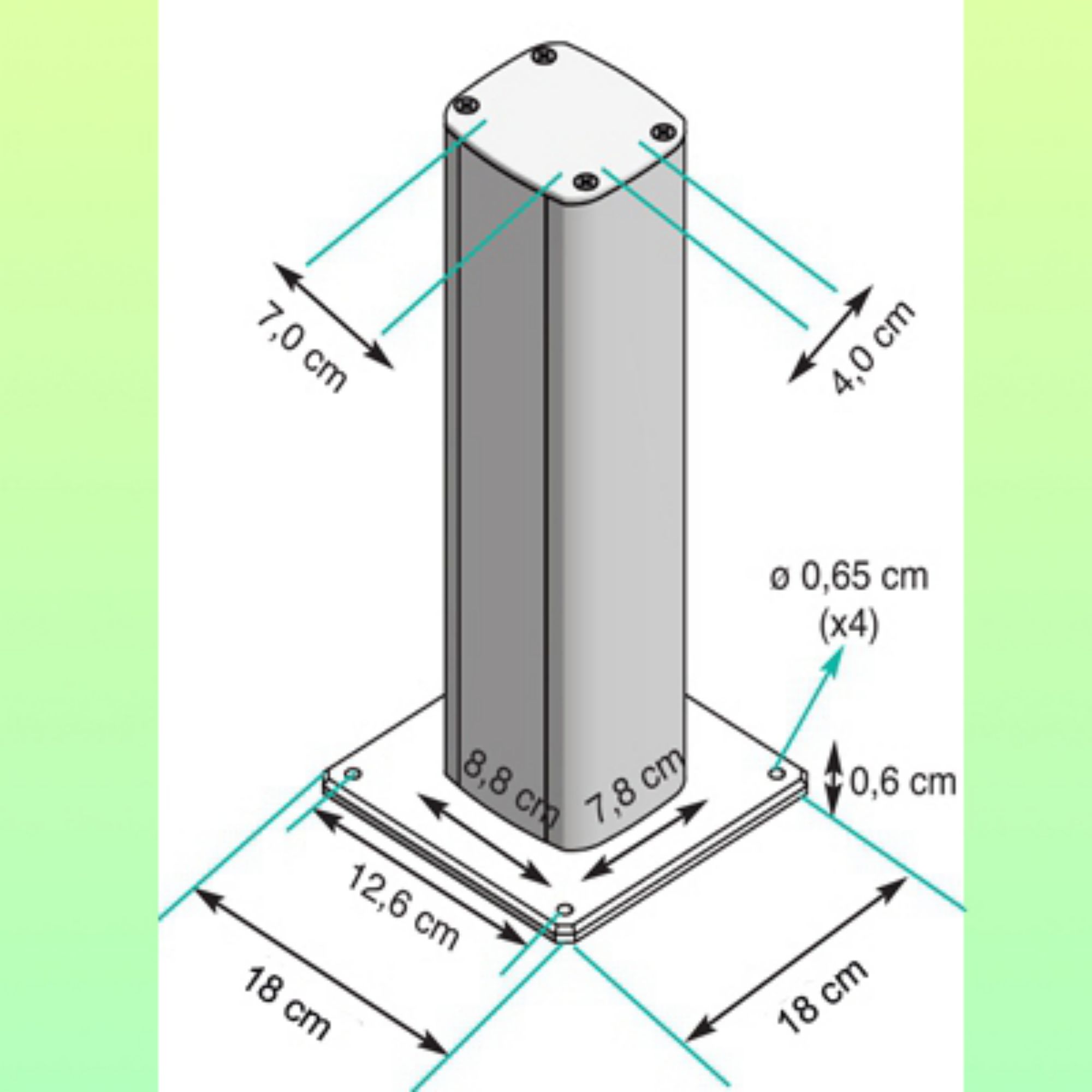

* Optional floor or ceiling column mounting, with several heights available (1500 - 2000 mm)

* These columns can be easily cut to size.

*All cables are also routed through the column

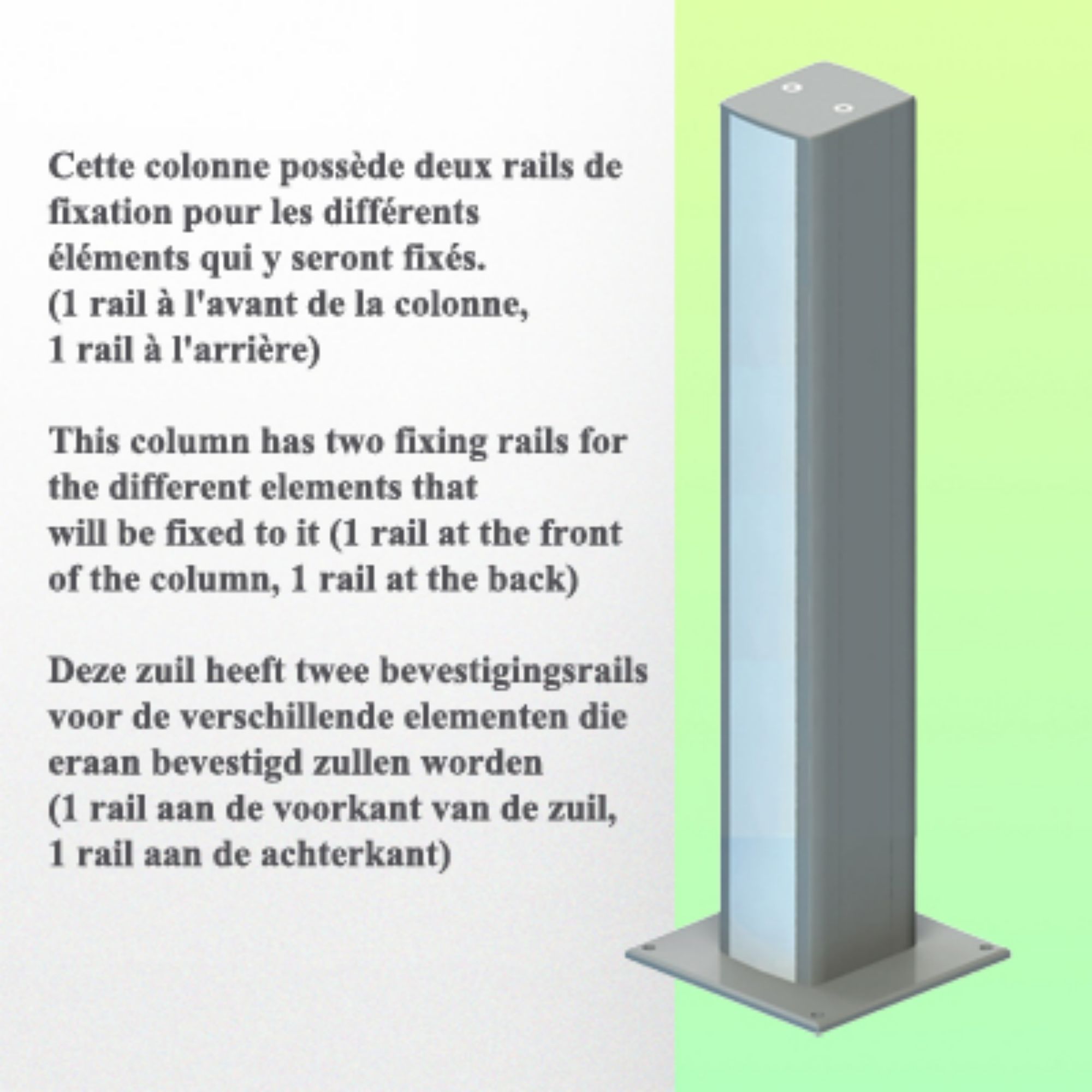

* This 386 mm Horizontal Arm simply slides into the column rail and adjusts to the required height. It has no height adjustment

* The head of this arm complies with the mounting standard for Nihon Kohden monitors weighing up to 18 Kg.

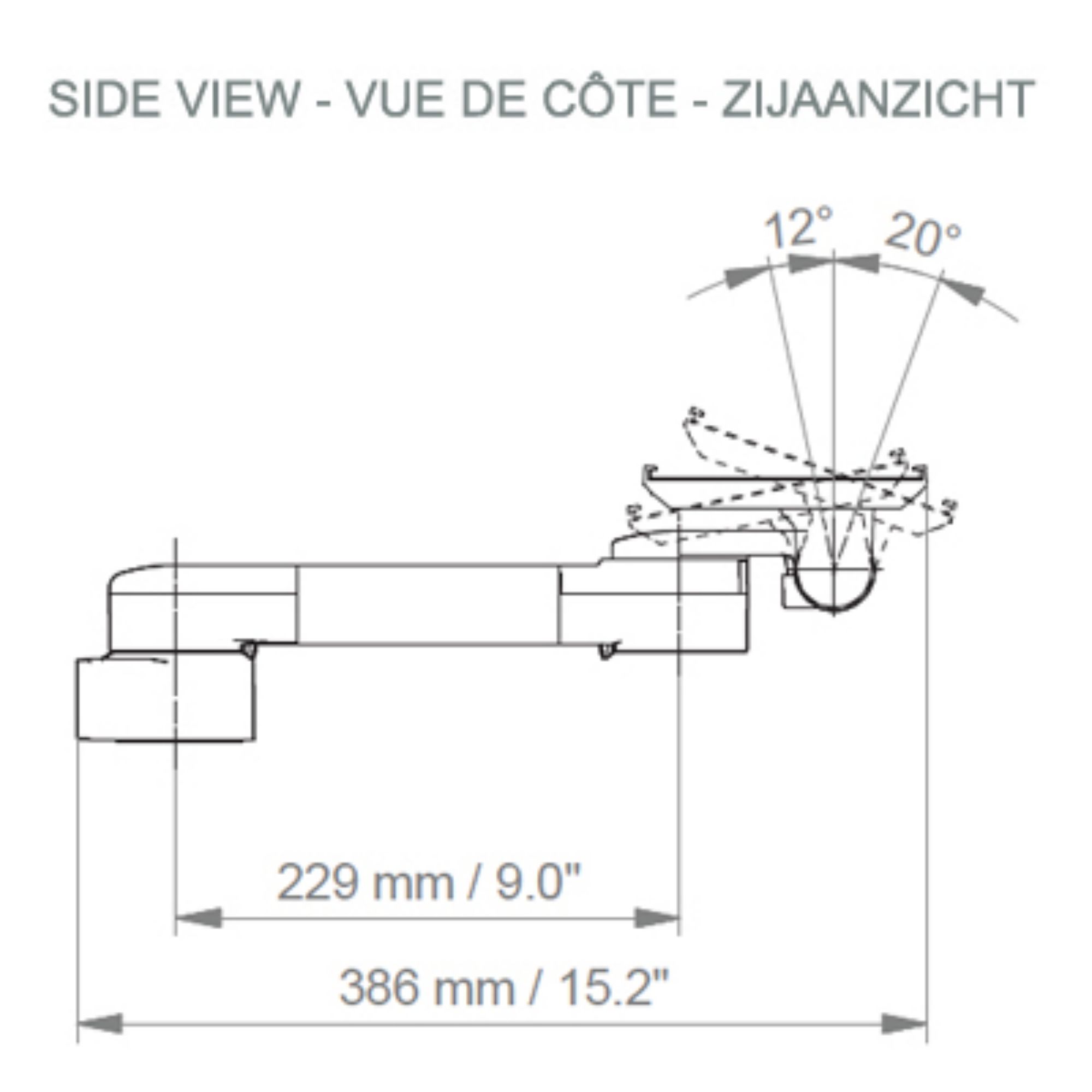

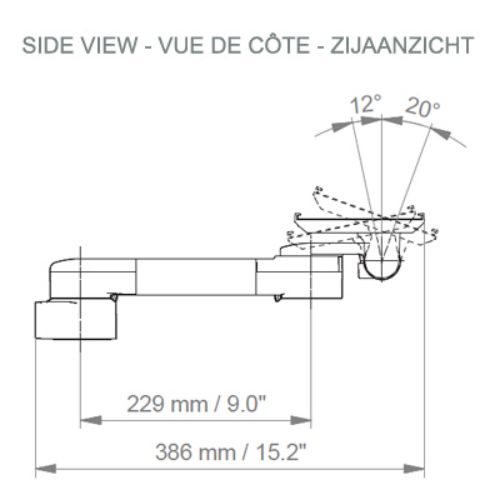

* Monitor tilt: 20° down and 12° up

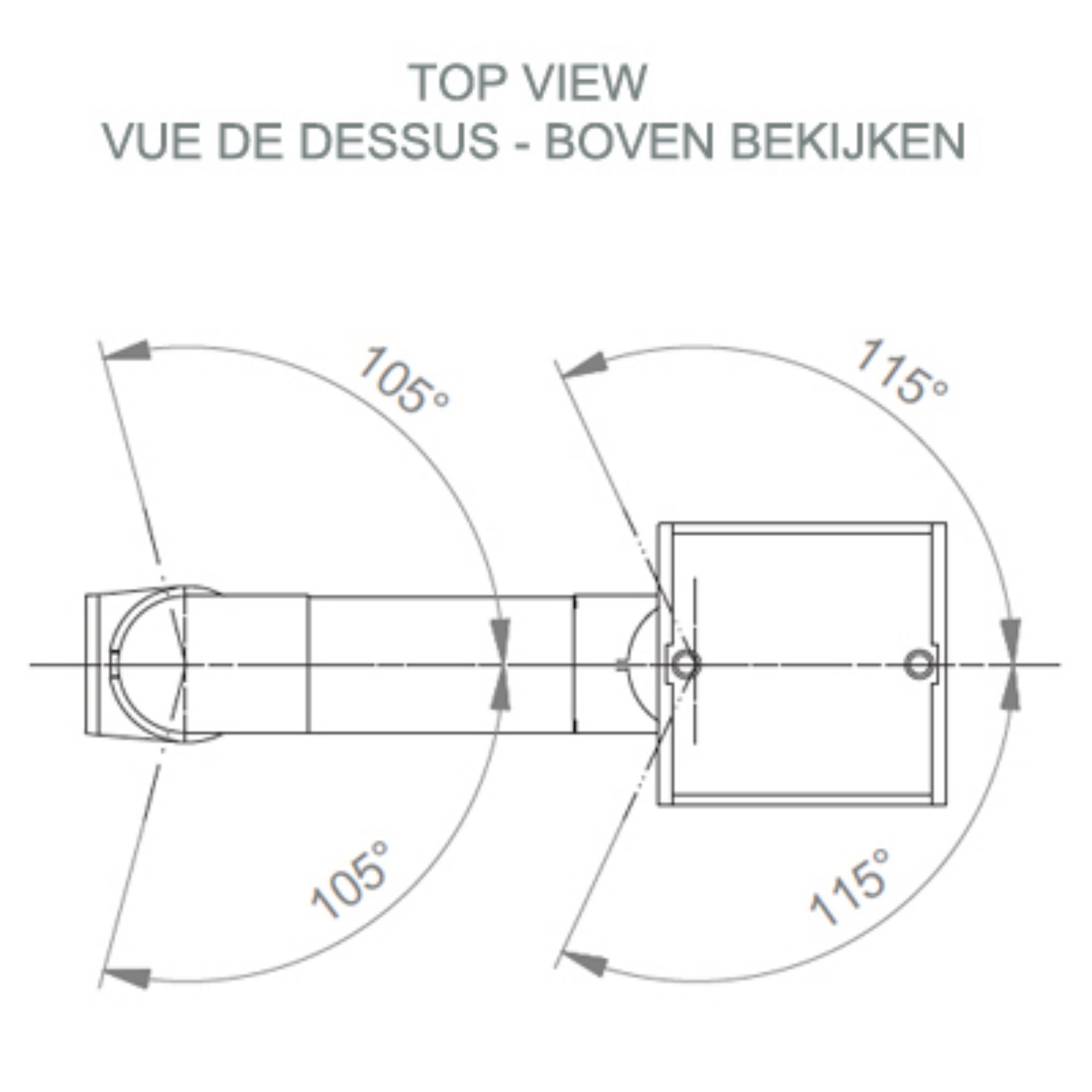

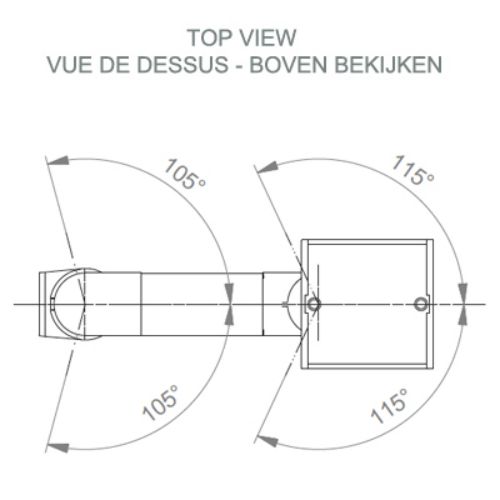

* Monitor rotation: 115° right, 115° left.

* Arm rotation: 105° right, 105° left.

* Total length: 386 mm Colour: RAL 5013 cobalt blue and RAL 9016 traffic white

* Warranty: 5 years
