Dual 615 mm Horizontal Medical Arm for monitoring 5" plate adaptor,

floor or ceiling column mounting.

Dräger and GE monitoring compatible.

Product number: WM 250.104 - Dual 615 mm Horizontal Medical Arm for monitoring 5" plate adaptor,

floor or ceiling column mounting.

Dräger and GE monitoring compatible.

Product sheet PDF

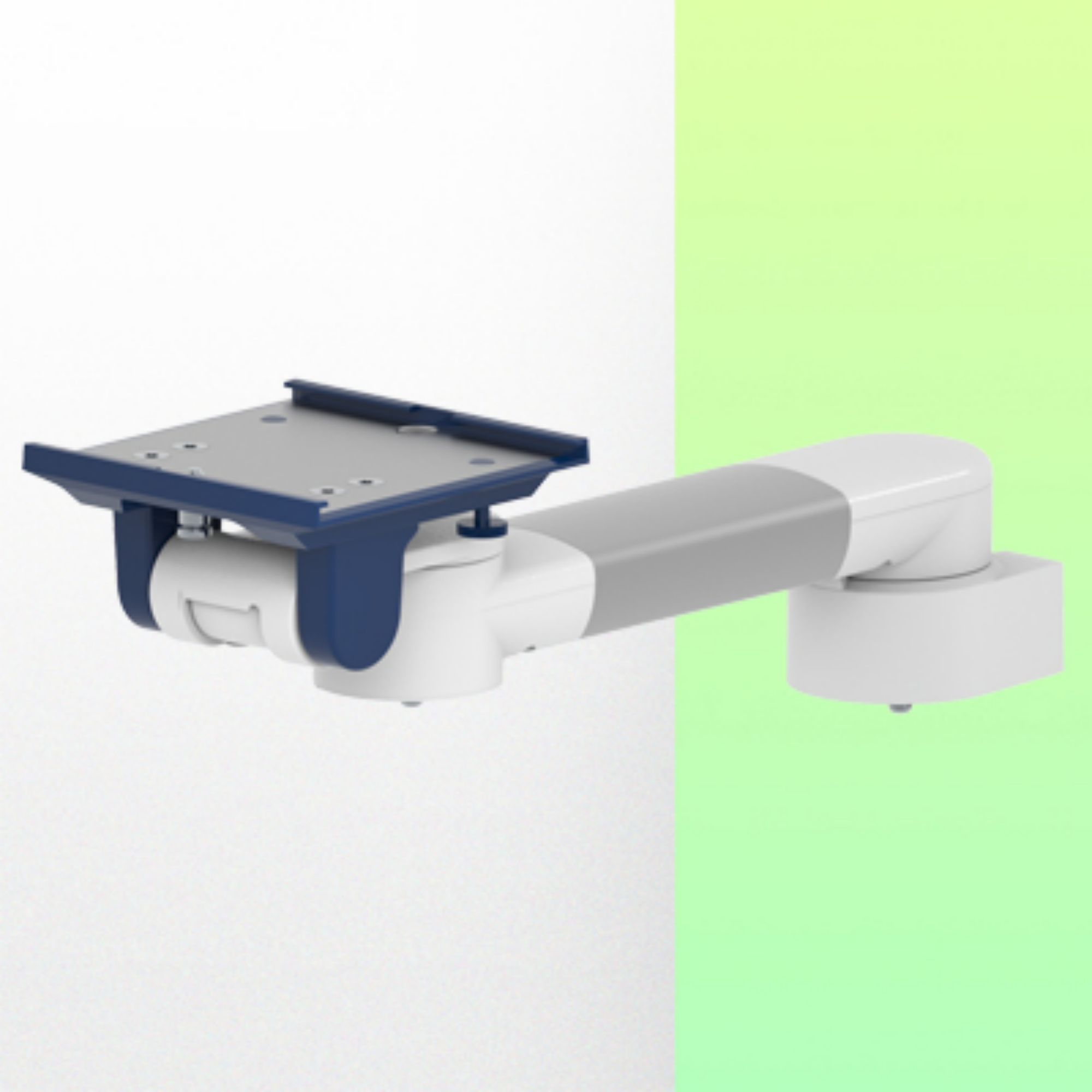

This dual 615 mm Horizontal Arm allows the monitor to be fixed, oriented and adjusted perfectly.

It is coated with an anti-microbial agent for hygiene and cleaning down to the smallest detail.

Its modern design has been specially developed for healthcare environments.

Technical specifications:

* Integral cable entry

* Lightweight application

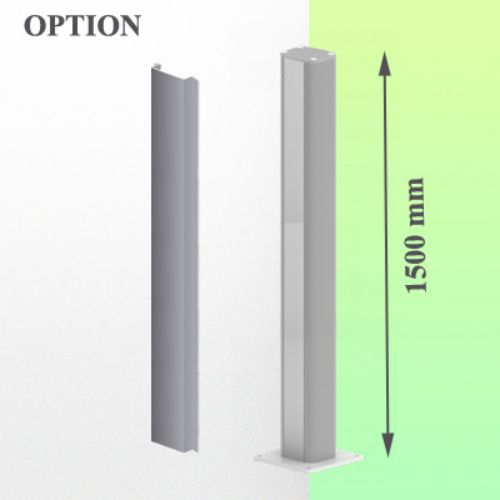

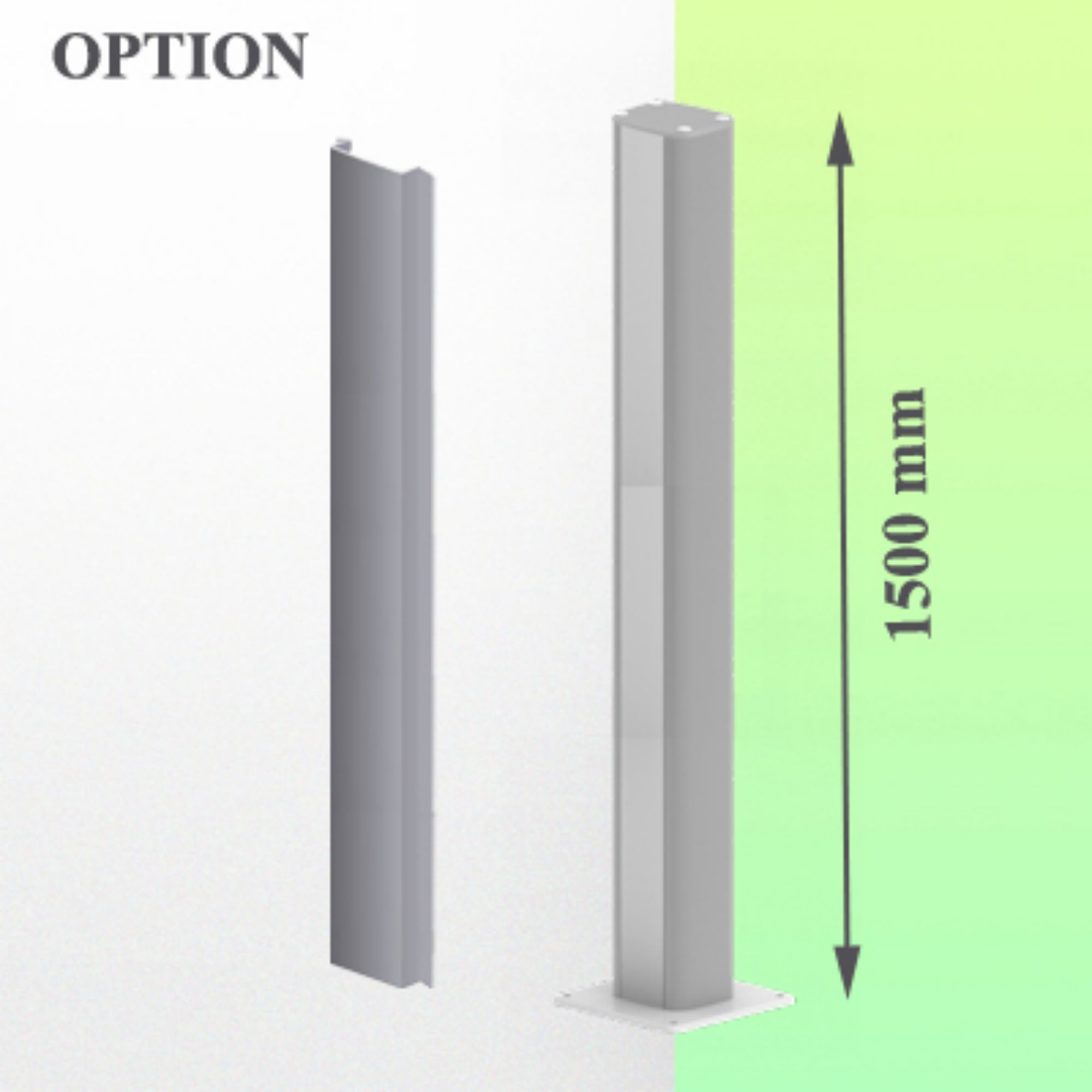

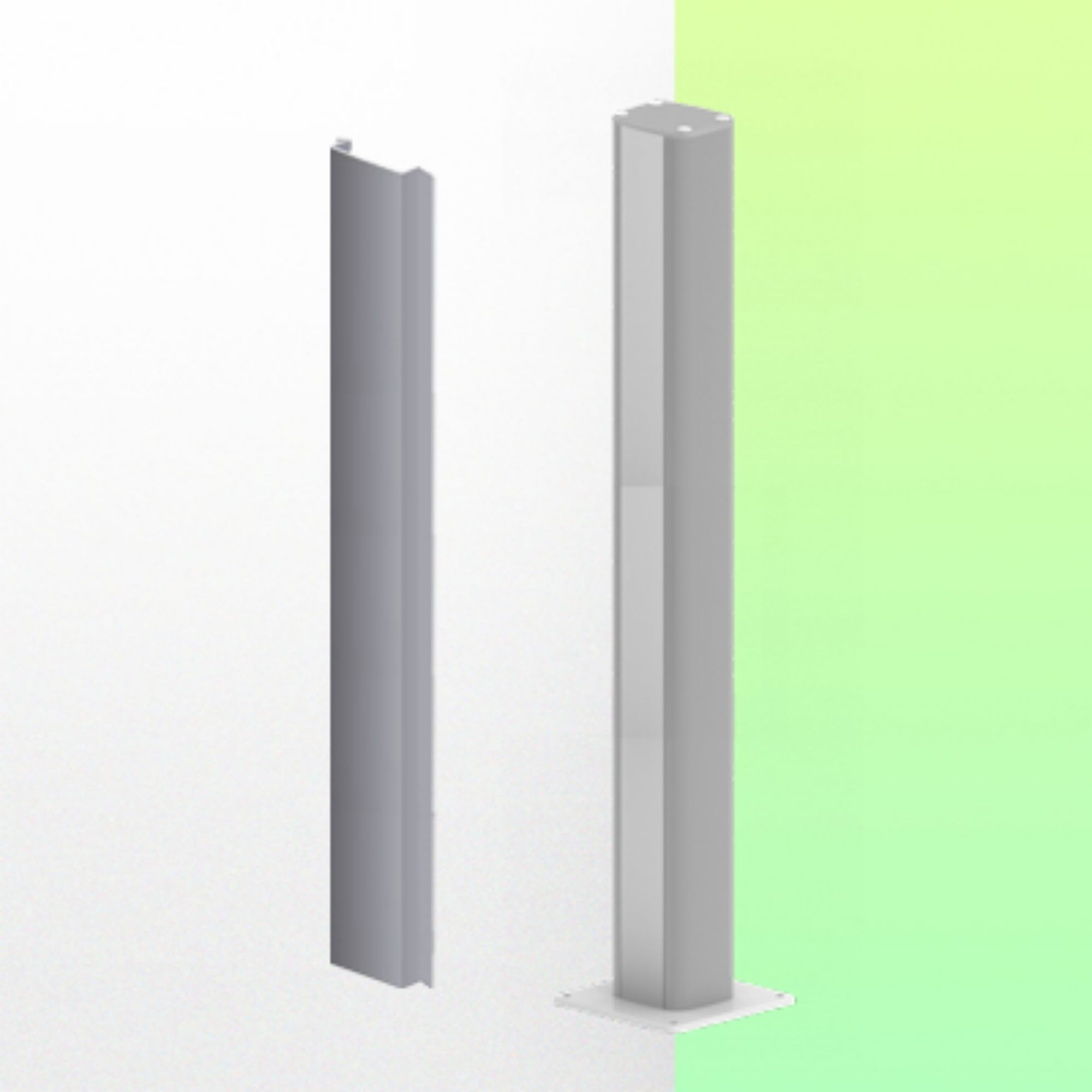

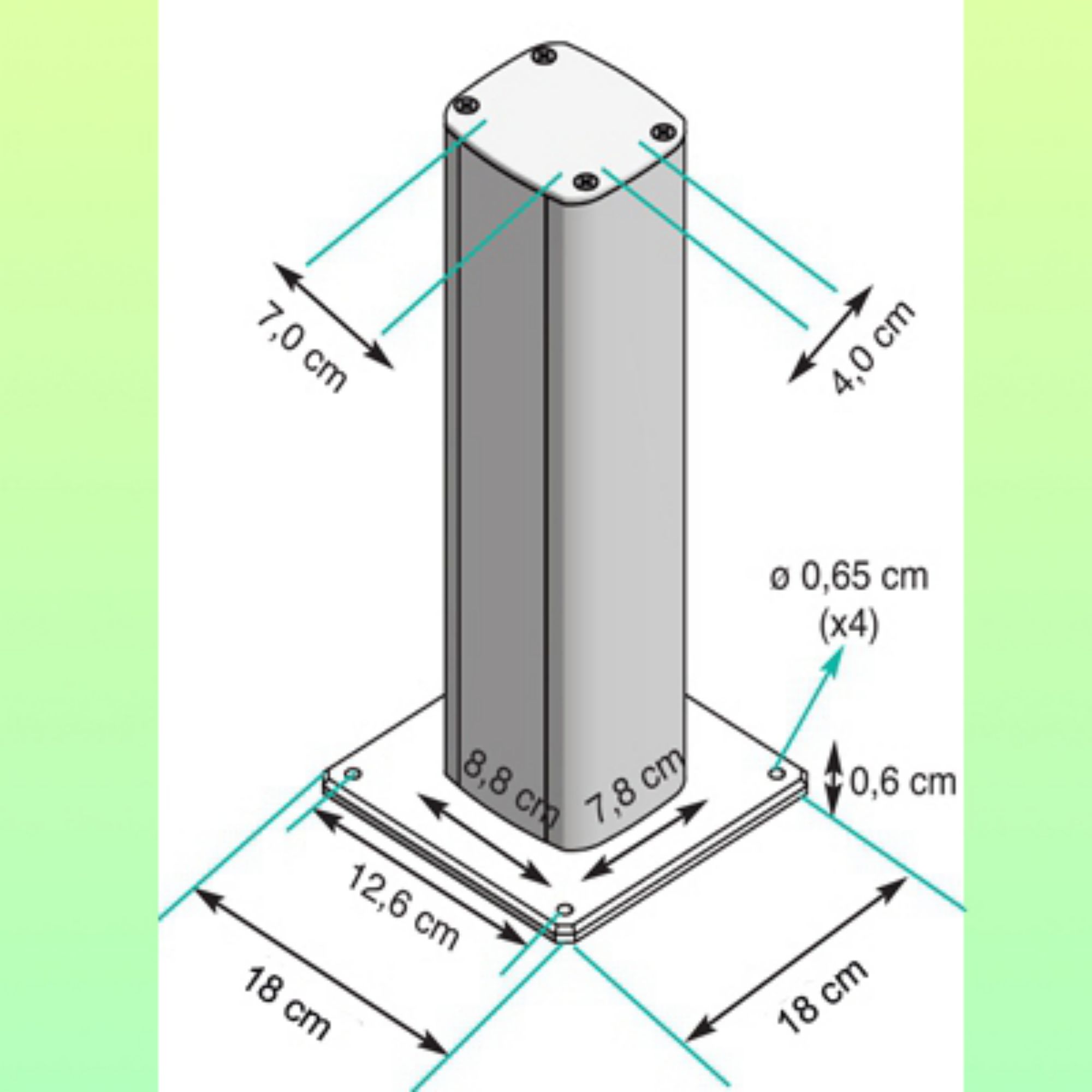

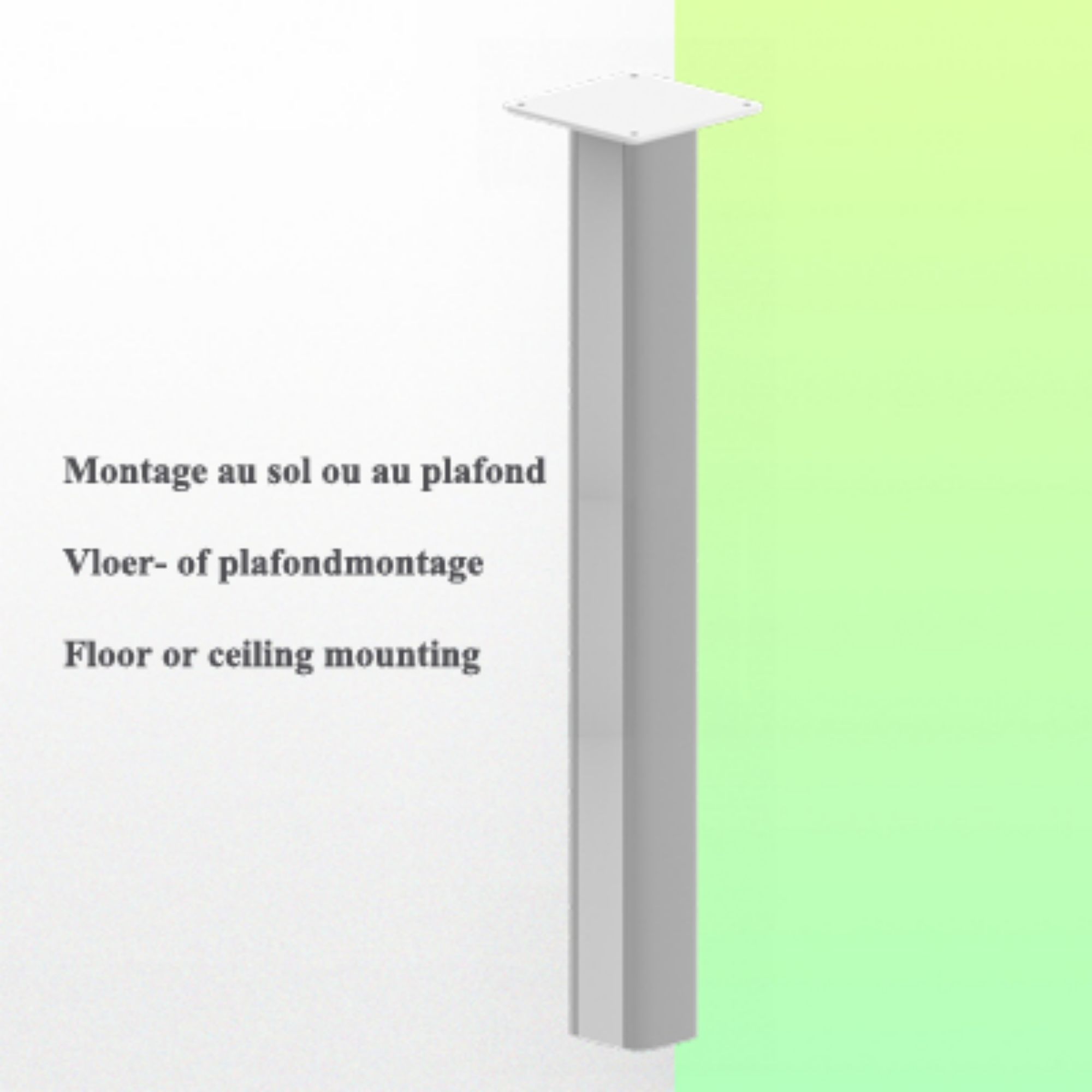

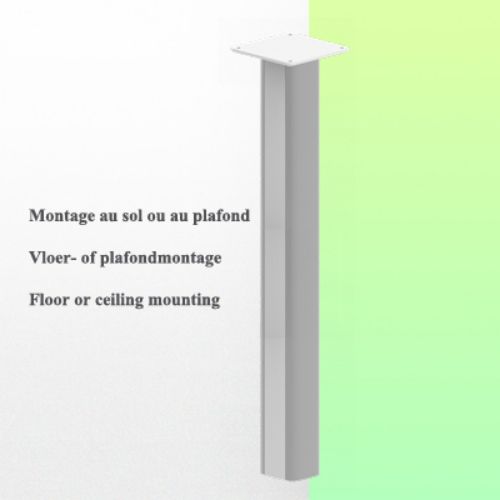

* Optional floor or ceiling column mounting, with several heights available (1500 - 2000 mm)

* These columns can be easily cut to size.

* All cables also pass through the column

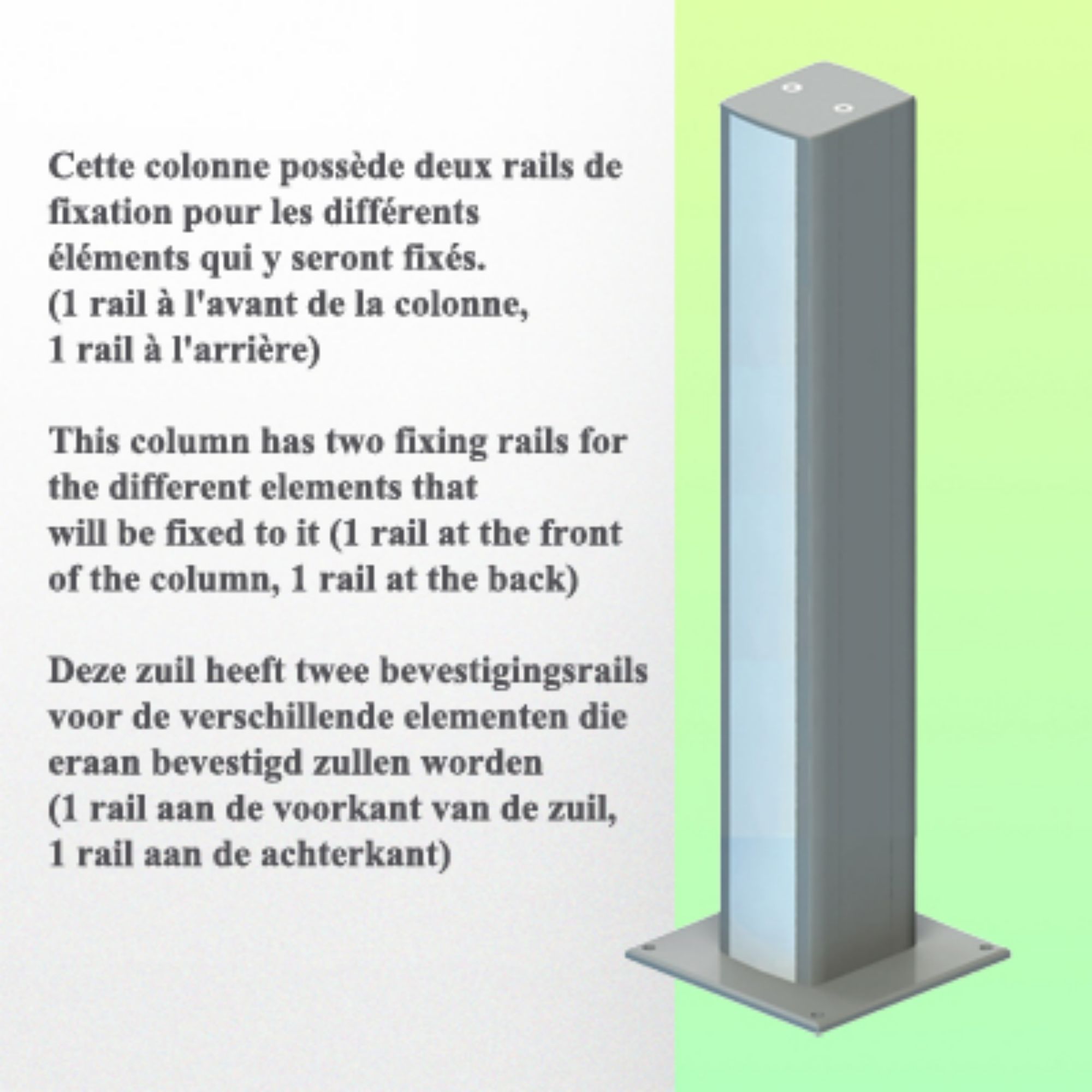

* This 615 mm Horizontal Arm simply slides into the column rail, then adjusts to the required height and locks in place.

* It has no height adjustment

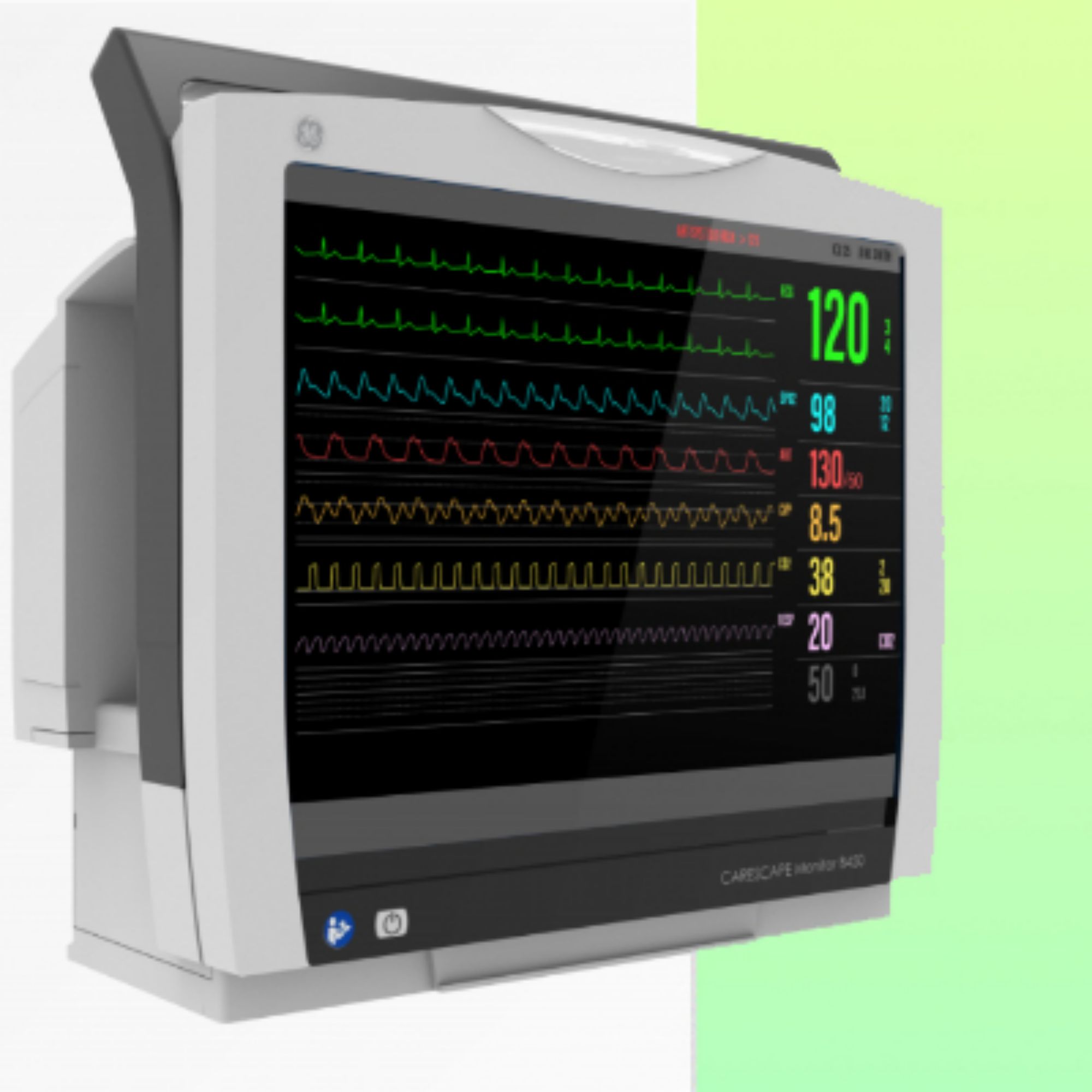

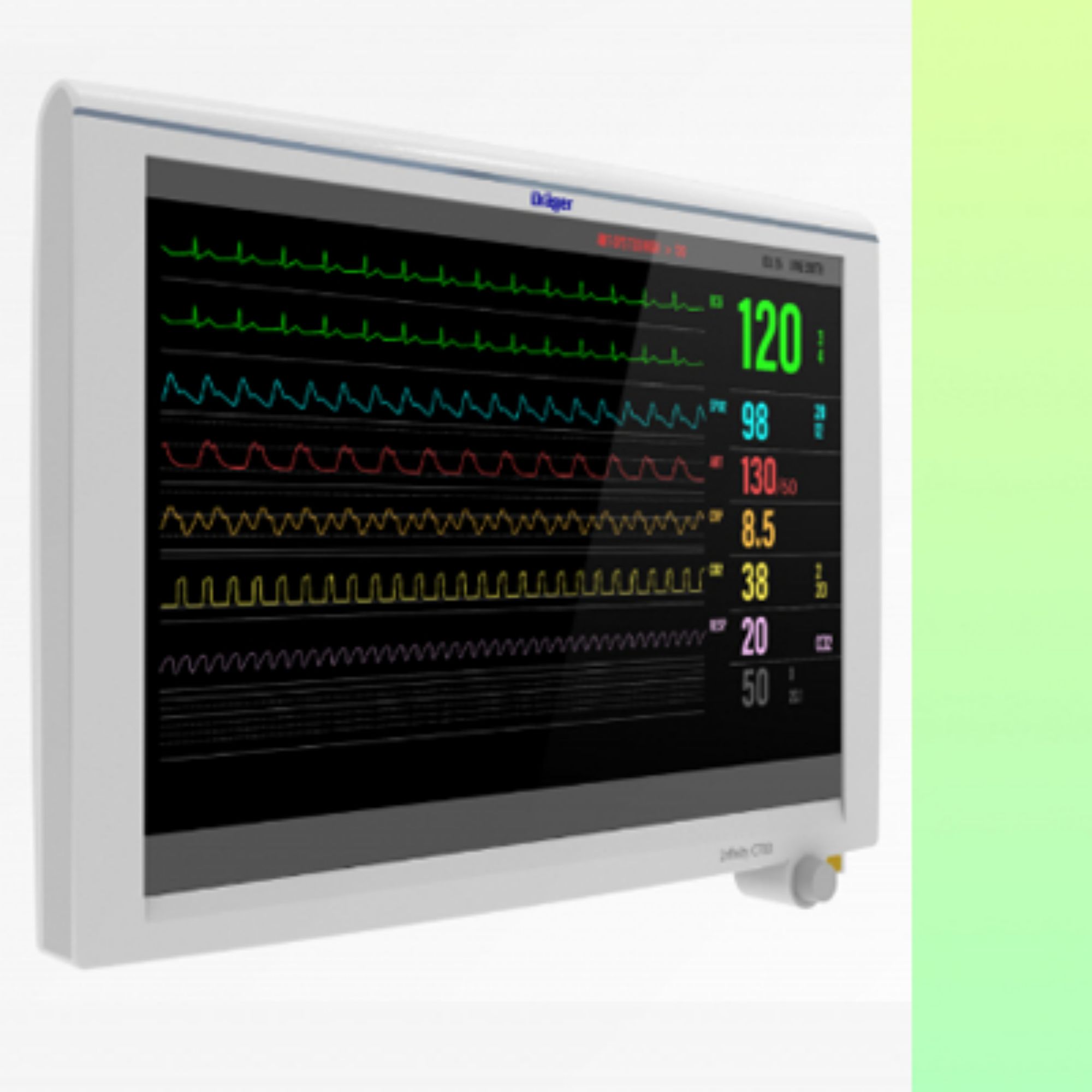

* The head of this arm complies with the mounting standard for Dräger and GE monitors weighing up to 8 Kg.

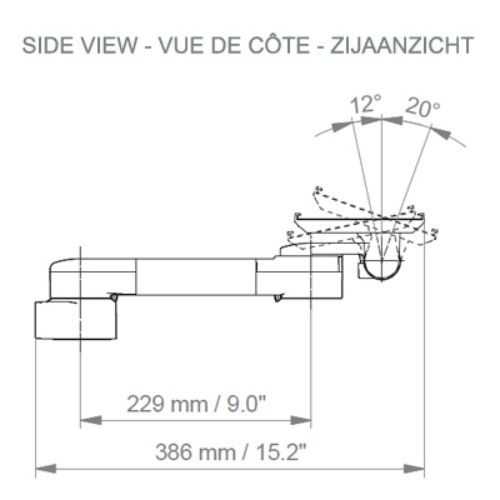

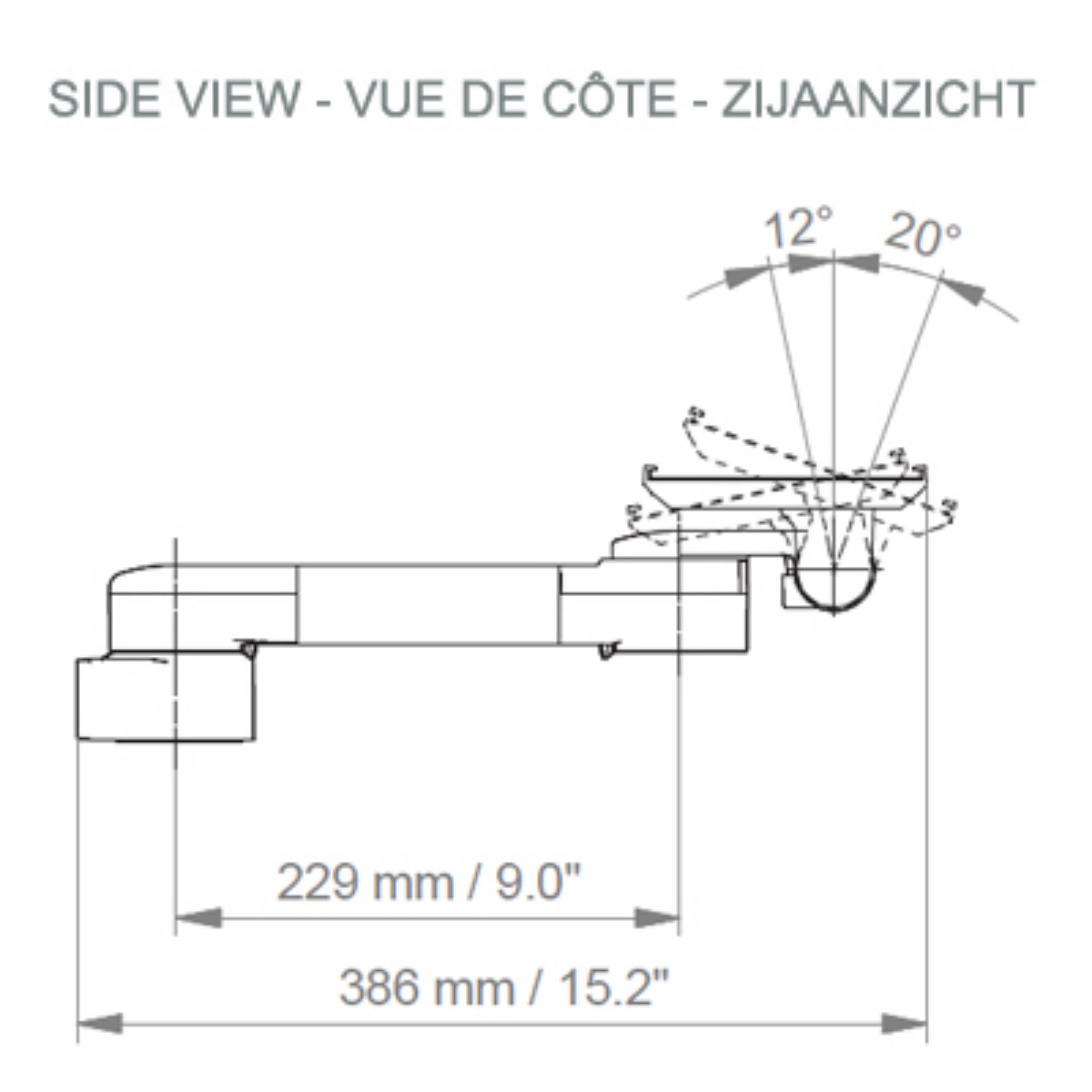

* Monitor tilt: 20° down and 12° up

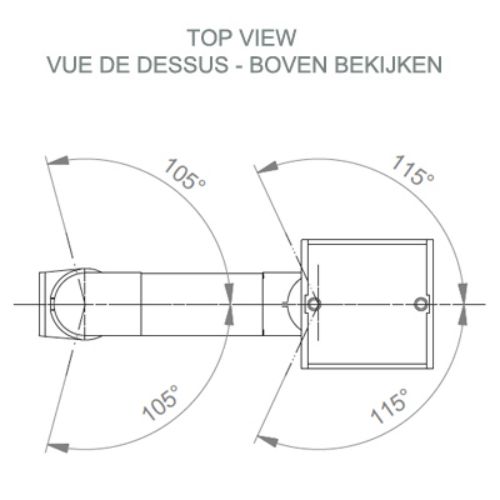

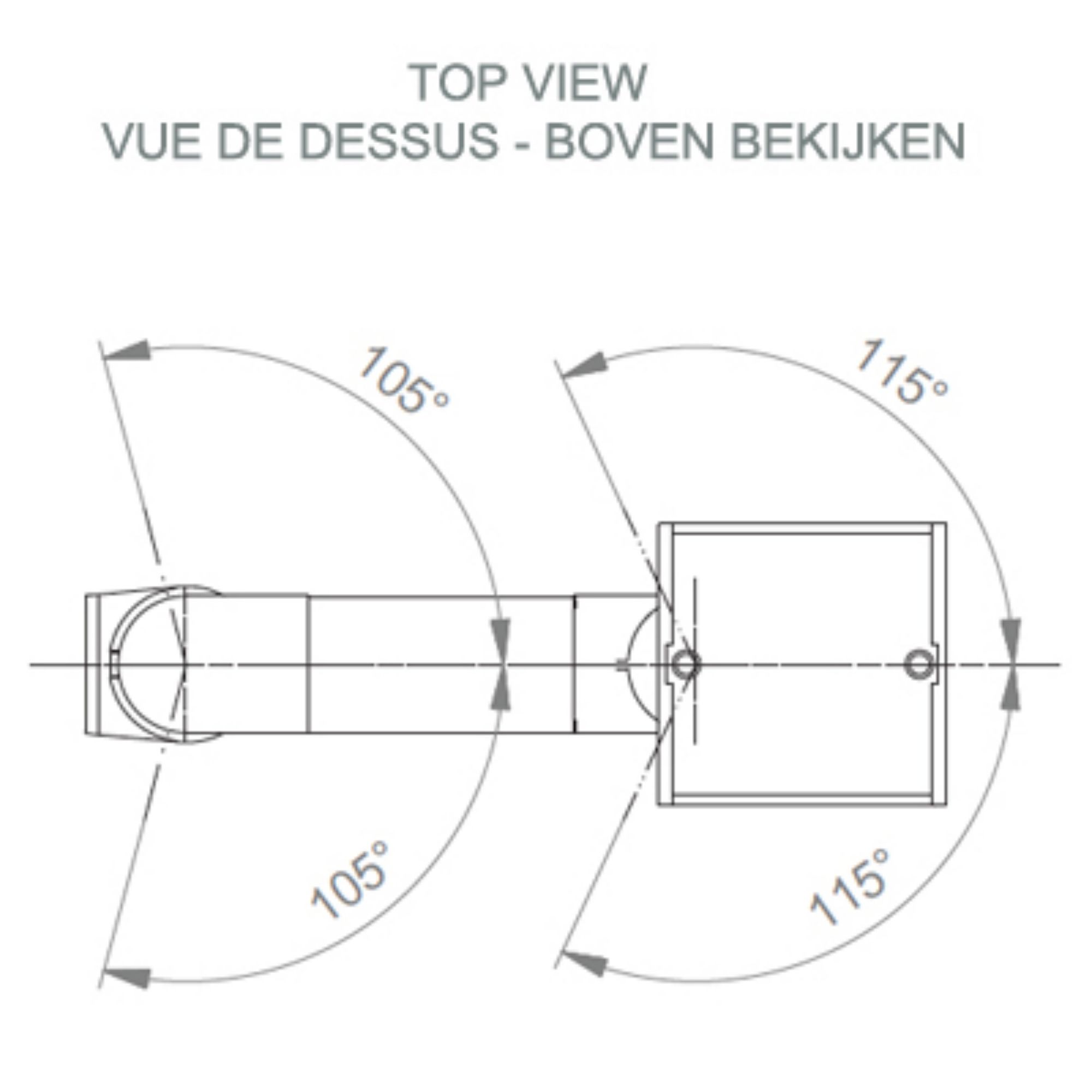

* Monitor rotation: 115° right, 115° left.

* Arm rotation: 105° right, 105° left.

* Total length 615 mm

* Colour RAL 5013 cobalt blue and RAL 9016 traffic white

* Warranty: 5 years
