Dual 618 mm Horizontal Medical Arm for monitoring 5" plate adaptor,

and Nihon Kohden Interface

floor or ceiling column mounting.

Nihon Kohden monitoring compatible.

Product number: WM 250.105NK - Dual 618 mm Horizontal Medical Arm for monitoring 5" plate adaptor,

and Nihon Kohden Interface

floor or ceiling column mounting.

Nihon Kohden monitoring compatible.

Product sheet PDF

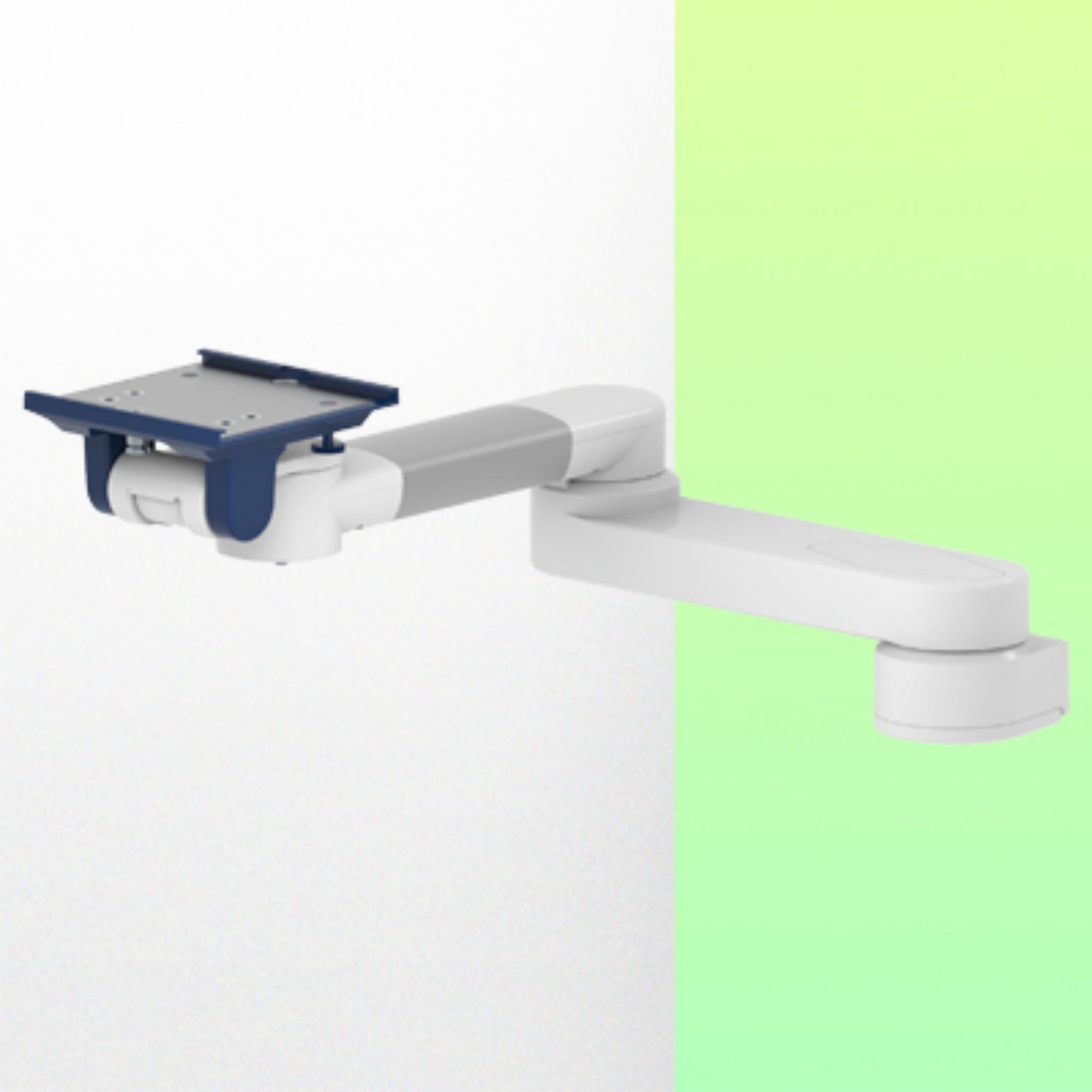

This dual 618 mm Horizontal Arm allows the monitor to be perfectly fixed, oriented and adjusted.

It is coated with an anti-microbial agent for hygiene and cleaning down to the last detail.

Its modern design has been specially developed for healthcare environments.

Technical specifications:

* Integral cable management

* Heavy-duty application

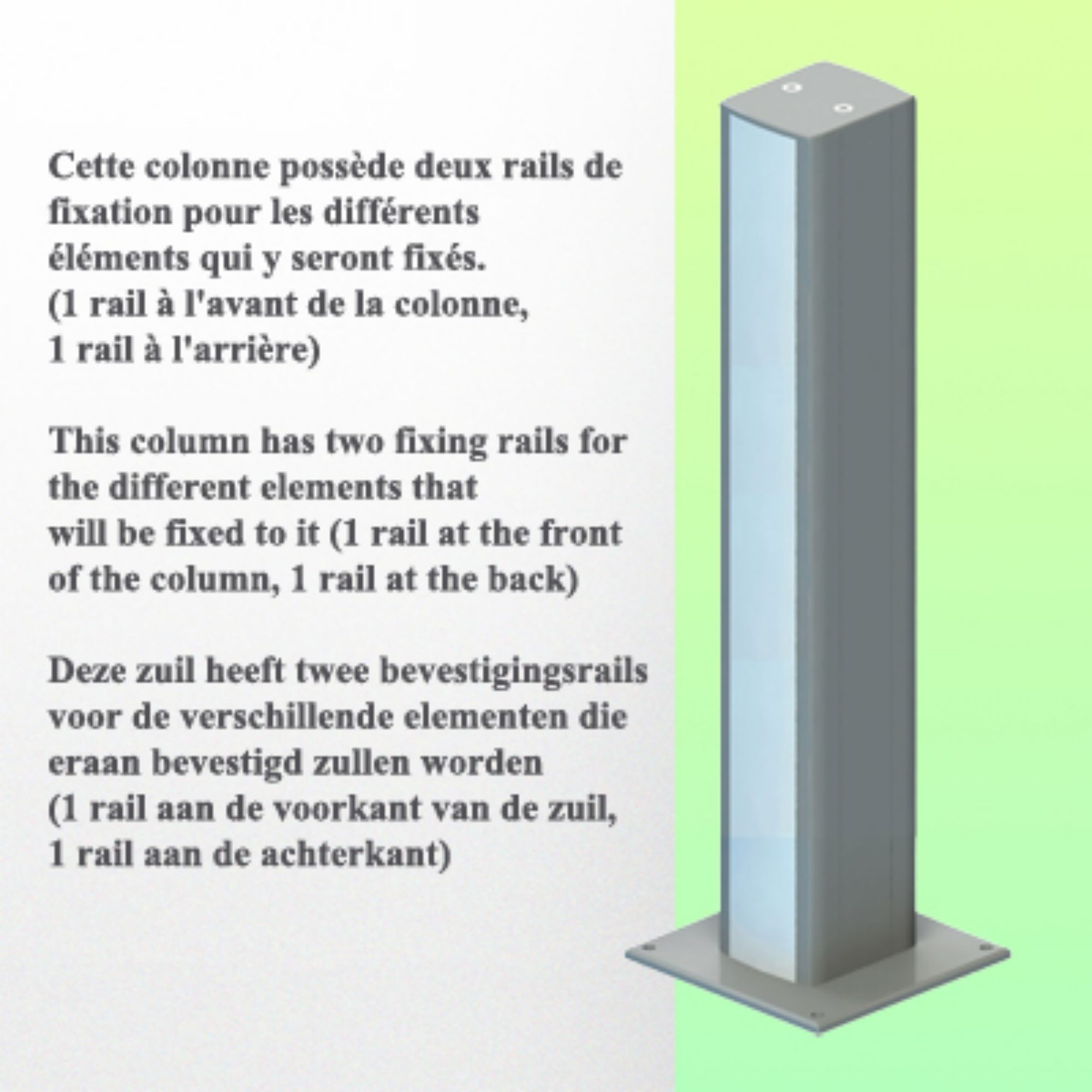

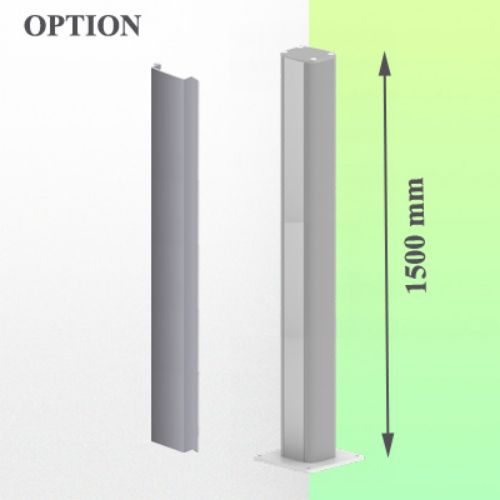

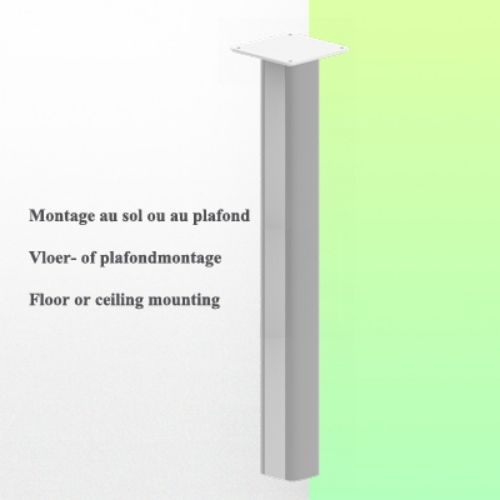

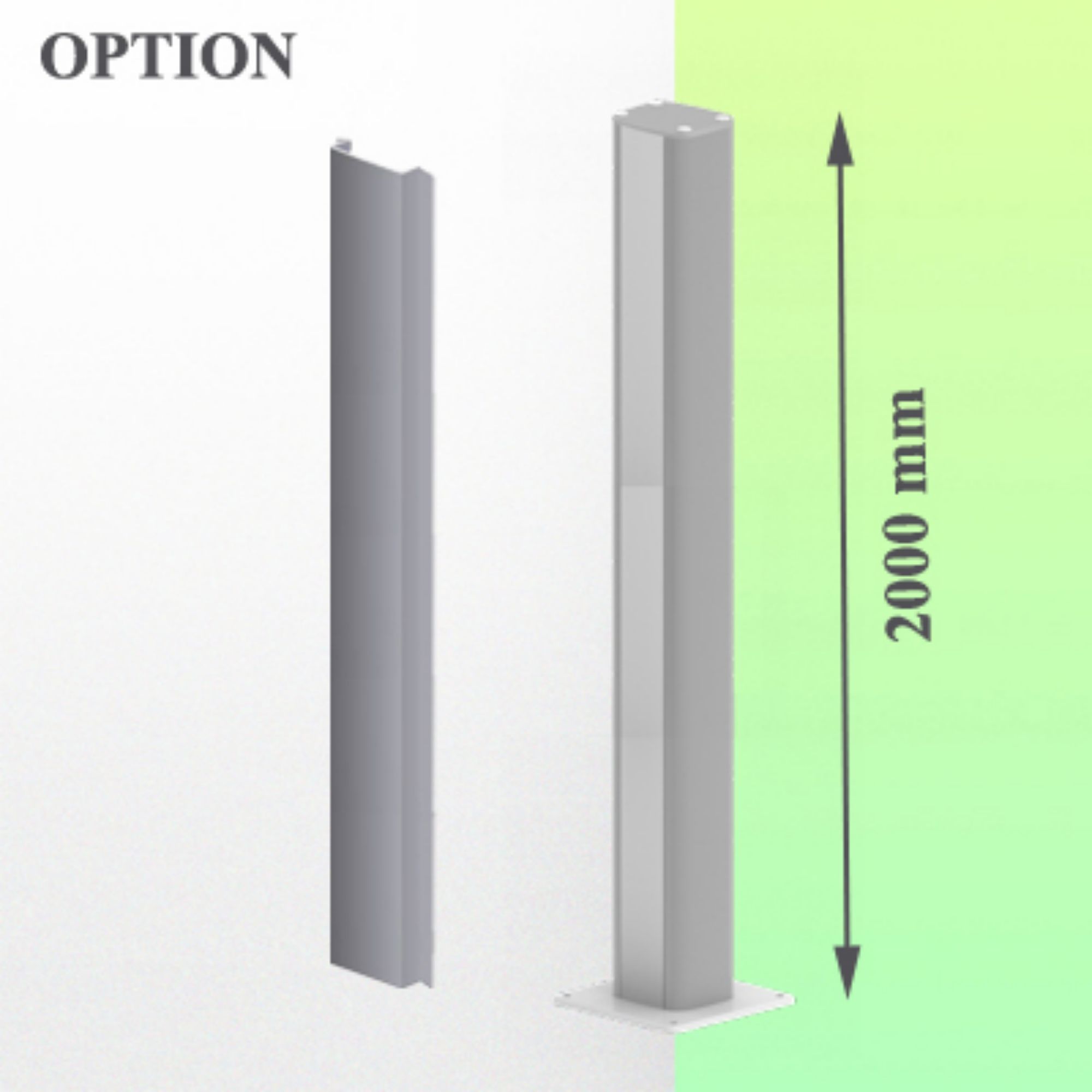

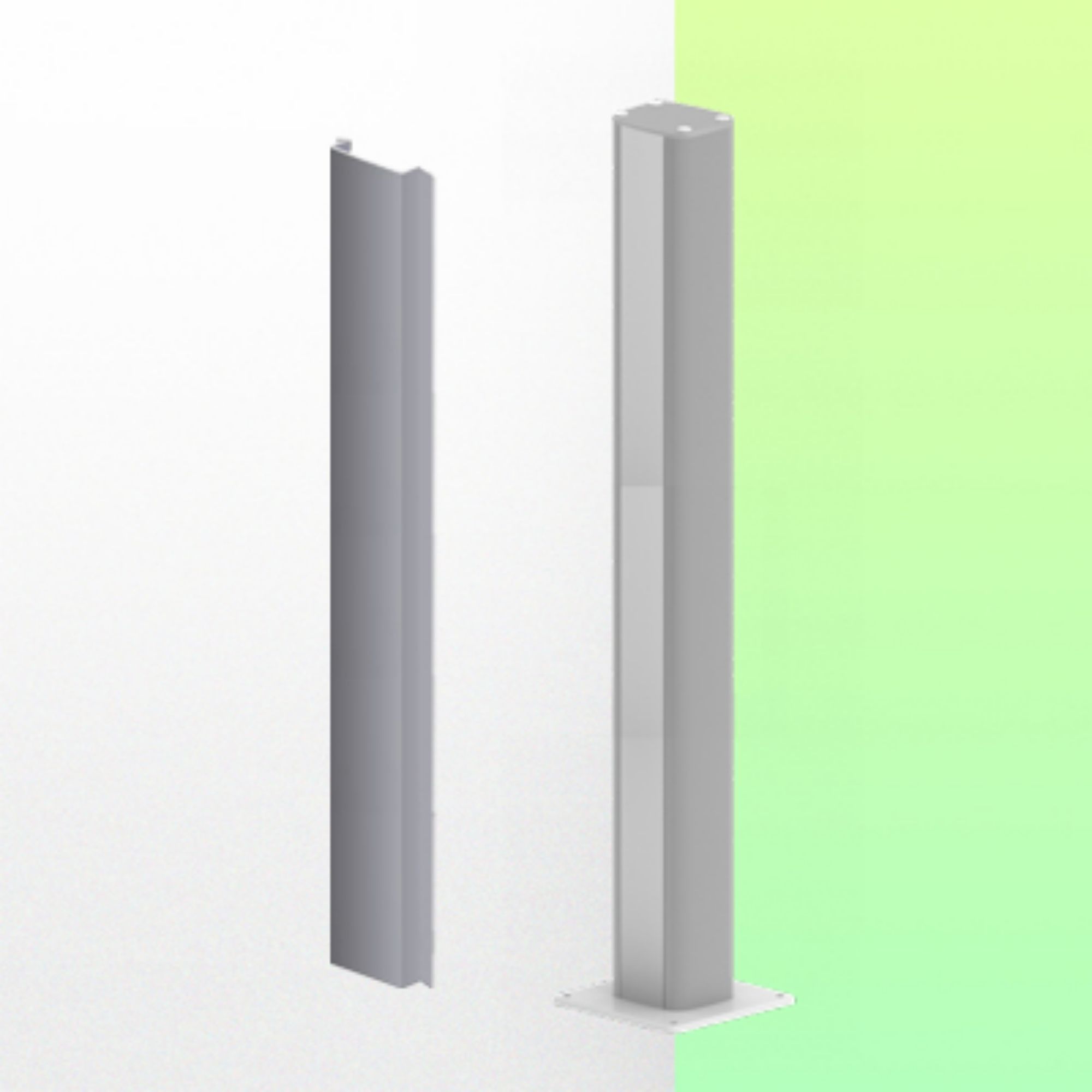

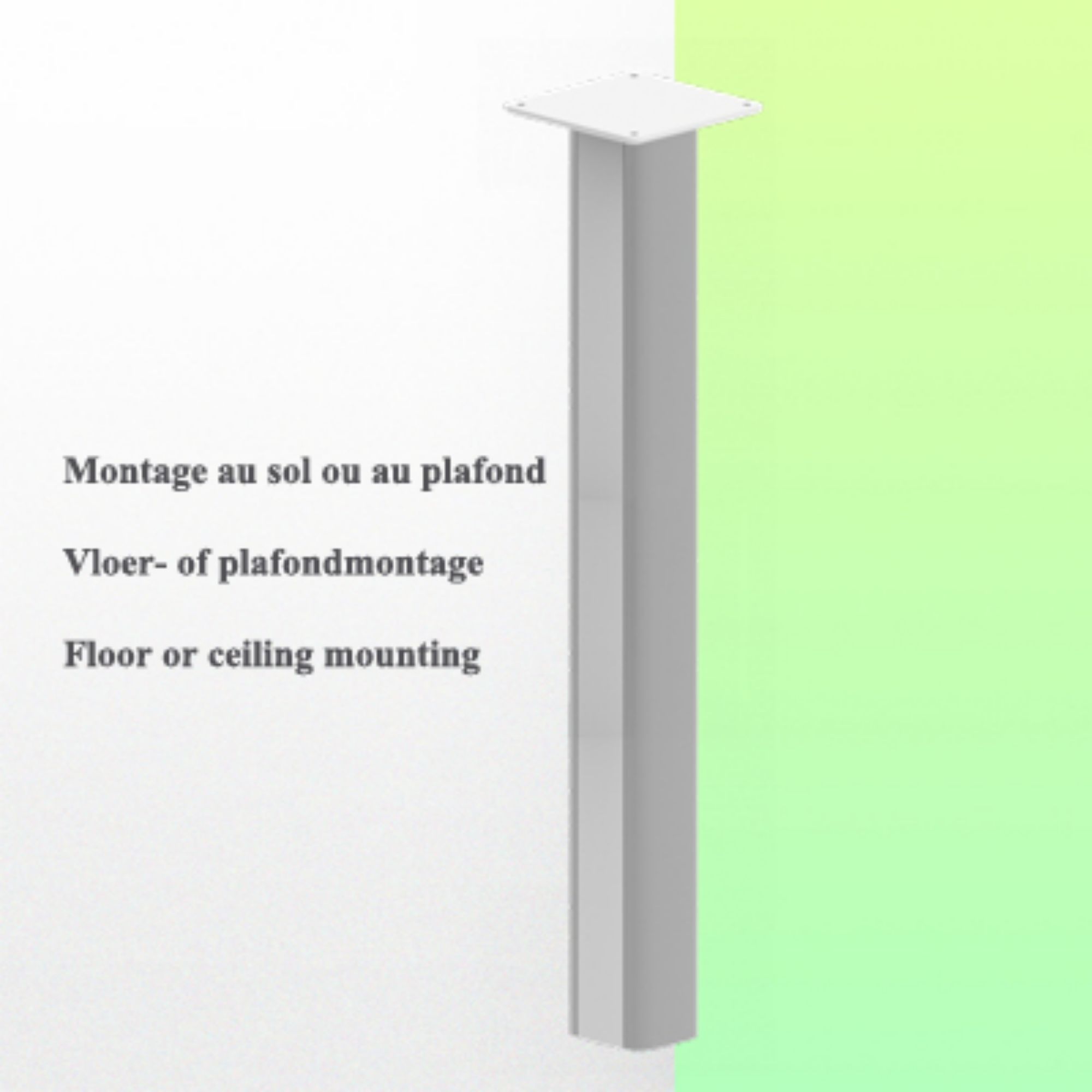

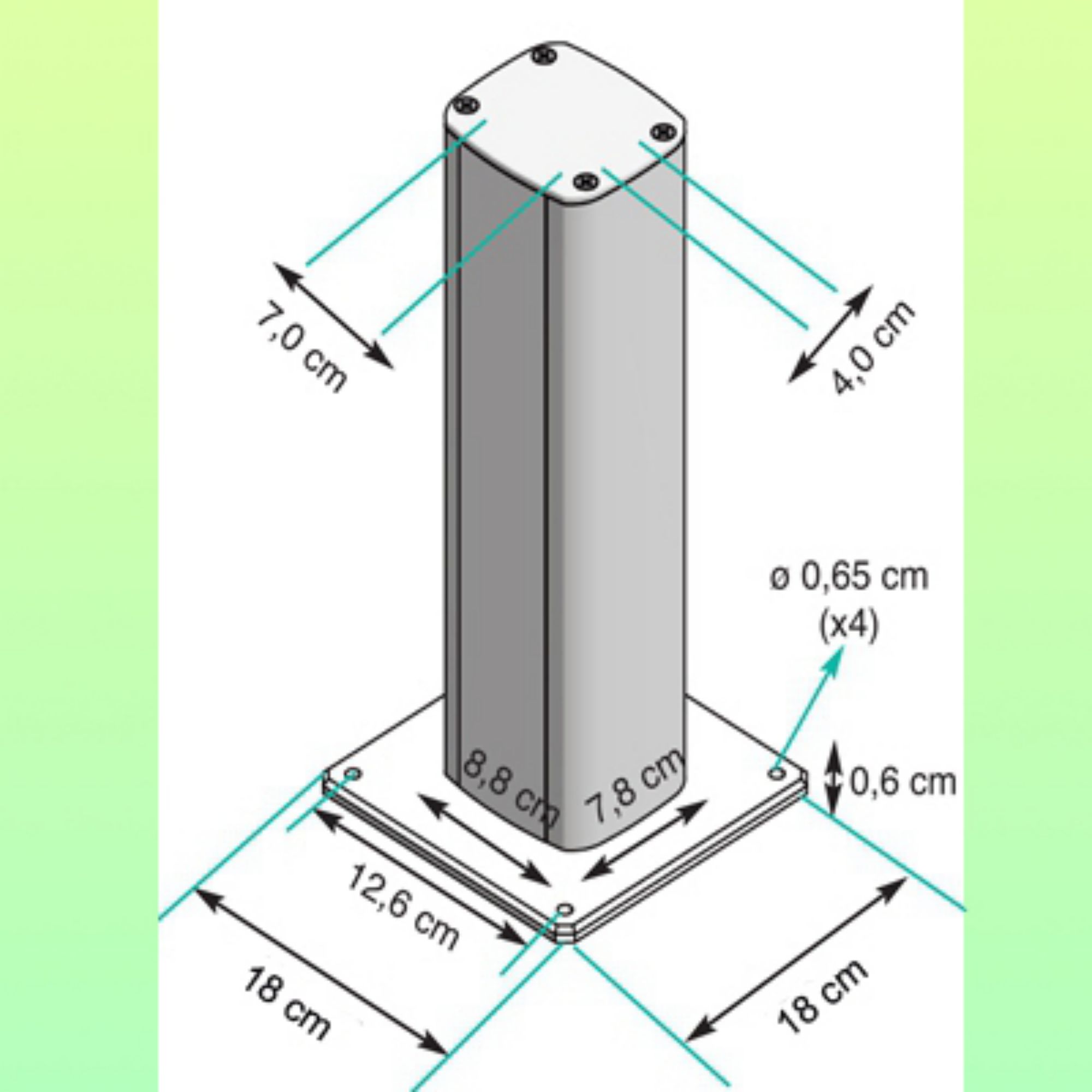

* Optional floor or ceiling column mounting, with several heights available (1500 - 2000 mm)

* These columns can be easily cut to size. All cables also pass through the column

* This 618 mm Double Horizontal Arm simply slides into the column rail, then adjusts to the required height and locks in place.
* It has no height adjustment

* The head of this arm complies with the mounting standard for Nihon Kohden monitors weighing up to 18 Kg.

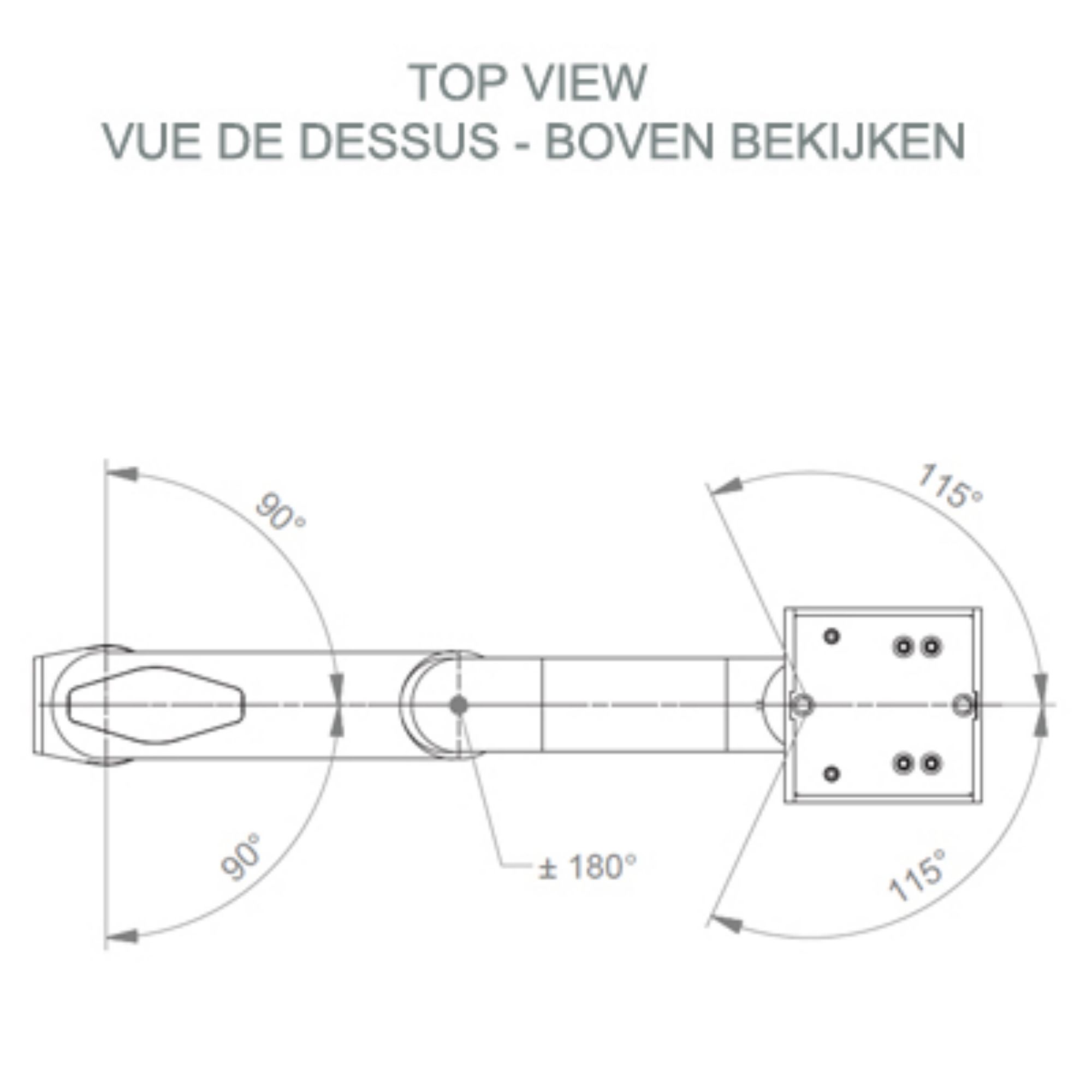

* Monitor tilt: 20° down, 12° up

* Monitor rotation: 115° right, 115° left.

* Arm rotation: 90° right, 90° left.

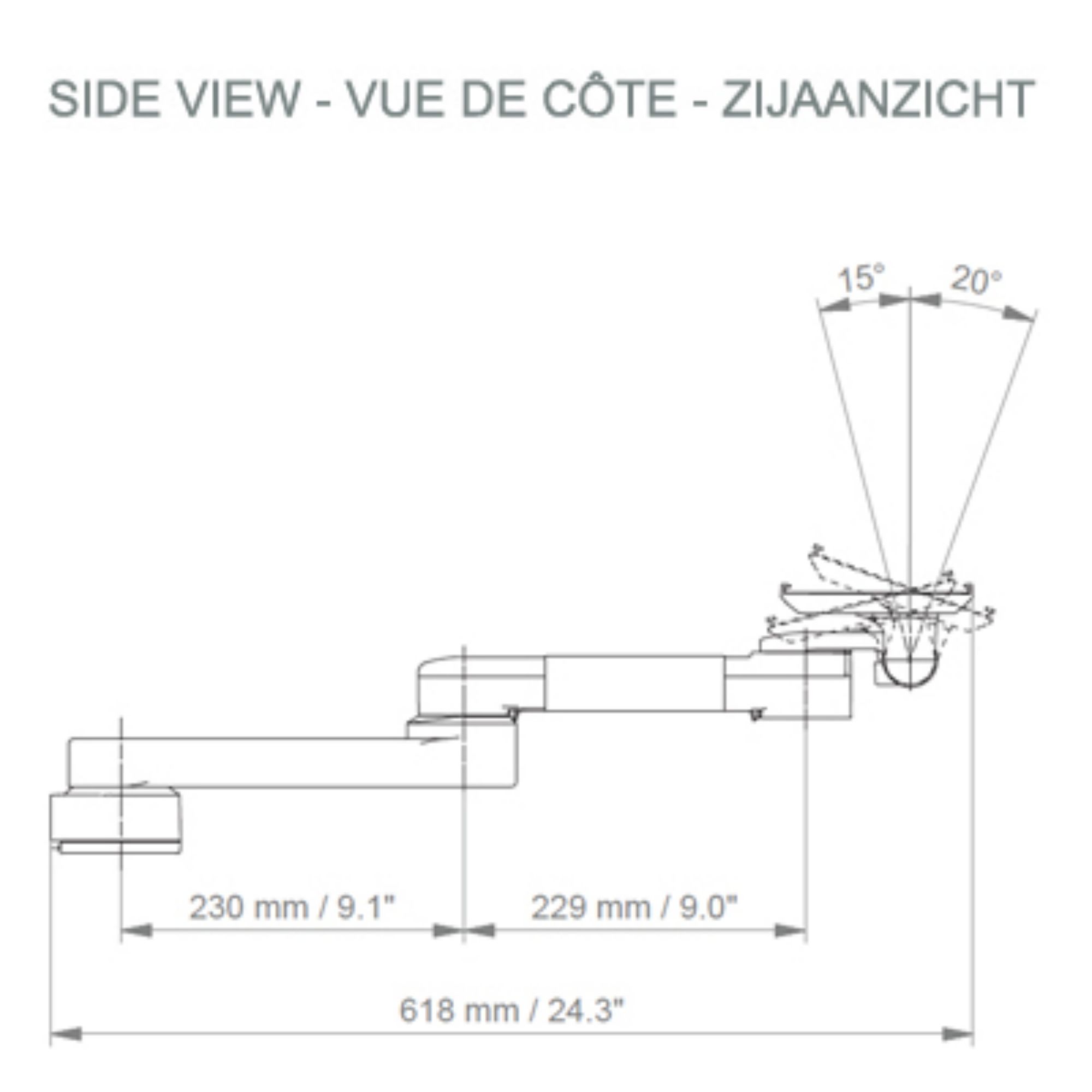

* Total length: 618 mm

* Color: RAL 5013 cobalt blue and RAL 9016 traffic white

* Warranty: 5 years
