Horizontal 618 mm double medical arm for monitoring. 5'' plate adaptation,

and Nihon Kohden Interface

table column mounting.

Nihon Kohden monitoring compatible.

Product number: WM 250.108CTNK - Horizontal 618 mm double medical arm for monitoring.

5'' plate adaptation and Nihon Kohden Interface,

table column mounting.

Nihon Kohden monitoring compatible.

Product sheet PDF

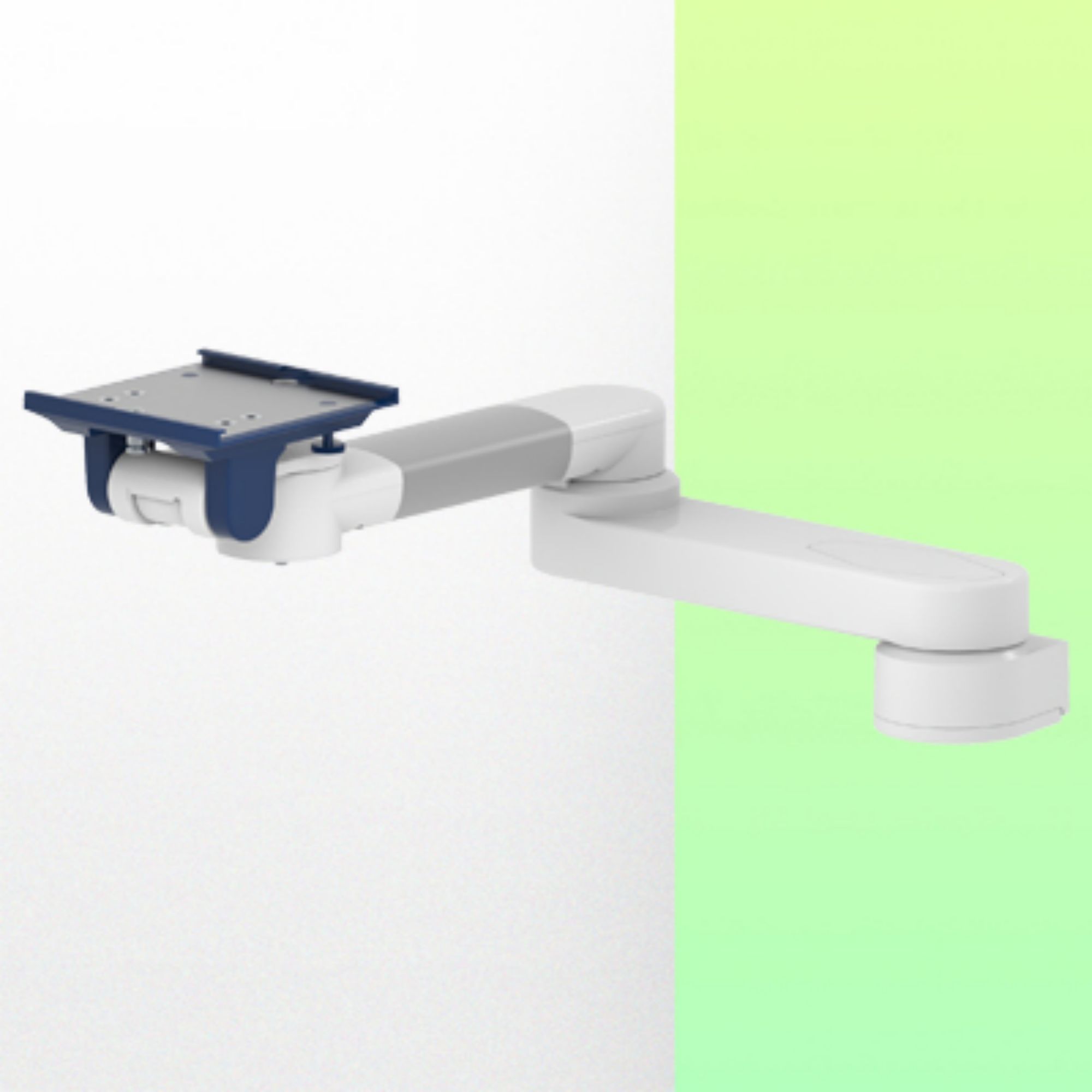

This dual 618 mm Horizontal Arm allows the monitor to be fixed, oriented and adjusted perfectly.

It is coated with an anti-microbial agent for hygiene and cleaning down to the smallest detail.

Its modern design has been specially developed for healthcare environments.

Technical specifications:

* Integral cable management

* For heavy-duty applications

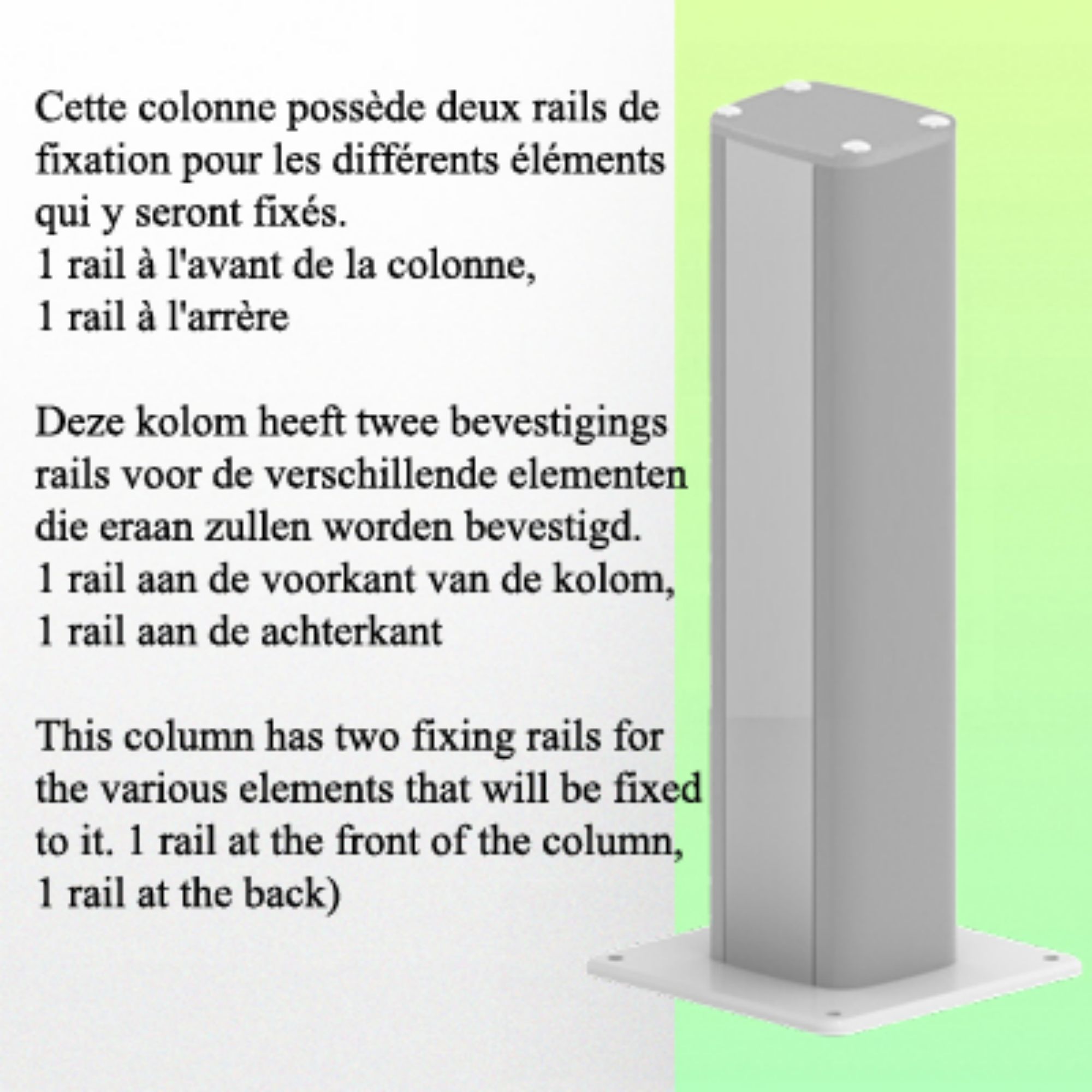

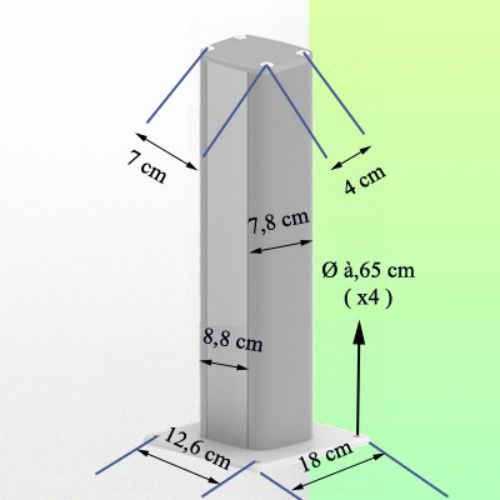

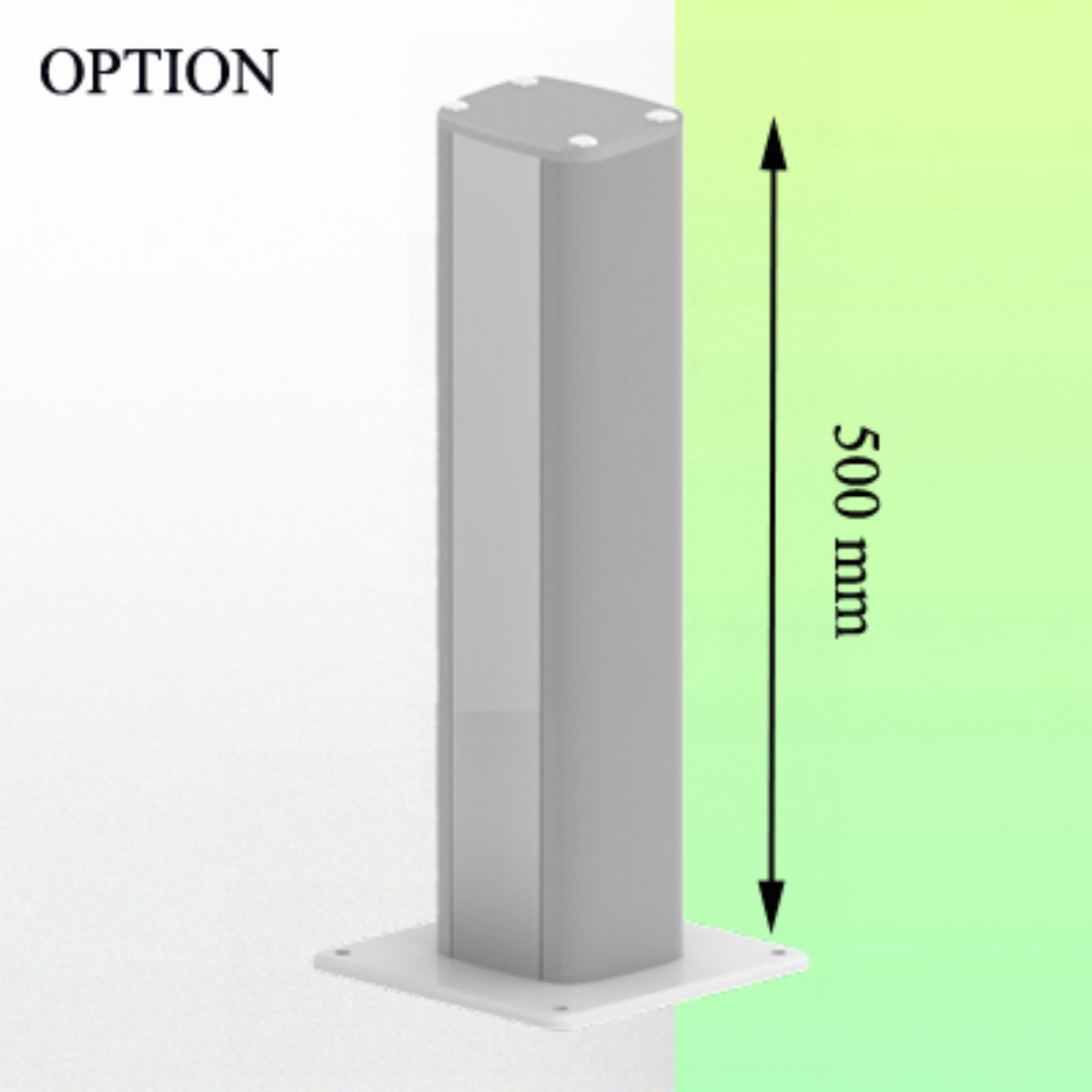

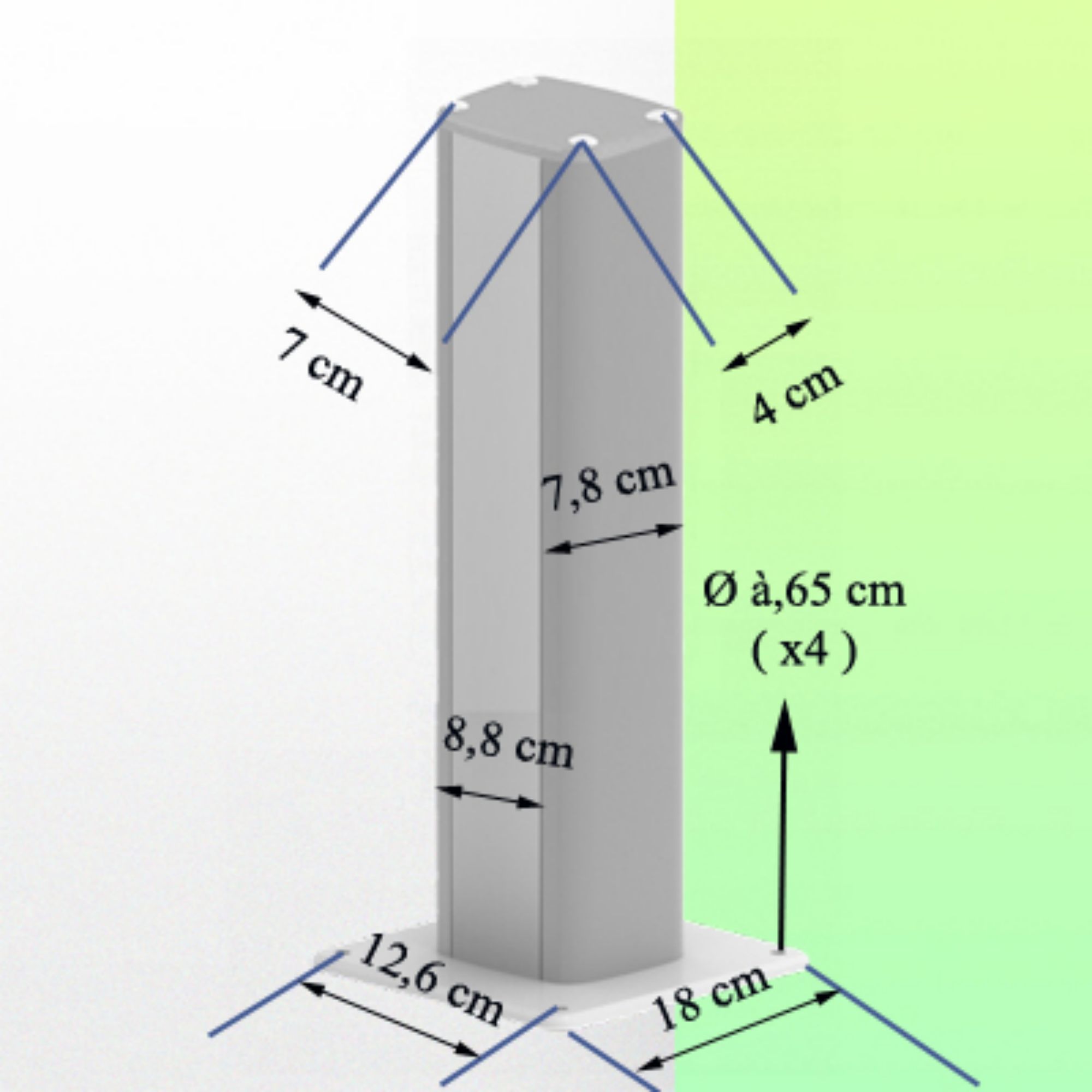

* Optional table column mounting available in a range of heights (500 - 300 mm mm).

* These columns can be easily cut to size.

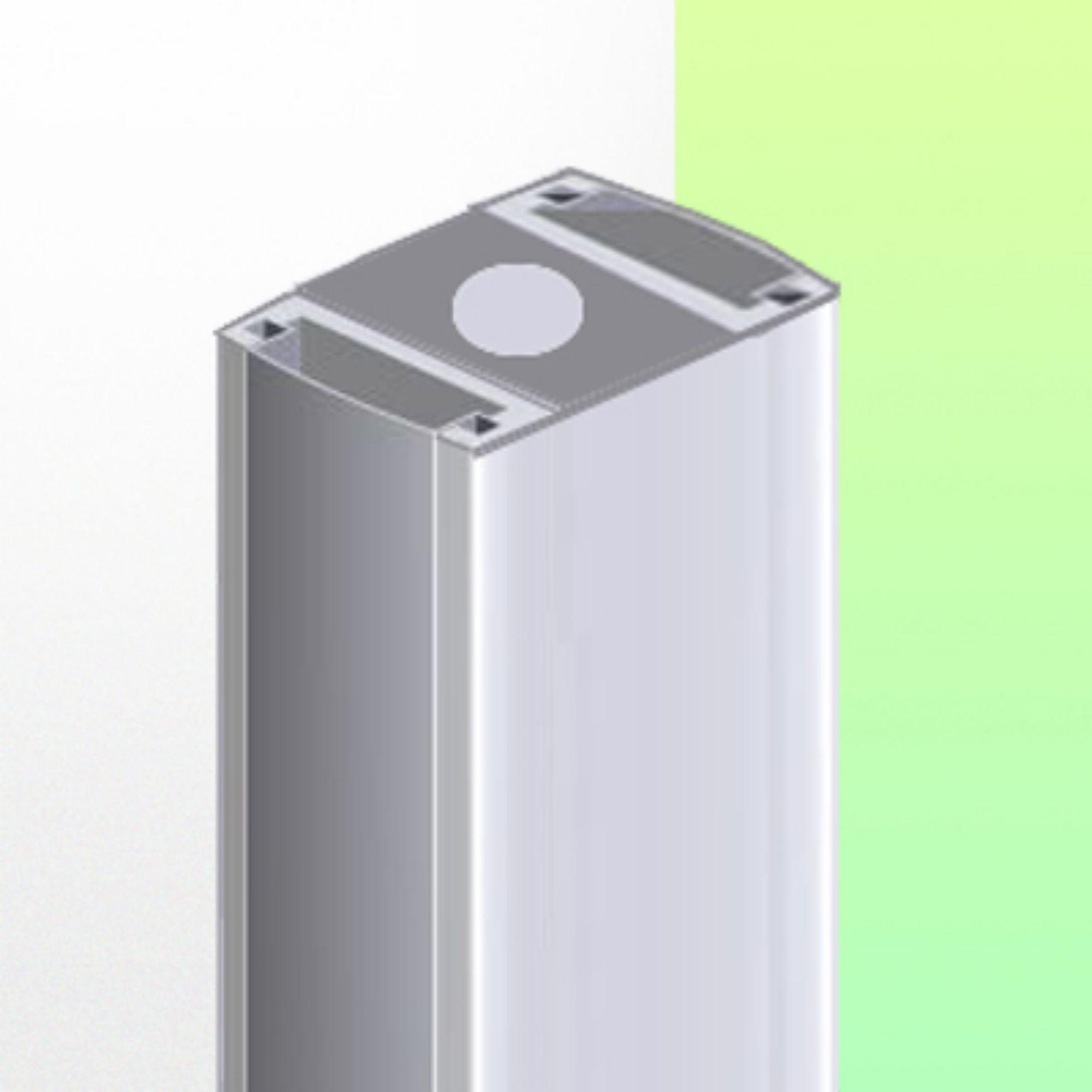

* All cables are also routed through the column

* This 618 mm Double Horizontal Arm simply slides into the column rail, adjusts to the required height and is fixed in place.

* It has no height adjustment

* The head of this arm complies with the mounting standard for Nihon Kohden monitors weighing up to 18 Kg.

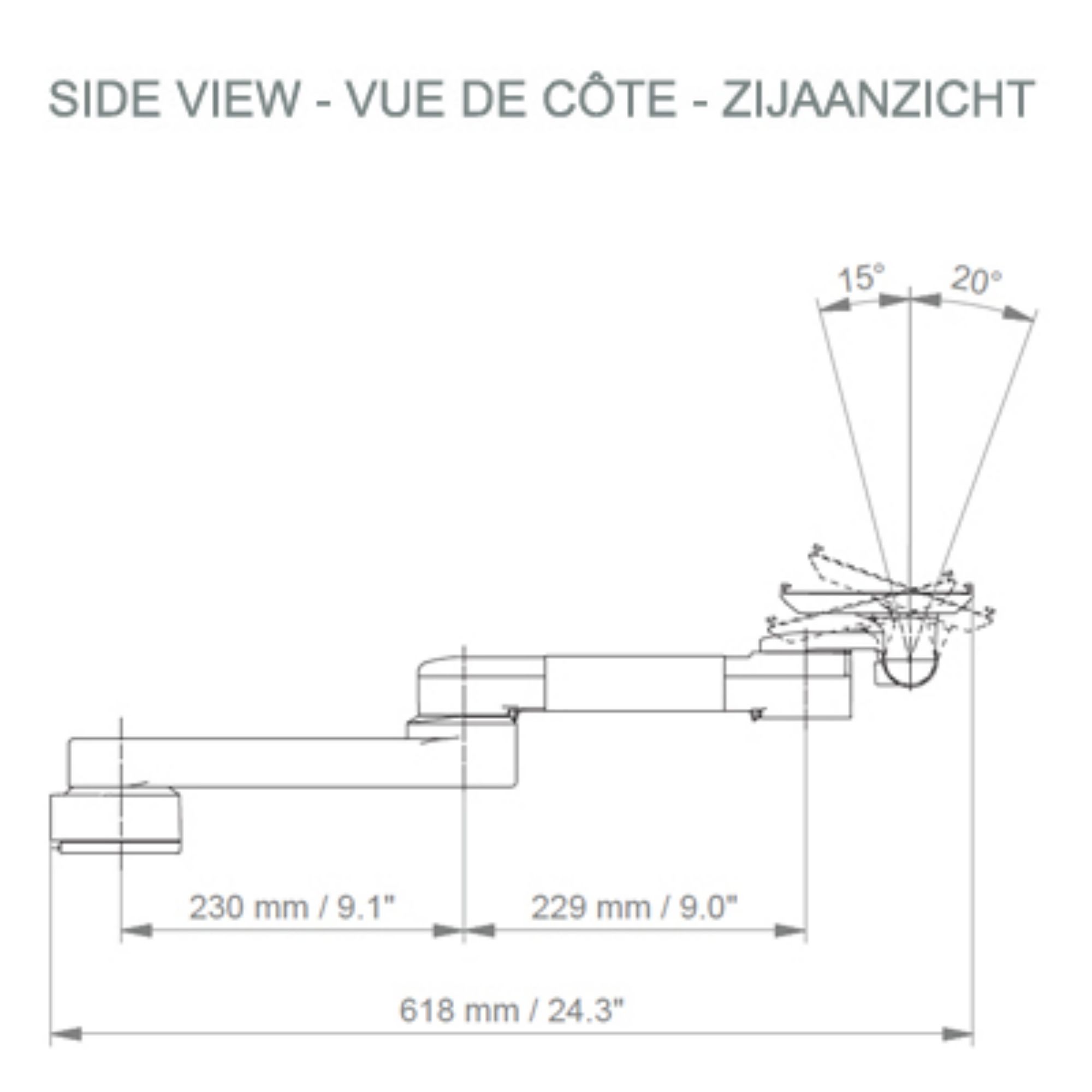

* Monitor tilt: 20° down and 12° up

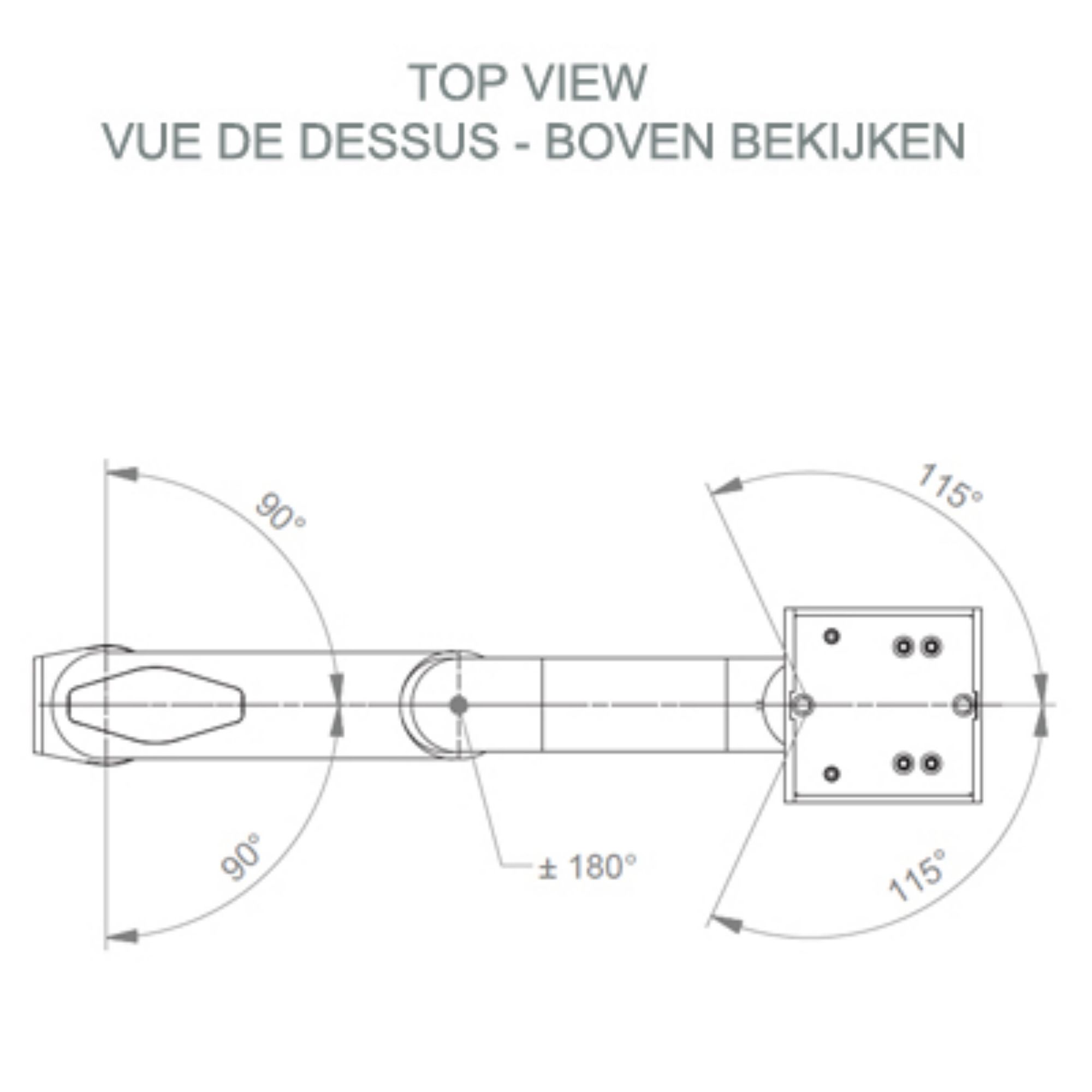

* Monitor rotation: 115° right, 115° left.

* Arm rotation: 90° right, 90° left.

* Total length: 618 mm

* Colour: RAL 5013 cobalt blue and RAL 9016 traffic white

* Warranty: 5 years
