386 mm Horizontal Medical Arm for monitoring.

5'' plate adaptation and Nihon Kohden Interface,

mounting on Din Vertical rail.

Nihon Kohden monitoring compatible.

Product number: WM 250.112NK - 386 mm Horizontal Medical Arm for monitoring.

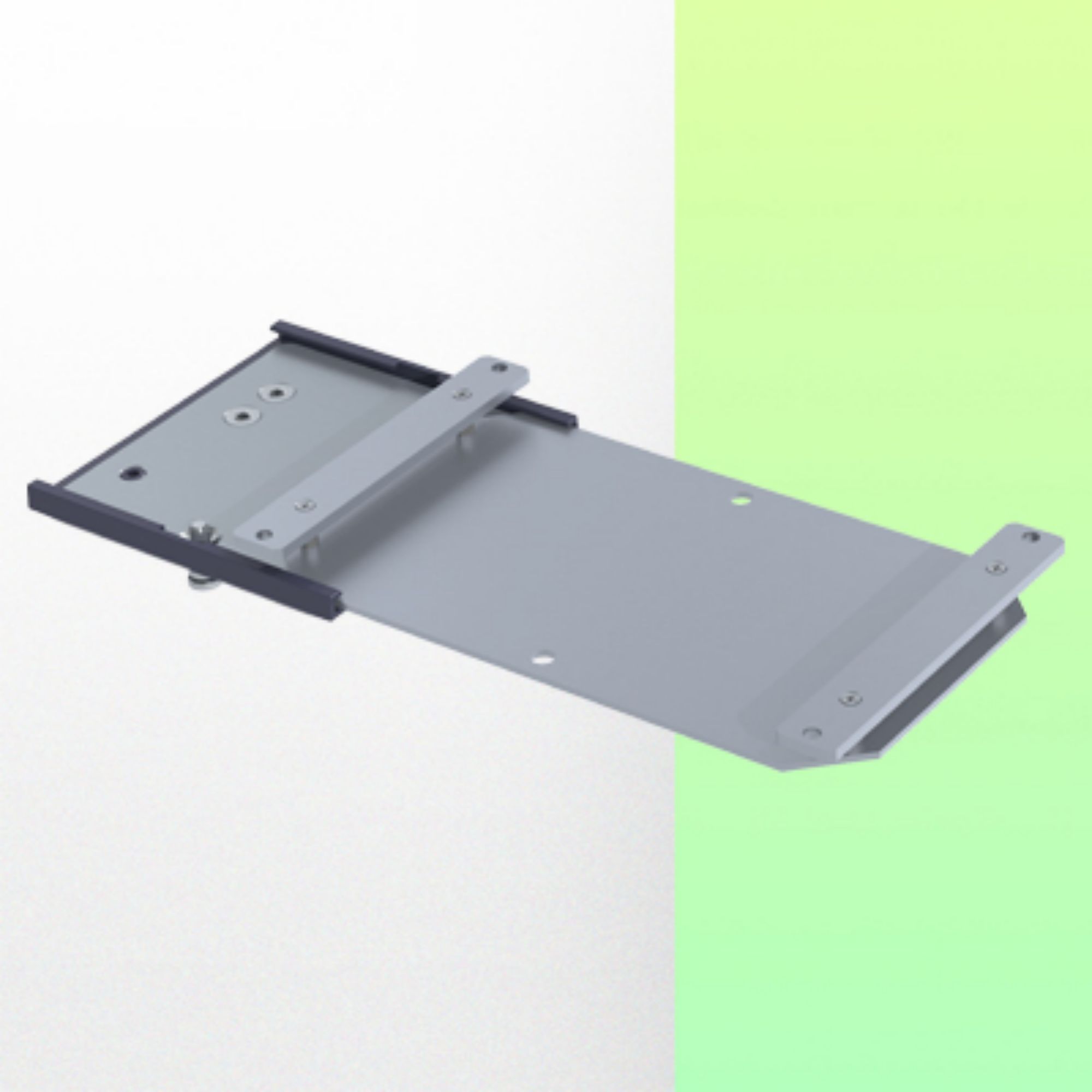

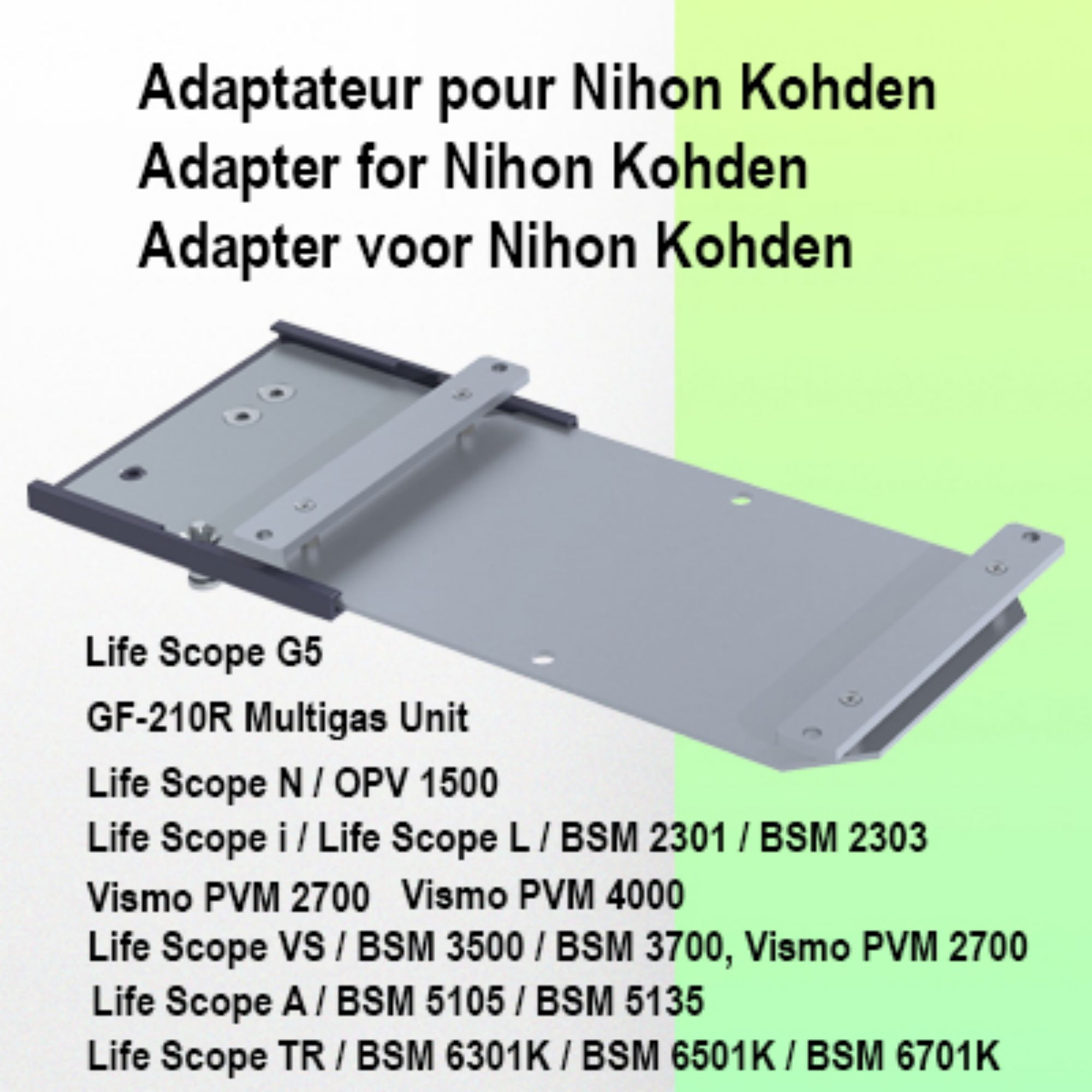

5'' plate adaptation and Nihon Kohden Interface,

mounting on Din Vertical rail.

Nihon Kohden monitoring compatible.

Product sheet PDF

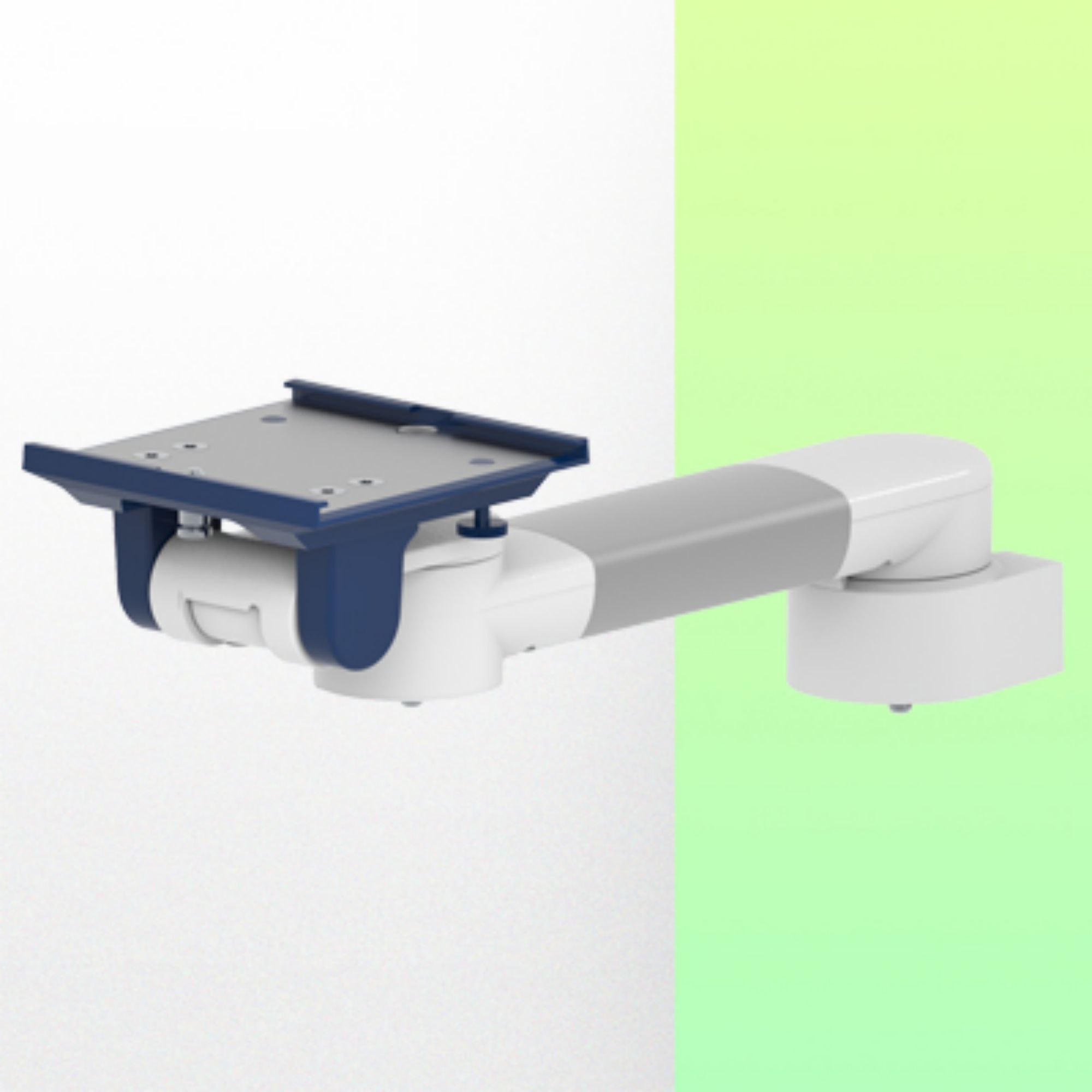

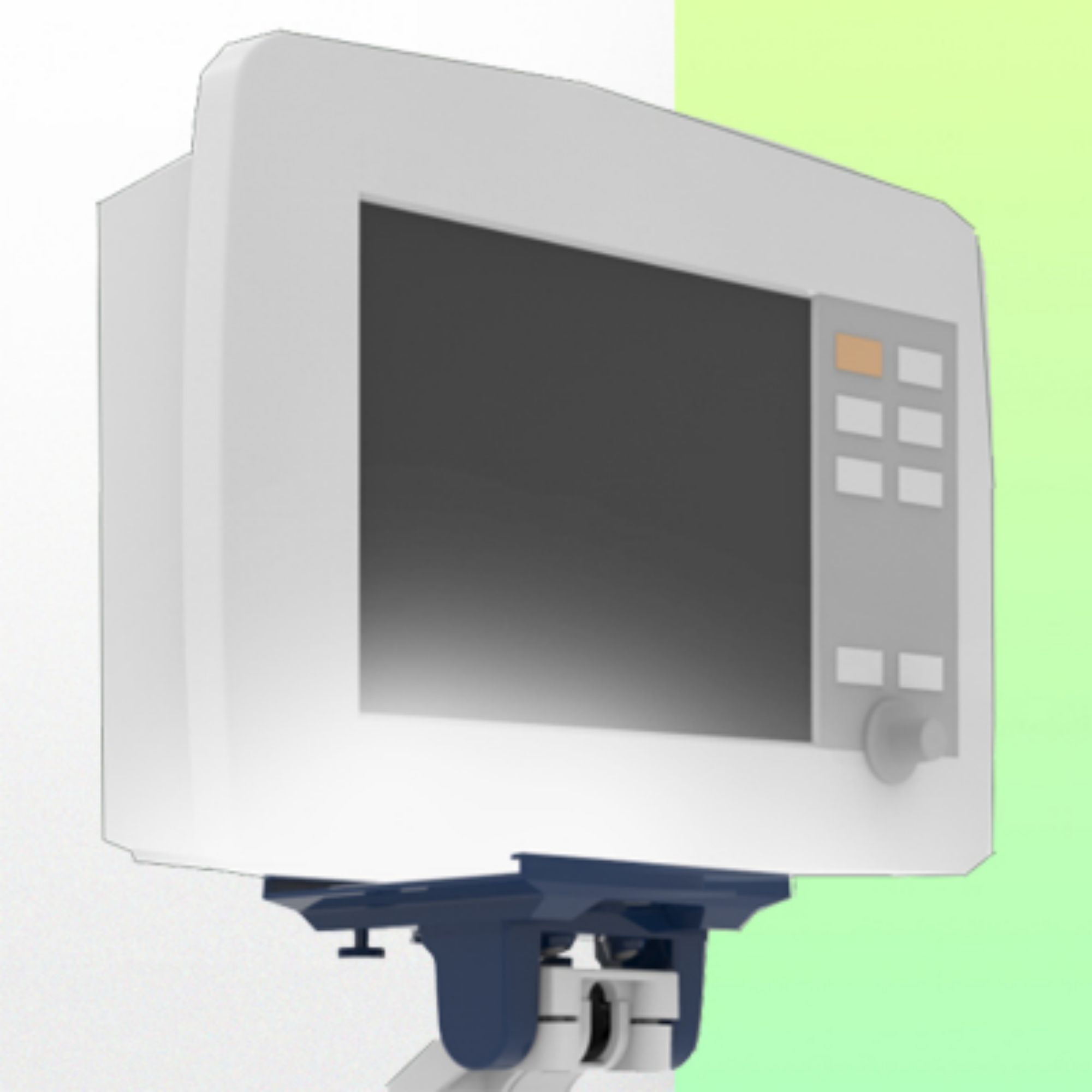

This 386 mm Horizontal Arm allows the monitor to be fixed, oriented and adjusted perfectly.

It is coated with an anti-microbial agent to ensure hygiene and cleanliness down to the smallest detail.

Its modern design has been specially developed for healthcare environments.

Technical specifications:

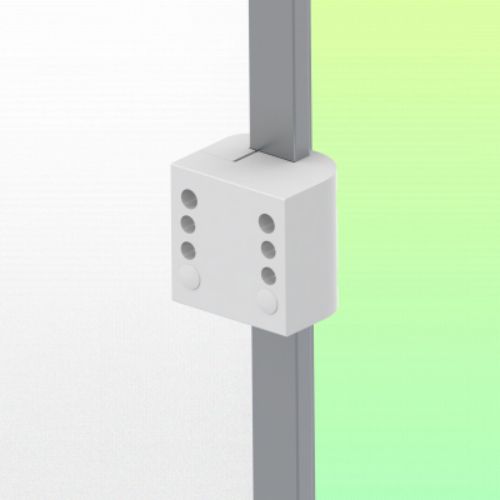

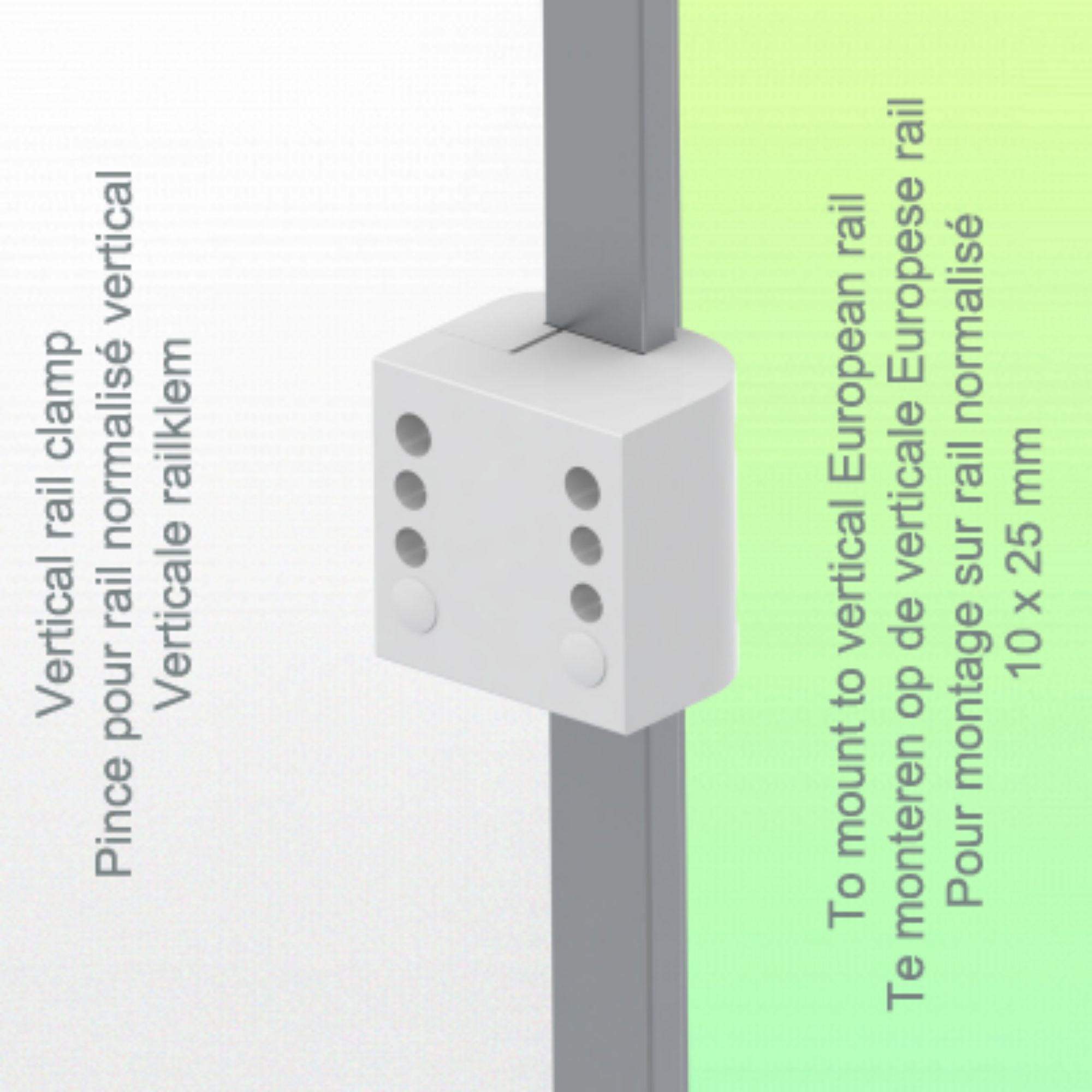

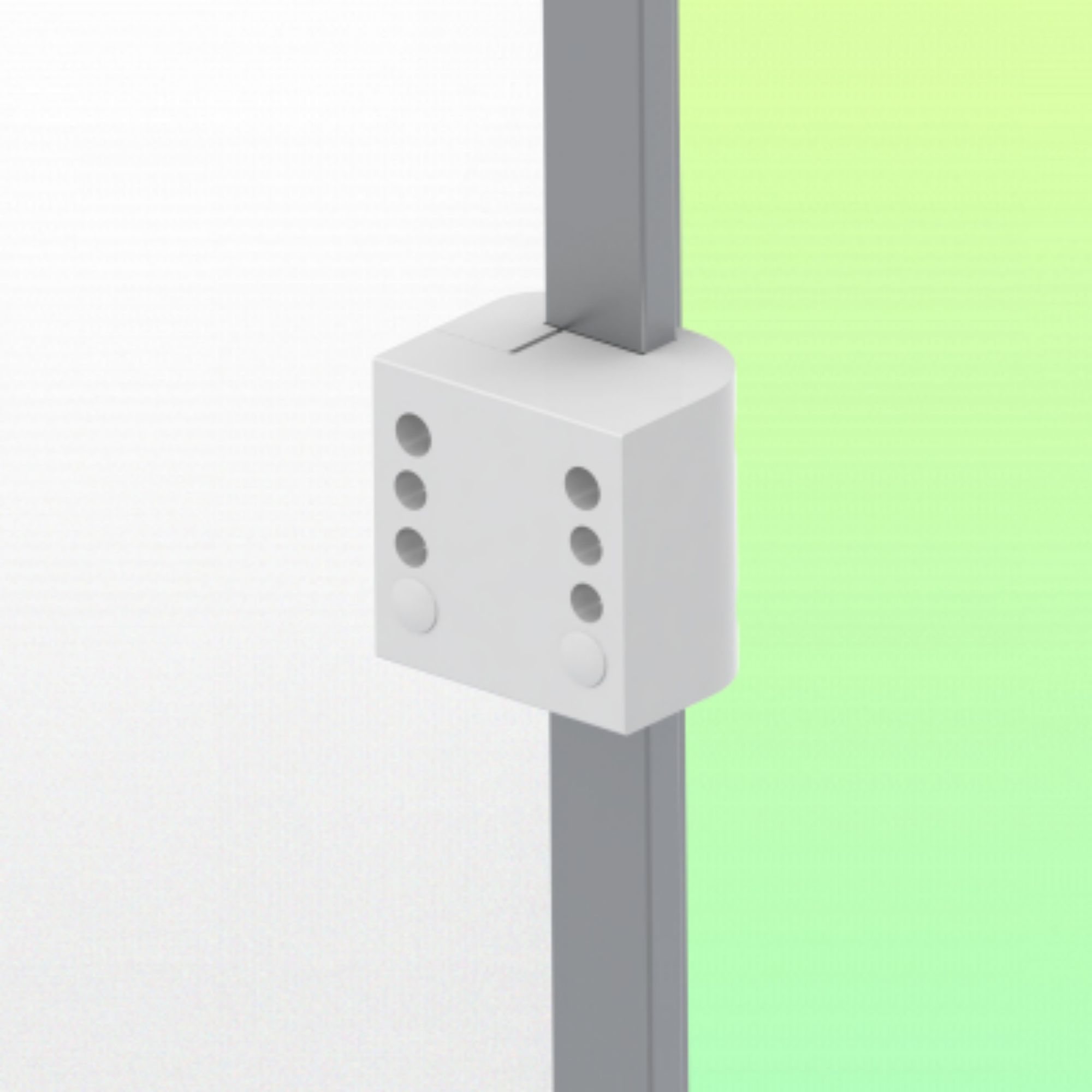

* Din Vertical Rail mounting Universal clamp included ( 10 x 25 mm, 8 x 35 mm, 10 x 30 mm, 10 x 50 mm )

* This medical arm simply attaches to the Din Vertical Rail and then adjusts to the rail and clamps with the two grips.

* There is no height adjustment.

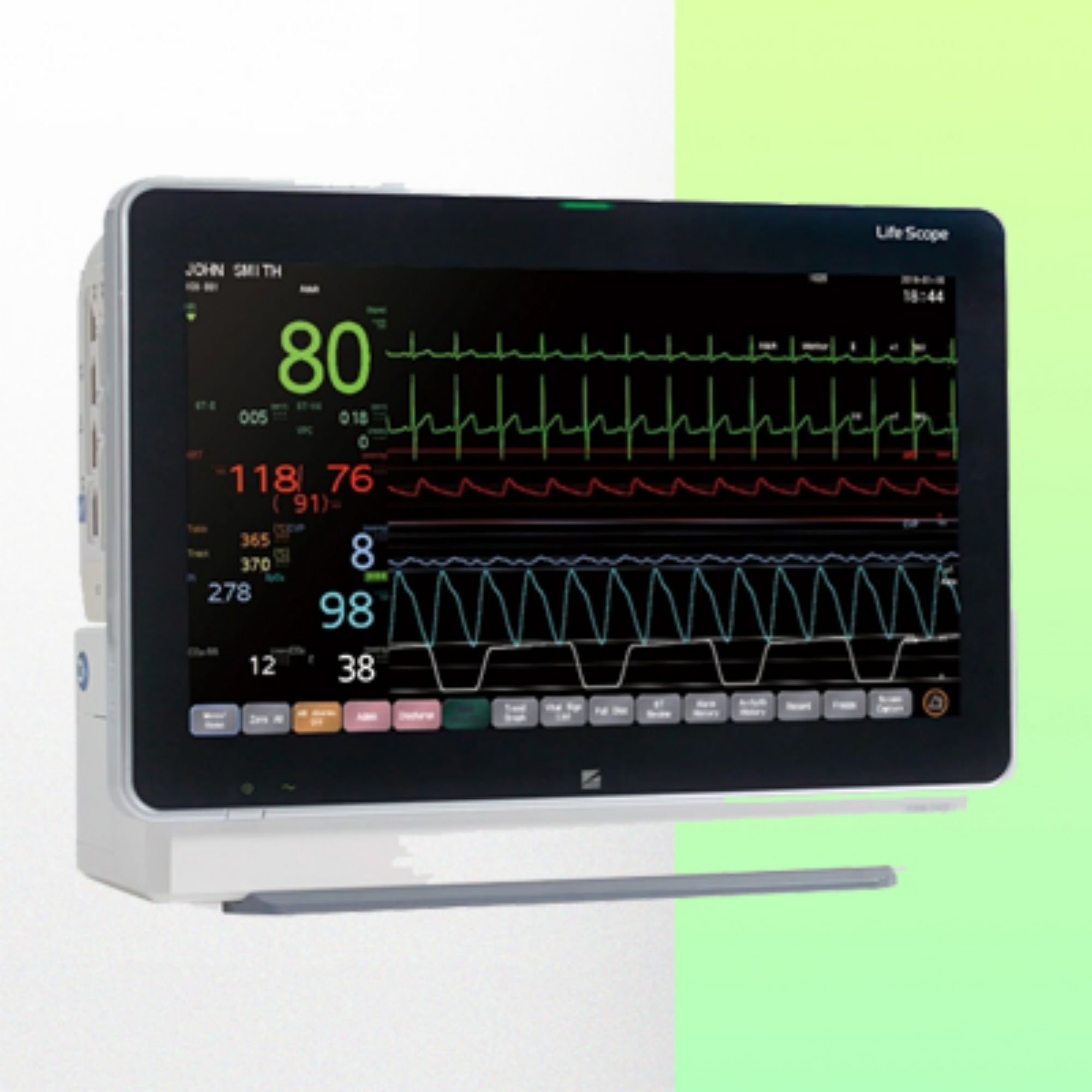

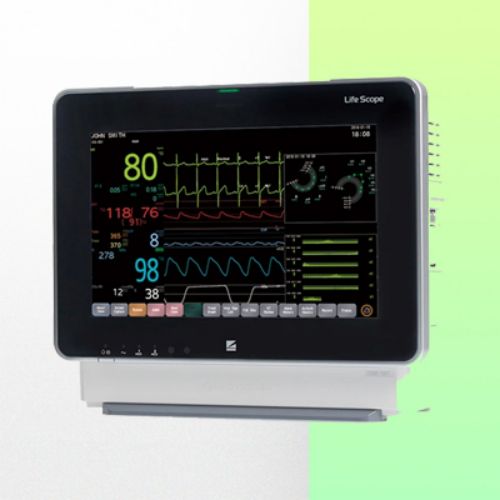

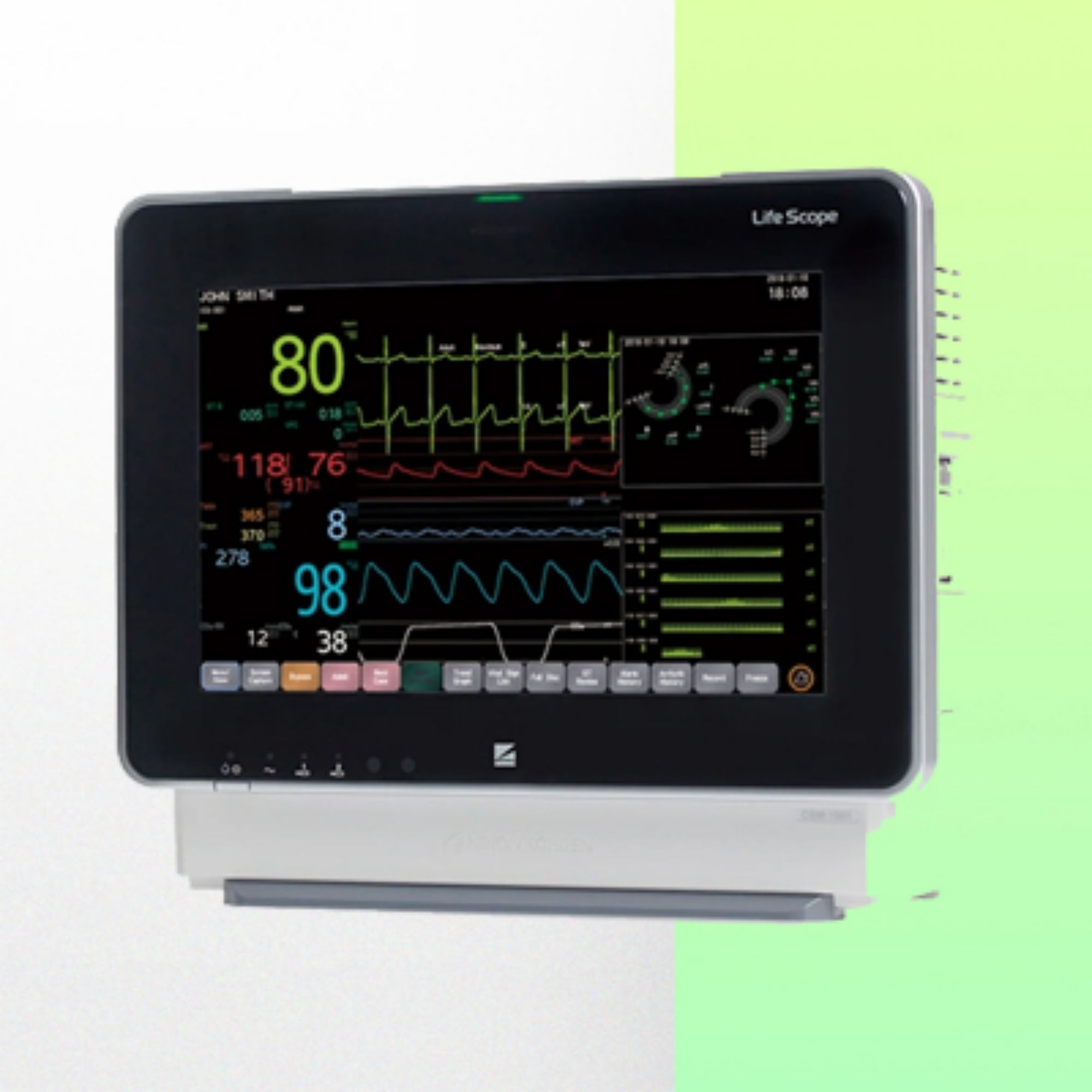

* The head of this arm complies with the mounting standard for Nihon Kohden monitors weighing up to 18 kg.

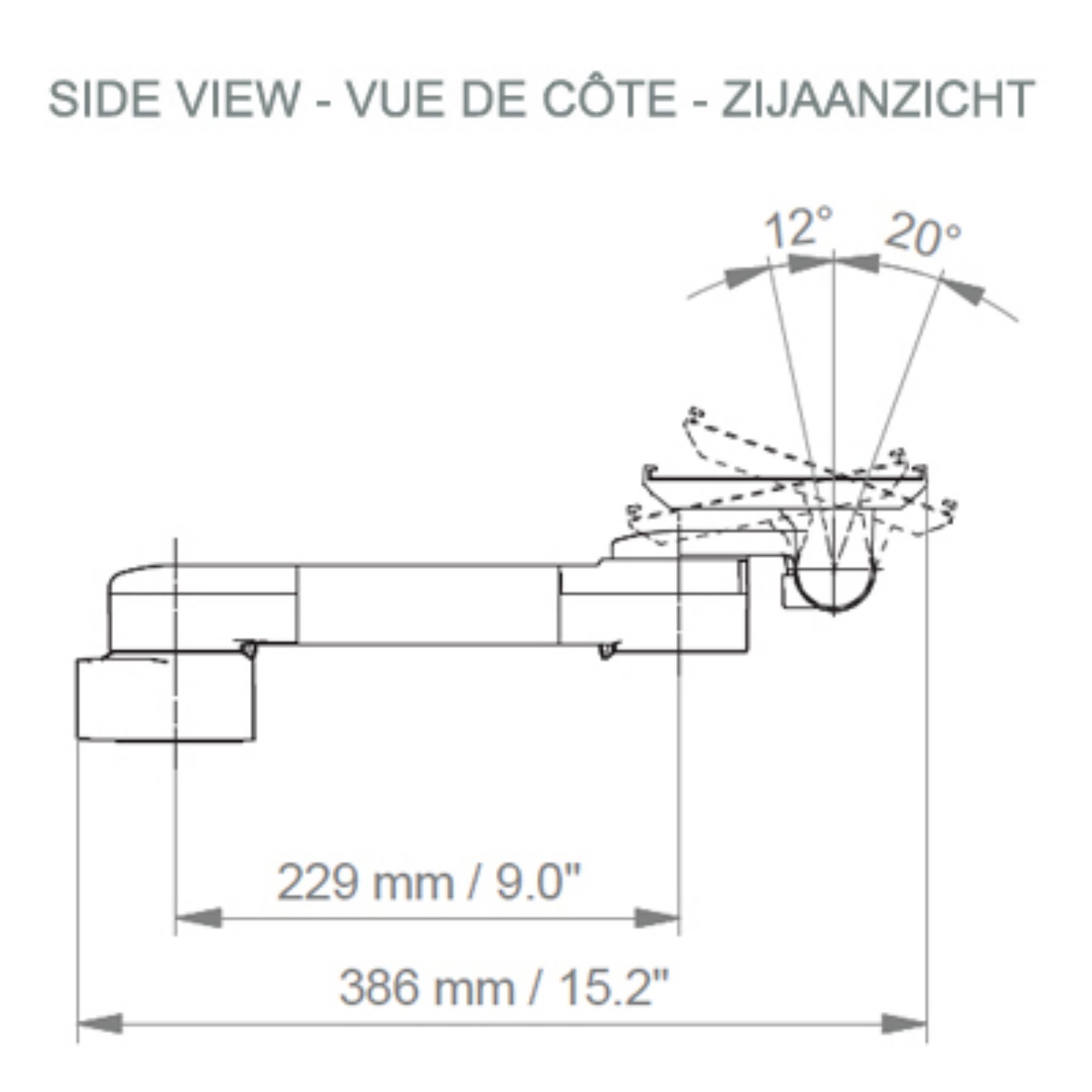

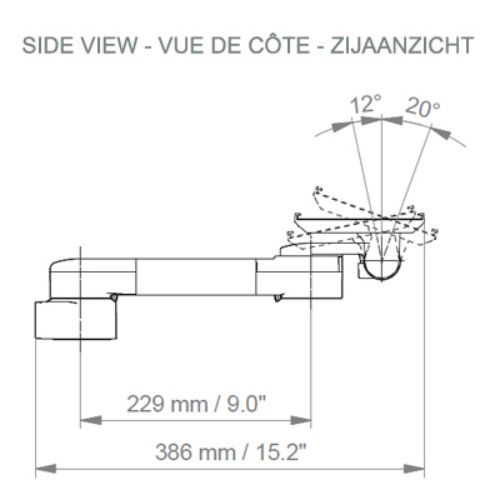

* Monitor tilt: 20° down and 12° up

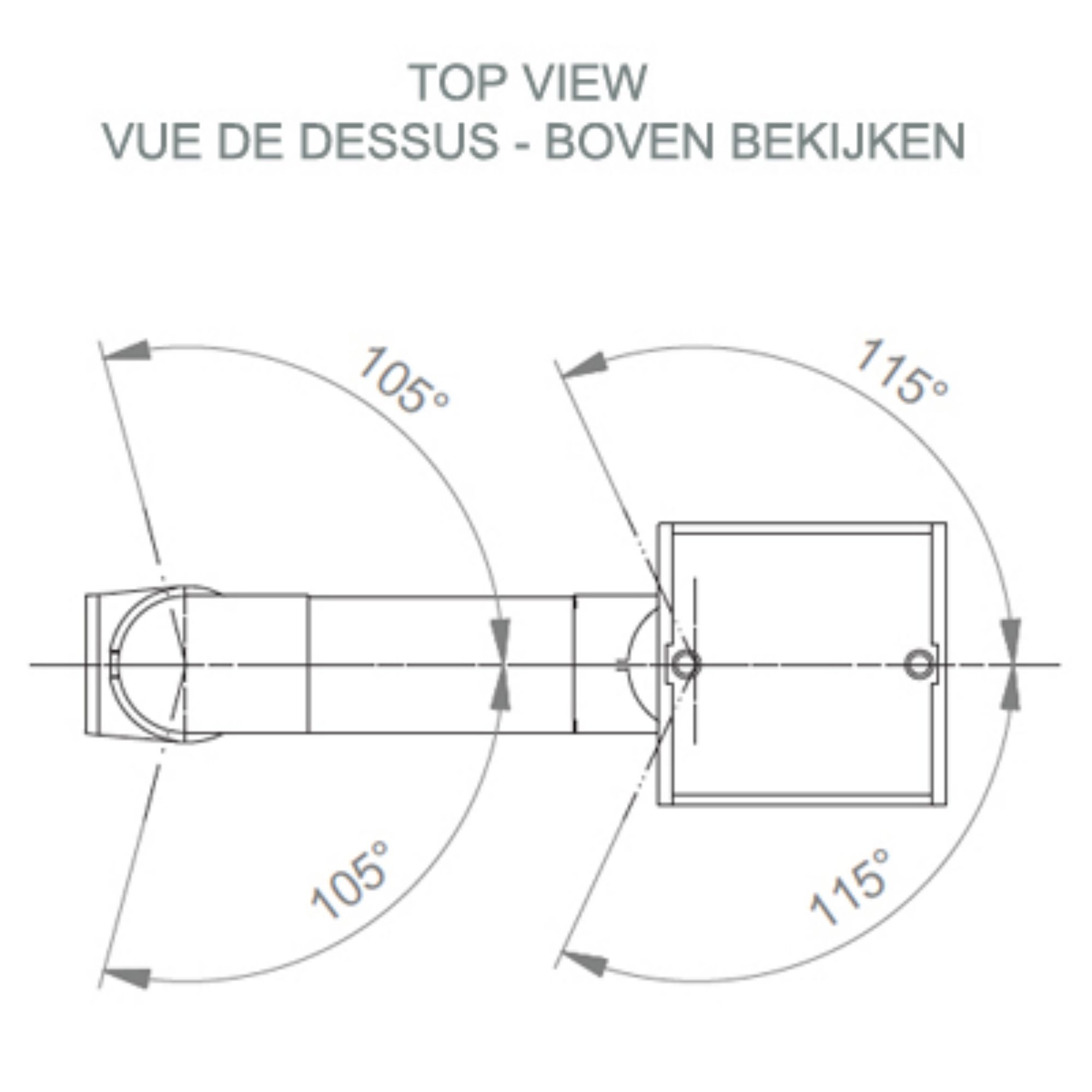

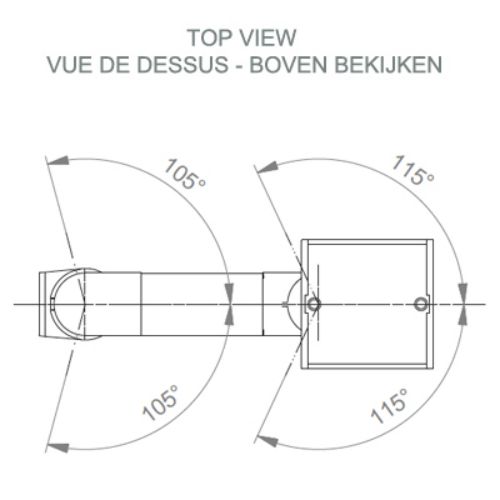

* Monitor rotation: 115° right, 115° left.

* Arm rotation: 105° right, 105° left.

* Total length: 386 mm Colour: RAL 5013 cobalt blue and RAL 9016 traffic white

* Warranty: 5 years
