Dual 618 mm Horizontal Medical Arm for monitoring.

5'' plate adaptation and Nihon Kohden Interface

Din Vertical Rail mounting.

Nihon Kohden Monitoring compatible.

Product number: WM 250.114NK - Dual 618 mm Horizontal Medical Arm for monitoring.

5'' plate adaptation and Nihon Kohden Interface

Din Vertical Rail mounting.

Nihon Kohden Monitoring compatible.

Product sheet PDF

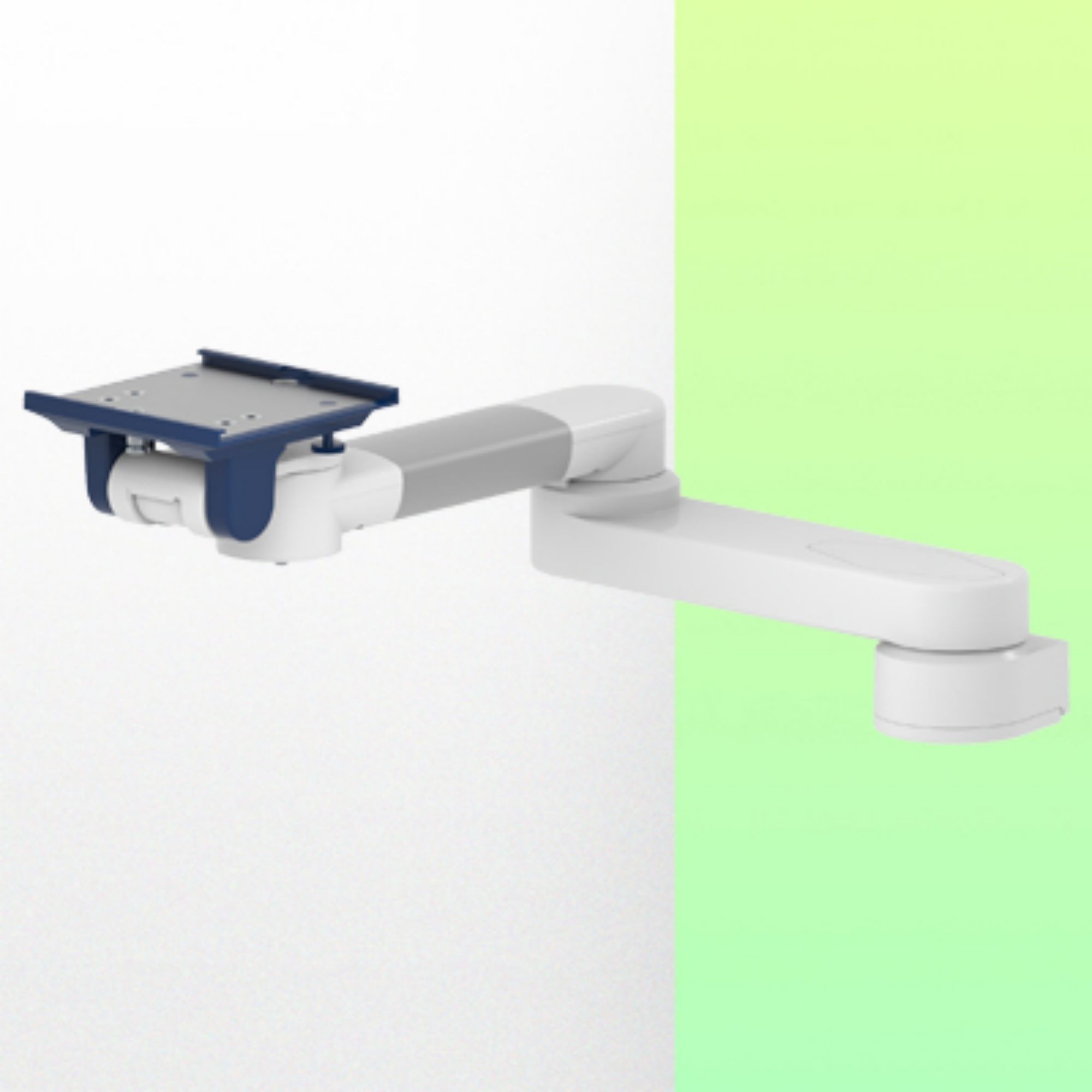

This dual 618 mm Horizontal Arm allows the monitor to be fixed, oriented and adjusted perfectly.

It is coated with an anti-microbial agent for hygiene and cleaning down to the smallest detail.

Its modern design has been specially developed for healthcare environments.

Technical specifications:

* Integrated cable management

* For heavy-duty applications

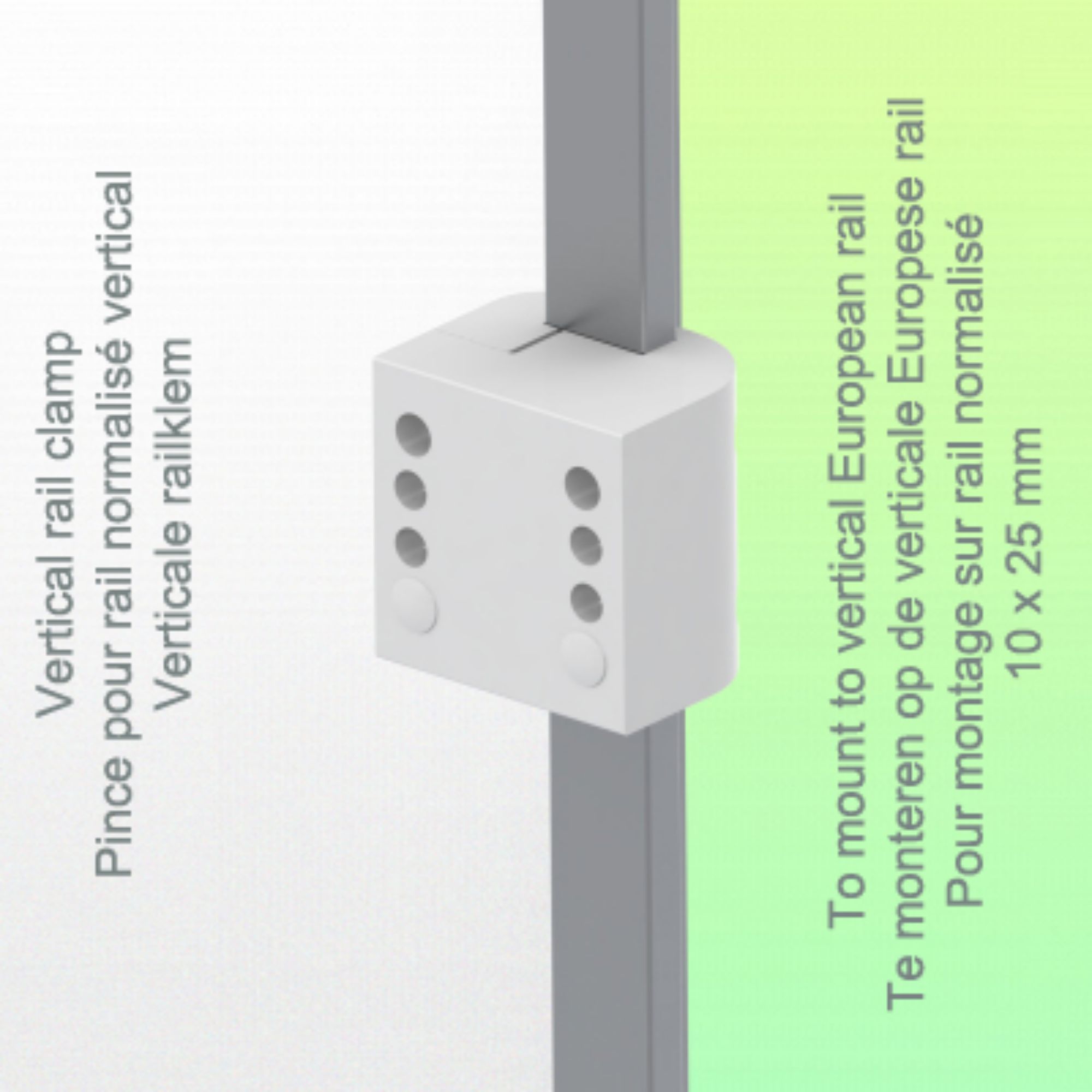

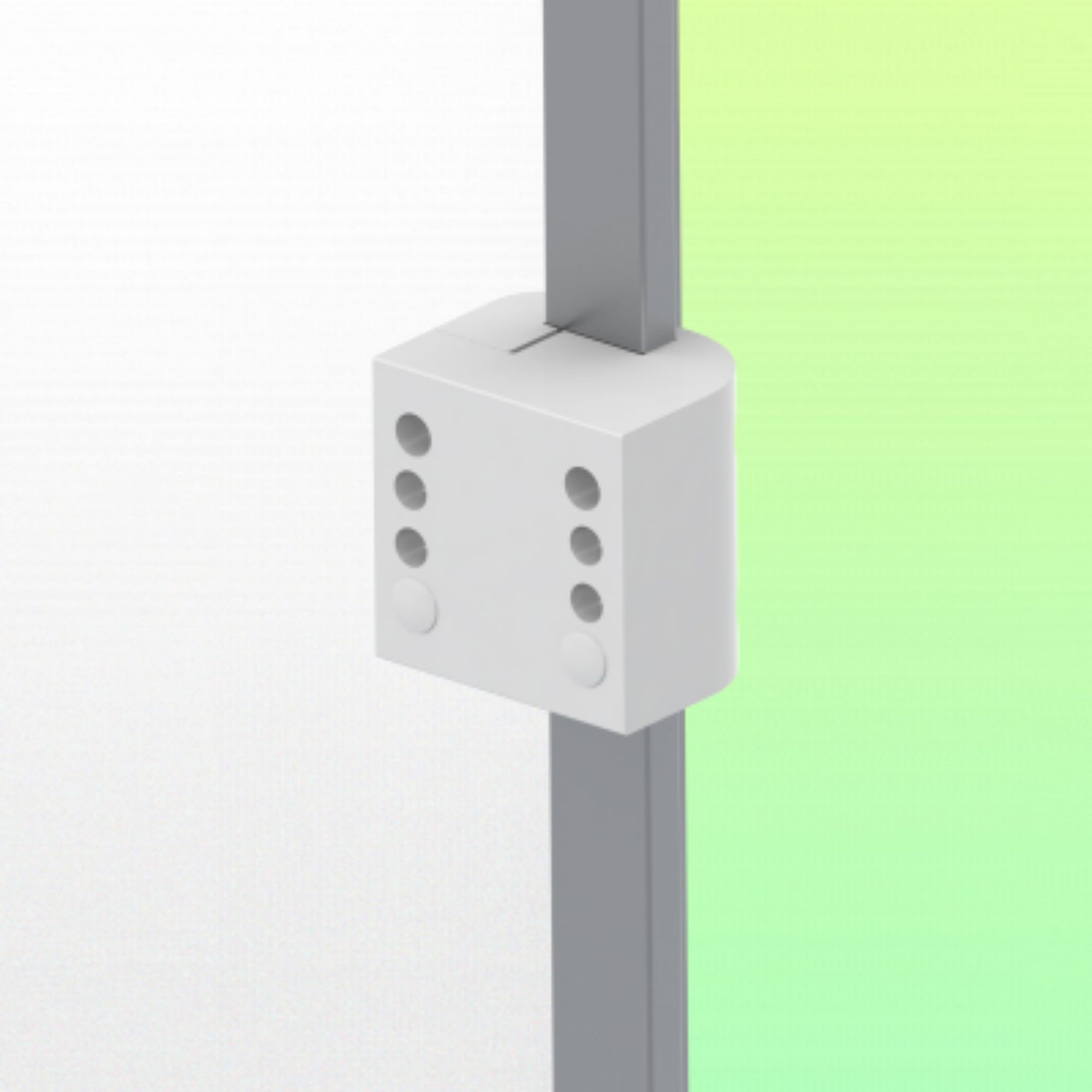

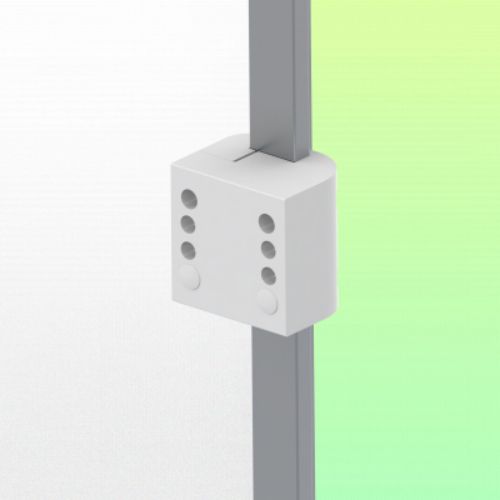

* Mounted on Din Vertical Rail Universal clamp included ( 10 x 25 mm, 8 x 35 mm, 10 x 30 mm, 10 x 50 mm )

* This medical arm simply attaches to the Din Vertical Rail, then adjusts to the rail and clamps with the two grips.

* There is no height adjustment.

* The head of this arm complies with the mounting standard for Nihon Kohden monitors weighing up to 18 kg.

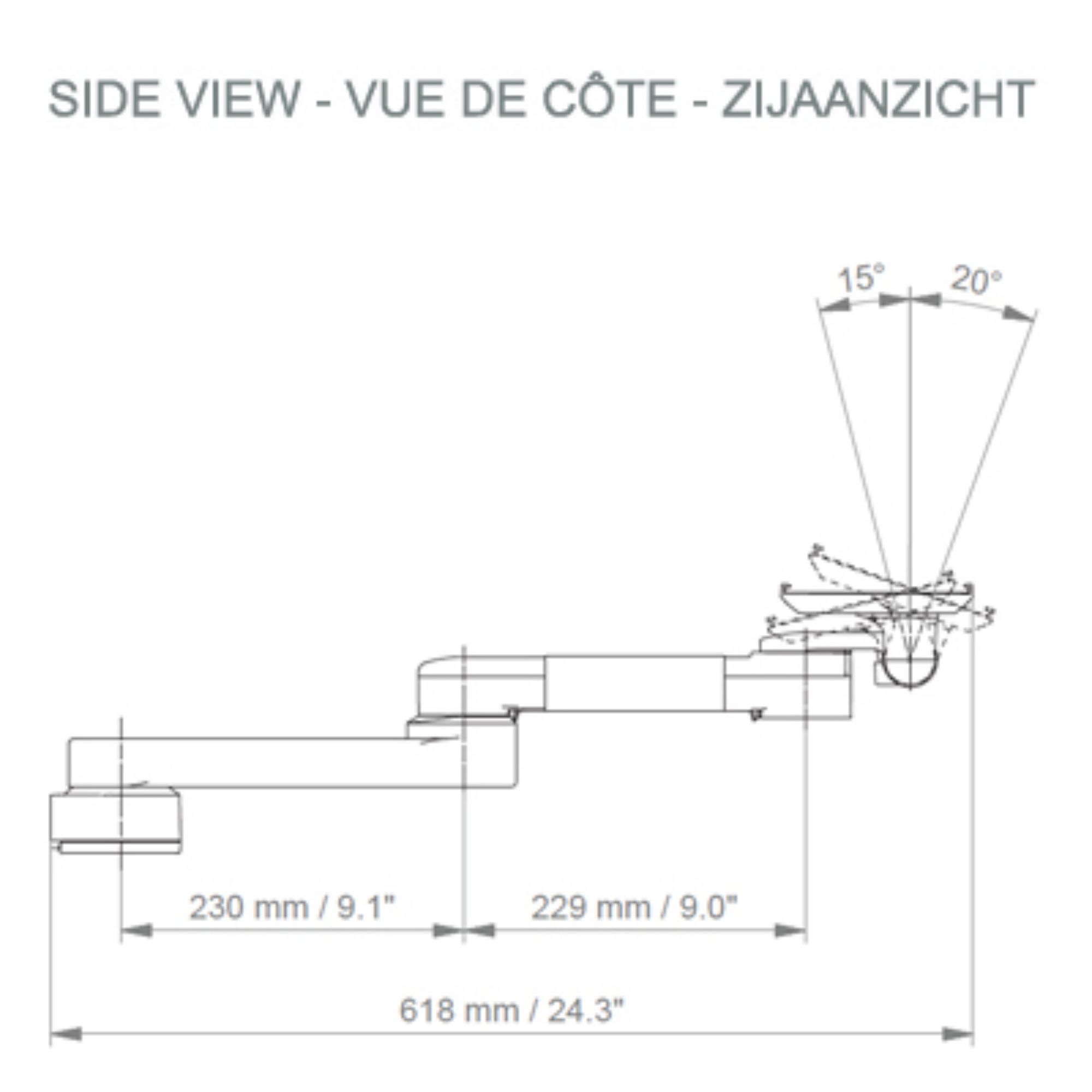

* Monitor tilt: 20° down and 12° up

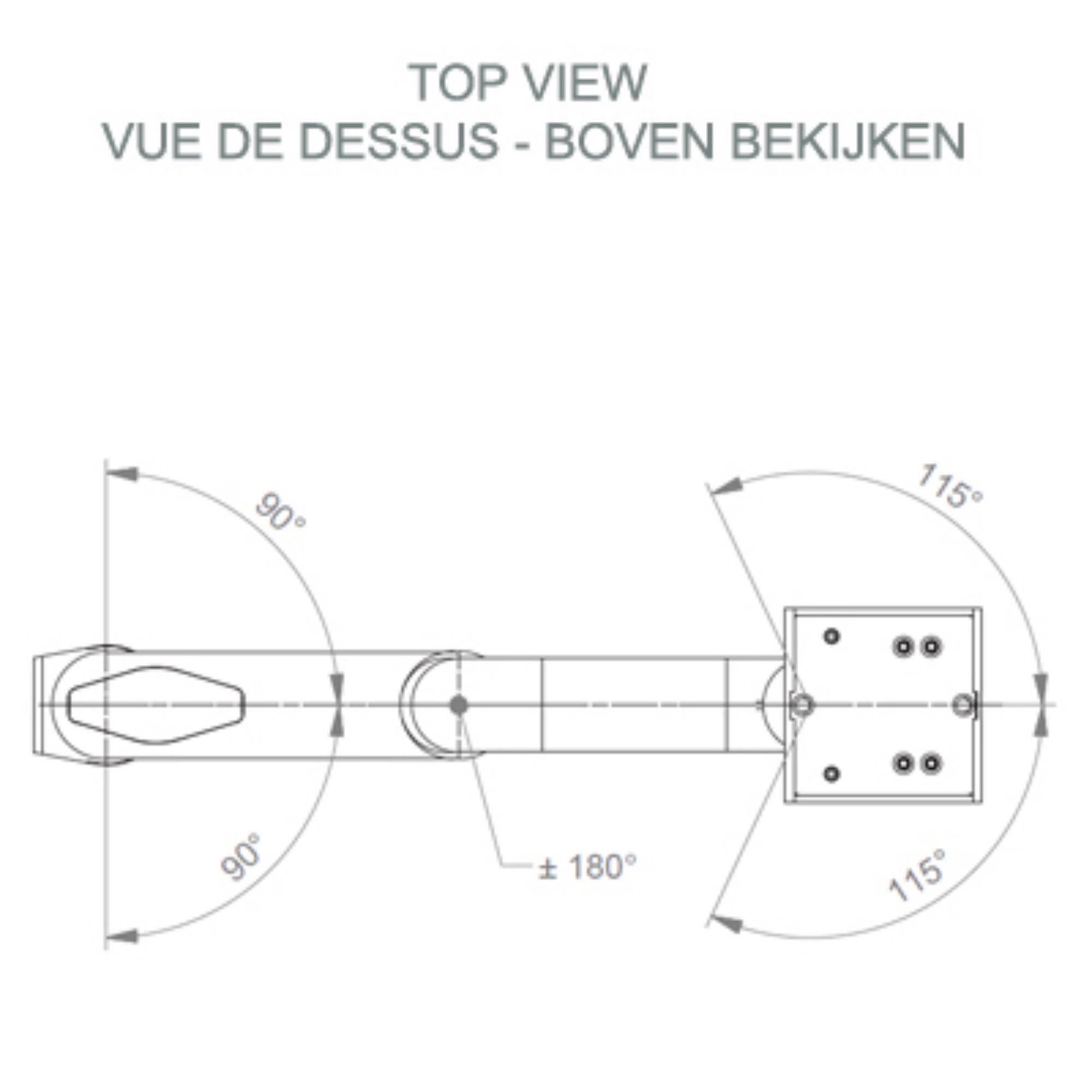

* Monitor rotation: 115° right, 115° left.

* Arm rotation: 90° right, 90° left.

* Total length: 618 mm

* Colour: RAL 5013 cobalt blue and RAL 9016 traffic white

* Warranty: 5 years
