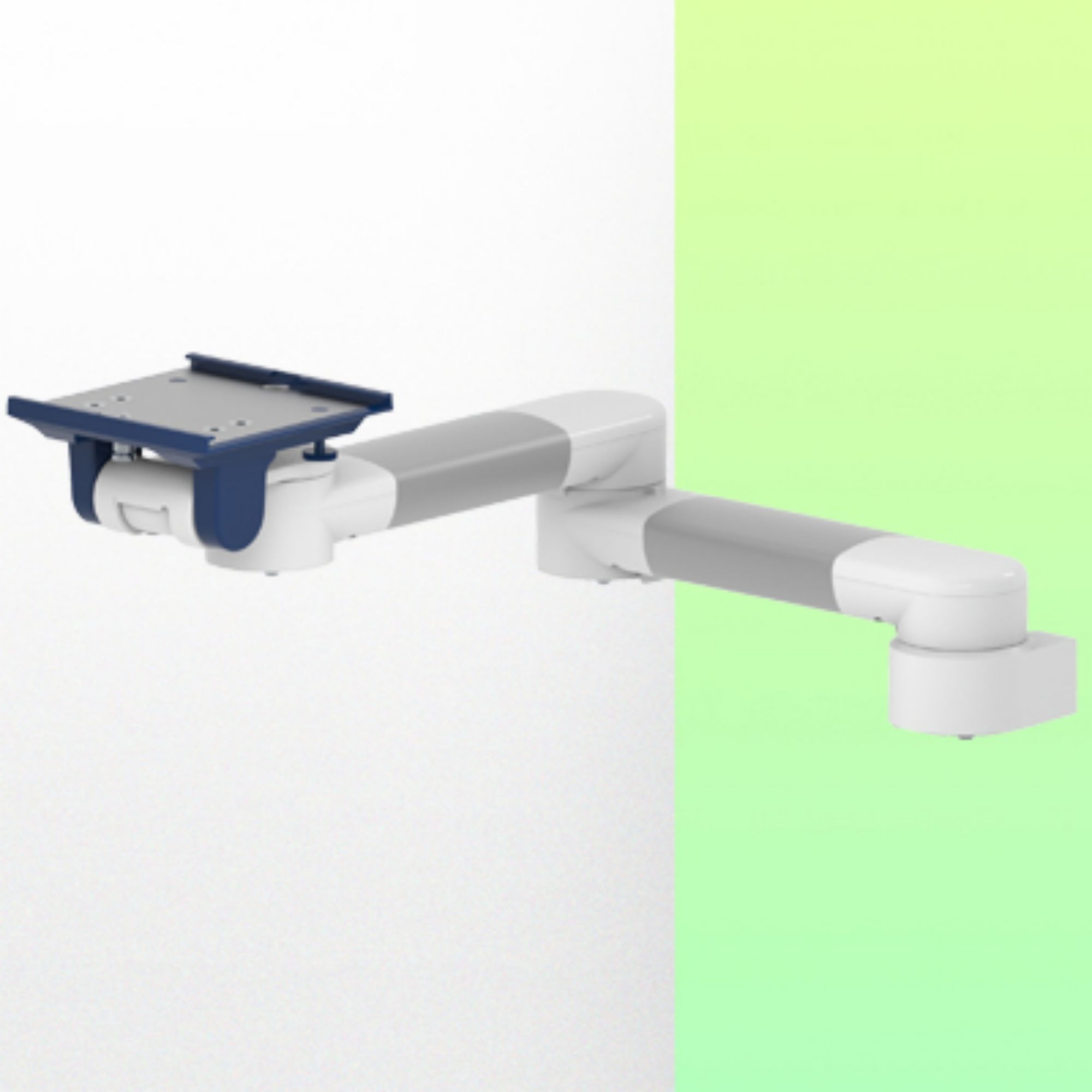

Horizontal 592 mm double medical arm for monitoring.

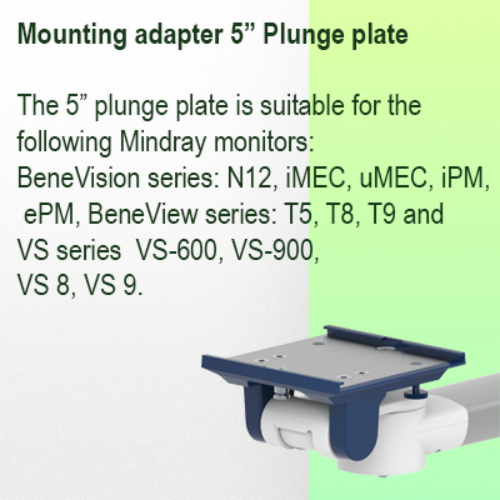

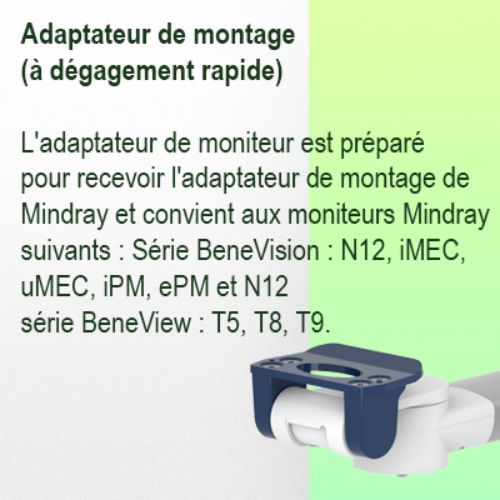

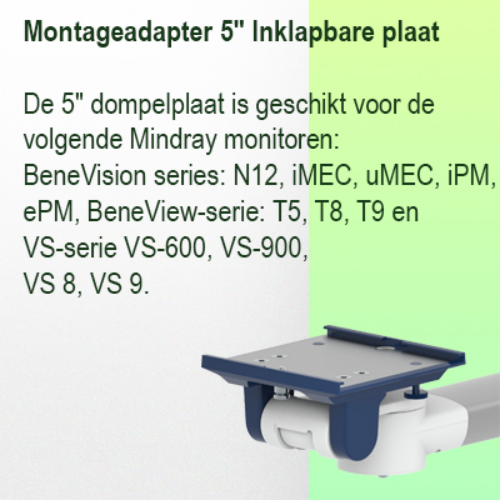

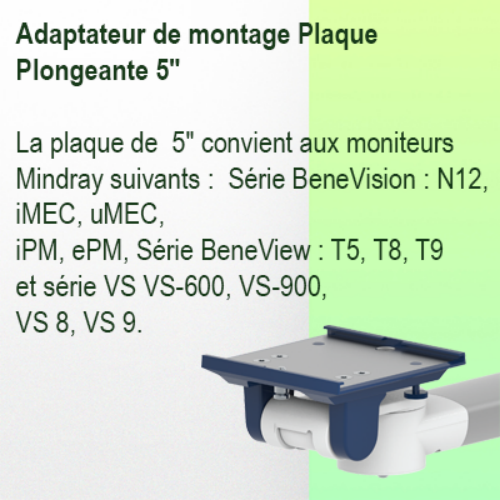

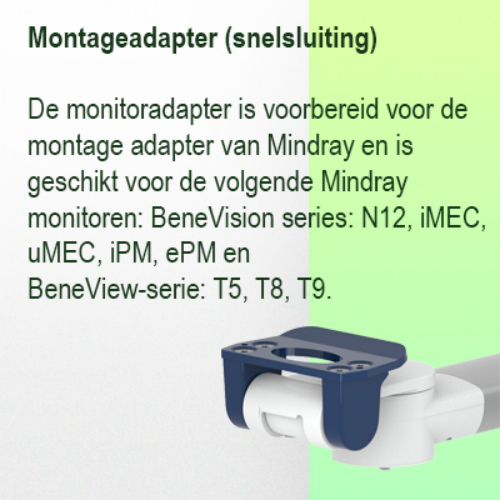

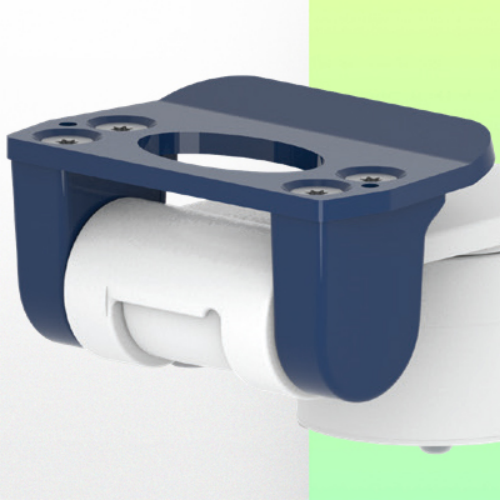

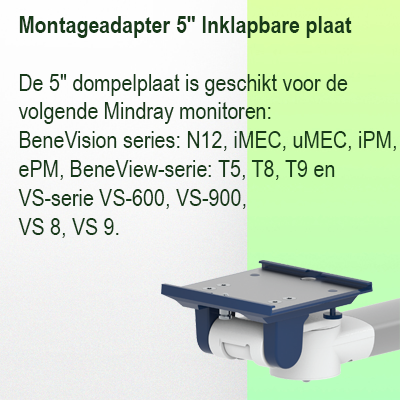

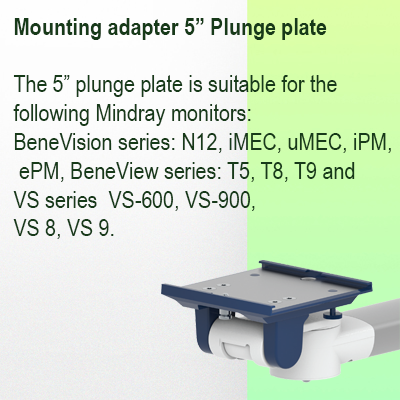

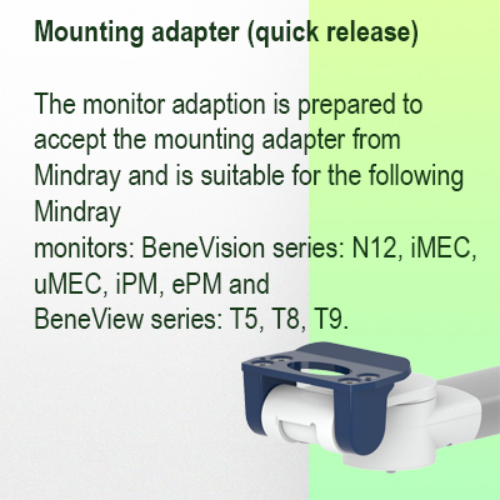

Adaptation to 5'' plate or Quick Release,

mounted on 25, 35 and 38 mm diameter fixed pole.

Mindray Monitoring compatible.

Product number: WM 250.116MD - Horizontal 592 mm double medical arm for monitoring. Adaptation to 5'' plate or Quick Release,

mounted on 25, 35 and 38 mm diameter fixed pole.

Mindray Monitoring compatible.

Product sheet PDF

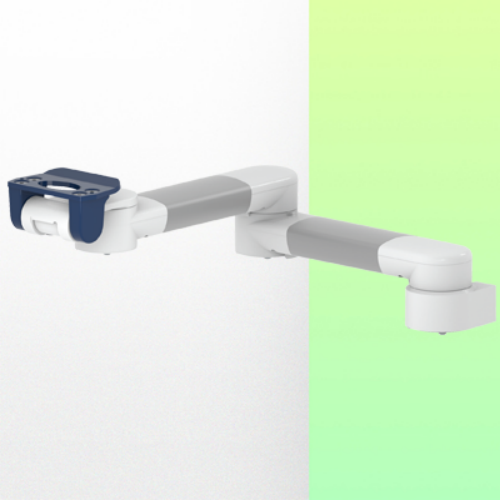

This 592 mm Horizontal Arm allows you to fix, orient and adjust the monitor perfectly.

It is covered with an anti-microbial agent offering hygiene and cleaning in every detail.

Its modern design has been specially designed for healthcare environments.

Technical characteristics:

* Built-in cable passage

* For Light Application

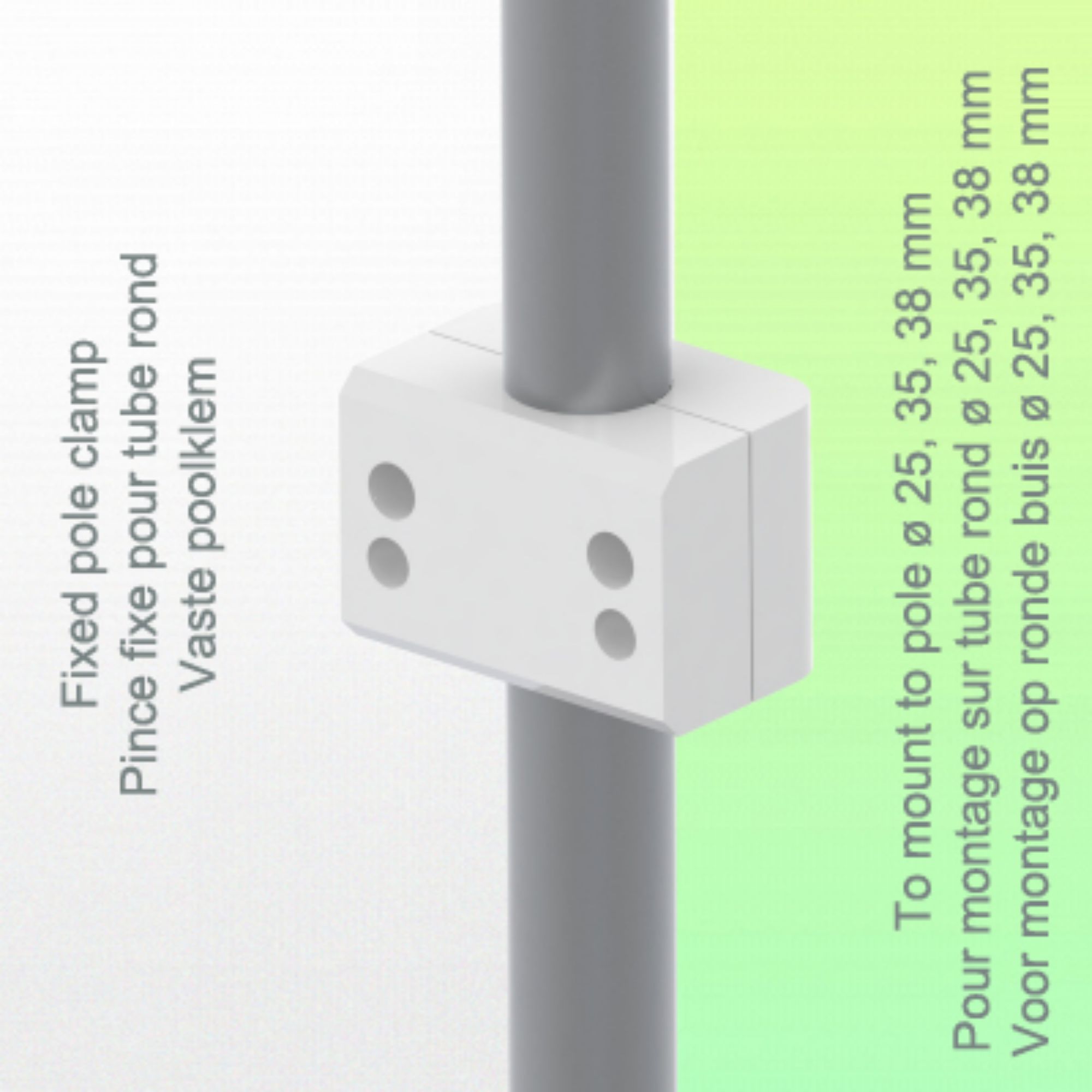

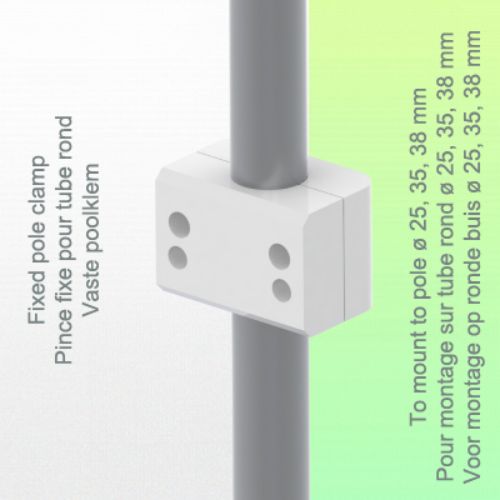

* Fixed pole mounting with 25 diameter, 35 or 38 mm

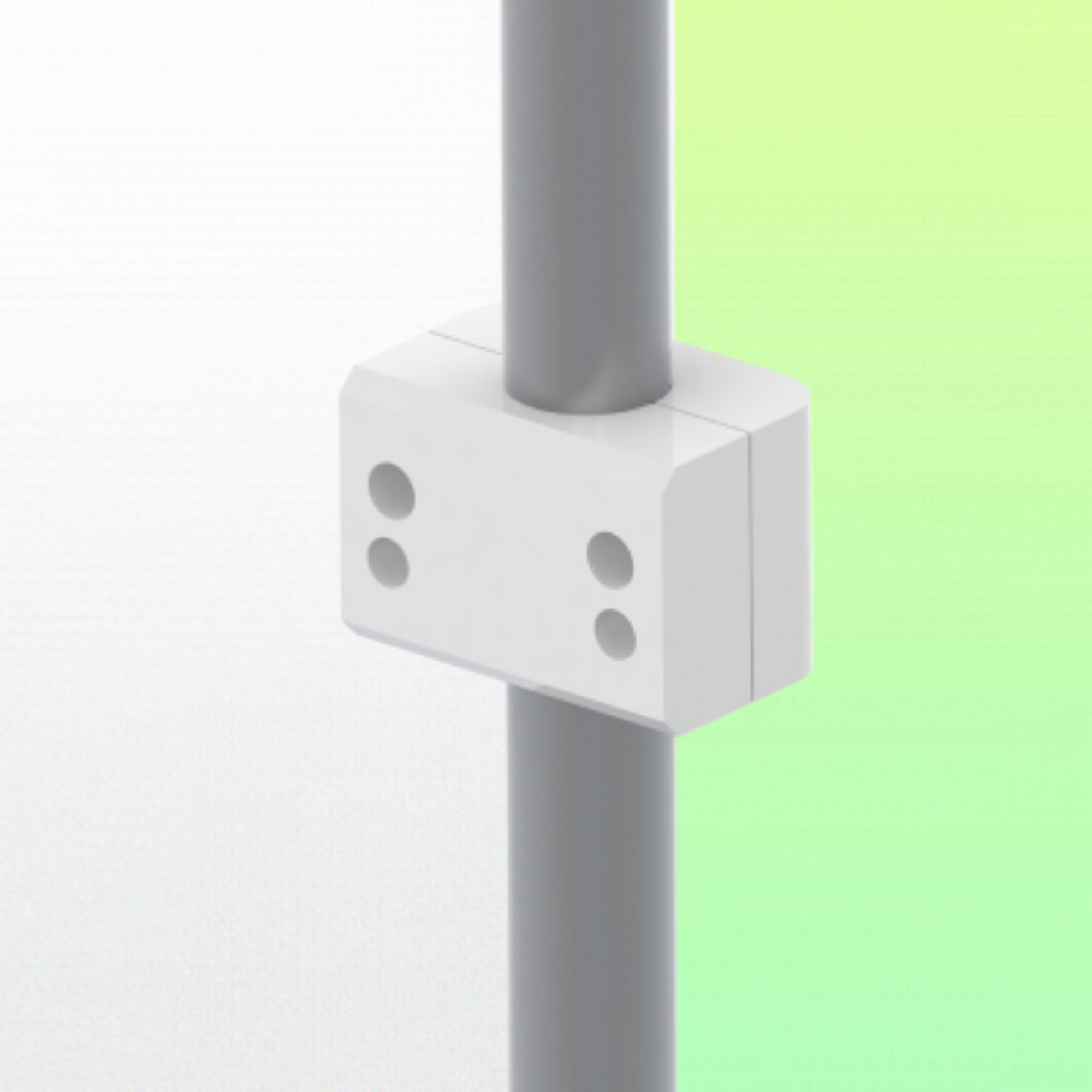

* This 592 mm arm simply pinches on the pole and adjusts to the desired height and fixed.

* It has no height adjustment.

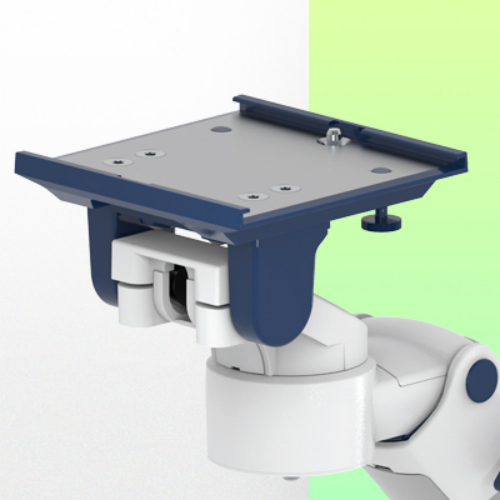

* The head of this arm complies with the Mindray Monitor mounting standard, which does not exceed 8 Kg.

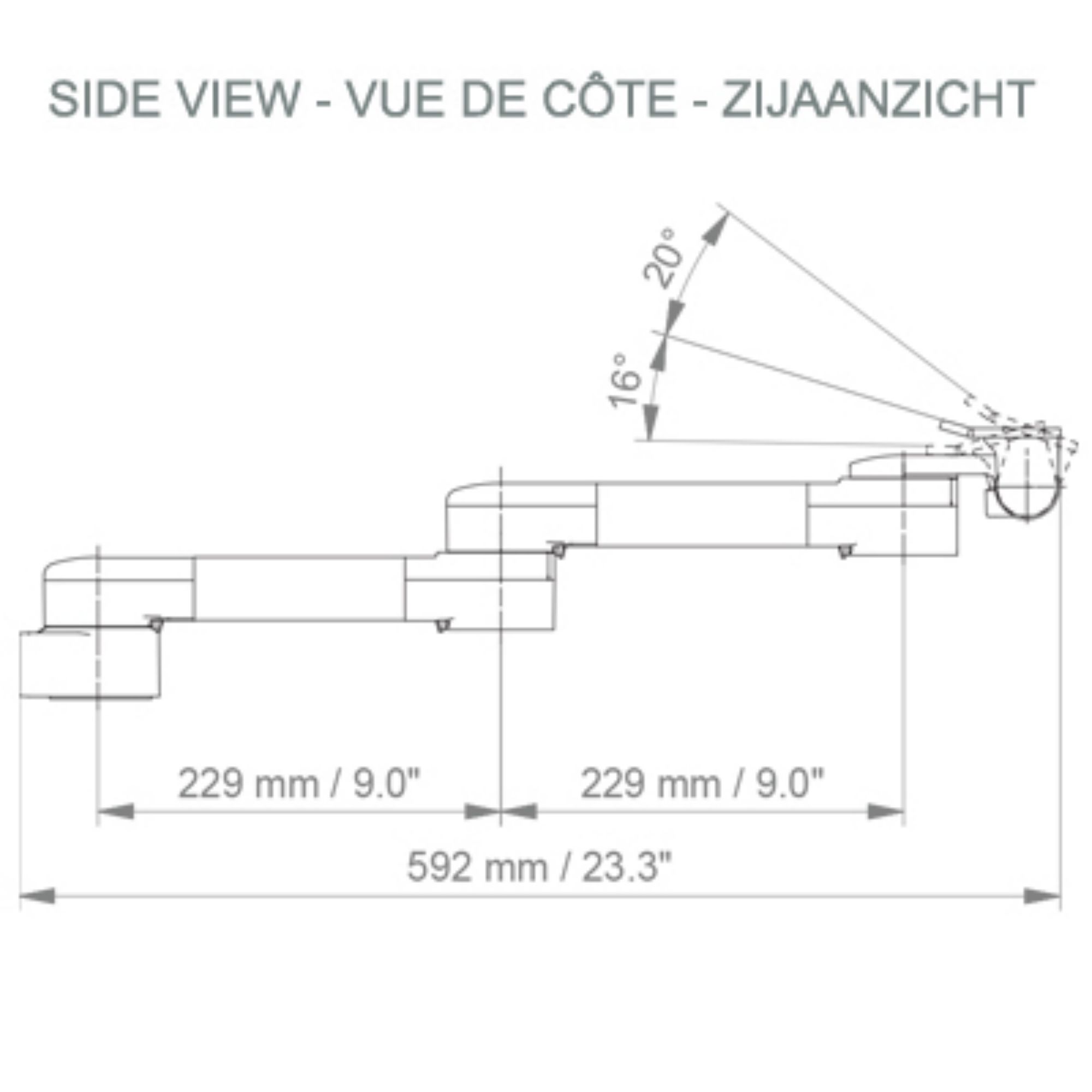

* Monitor tilt: 16° down and 20° up

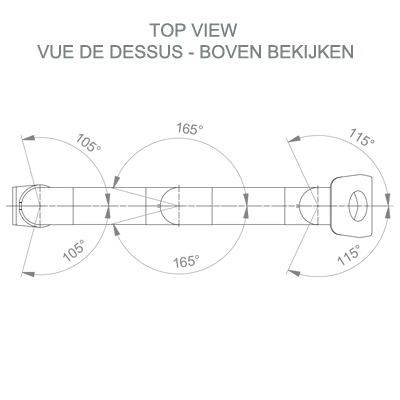

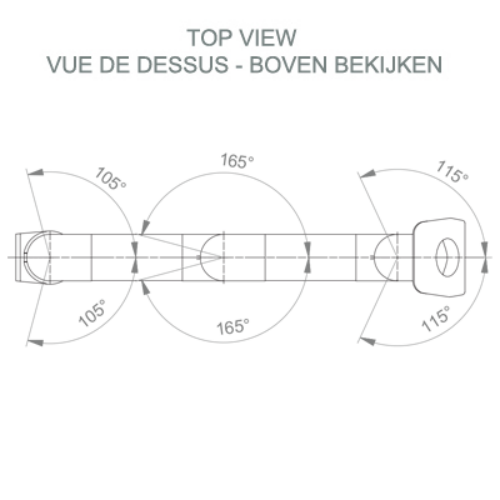

* Monitor rotation: 115° right, 115° left.

* Arm rotation: 105° right, 105° left.

* Total length 592 mm

* Color RAL 5013 cobalt blue and RAL 9016 traffic white

* Warranty: 5 years
