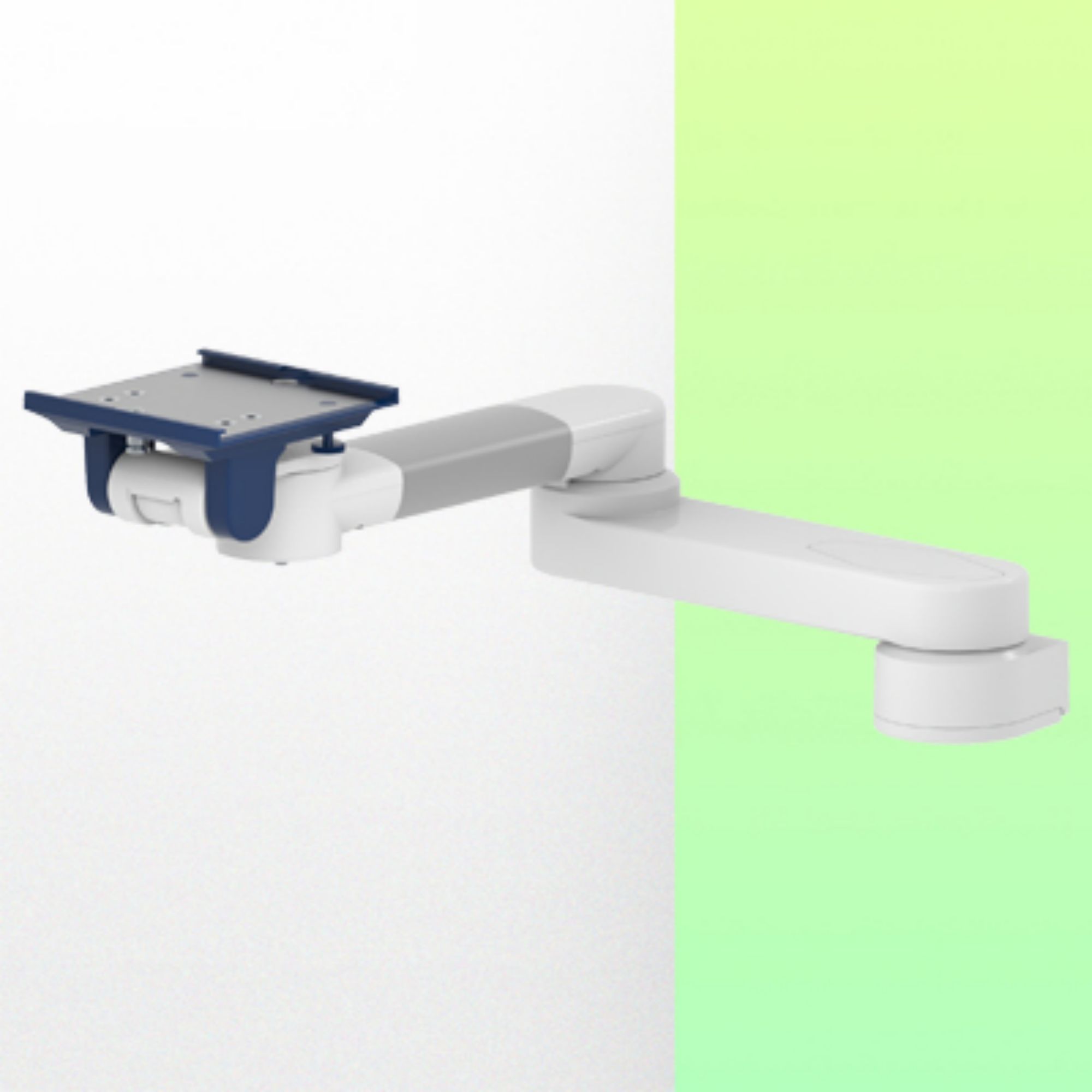

Double 618 mm Horizontal Medical Arm for monitoring

Adaptation plate 5’' and Nihon Kohden Interface,

Variable Pole mounting ø 23 - 40 mm.

Compatible Monitoring Nihon Kohden.

Product number: WM 250.120NK - Double 618 mm Horizontal Medical Arm for monitoring

Adaptation plate 5’' and Nihon Kohden Interface,

Variable Pole mounting ø 23 - 40 mm.

Compatible Monitoring Nihon Kohden.

Product sheet PDF

This 618 mm dual Horizontal Arm allows you to fix, orient and adjust the monitor perfectly.

It is covered with an anti-microbial agent offering hygiene and cleaning in every detail.

Its modern design has been specially designed for healthcare environments.

Technical characteristics:

* Built-in cable passage

* For Heavy Duty Application

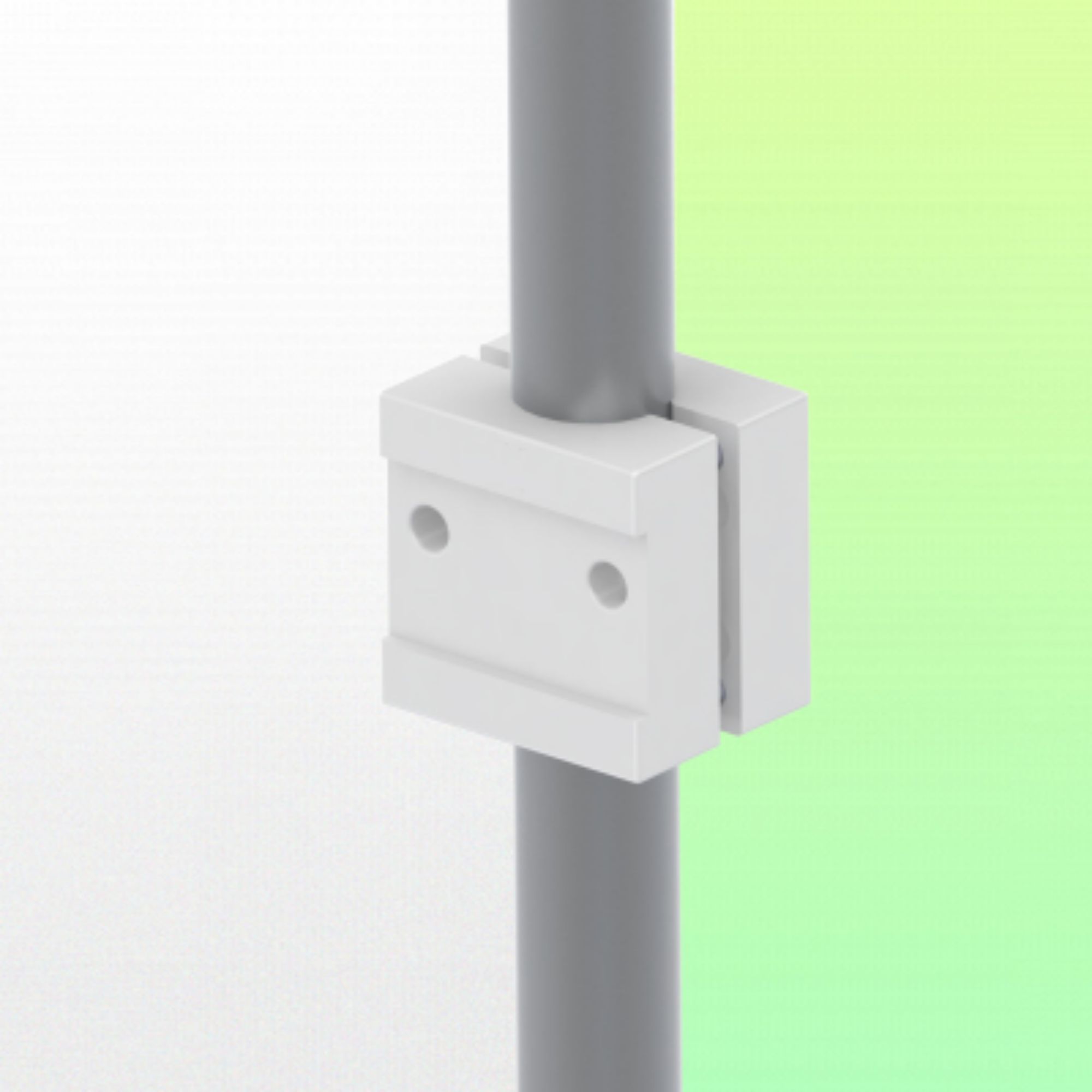

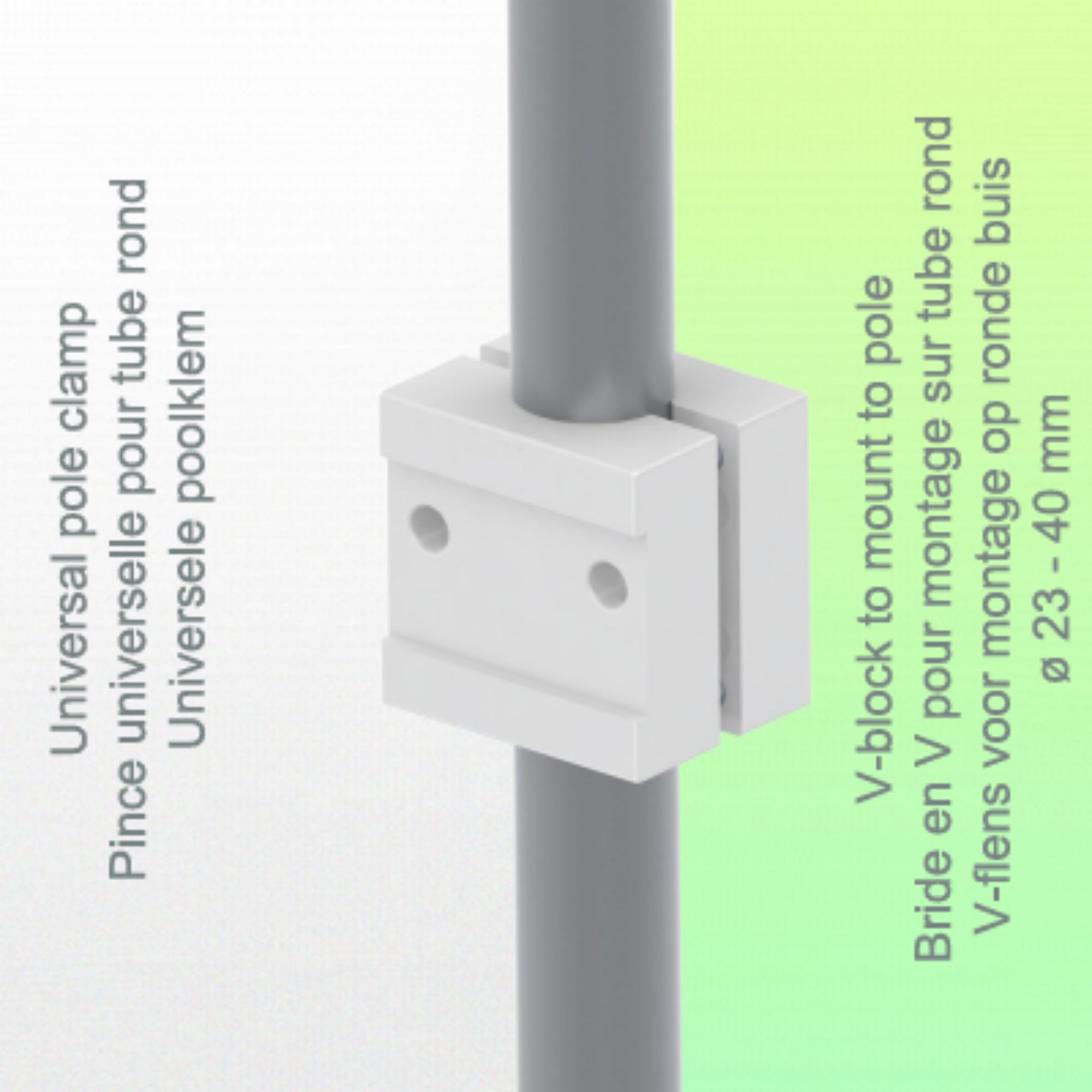

* Variable Pole mounting ø 23 - 40 mm, V-block to mount to pole

* This 618 mm arm simply pinches on the pole and adjusts to the desired height and fixed.

* It has no height adjustment.

* The head of this arm complies with the Nihon Kohden monitor mounting standard, which does not exceed 18 Kg.

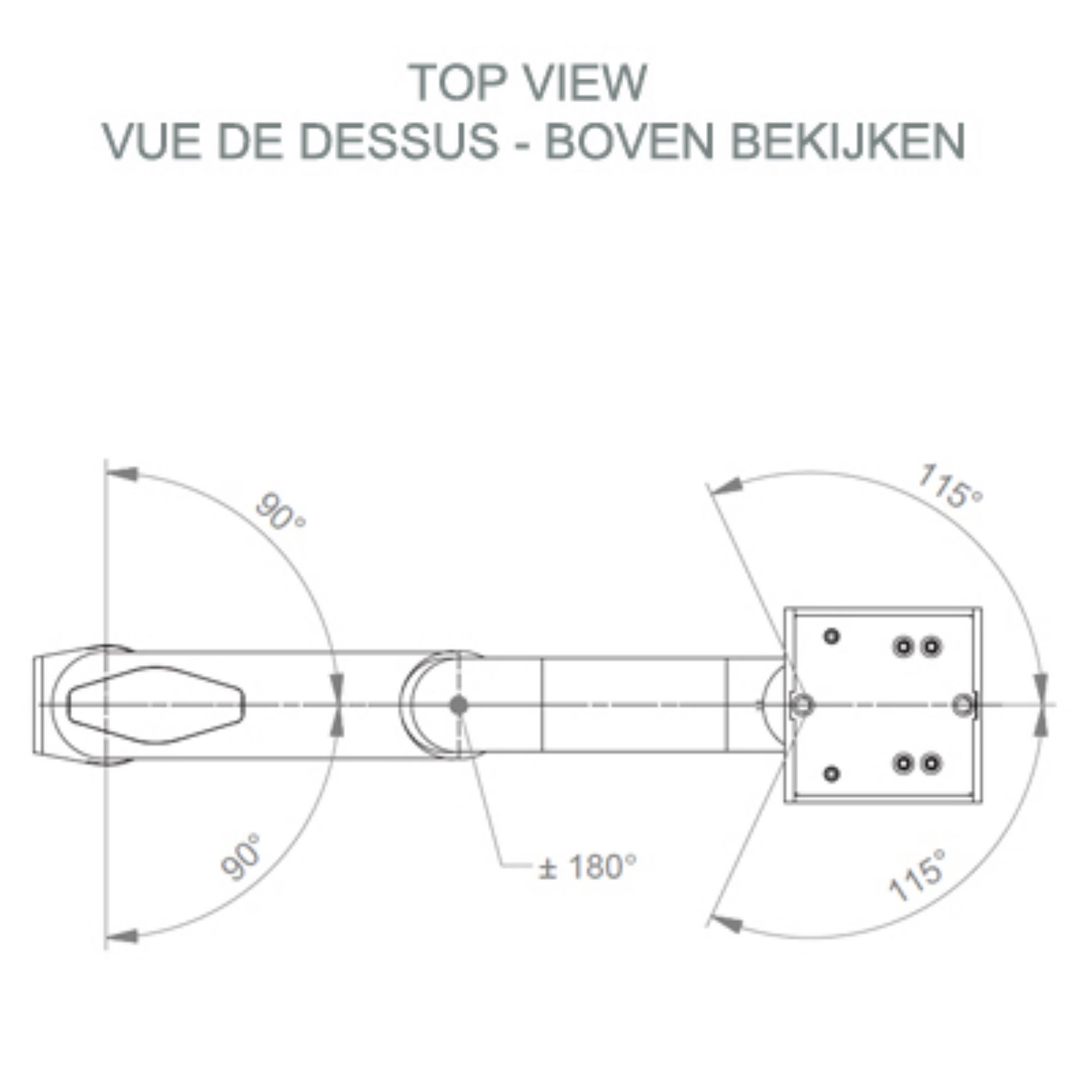

* Monitor tilt: 20° down and 12° up

* Monitor rotation: 115° right, 115° left.

* Arm rotation: 90° right, 90° left.

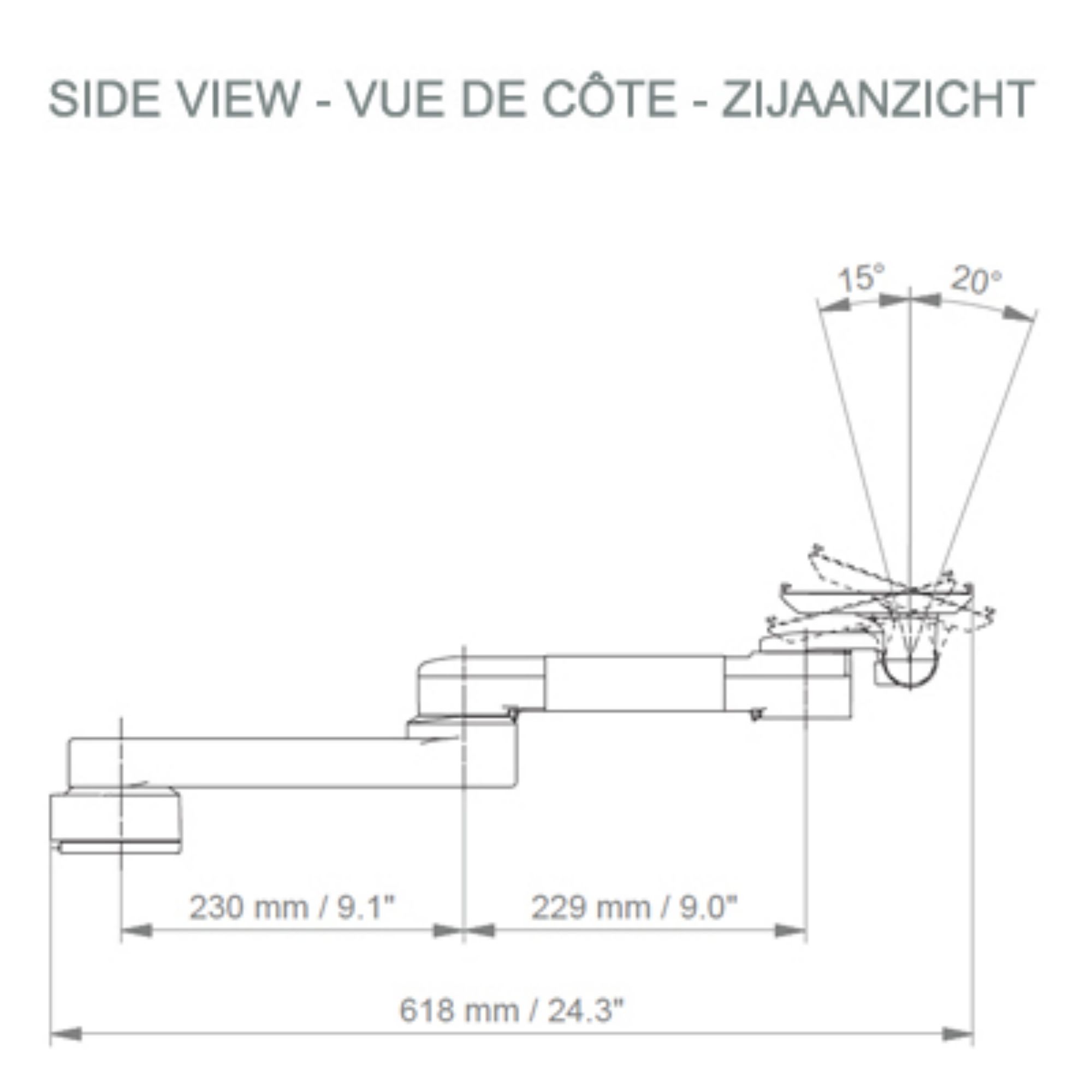

* Total length 618 mm

* Color RAL 5013 cobalt blue and RAL 9016 traffic white

* Warranty: 5 years
