386 mm Horizontal Medical Arm for monitoring

5'' plate adaptor,

Mounting on Mindray Medical Power Supply Device.

Dräger and GE compatible.

Product number: WM 250.121 - 386 mm Horizontal Medical Arm for monitoring

5'' plate adaptor,

Mounting on Mindray Medical Power Supply Device.

Dräger and GE compatible.

Product sheet PDF

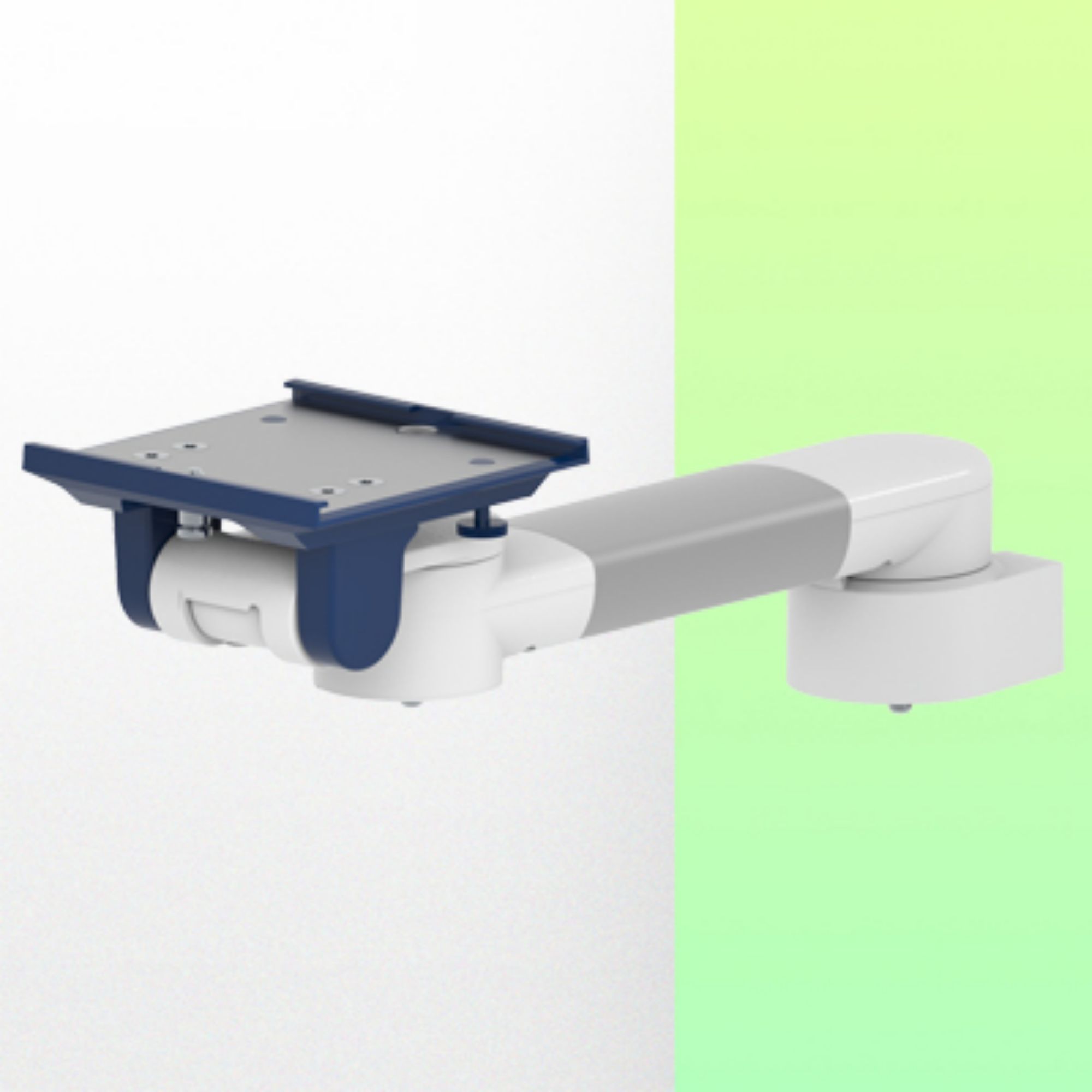

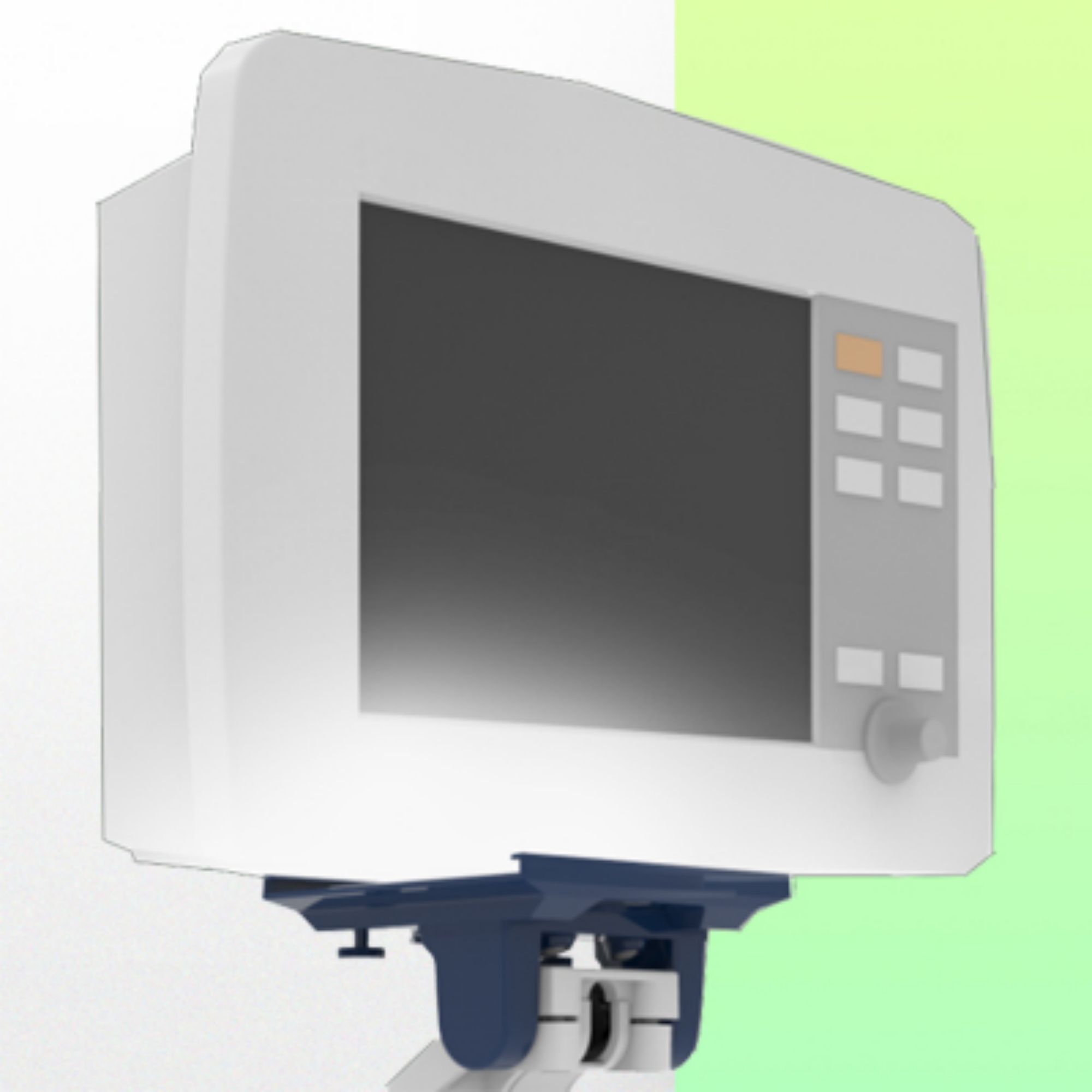

This 386 mm Horizontal Arm allows the monitor to be fixed, oriented and adjusted perfectly.

It is coated with an anti-microbial agent to ensure hygiene and cleanliness down to the smallest detail.

Its modern design has been specially developed for healthcare environments.

Technical specifications:

* Integrated cable management

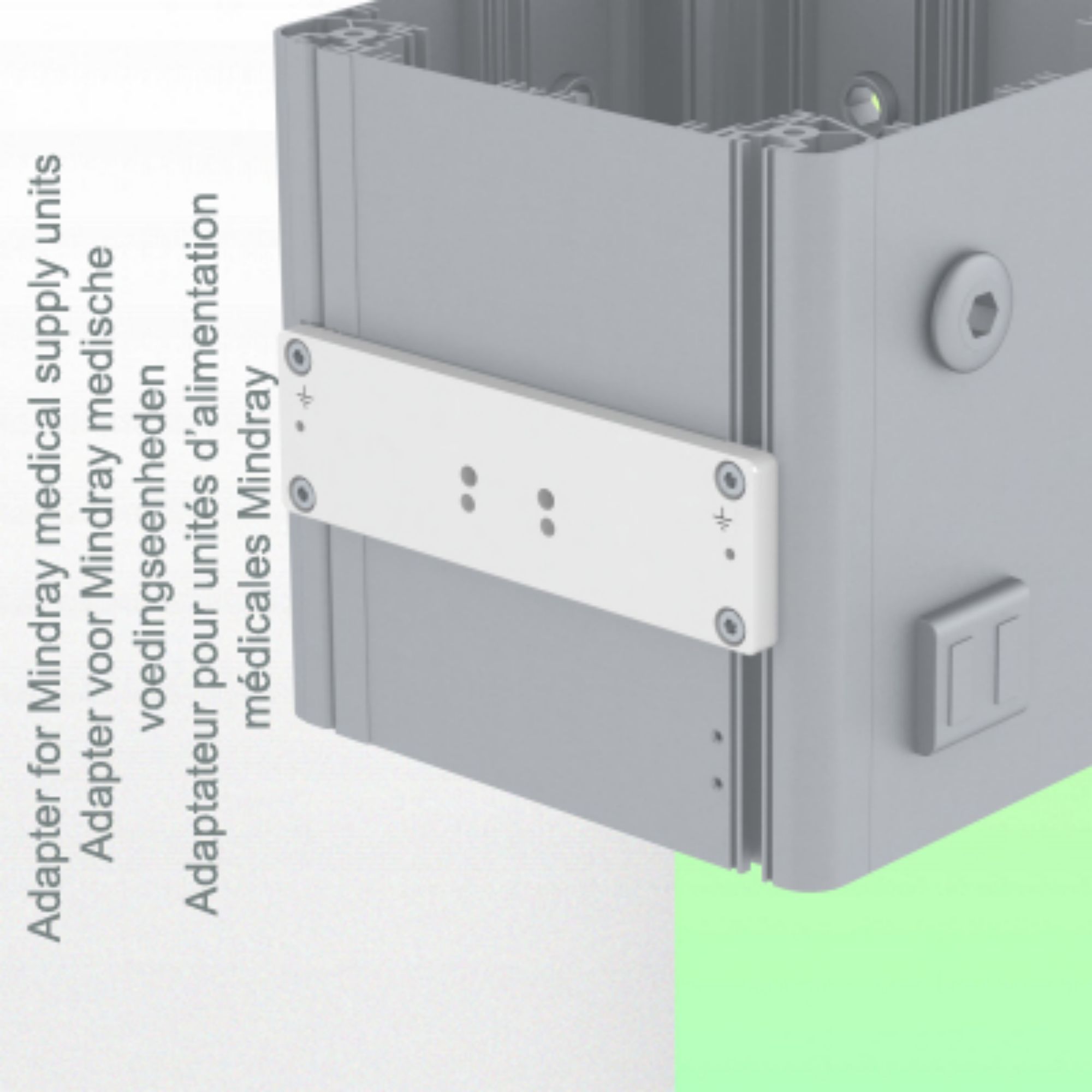

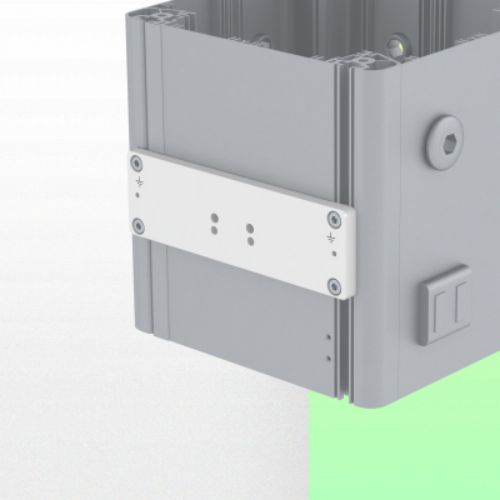

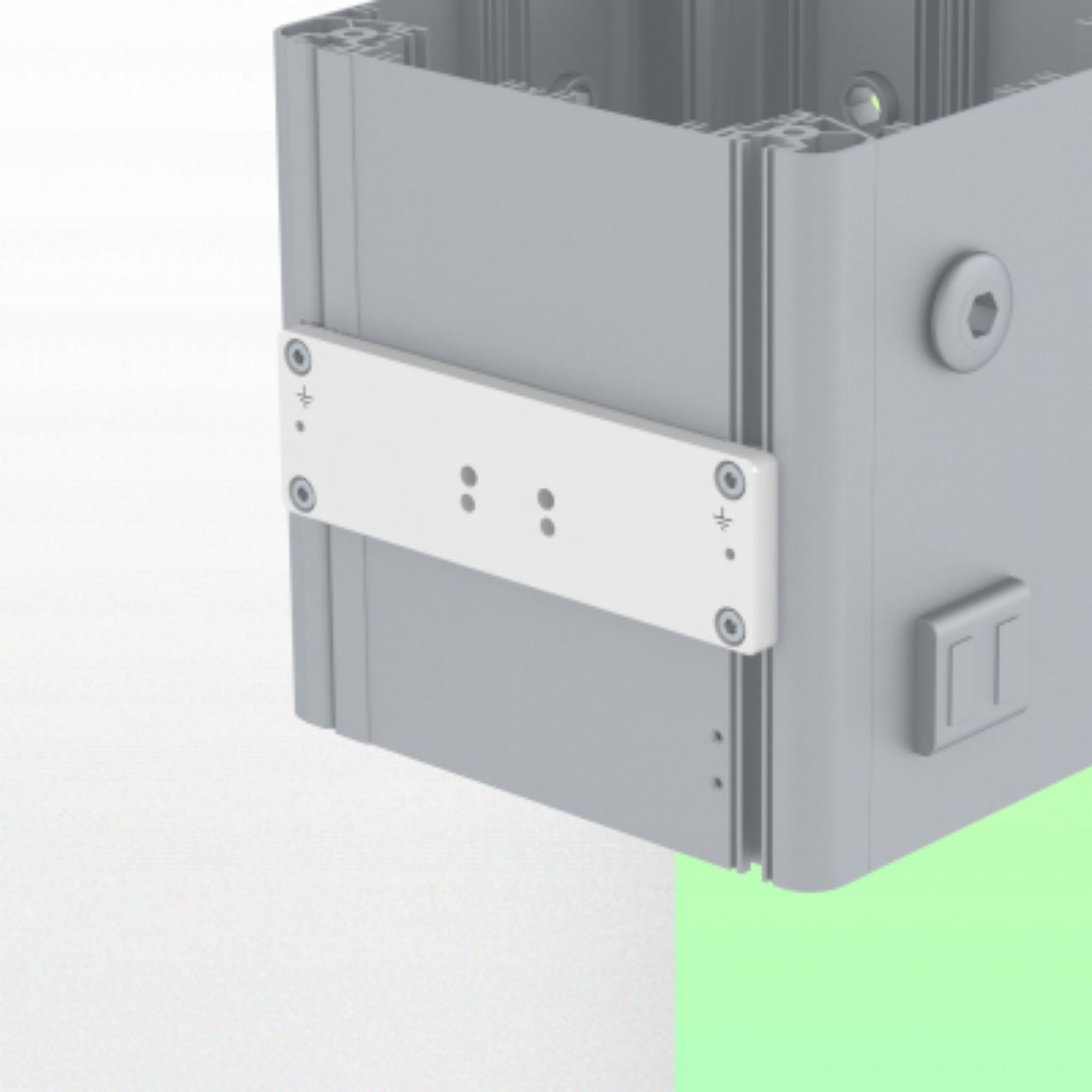

* Mounting on Mindray Medical Power Supply

* This medical arm simply attaches to the rail and then adjusts and pinches with the two clamps.

* It has no height adjustment.

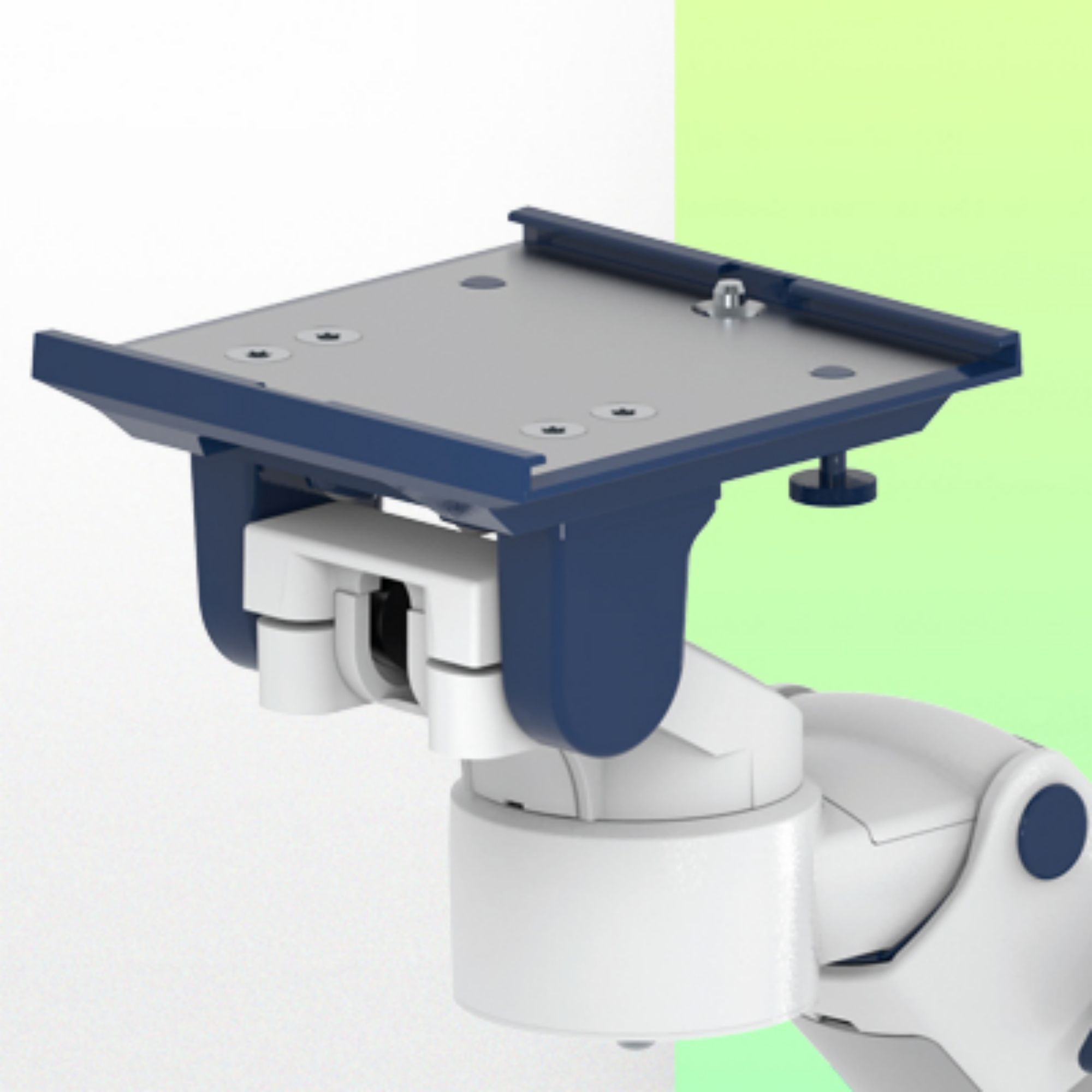

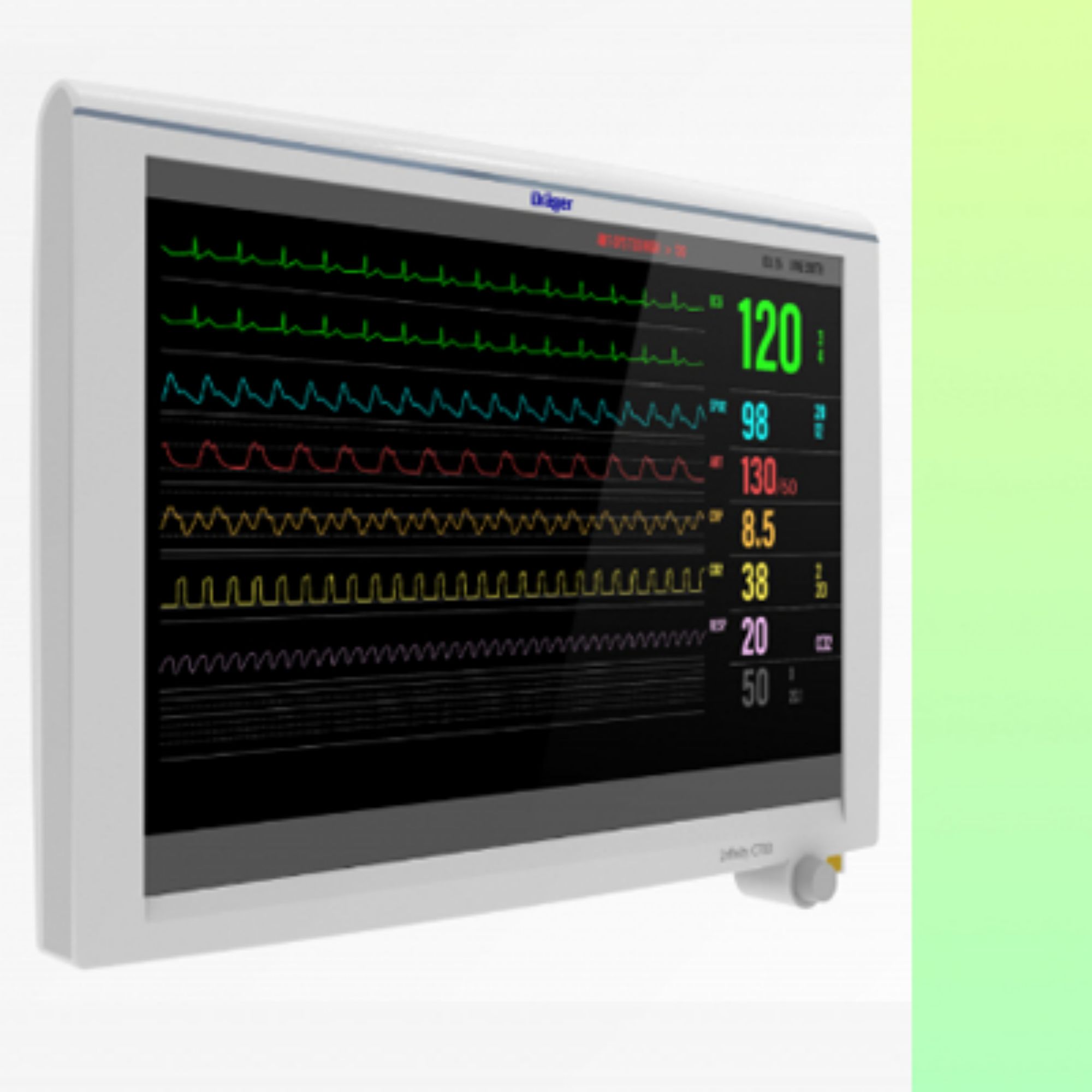

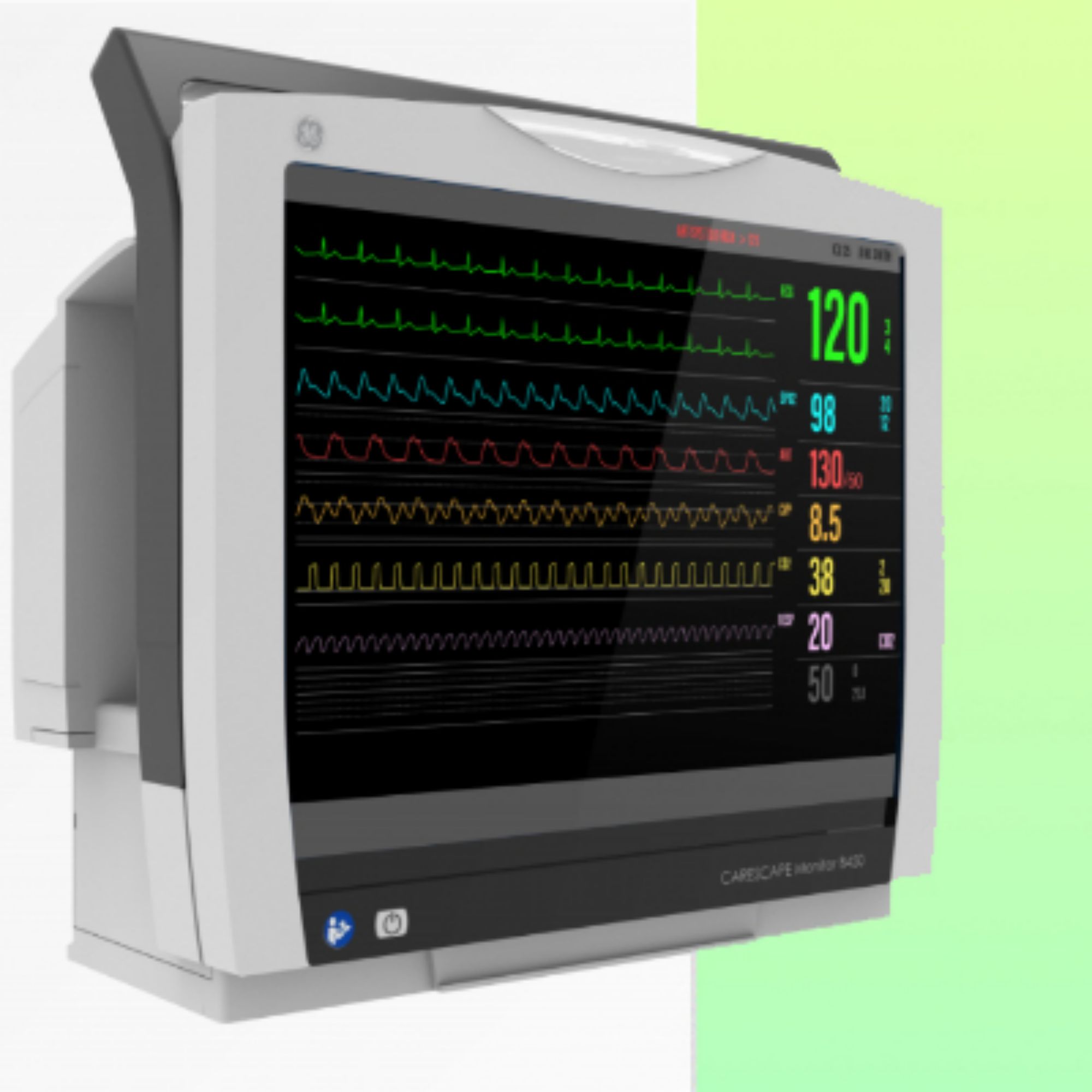

* The head of this arm complies with the mounting standard for Dräger and GE monitors weighing up to 18 kg.

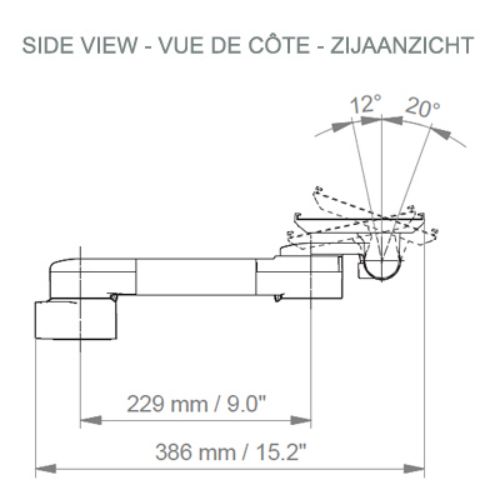

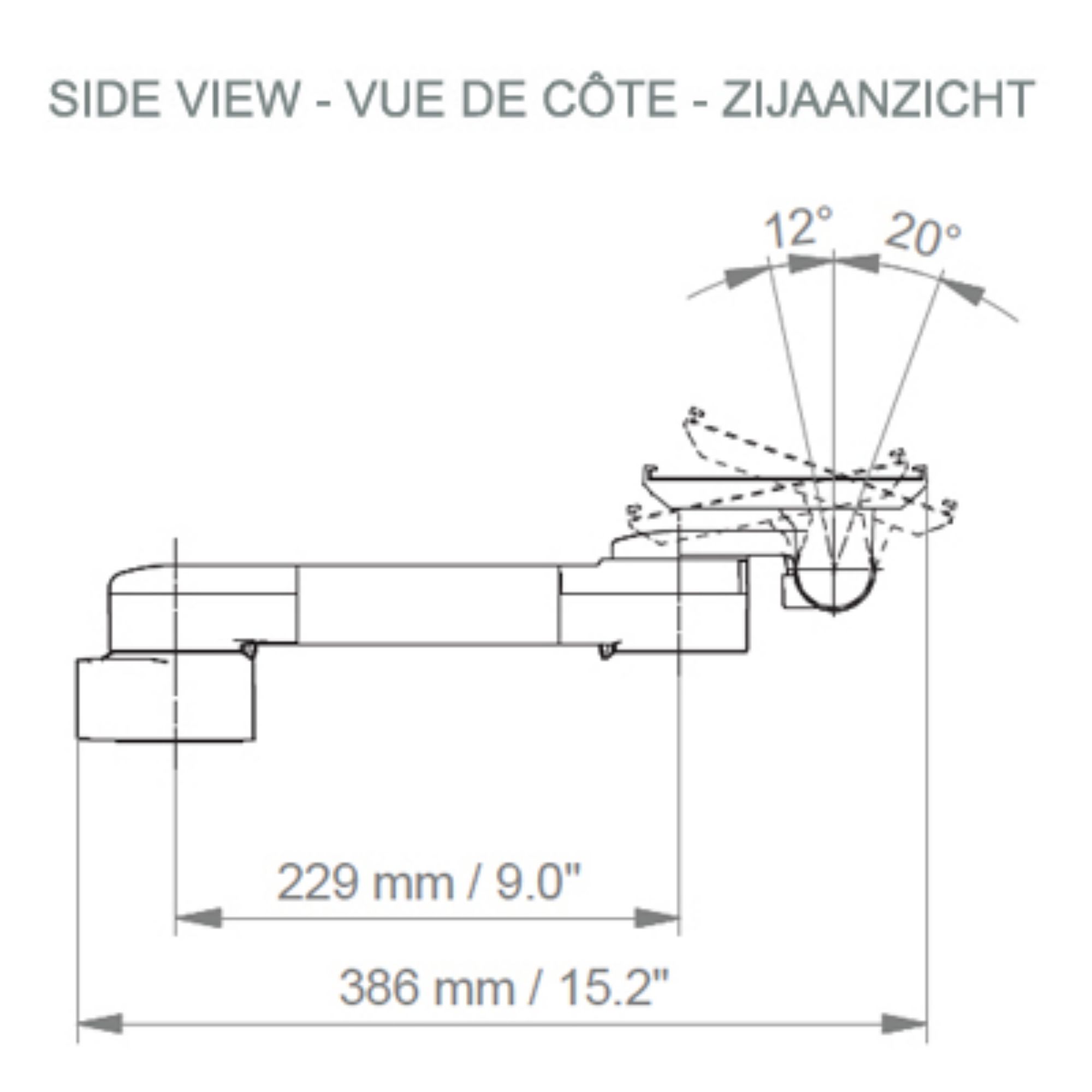

* Monitor tilt: 20° down and 12° up

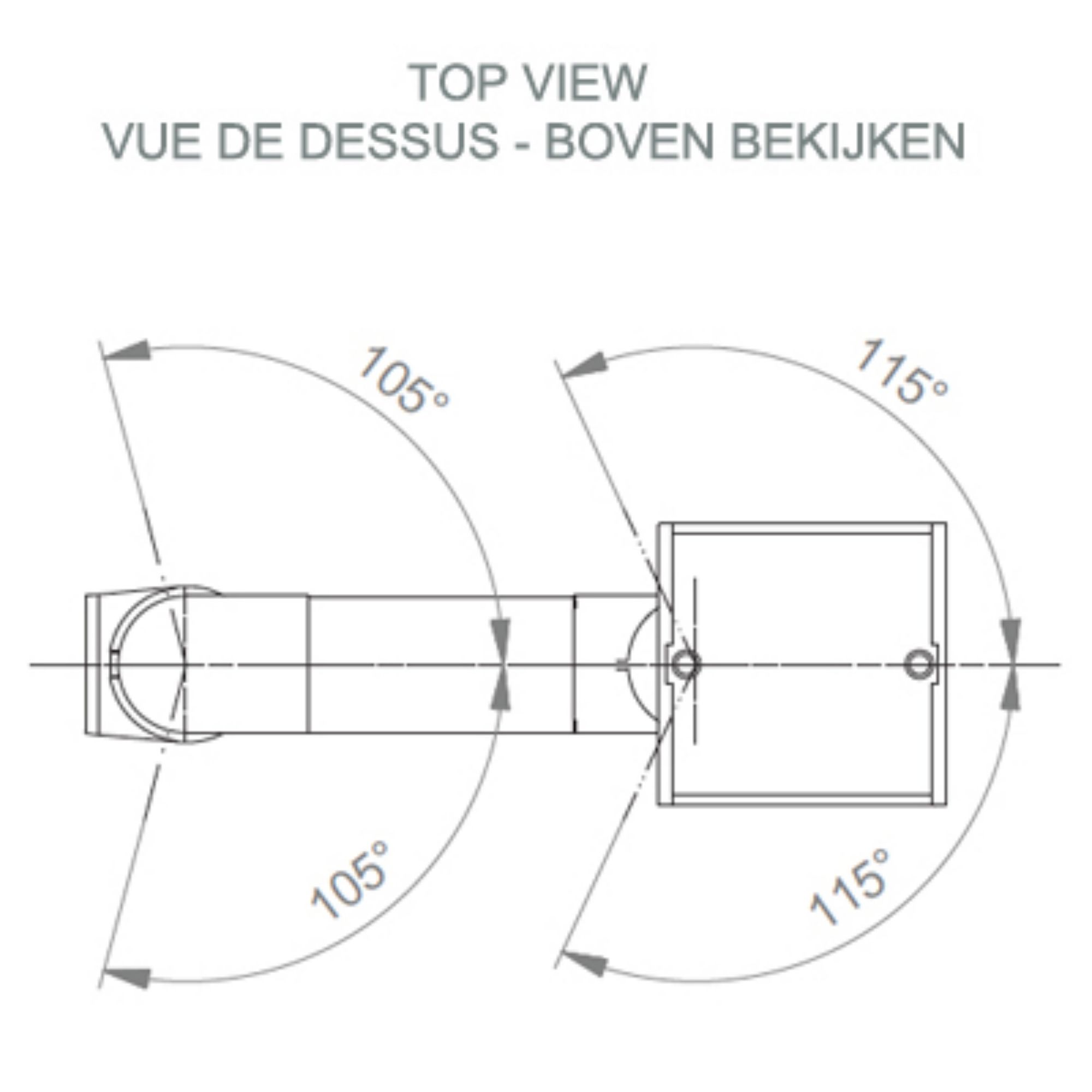

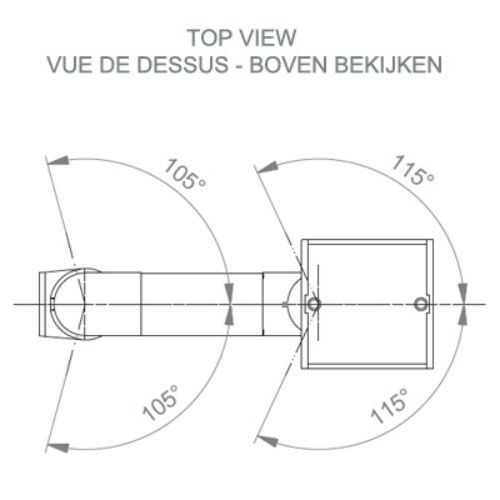

* Monitor rotation: 115° right, 115° left.

* Arm rotation: 105° right, 105° left.

* Total length: 386 mm Colour: RAL 5013 cobalt blue and RAL 9016 traffic white

* Warranty: 5 years
