Horizontal 615 mm double medical arm for monitoring.

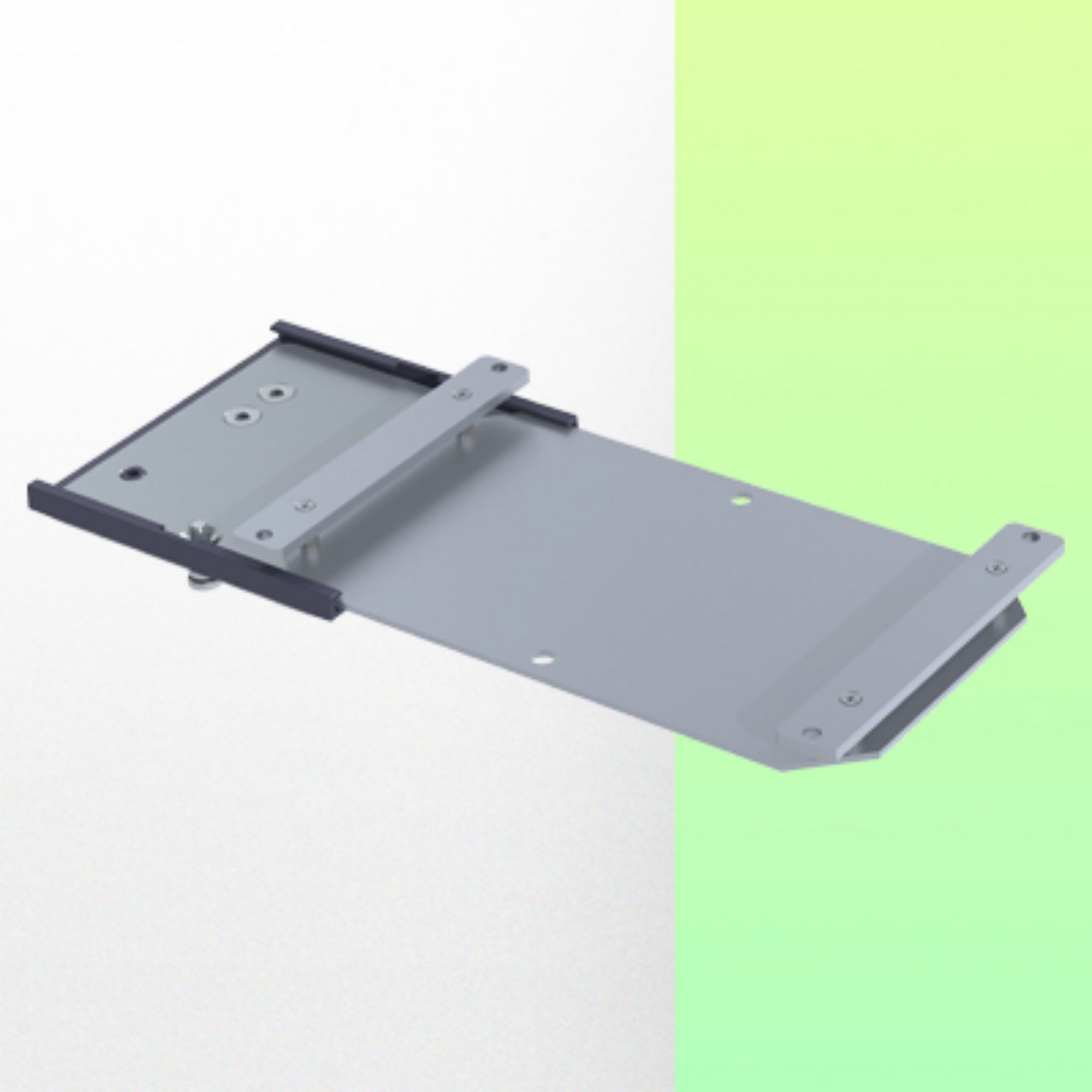

Adaptation to 5'' plate and Nihon Kohden Interface,

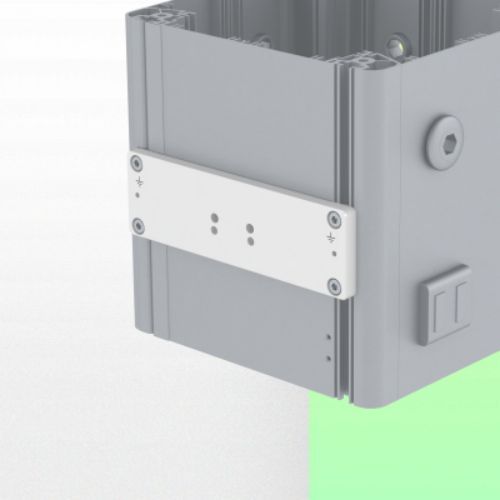

Mounting on Mindray Medical Power Supply Device.

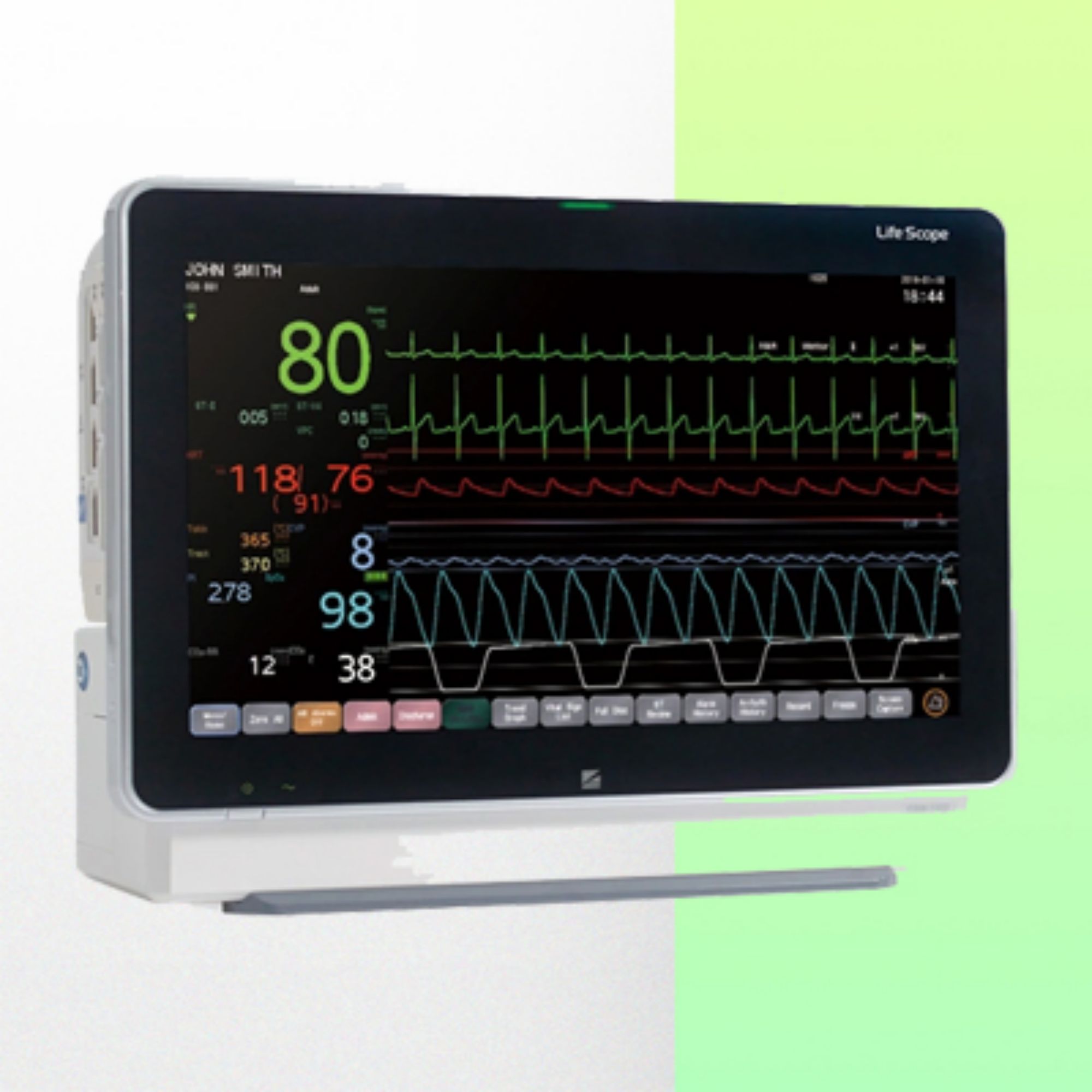

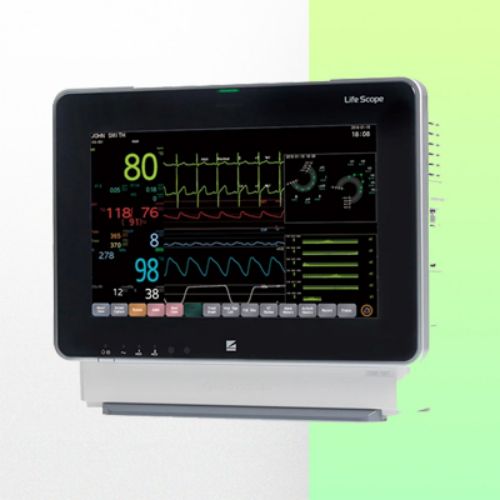

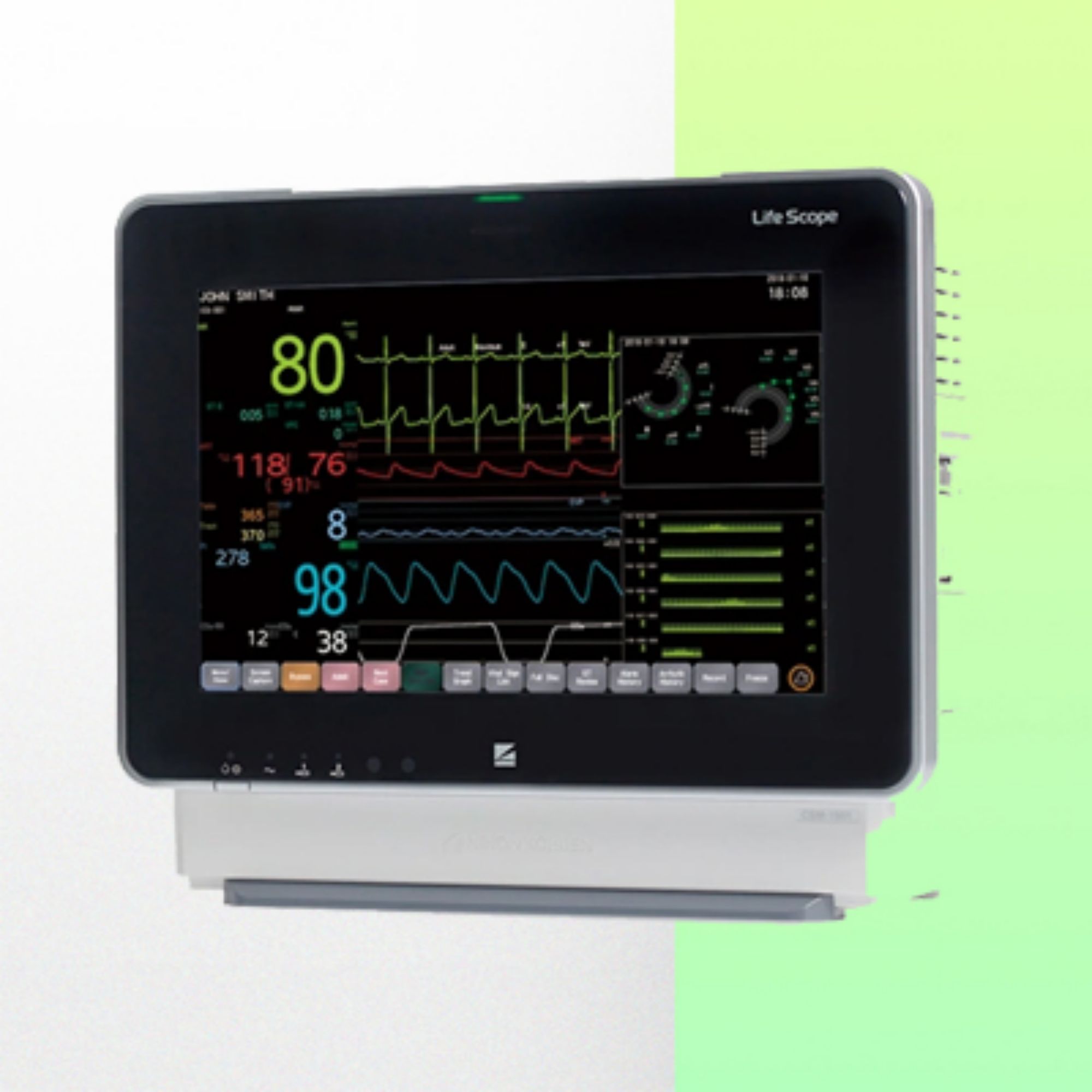

Nihon Kohden Monitoring compatible.

Product number: WM 250.122NK - Horizontal 615 mm double medical arm for monitoring.

Adaptation to 5'' plate and Nihon Kohden Interface,

Mounting on Mindray Medical Power Supply Device.

Nihon Kohden Monitoring compatible.

Product sheet PDF

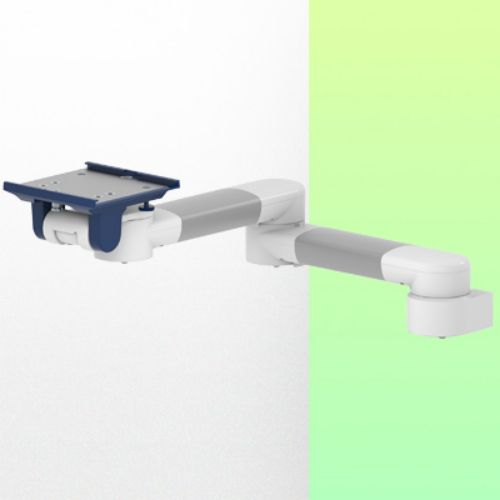

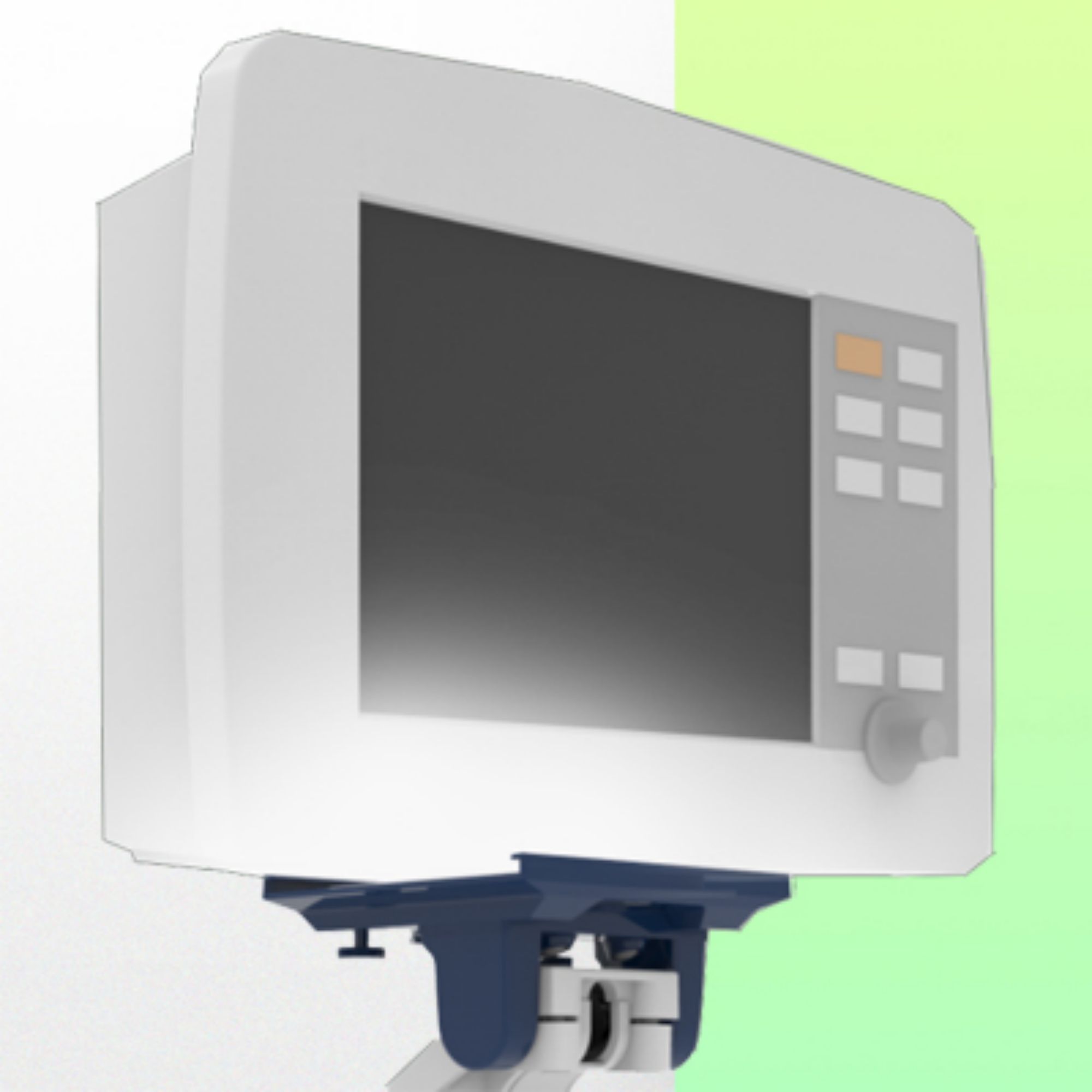

This 615 mm Horizontal Arm allows you to fix, orient and adjust the monitor perfectly.

It is covered with an anti-microbial agent offering hygiene and cleaning in every detail.

Its modern design has been specially designed for healthcare environments.

Technical characteristics:

* Built-in cable passage

* For Light Application

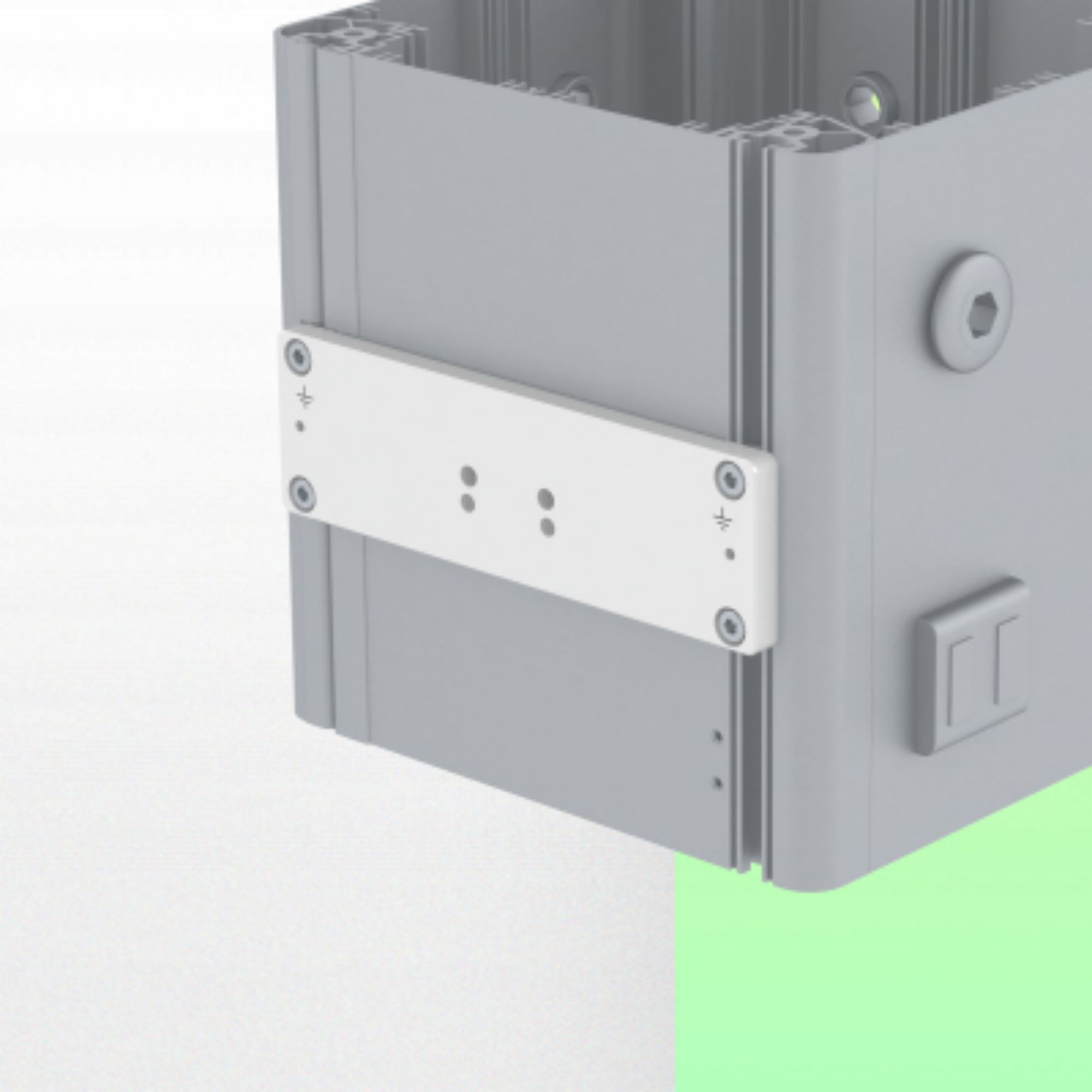

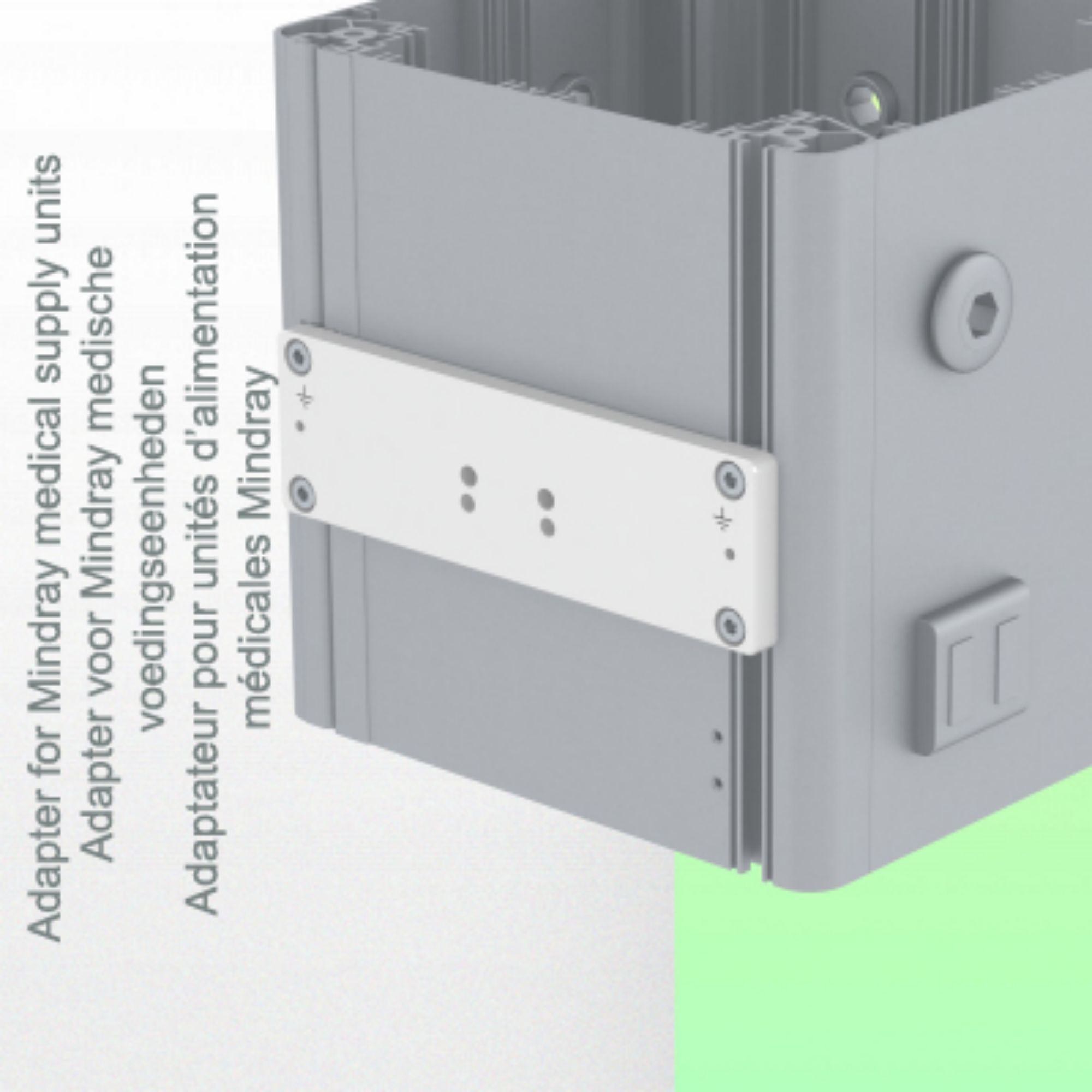

* Mounting on Mindray Medical Feeding Device

* This medical arm simply attaches to the rail and then adjusts and pinches with the two clamps.

* It has no height adjustment.

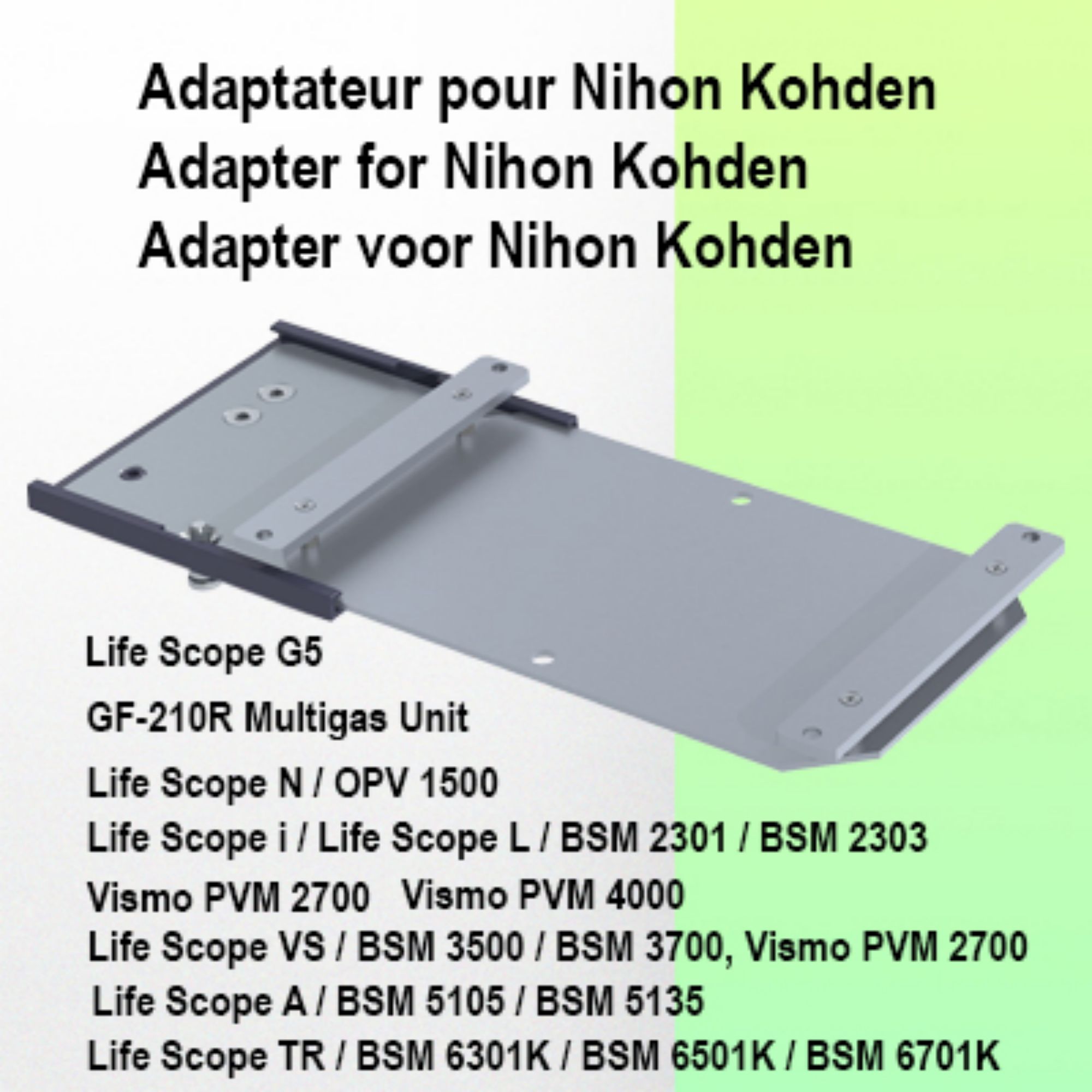

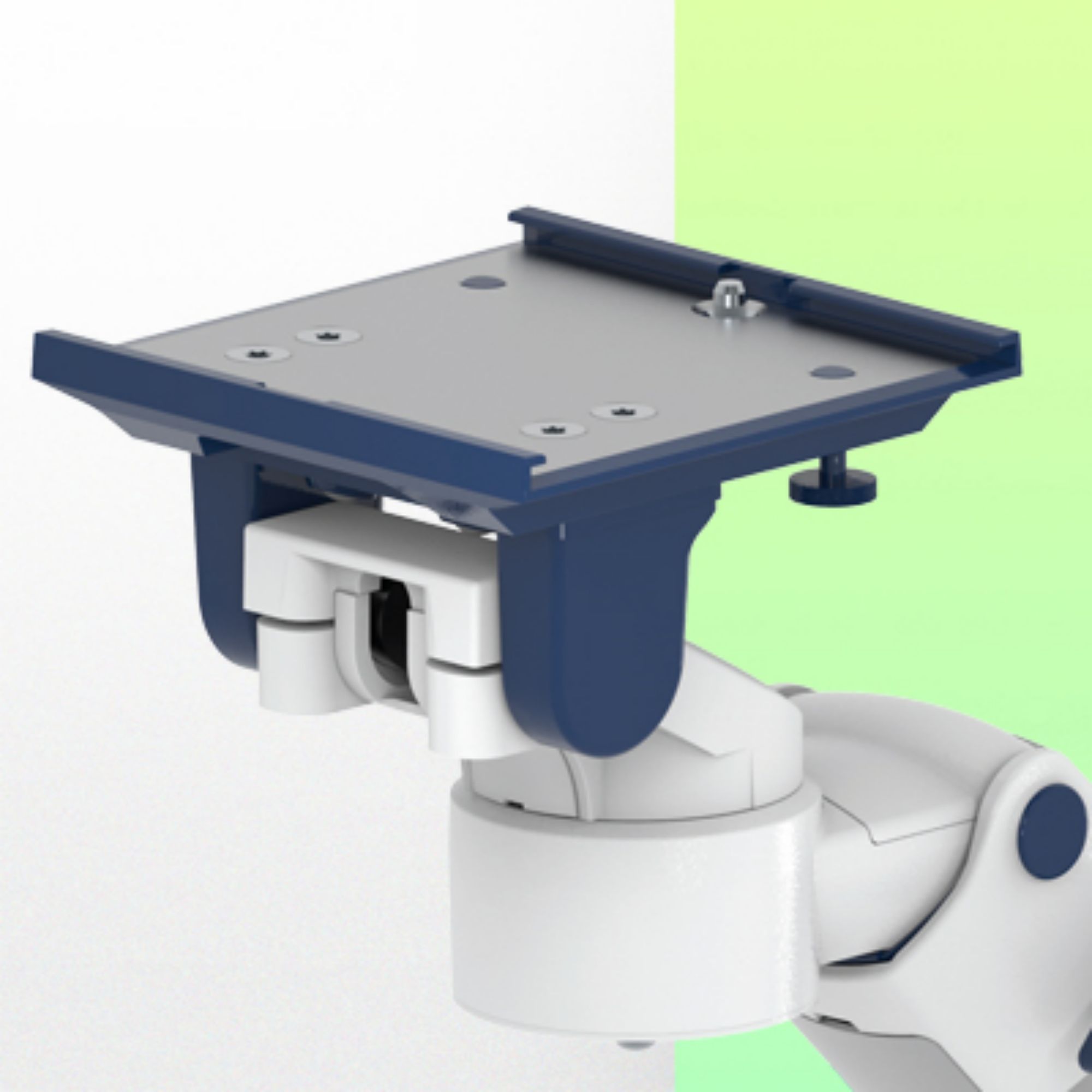

* The head of this arm complies with the Nihon Kohden Monitor mounting standard, which does not exceed 8 Kg.

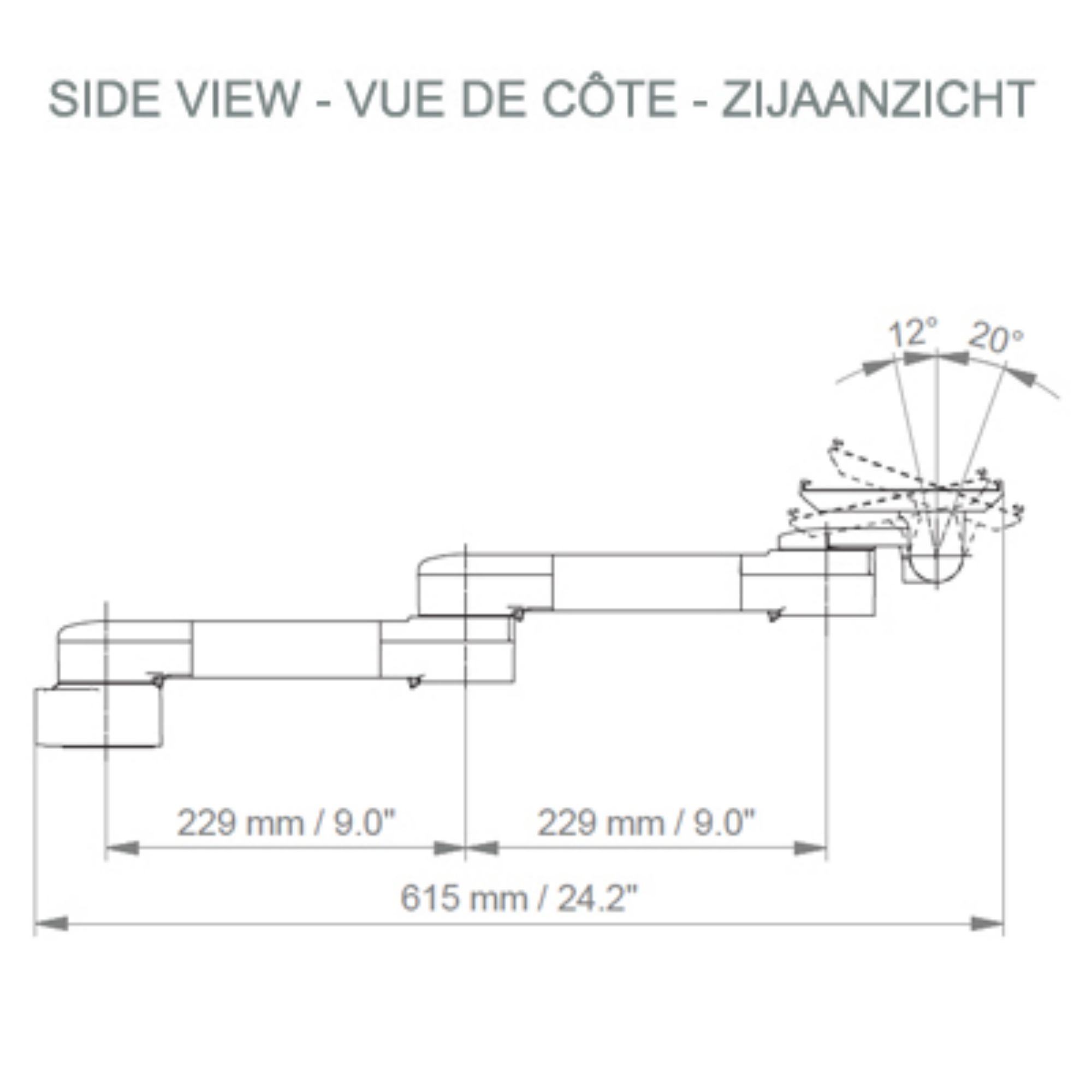

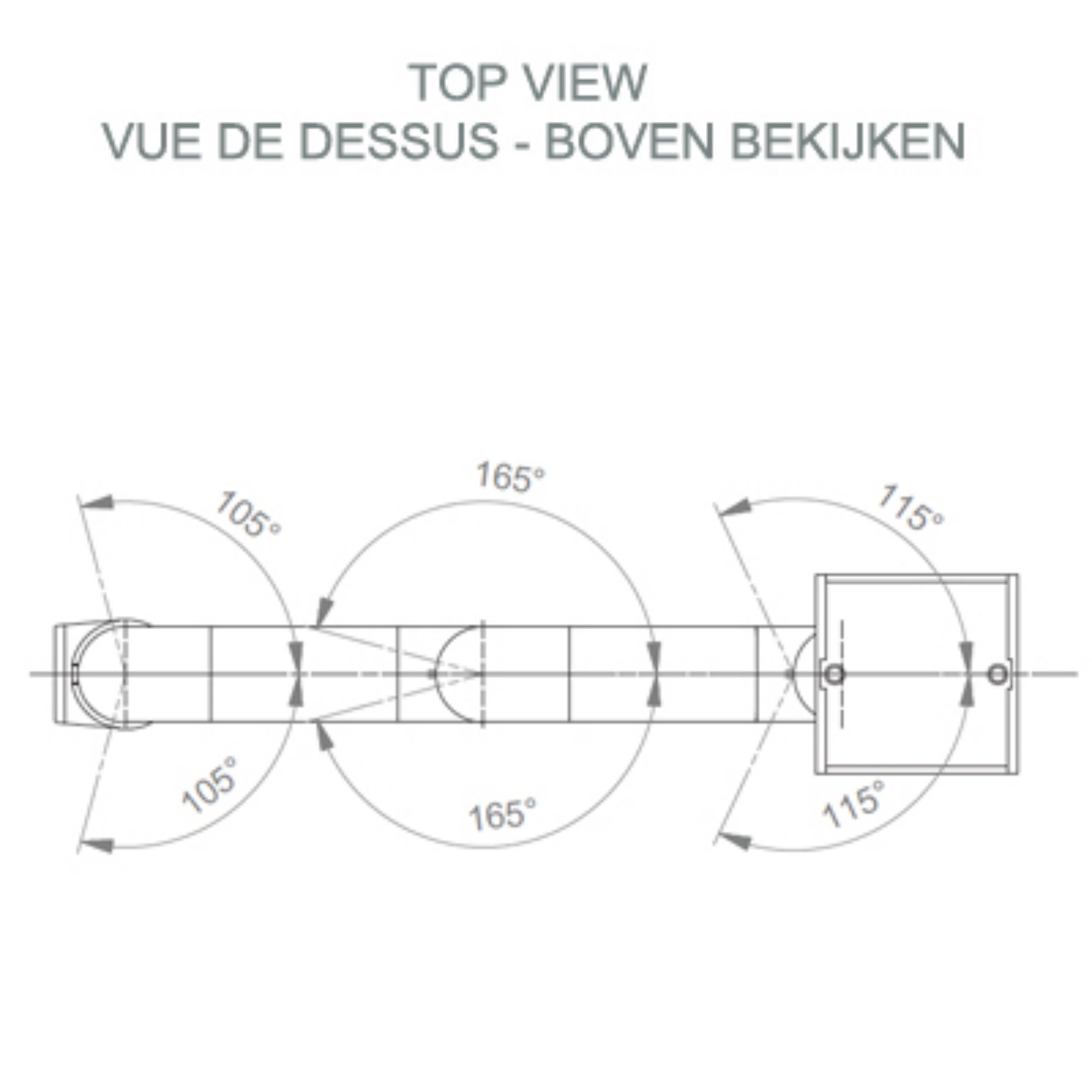

* Monitor tilt: 20° down and 12° up

* Monitor rotation: 115° right, 115° left.

* Arm rotation: 105° right, 105° left.

* Total length 615 mm

* Color RAL 5013 cobalt blue and RAL 9016 traffic white

* Warranty: 5 years
