Double 618 mm Horizontal Medical Arm for monitoring

Adaptation plate 5’',

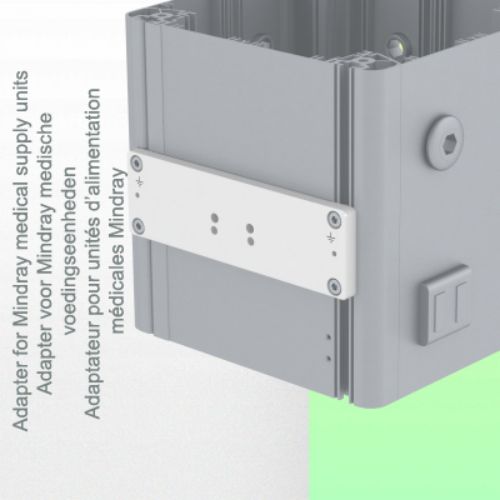

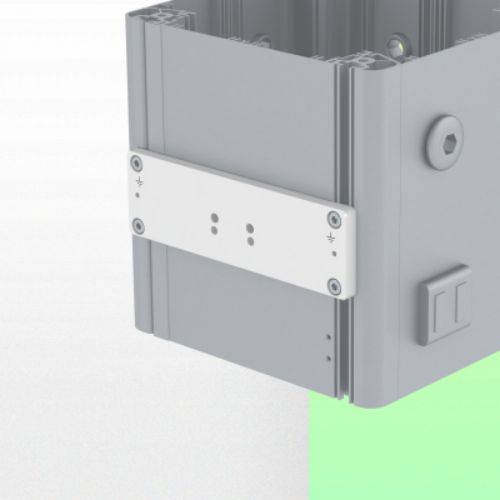

Mounting on Mindray Medical Power Supply Device.

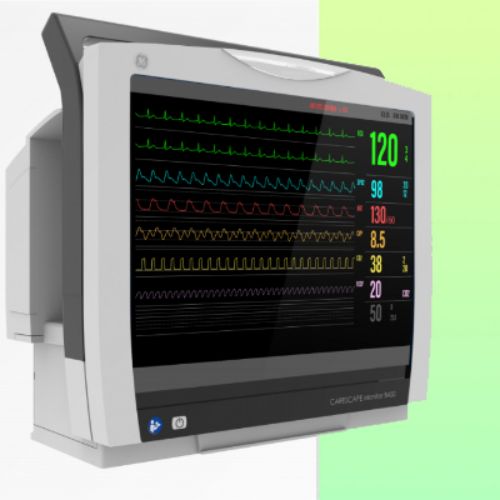

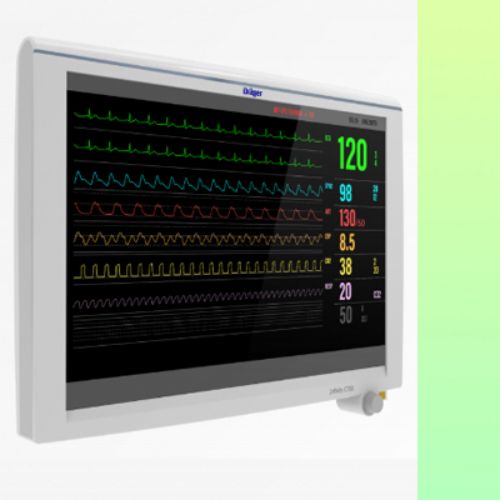

Compatible Monitoring Dräger and GE.

Product number: WM 250.123 - Double 618 mm Horizontal Medical Arm for monitoring

Adaptation plate 5’',

Mounting on Mindray Medical Power Supply Device.

Compatible Monitoring Dräger and GE.

Product sheet PDF

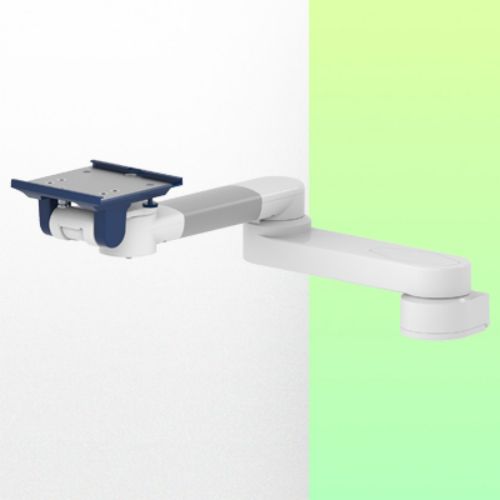

This 618 mm dual Horizontal Arm allows you to fix, orient and adjust the monitor perfectly.

It is covered with an anti-microbial agent offering hygiene and cleaning in every detail.

Its modern design has been specially designed for healthcare environments.

Technical characteristics:

* Built-in cable passage

* For Heavy Duty Application

* Mounting on Mindray Medical Power Supply

* This medical arm simply attaches to the rail and then adjusts and pinches with the two clamps.

* It has no height adjustment.

* The head of this arm complies with the Dräger and GE monitor mounting standard, which does not exceed 18 Kg.

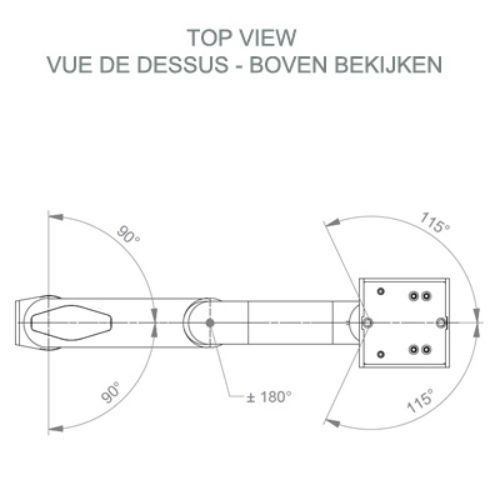

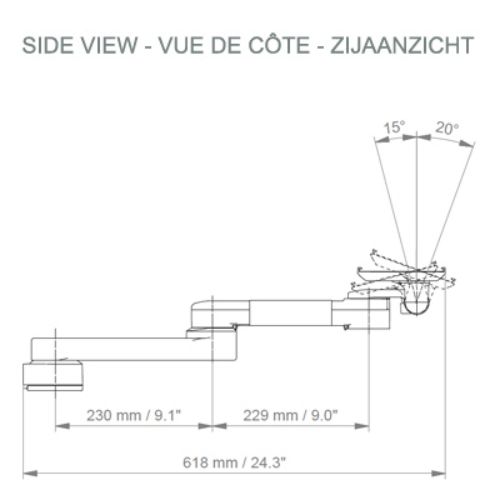

* Monitor tilt: 20° down and 12° up

* Monitor rotation: 115° right, 115° left.

* Arm rotation: 90° right, 90° left.

* Total length 618 mm

* Color RAL 5013 cobalt blue and RAL 9016 traffic white

* Warranty: 5 years
