Medical arm with 5" plunge plate or Quick Release for height-adjustable monitoring,

Variable Pole Mount from 23 to 40 mm.

Supported weight balance scale from 2 to 5 kg.

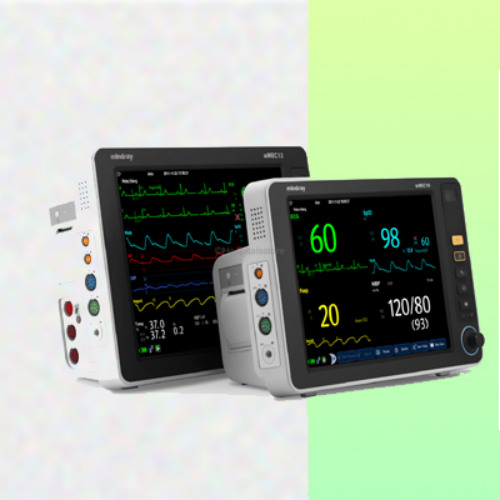

Compatible with Mindray monitoring.

Product number: WM 250.160MD - Medical arm with 5" plunge plate or Quick Release for height-adjustable monitoring,

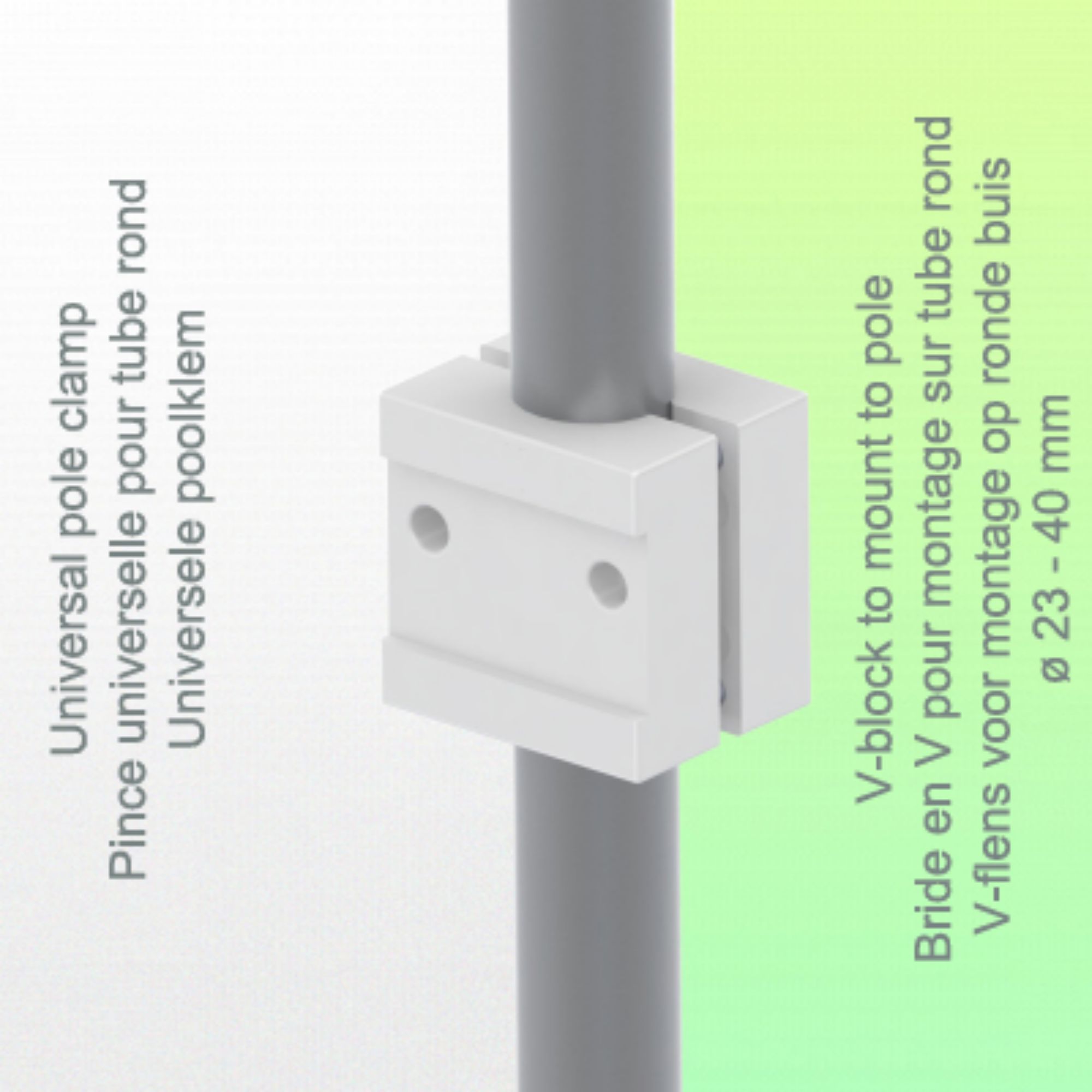

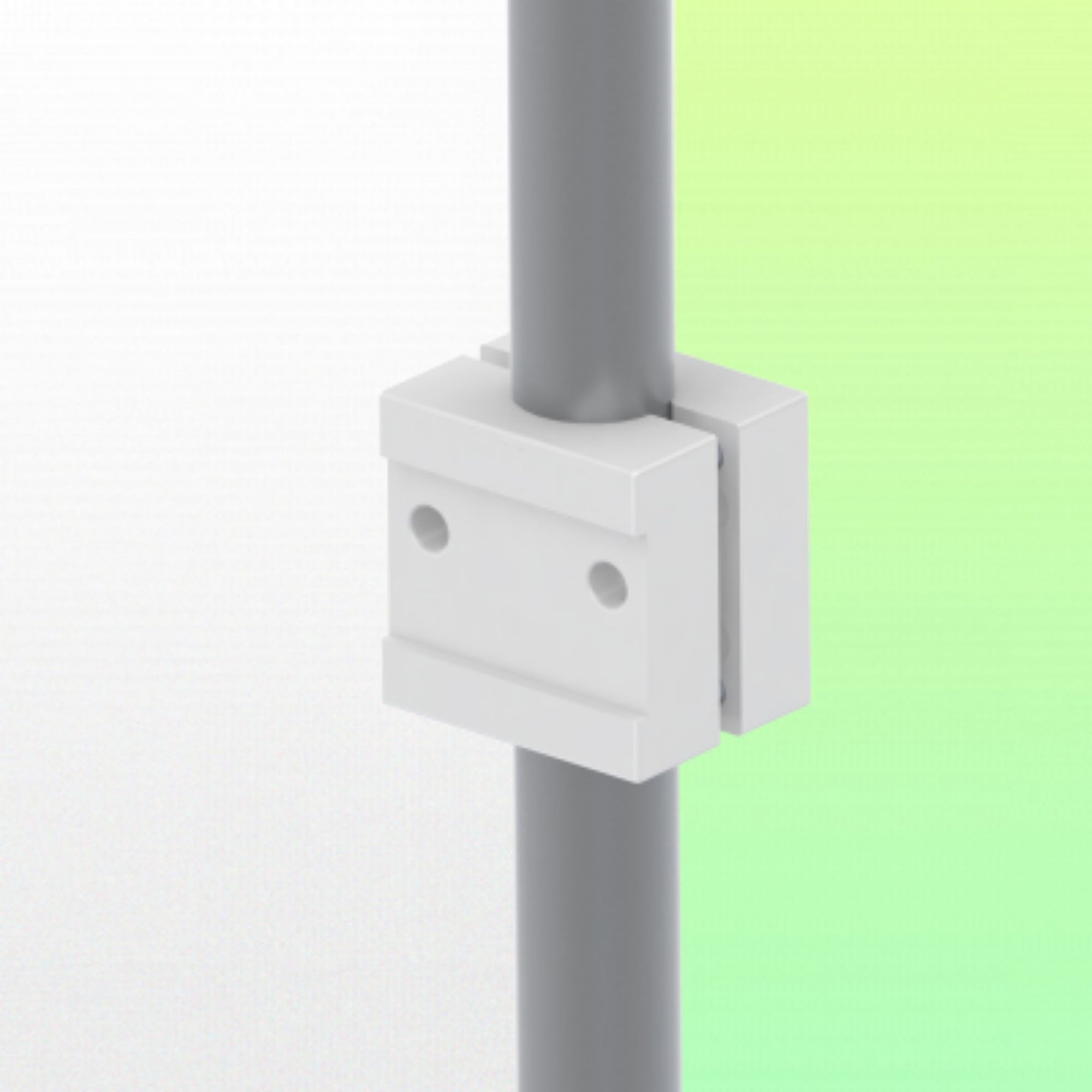

Variable Pole Mount from 23 to 40 mm.

Supported weight balance scale from 2 to 5 kg.

Compatible with Mindray monitoring.

Product sheet PDF

Full cable integration and infection prevention thanks to easy-to-clean surfaces make this arm ideal for emergency care areas.

Height adjustment for ergonomic, customised positioning of the monitor.

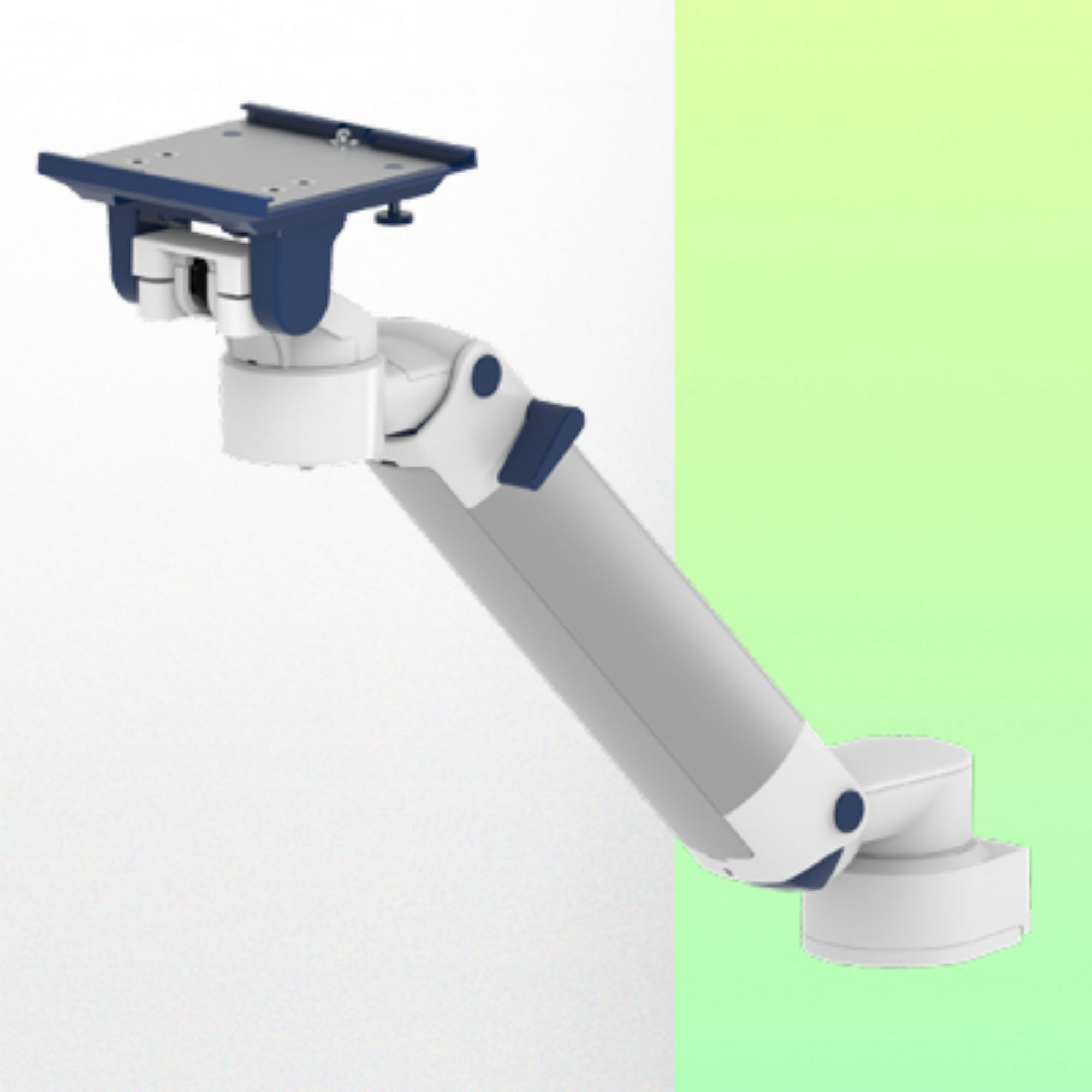

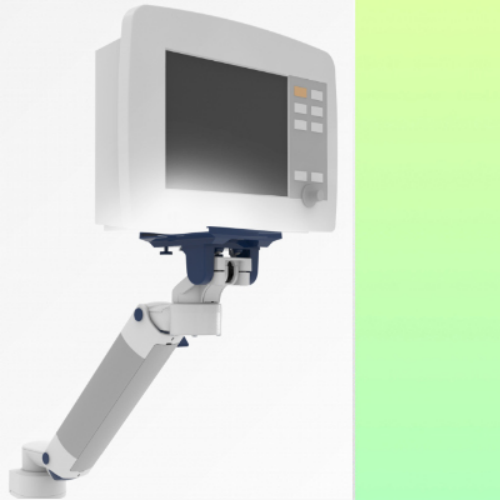

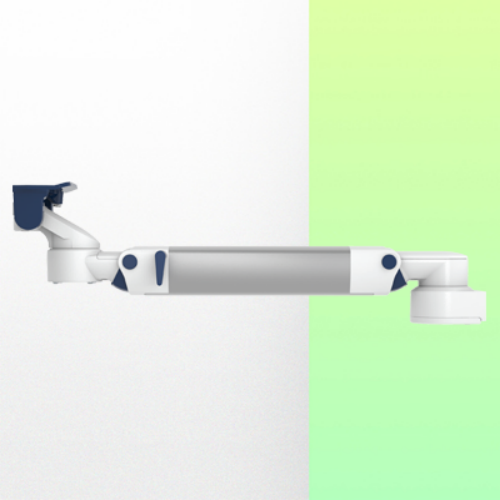

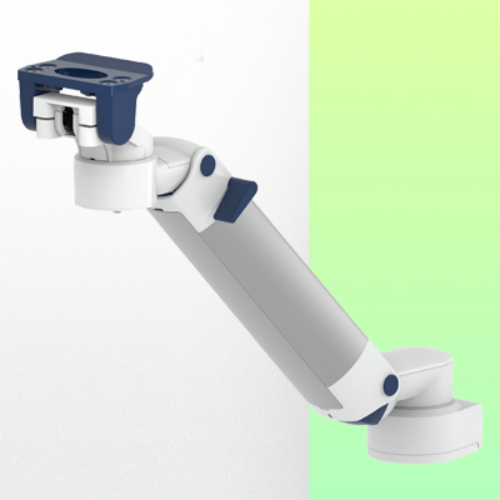

This 450 mm Horizontal Medical Arm with gas-lift height adjustment enables the monitor to be fixed, oriented and adjusted perfectly.

It is coated with an anti-microbial agent for hygiene and cleaning down to the smallest detail.

Its modern design has been specially developed for healthcare environments.

Technical specifications:

* Integral cable entry

* Equipotential bonding

* This 450 mm Horizontal Arm with gas spring simply adjusts to the desired height and is fixed.

* It has a safety stop button for height adjustment, allowing the arm to remain in the chosen position.

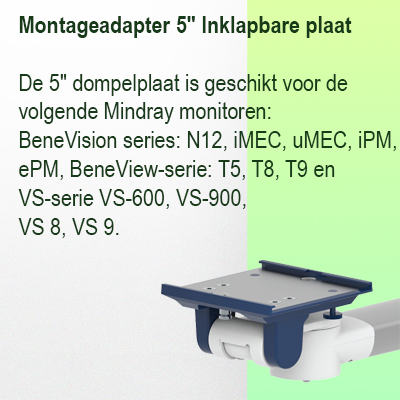

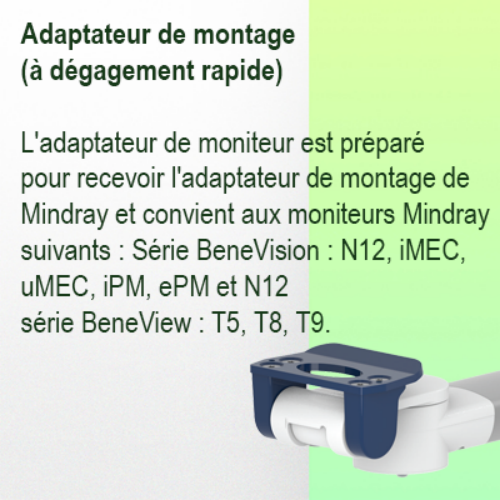

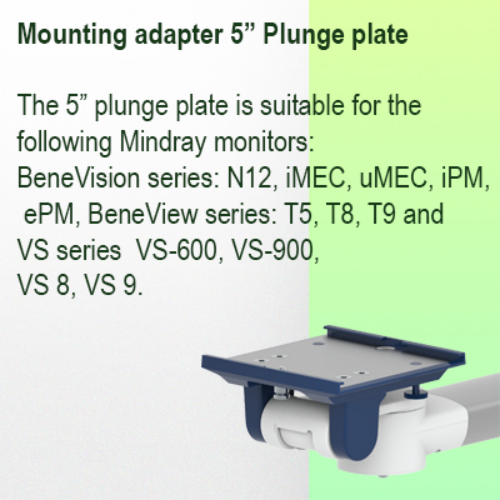

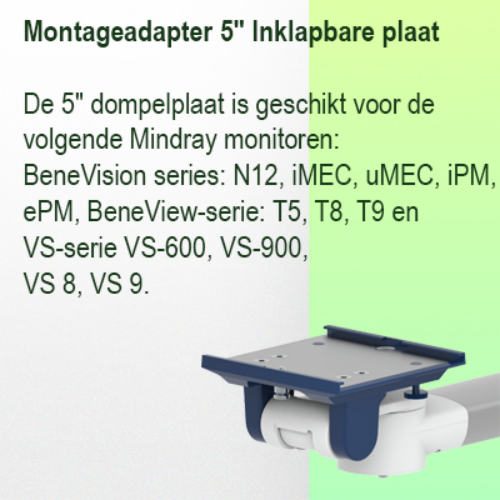

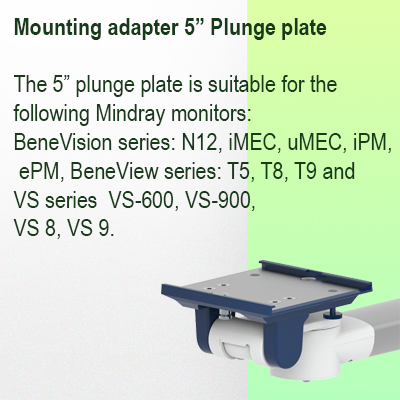

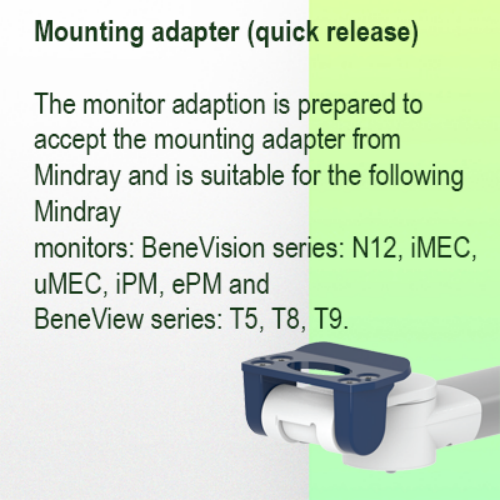

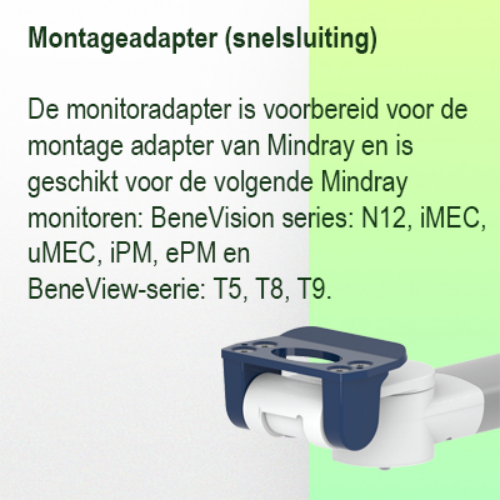

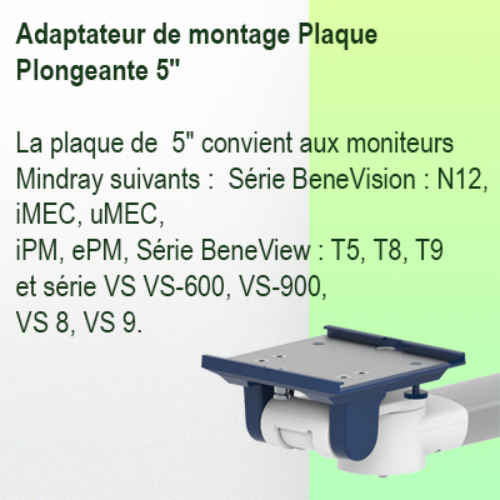

* The head of this arm has a 5" Plunge Plate or Quick Release and is compatible with Mindray monitors.

* Suitable for monitors weighing up to 2-5 Kg.

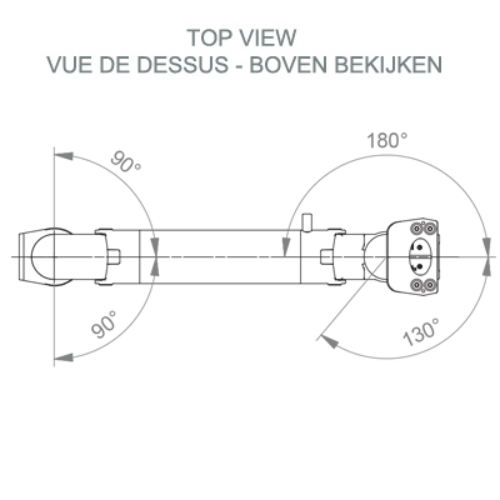

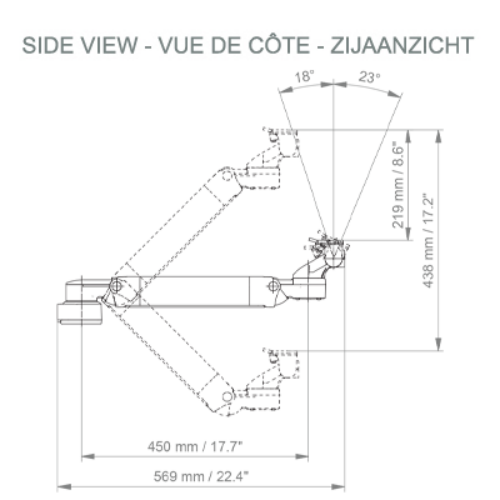

* Monitor tilt: 23° down and 18° up

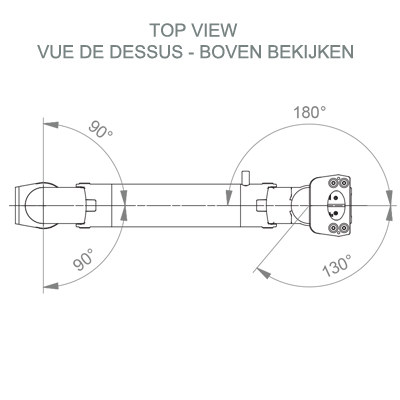

* Monitor rotation: 130° right, 180° left.

* Arm rotation: 90° right, 90° left

* Height adjustment: 438 mm

* Total length: 569 mm

* All our medical arms comply with CE, ROHS, Medical Grade, Regulations MDD 93/42 ECC.

* Colour: RAL 5013 cobalt blue and RAL 9016 traffic white

* Warranty: 5 years
