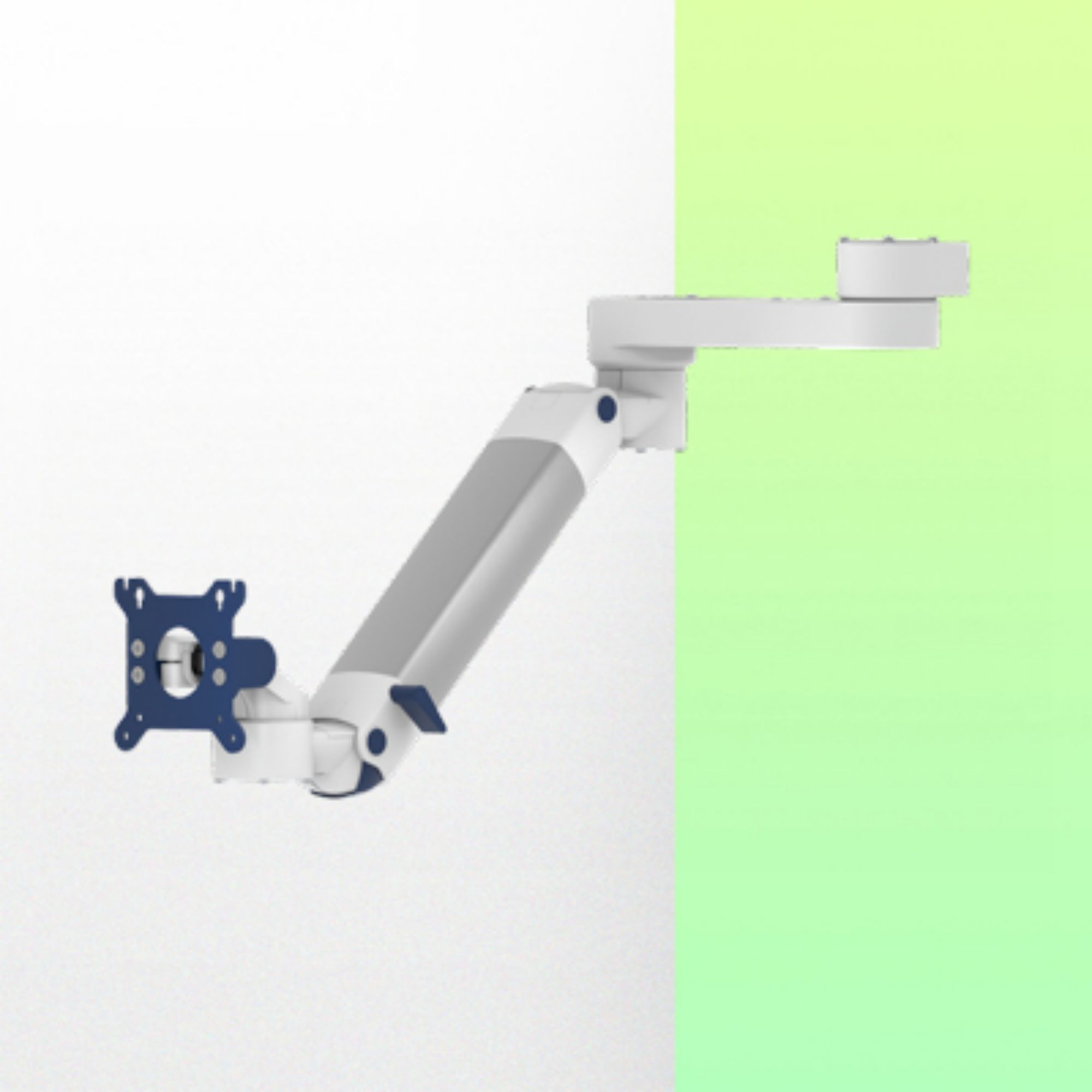

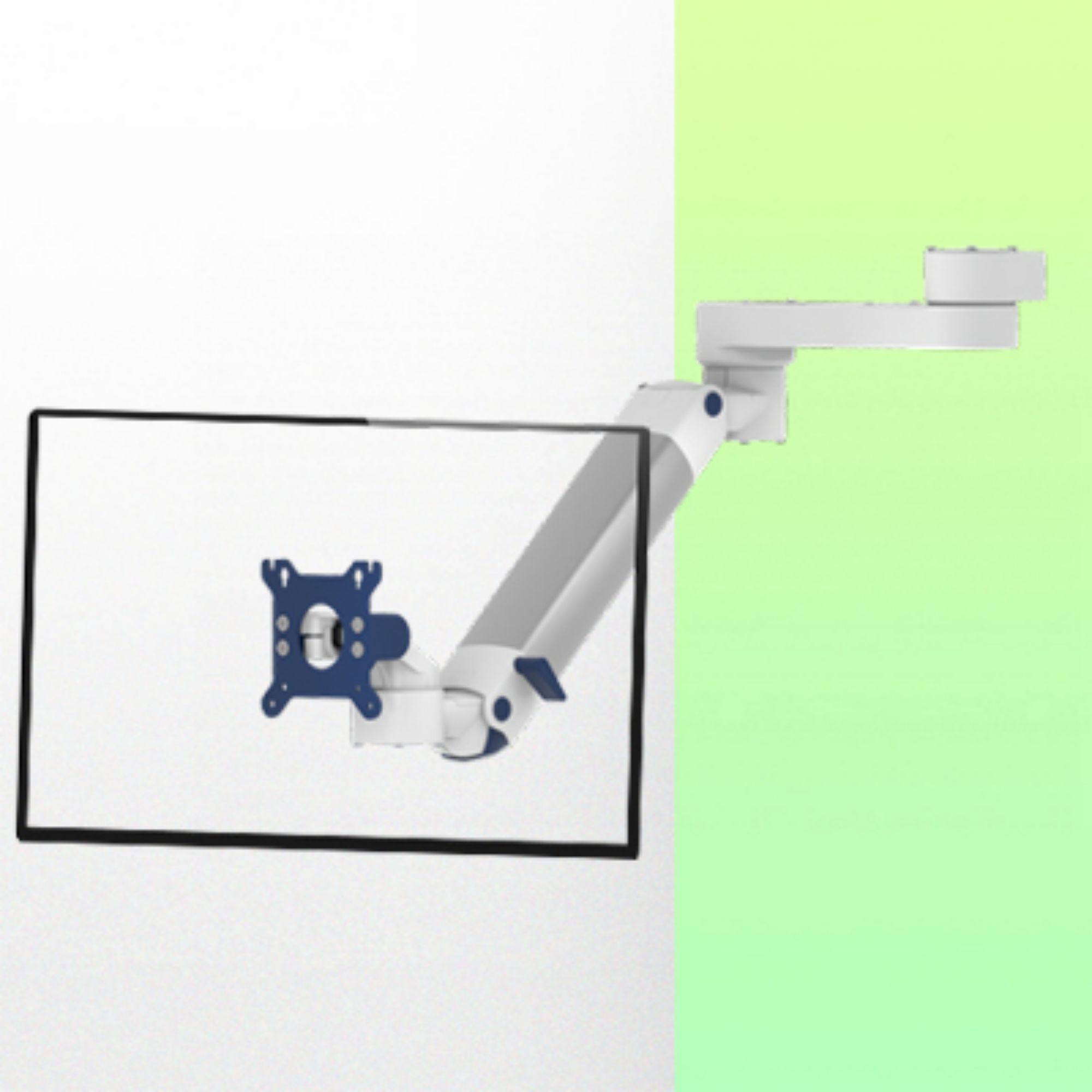

Medical arm with 5" plunge plate for height-adjustable monitoring,

wall-mounted on vertical sliding rail.

Supported weight balance scale from 13 to 16 kg.

Compatible with Dräger and GE monitoring.

Overhead mount.

Product number: WM 250.243 - Medical arm with 5" plunge plate for height-adjustable monitoring,

wall-mounted on vertical sliding rail.

Supported weight balance scale from 13 to 16 kg.

Compatible with Dräger and GE monitoring.

Overhead mount.

Product sheet PDF

When the only available mounting point is high up, this arm gains those crucial extra centimetres lower down for ergonomic ease.

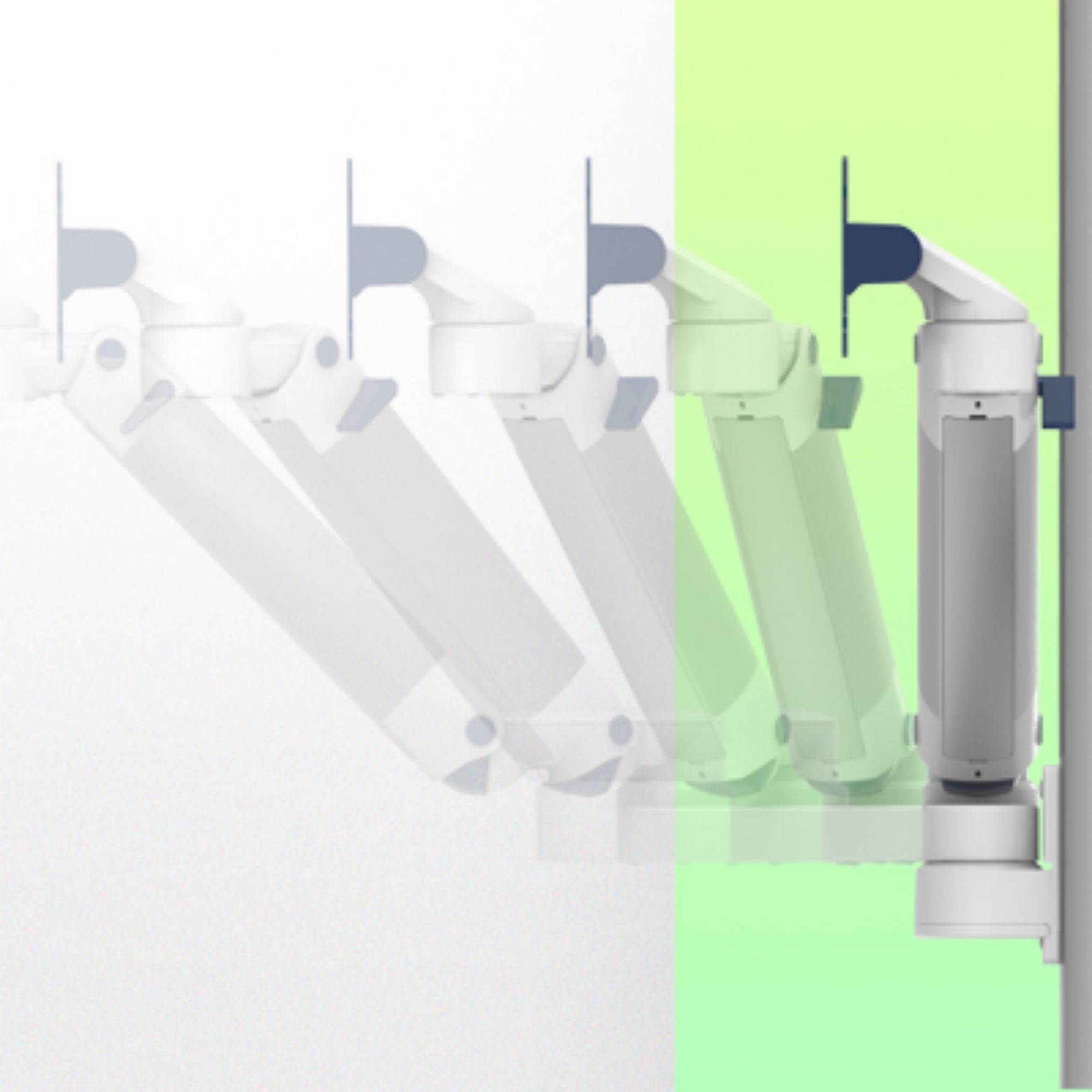

The arm extends far into the workspace, its height is adjustable and it can be neatly folded away when not in use.

Need more reach for your monitor?

And the only mounting position available is too high to reach your equipment?

This arm has been specially designed for high mounting positions.

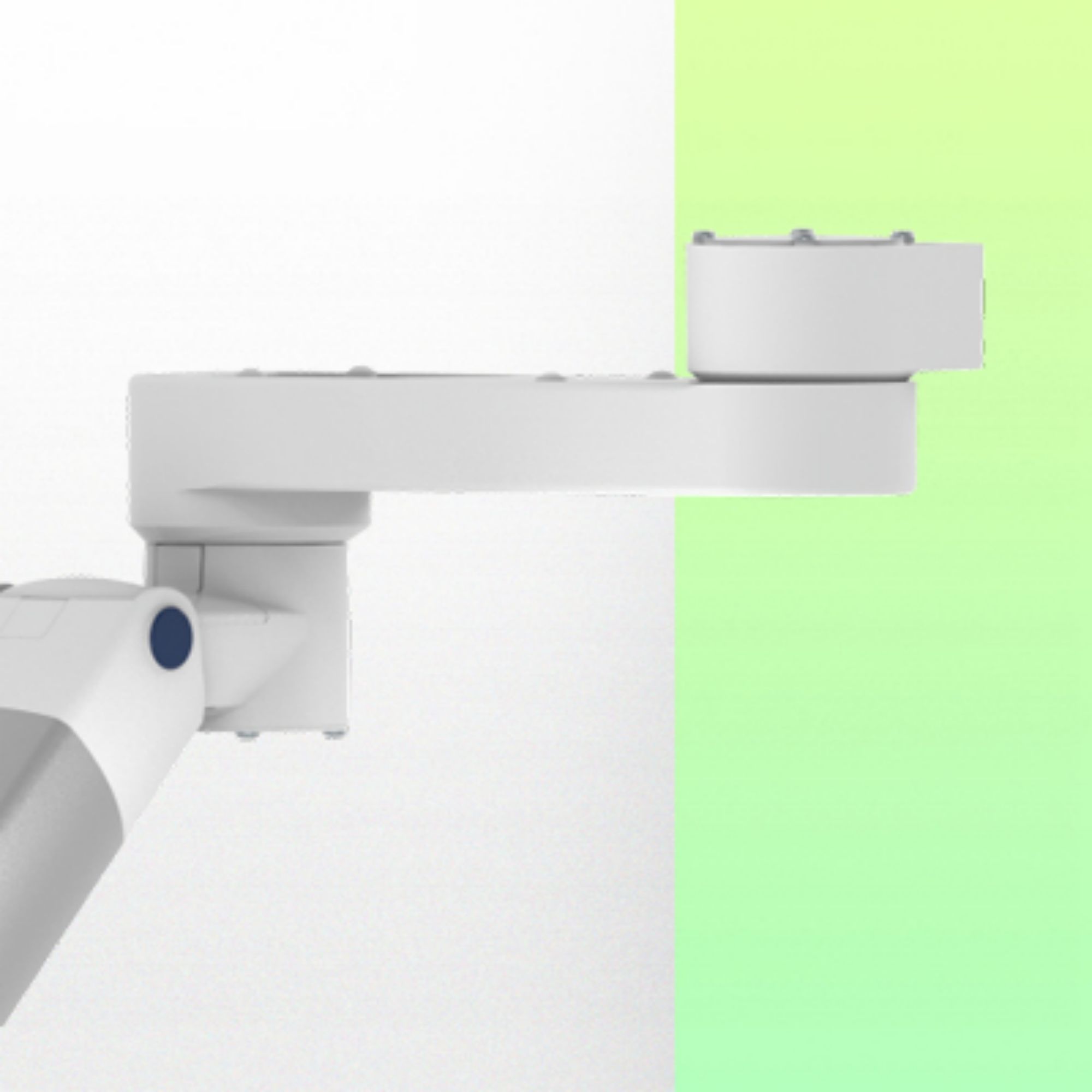

The arm descends from the first joint.

The integrated cable routing provides a clean and tidy working environment.

A medical-grade arm with easy-to-clean, infection-control surfaces, a 5-year guarantee and a safety factor of 6.

Technical specifications:

* Integral cable entry

* Equipotential bonding

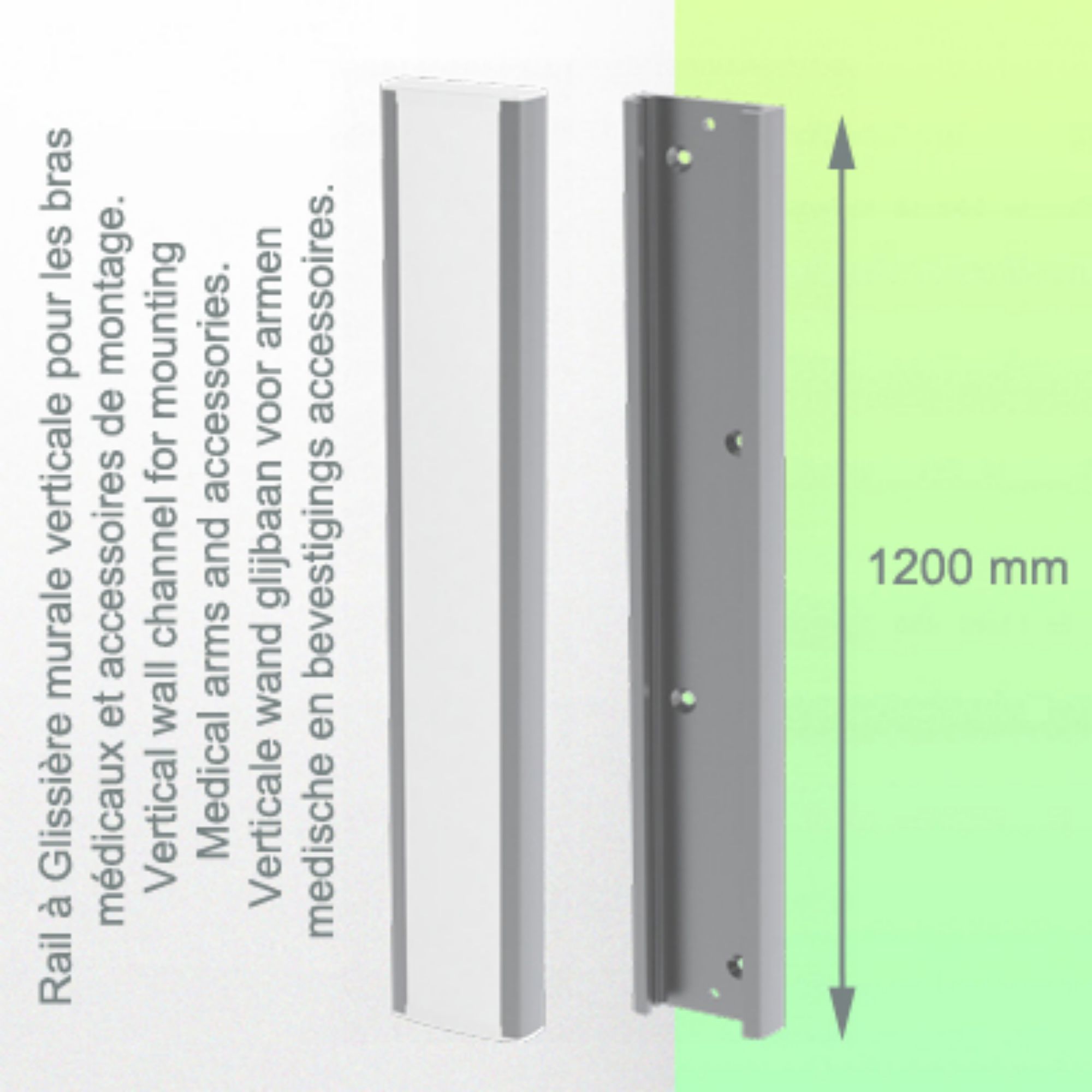

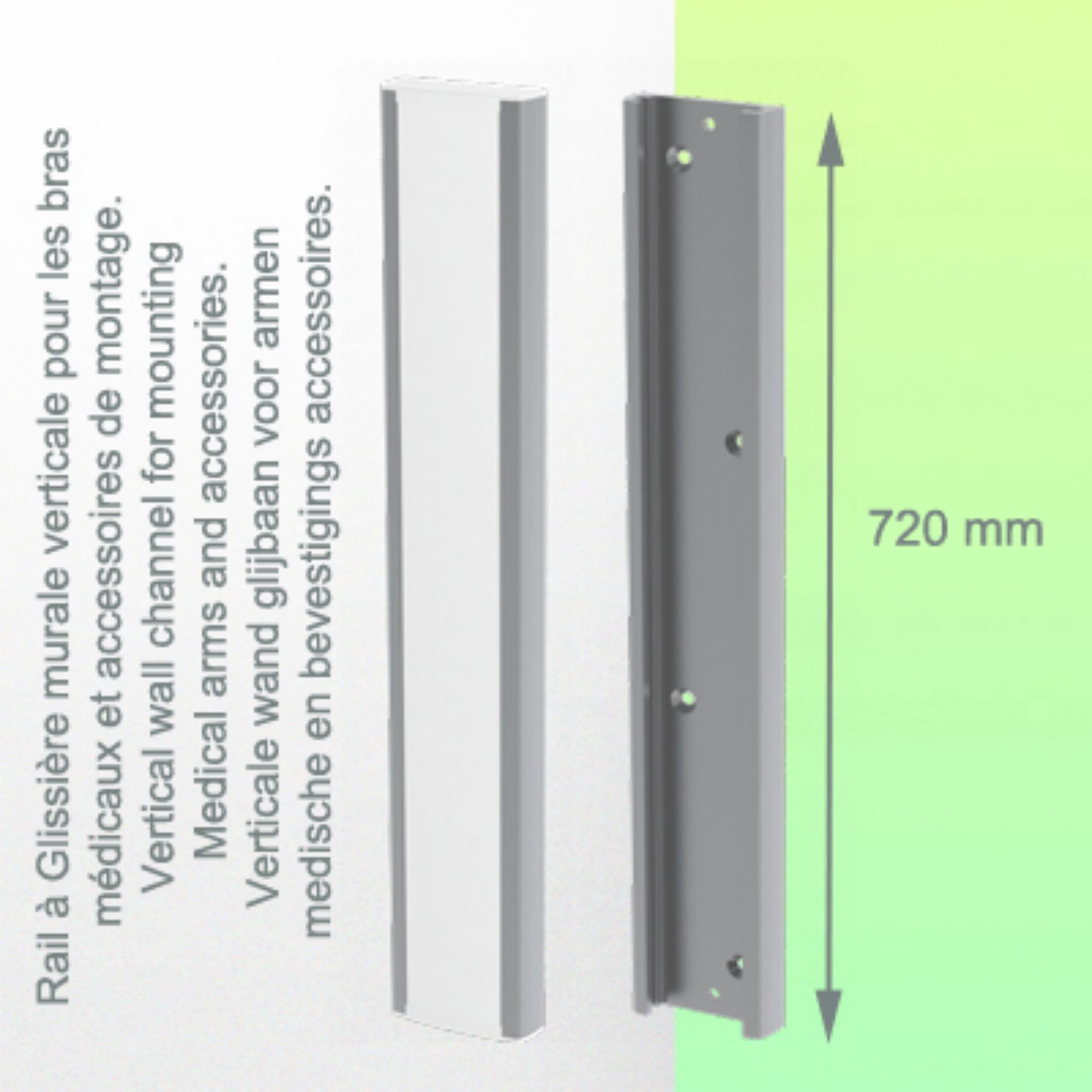

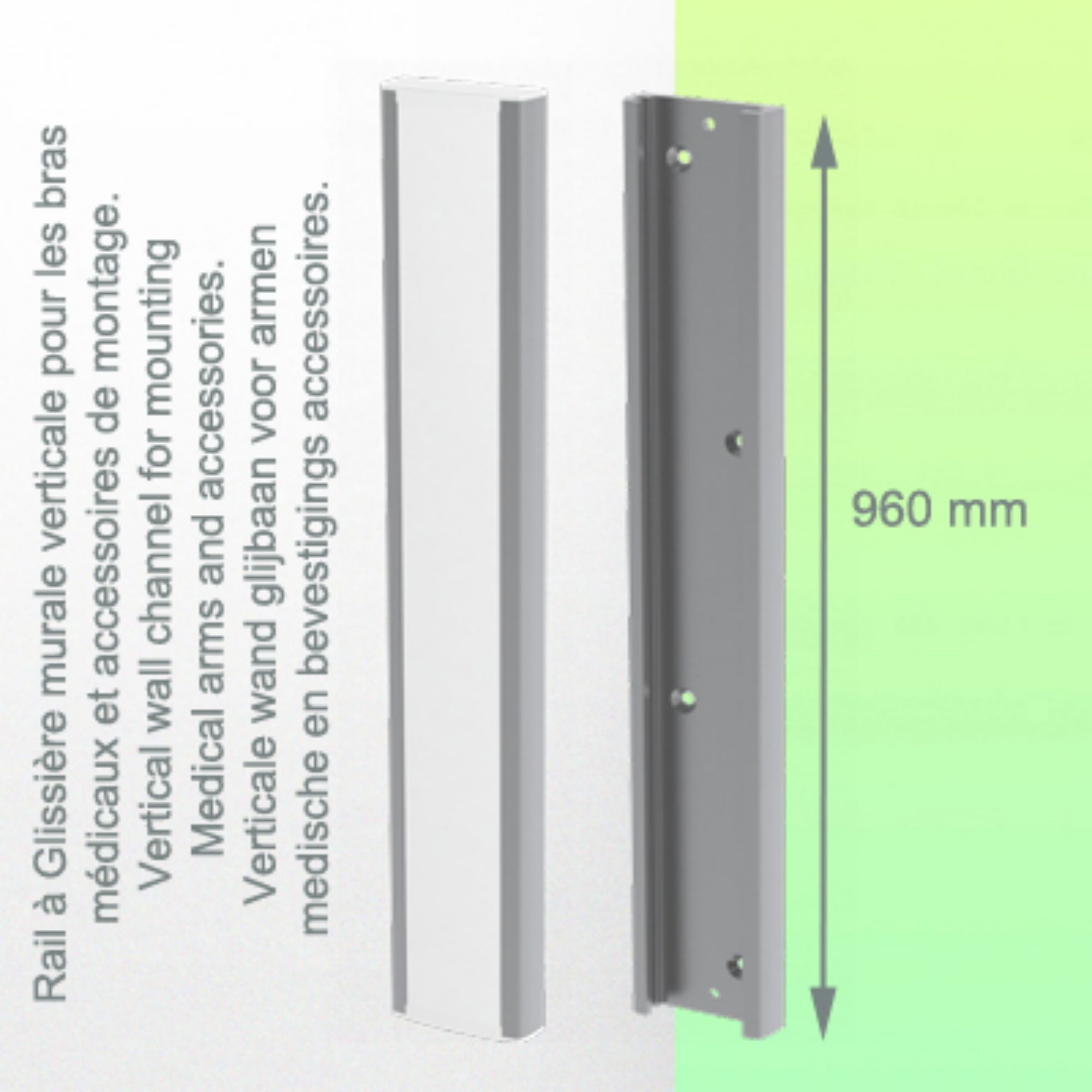

* Optional Vertical Wall Slide Rail mounting, of which several lengths are available (480 mm - 720 mm - 960 mm - 1200 mm).

* These wall rails can be easily cut to size.

* All cables also run through the wall rail.

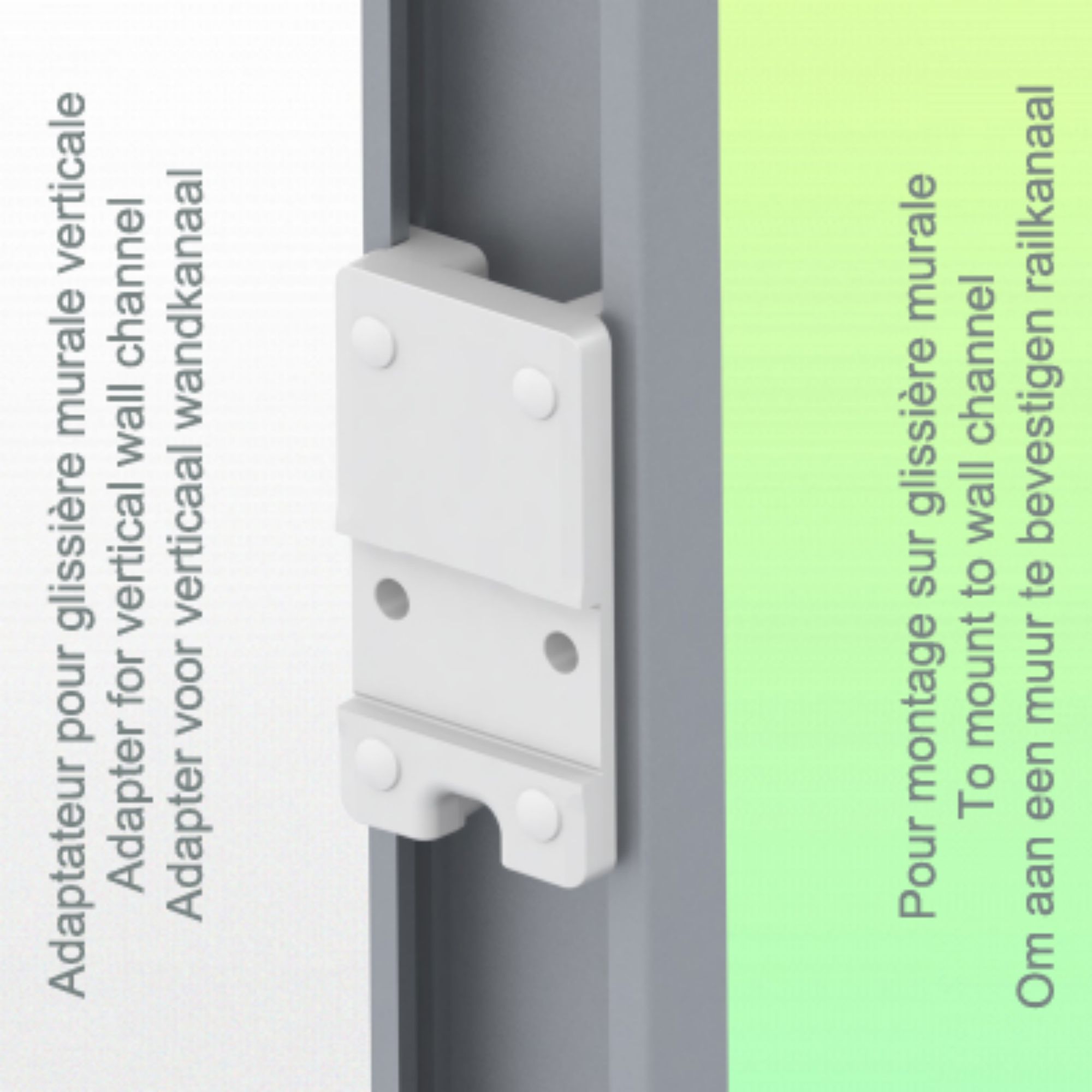

* This 450 mm gas-pressurised Horizontal Arm simply slides into the wall rail, then adjusts to the required height and locks in place.

* It has a safety stop button for height adjustment, allowing the arm to remain in the chosen position.

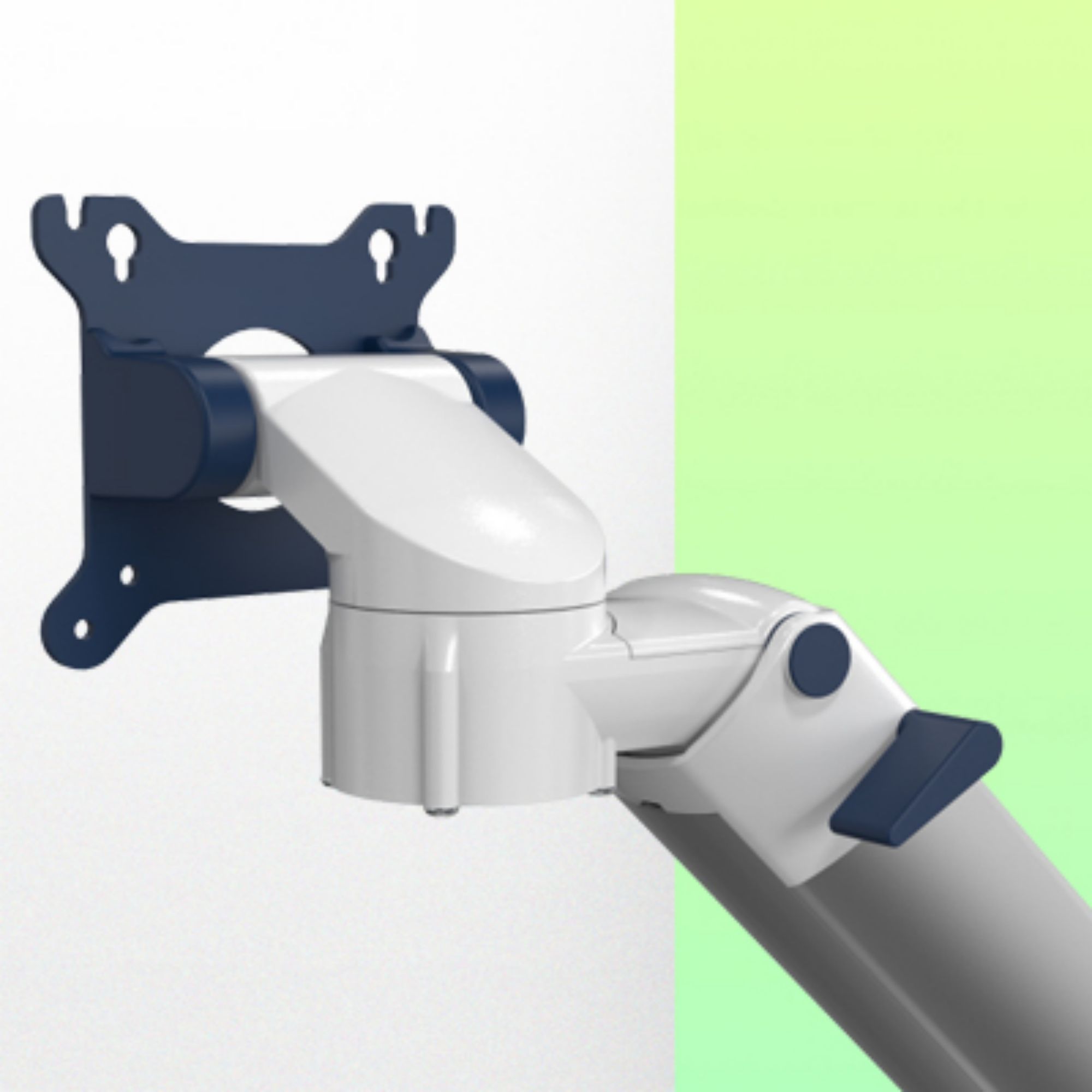

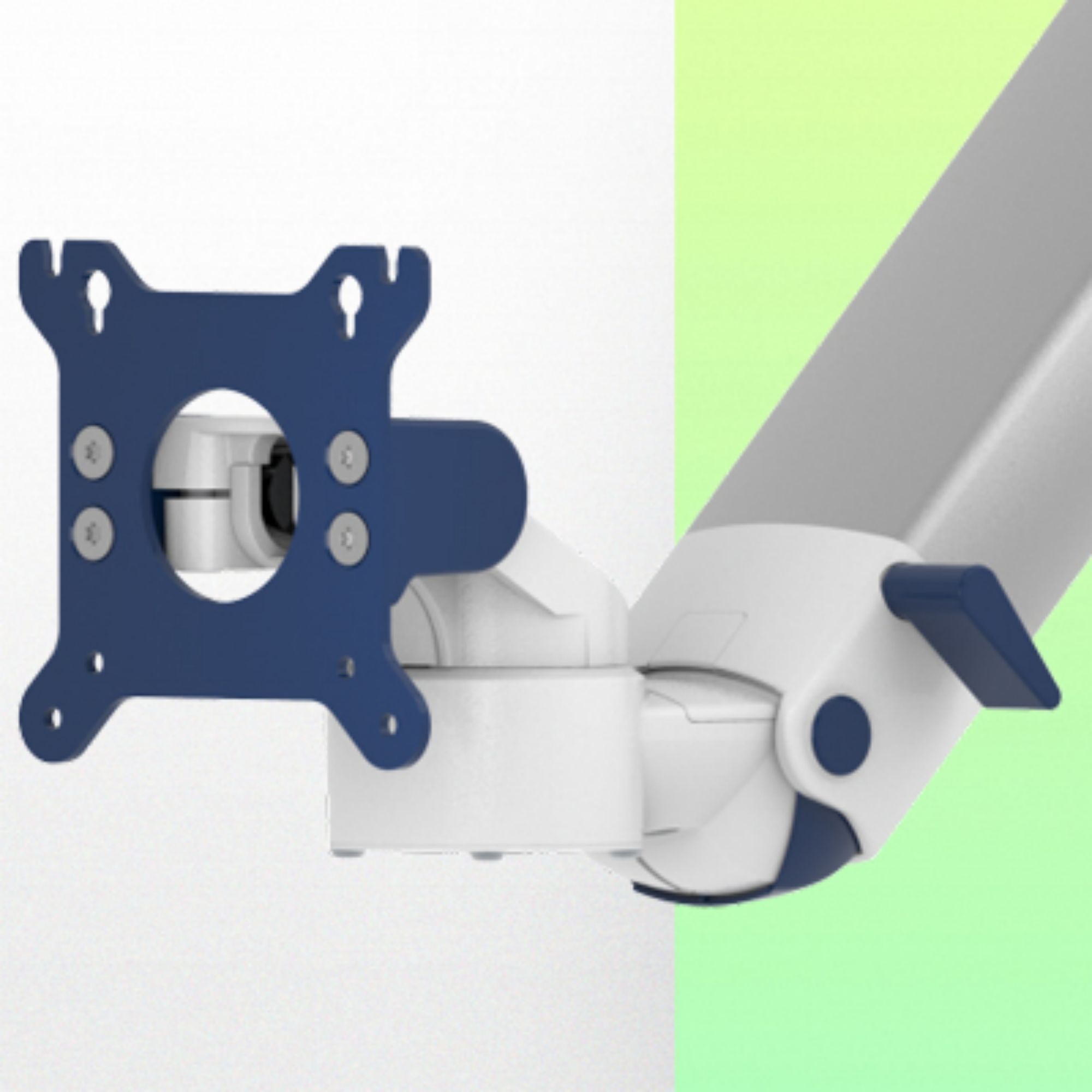

* The head of this arm has a 5" Plunge Plate and is compatible with Dräger and GE monitors.

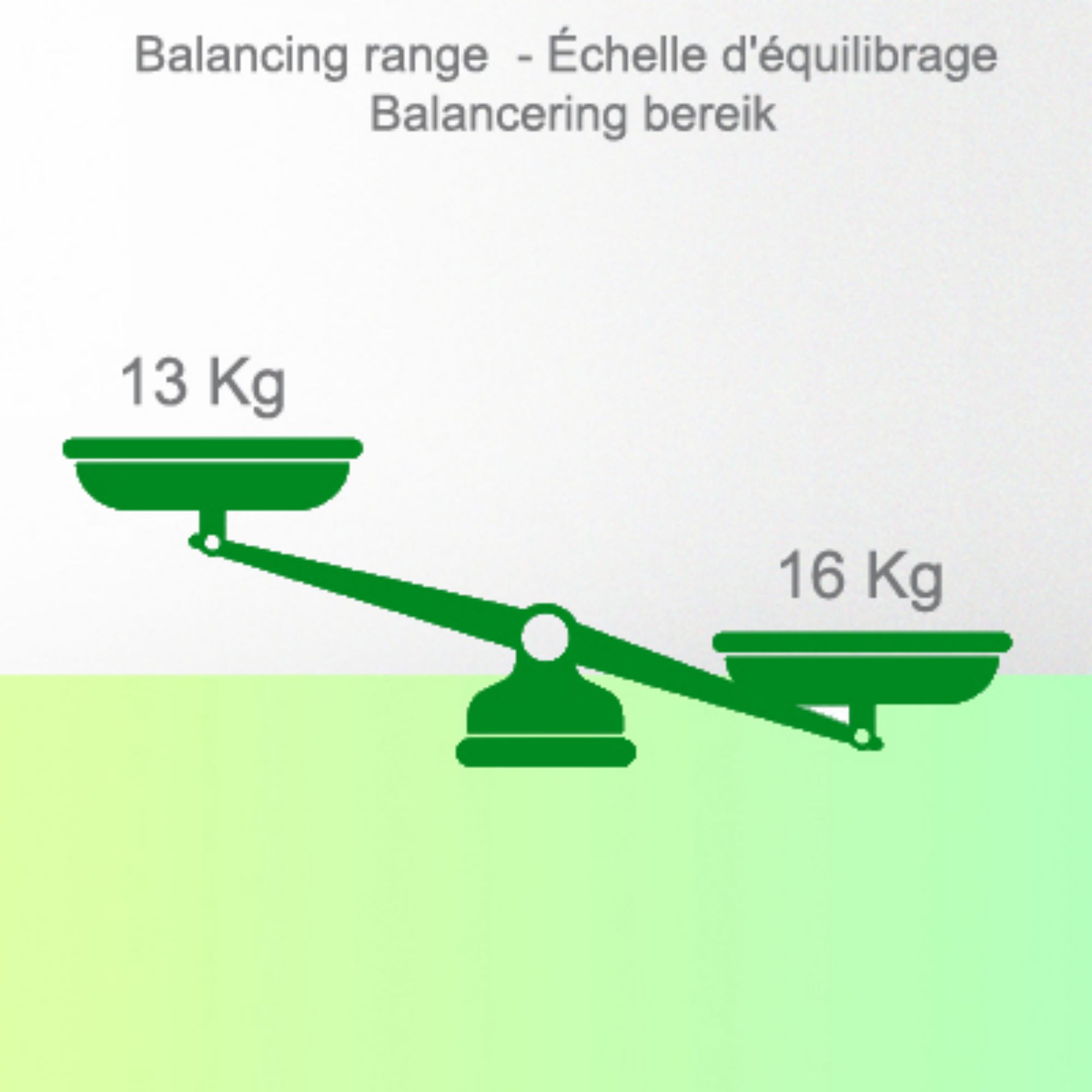

* Suitable for monitors weighing up to 13-16 Kg.

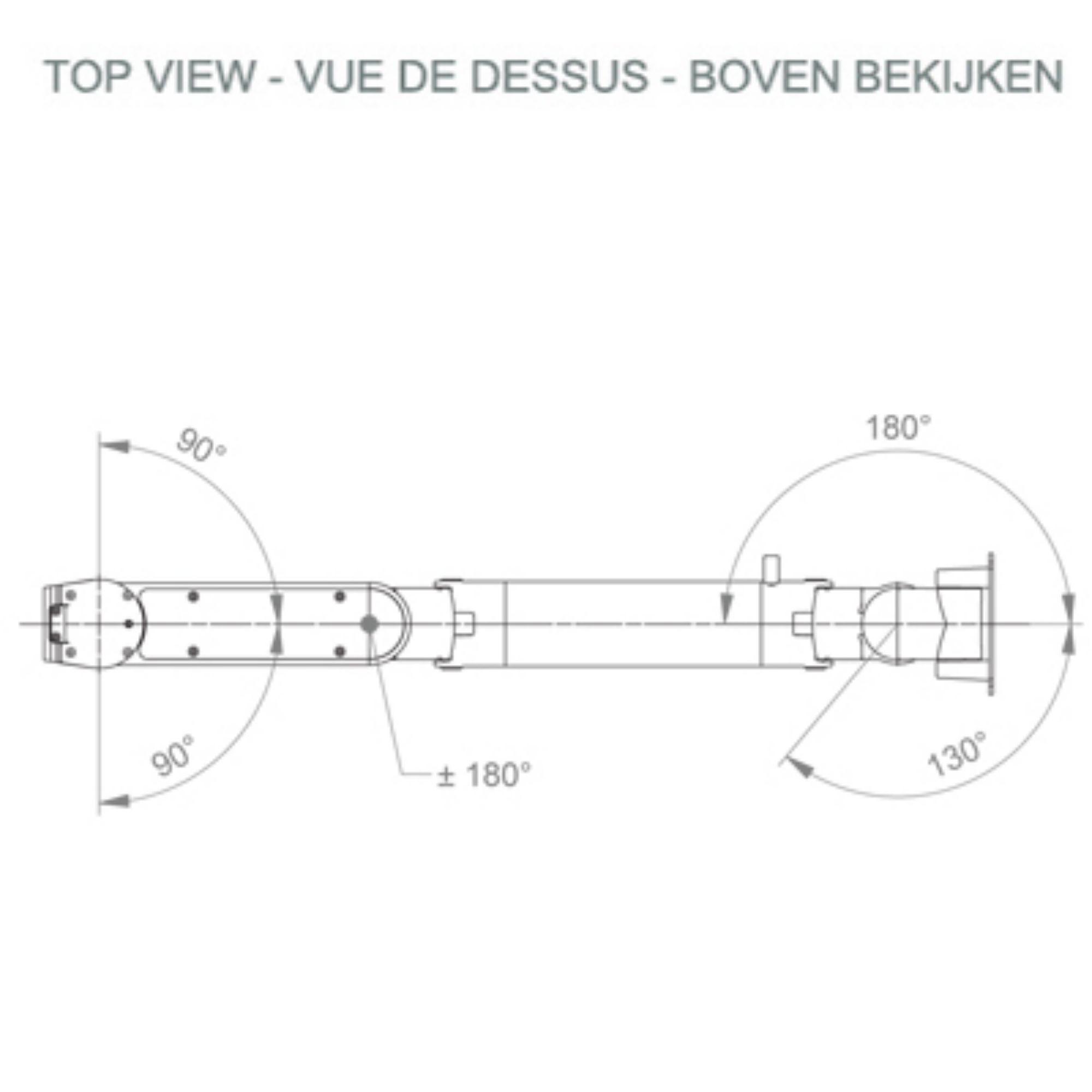

* Monitor tilt: 21° down and 20° up

* Monitor rotation: 115° right, 115° left.

* Arm rotation: 105° right, 105° left

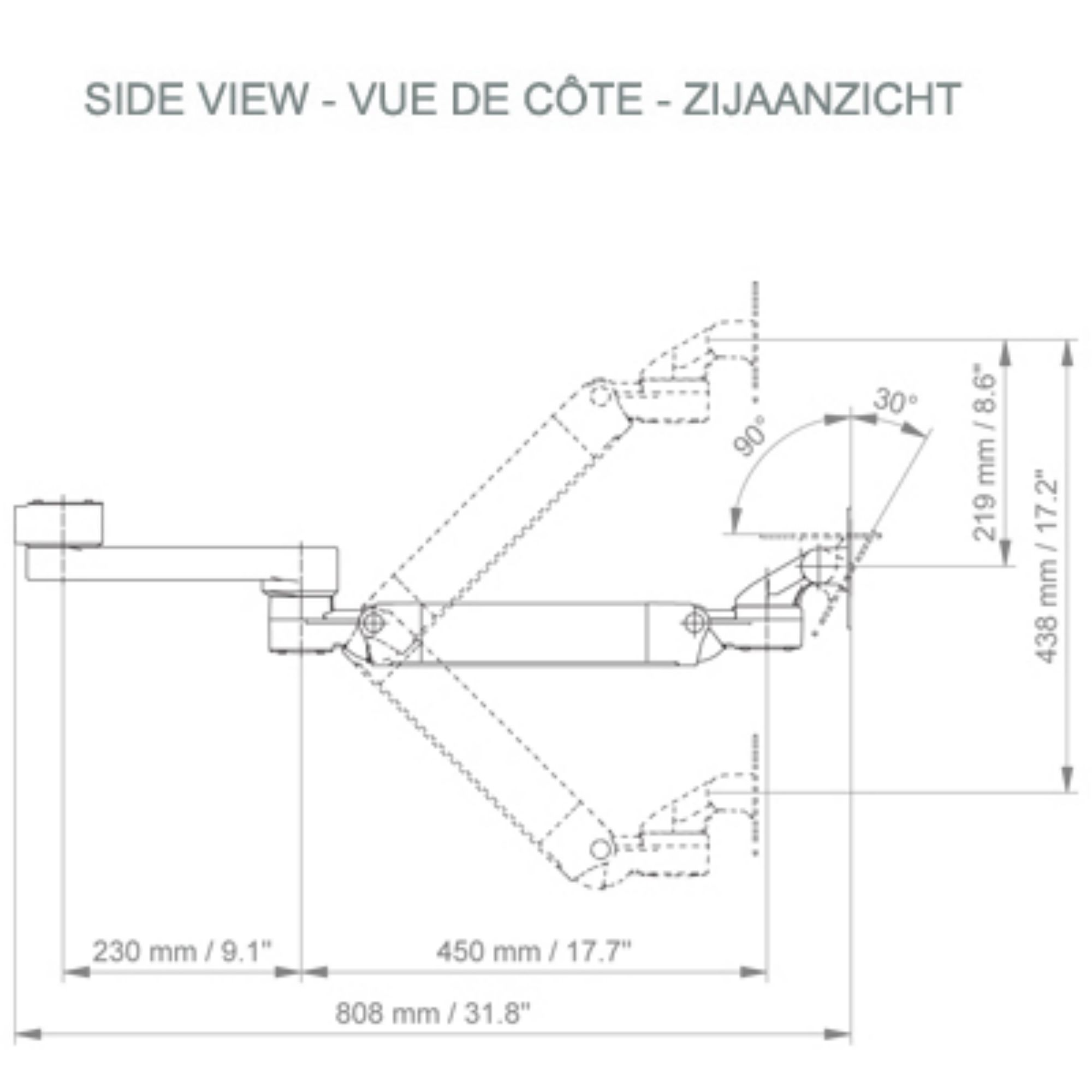

* Height adjustment: 438 mm

* Total length: 589 mm

* All our medical arms comply with CE, ROHS, Medical Grade, Regulations MDD 93/42 ECC.

* Colour: RAL 5013 cobalt blue and RAL 9016 traffic white

* Warranty: 5 years
