Medical arm with 5" plunge plate and Nihon Kohden Interface for height-adjustable monitoring,

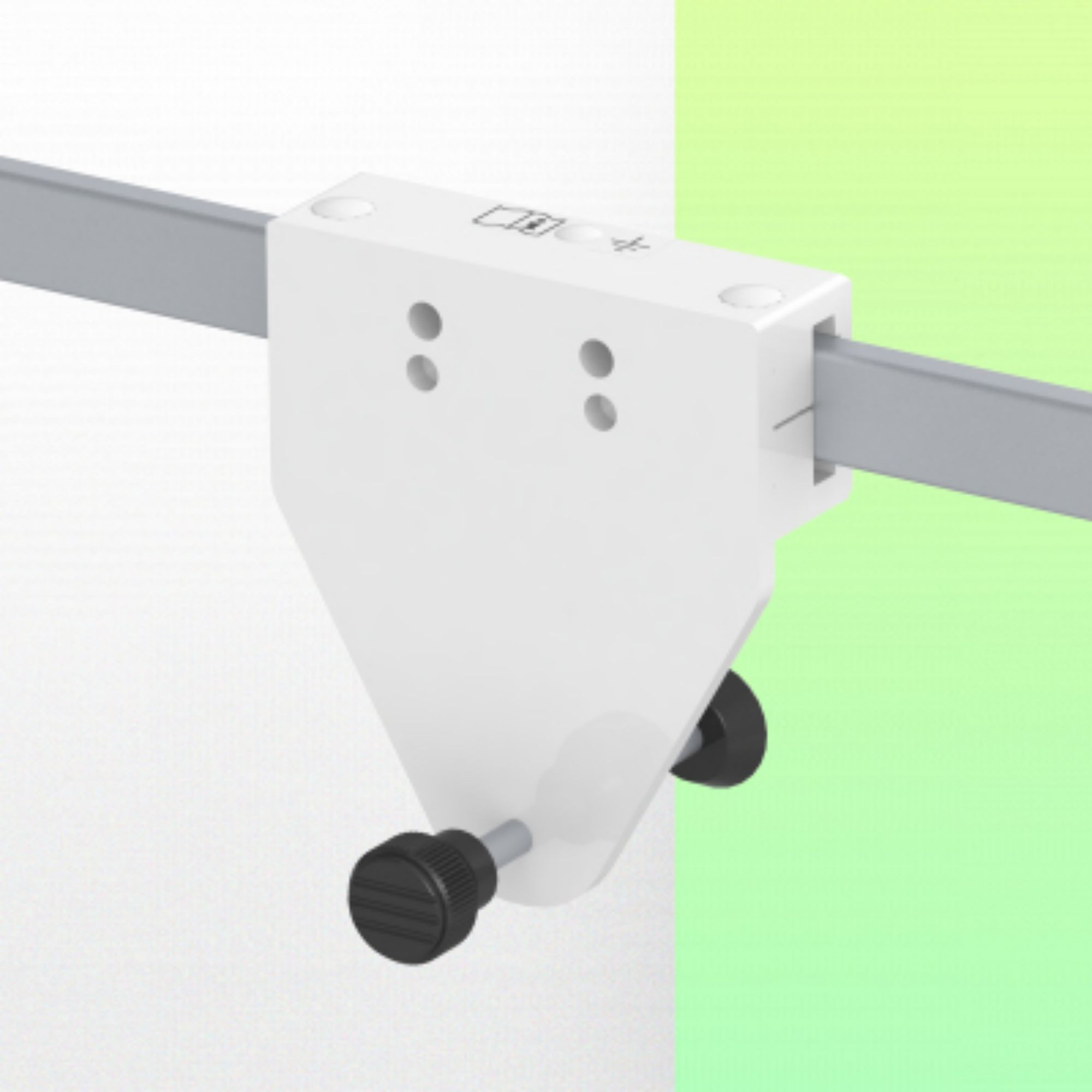

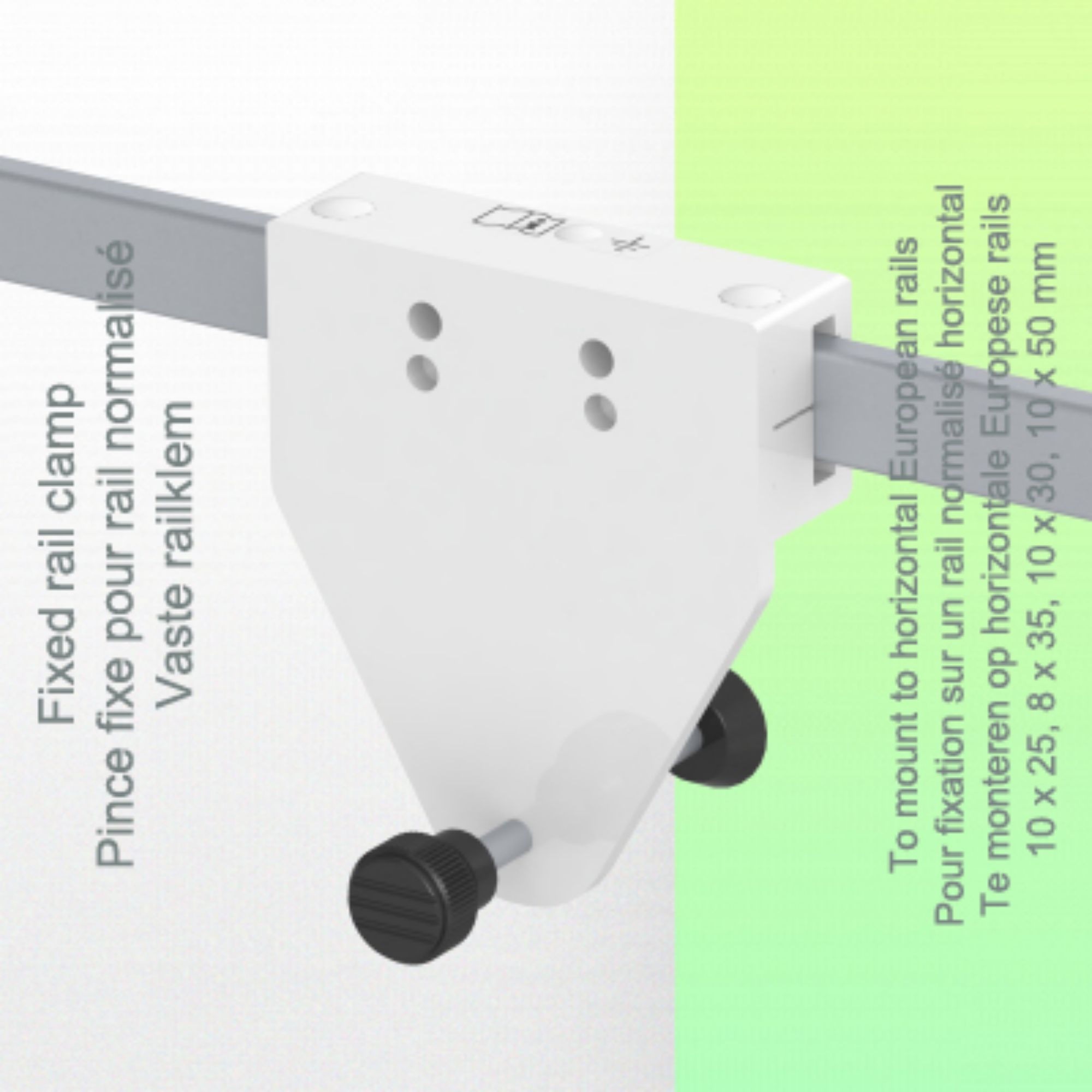

Horizontal Din rail mounting.

Supported weight balance scale from 4 to 9 kg.

Compatible with Nihon Kohden monitoring.

Overhead mount

Product number: WM 250.246NK - Medical arm with 5" plunge plate and Nihon Kohden Interface for height-adjustable monitoring,

Horizontal Din rail mounting.

Supported weight balance scale from 4 to 9 kg.

Compatible with Nihon Kohden monitoring.

Overhead mount

Product sheet PDF

Designed to gain those crucial few centimeters in its lowest position, when the only available mounting point is high up.

The arm descends from the first joint and can be adjusted in height for ergonomic ease.

Ideal when the only available mounting position is out of reach.

Perfect for attachment to pendants, booms and horizontal rails that are mounted above supply ducts.

Full cable integration and infection prevention thanks to easy-to-clean surfaces make this arm ideal for emergency care areas.

Height adjustment for ergonomic, customised positioning of the monitor.

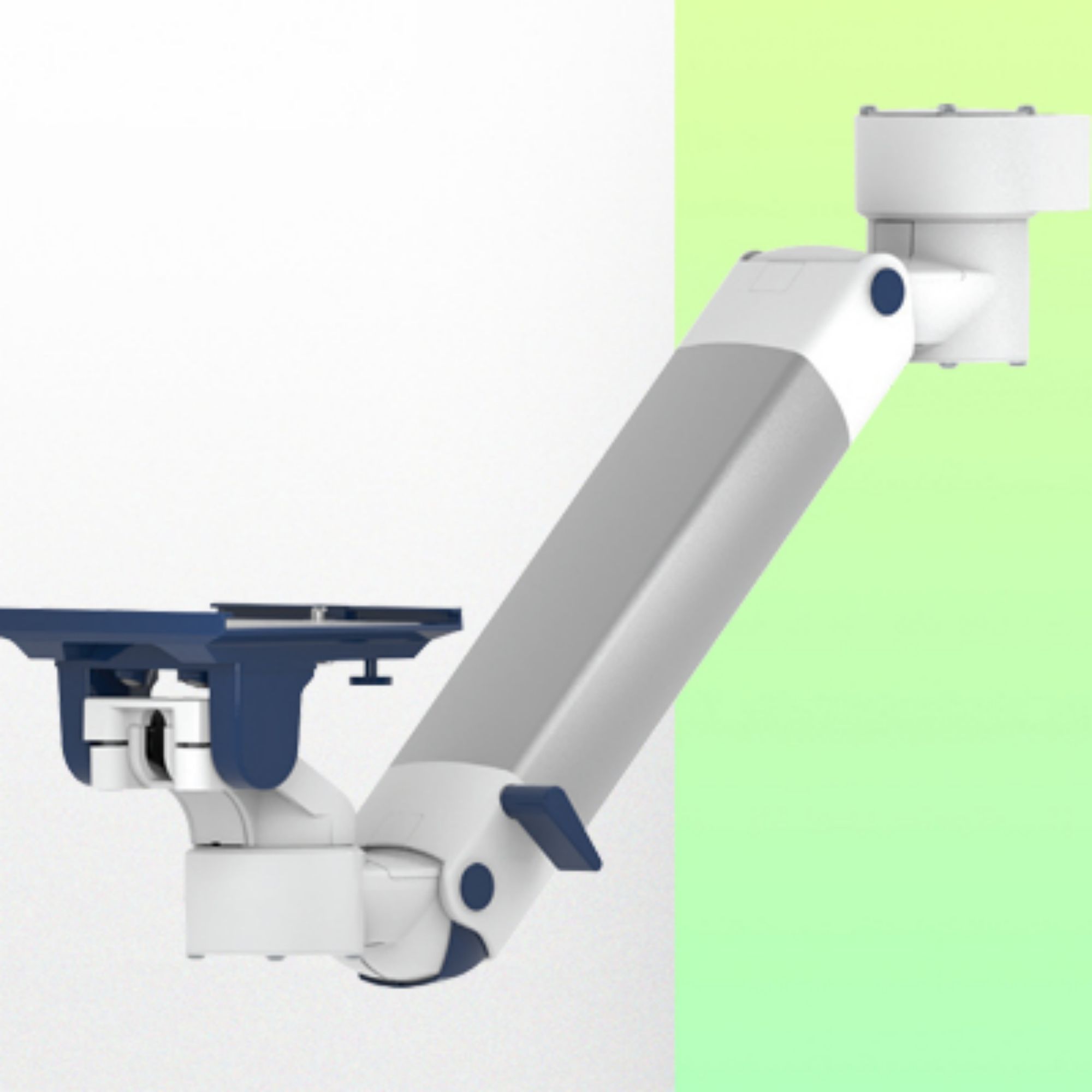

This 450 mm Horizontal Medical Arm with gas-lift height adjustment enables the monitor to be fixed, oriented and adjusted perfectly.

It is coated with an anti-microbial agent for hygiene and cleaning down to the smallest detail.

Its modern design has been specially developed for healthcare environments.

Technical specifications:

* Integral cable entry

* Equipotential bonding

* This 450 mm Horizontal Arm with gas spring simply adjusts to the desired height and is fixed.

* It has a safety stop button for height adjustment, allowing the arm to remain in the chosen position.

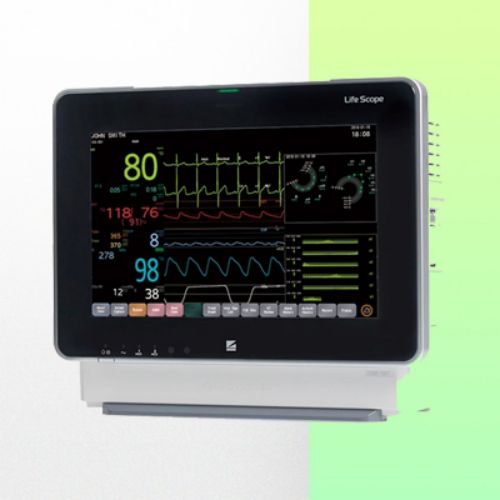

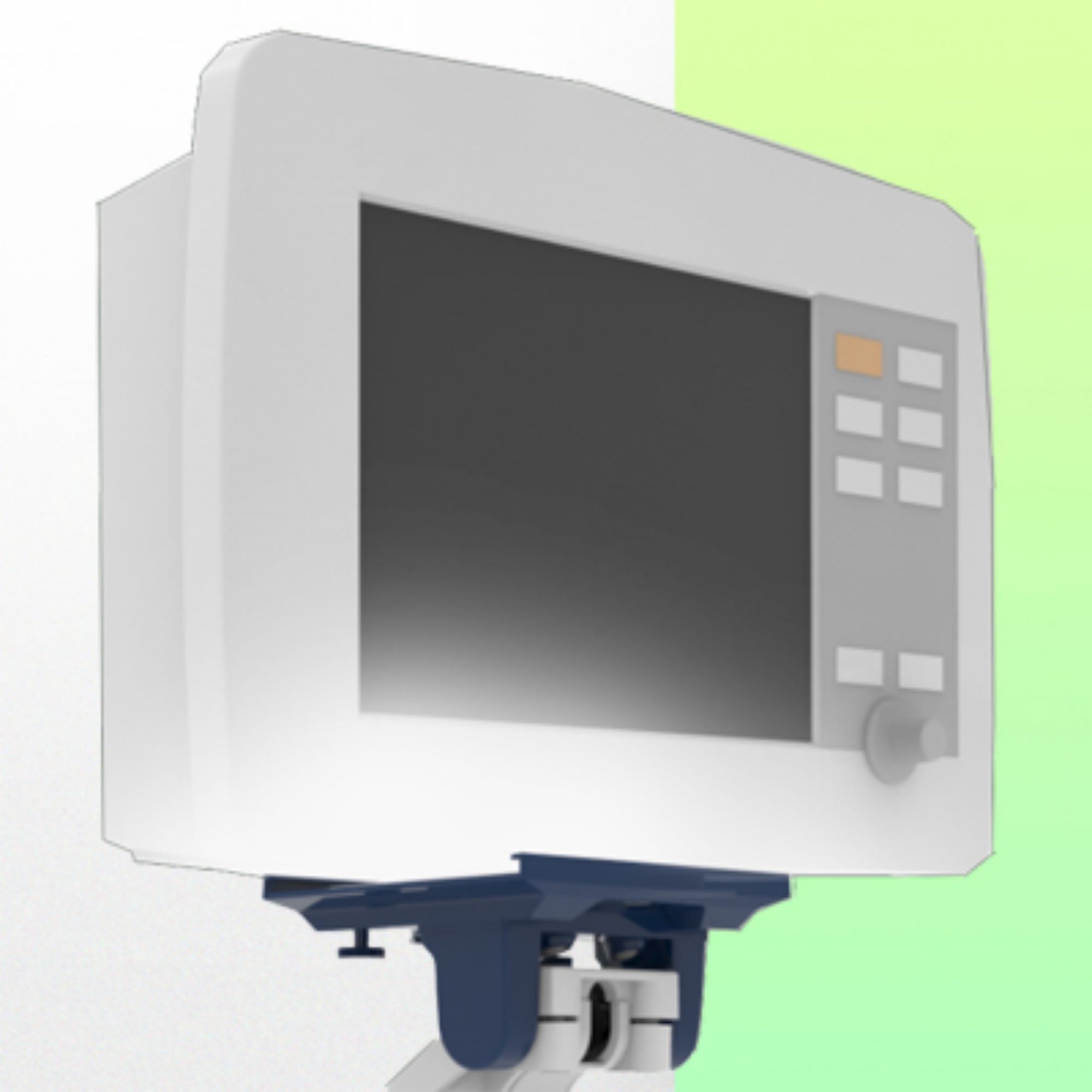

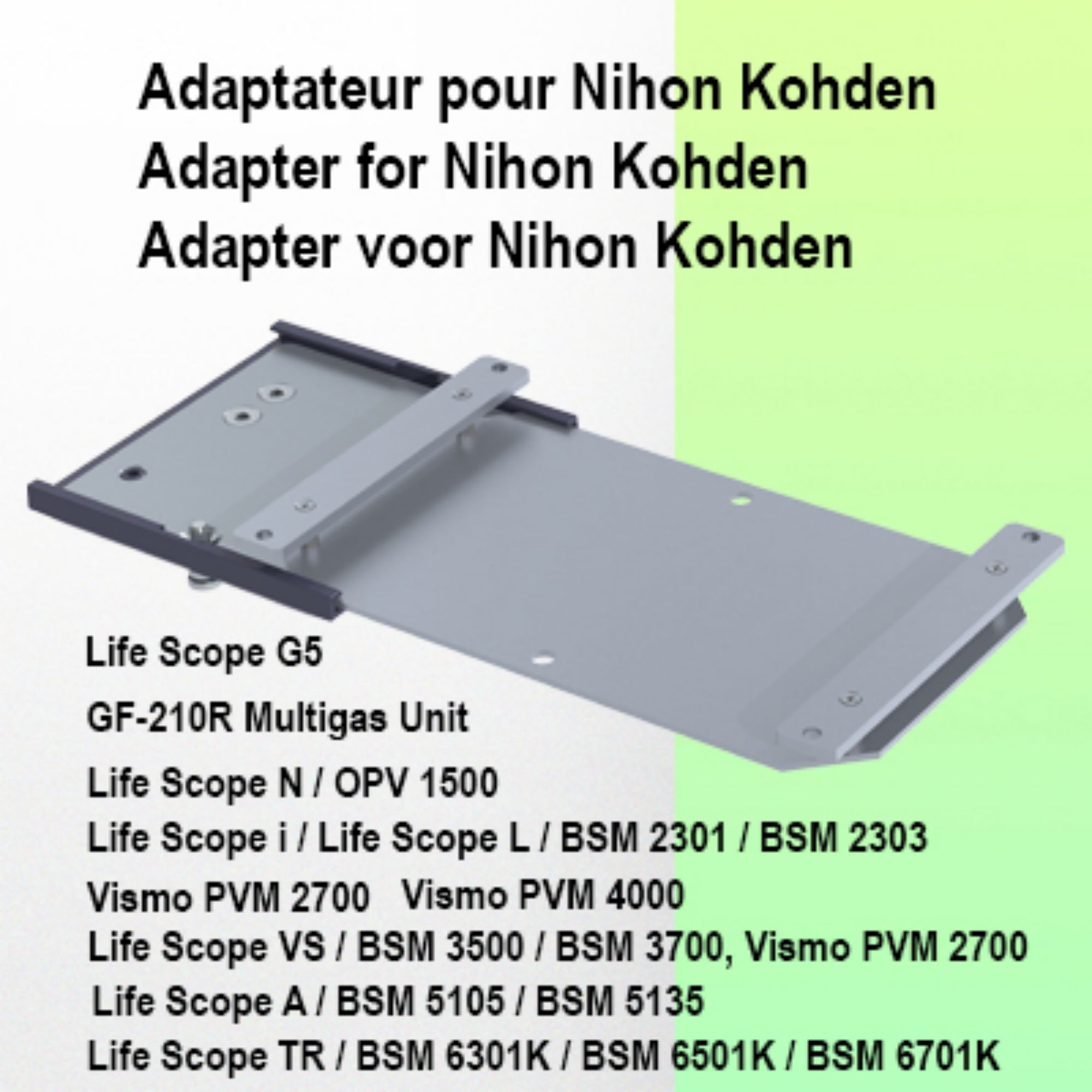

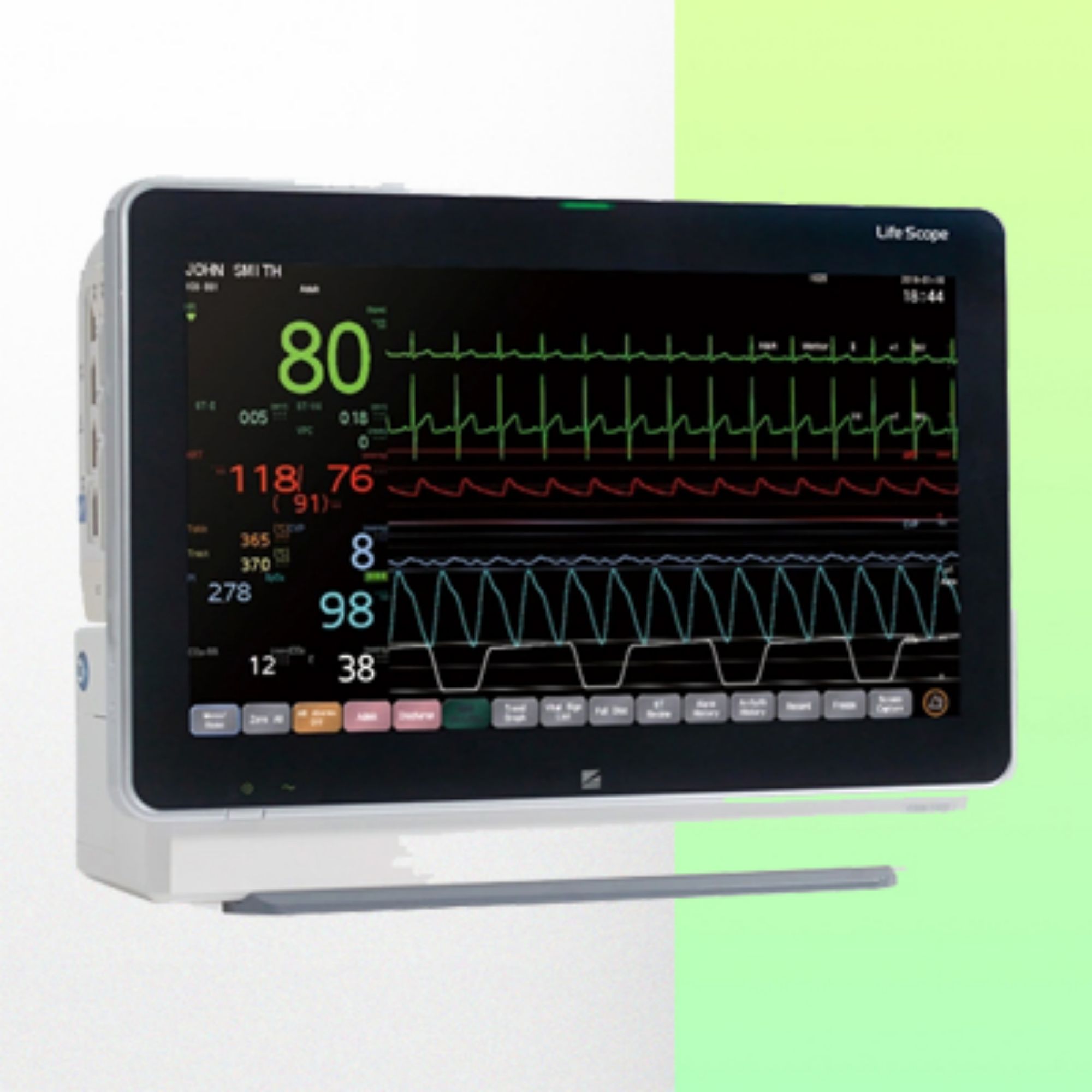

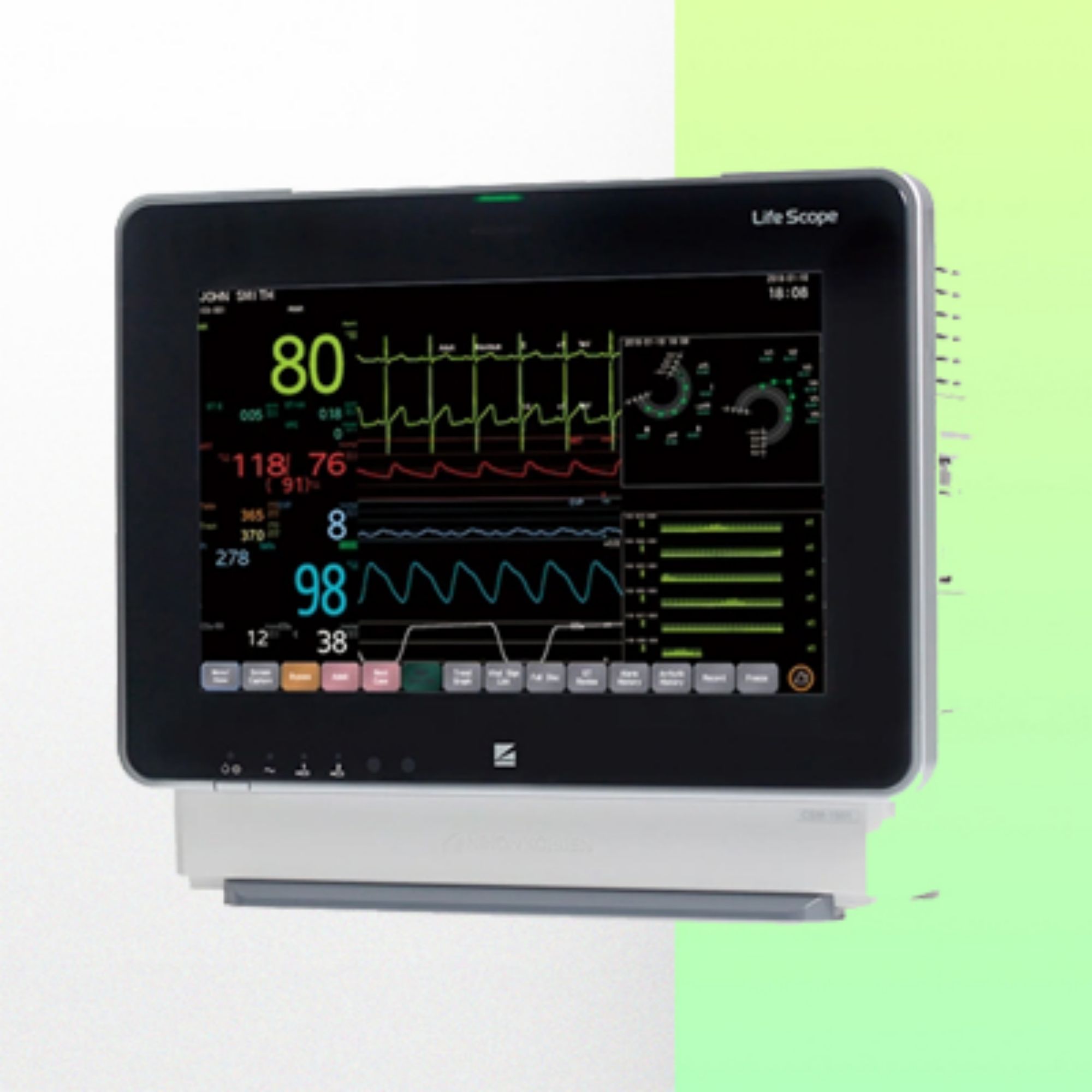

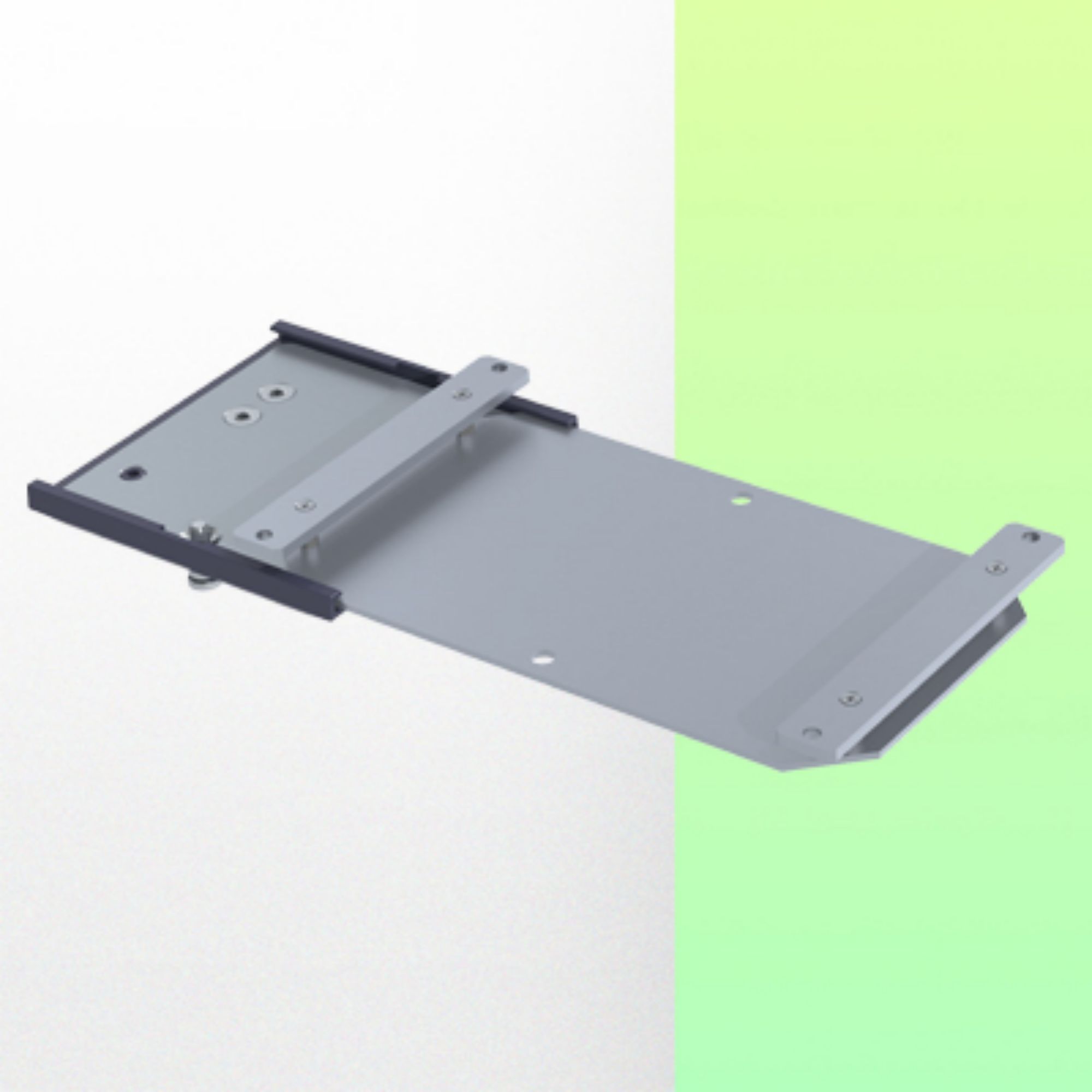

* The head of this arm has a 5" Plunge Plate and Nihon Kohden Interface and is compatible with Nihon Kohden monitors.

* Suitable for monitors weighing up to 4-9 Kg.

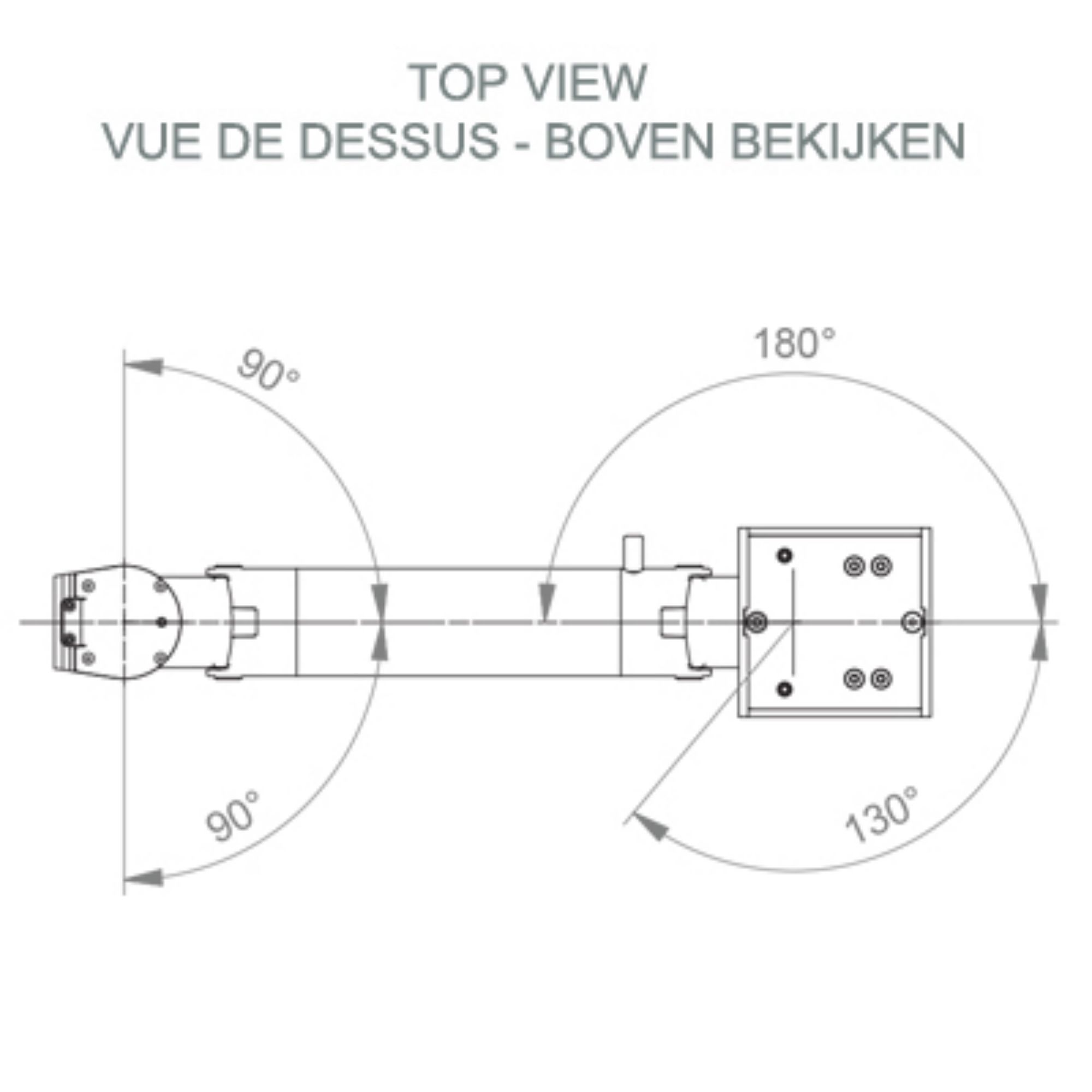

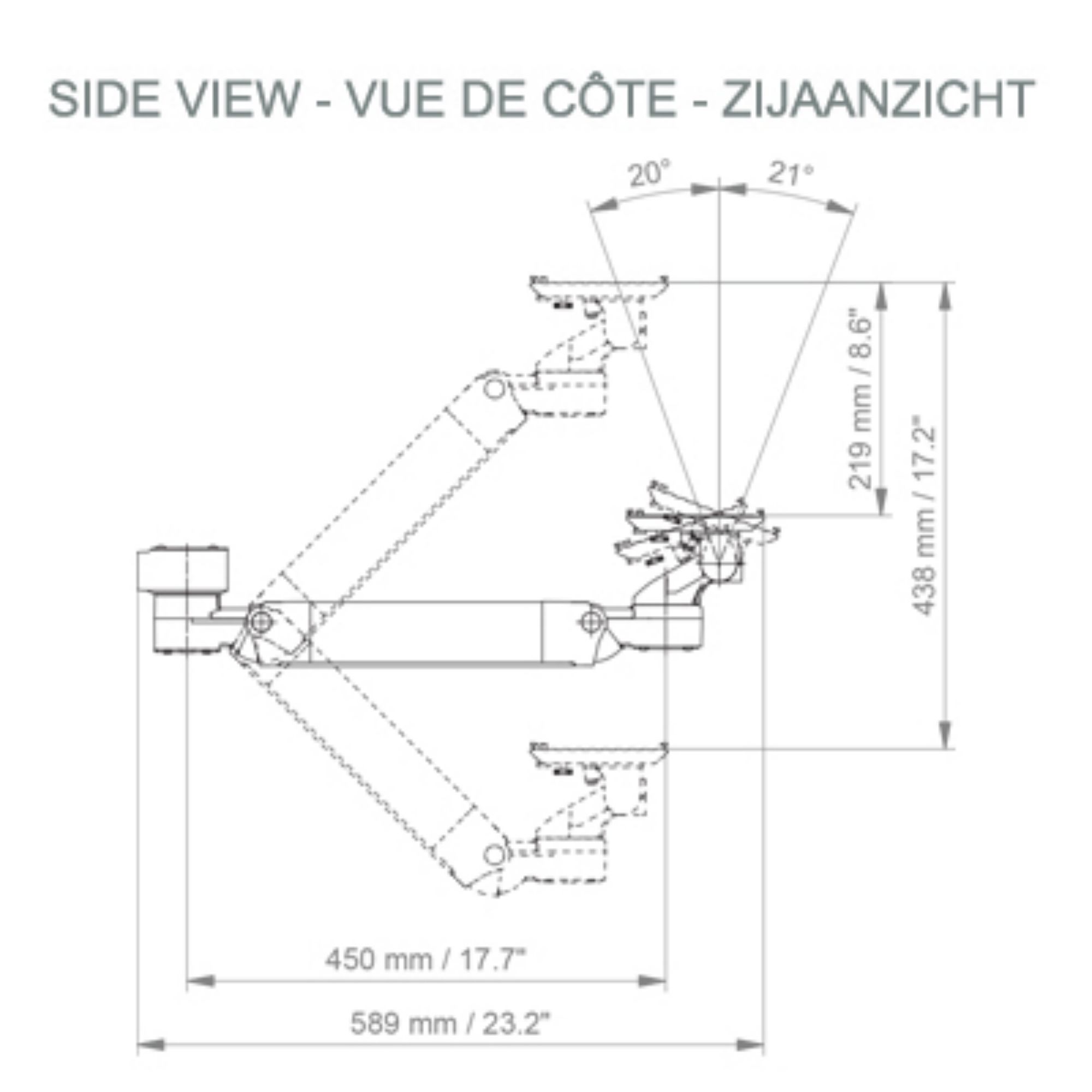

* Monitor tilt: 21° down and 20° up * Monitor rotation: 115° right, 115° left.

* Arm rotation: 105° right, 105° left

* Height adjustment: 438 mm

* Total length: 589 mm

* All our medical arms comply with CE, ROHS, Medical Grade, Regulations MDD 93/42 ECC.

* Colour: RAL 5013 cobalt blue and RAL 9016 traffic white

* Warranty: 5 years
