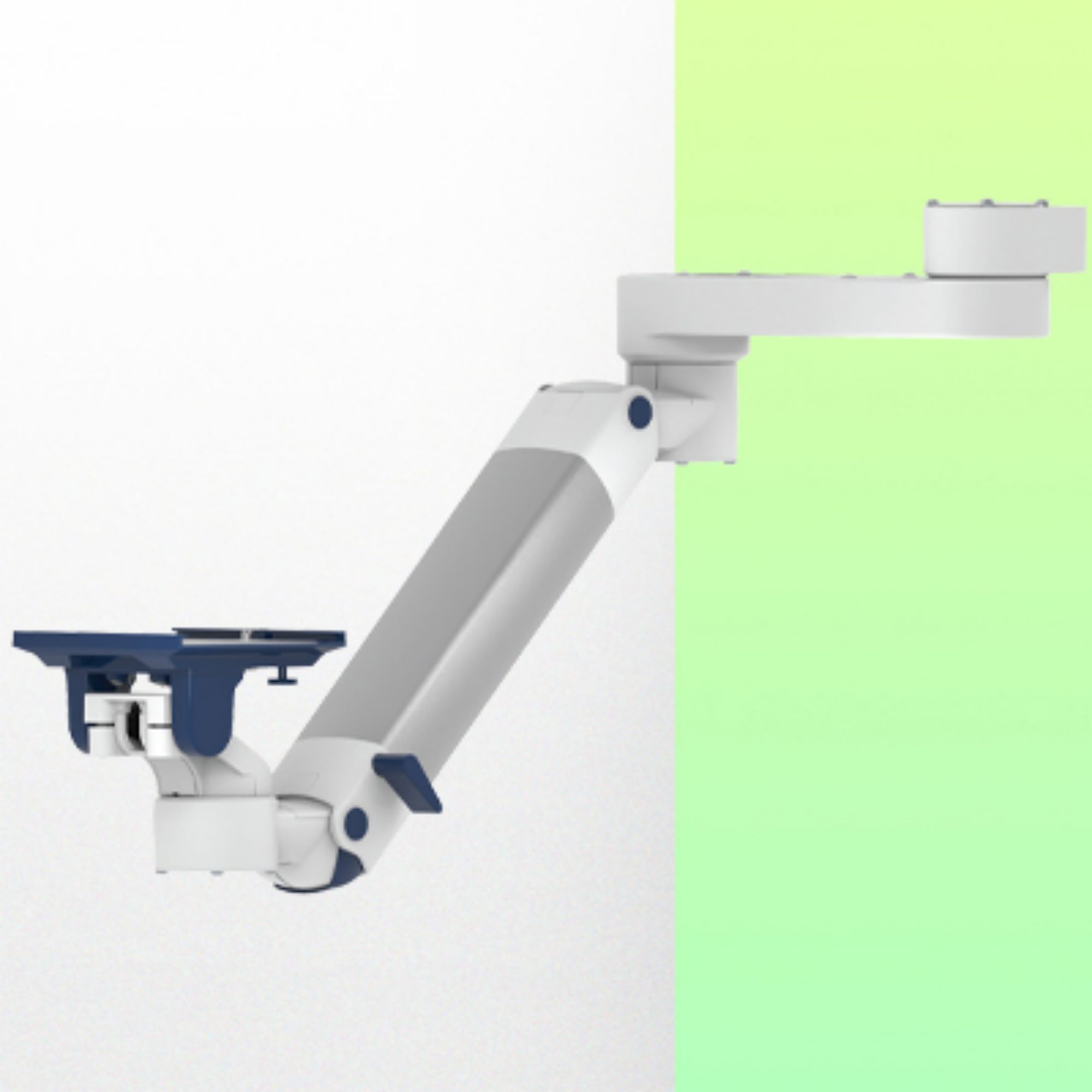

Double medical arm with 5" plunge plate and Nihon Kohden Interface for height-adjustable monitoring,

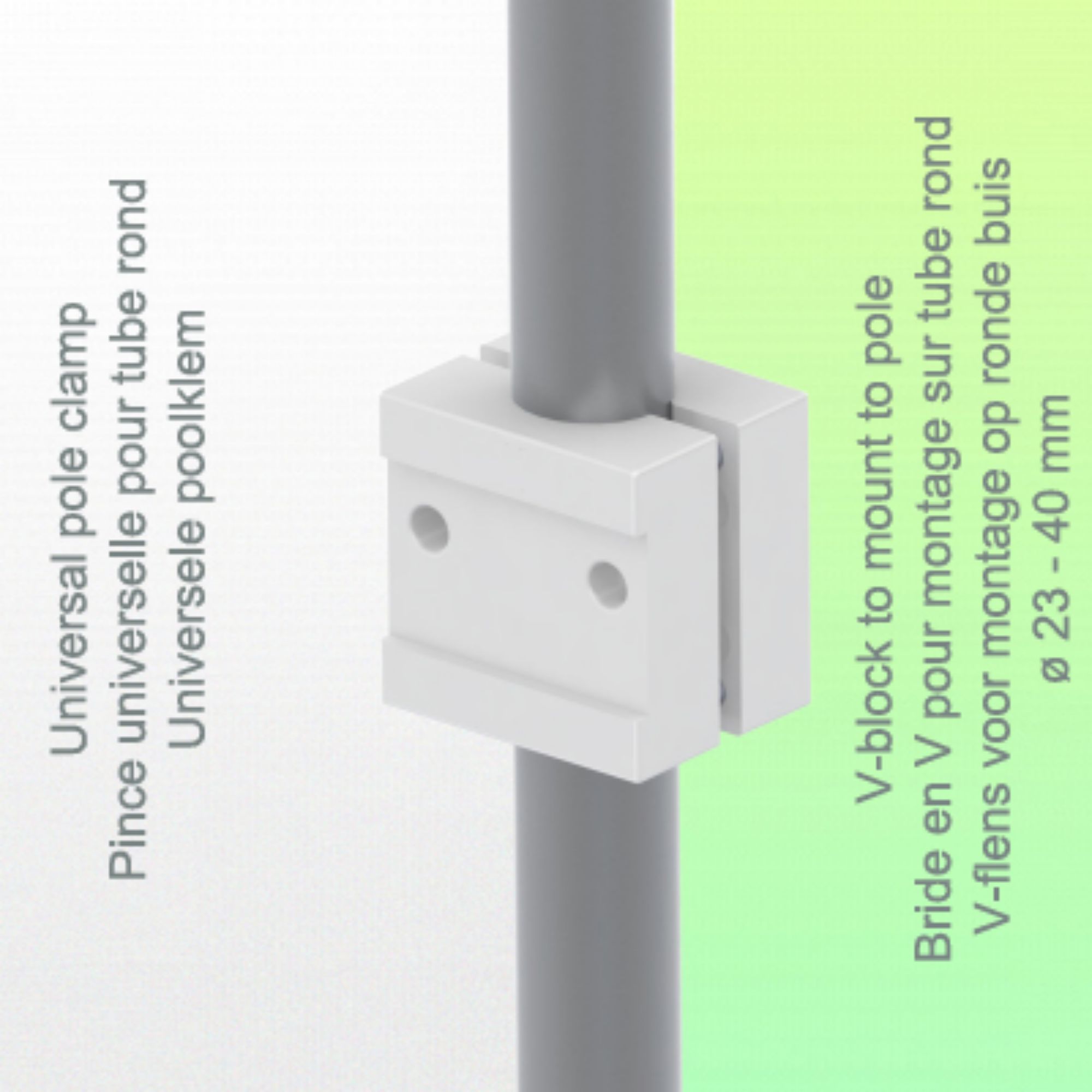

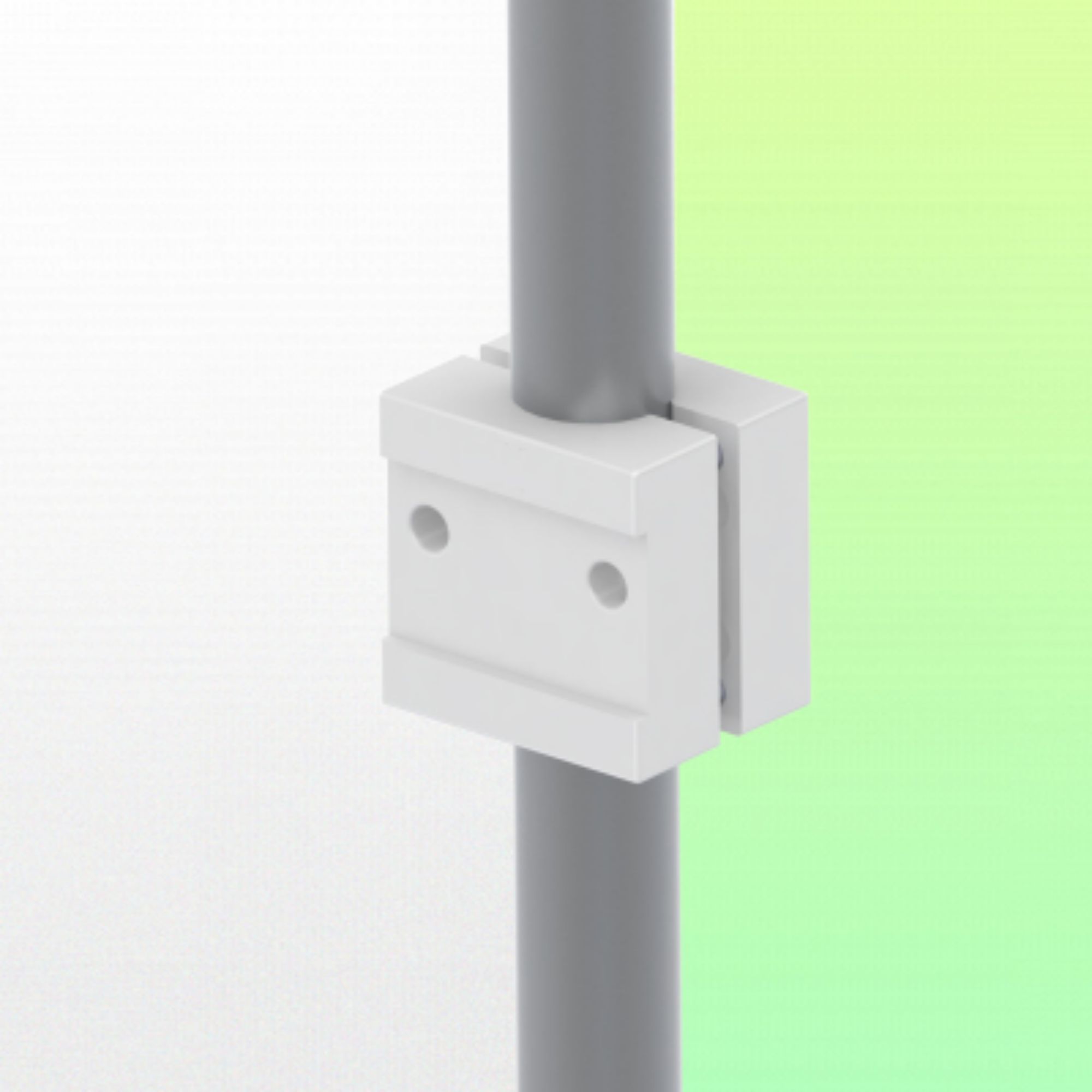

Mounting on variable pole diameter 23 - 40 mm.

Overhead mount

Supported weight balance scale from 4 to 9 kg.

Compatible with Nihon Kohden monitoring.

Product number: WM 250.321NK - Double medical arm with 5" plunge plate and Nihon Kohden Interface for height-adjustable monitoring,

Mounting on variable pole diameter 23 - 40 mm.

Overhead mount

Supported weight balance scale from 4 to 9 kg.

Compatible with Nihon Kohden monitoring.

Product sheet PDF

Designed to gain those crucial few centimeters in its lowest position, when the only available mounting point is high up.

The arm descends from the first joint and can be adjusted in height for ergonomic ease.

Ideal when the only available mounting position is out of reach.

Perfect for attachment to pendants, booms and horizontal rails that are mounted above supply ducts.

Full cable integration and infection prevention thanks to easy-to-clean surfaces make this arm ideal for emergency care areas.

Height adjustment for ergonomic, customised positioning of the monitor.

This Horizontal Double Medical Arm with gas-lift height adjustment enables the monitor to be fixed, oriented and adjusted perfectly.

It is coated with an anti-microbial agent for hygiene and cleaning down to the smallest detail.

Its modern design has been specially developed for healthcare environments.

Technical specifications:

* Integrated cable passage

* Equipotential bonding

* Fixing on the chosen adapter solution

* This gas-operated Double Arm simply slides into the column rail, then adjusts to the required height and locks into place.

* It has a safety stop button for height adjustment, which allows the arm to remain in the chosen position.

* The head of this arm is fitted with a 5'' plunge plate and Nihon Kohden Interface

* Compatible with monitors weighing no more than 4-9 Kg

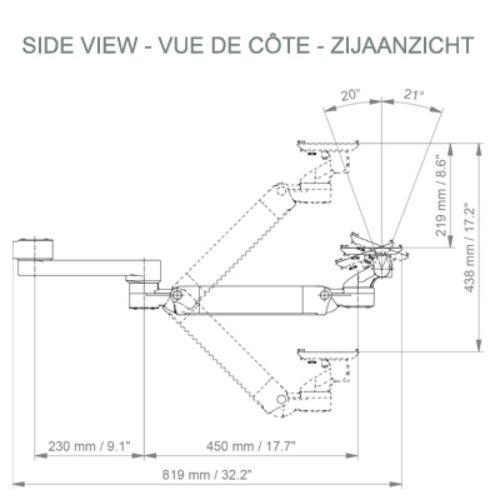

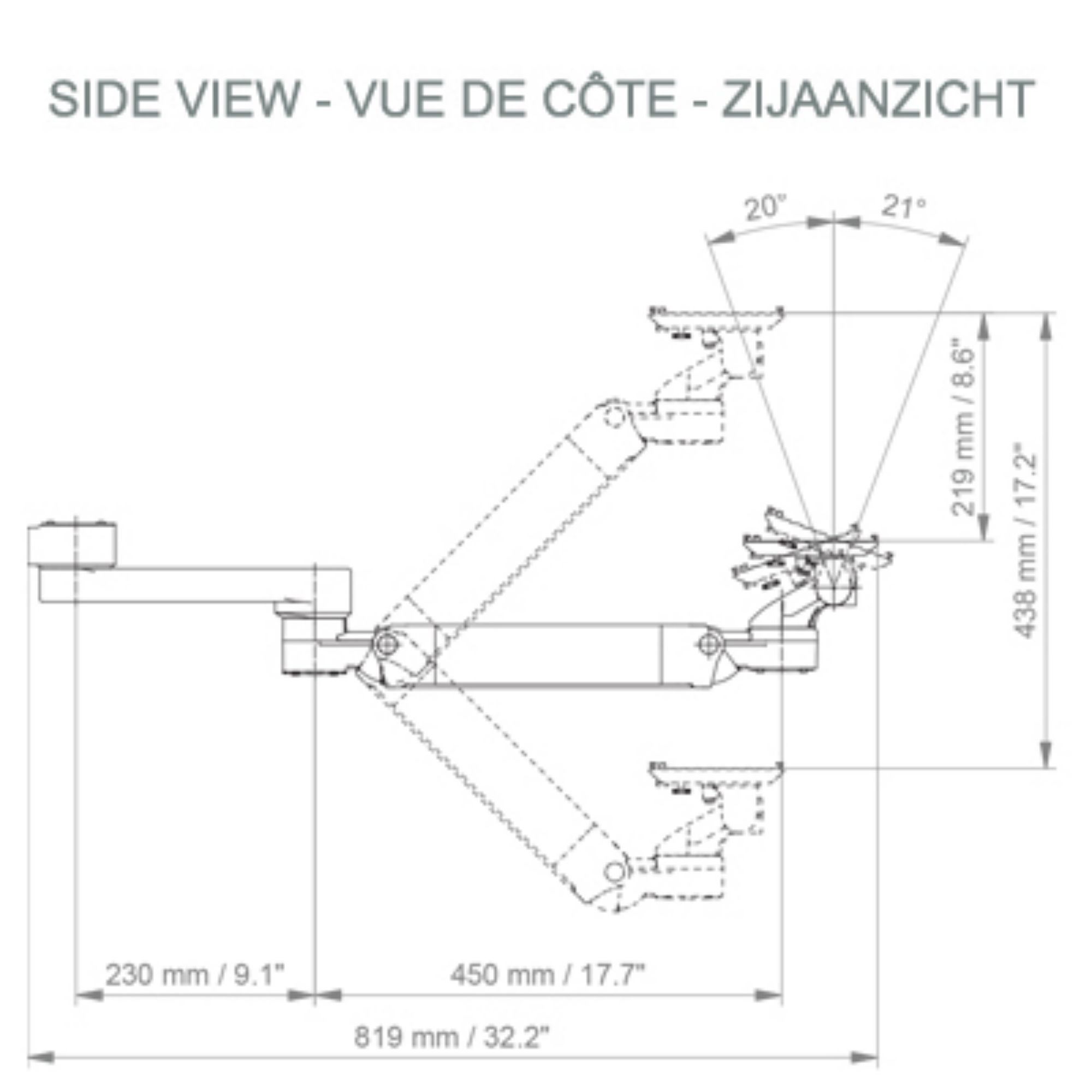

* Monitor tilt: 21° down and 20° up

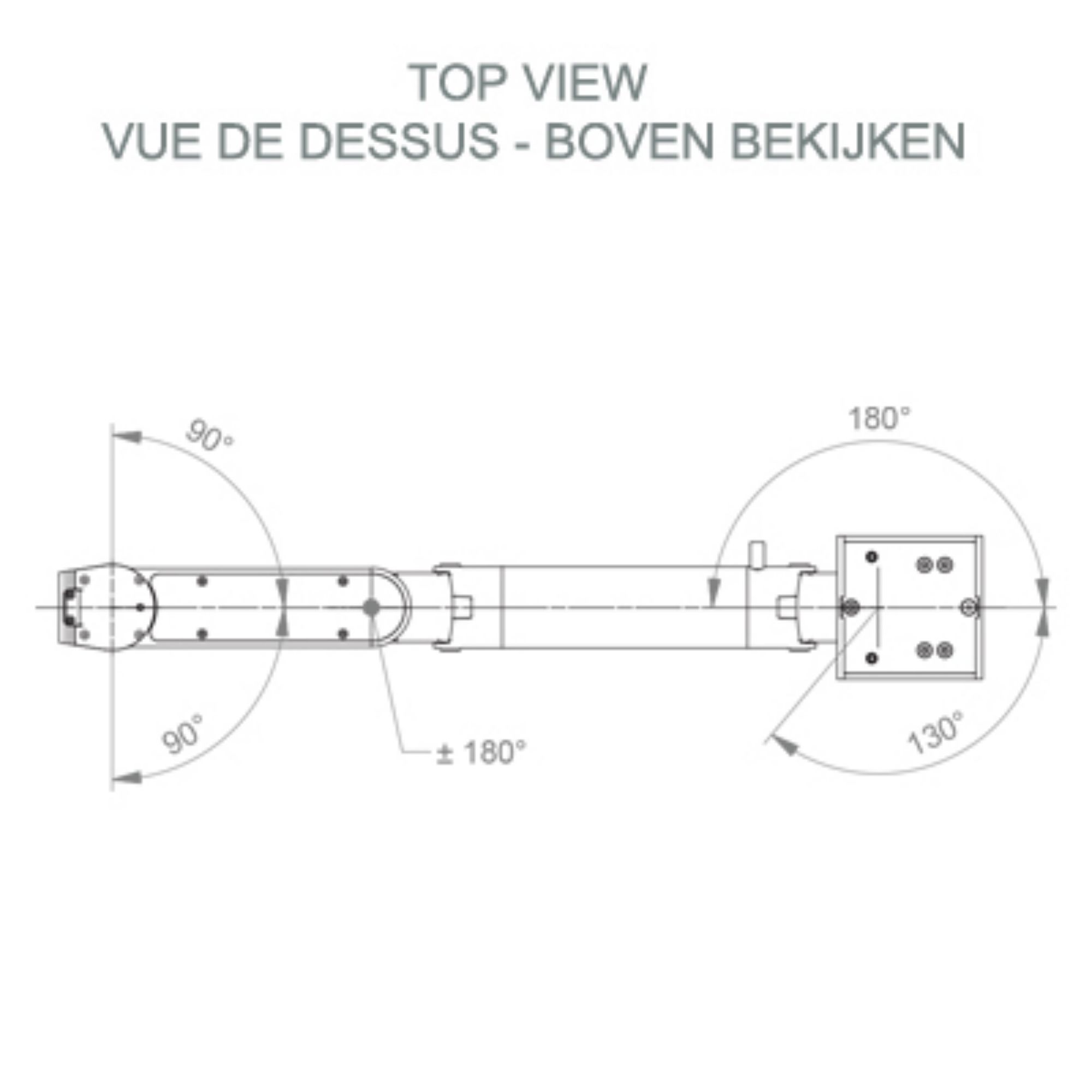

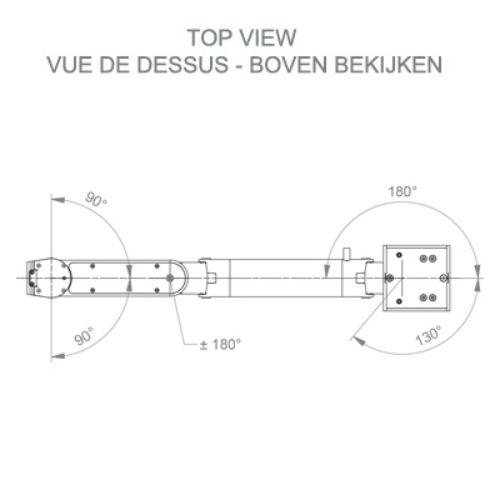

* Screen rotation: 130° right, 180° left.

* Arm rotation: 90° right, 90° left

* Height adjustment: 438 mm

* Total length 819 mm

* All our medical arms comply with CE, ROHS, Medical Grade, Regulations MDD 93/42 ECC.

* Colour: RAL 5013 cobalt blue and RAL 9016 traffic white

* Warranty: 5 years
