2 x 300 mm swivelling Horizontal Medical Arm for monitoring Philips Intellivue Séries

(light applications up to 8 Kg),

wall mounting on vertical sliding rail.

Product number: WM 260.101 - 2 x 300 mm swivelling Horizontal Medical Arm

for monitoring Philips Intellivue Séries

(light applications up to 8 Kg),

wall mounting on vertical sliding rail.

Product sheet PDF

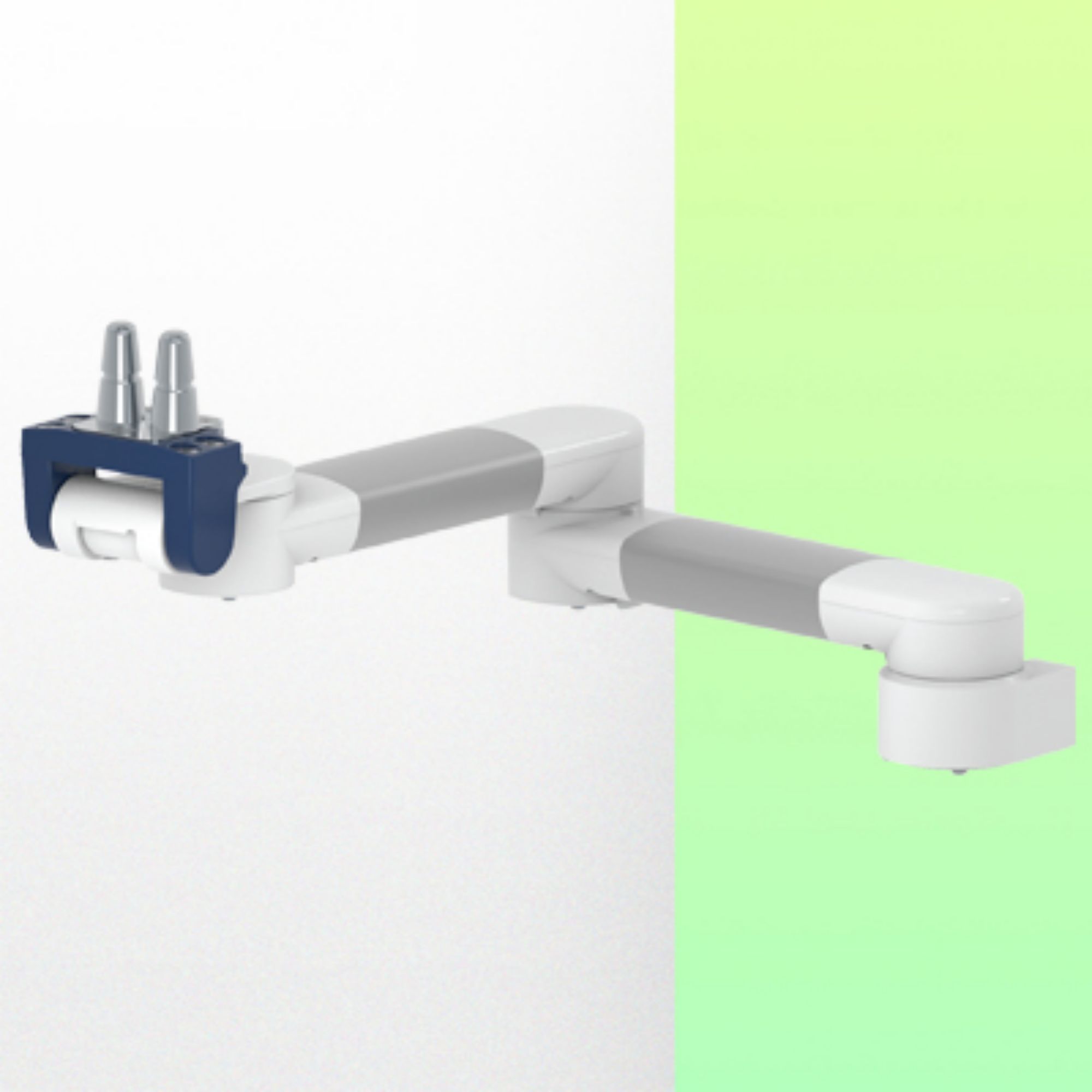

This 2 x 300 mm Horizontal Double Arm allows the monitor to be fixed, oriented and adjusted perfectly.

It is coated with an anti microbial agent to ensure hygiene and cleanliness down to the smallest detail.

Its modern design has been specially developed for healthcare environments.

Technical specifications:

* Integral cable management

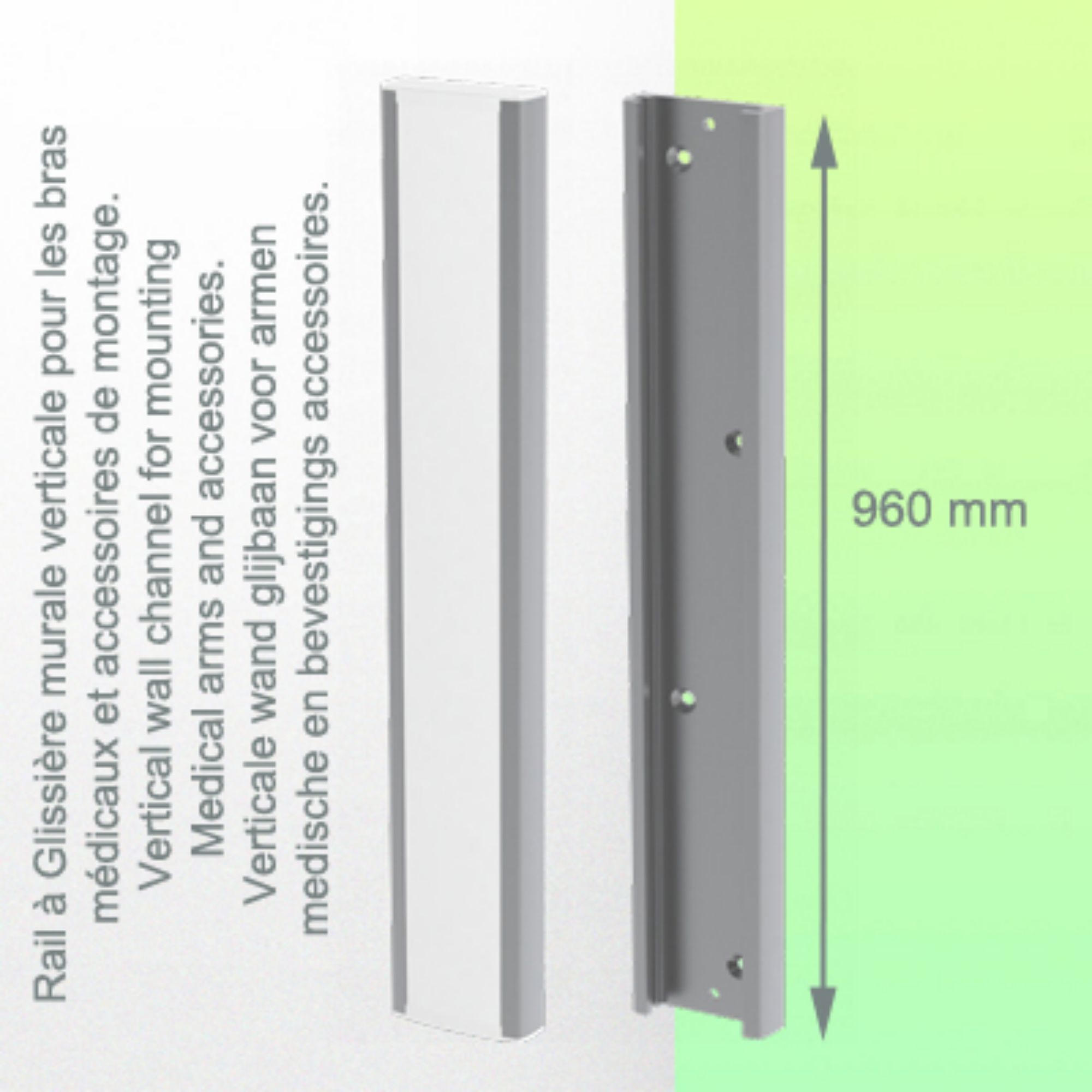

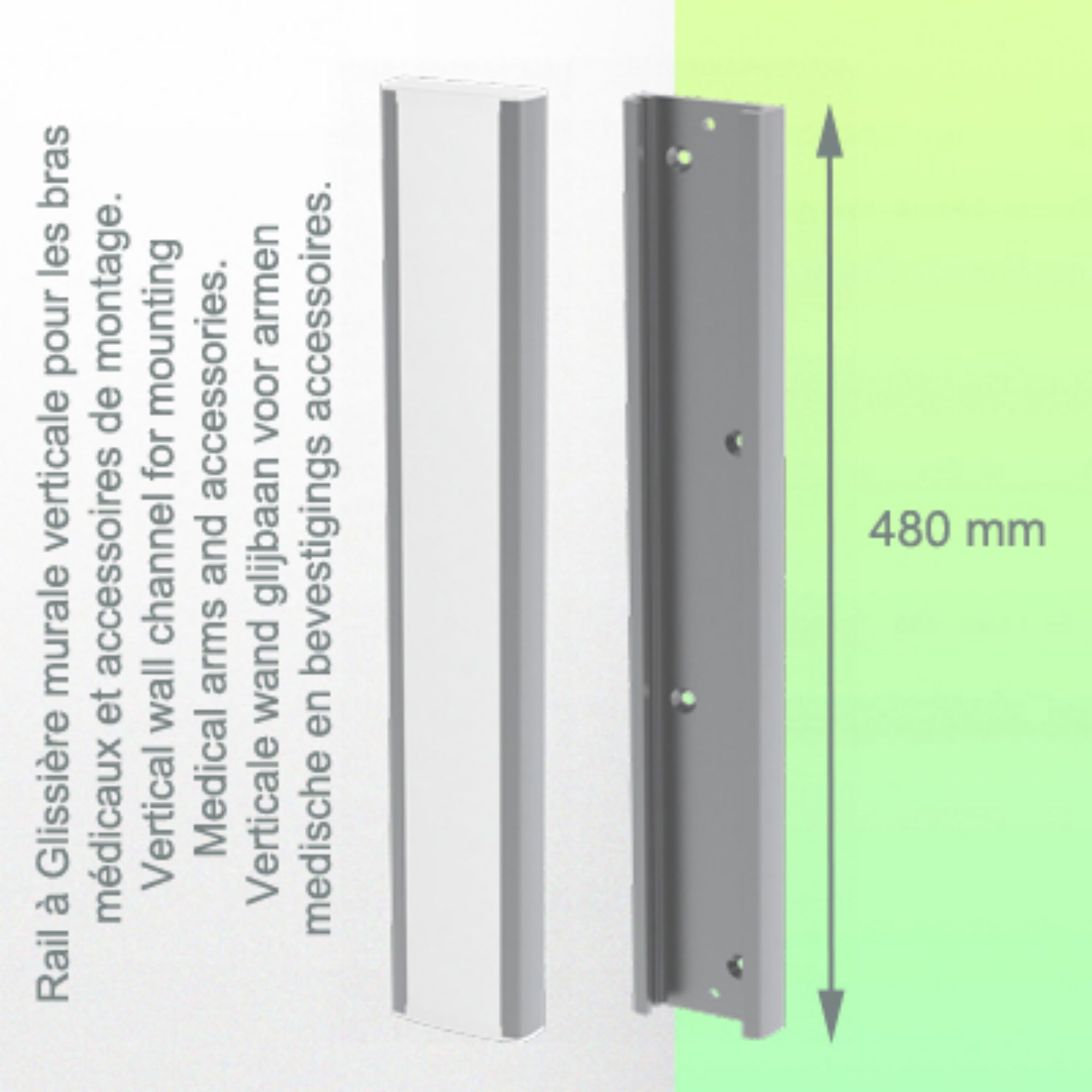

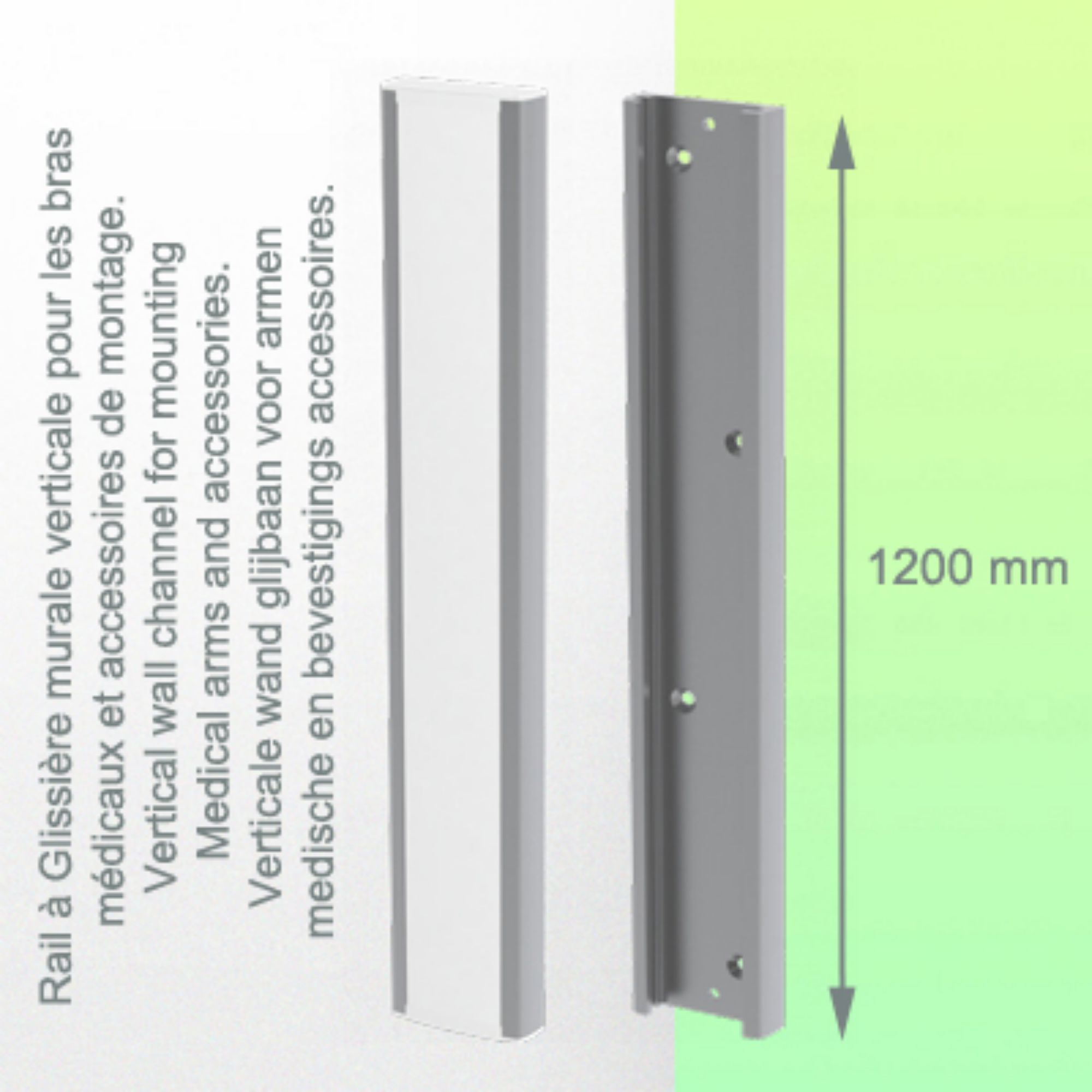

* For light applications * Mounting on optional Vertical Wall Slide Rail, of which several lengths are available (480 mm - 720 mm - 960 mm - 1200 mm).

* These wall rails can be easily cut to size. All cables also run through the wall rail.

* This 2 x 300 mm Horizontal Arm simply slides into the wall rail, then adjusts to the required height and locks in place.

* It has no height adjustment

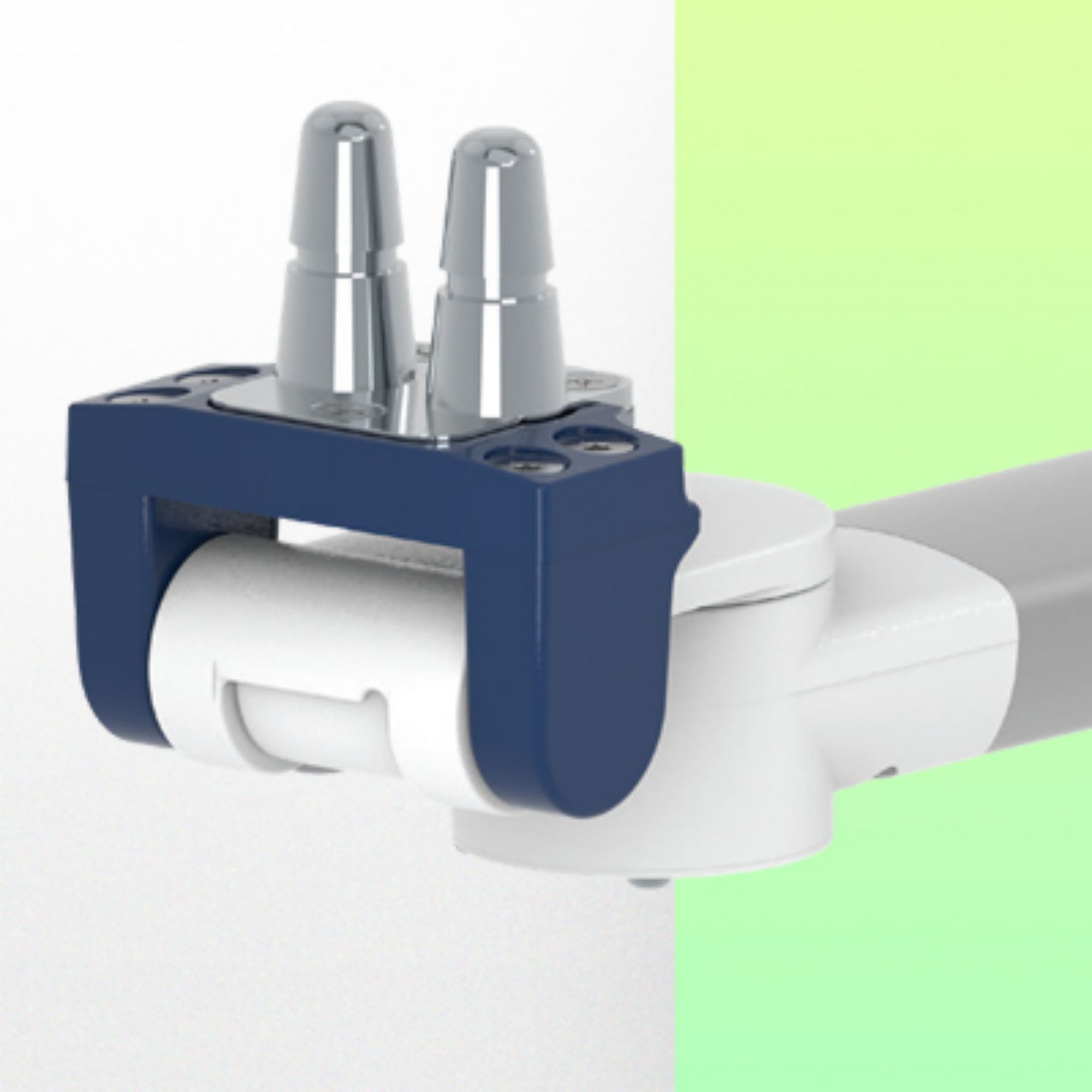

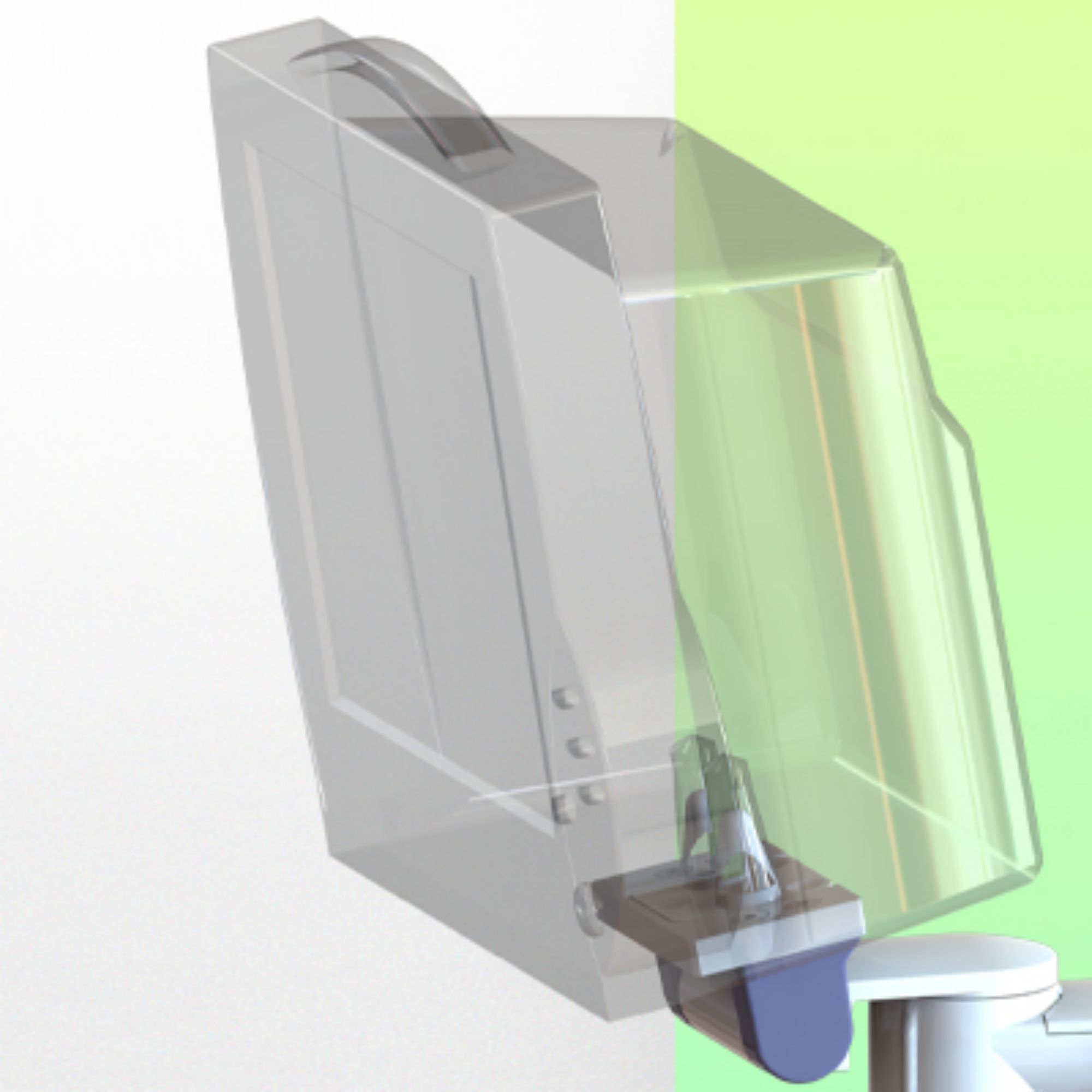

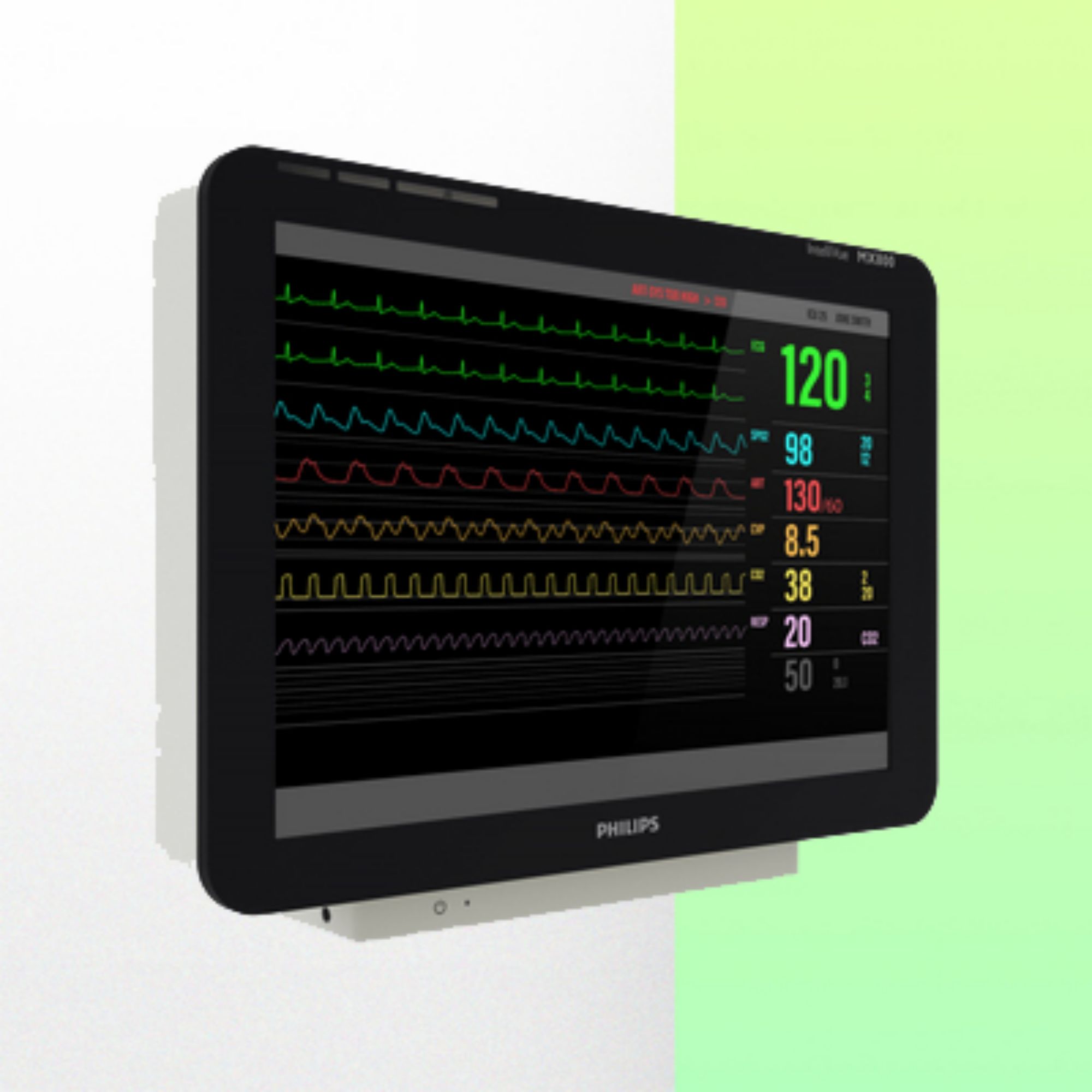

* The head of this arm complies with the mounting standard for Philips Intellivue Series monitors weighing up to 8 Kg.

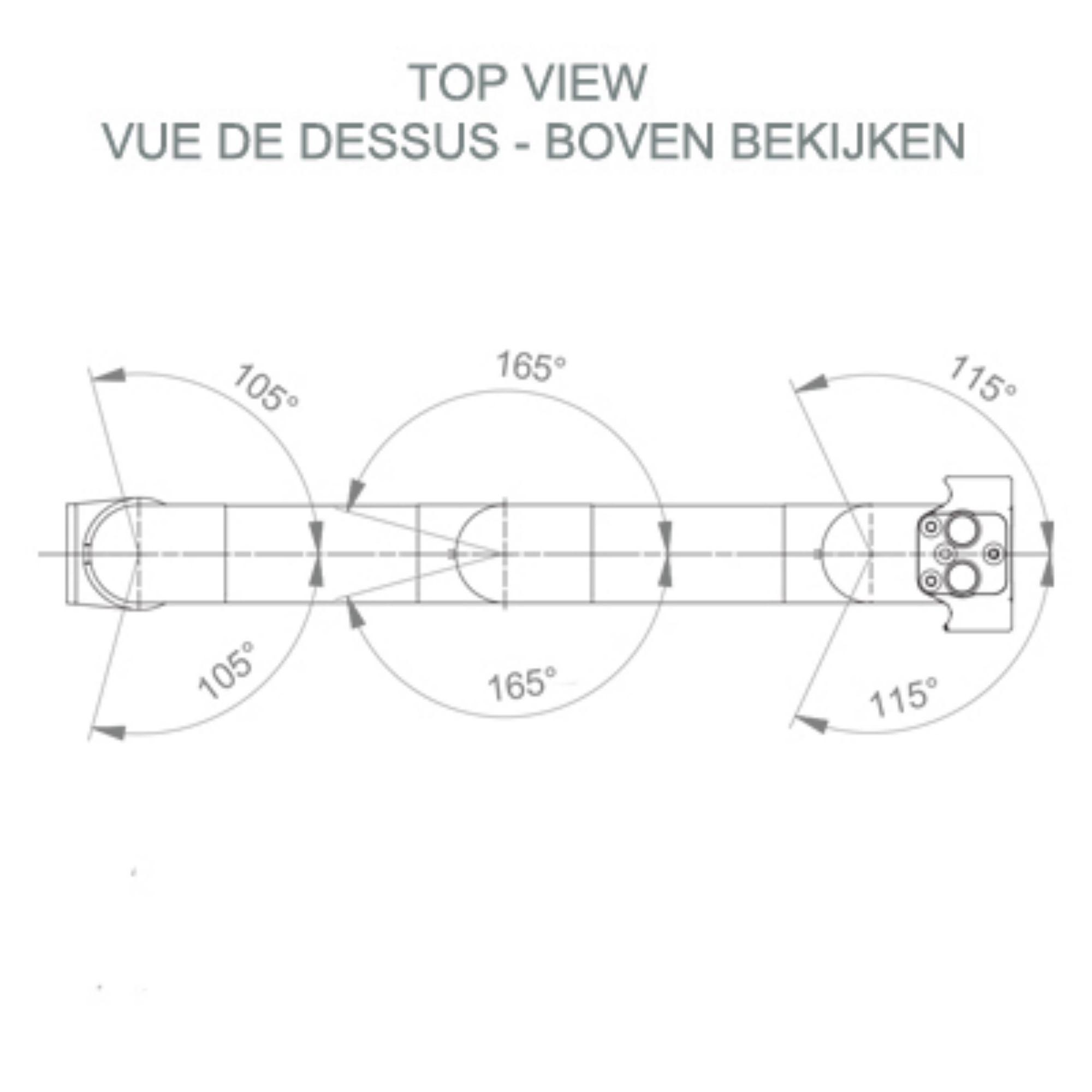

* Monitor tilt: 20° down, 12° up

* Monitor rotation: 115° right, 115° left.

* Arm rotation: 105° right, 105° left.

* Total length: 591 mm

* Color: RAL 5013 cobalt blue and RAL 9016 traffic white

* Warranty: 5 years
