2 x 300 mm swivelling Horizontal Medical Arm

for Monitoring Philips Intellivue Séries

(Heavy Duty applications up to 18 Kg),

wall mounting on vertical sliding rail

Product number: WM 260.102 - 2 x 300 mm swivelling Horizontal Medical Arm

for Monitoring Philips Intellivue Séries

(Heavy Duty applications up to 18 Kg),

wall mounting on vertical sliding rail

Product sheet PDF

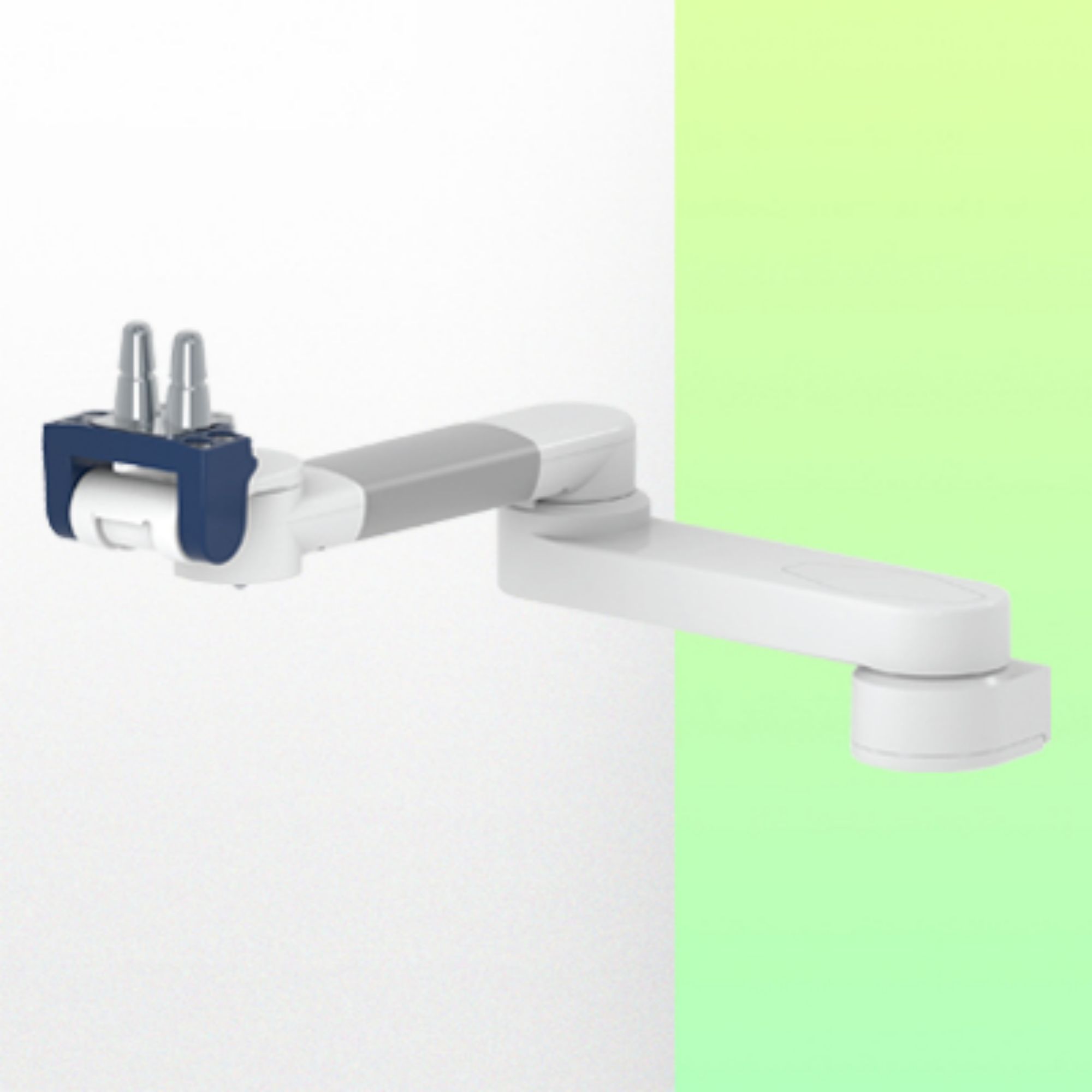

This 2 x 300 mm Horizontal Double Arm allows the monitor to be fixed, oriented and adjusted perfectly.

It is coated with an anti-microbial agent to ensure hygiene and cleanliness down to the smallest detail.

Its modern design has been specially developed for healthcare environments.

Technical specifications:

* Integral cable management

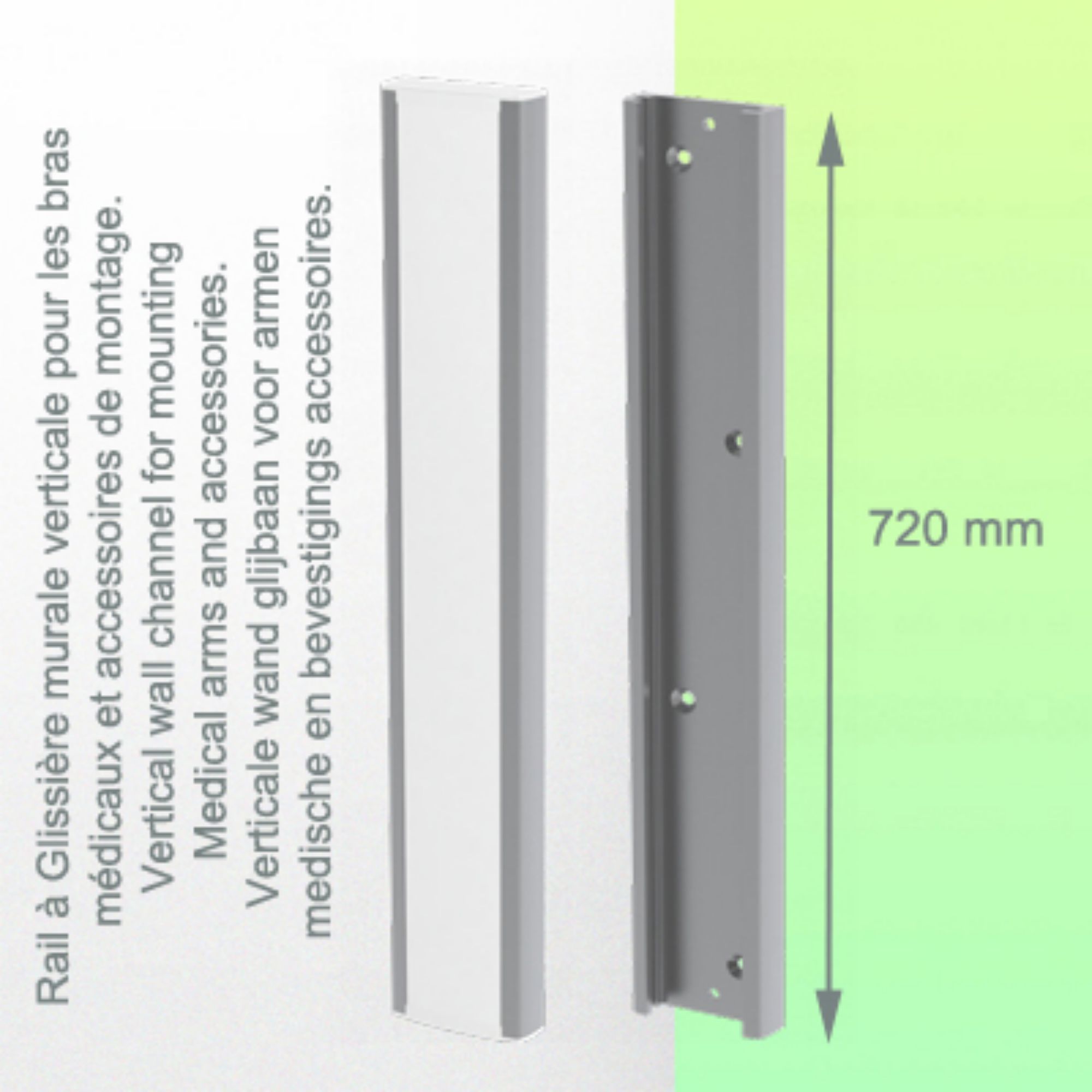

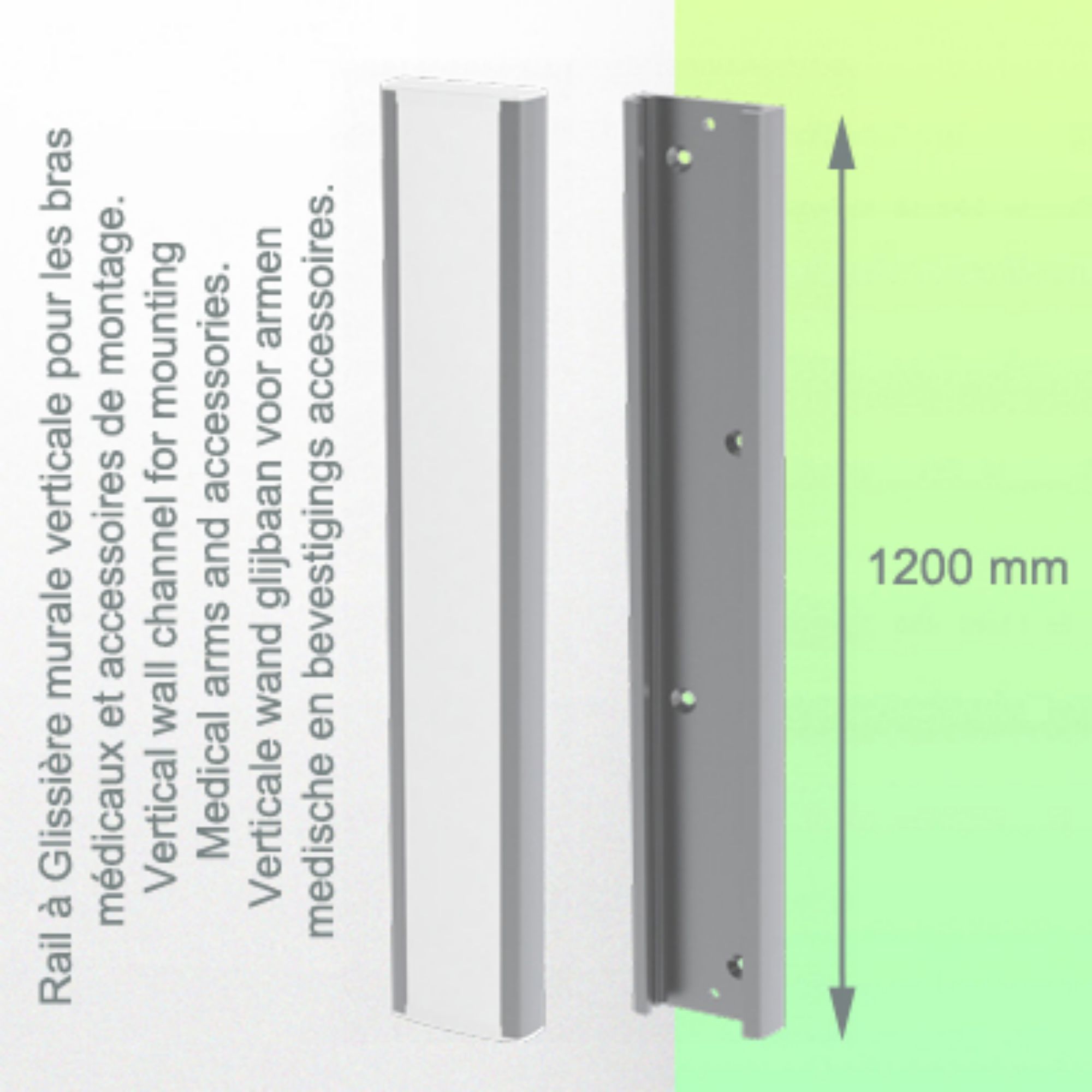

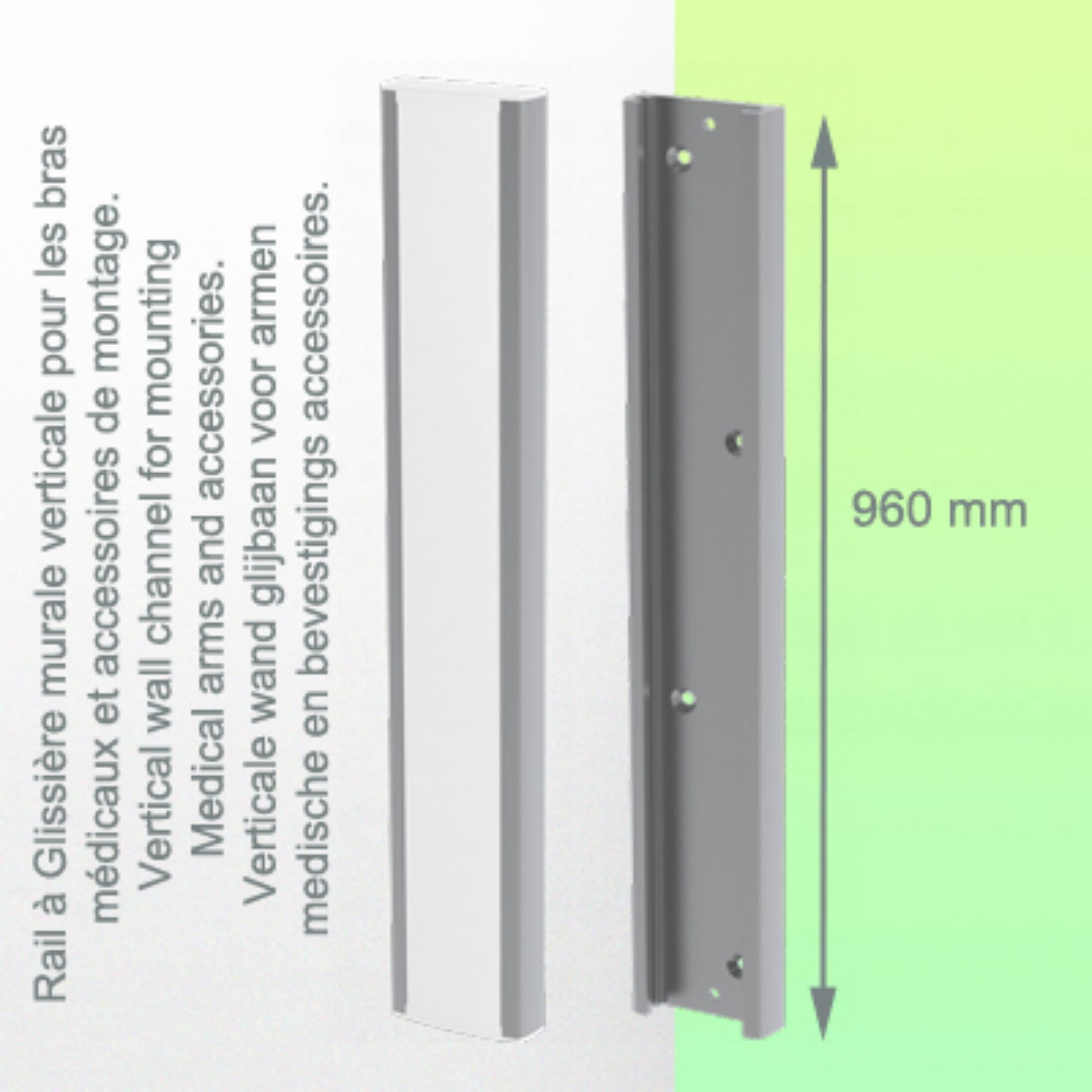

* For heavy-duty applications * Mounting on optional Vertical Wall Slide Rail, of which several lengths are available (480 mm - 720 mm - 960 mm - 1200 mm).

* These wall rails can be easily cut to size.

* All cables also run through the wall rail.

* This 2 x 300 mm Horizontal Arm simply slides into the wall rail, then adjusts to the required height and locks in place.

* It has no height adjustment

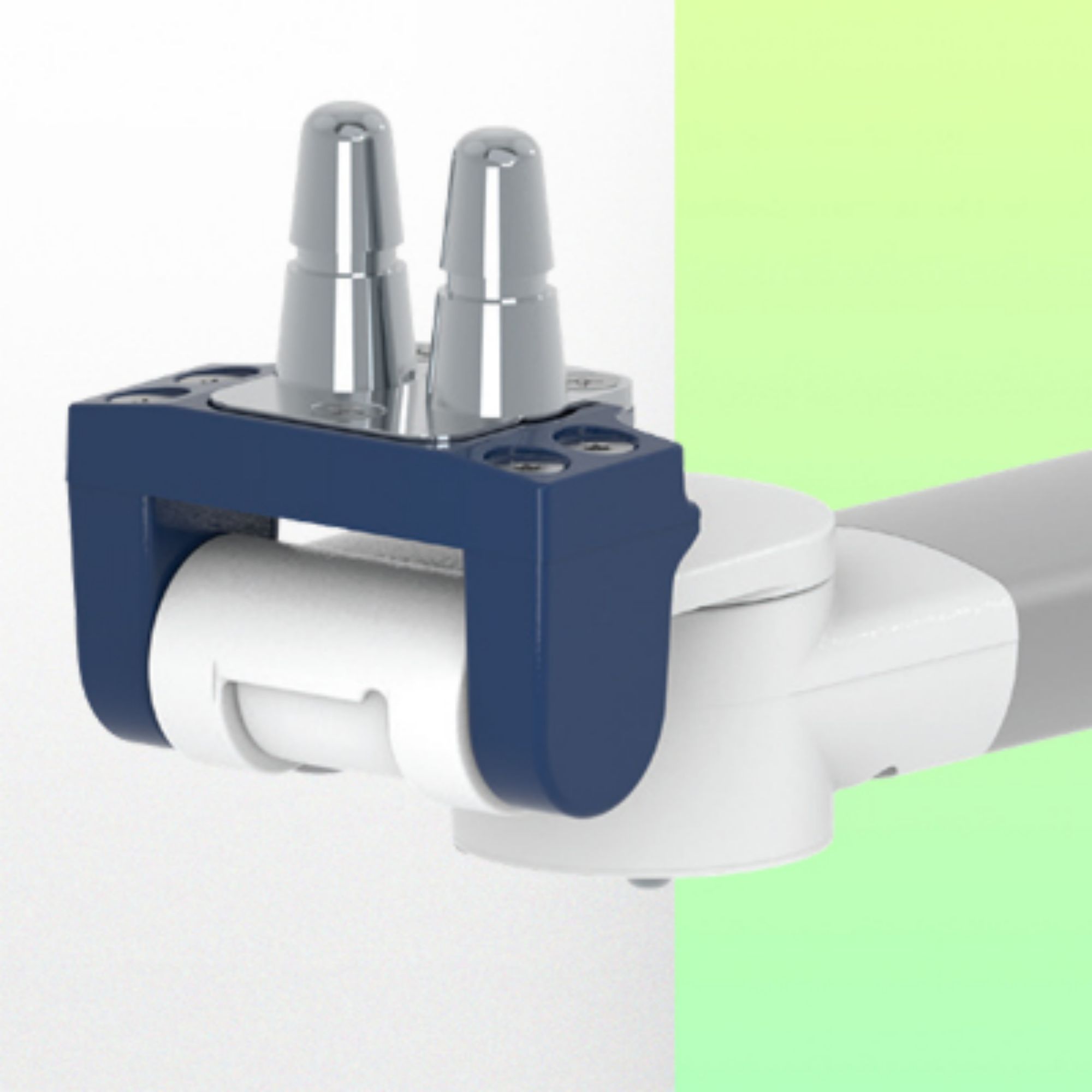

* The head of this arm complies with the mounting standard for Philips Intellivue Series monitors weighing up to 18 Kg.

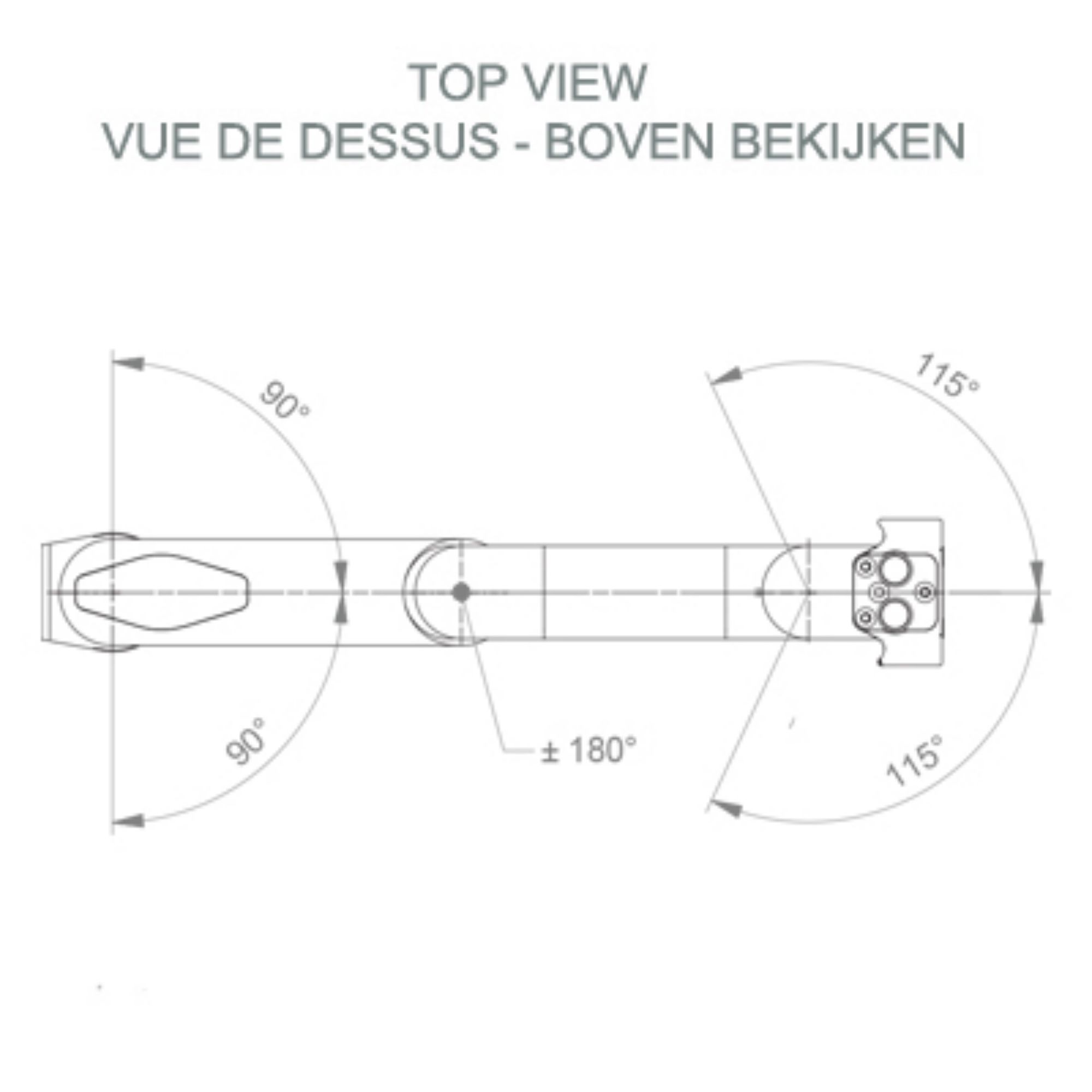

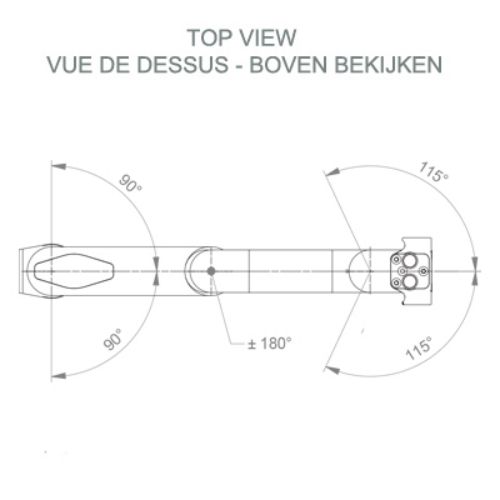

* Monitor tilt: 20° down, 12° up

* Monitor rotation: 115° right, 115° left.

* Arm rotation: 90° right, 90° left.

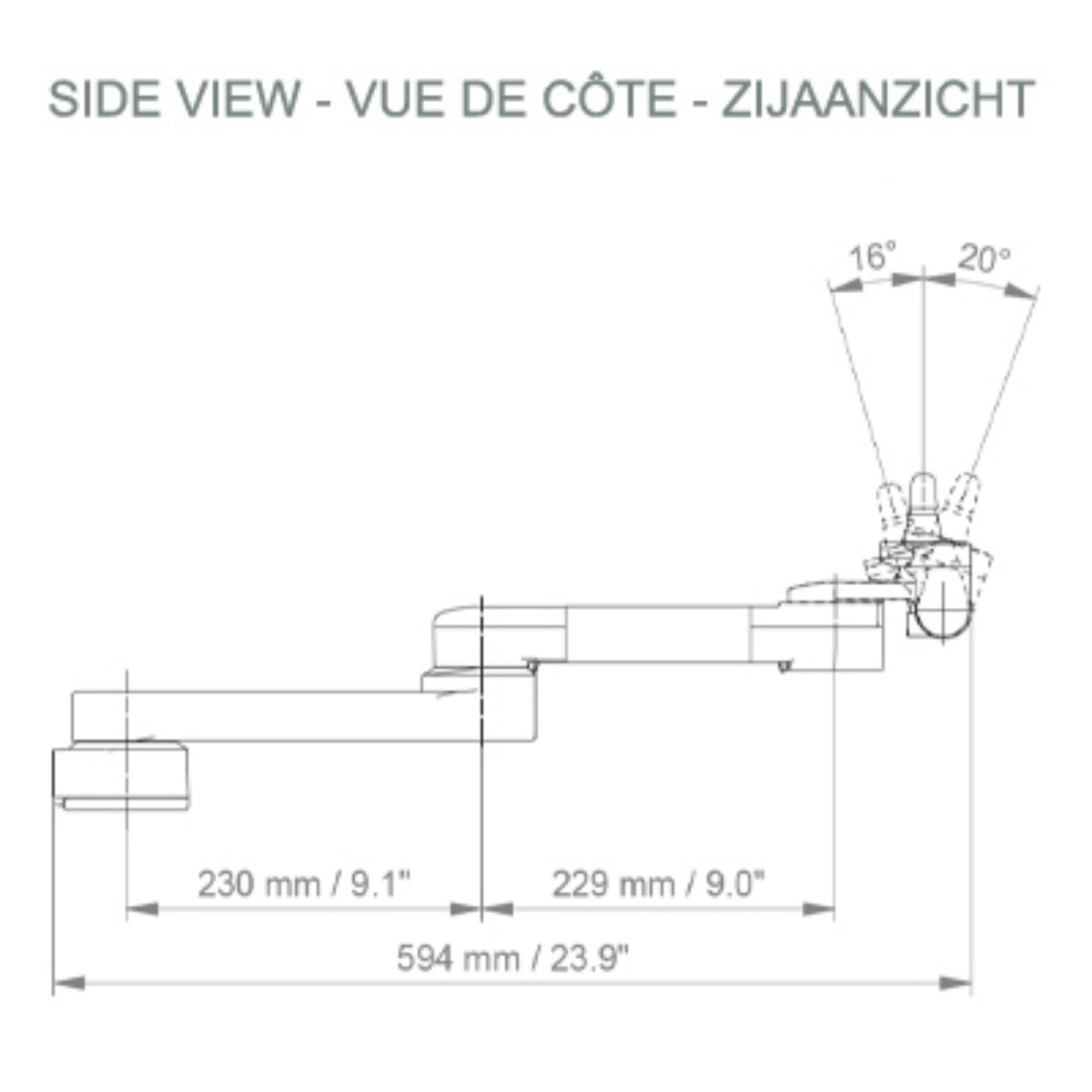

* Total length: 594 mm

* Color: RAL 5013 cobalt blue and RAL 9016 traffic white

* Warranty: 5 years
