363 mm Horizontal Medical Arm

for monitoring Philips Intellivue Séries

Variable Pole mounting ø 23 - 40 mm

Product number: WM 260.118 - 363 mm Horizontal Medical Arm

for monitoring Philips Intellivue Séries

Variable Pole mounting ø 23 - 40 mm

Product sheet PDF

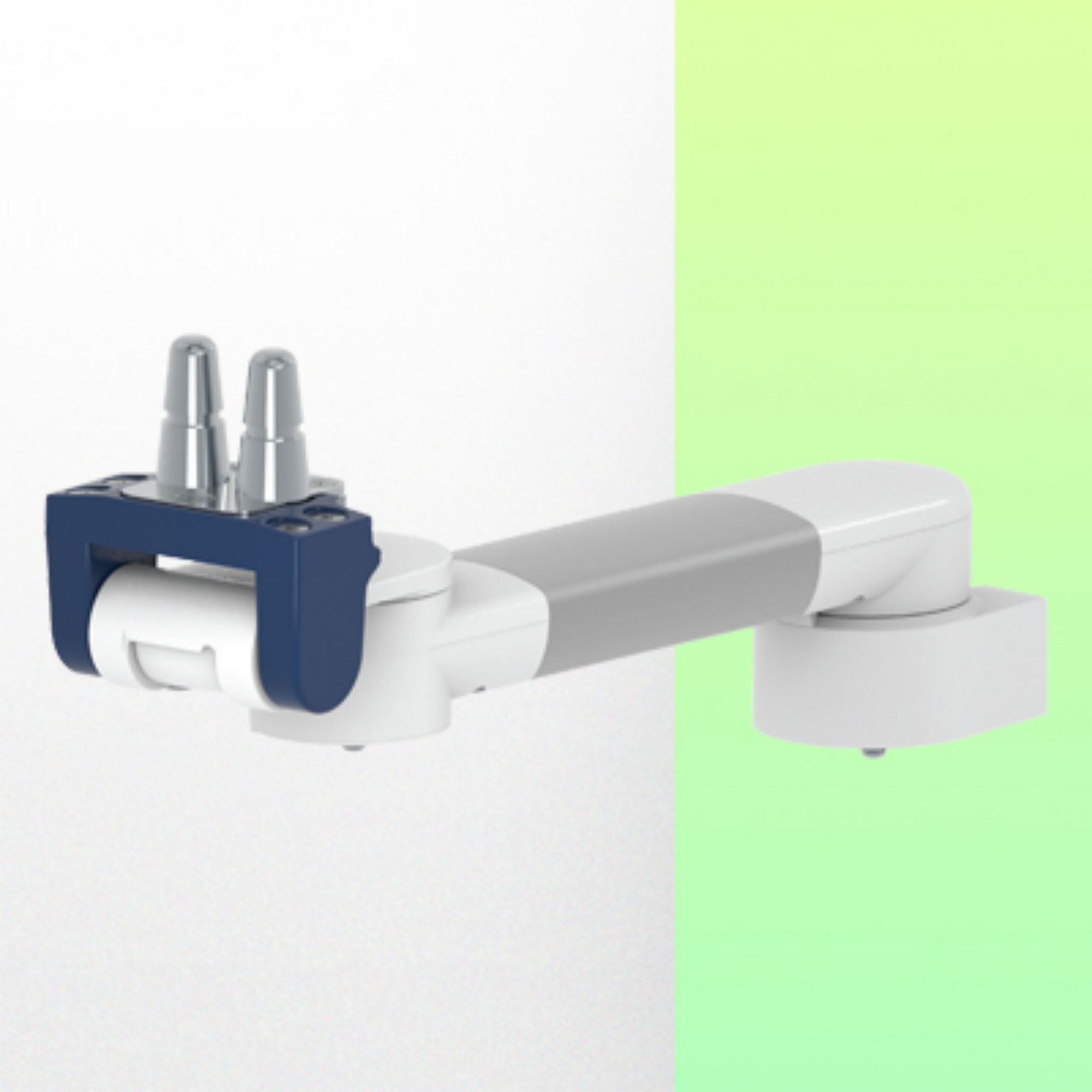

This 386 mm Horizontal Arm allows the monitor to be fixed, oriented and adjusted perfectly.

It is coated with an anti-microbial agent to ensure hygiene and cleanliness down to the smallest detail.

Its modern design has been specially developed for healthcare environments.

Technical specifications:

* Integrated cable management

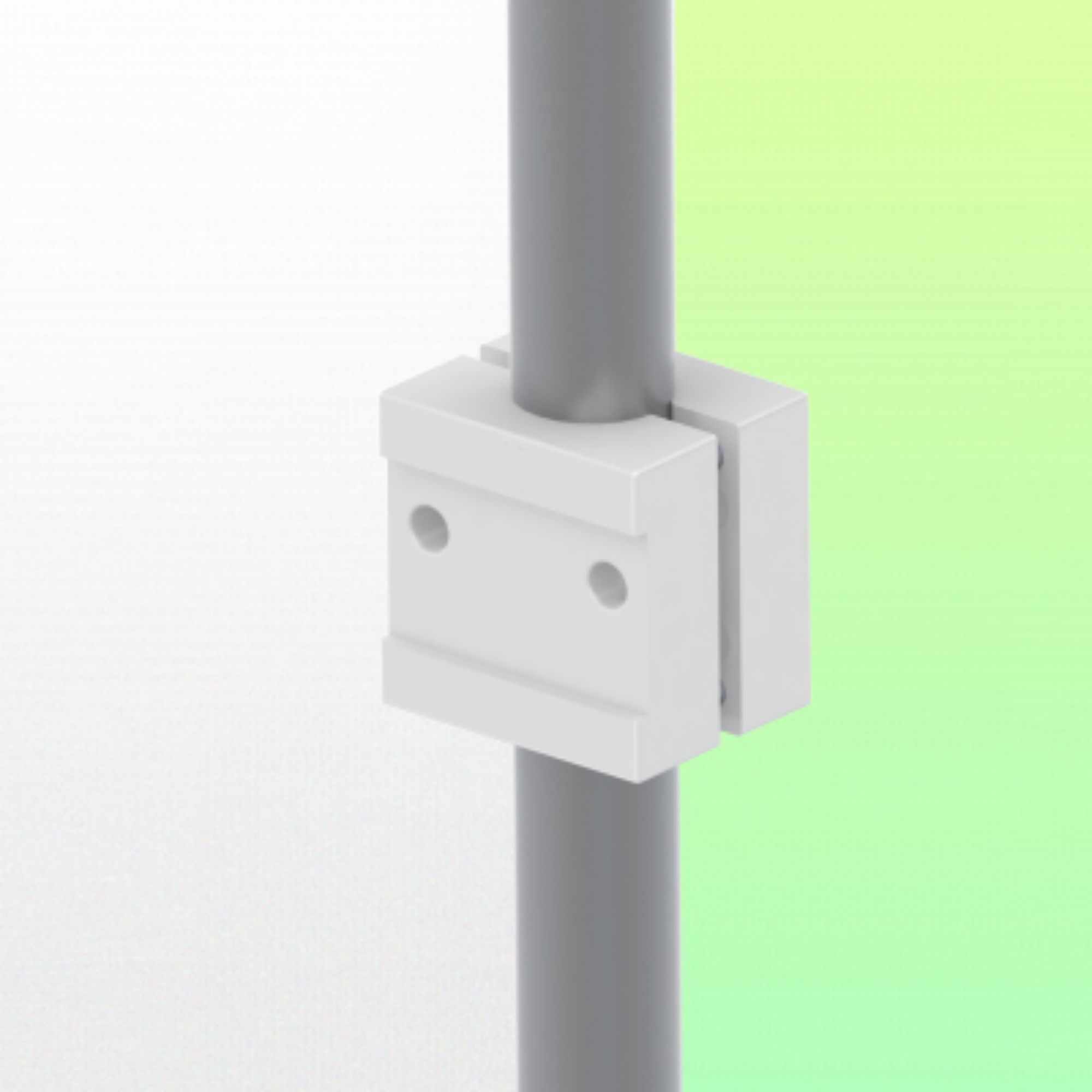

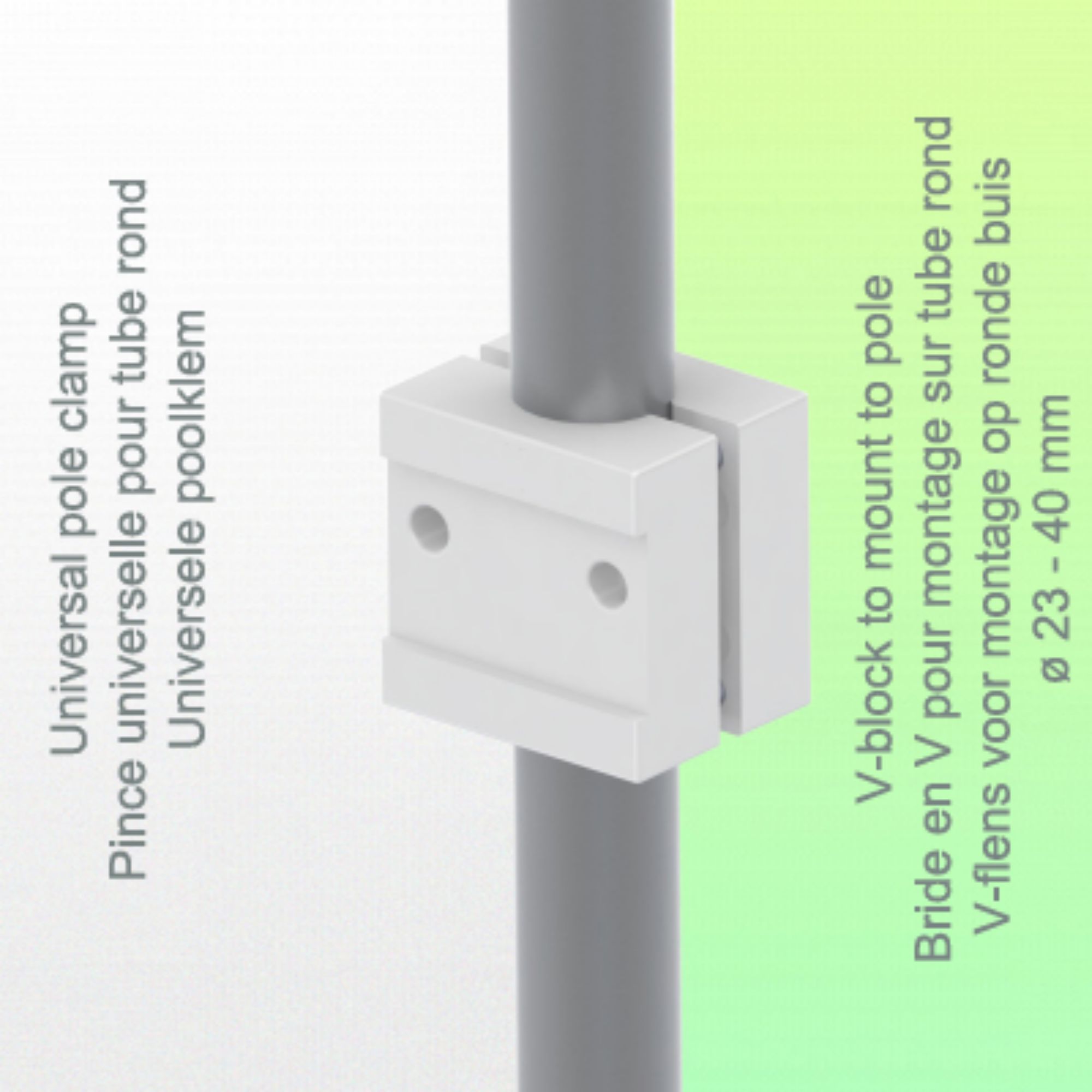

* Variable pole mounting with 23 to 40 mm diameter

* The 386 mm arm simply clips onto the pole and adjusts to the required height.

* There is no height adjustment.

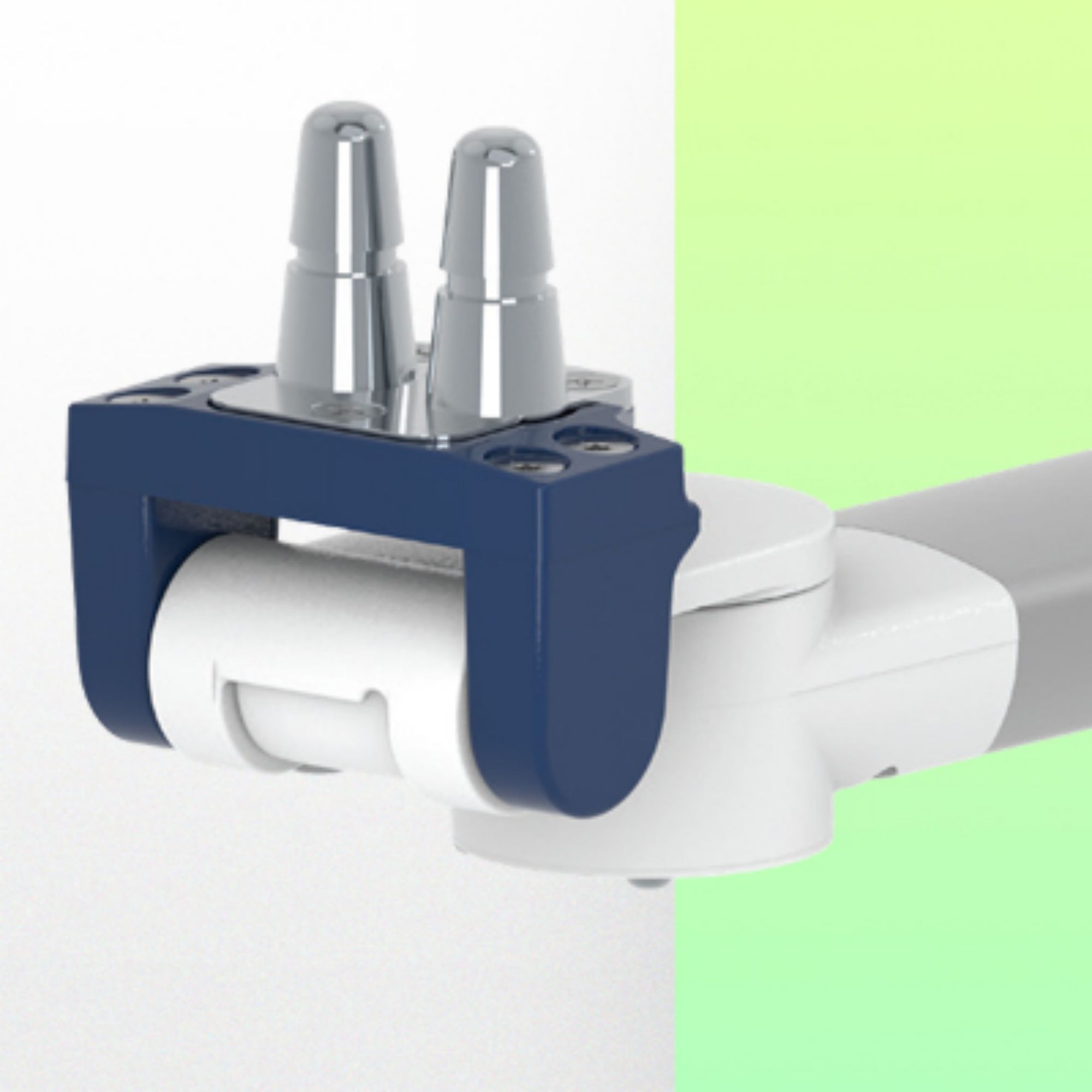

* The head of this arm complies with the mounting standard for Dräger and GE monitors weighing up to 18 kg.

* Monitor tilt: 20° down and 12° up

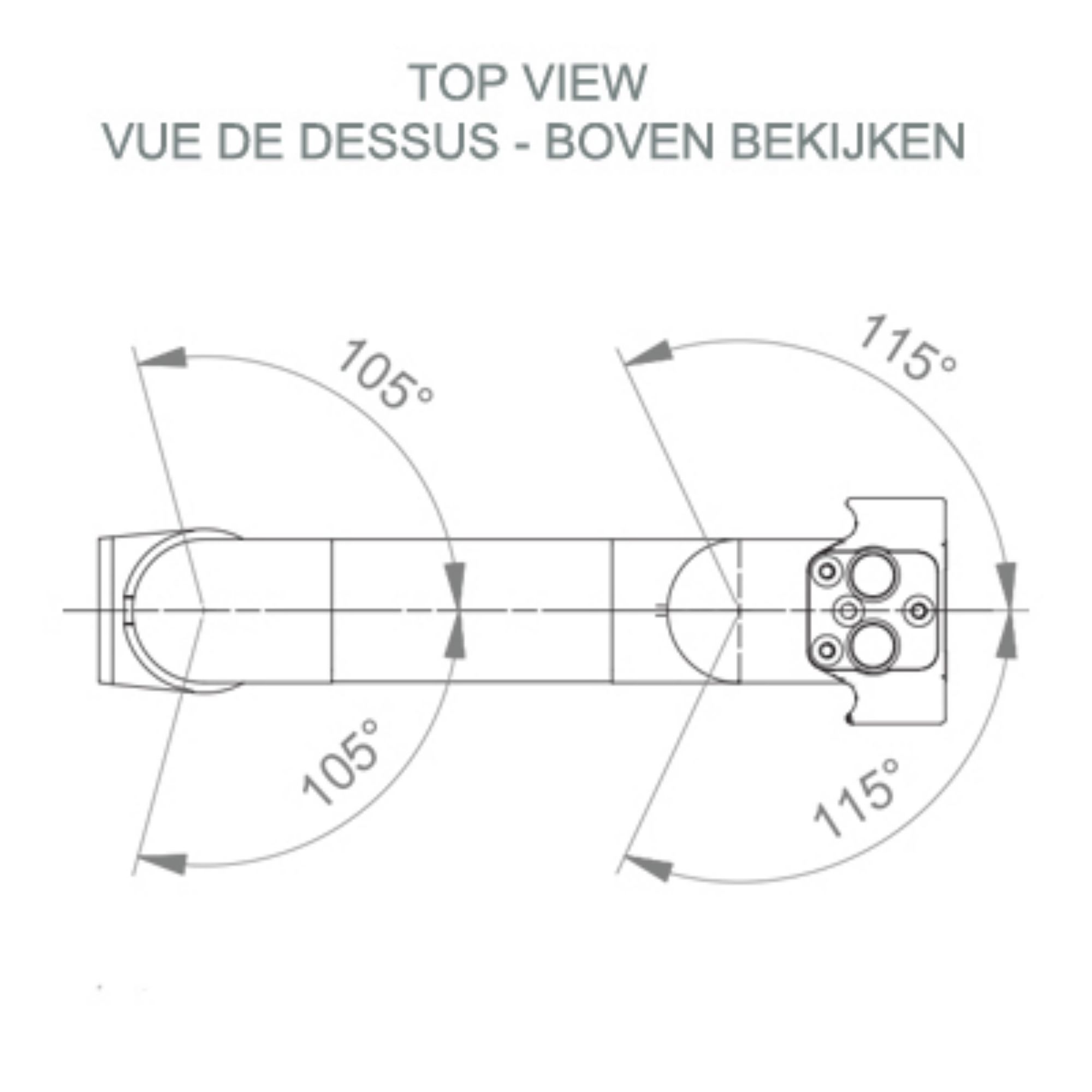

* Monitor rotation: 115° right, 115° left.

* Arm rotation: 105° right, 105° left.

* Total length: 386 mm Colour: RAL 5013 cobalt blue and RAL 9016 traffic white

* Warranty: 5 years
