2 x 300 mm Horizontal Medical Arm for Monitoring Philips Intellivue MP2/X2/X3 Séries,

floor or ceiling column mounting.

mounting without power cable hook

Product number: WM 280.104X - 2 x 300 mm Horizontal Medical Arm for Monitoring Philips Intellivue MP2/X2/X3 Séries,

floor or ceiling column mounting.

mounting without power cable hook

Product sheet PDF

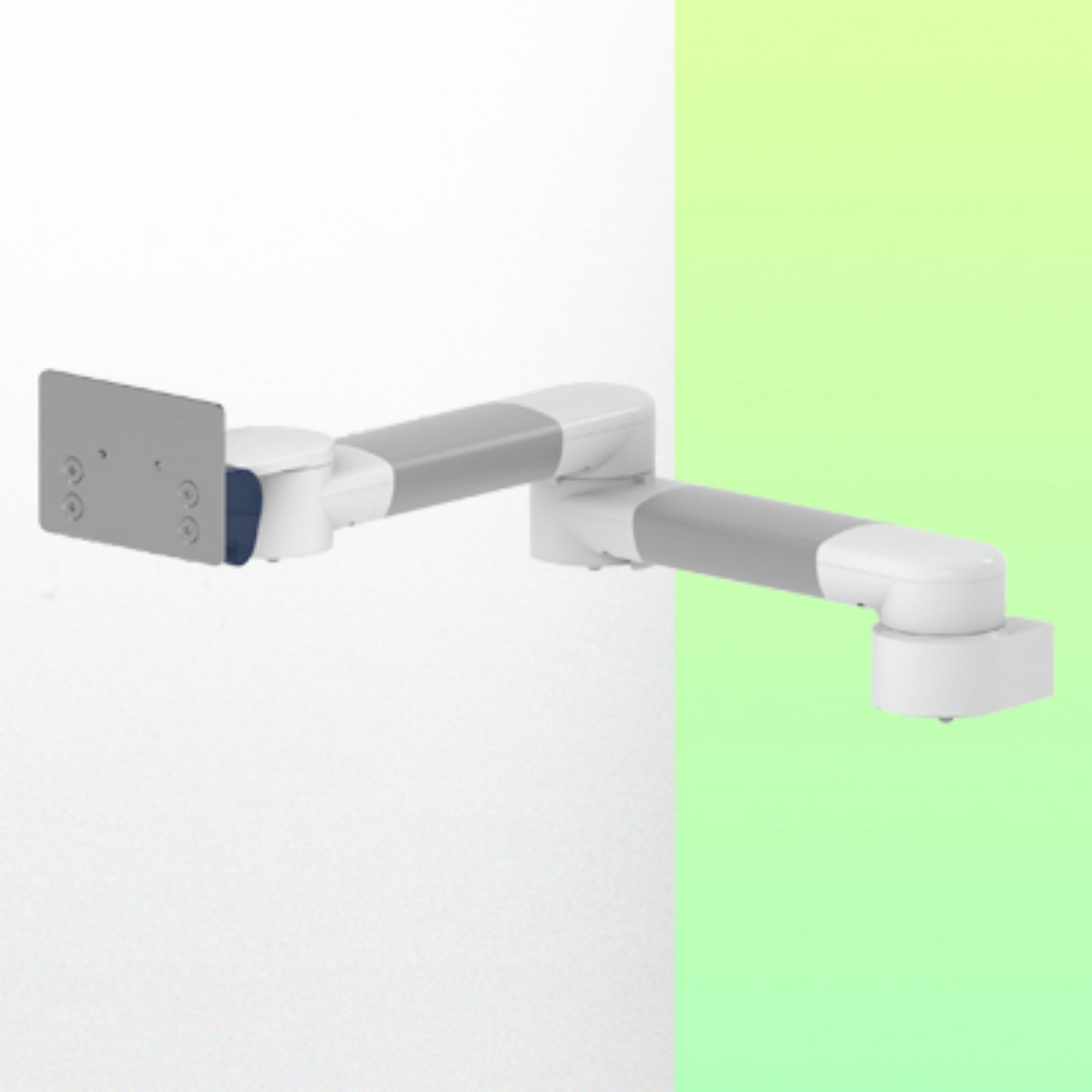

This 2 x 300 mm Horizontal Arm allows the monitor to be fixed, oriented and adjusted perfectly.

It is coated with an anti-microbial agent to ensure hygiene and cleanliness down to the smallest detail.

Its modern design has been specially developed for healthcare environments.

Technical specifications:

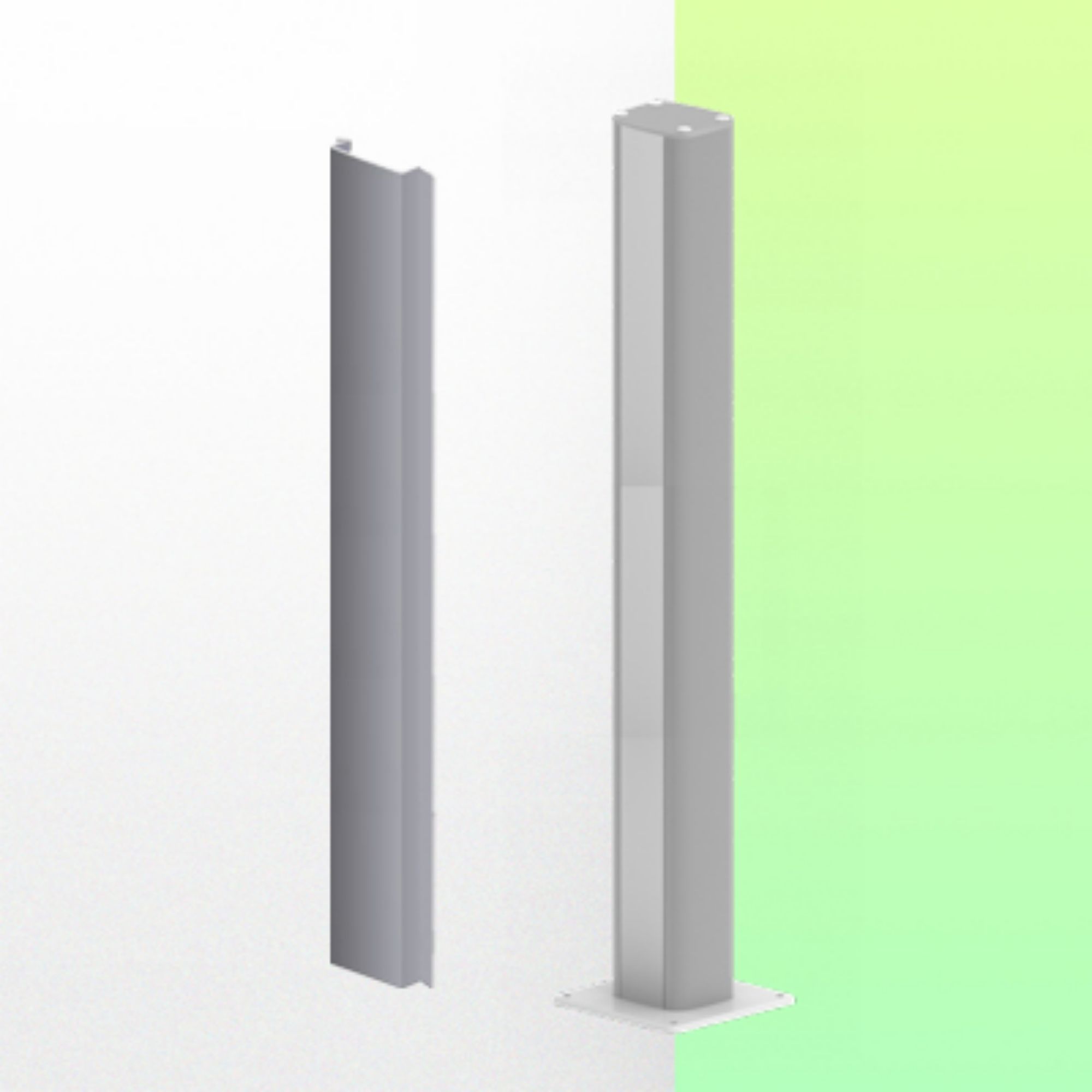

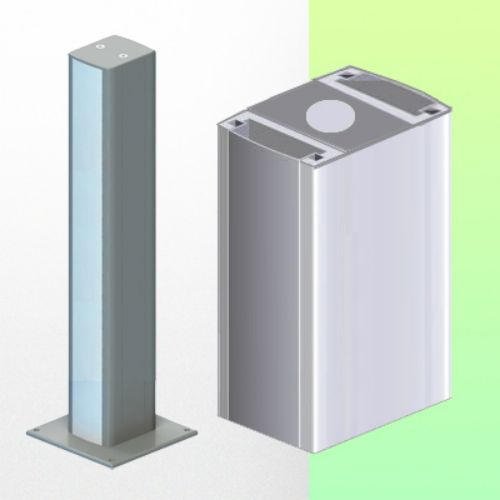

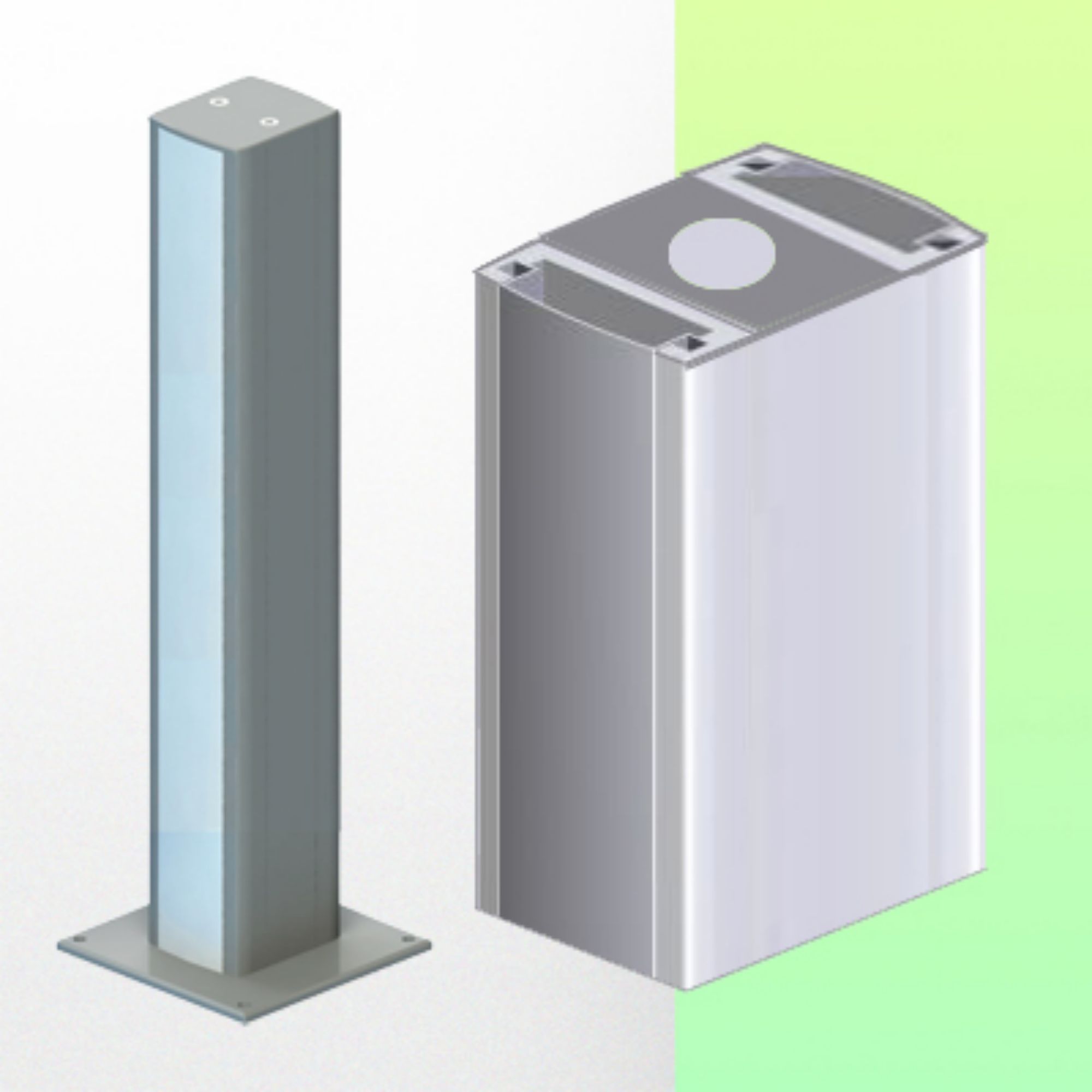

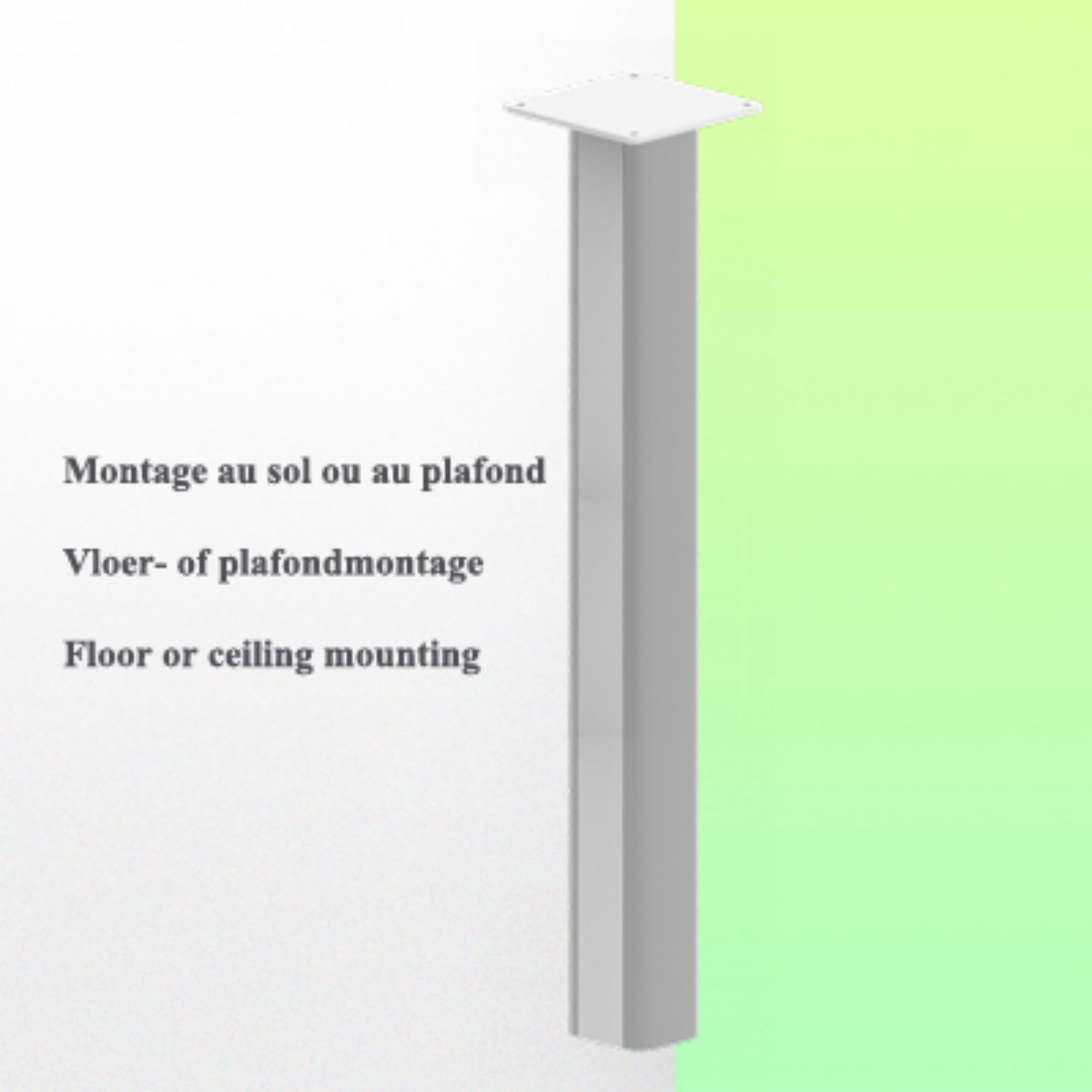

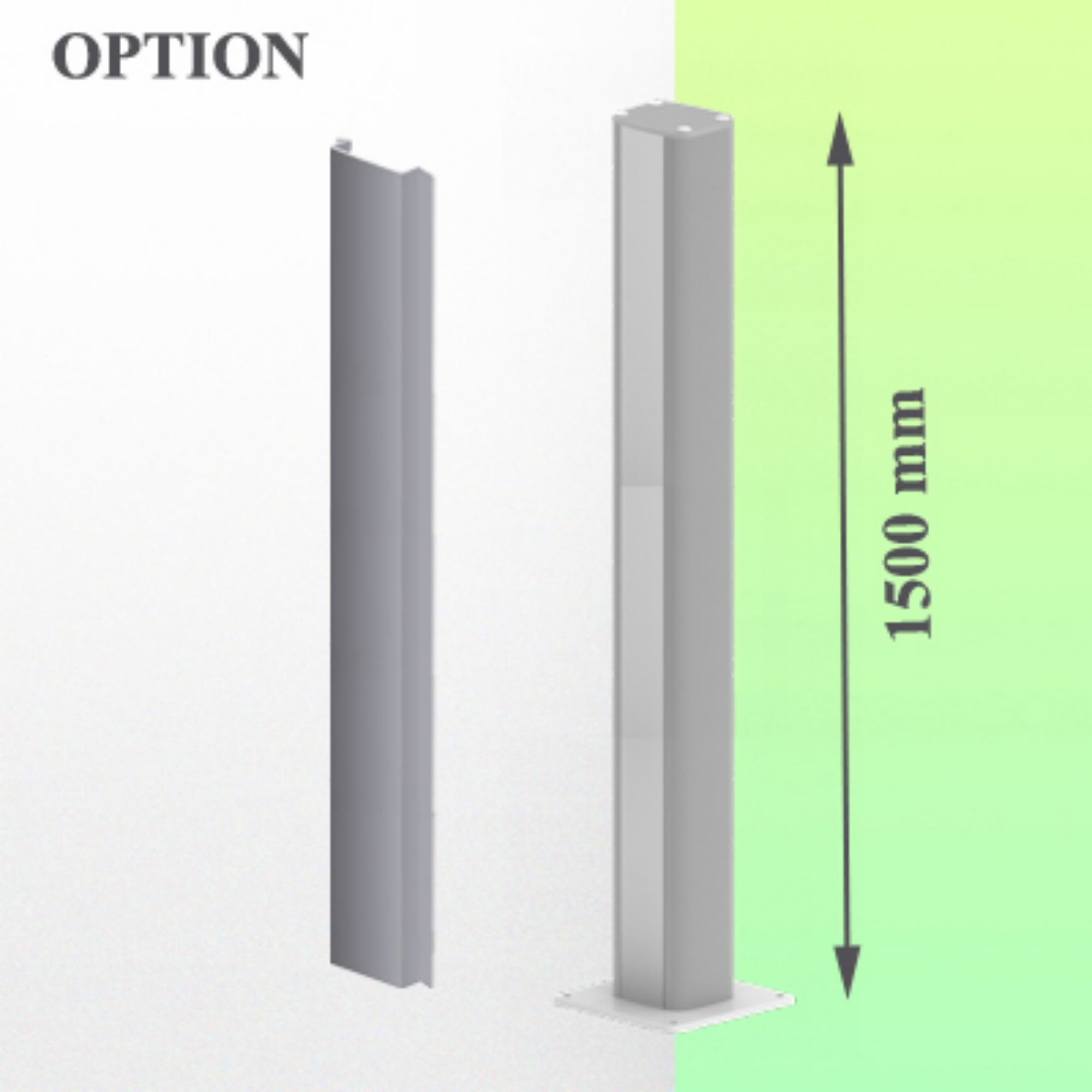

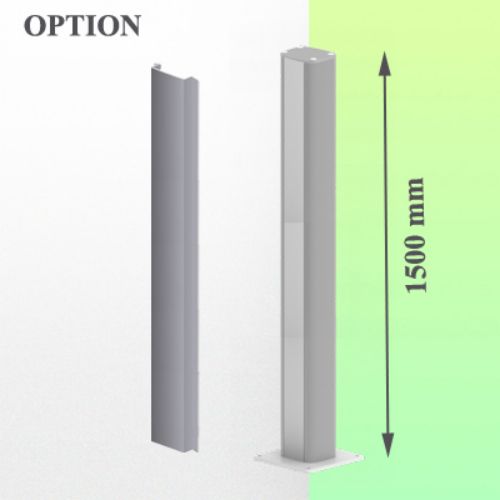

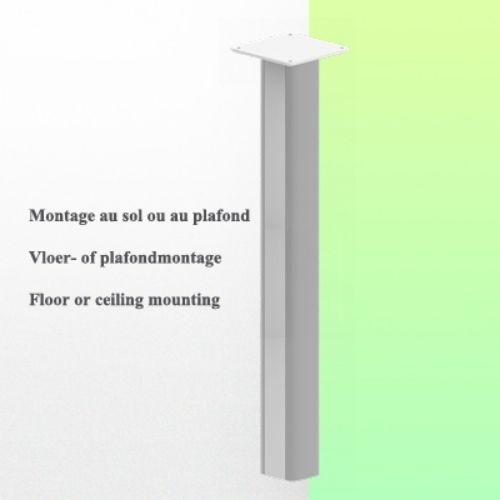

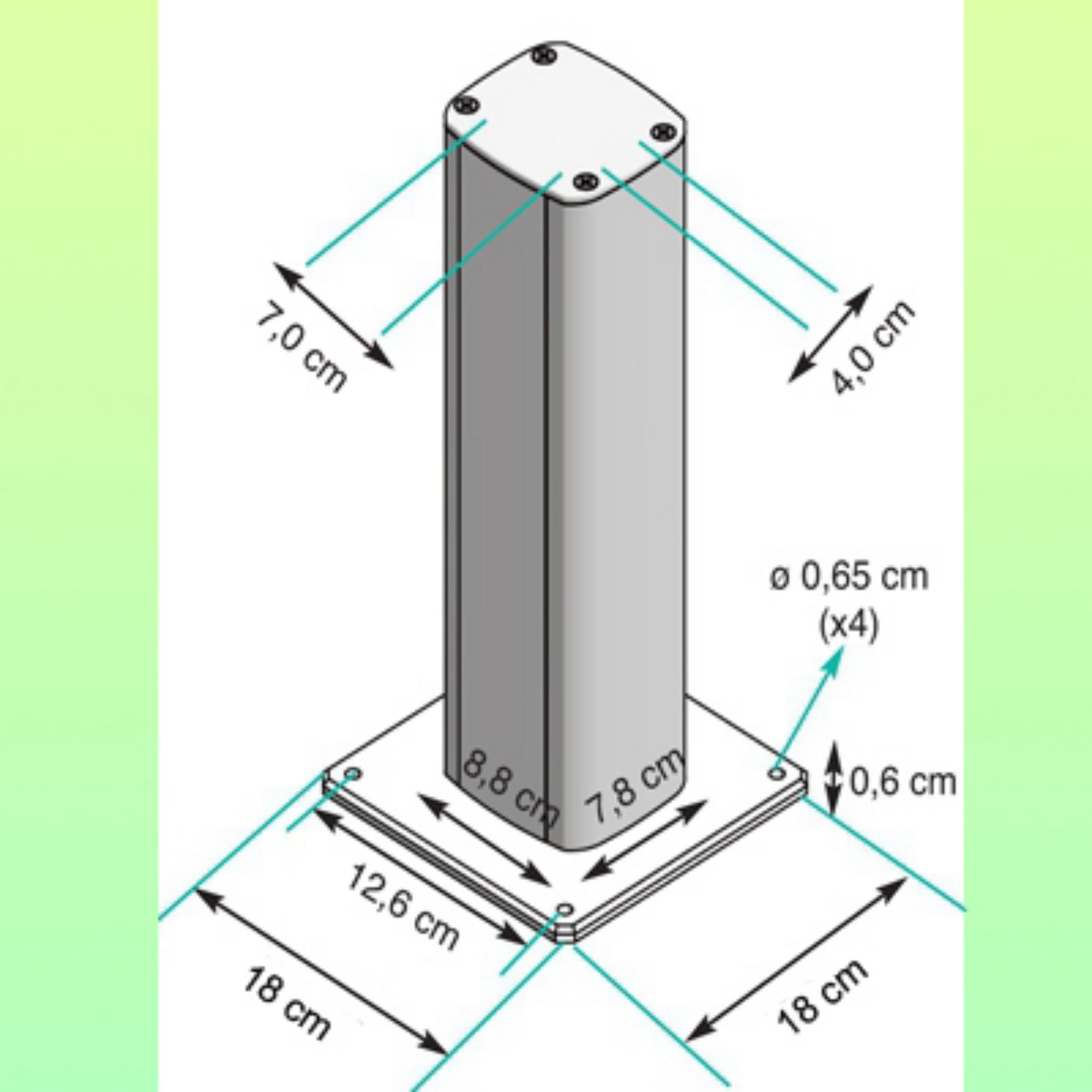

* Optional floor or ceiling column mounting, with several heights available (1500 - 2000 mm).

* These columns can be easily cut to size.

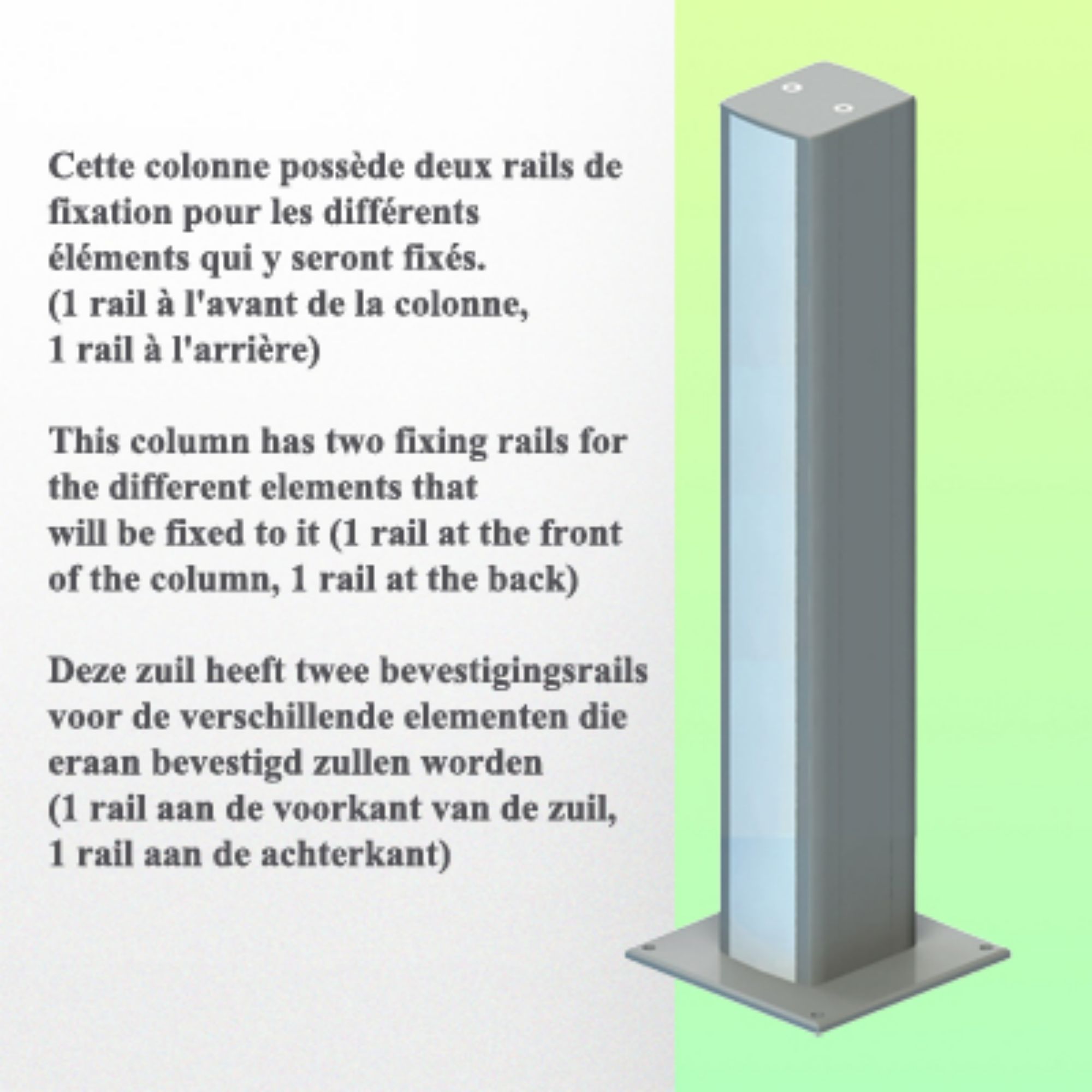

* All cables are also routed through the column

* This 2 x 300 mm Horizontal Arm simply slides into the column rail and adjusts to the required height.

* It has no height adjustment

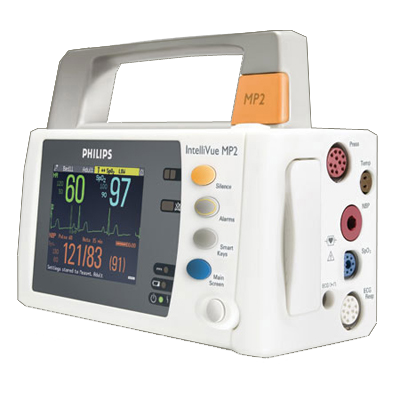

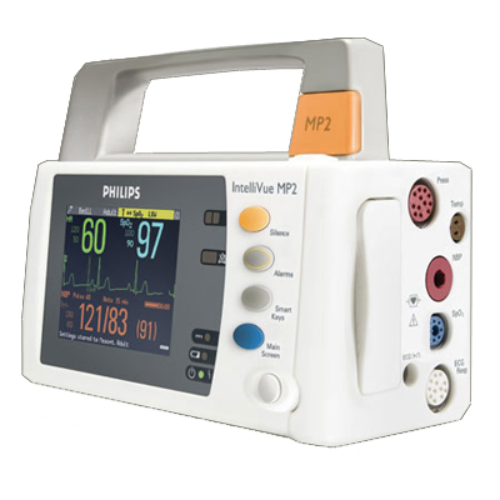

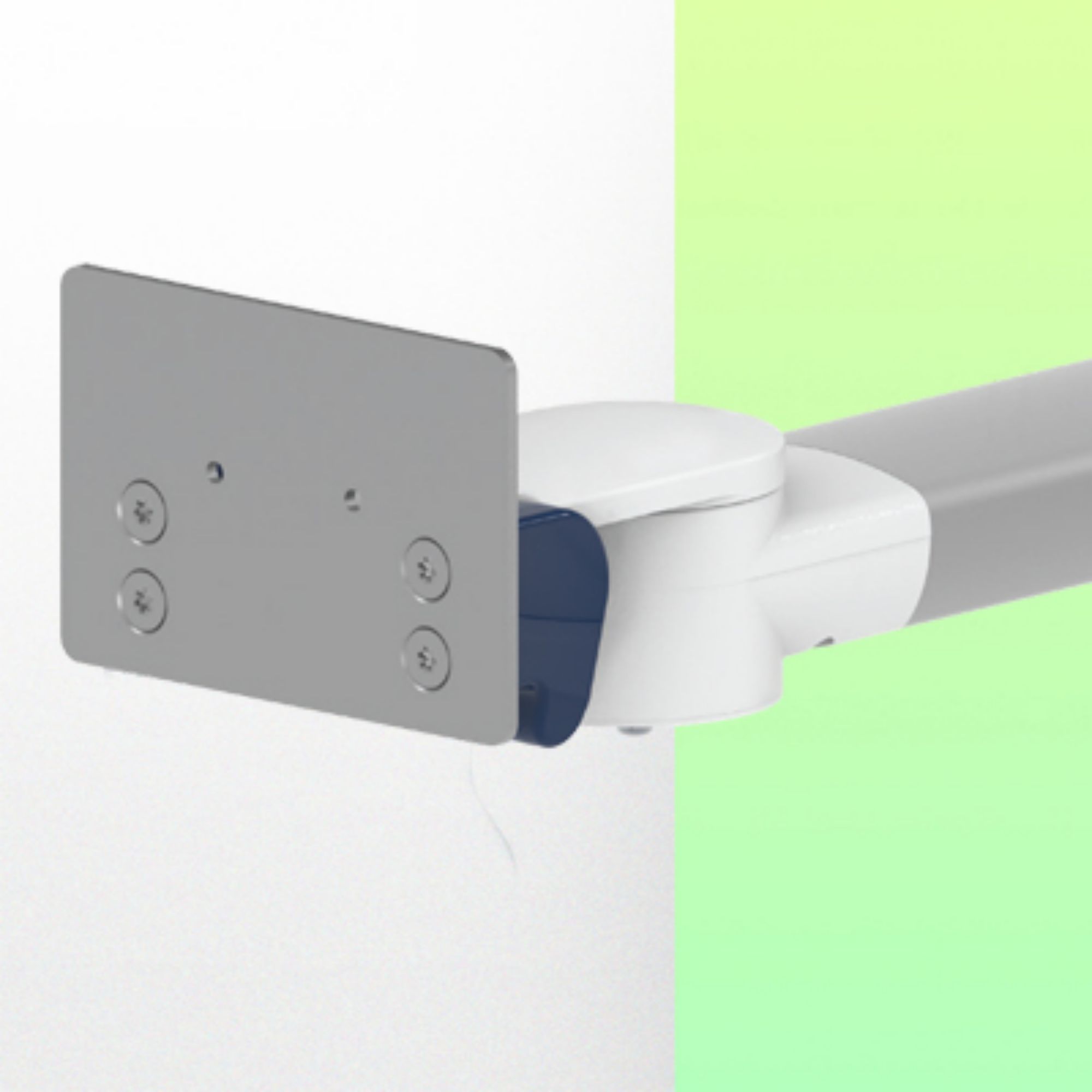

* The head of this arm complies with the mounting standard for Philips Intellivue MP2/X2/X3 Series monitors weighing up to 8 Kg. * Monitor tilt: 23° down and 90° up

* Monitor rotation: 115° right, 115° left.

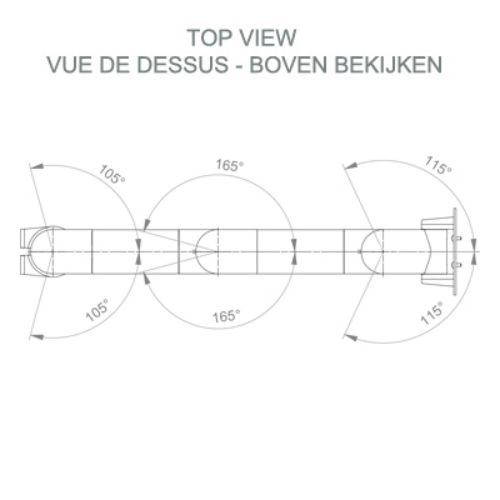

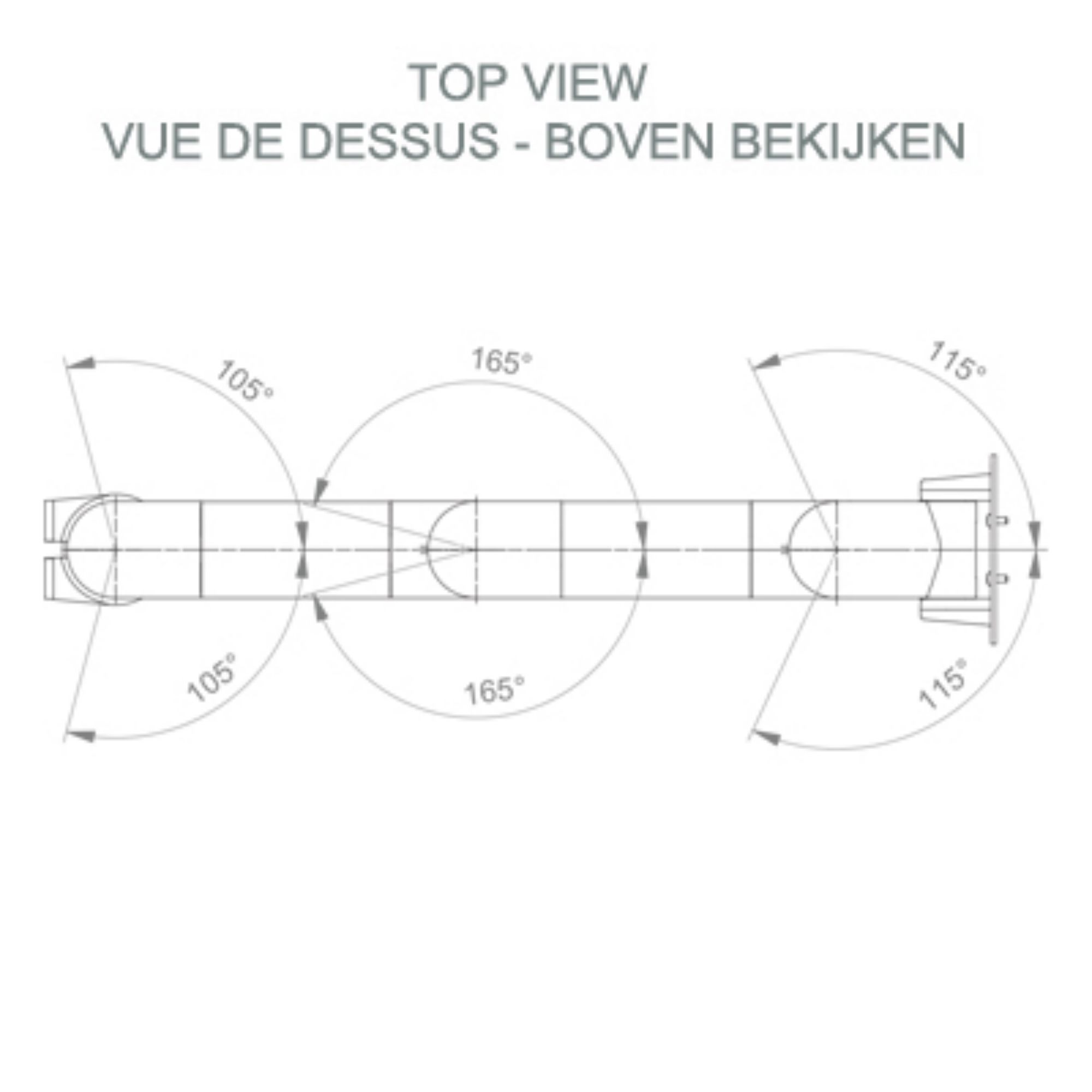

* Arm rotation: 105° right, 105° left.

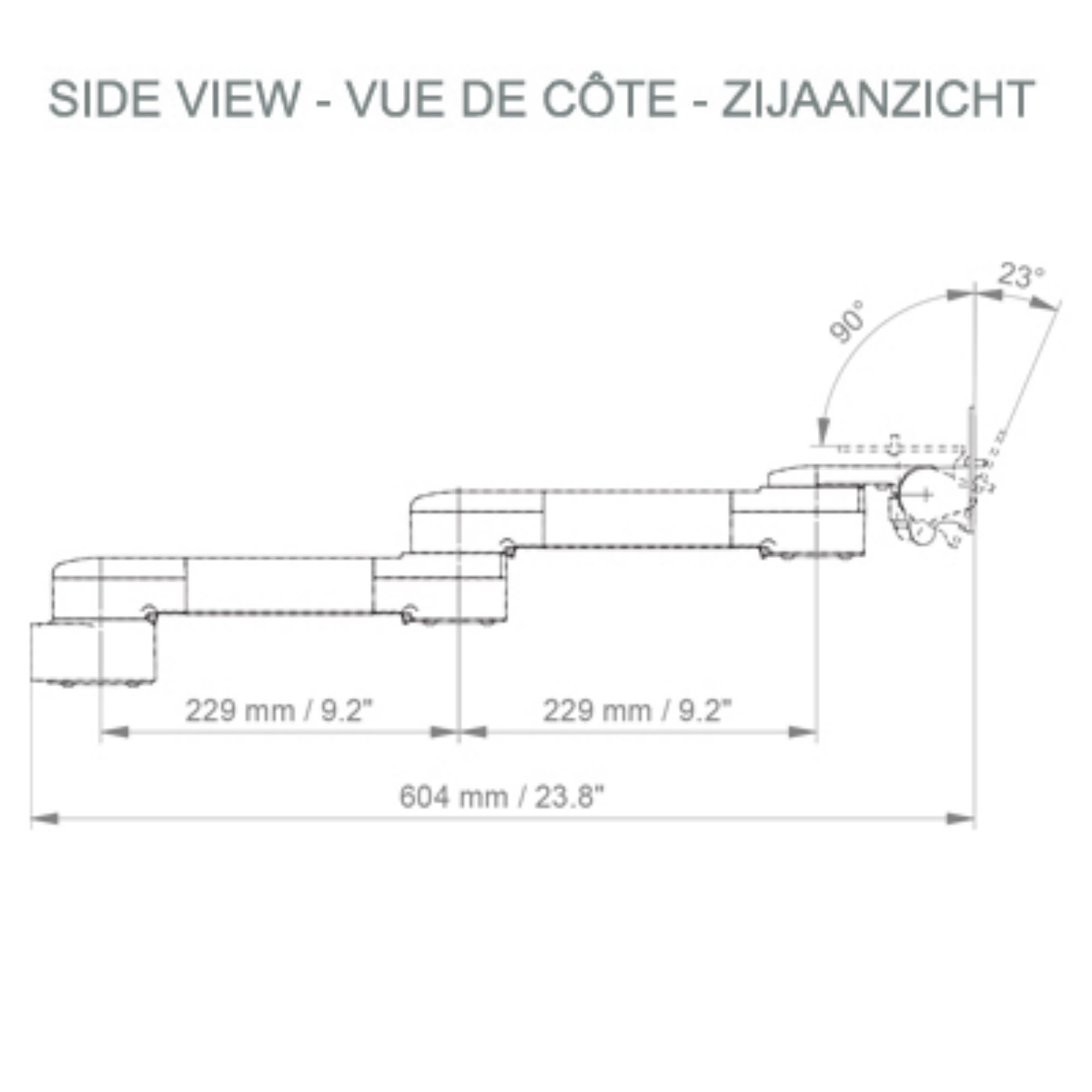

* Total length: 604 mm

Colour: RAL 5013 cobalt blue and RAL 9016 traffic white

* Warranty: 5 years
