300 mm Horizontal Medical Arm for Monitoring Philips Intellivue MP2/X2/X3 Séries,

Mounting on Mindray Medical Supply Device.

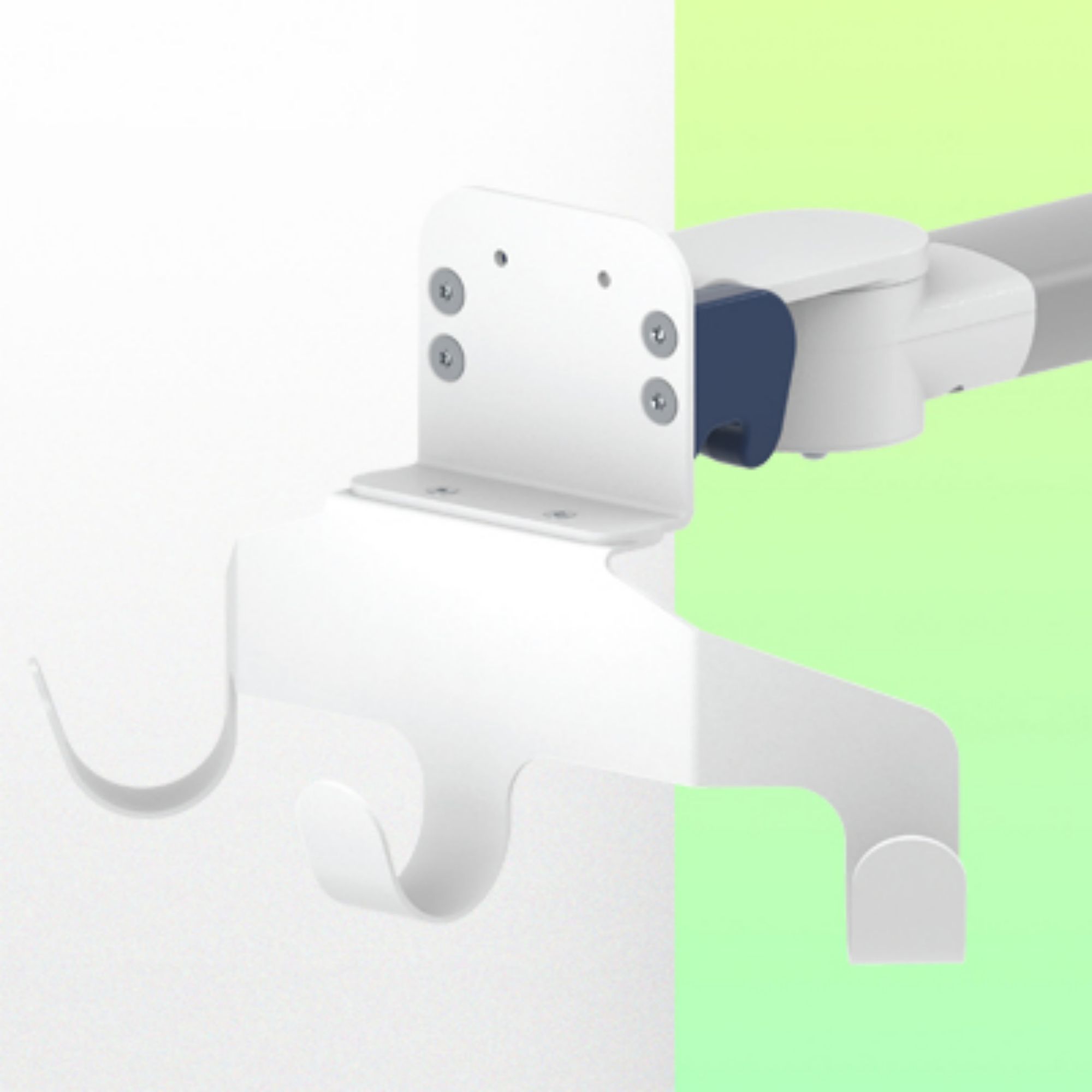

mounting with power cable hook

Product number: WM 280.121 - 300 mm Horizontal Medical Arm for Monitoring Philips Intellivue MP2/X2/X3 Séries,

Mounting on Mindray Medical Supply Device.

mounting with power cable hook

Product sheet PDF

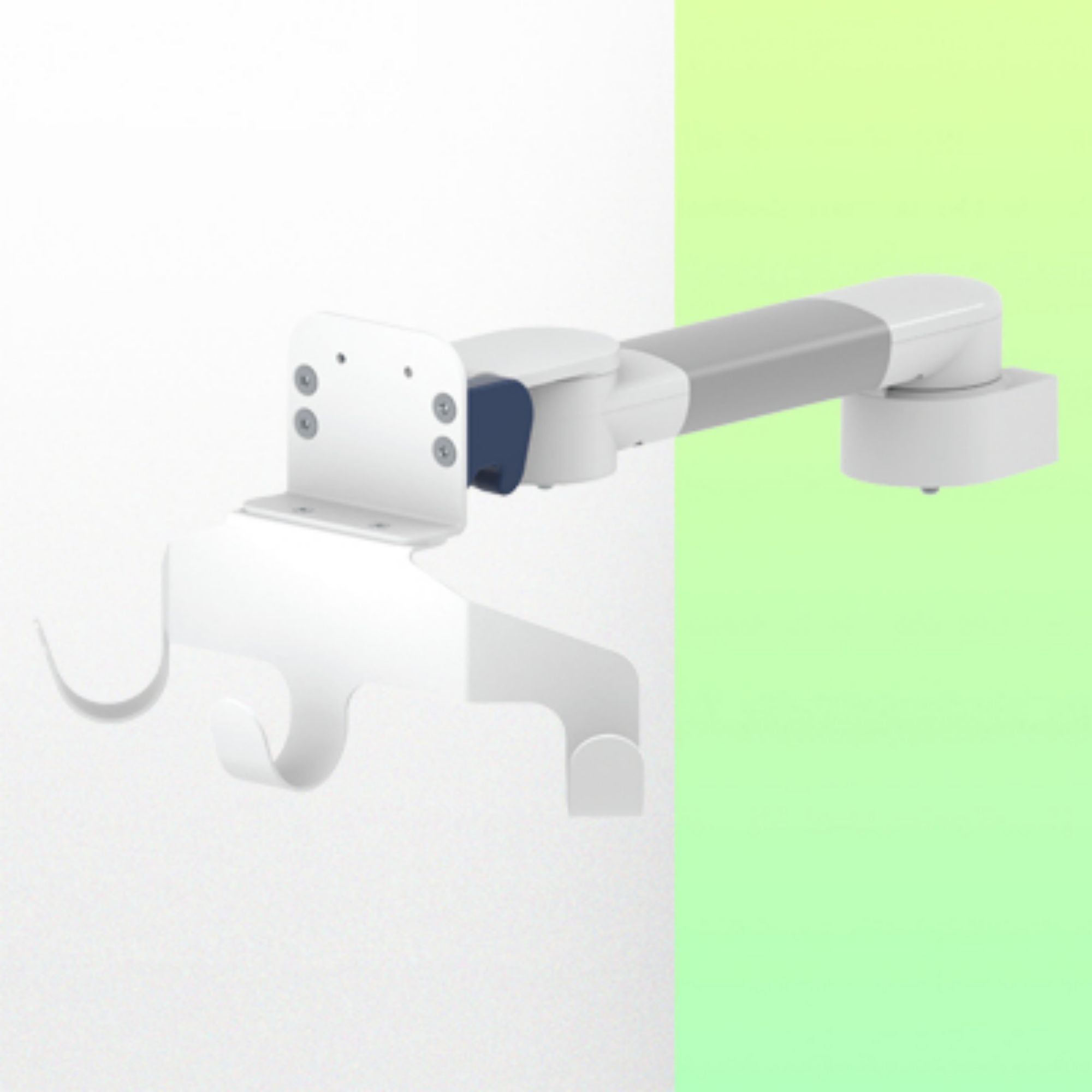

This 300 mm Horizontal Arm allows the monitor to be fixed, oriented and adjusted perfectly.

It is coated with an anti-microbial agent to ensure hygiene and cleanliness down to the smallest detail.

Its modern design has been specially developed for healthcare environments.

Technical specifications:

* Integrated cable management

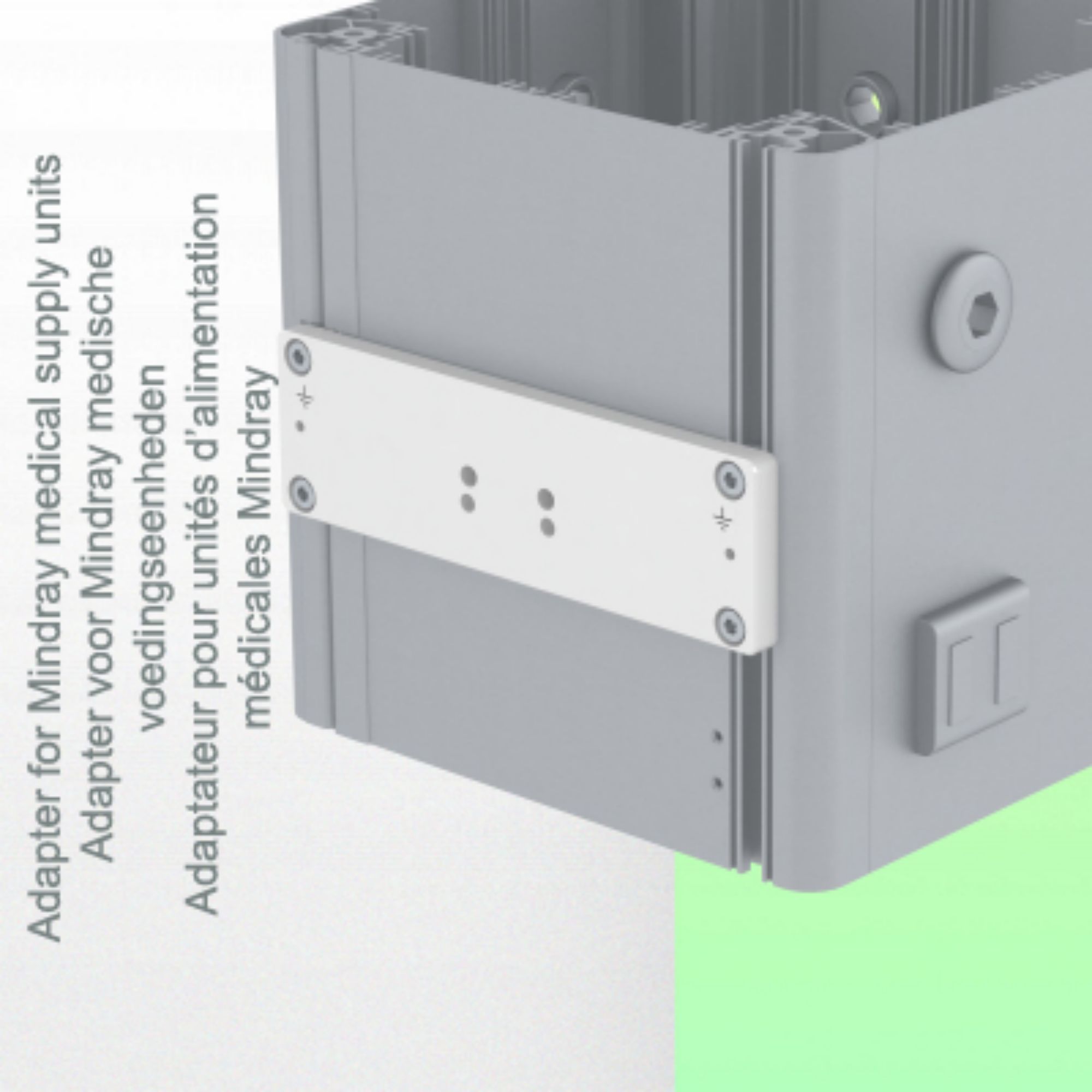

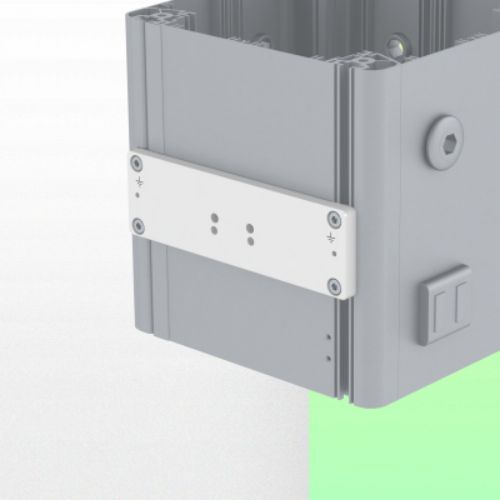

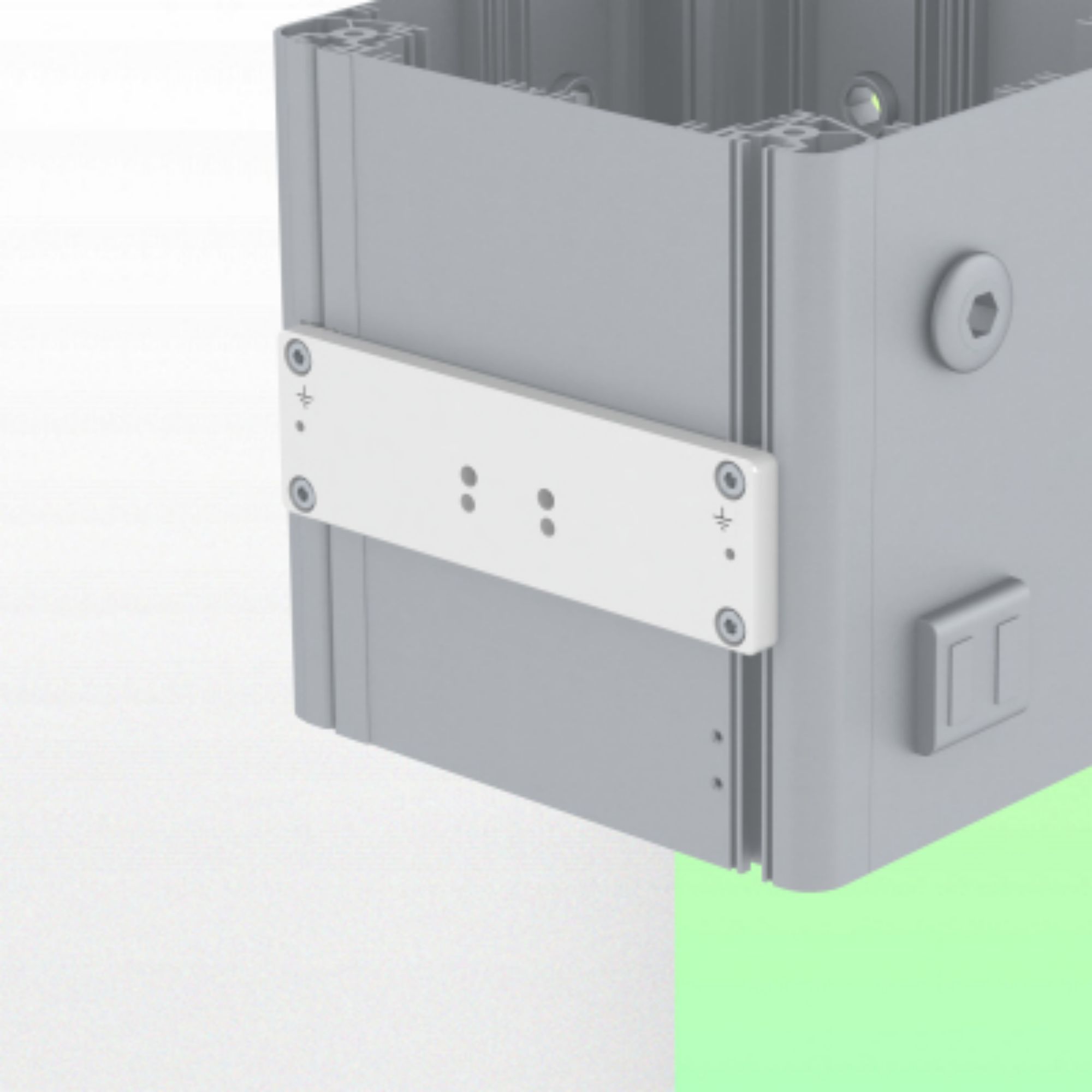

* Mounting on Mindray Medical Power Supply

* This medical arm simply attaches to the rail and then adjusts and pinches with the two clamps.

* It has no height adjustment.

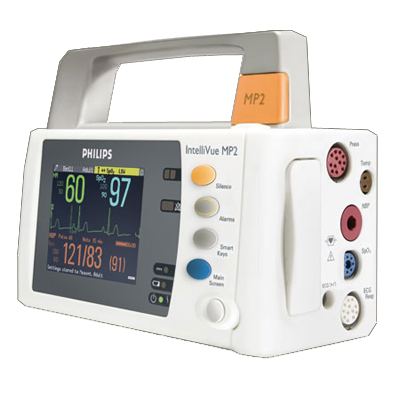

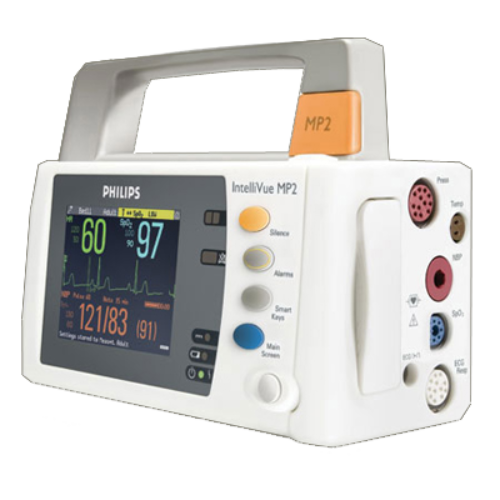

* The head of this arm complies with the mounting standard for Philips Intellivue MP2/X2/X3 series monitors weighing up to 18 kg.

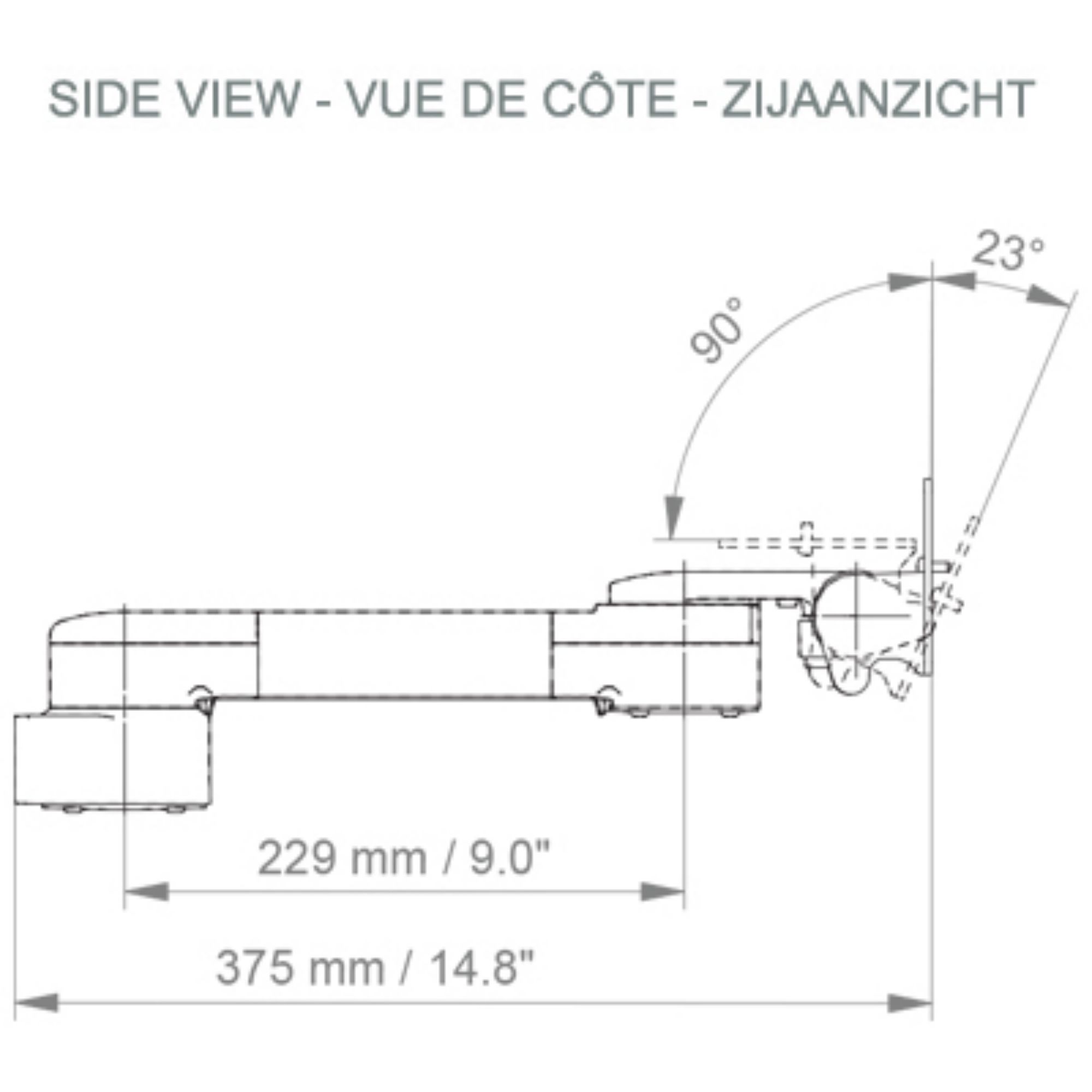

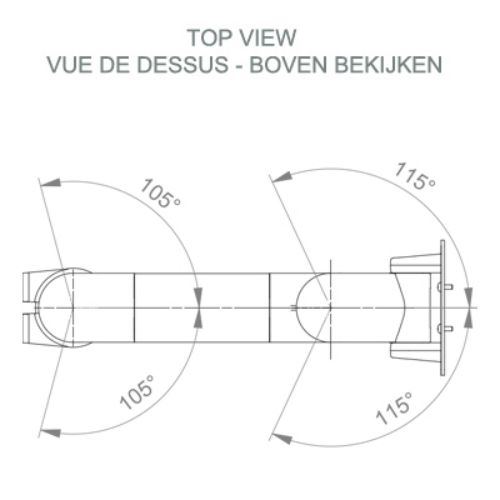

* Monitor tilt: 23° down and 90° up

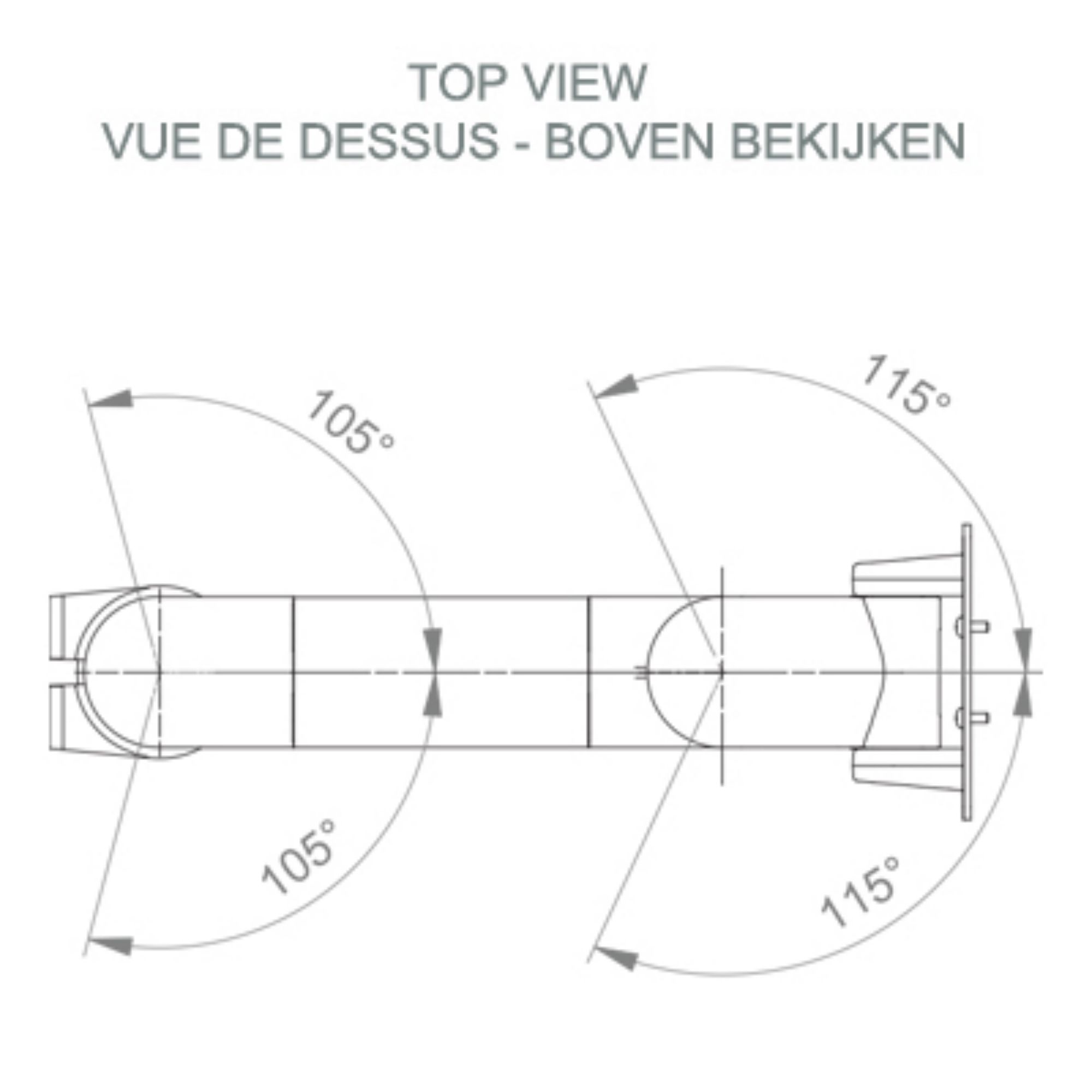

* Monitor rotation: 115° right, 115° left.

* Arm rotation: 105° right, 105° left.

* Total length: 462 mm

* Colour: RAL 5013 cobalt blue and RAL 9016 traffic white

* Warranty: 5 years
