300 mm Swivel Horizontal Medical Arm for Philips Rack Flexible Module Server,

wall-mounted on vertical sliding rail.

Product number: WM 270.100 - 300 mm Swivel Horizontal Medical Arm for Philips Rack Flexible Module Server,

wall-mounted on vertical sliding rail.

Product sheet PDF

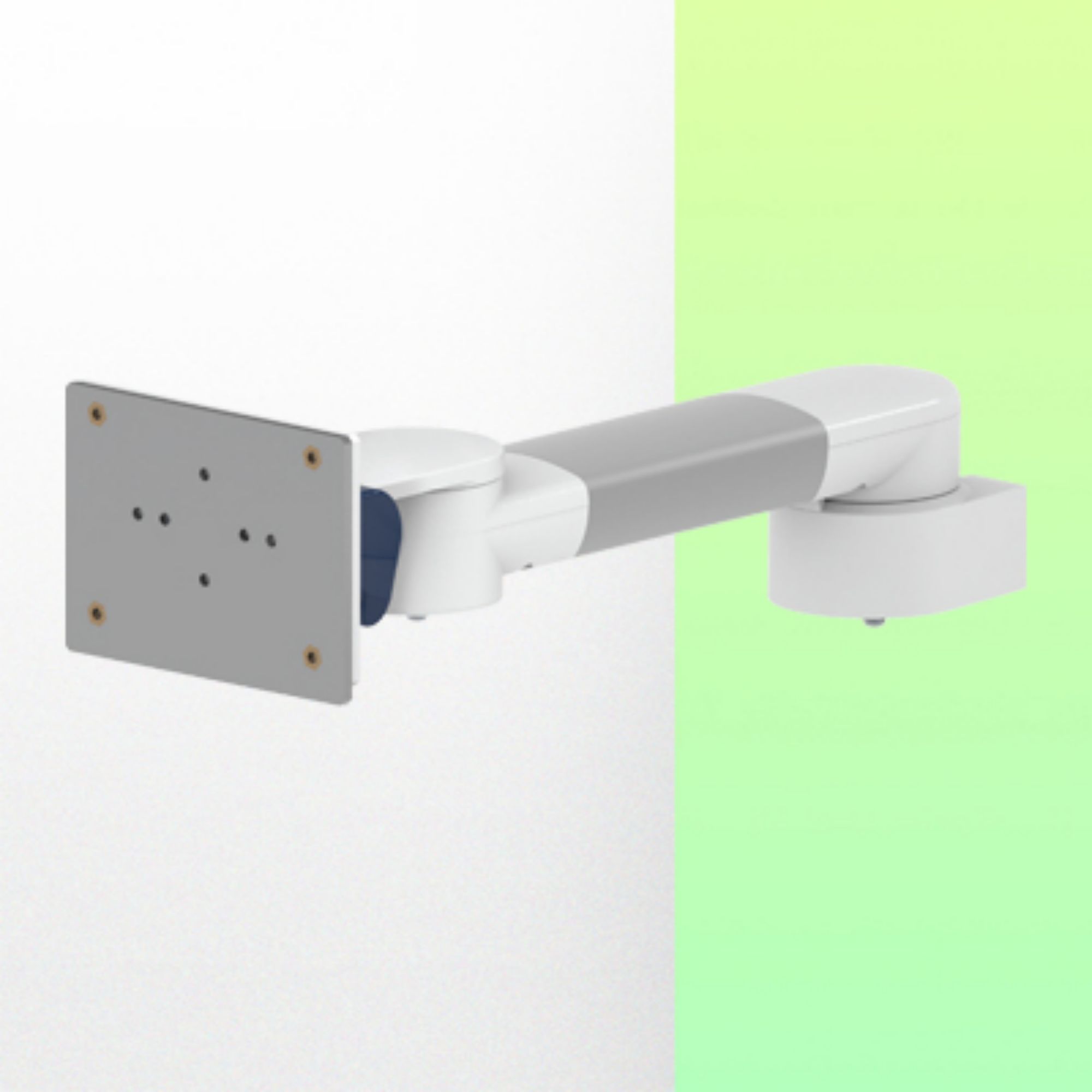

This 300 mm Horizontal Swivel Arm for Philips FMS allows the FMS Rack to be fixed, oriented and adjusted perfectly.

It is coated with an anti-microbial agent to ensure hygiene and cleaning down to the smallest detail.

Its modern design has been specially developed for healthcare environments.

Technical specifications:

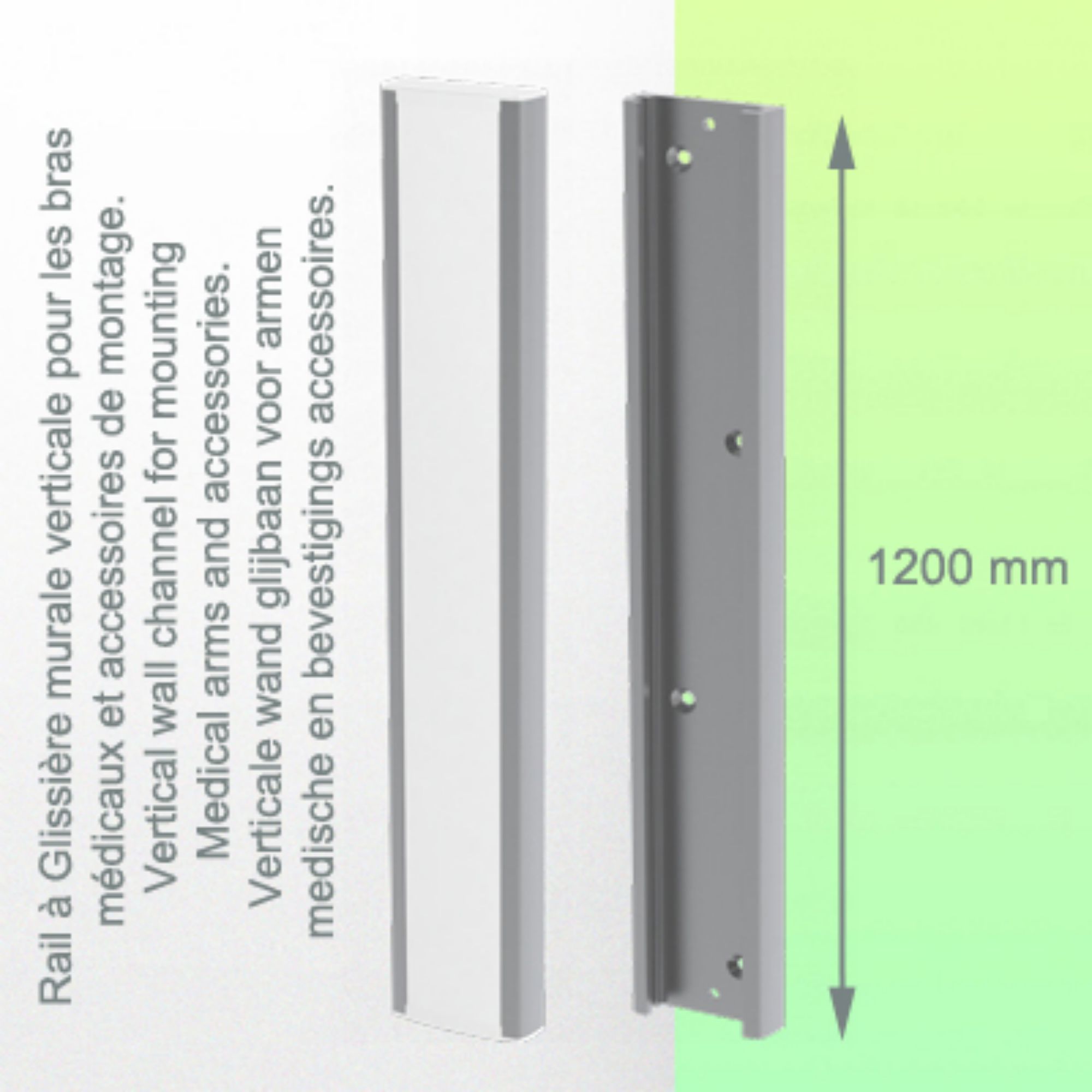

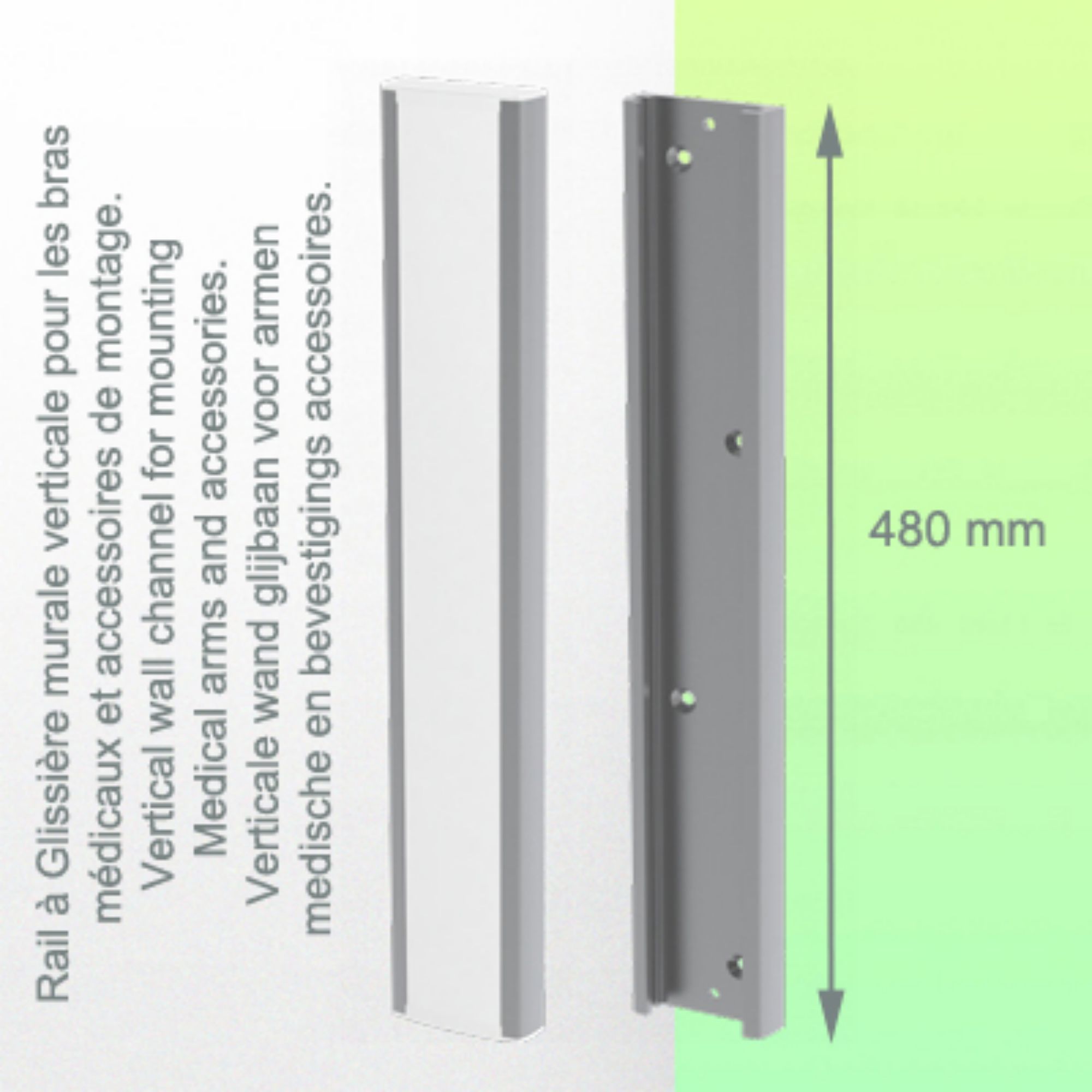

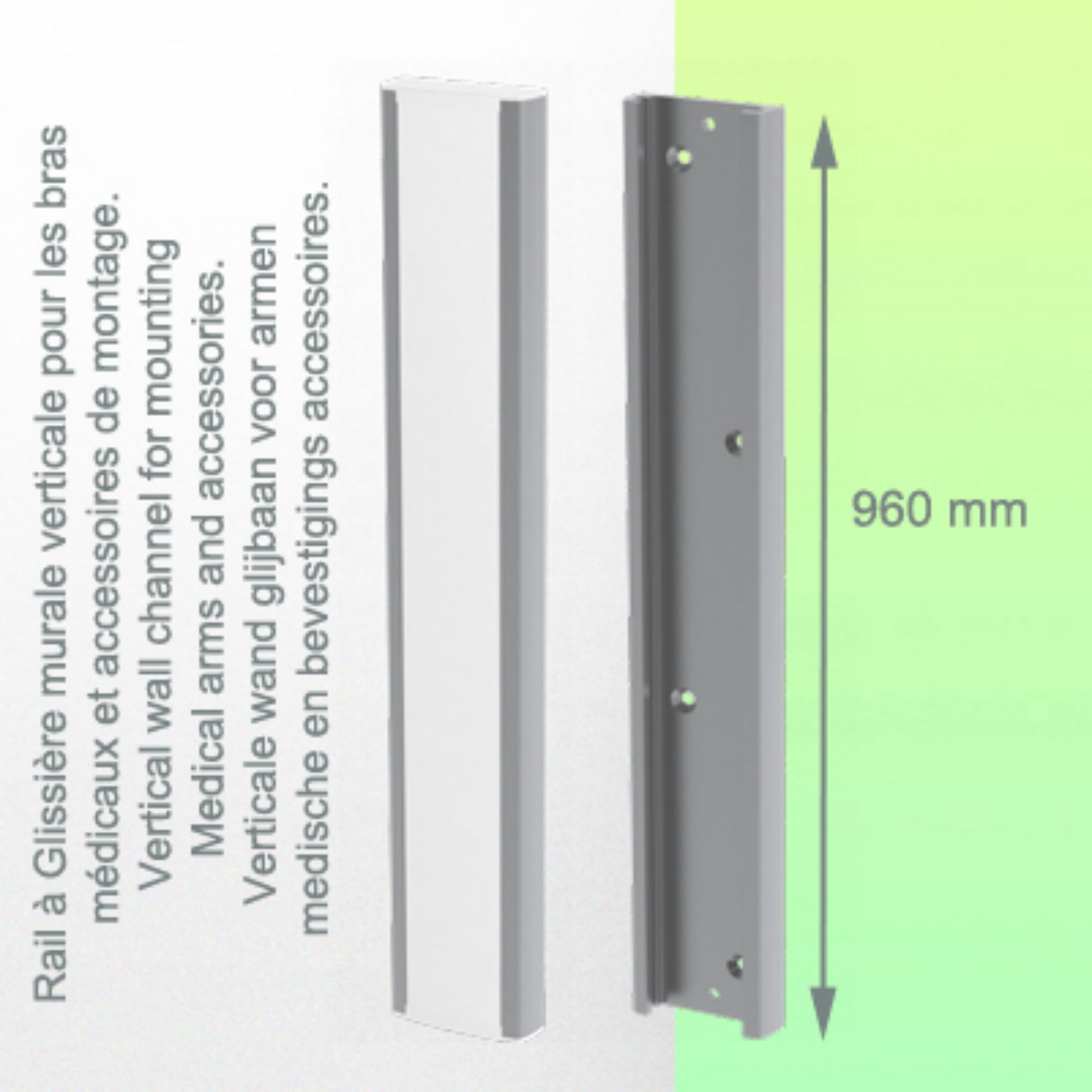

* Integrated cable management * Mounting on optional Vertical Wall Rail, available in a range of lengths (480 mm - 720 mm - 960 mm - 1200 mm).

* These wall rails can be easily cut to size.

* All cables also run through the wall rail.

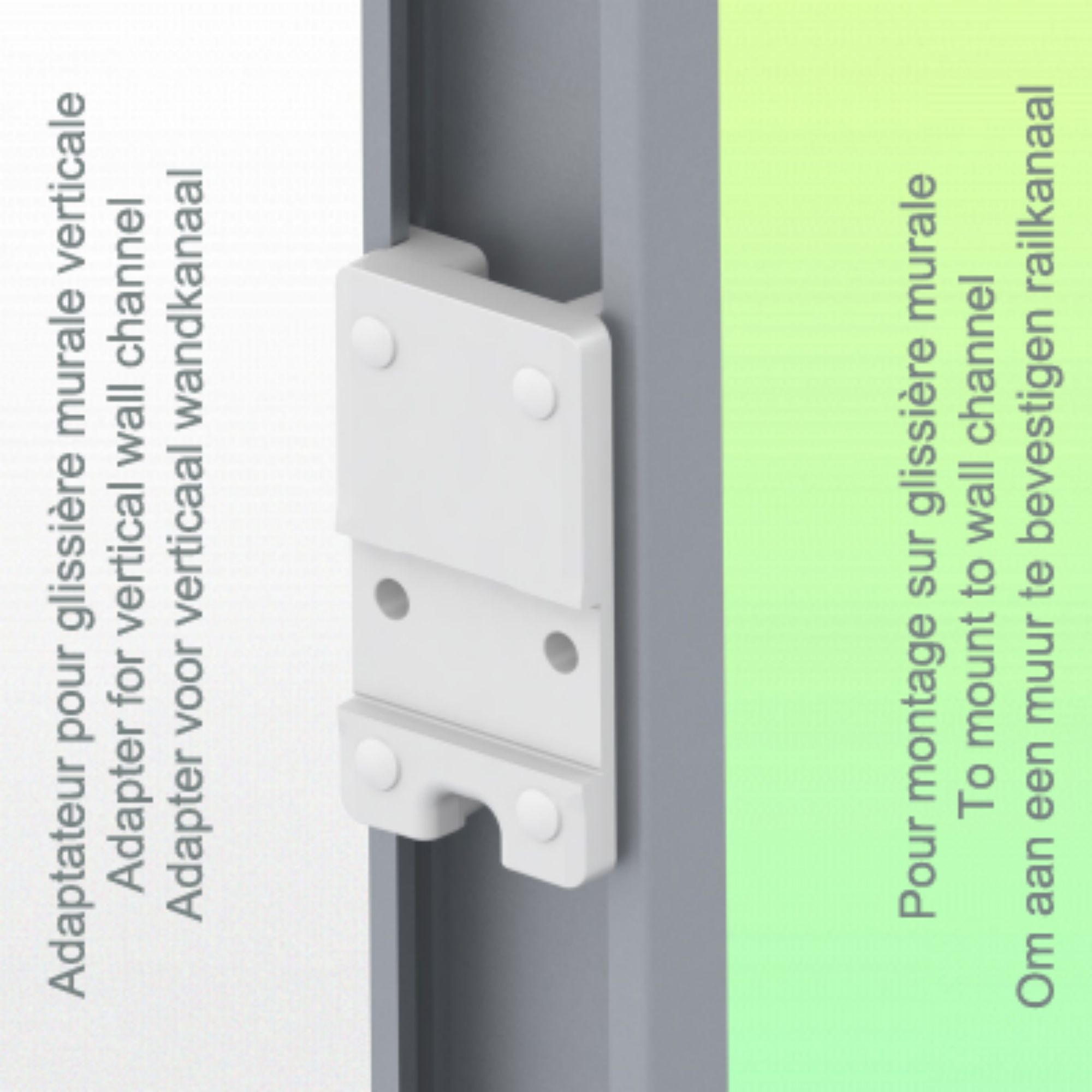

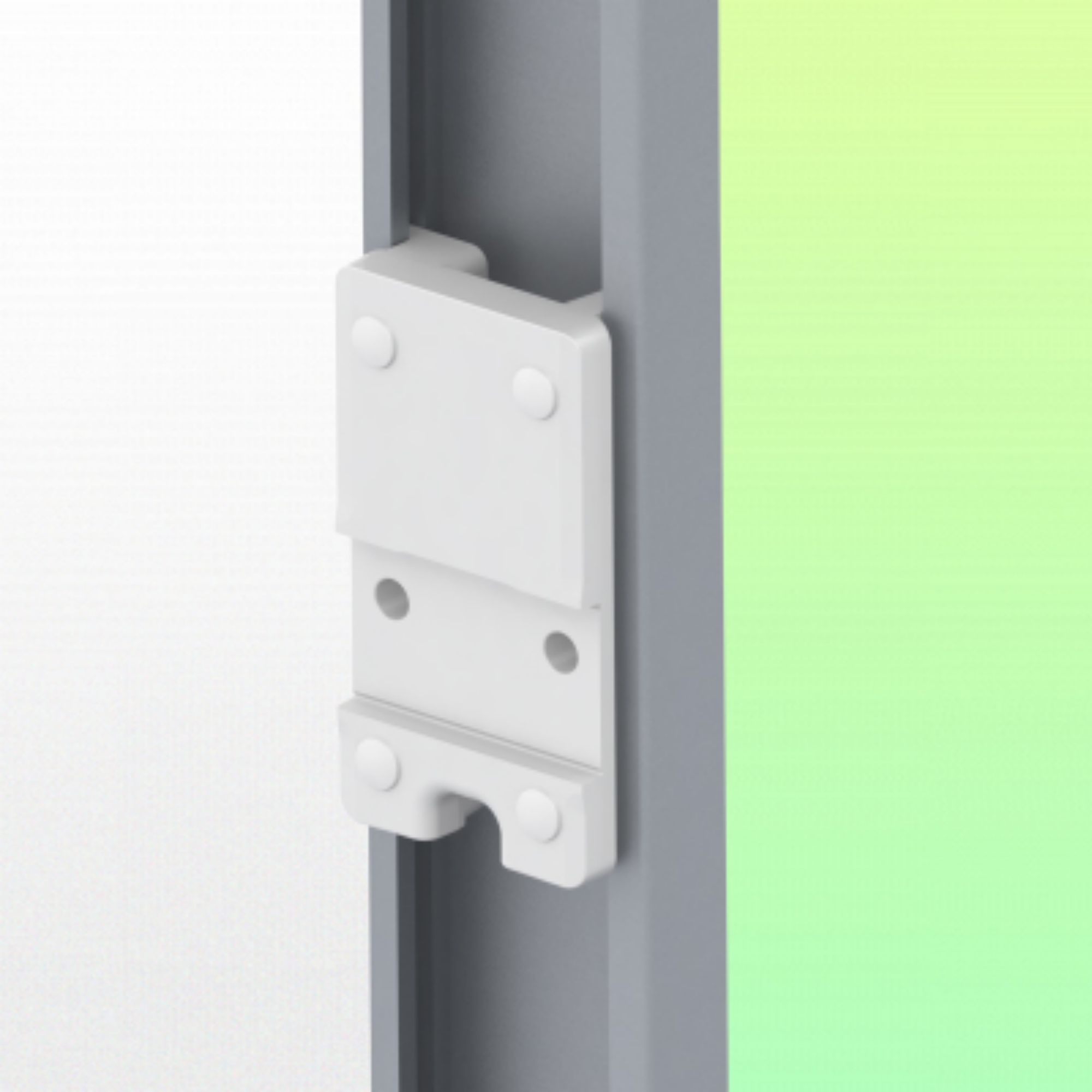

* This 300 mm Horizontal Arm simply slides into the wall rail, then adjusts to the required height and locks in place.

* It has no height adjustment

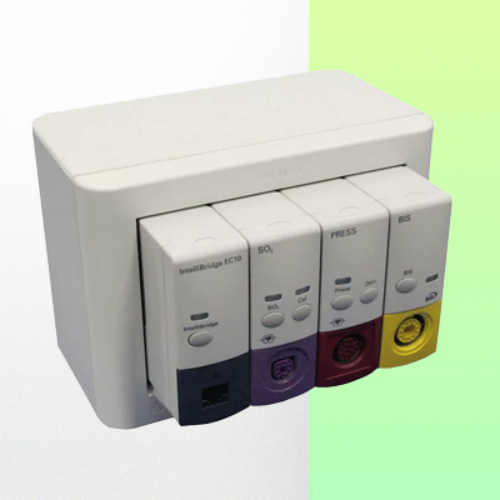

* The head of this arm complies with the Philips FMS Rack mounting standard, weighing no more than 18 Kg.

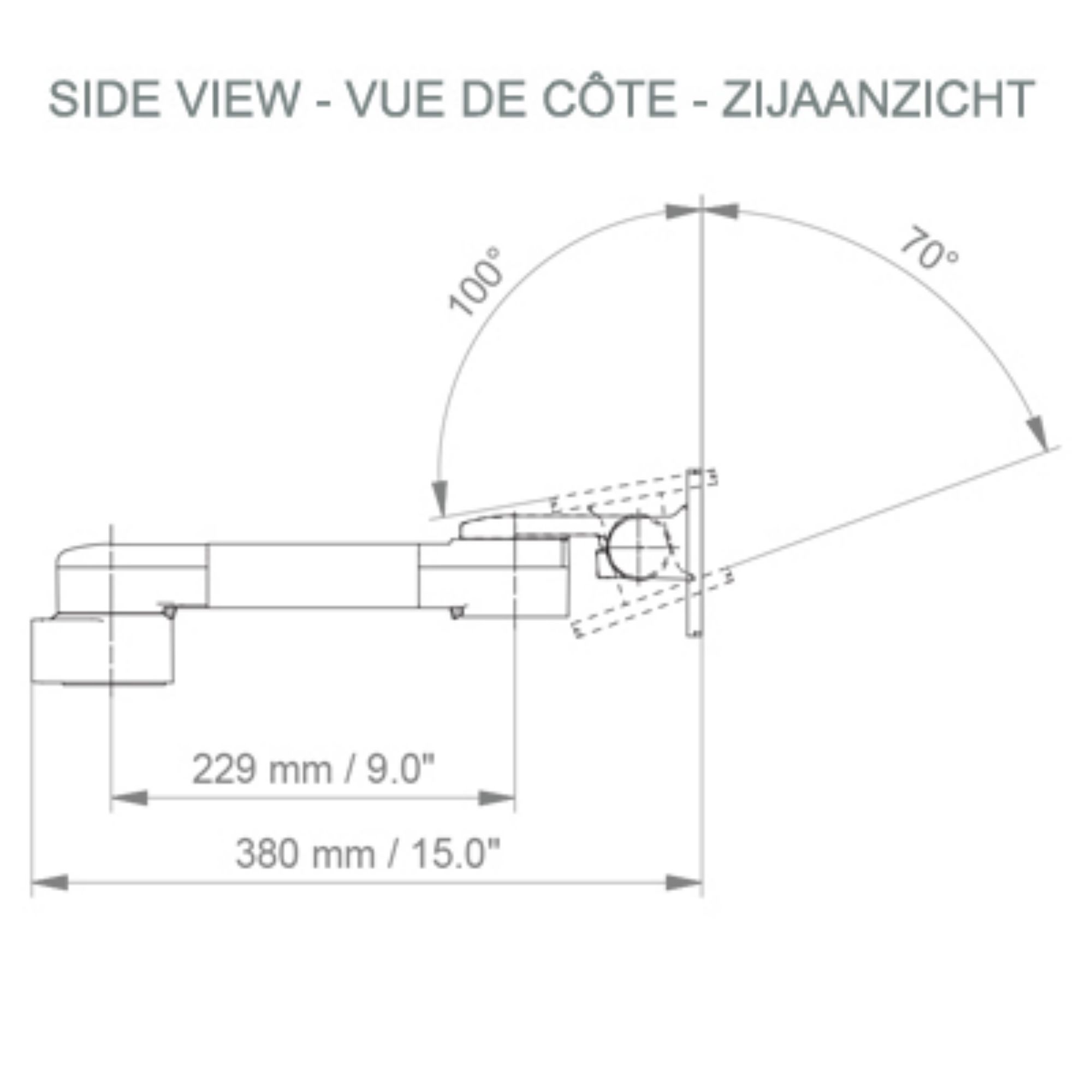

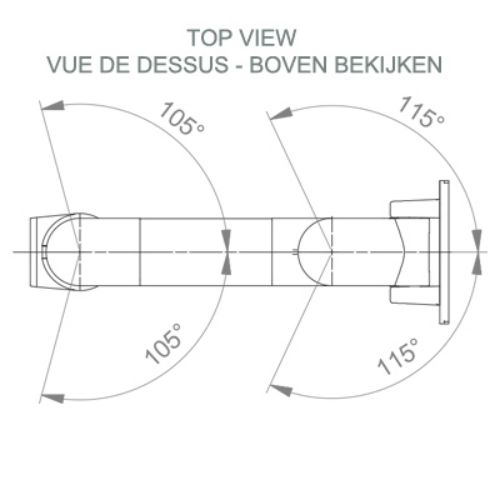

* Rack tilt: 70° down and 100° up

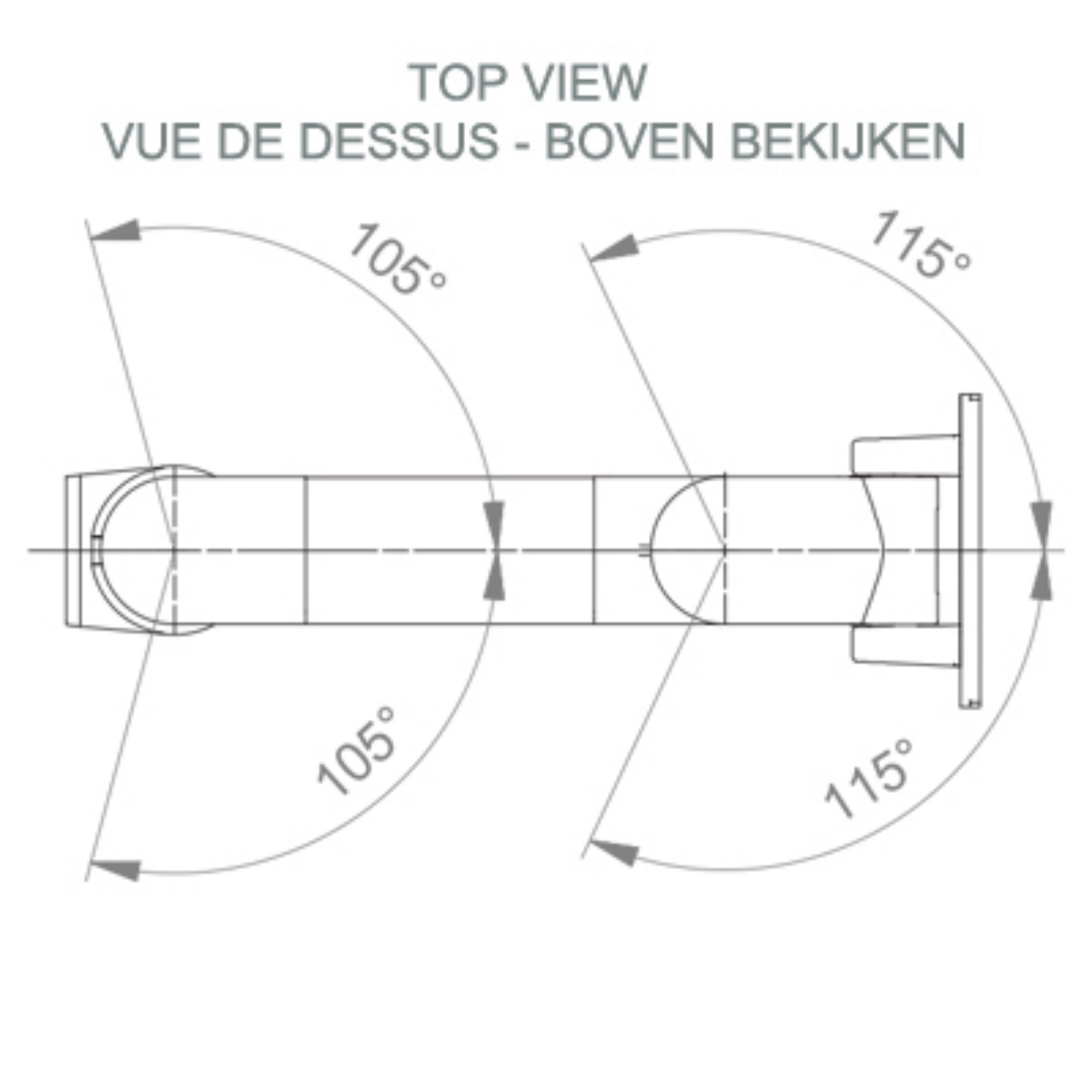

* Rack rotation: 115° right, 115° left.

* Arm rotation: 105° right, 105° left.

* Total length: 380 mm

* Colour: RAL 5013 cobalt blue and RAL 9016 traffic white

* Warranty: 5 years
