2 x 300 mm Swivel Horizontal Medical Arm

for Philips Rack Flexible Module Server,

mounted on 25, 35 and 38 mm diameter fixed pole.

Product number: WM 270.111 - 2 x 300 mm Swivel Horizontal Medical Arm

for Philips Rack Flexible Module Server,

mounted on 25, 35 and 38 mm diameter fixed pole.

Product sheet PDF

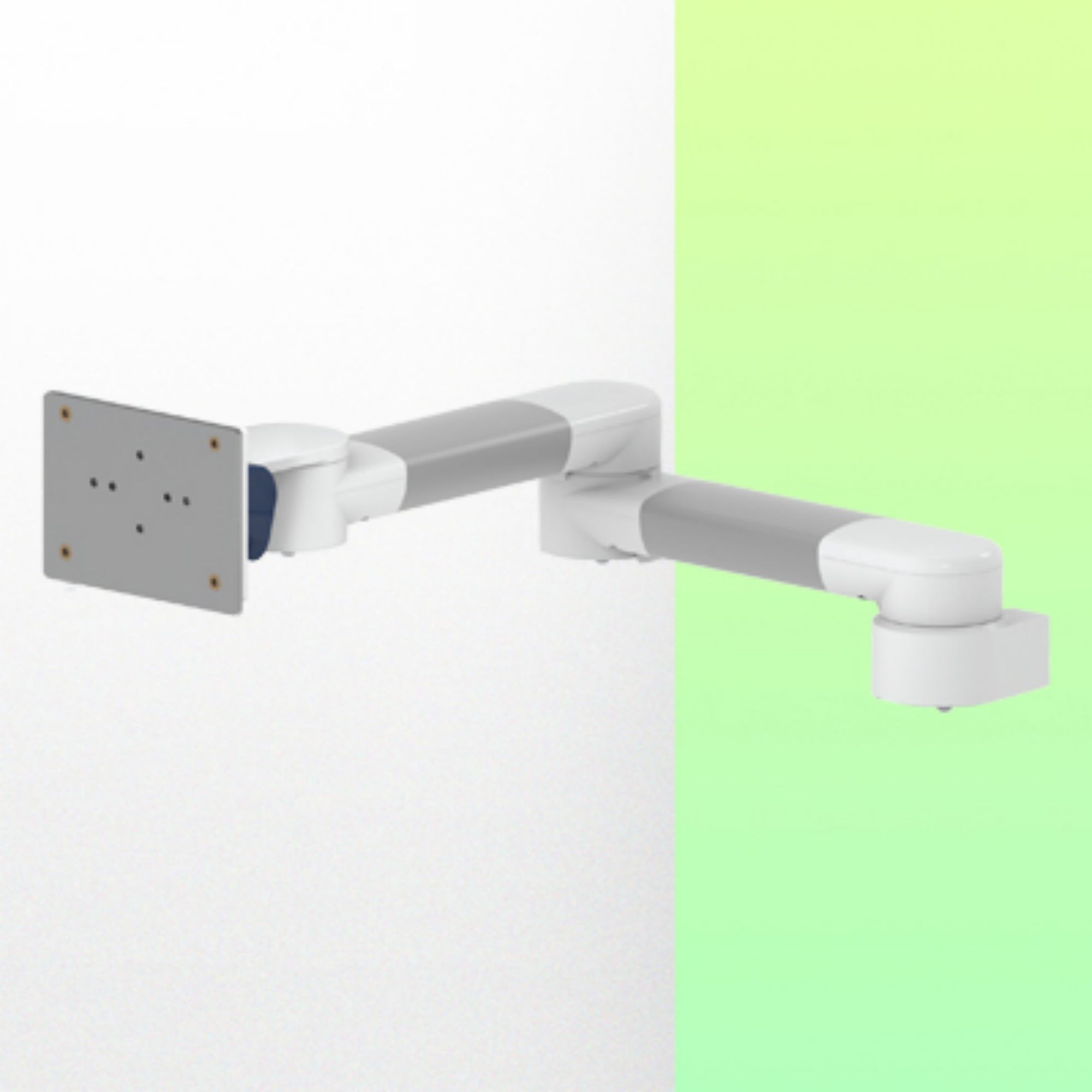

This 2 x 300 mm Horizontal Swivel Arm for Philips FMS allows the FMS Rack to be fixed, oriented and adjusted perfectly.

It is coated with an anti-microbial agent to ensure hygiene and cleaning down to the smallest detail.

Its modern design has been specially developed for healthcare environments.

Technical specifications:

* Integrated cable management

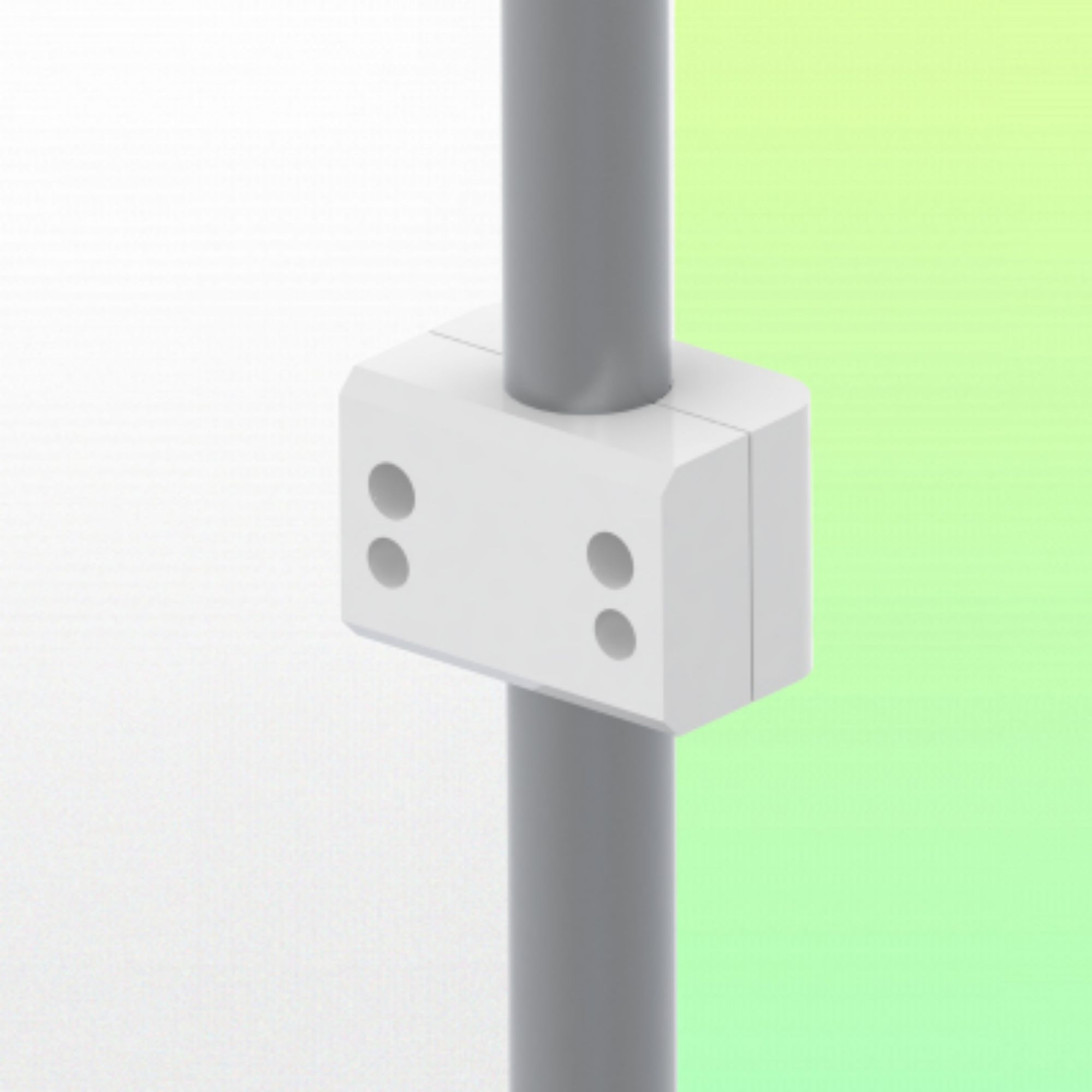

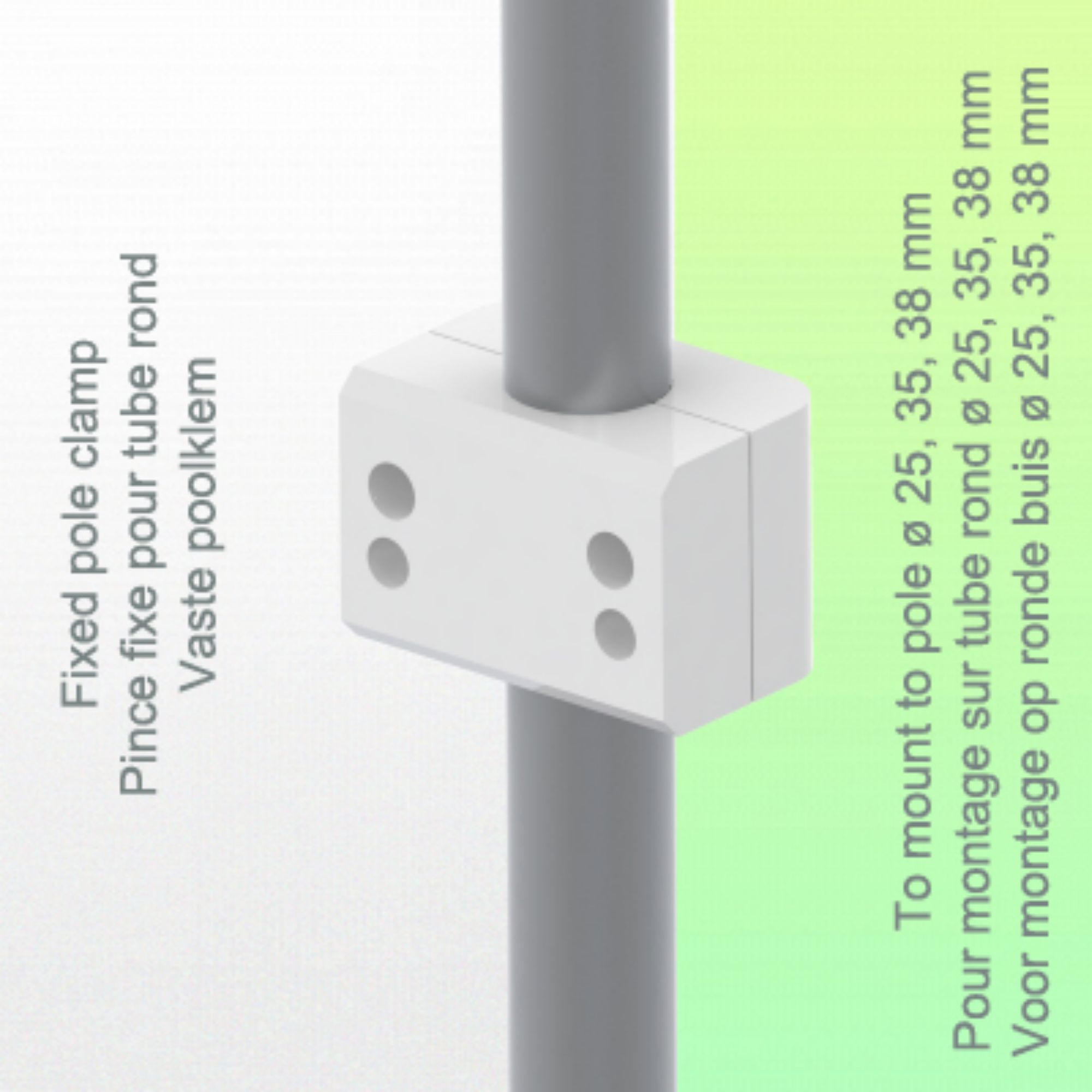

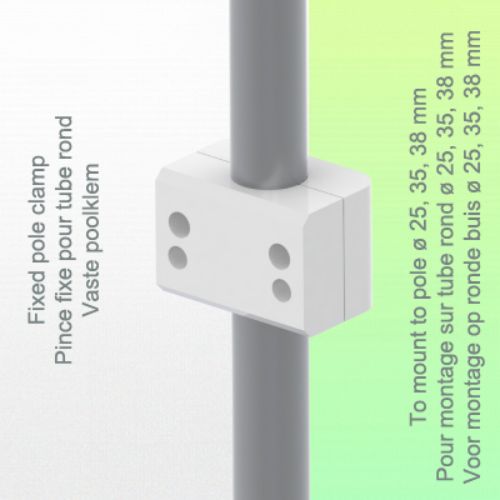

* Fixed pole mounting with 25 diameter, 35 or 38 mm

* This 2 x 300 mm arm simply pinches on the pole and adjusts to the desired height and fixed.

* It has no height adjustment

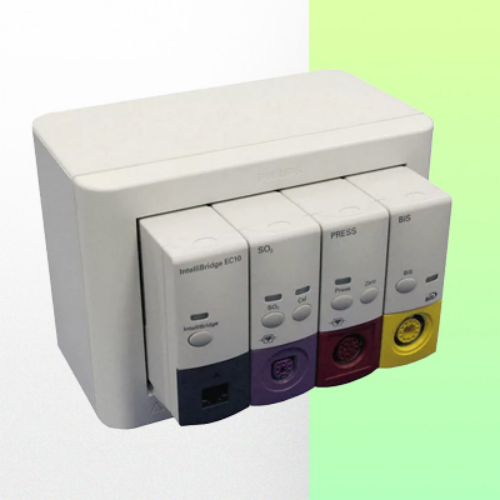

* The head of this arm complies with the Philips FMS Rack mounting standard, weighing no more than 18 Kg.

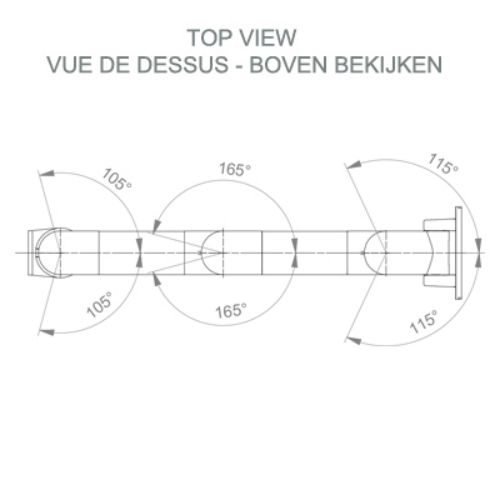

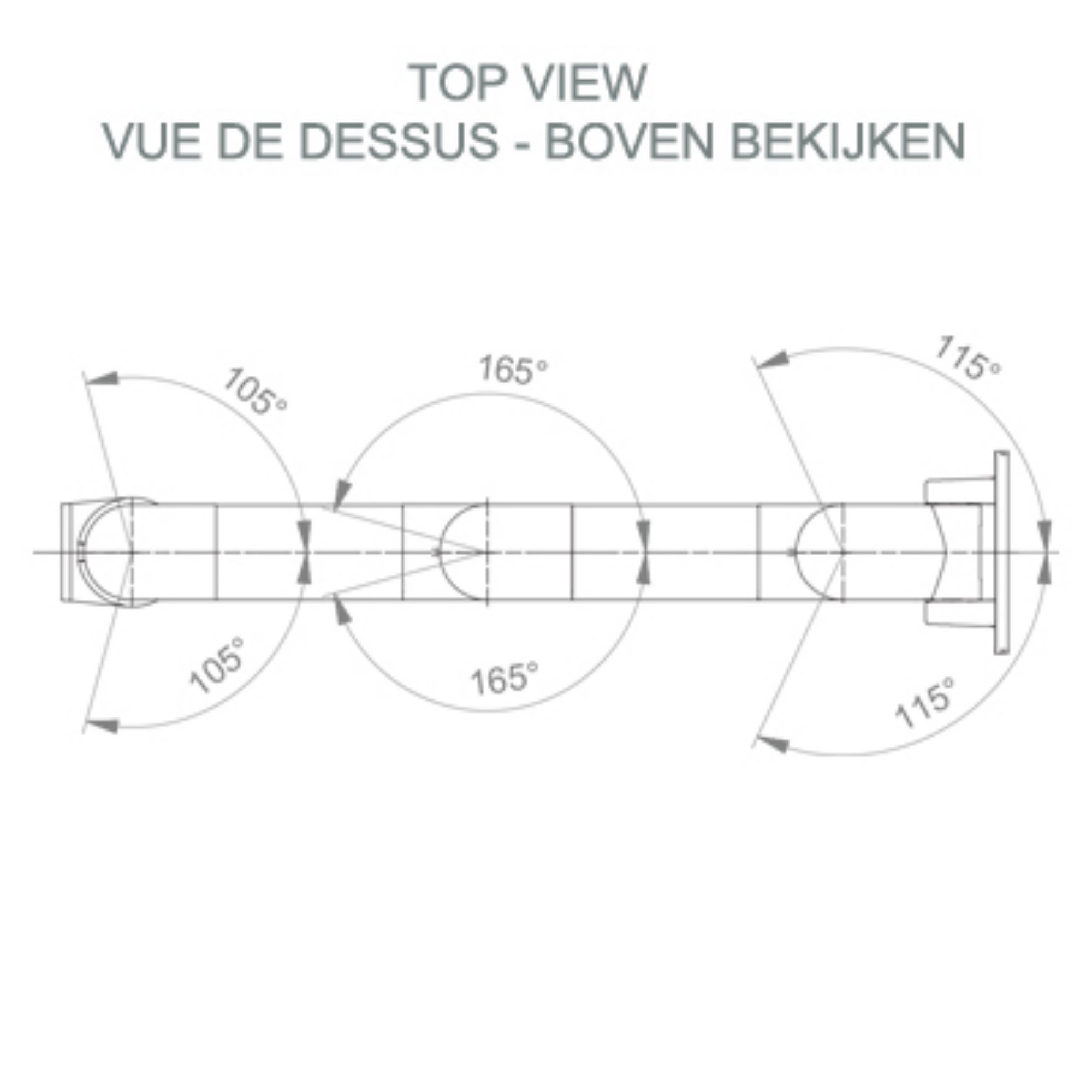

* Rack tilt: 70° down and 100° up

* Rack rotation: 115° right, 115° left.

* Arm rotation: 105° right, 105° left.

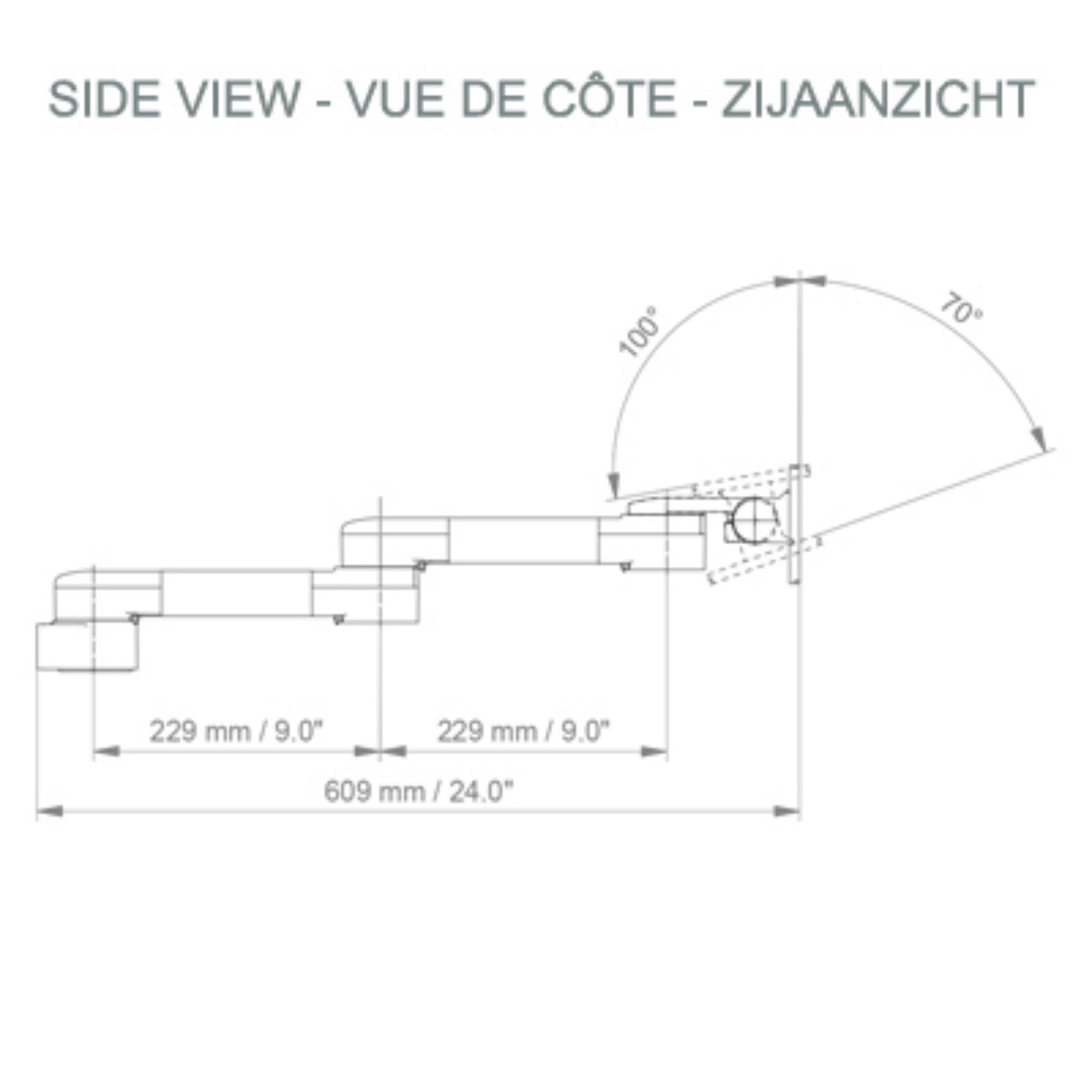

* Total length: 609 mm

* Colour: RAL 5013 cobalt blue and RAL 9016 traffic white

* Warranty: 5 years
