300 mm Swivel Horizontal Medical Arm

for Philips Rack Flexible Module Server,

Mounting on Mindray Medical Supply Device.

Product number: WM 270.114 - 300 mm Swivel Horizontal Medical Arm

for Philips Rack Flexible Module Server,

Mounting on Mindray Medical Supply Device.

Product sheet PDF

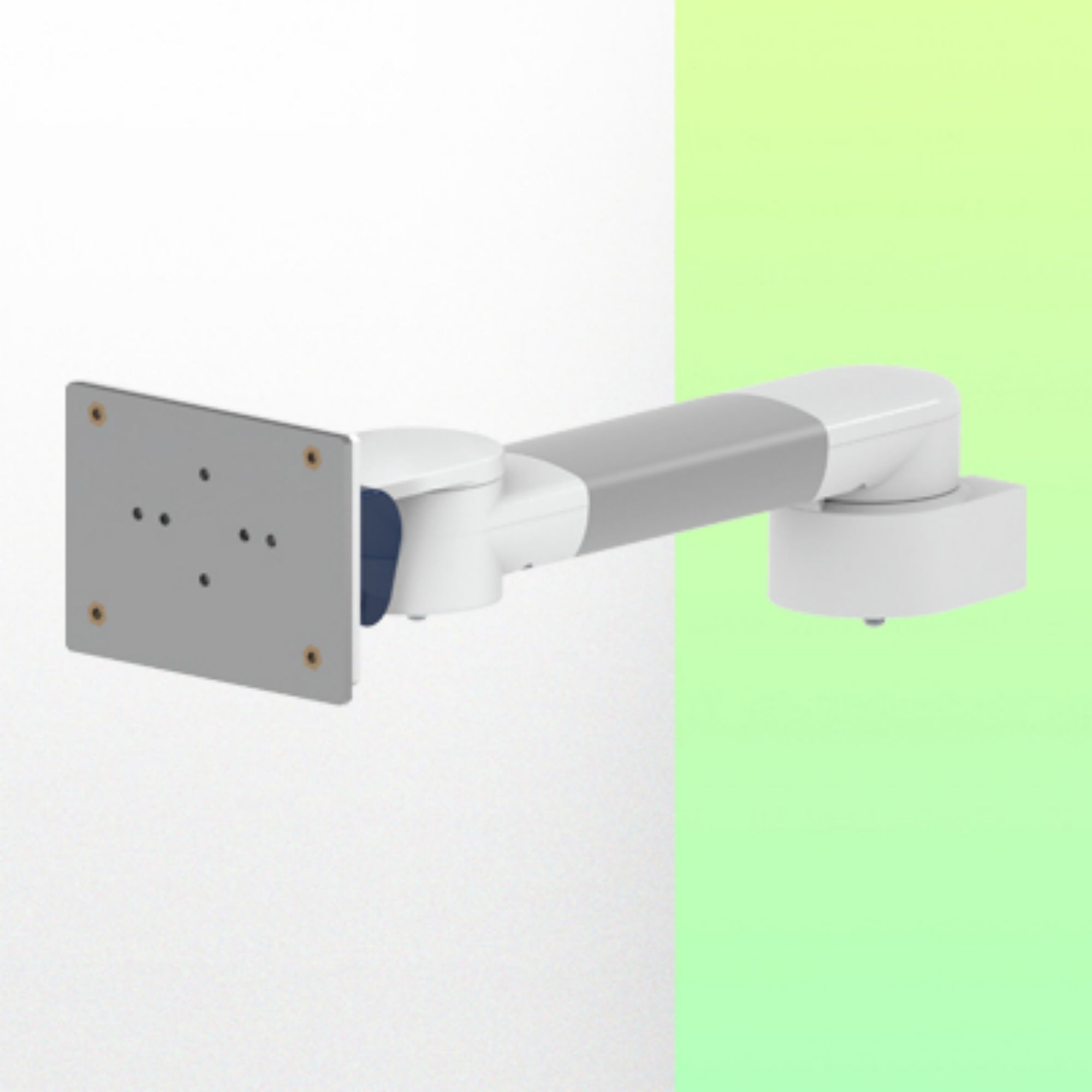

This 300 mm Horizontal Swivel Arm for Philips FMS allows the FMS Rack to be fixed, oriented and adjusted perfectly.

It is coated with an anti-microbial agent to ensure hygiene and cleaning down to the smallest detail.

Its modern design has been specially developed for healthcare environments.

Technical specifications:

* Integrated cable management

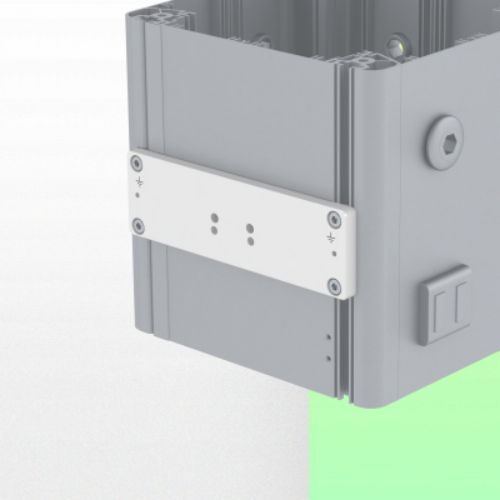

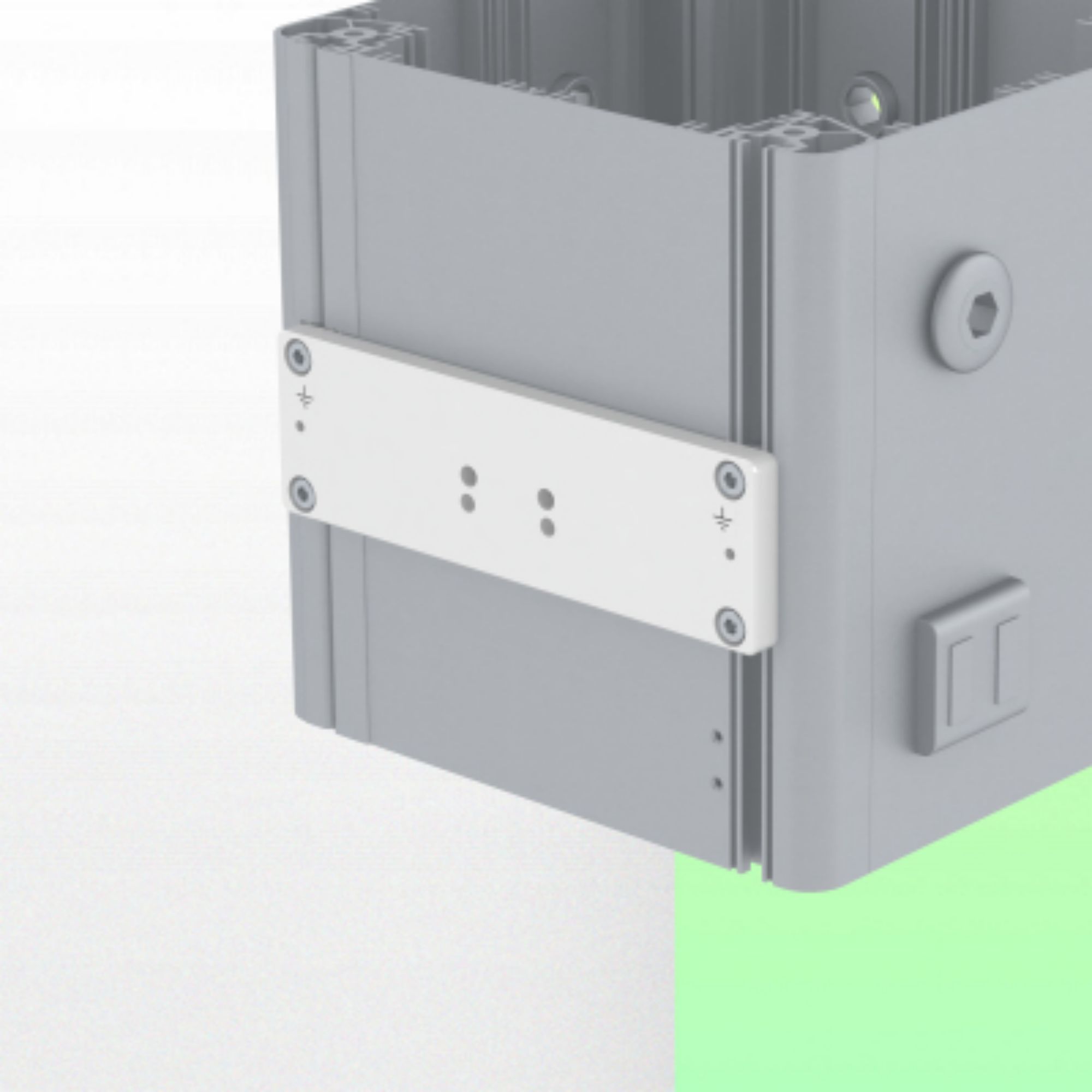

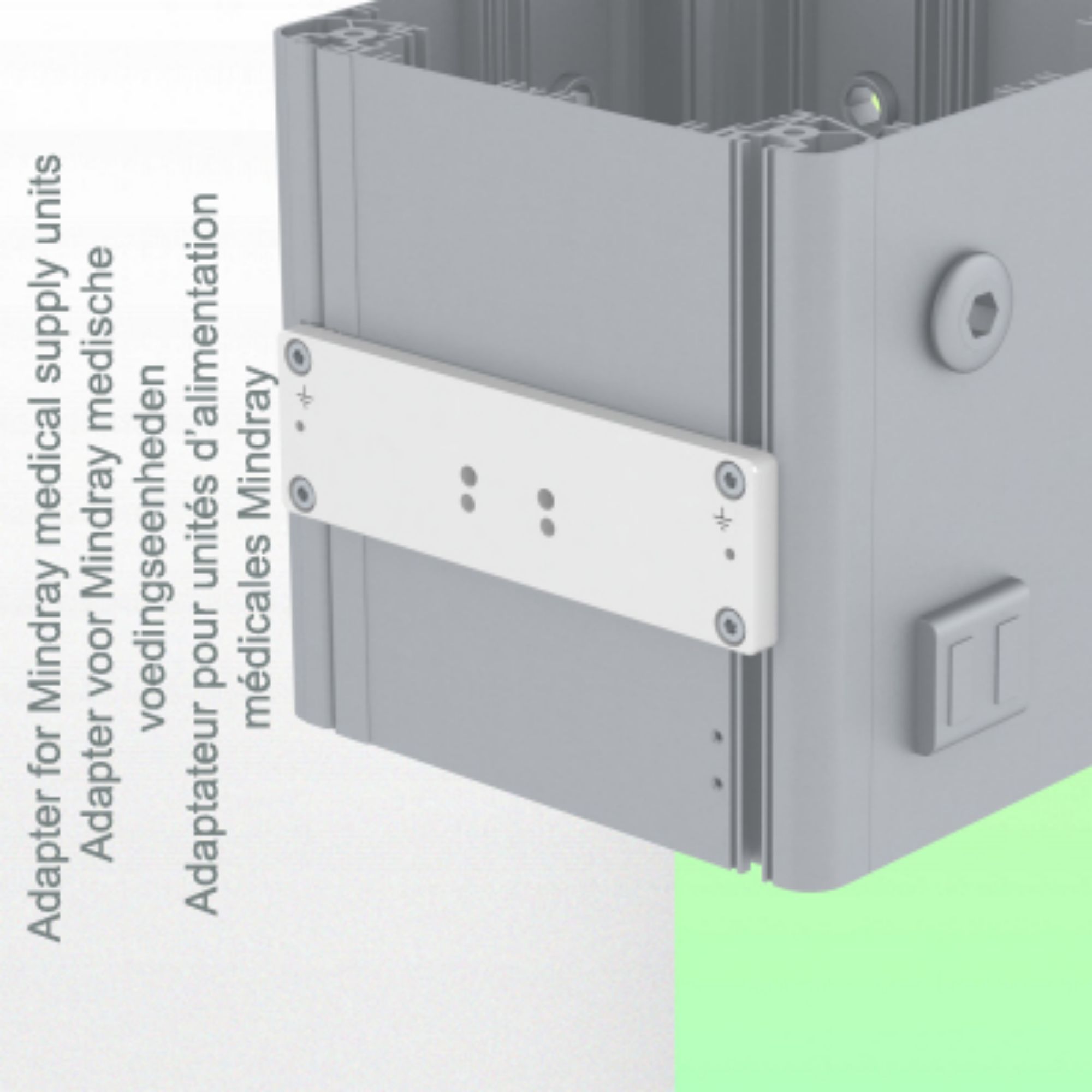

* Mounting on Mindray Medical Power Supply

* This 300 mm arm simply pinches on the pole and adjusts to the desired height and fixed.

* It has no height adjustment

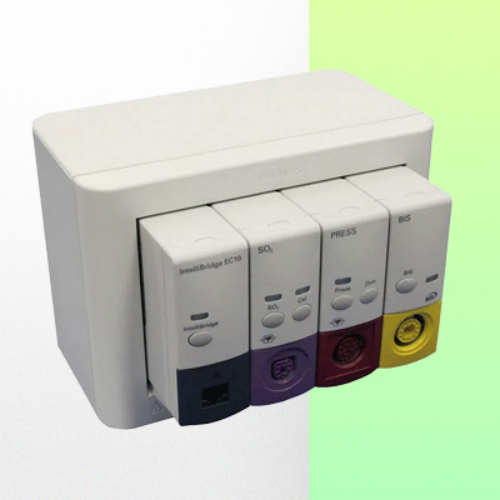

* The head of this arm complies with the Philips FMS Rack mounting standard, weighing no more than 18 Kg.

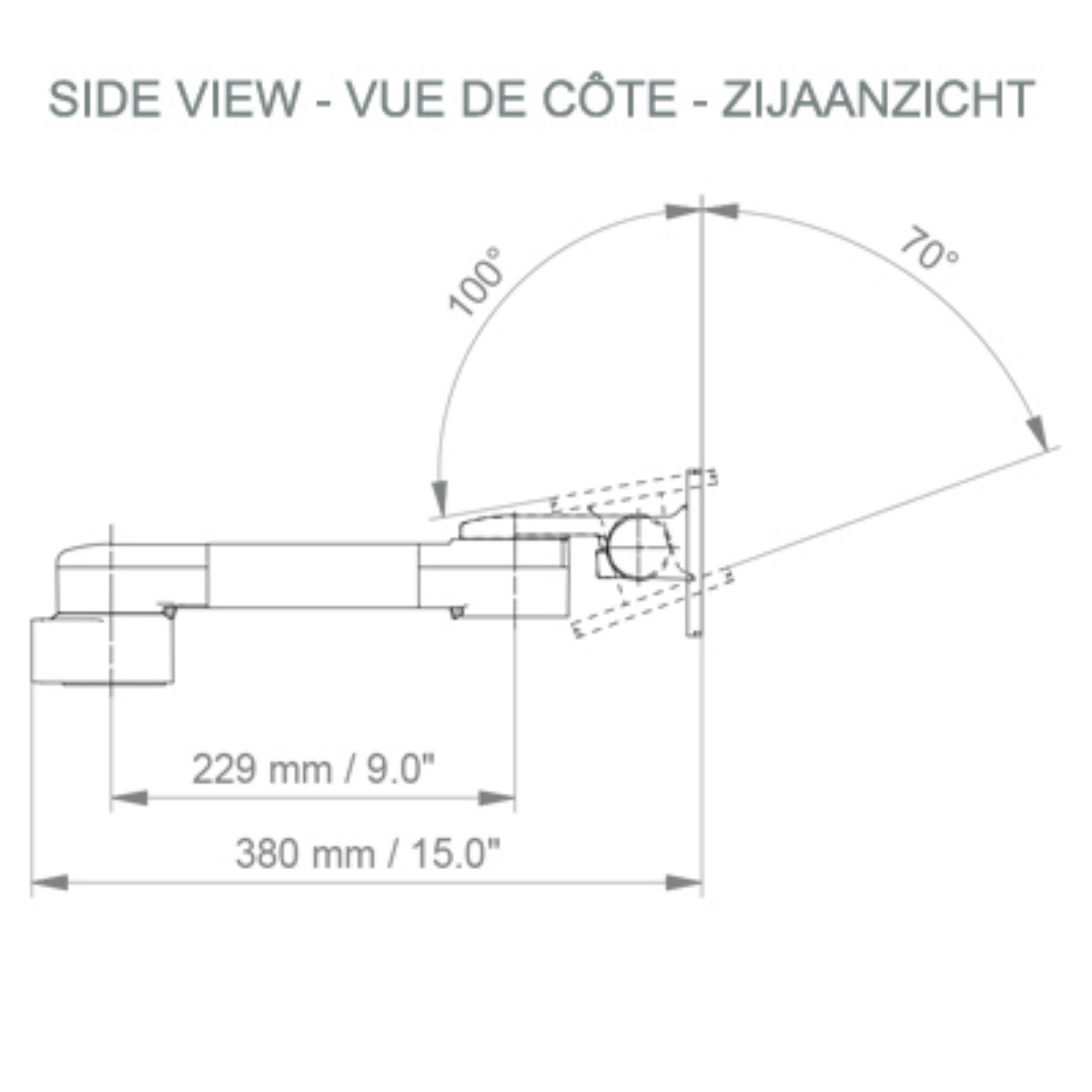

* Rack tilt: 70° down and 100° up

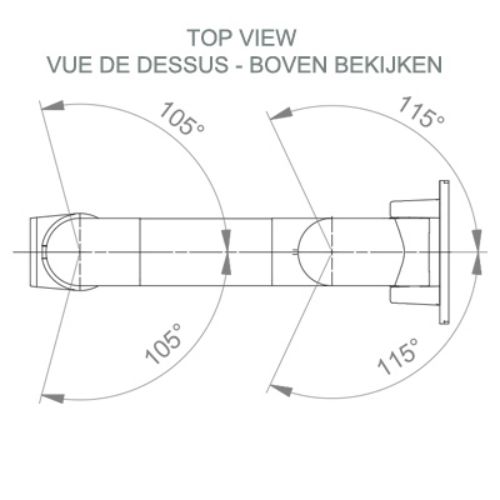

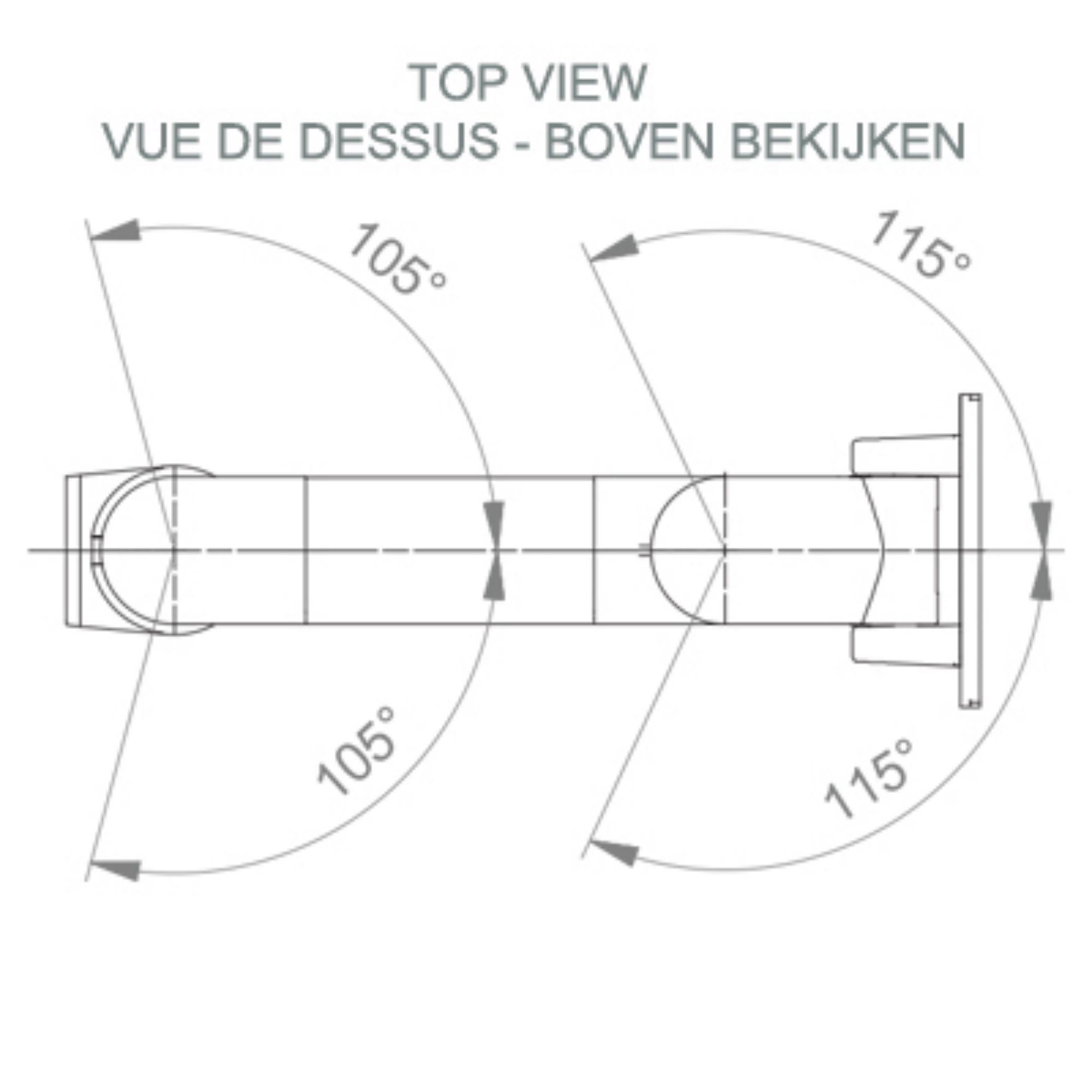

* Rack rotation: 115° right, 115° left.

* Arm rotation: 105° right, 105° left.

* Total length: 380 mm

* Colour: RAL 5013 cobalt blue and RAL 9016 traffic white

* Warranty: 5 years
