300 mm Horizontal Medical Monitor Arm, Wall Mount on Vertical Slide Rail

Product number: WM 222.109 - 300 mm Horizontal Medical Monitor Arm, Wall Mount on Vertical Slide Rail

Product sheet PDF

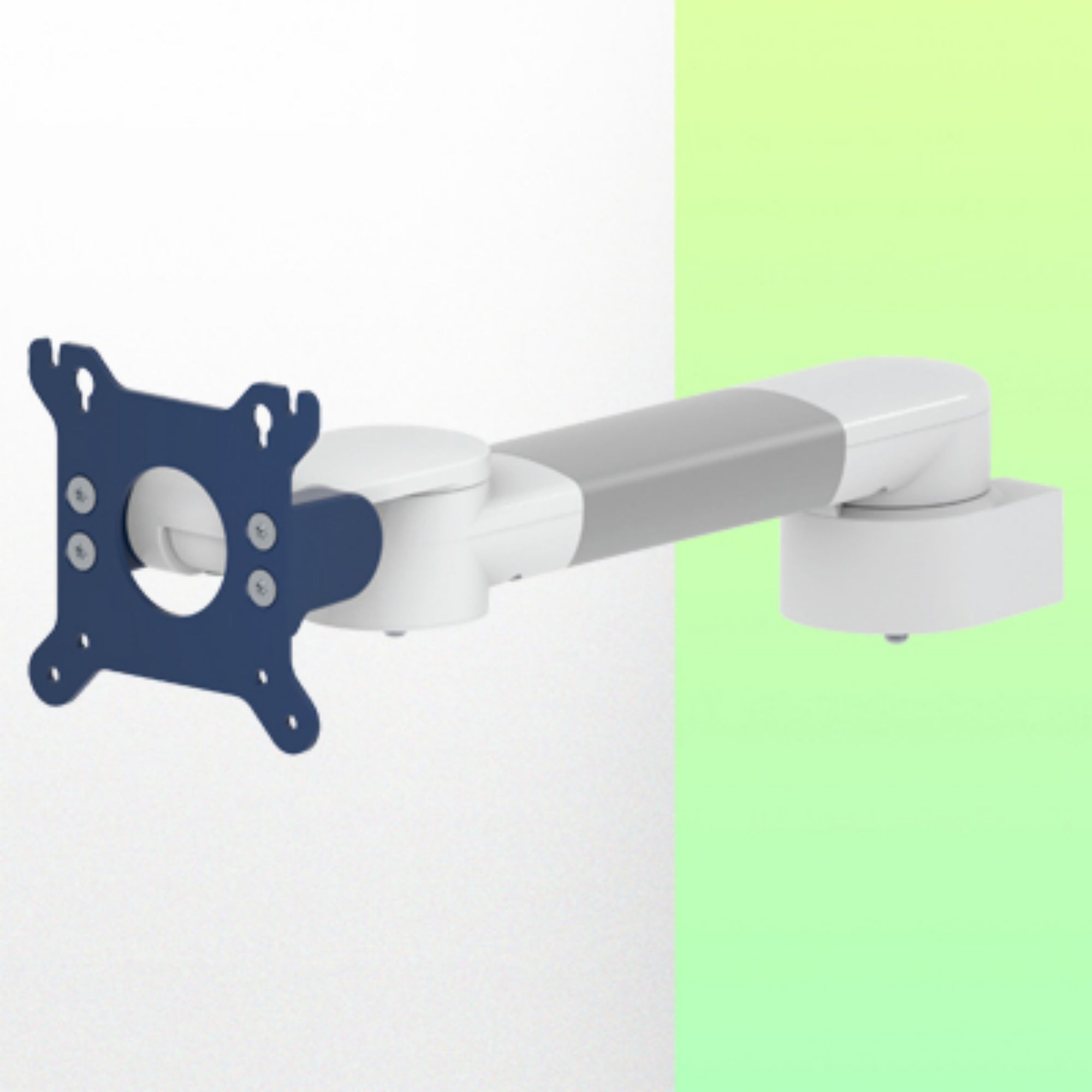

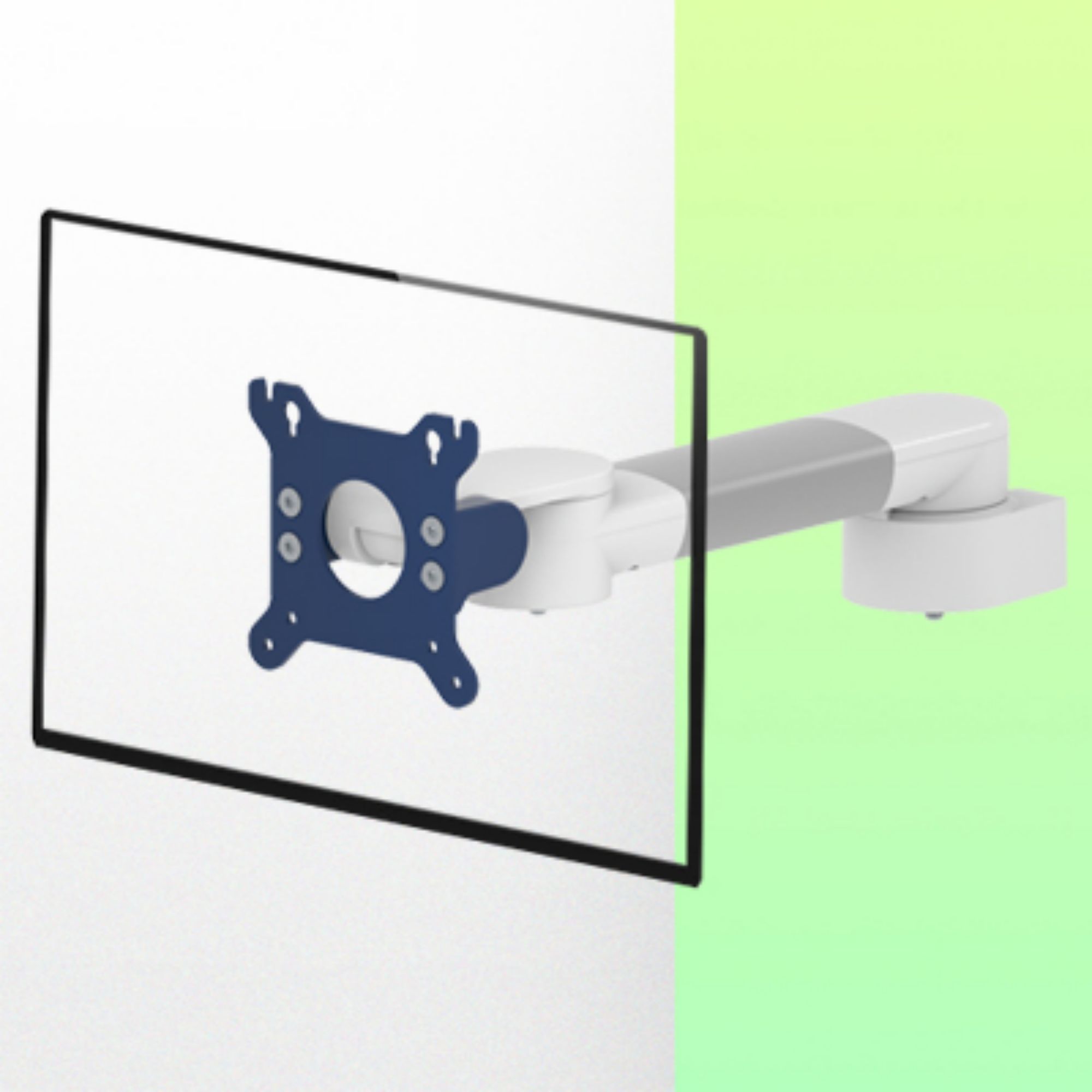

This 300mm Horizontal Arm allows the VESA screen to be perfectly fixed, oriented and adjusted. It is coated with an anti-microbial agent for hygiene and cleaning down to the last detail. Its modern design has been specially designed for healthcare environments.

Technical specifications:

* Built-in cable entry

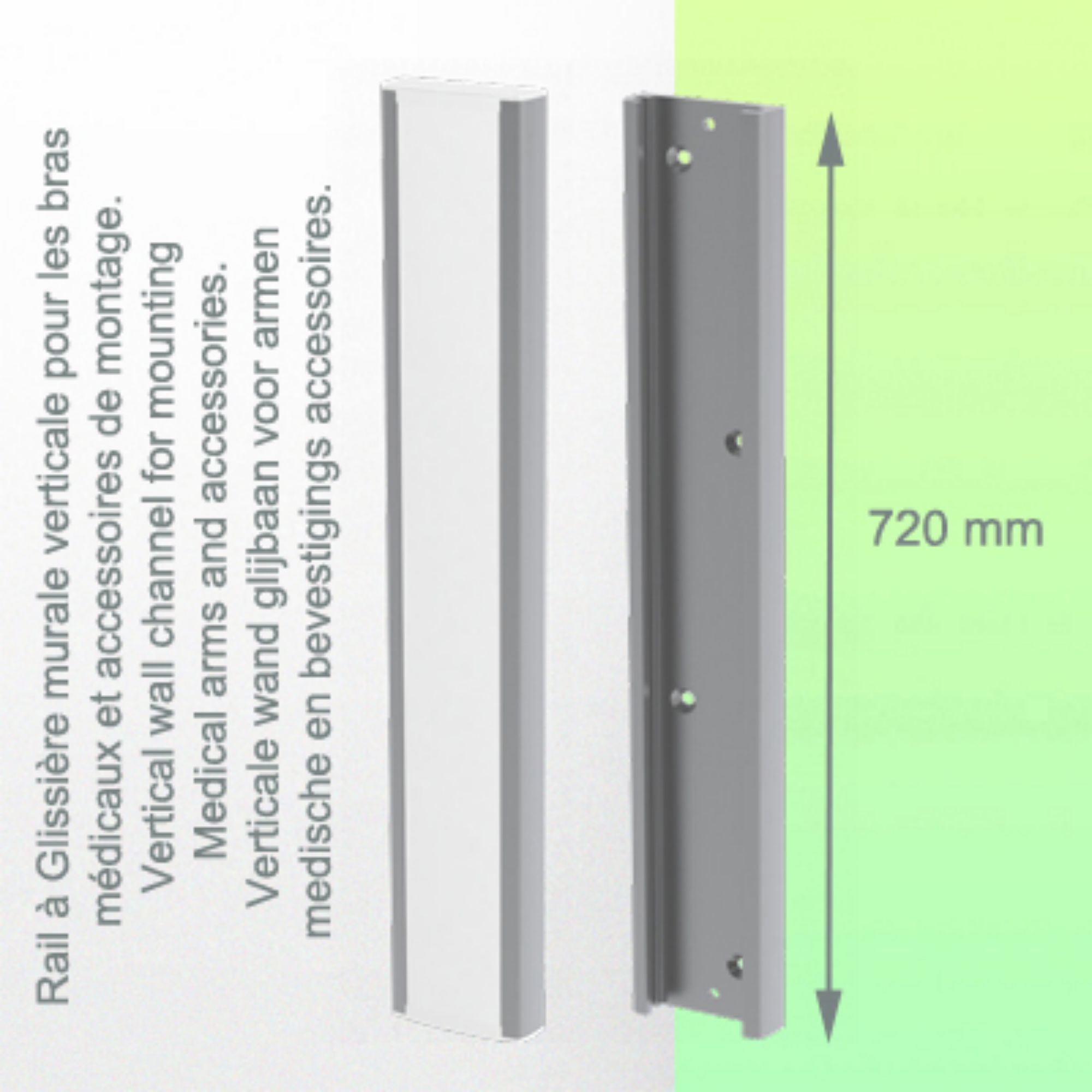

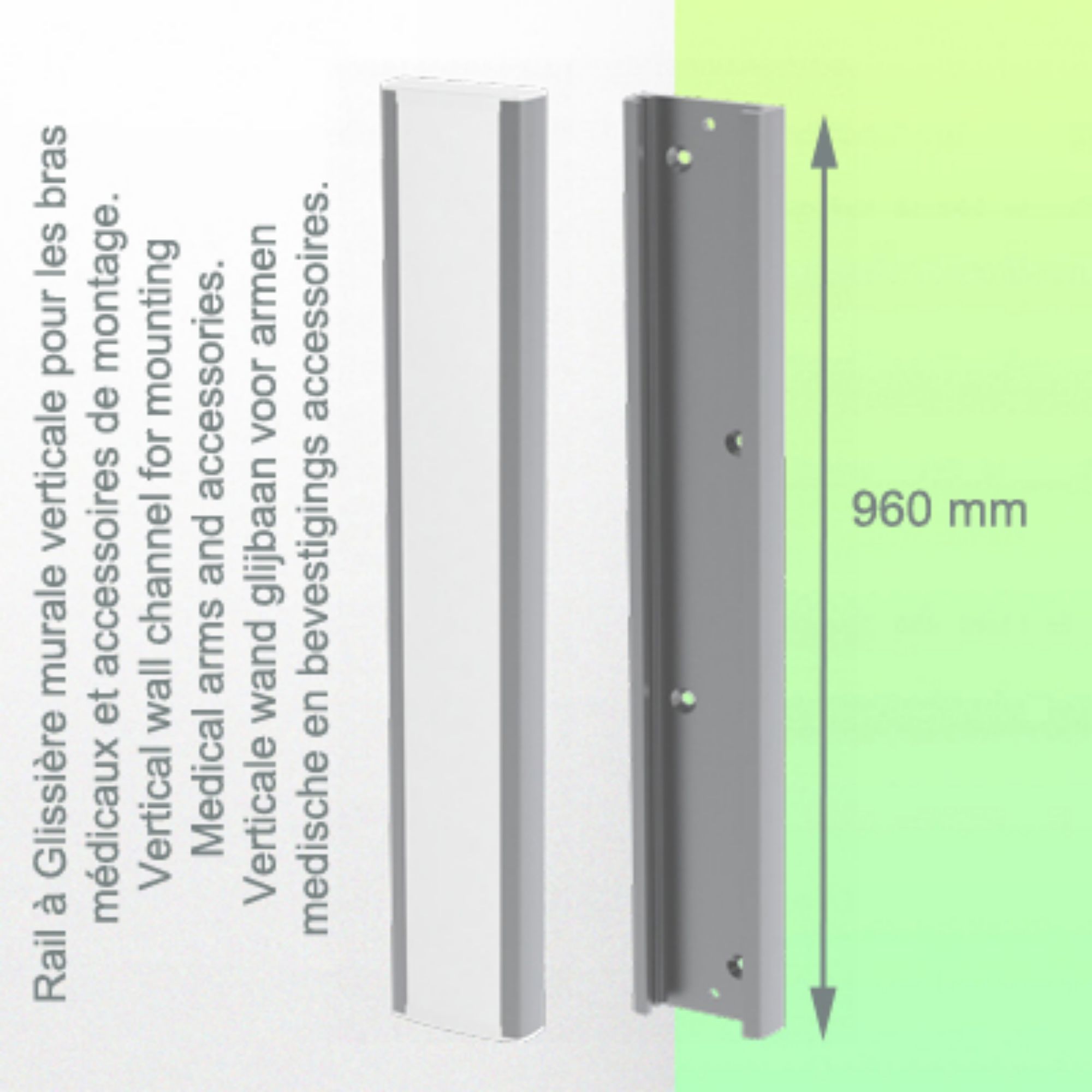

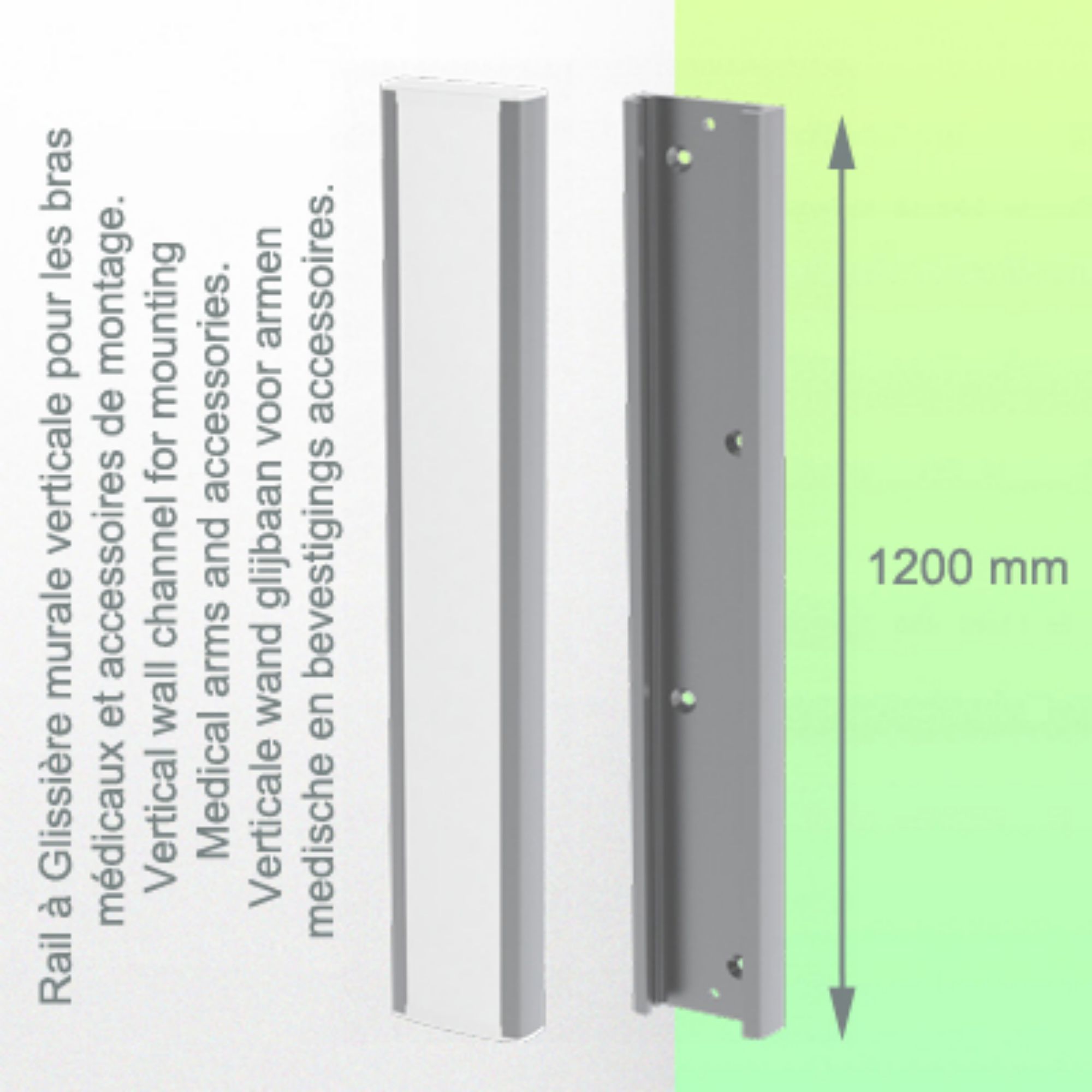

* Optional Vertical Wall Slide Rail mounting, available in various lengths
(480 mm - 720 mm - 960 mm - 1200 mm)

* These wall rails can be easily cut to size.

* All cables also run in the wall rail.

(See rail options below)

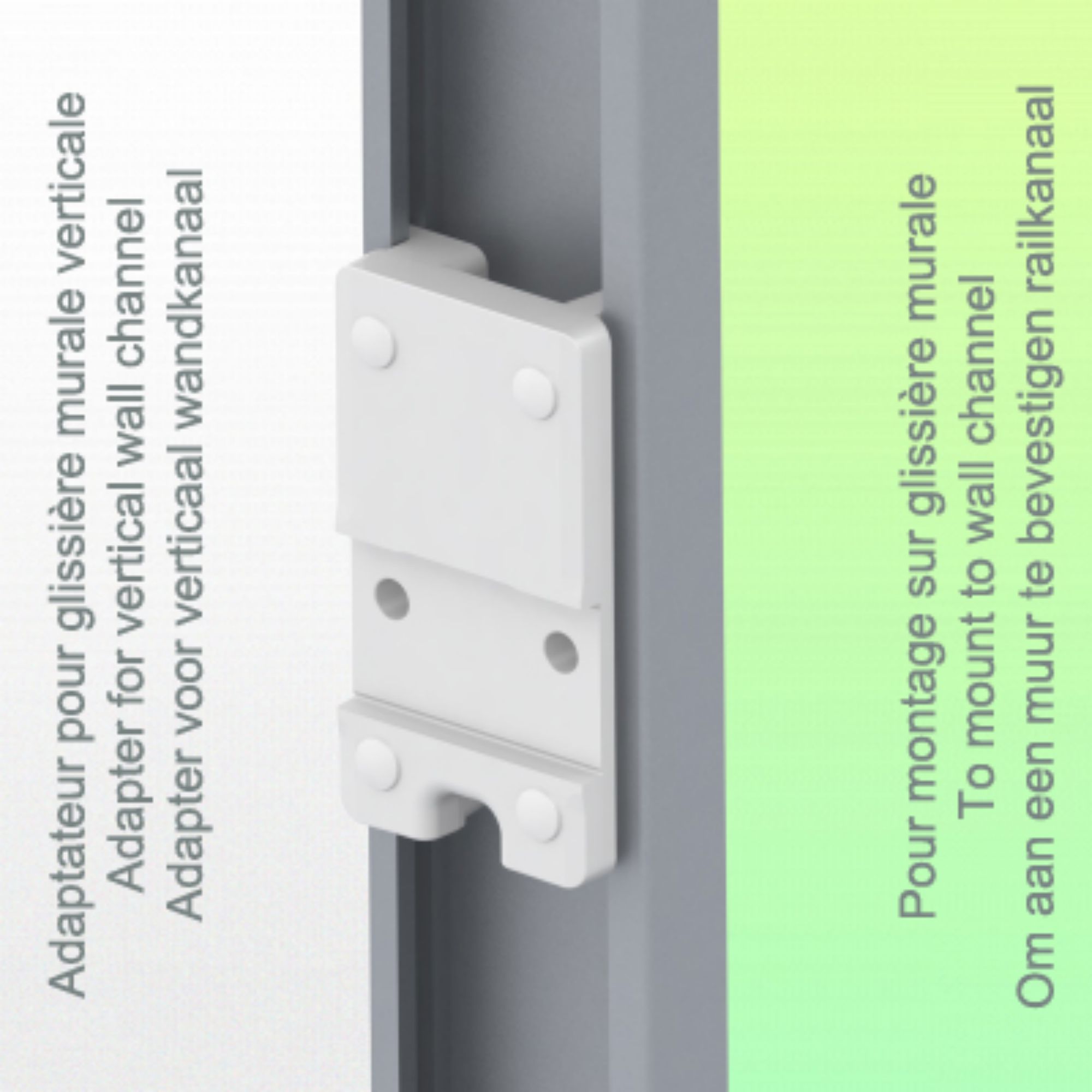

* This 300 mm Horizontal Arm simply slides into the wall rail and then adjusts to the desired height and is fixed in place.

* It has no height adjustment

* The head of the Horizontal Arm complies with the VESA MIS-D 75 mm and 100 mm screen mounting standard. Rotary head.

* Compatible with screens weighing up to 18 Kg.

* Touch screen stability.

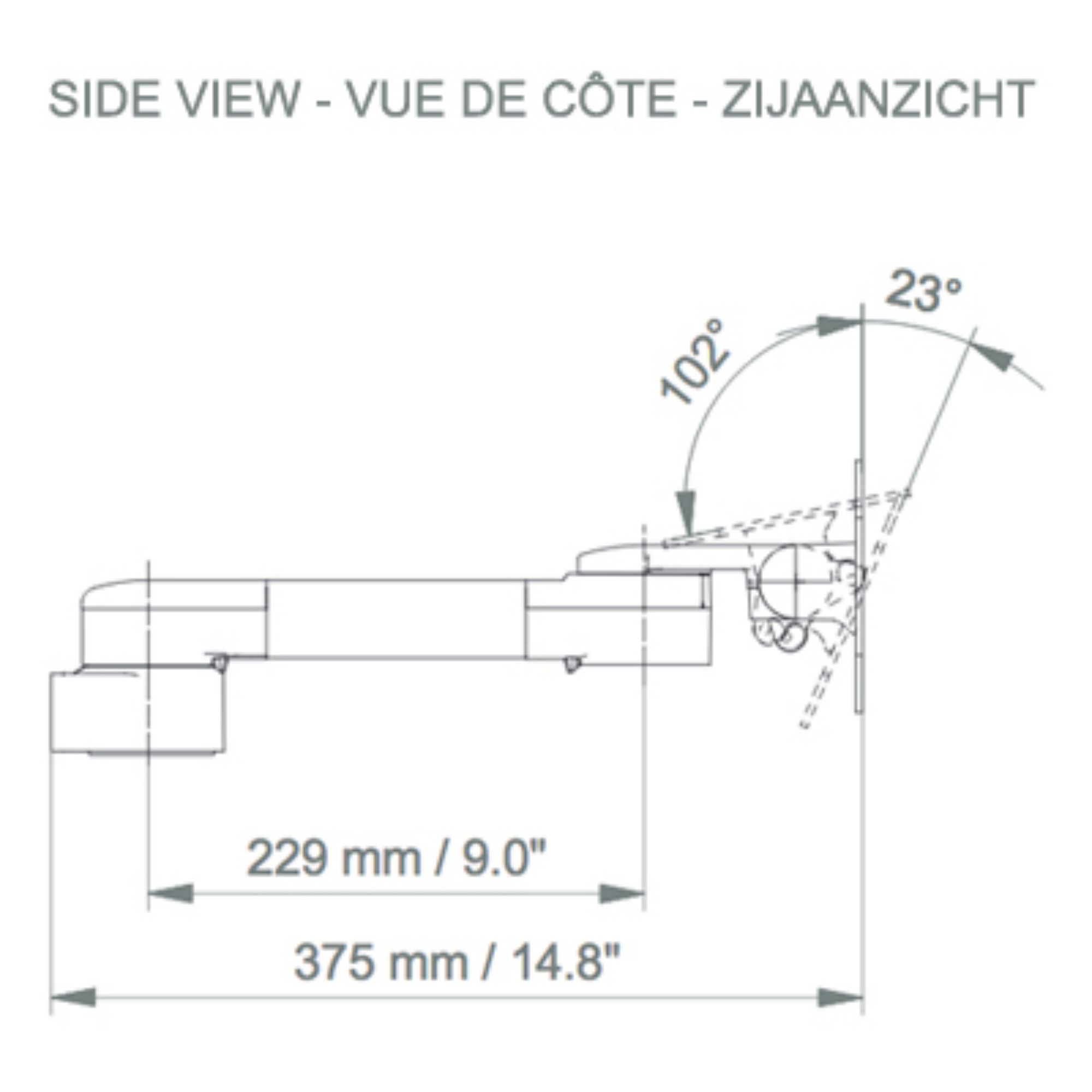

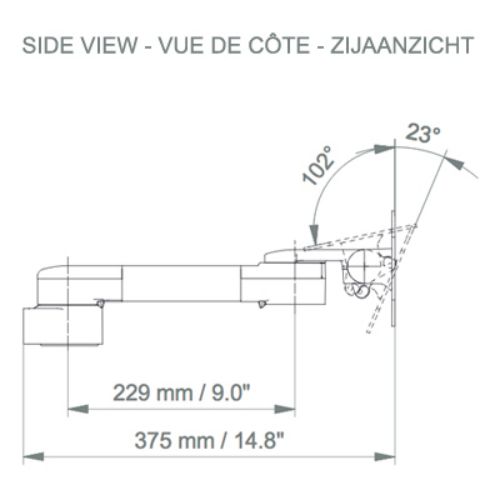

* Screen tilt: 50° down and 100° up. Screen rotation: 110° right, 110° left.

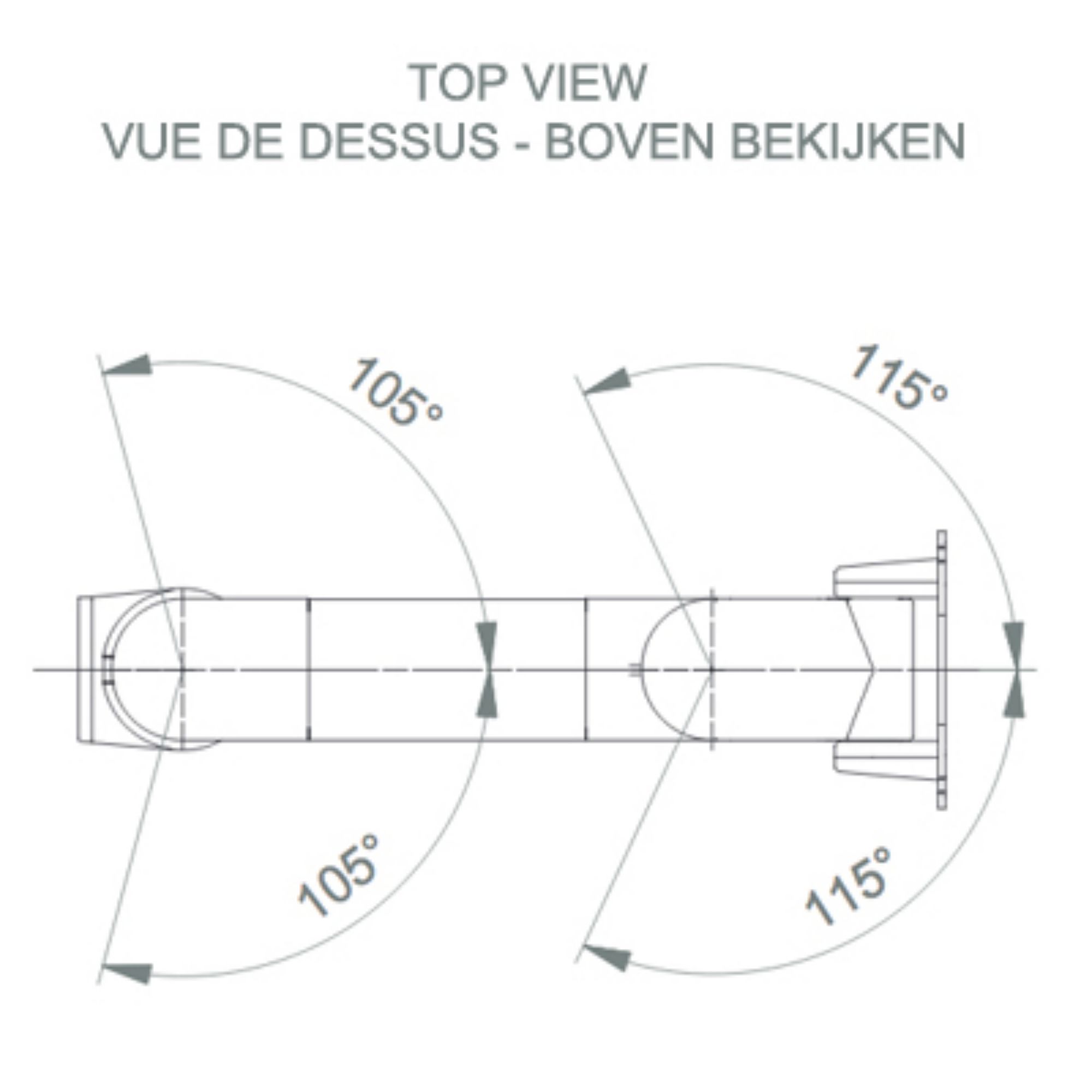

* Arm rotation: 105° right, 105° left.

* Total length 375 mm

* Colour RAL 5013 cobalt blue and RAL 9016 traffic white

* Warranty: 5 years
