Medical Combo 2 x 300 mm swivel arm Foldable for monitor and keyboard,

(weight supported up to 18 Kg),

wall mount on vertical slide rail

Product number: WM 226.101 - Medical Combo 2 x 300 mm swivel arm Foldable for monitor and keyboard,

(weight supported up to 18 Kg),

wall mount on vertical slide rail

Product sheet PDF

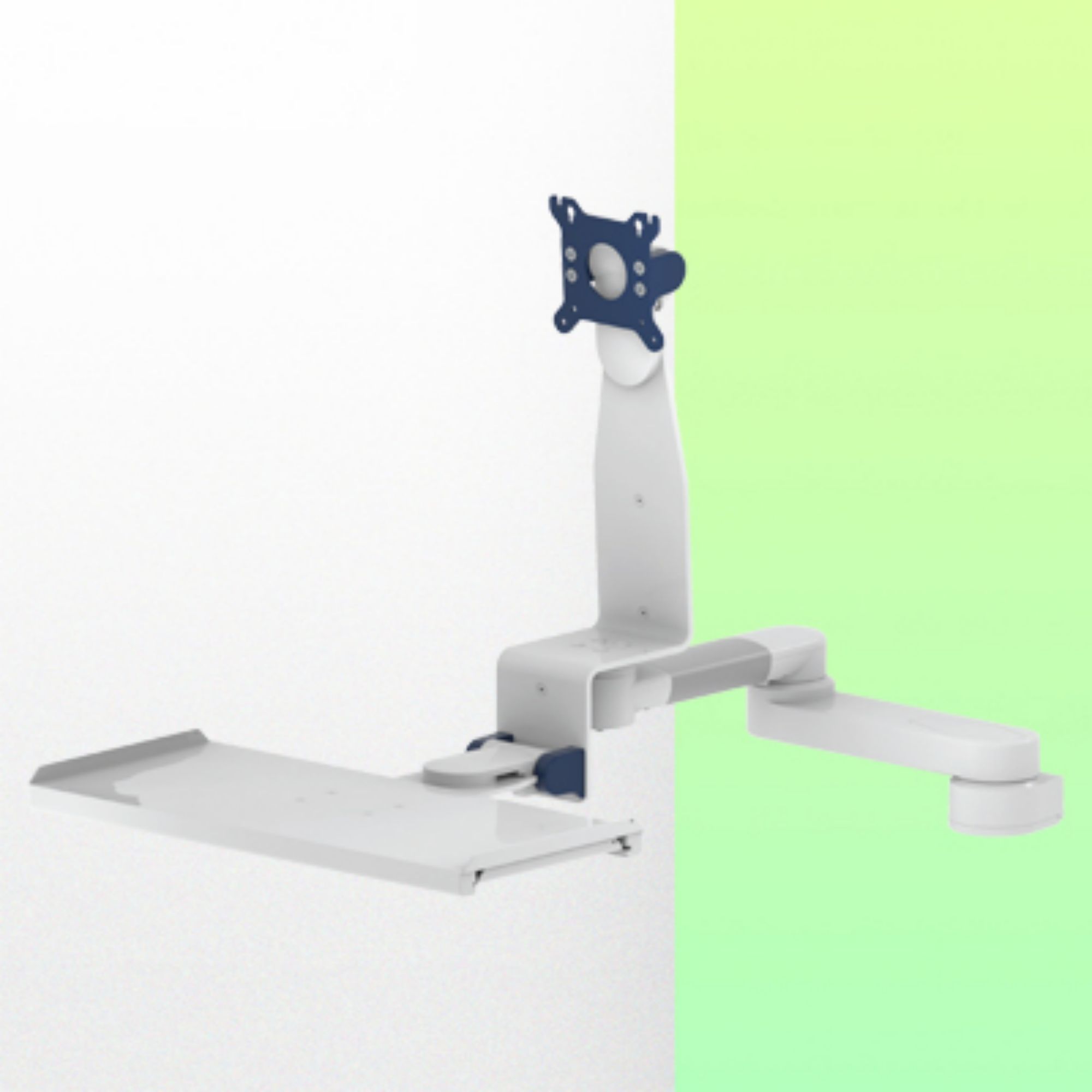

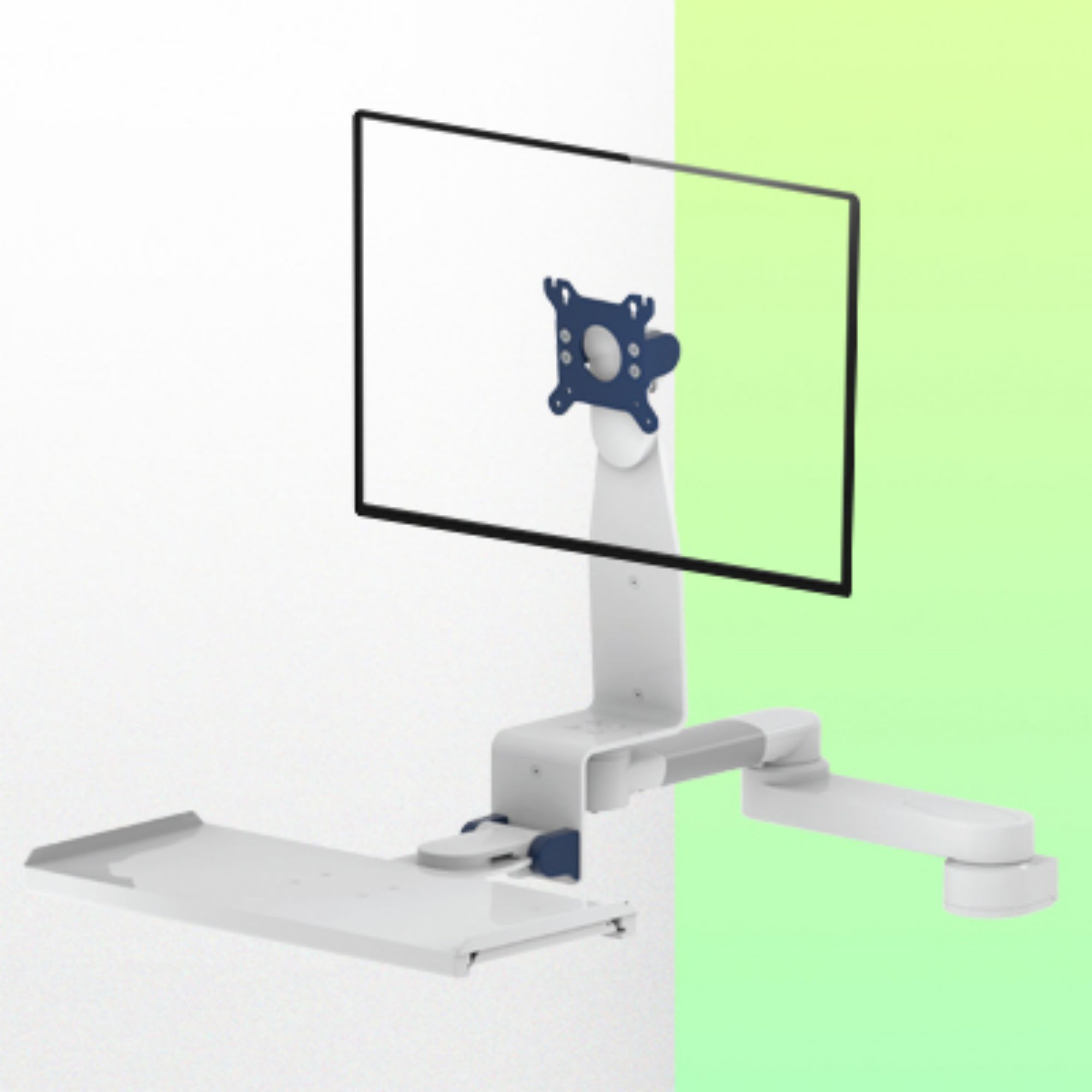

The 2 x 300 mm long Combo Medical Arm Foldable can be used to mount, orientate and adjust a monitor perfectly.

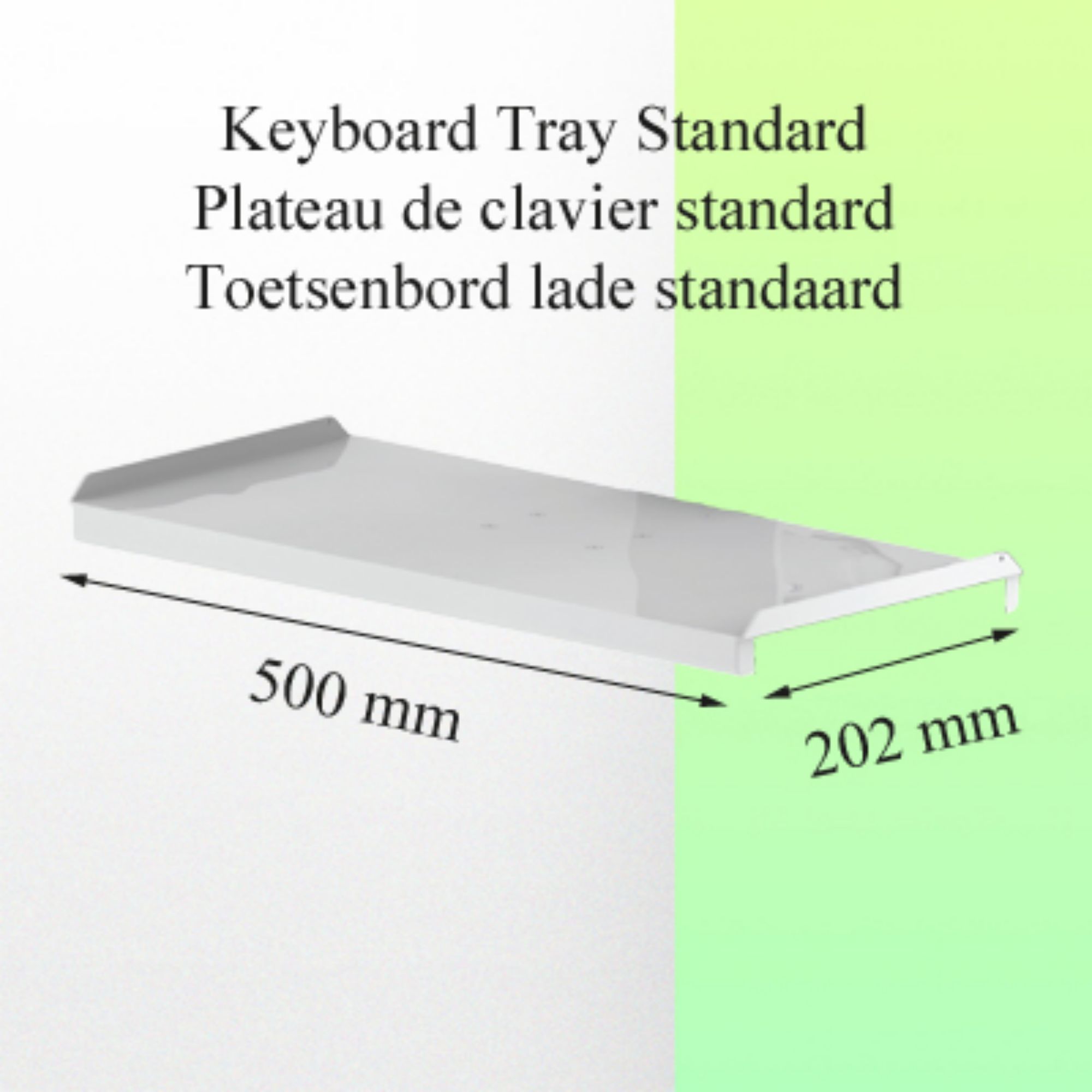

The supplied 500 x 202 mm keyboard holder can accommodate a standard keyboard and mouse.

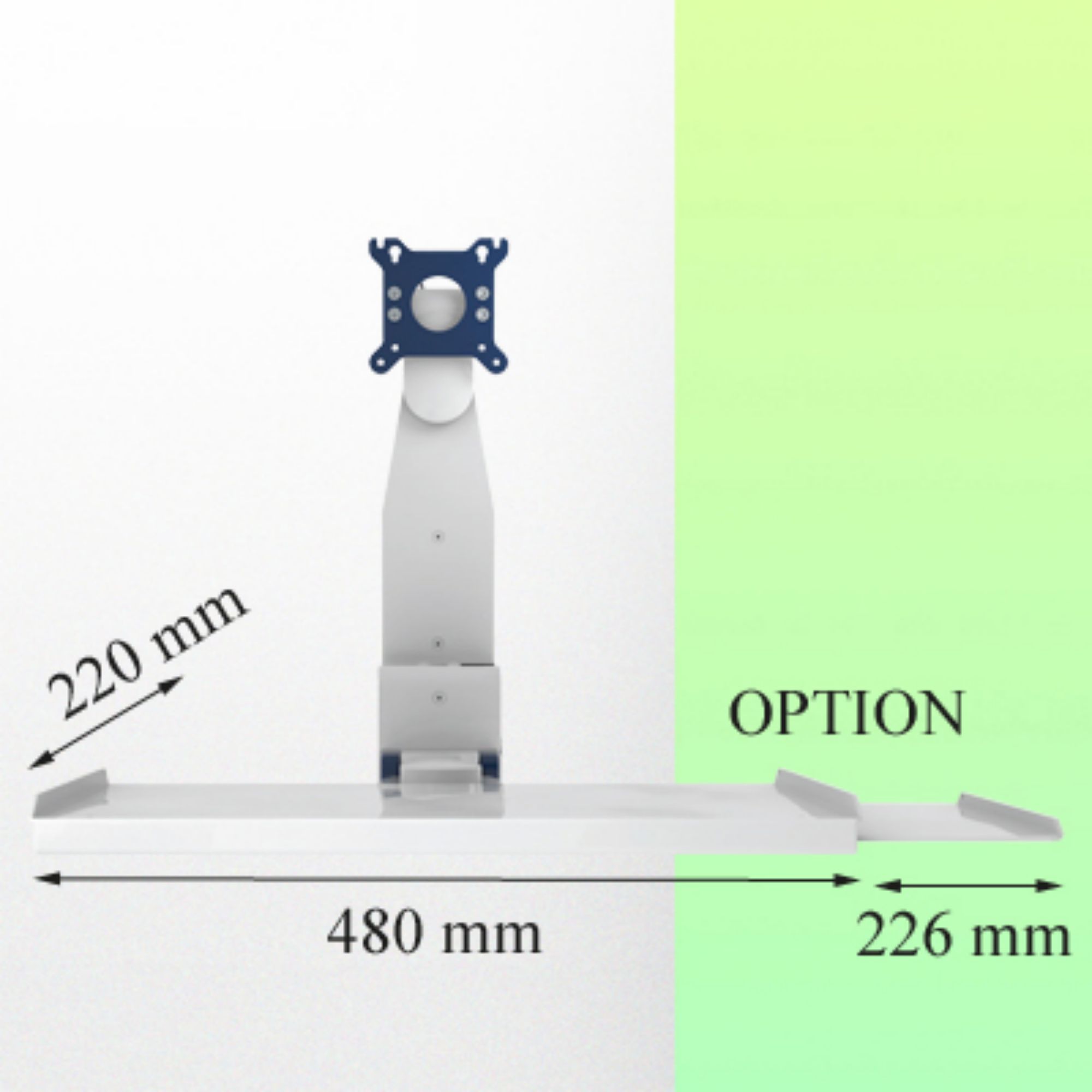

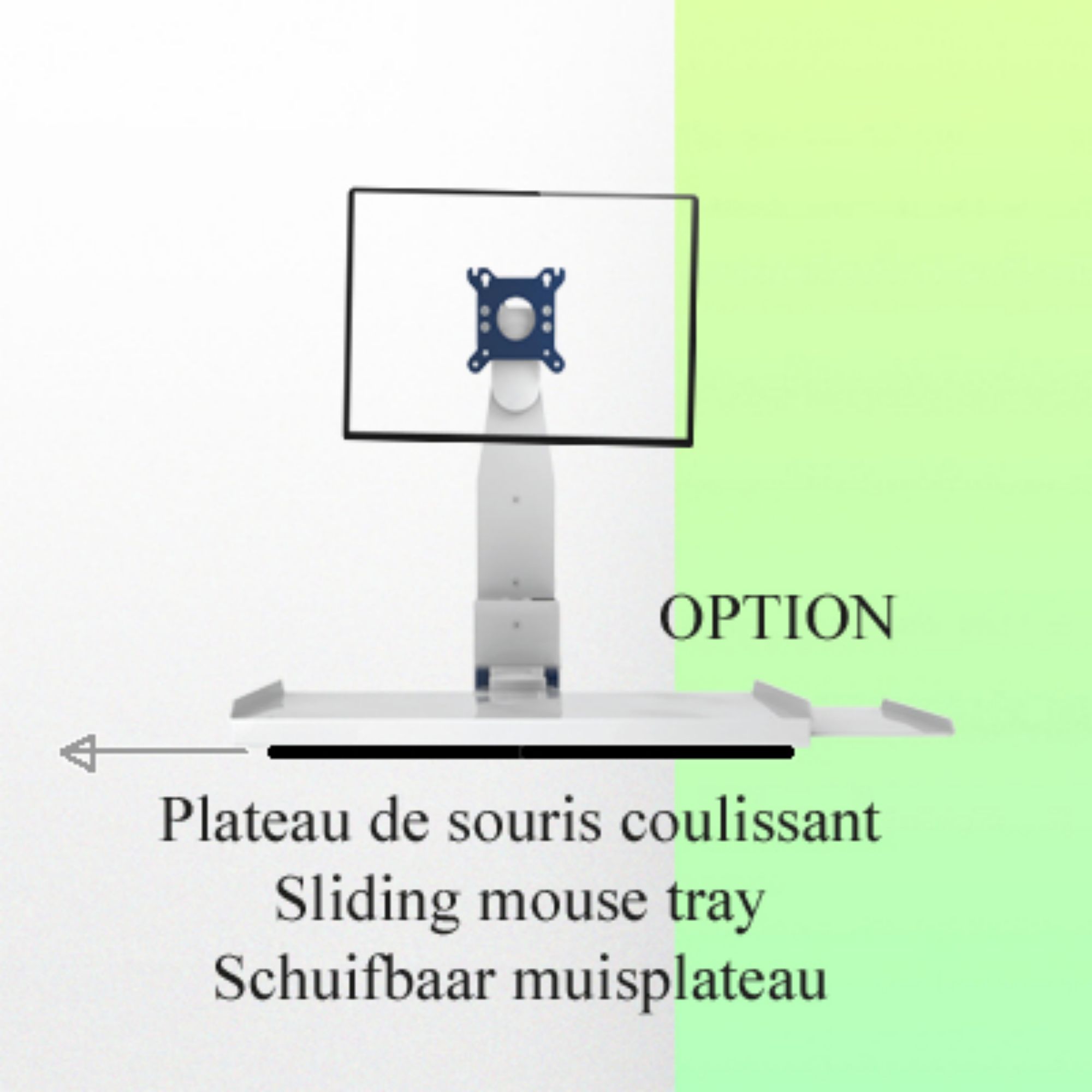

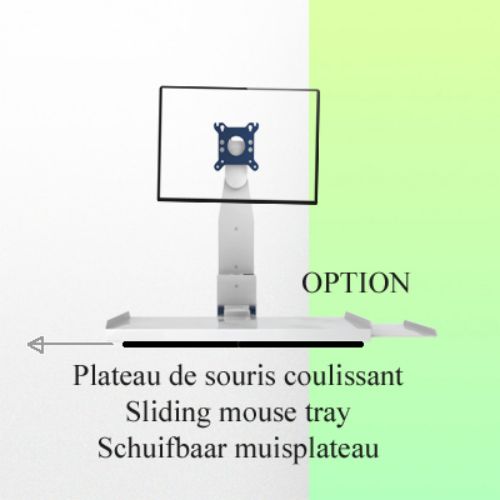

As an option, it can be equipped with a stand with a sliding right/left mouse tray with dimensions of 480 x 220 mm for the keyboard and 226 x 220 mm for the mouse or with a large keyboard stand with dimensions of 580 x 200 mm.

Technical specifications:

* Integrated cable management

* Standard 500 x 202 mm keyboard support foldable at 90°

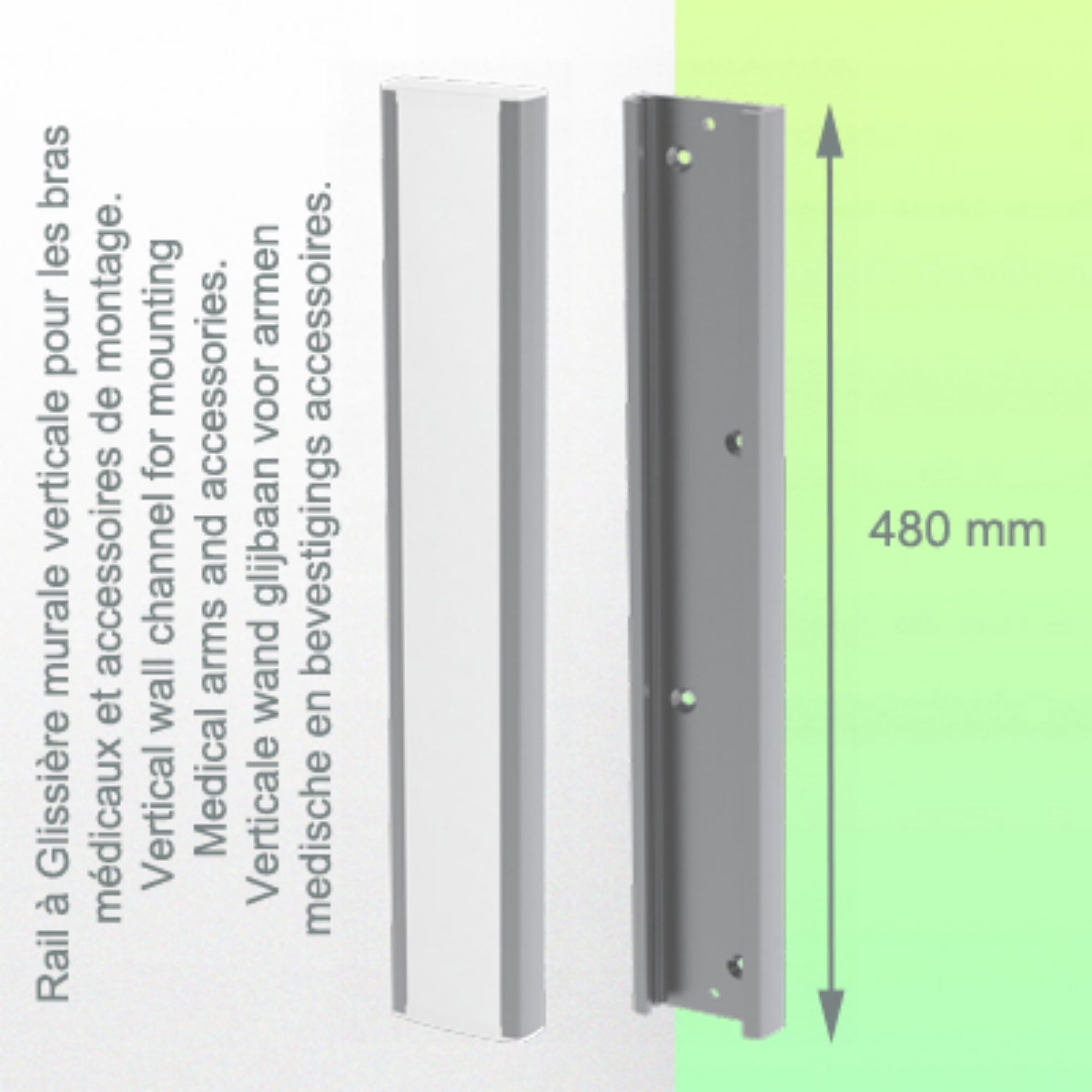

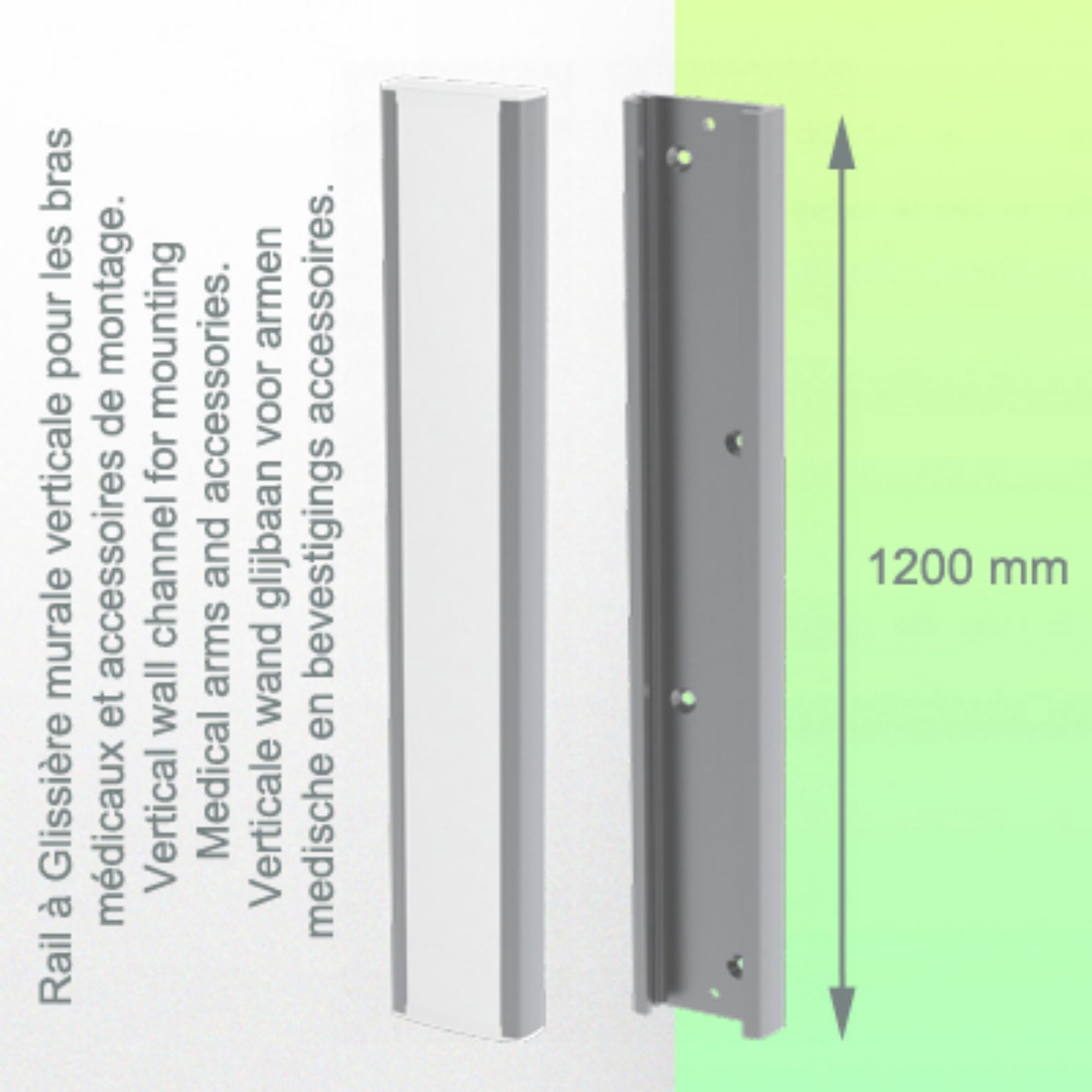

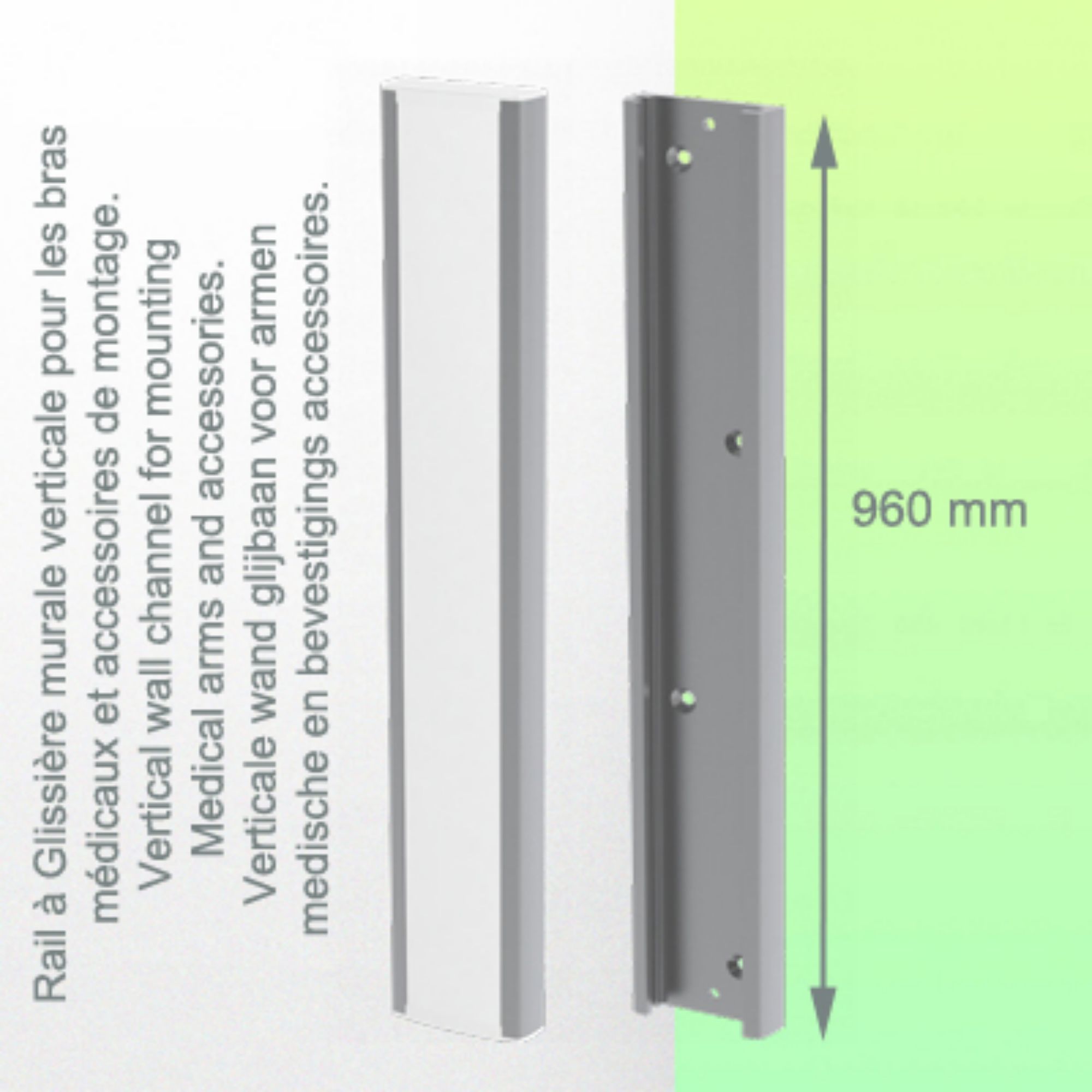

* Optional Vertical Wall Rail mounting, of which several lengths are available

(480 mm - 720 mm - 960 mm - 1200 mm).

* These wall rails can be easily cut to size.

* All cables are also routed through the wall rail. (

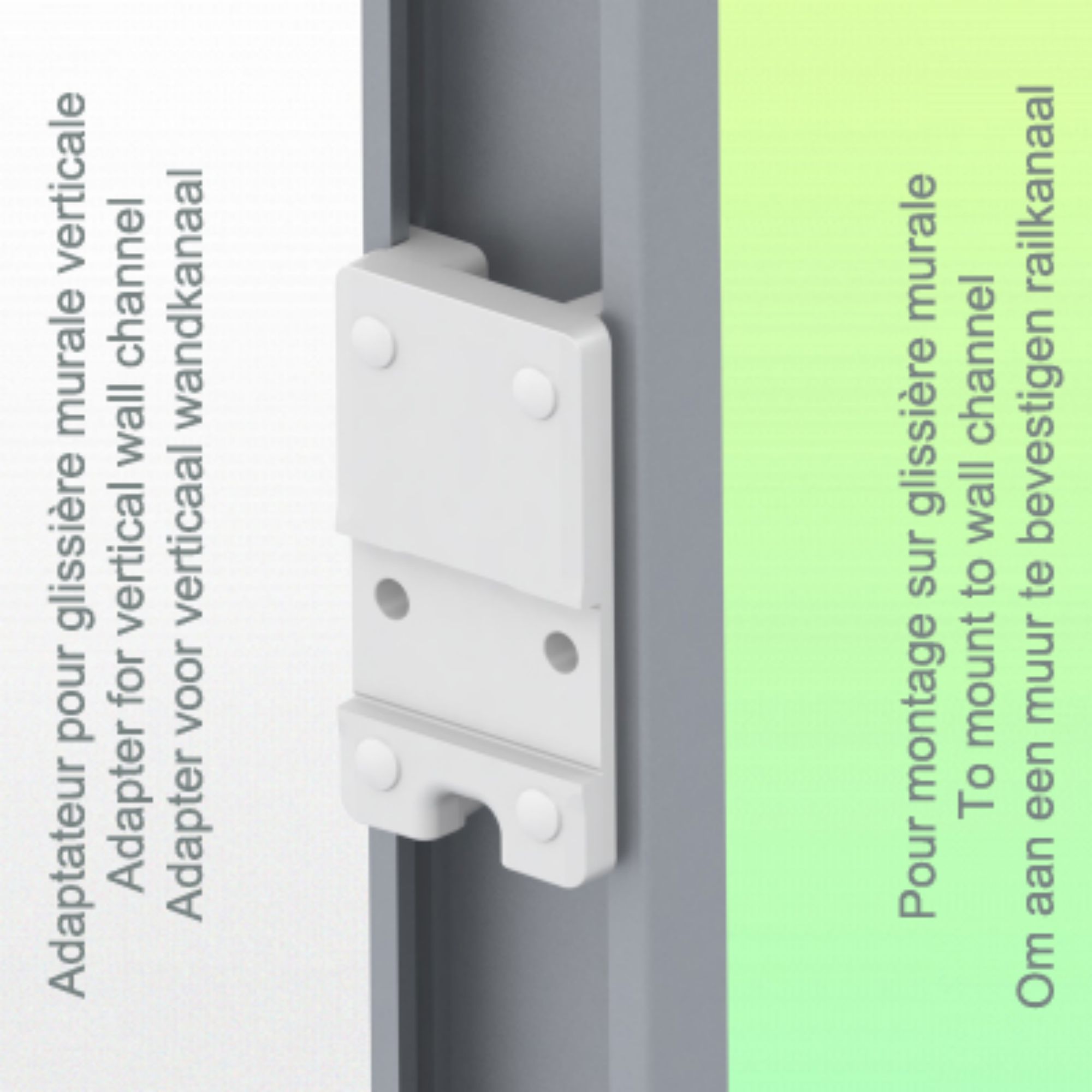

* This 300mm long Combo Arm simply slides into the wall rail and then adjusts to the required height and is fixed.

* It does not have a height adjustment but does have the ability to rotate.

* The head of this arm complies with the VESA 75/100mm screen mounting standard.

* Compatible with equipment weighing up to 18kg.

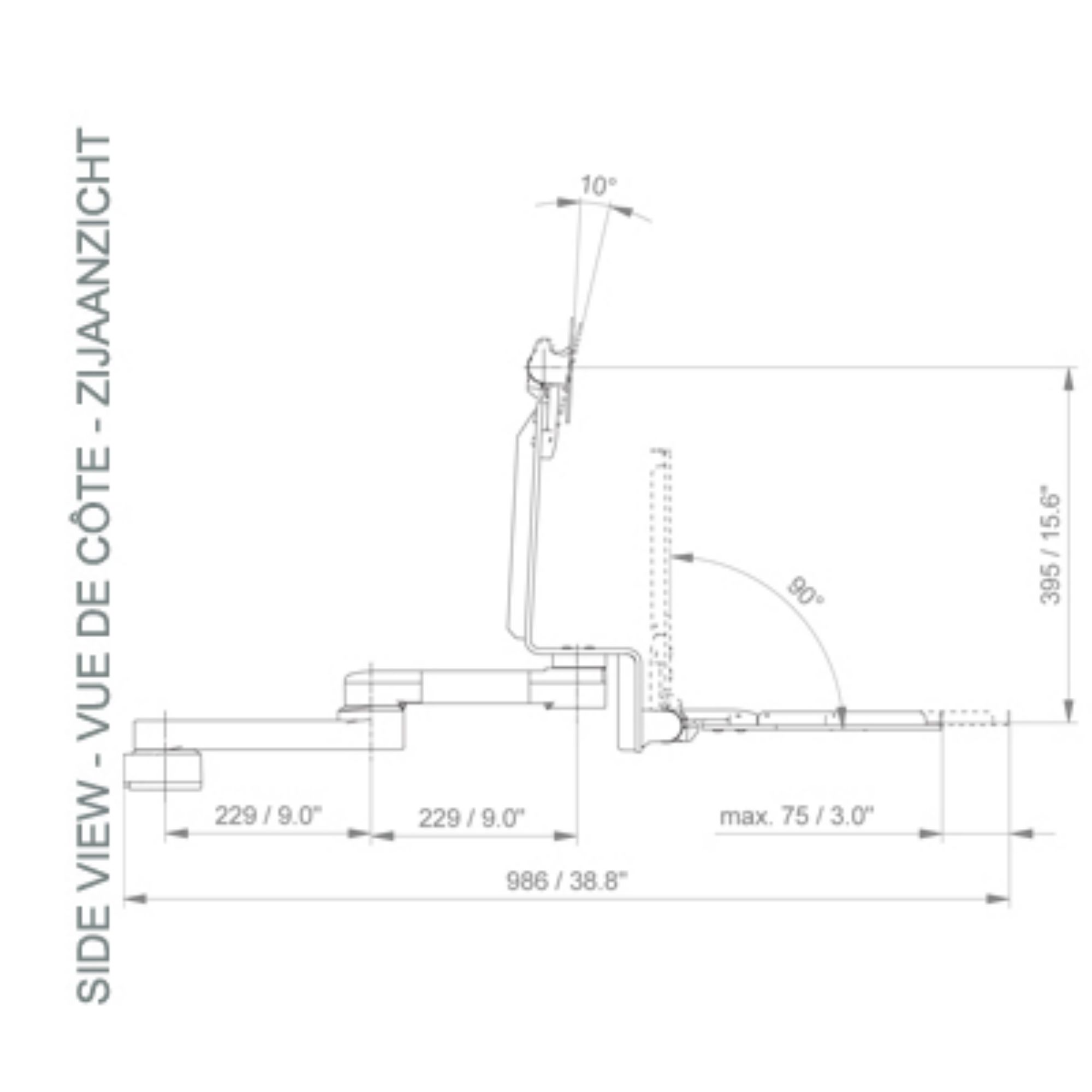

* Screen tilt: 10°

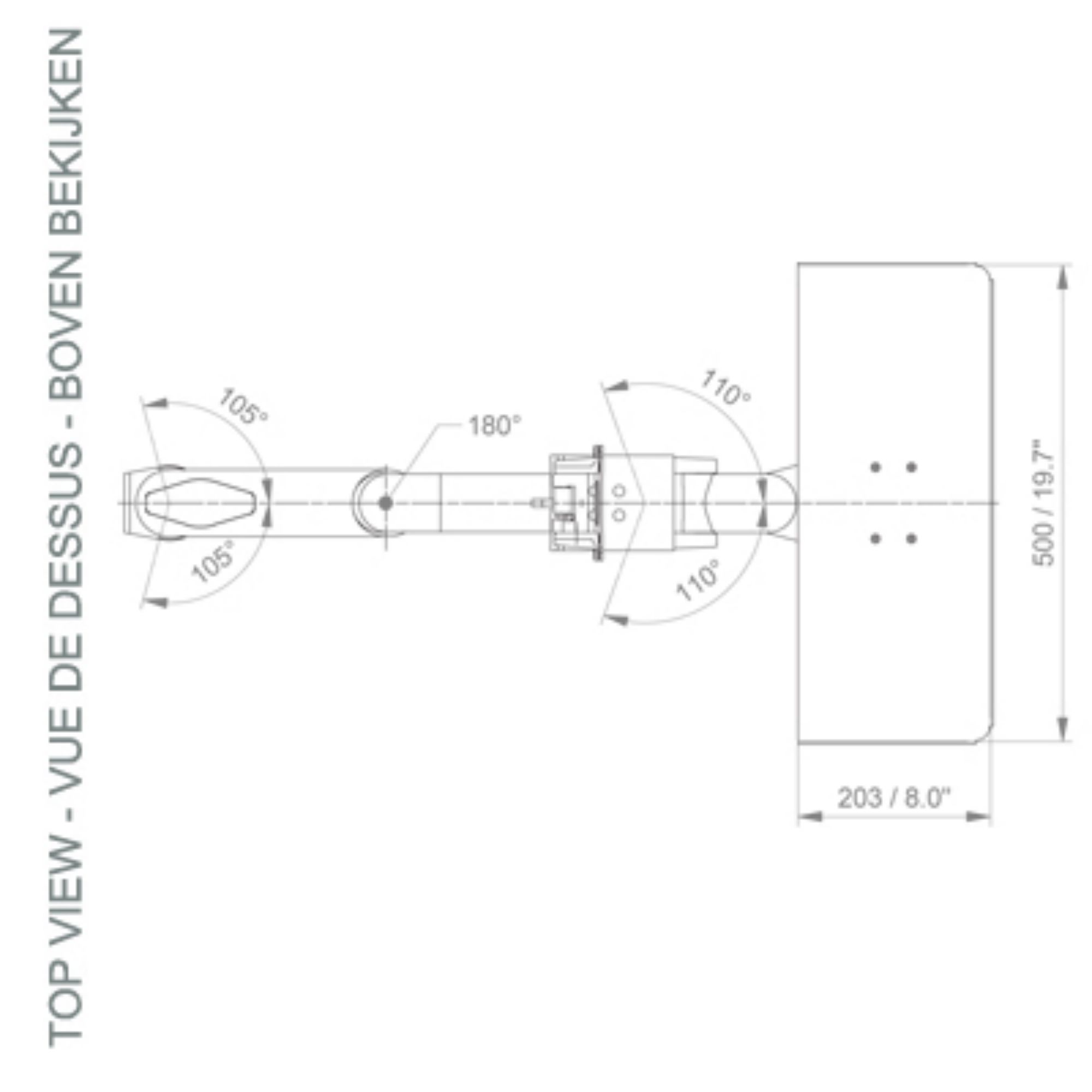

* Arm rotation: 105° right, 105° left. 180° central rotation

* Keyboard support rotation: 110° right, 110° left

* Total length of the configuration 986 mm

* Colour RAL 5013 cobalt blue and RAL 9016 traffic white

* Warranty: 5 years
