Medical Combo arm Foldable and adjustable in height by 300 mm,

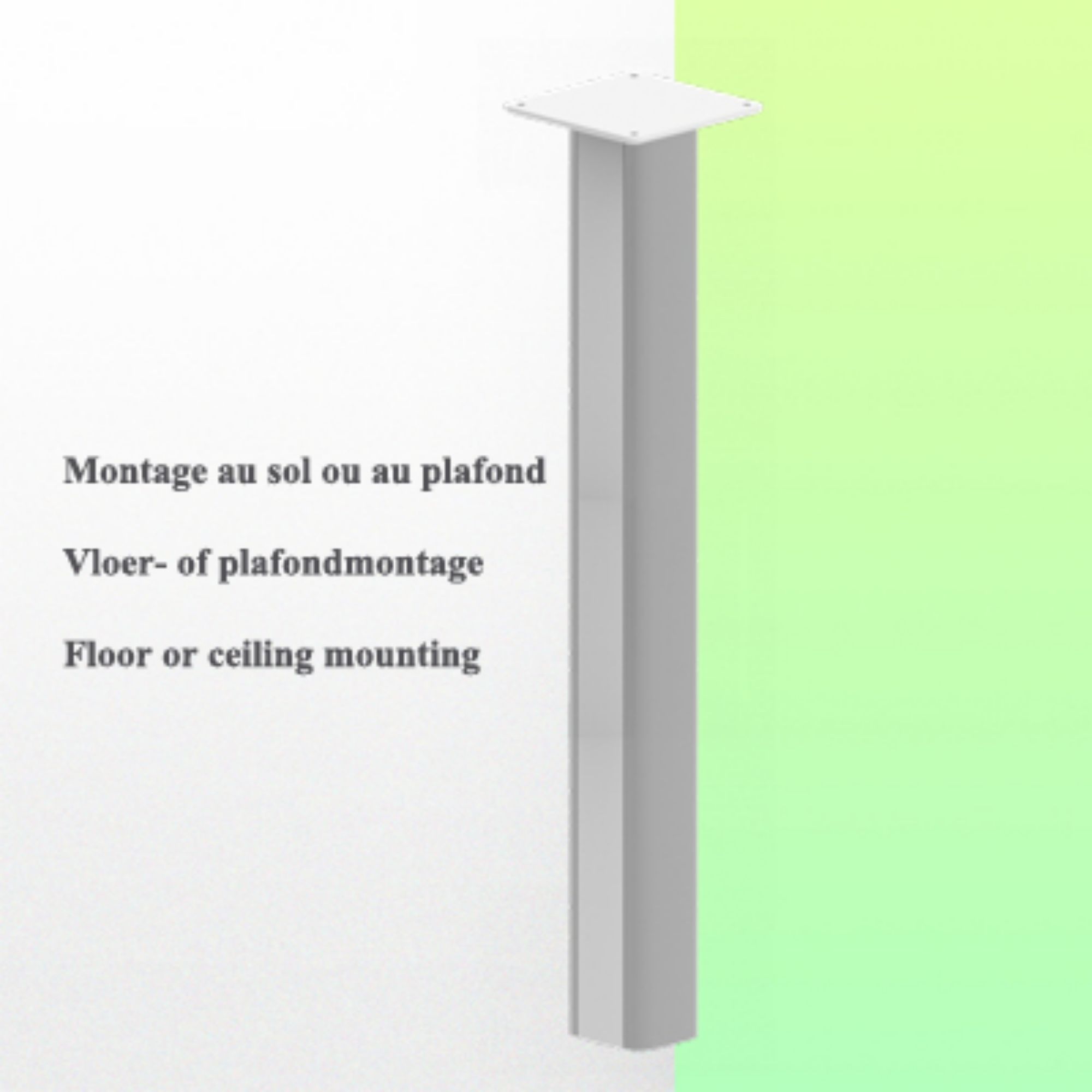

floor or ceiling column mounting.

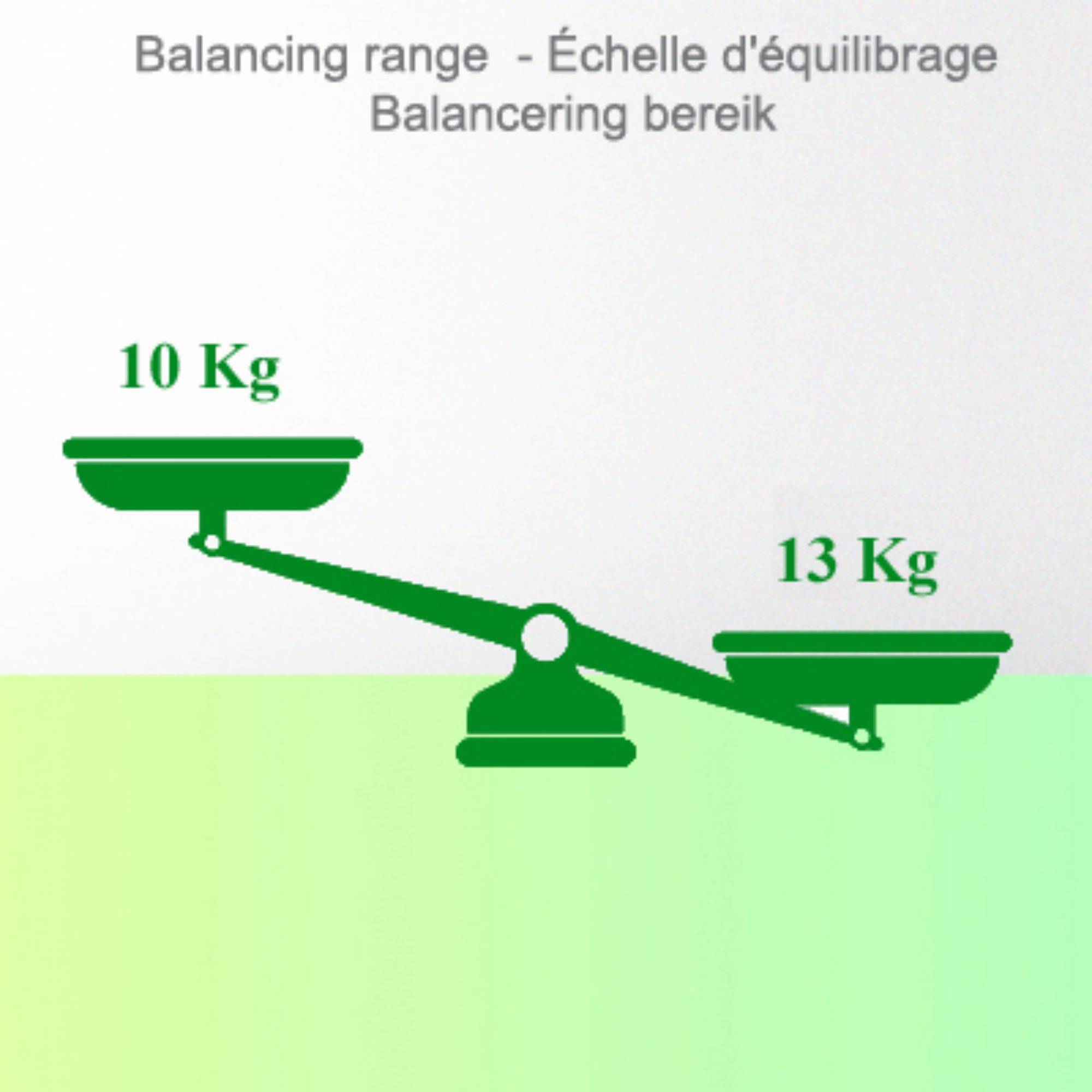

Supported weight of balance scale from 10 to 13 Kg

Product number: WM 226.110 - Medical Combo arm Foldable and adjustable in height by 300 mm,

floor or ceiling column mounting.

Supported weight of balance scale from 10 to 13 Kg

Product sheet PDF

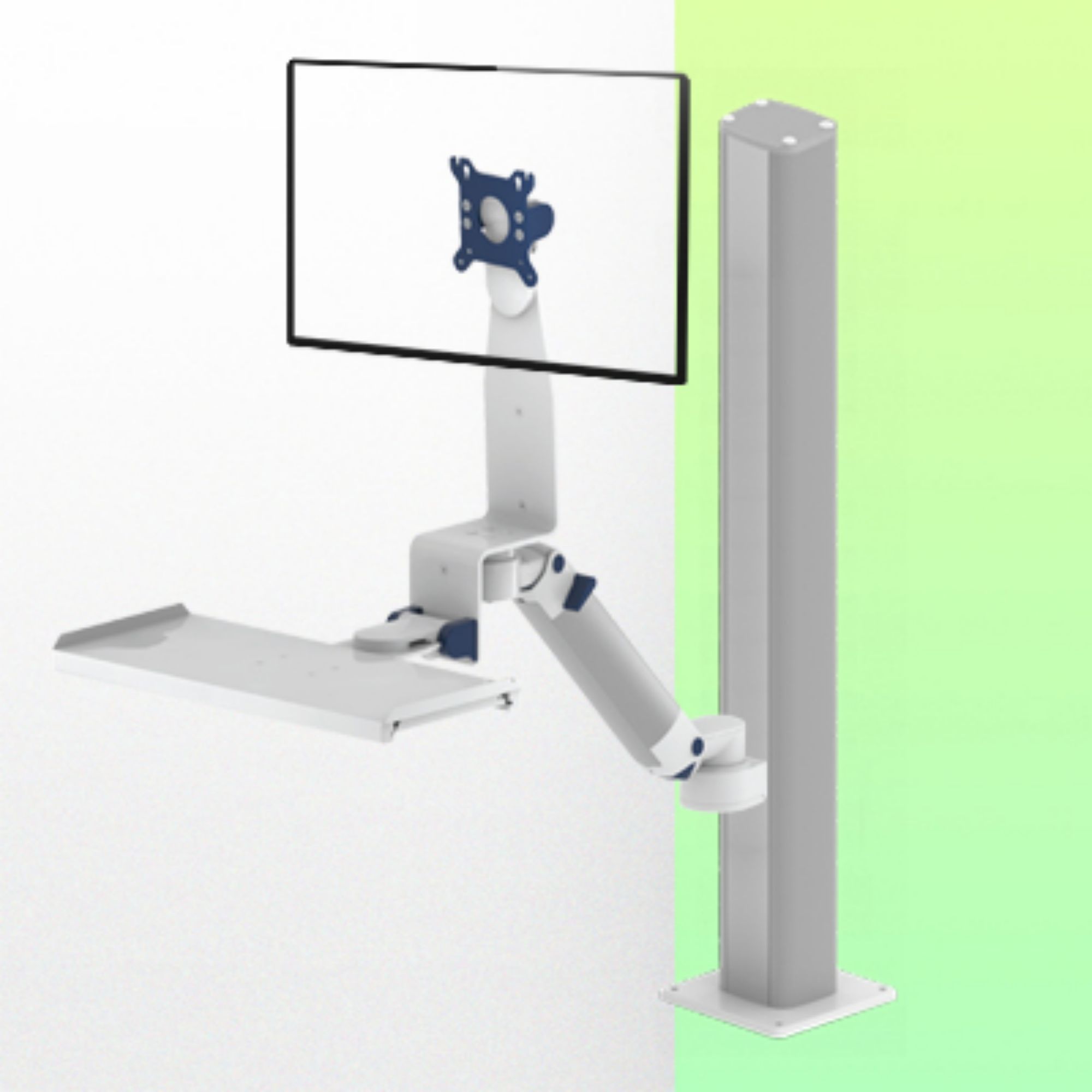

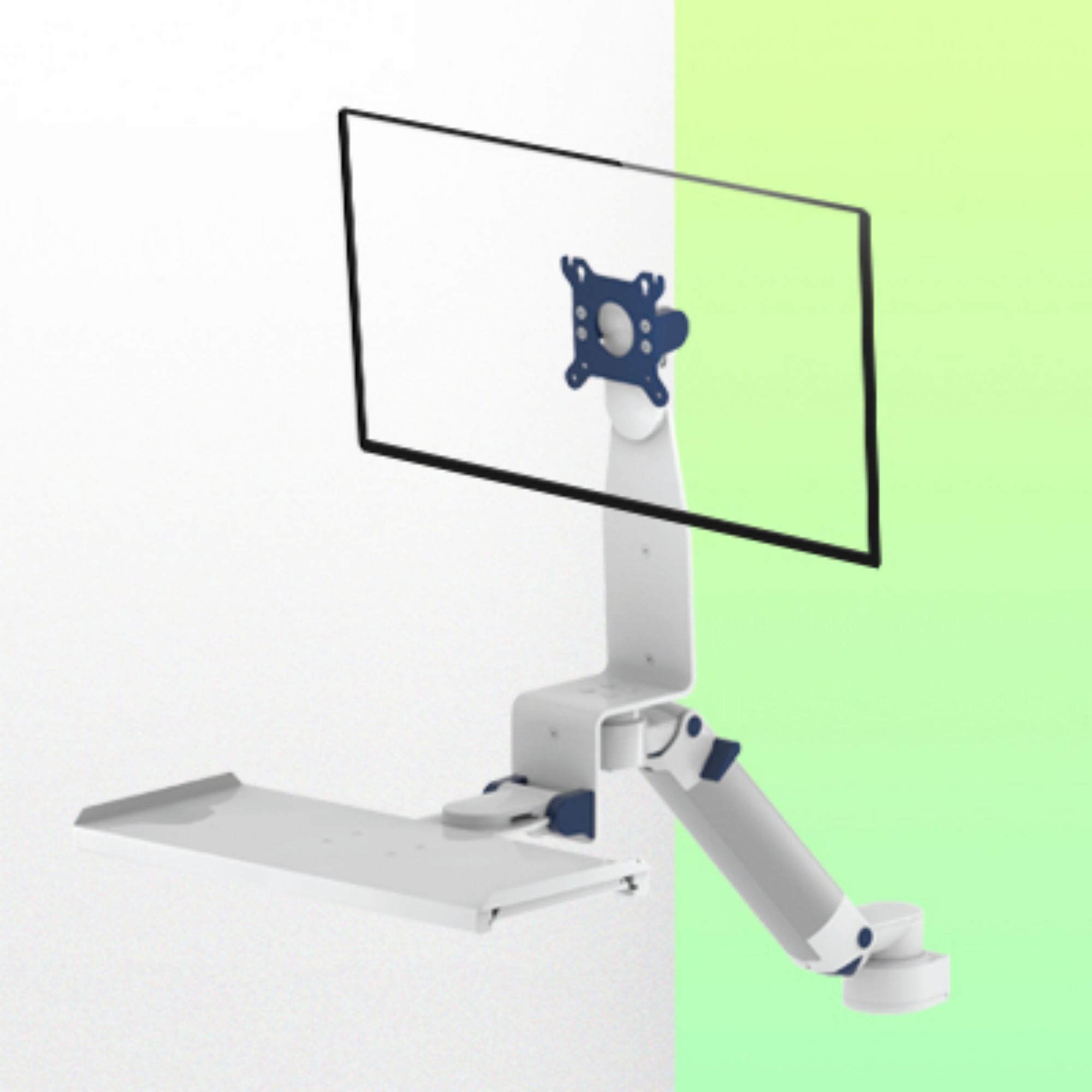

This 300 mm long height adjustable Combo foldable Medical Arm allows to fix, orientate and adjust perfectly a screen, its keyboard support with dimensions of 500 x 202 mm delivered with this configuration allows to welcome a standard keyboard as well as a mouse.

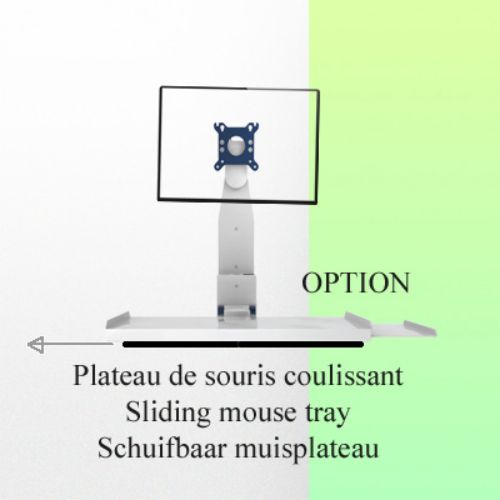

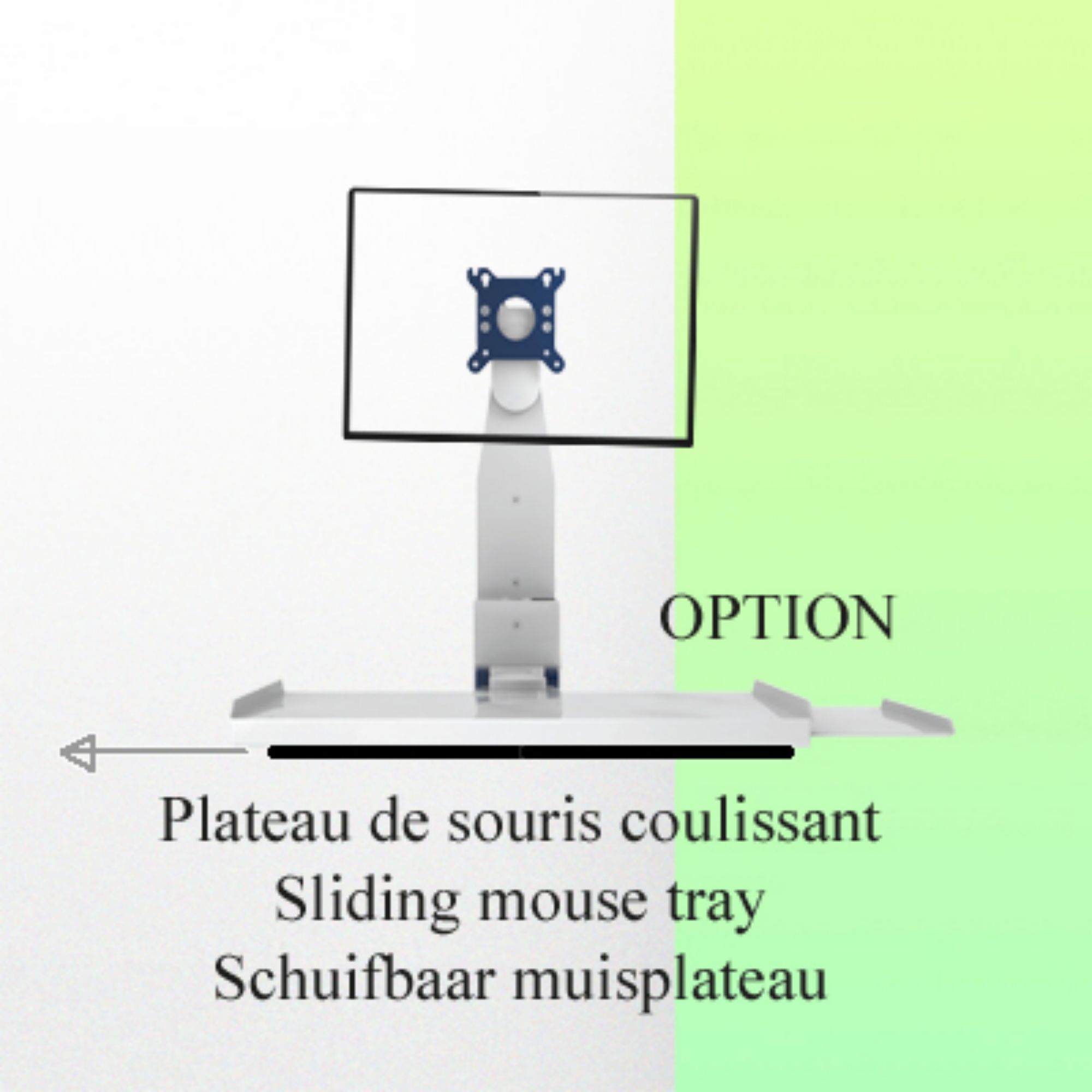

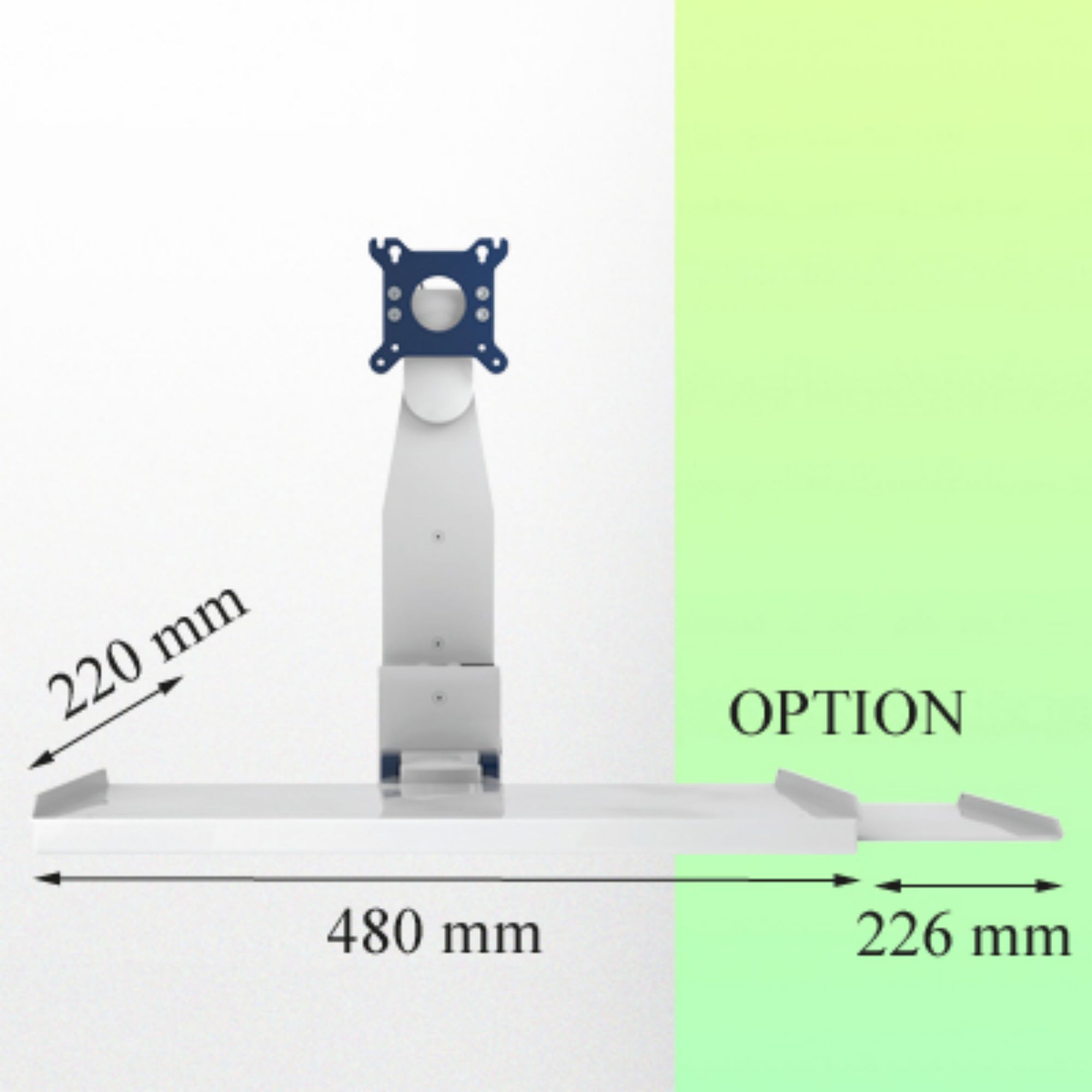

As an option, it can be equipped with a stand with a sliding right/left mouse tray with dimensions of 480 x 220 mm for the keyboard and 226 x 220 mm for the mouse, or with a large keyboard stand with dimensions of 580 x 200 mm.

It has a safety stop button for the height adjustment, which allows the arm to remain in the selected position.

Technical specifications:

* Integrated cable management

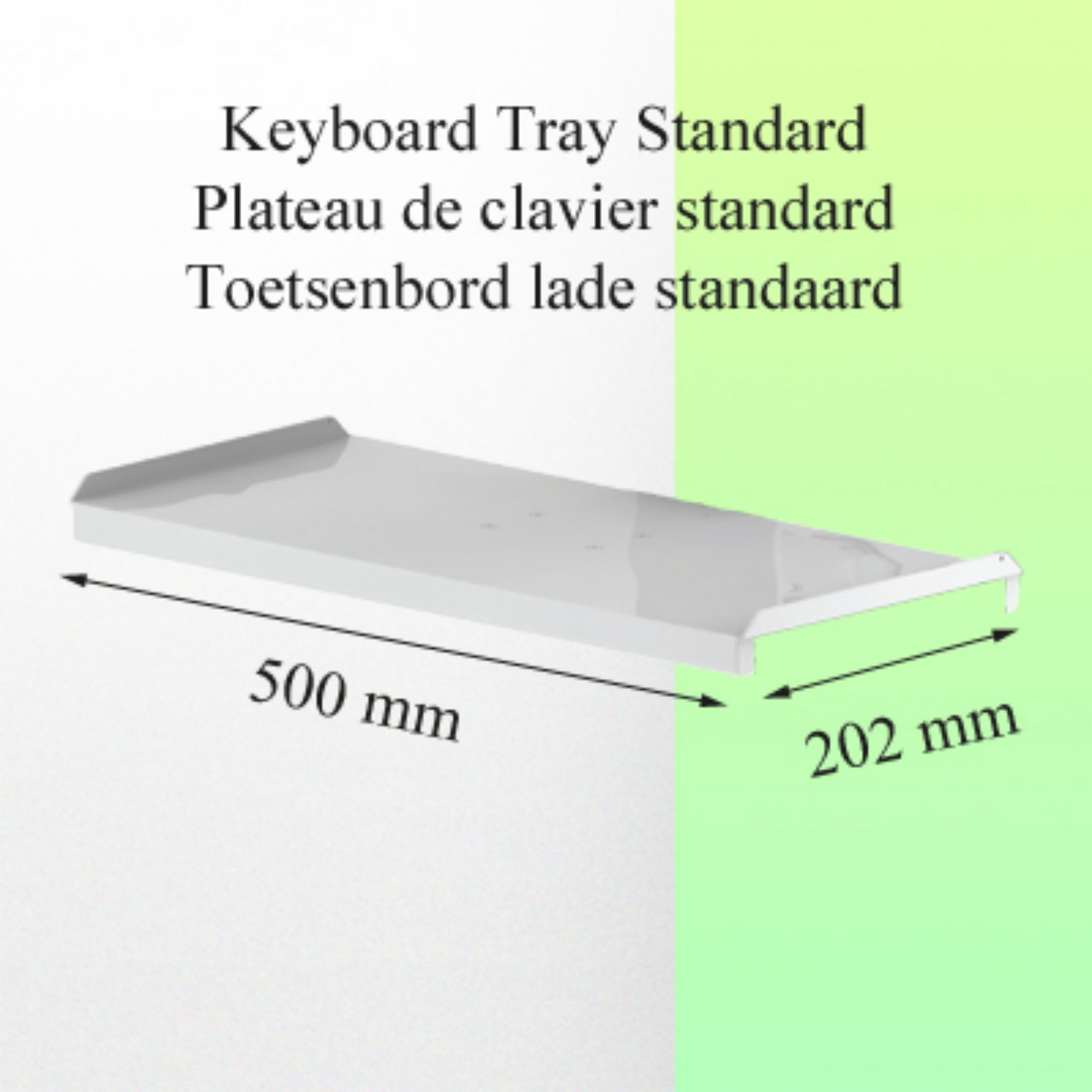

* Standard keyboard support 500 x 202 mm Foldable

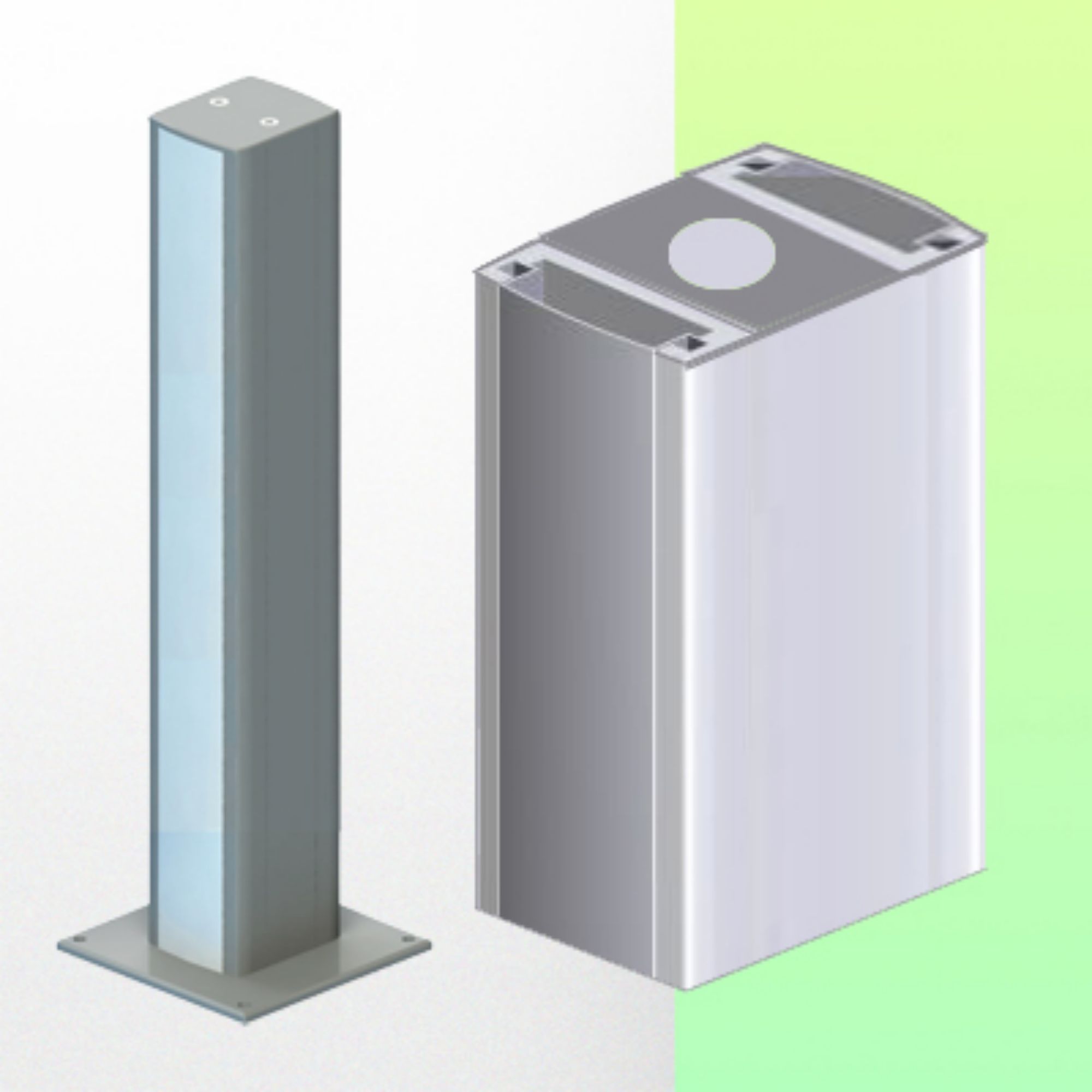

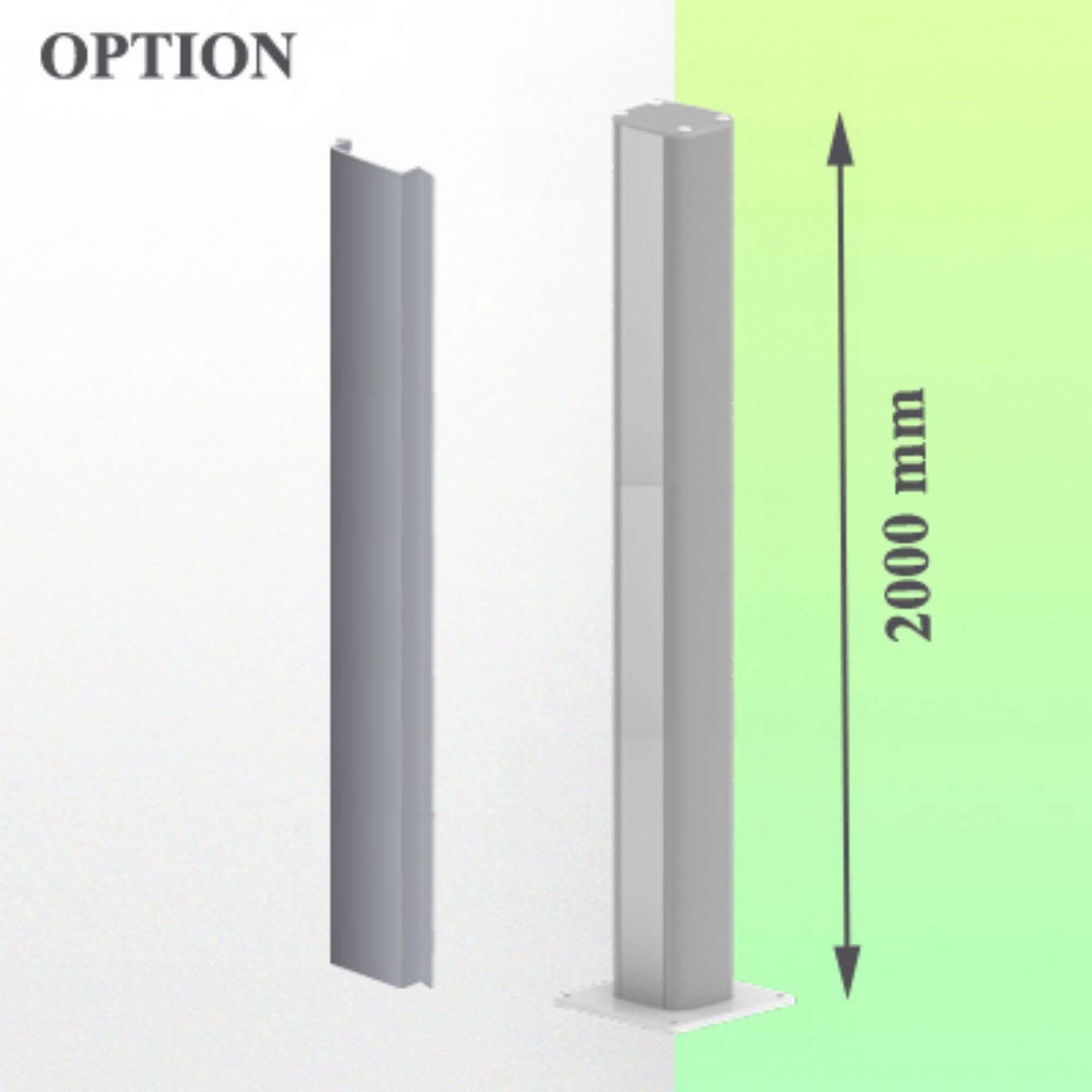

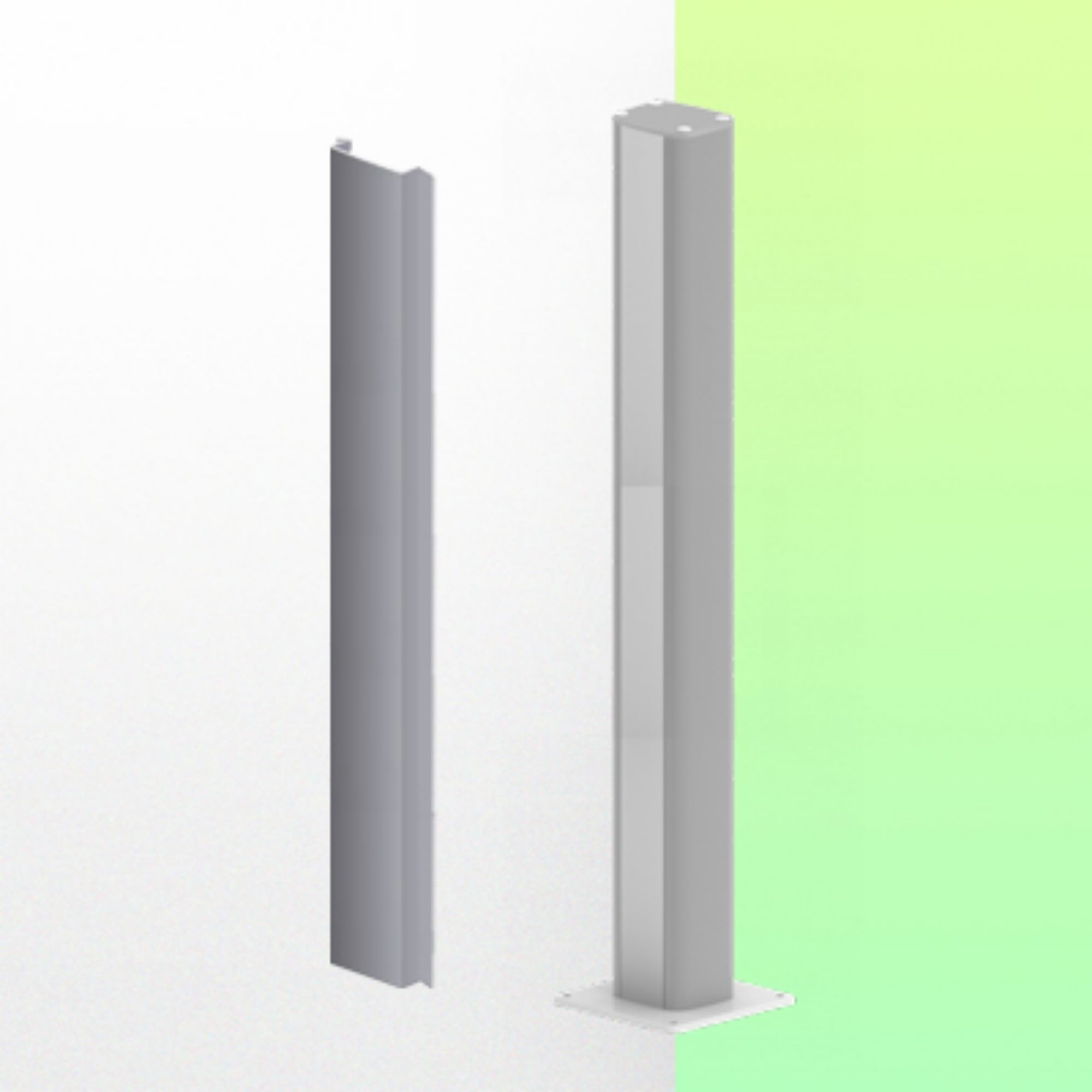

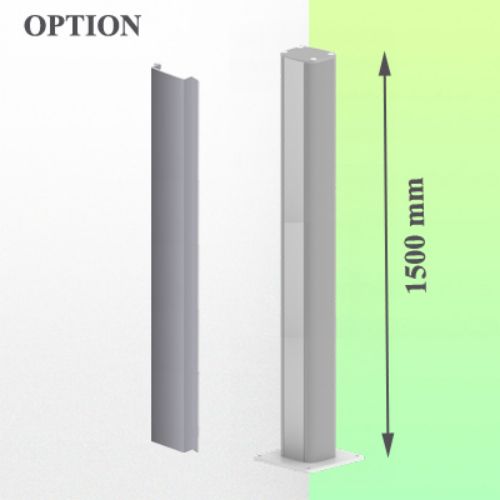

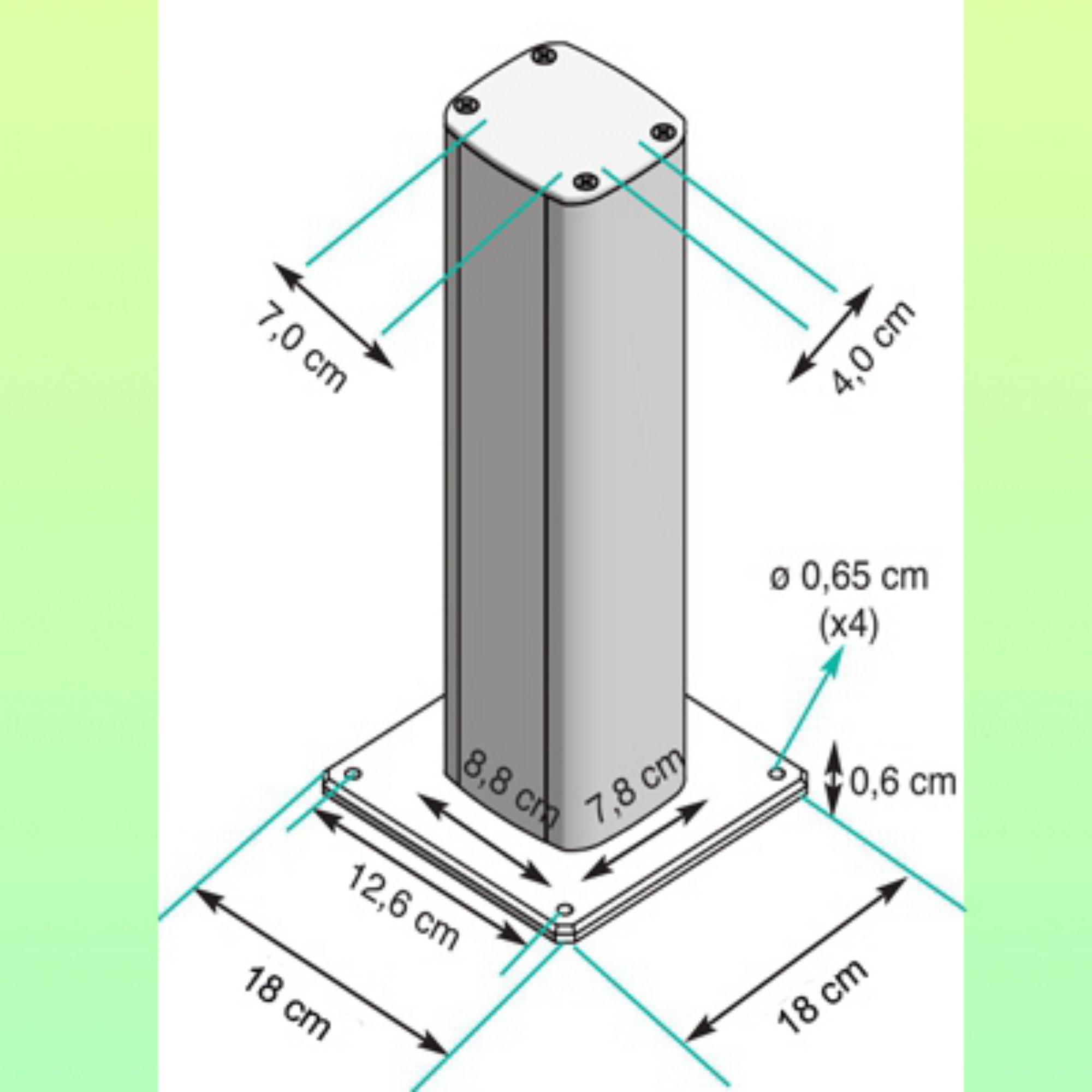

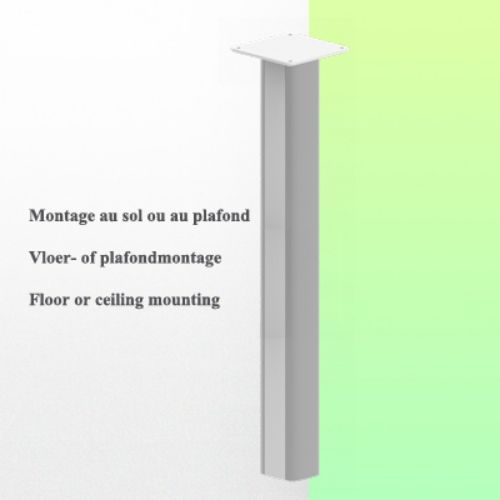

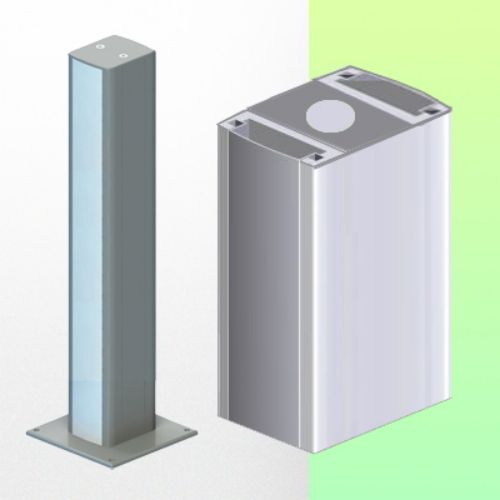

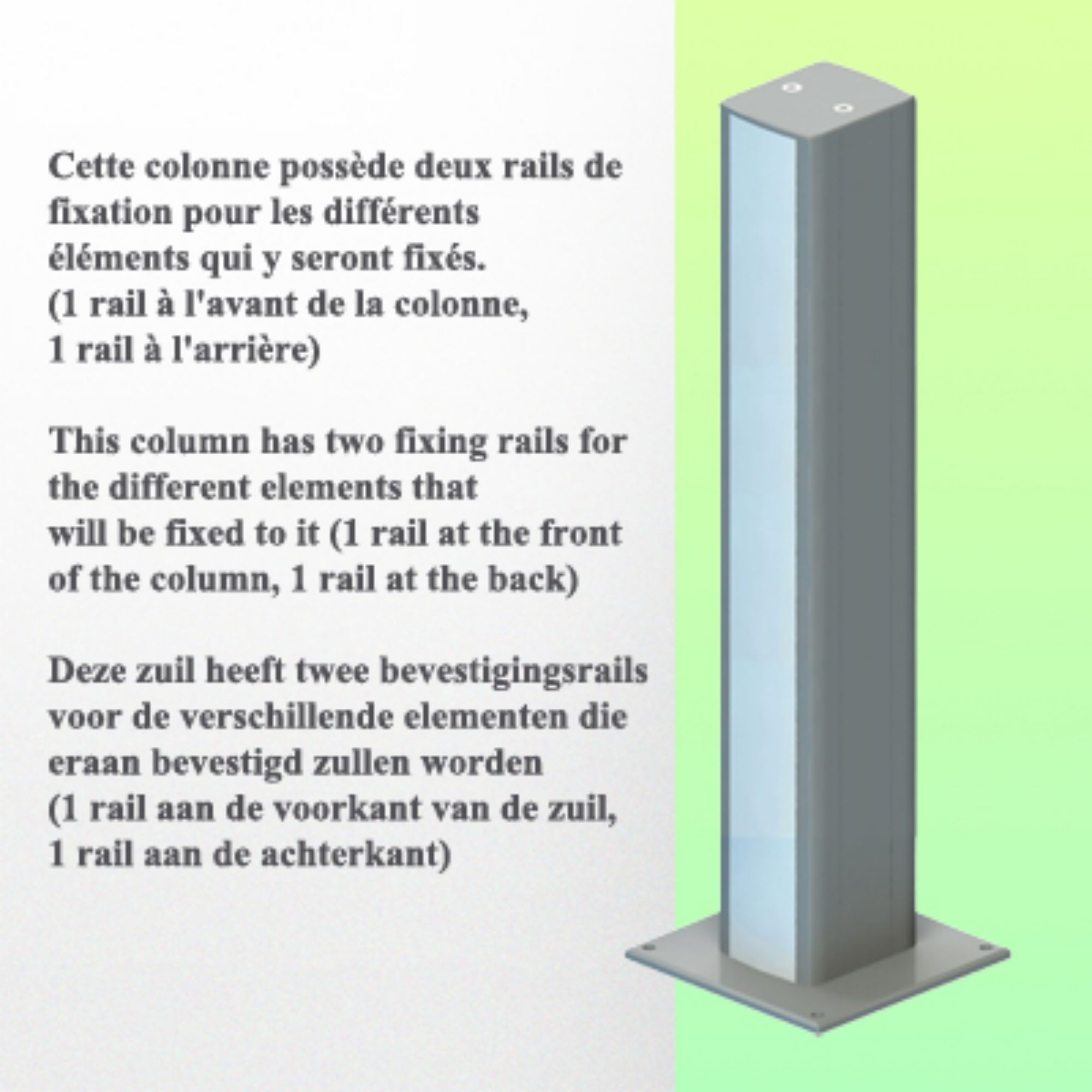

* Optional floor or ceiling columns are available in various heights (1500 - 2000 mm).

* These columns can be easily cut to size.

* All cables are also routed through the column.

* This folding Combo Arm with height adjustment is 300 mm long and simply slides into the column rail and then adjusts to the required height and is fixed

* The head of this arm complies with the screen mounting standard: VESA 75/100 mm

* Compatible with equipment weighing up to 10 - 13 kg.

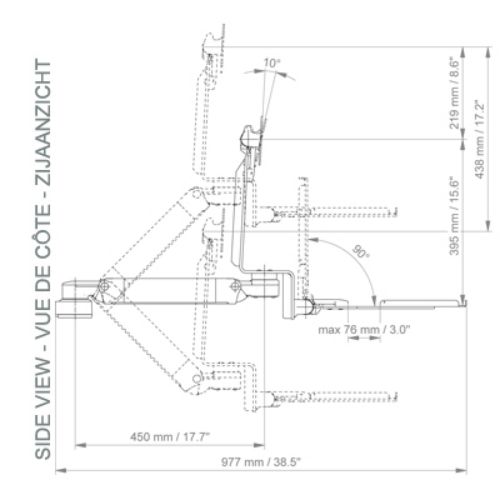

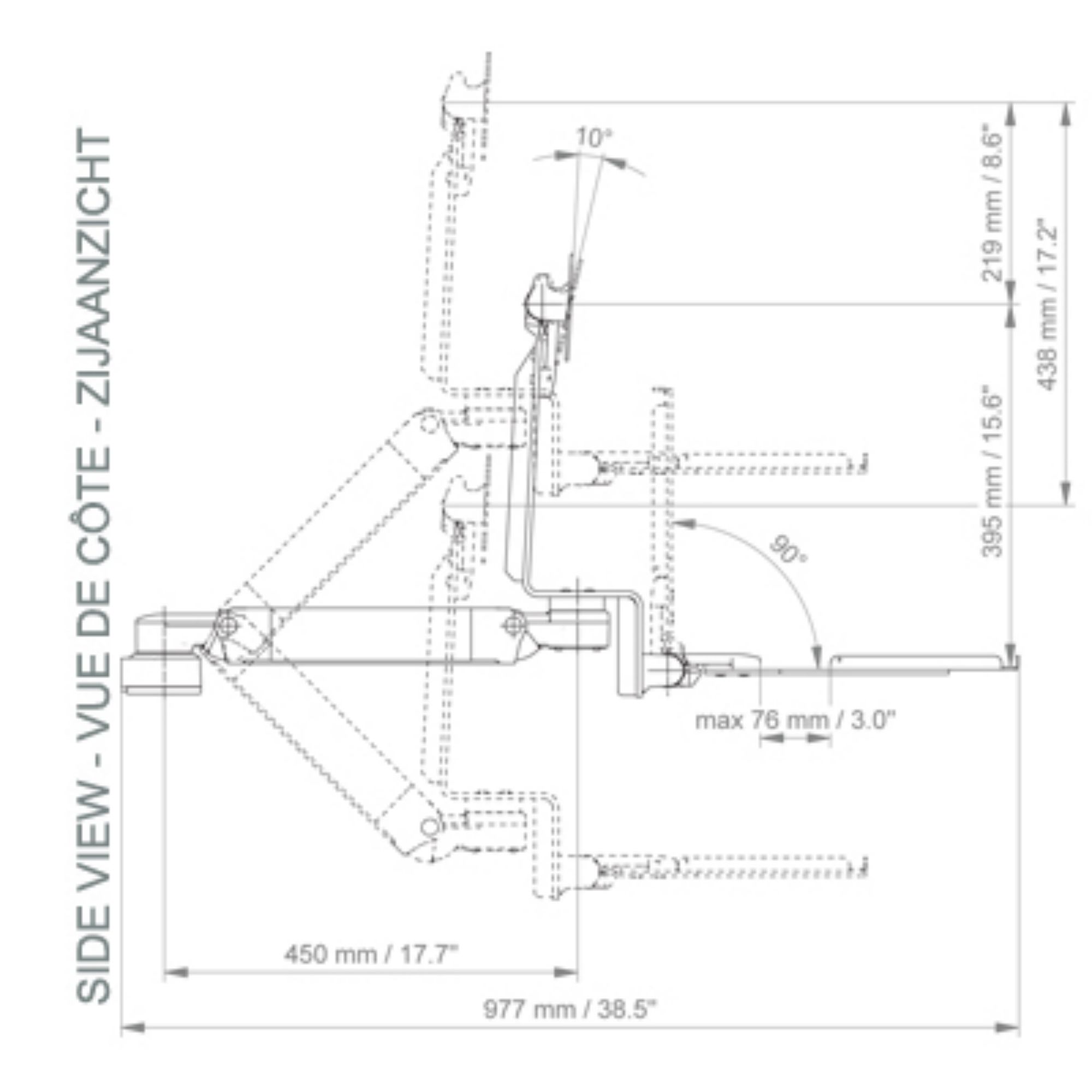

* Tilting of the screen: 10°

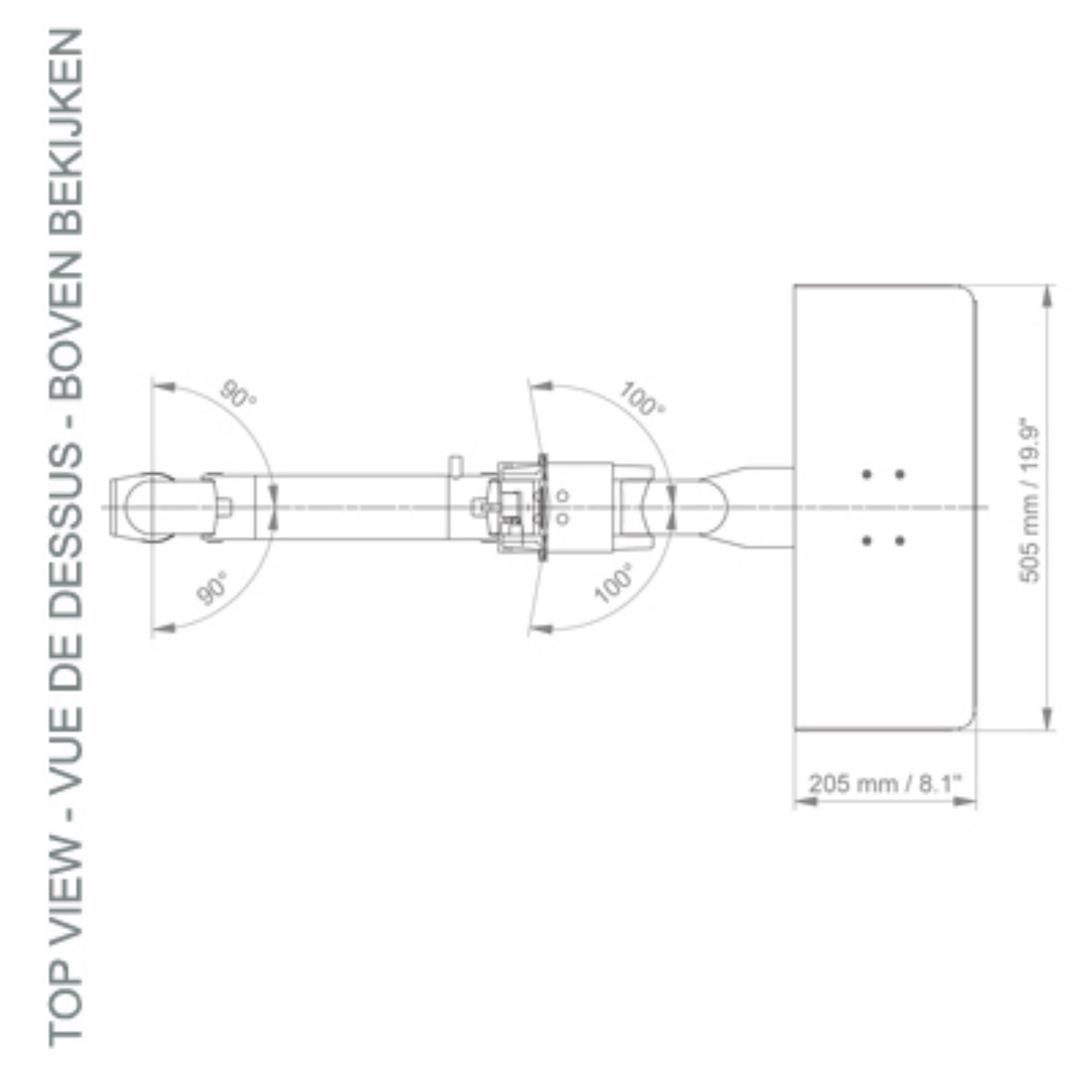

* Rotation of the arm: 90° to the right, 90° to the left from the fixing point

* Rotation of the keyboard and screen support: 100° to the right, 100° to the left

* Total length of the configuration 857 mm

* Colour RAL 5013 cobalt blue and RAL 9016 traffic white

* Warranty: 5 years
