Double Medical swivel arm for infusion pump stand 554 mm,

For mounting to fixed tube ø 38 mm

Product number: WM 227.141 - Double Medical swivel arm for infusion pump stand 554 mm,

For mounting to fixed tube ø 38 mm

Product sheet PDF

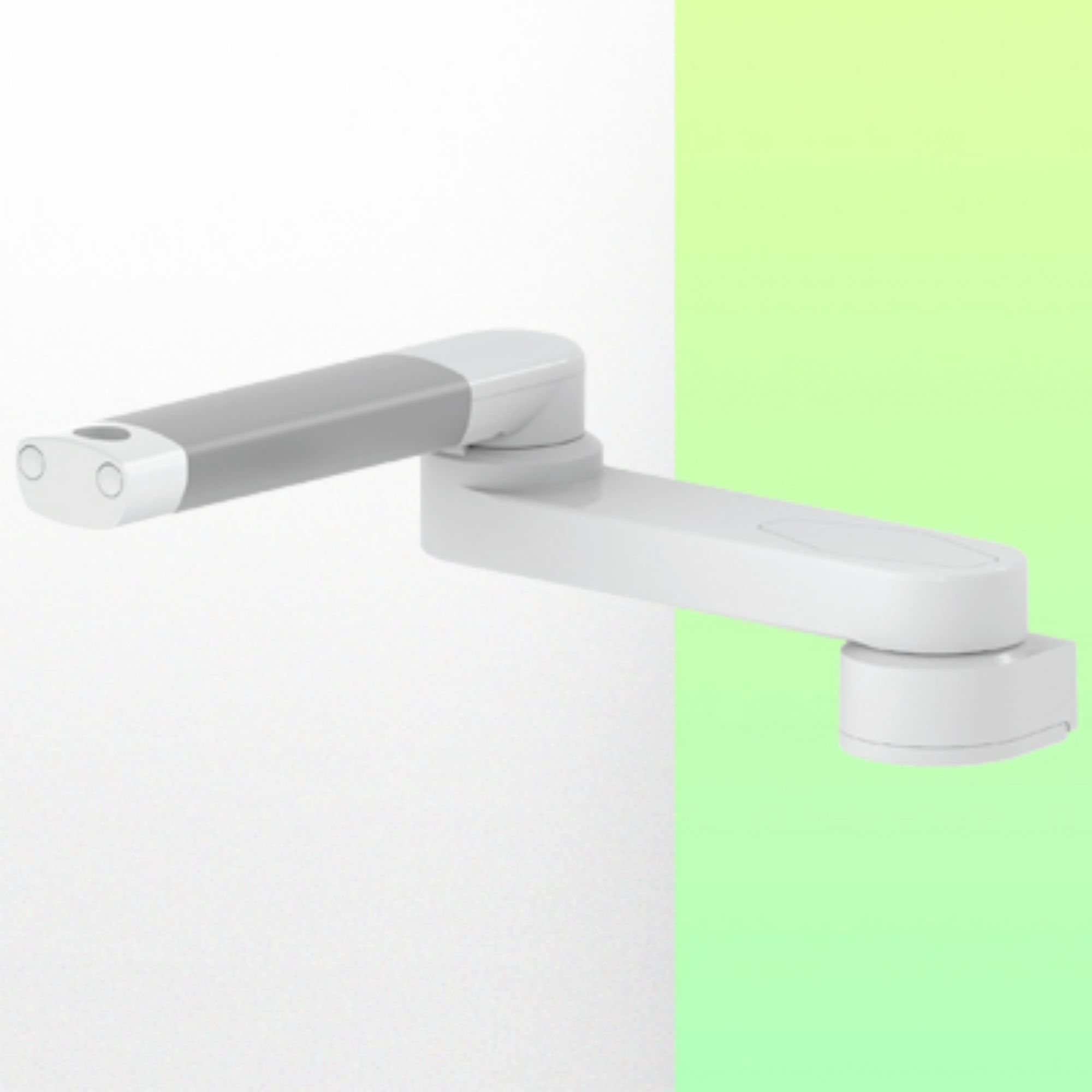

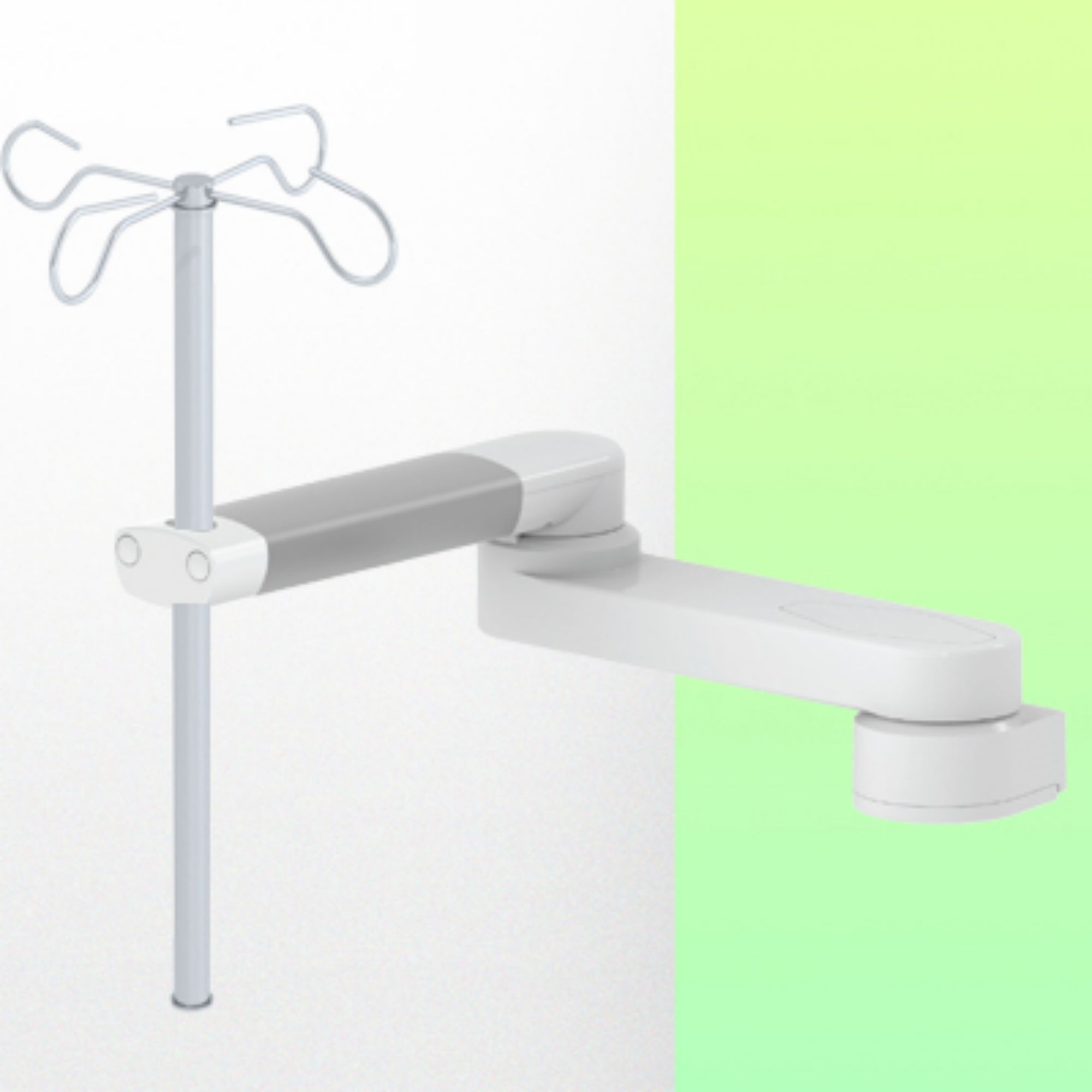

This standard 554 mm long infusion pump stand swivel arm allows a 25mm diameter infusion pole or a pole of the same diameter to be fixed, oriented and adjusted perfectly.

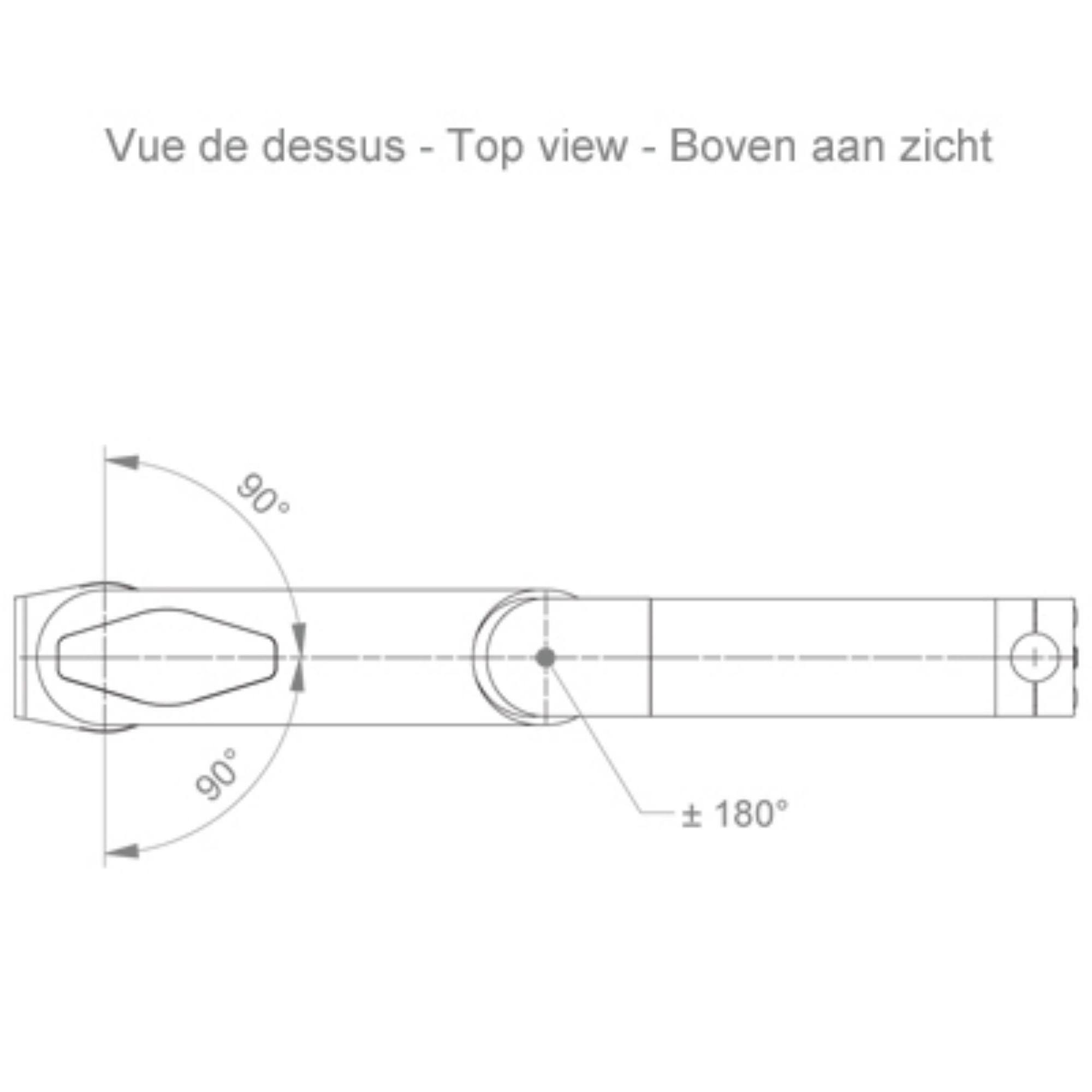

Axis of rotation from mounting: 90° right and 90° left

Central axis between the two arms 180° rotation

Maximum supported weight 23 kg including infusion pump.

Technical data:

* Arm rotation: 90° right, 90° left.

* Central axis between the two arms 180° rotation

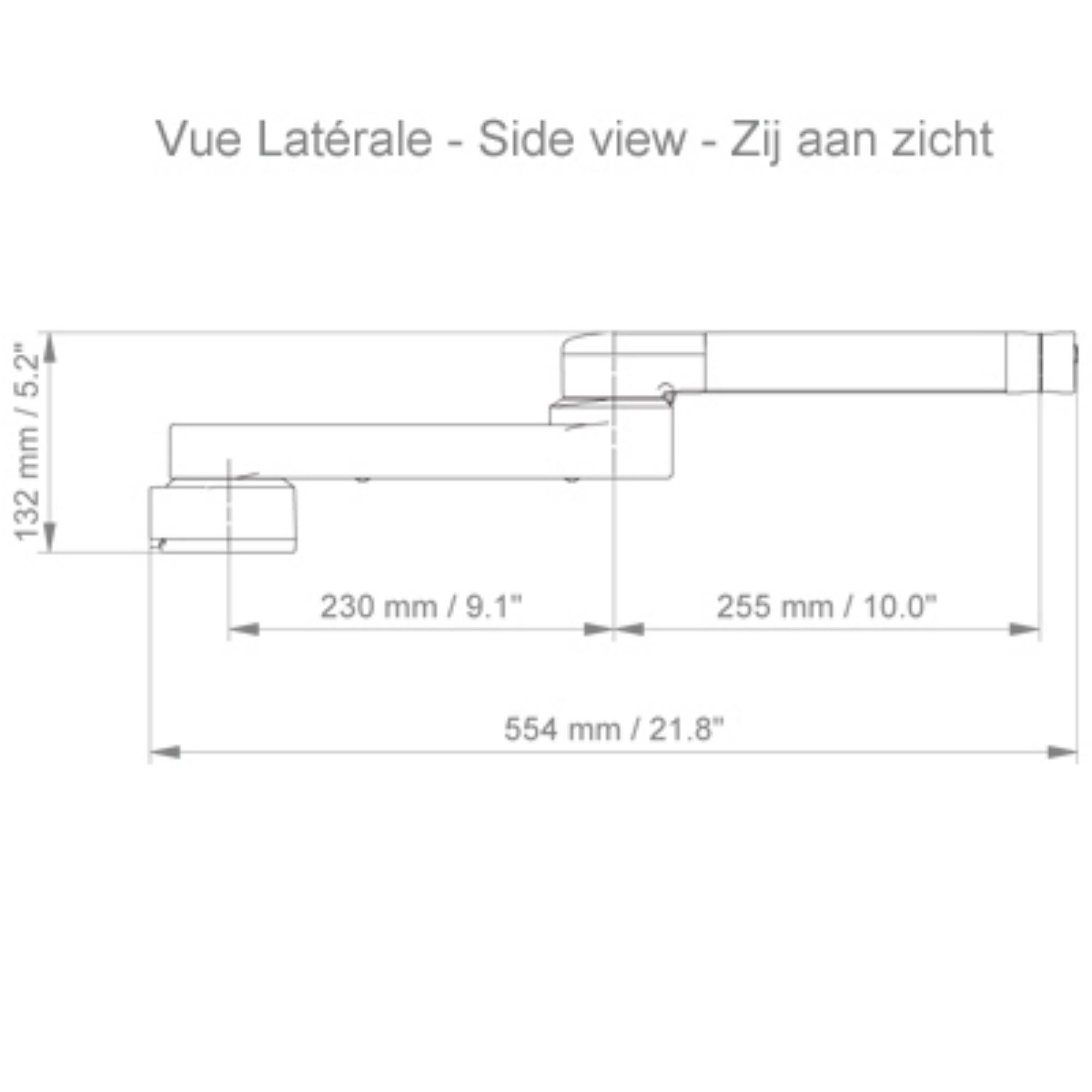

* Length of the arm 554 mm

* Weight supported by the arm: 23 Kg

* Color RAL RAL 9002 grey-white

* All our medical arms are in conformity: CE, ROHS, Medical Grade, Regulations MDD 93/42 ECC.

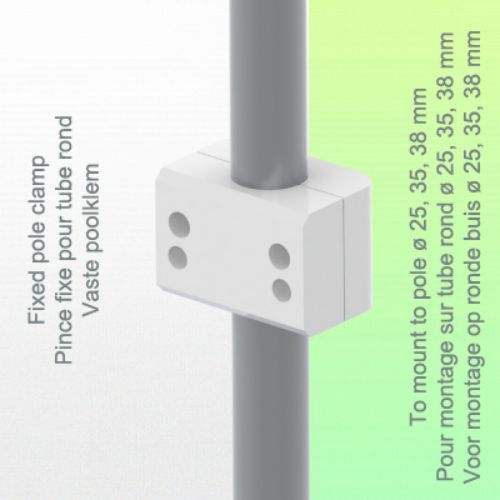

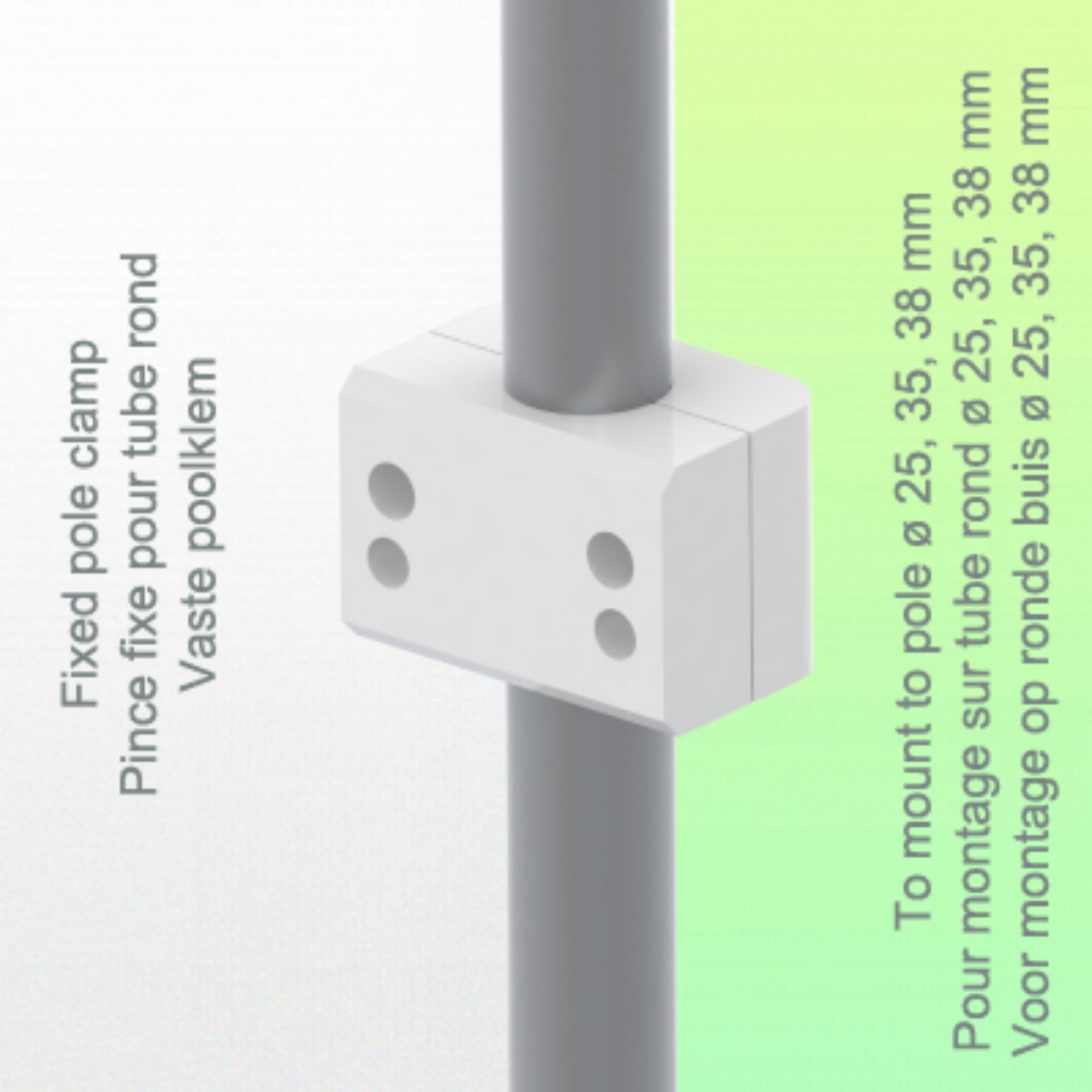

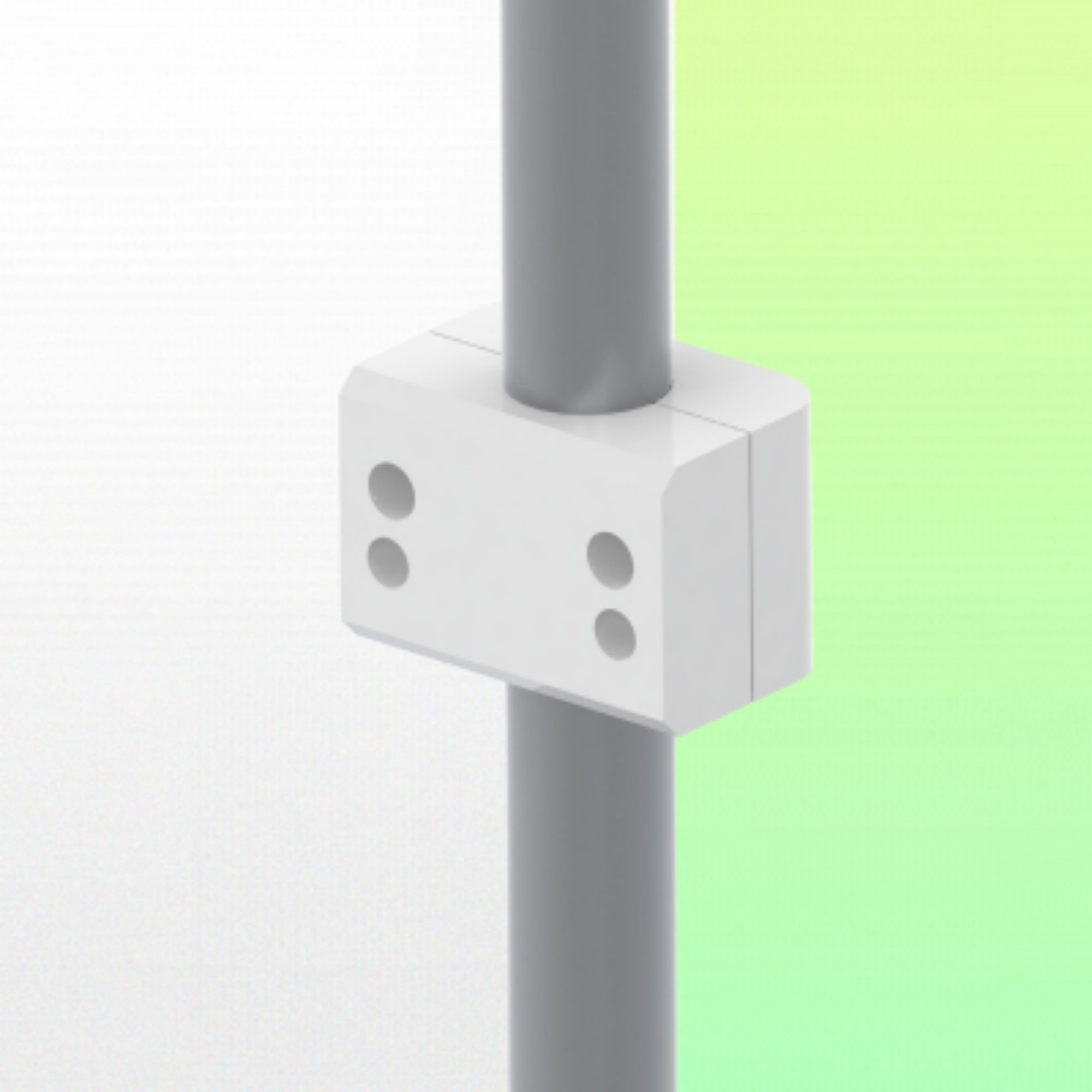

* Fixed tube adapter ø 38 mm included in this configuration

* Fixing head for 25 mm diameter tube

* Warranty: 5 years

( See options for infusion pump stand in the accessories section)
