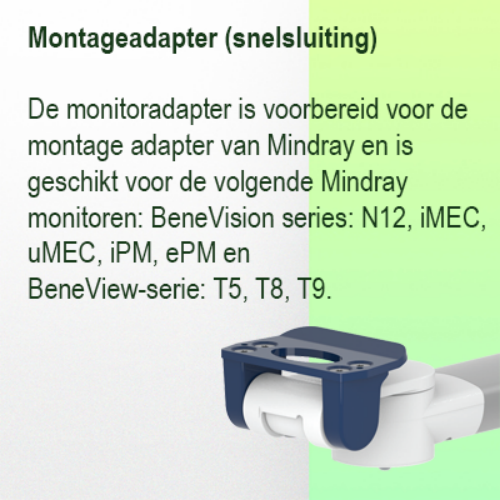

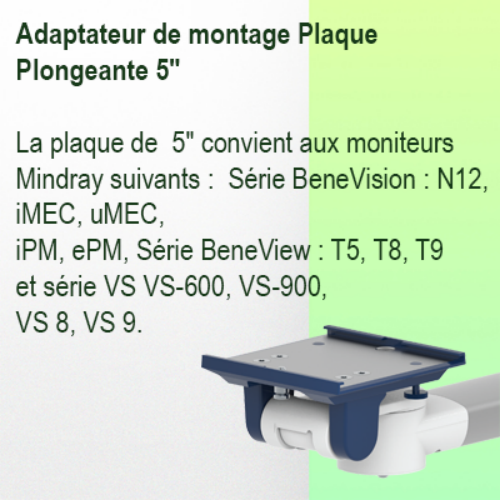

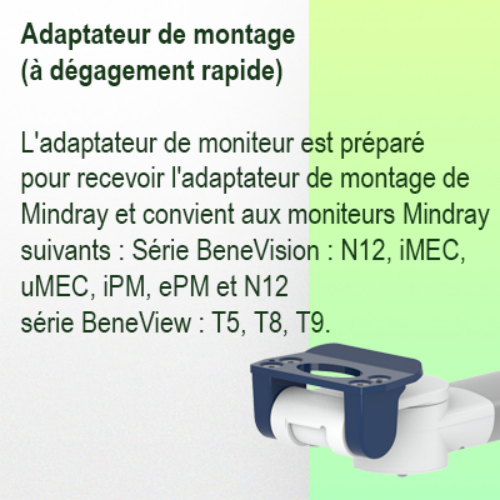

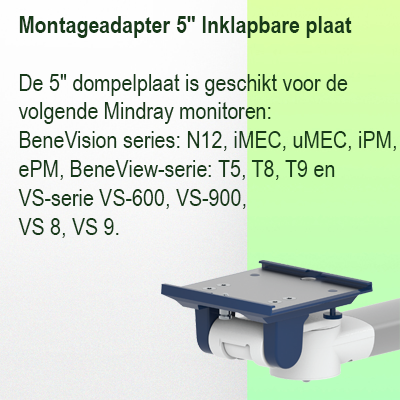

Dual 592 mm Horizontal Medical Arm for monitoring 5" plate adaptor or Quick Release,

floor or ceiling column mounting.

Mindray monitoring compatible.

Product number: WM 250.104MD - Dual 592 mm Horizontal Medical Arm for monitoring 5" plate adaptor or Quick Release,

floor or ceiling column mounting.

Mindray monitoring compatible.

Product sheet PDF

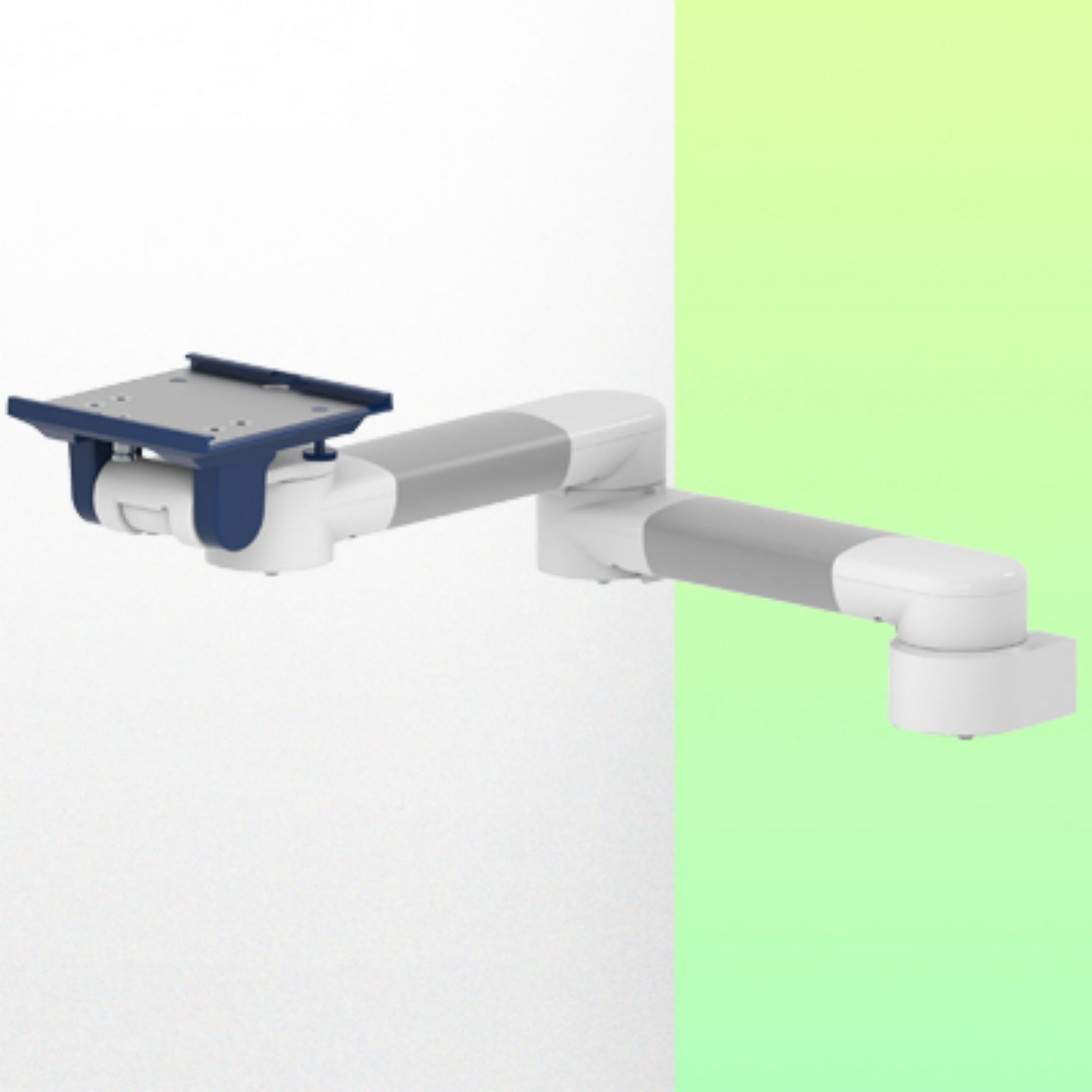

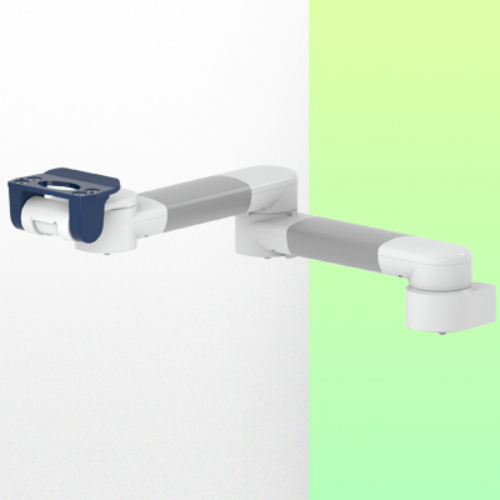

This dual 592 mm Horizontal Arm allows the monitor to be fixed, oriented and adjusted perfectly.

It is coated with an anti-microbial agent for hygiene and cleaning down to the smallest detail.

Its modern design has been specially developed for healthcare environments.

Technical specifications:

* Integral cable entry

* Lightweight application

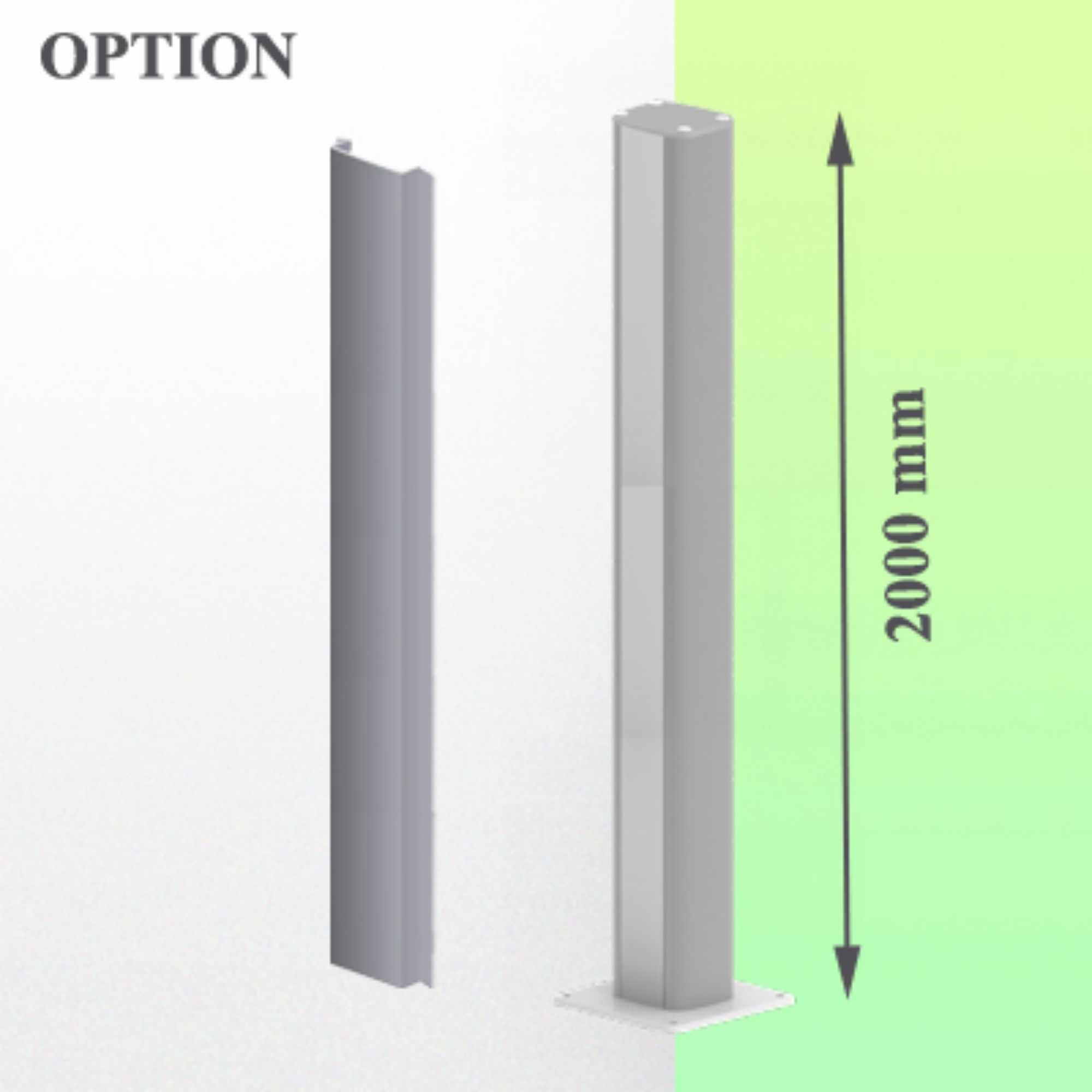

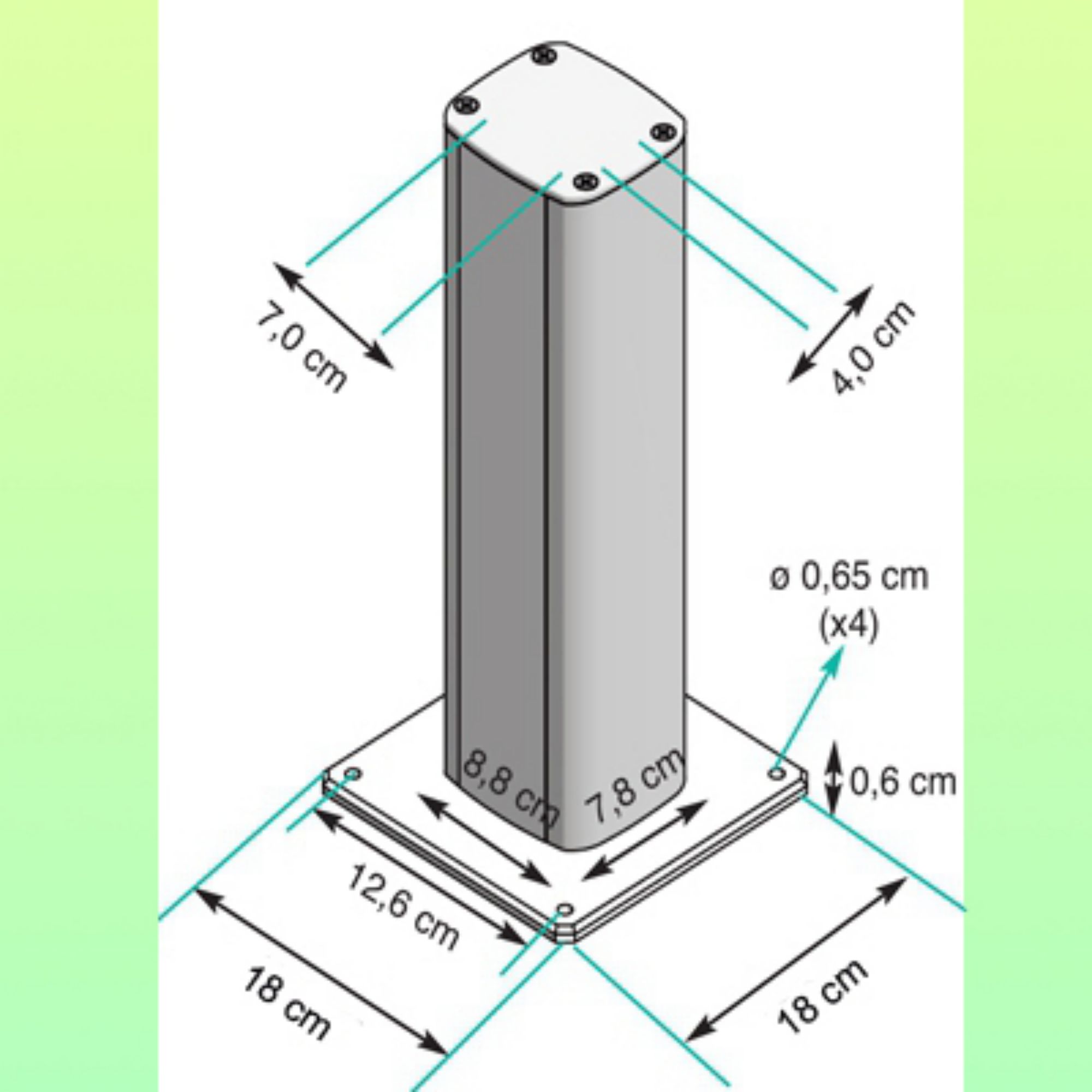

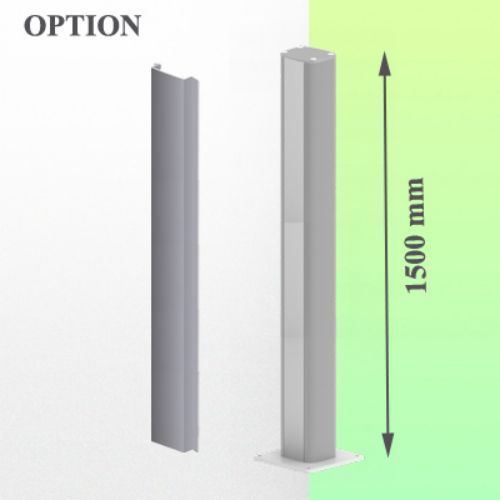

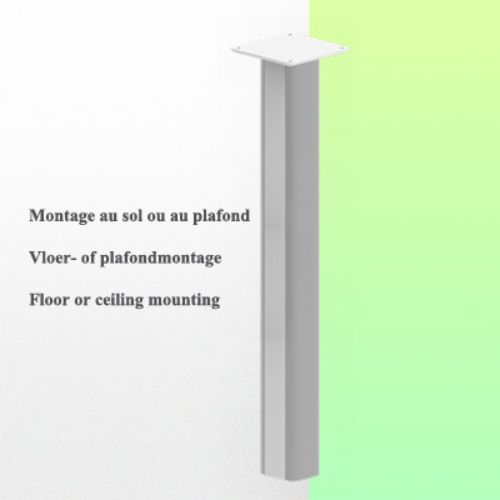

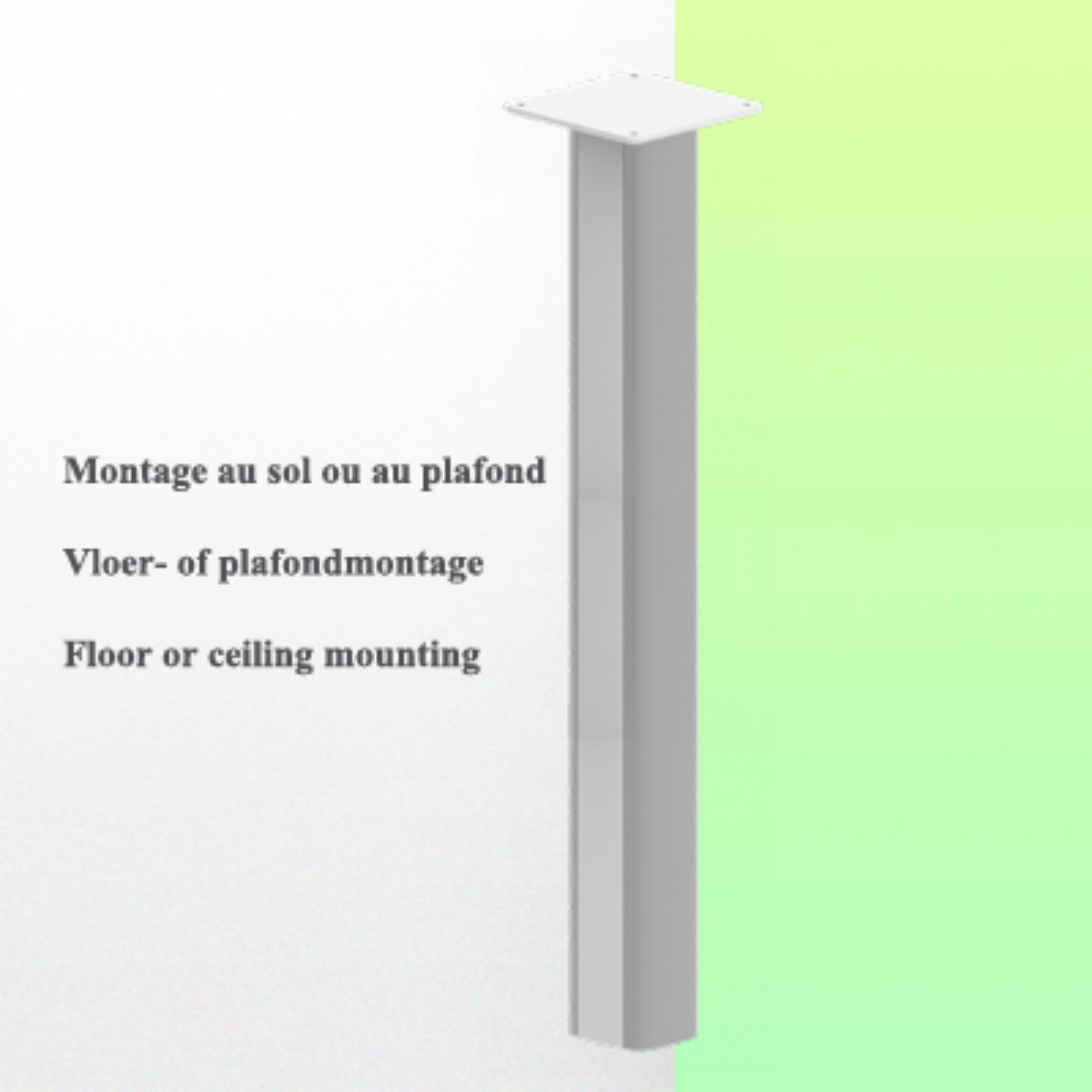

* Optional floor or ceiling column mounting, with several heights available (1500 - 2000 mm)

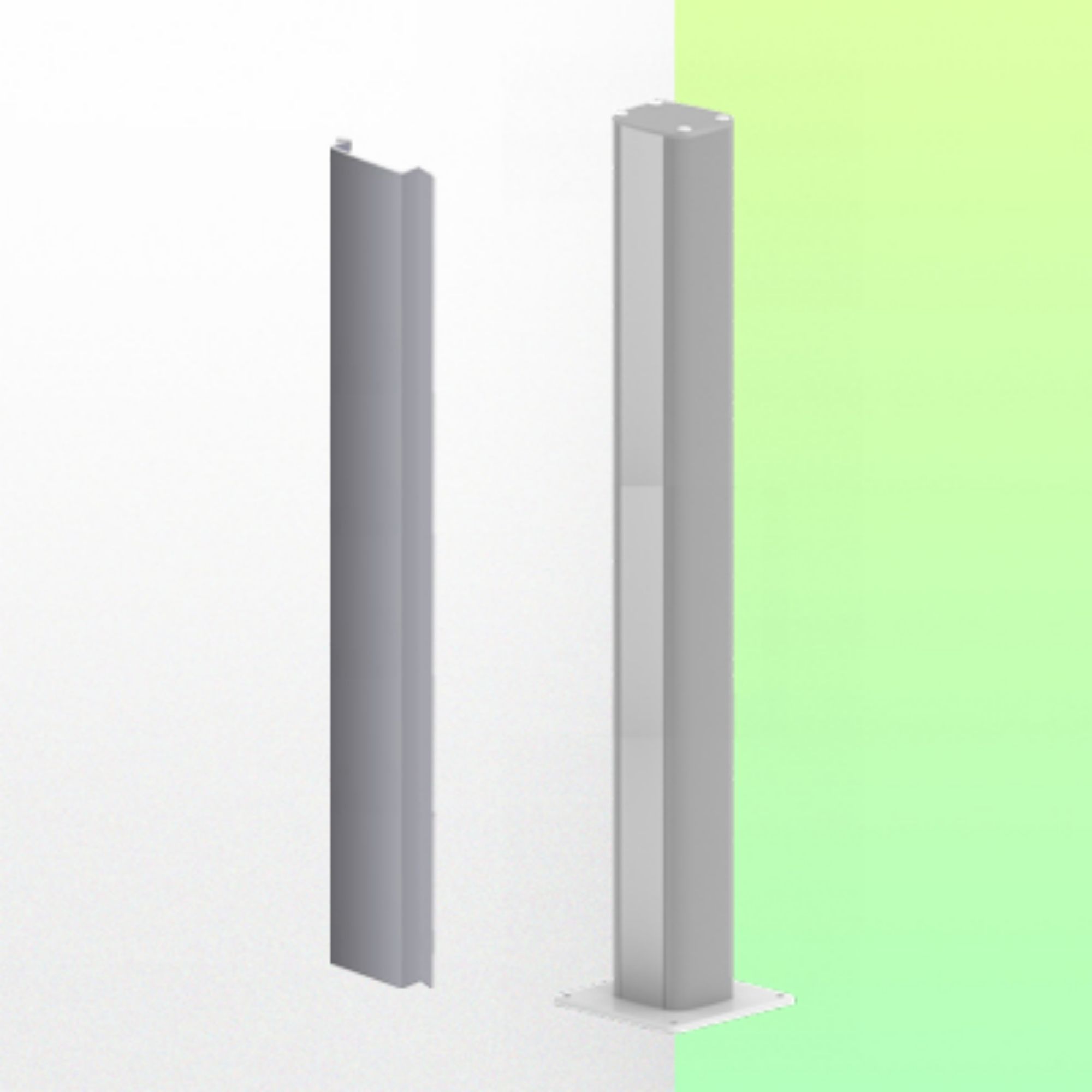

* These columns can be easily cut to size.

* All cables also pass through the column

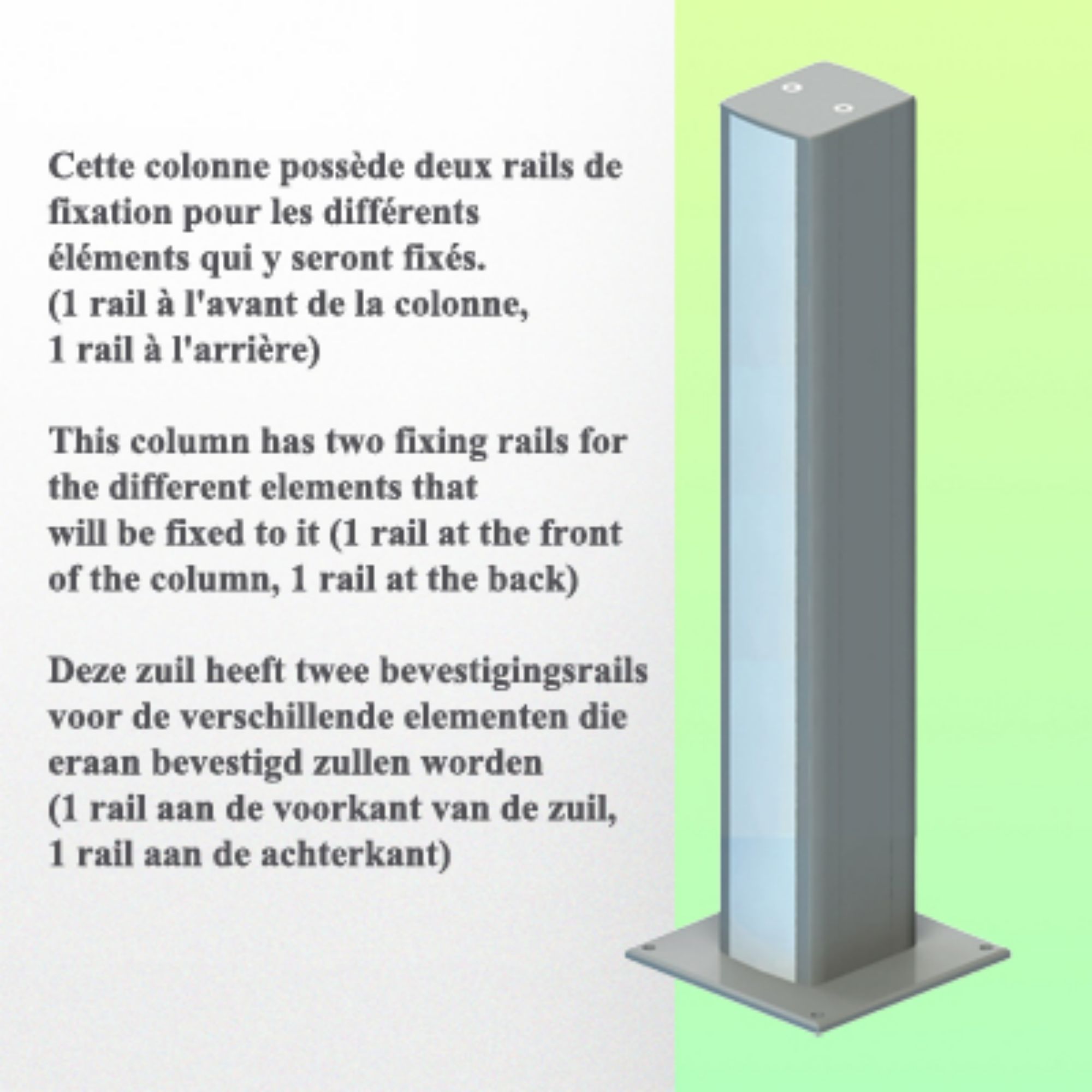

* This 592 mm Horizontal Arm simply slides into the column rail, then adjusts to the required height and locks in place.

* It has no height adjustment

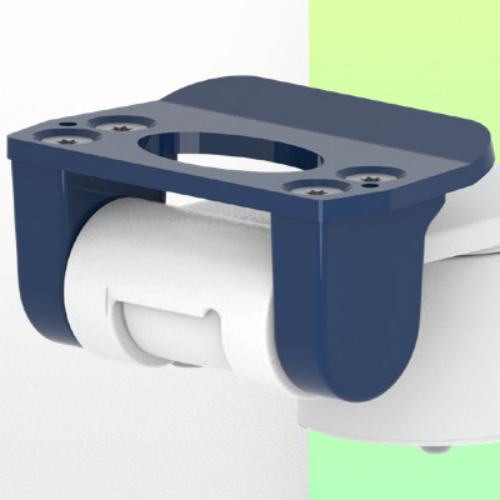

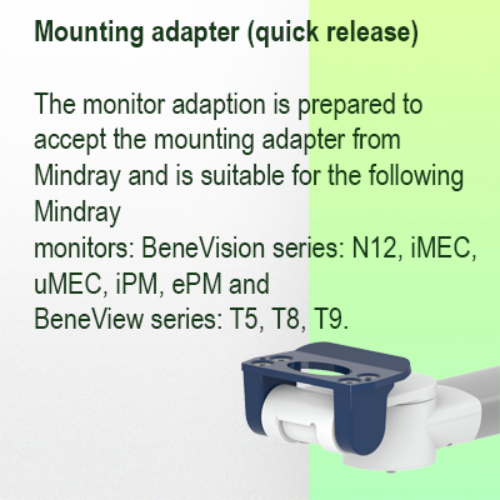

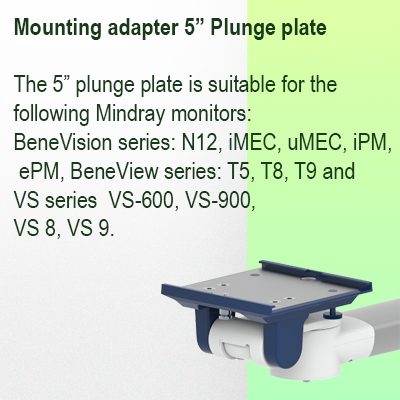

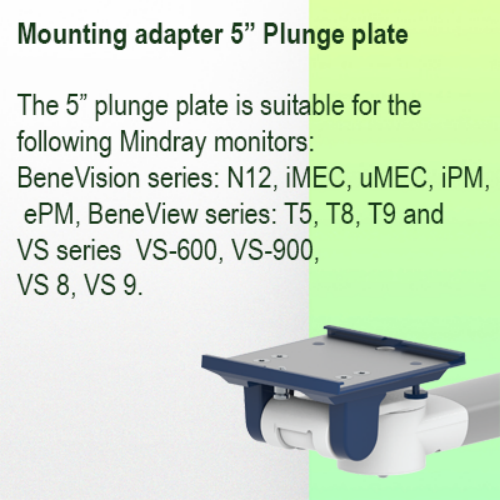

* The head of this arm complies with the mounting standard for Mindray monitors weighing up to 8 Kg.

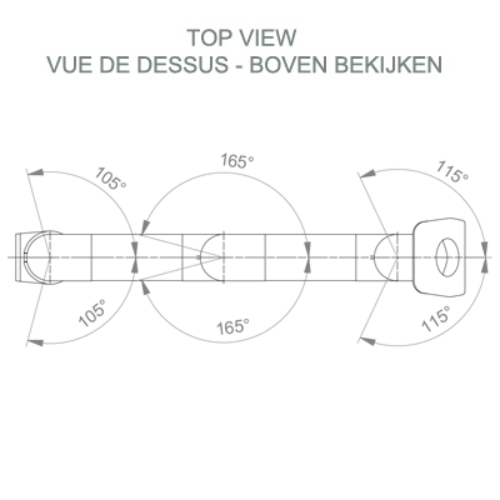

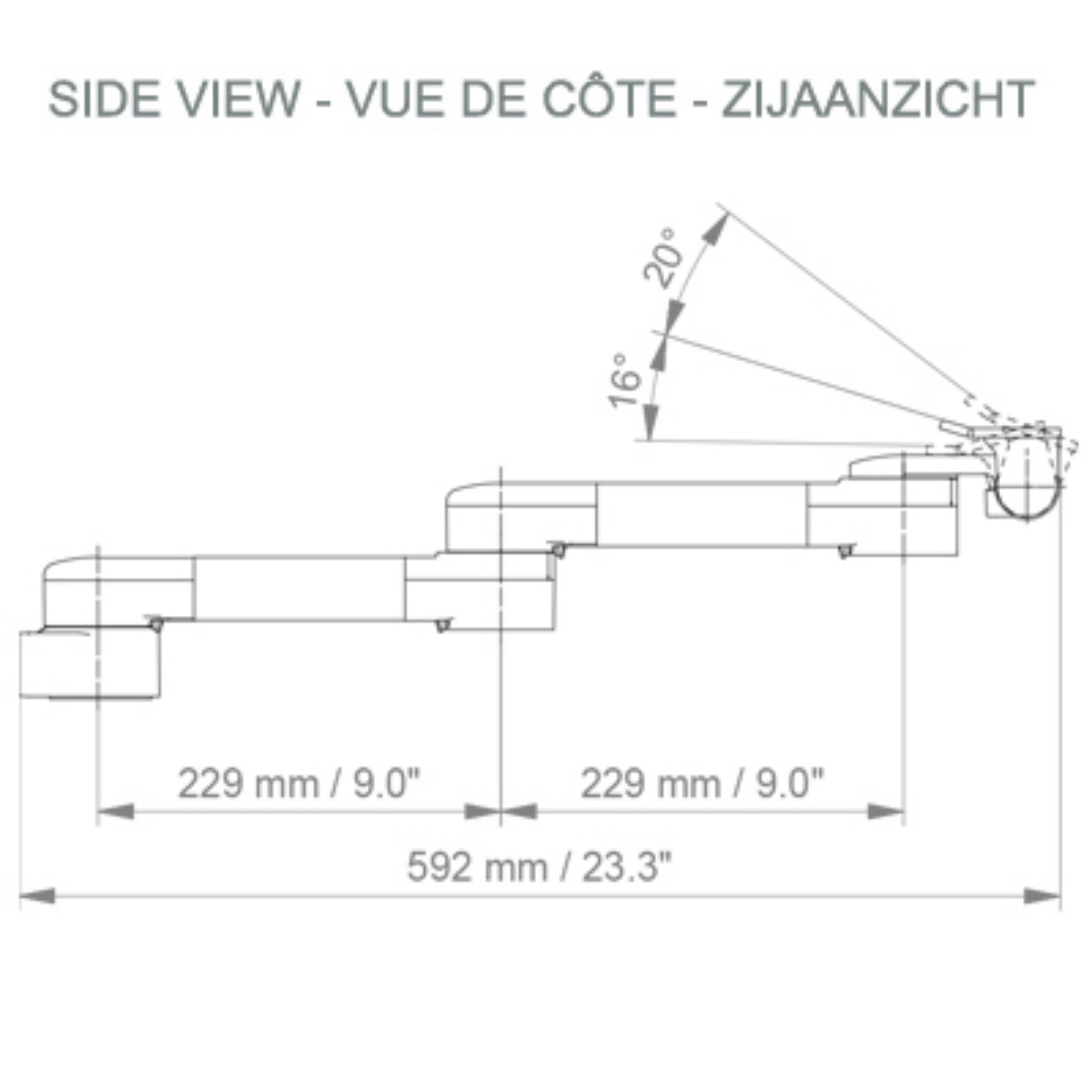

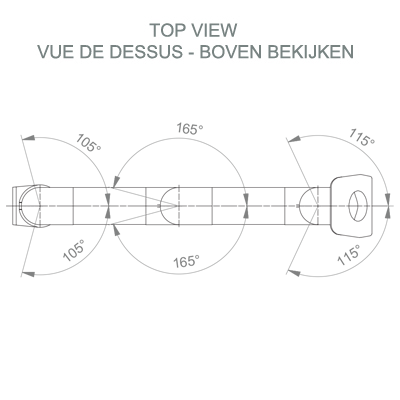

* Monitor tilt: 16° down and 20° up

* Monitor rotation: 115° right, 115° left.

* Arm rotation: 105° right, 105° left.

* Total length 592 mm

* Colour RAL 5013 cobalt blue and RAL 9016 traffic white

* Warranty: 5 years
