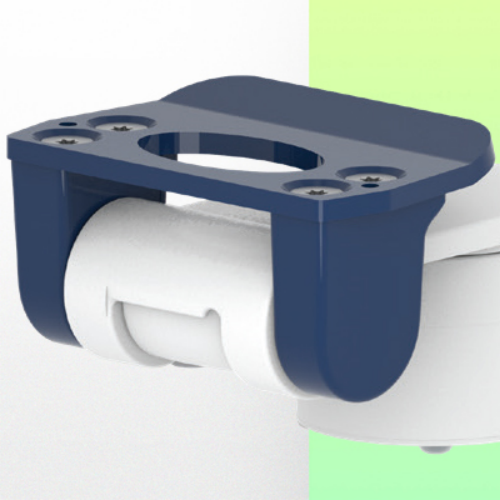

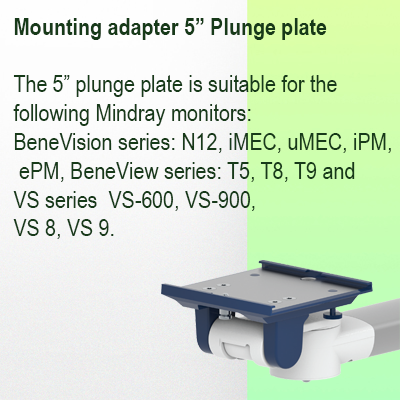

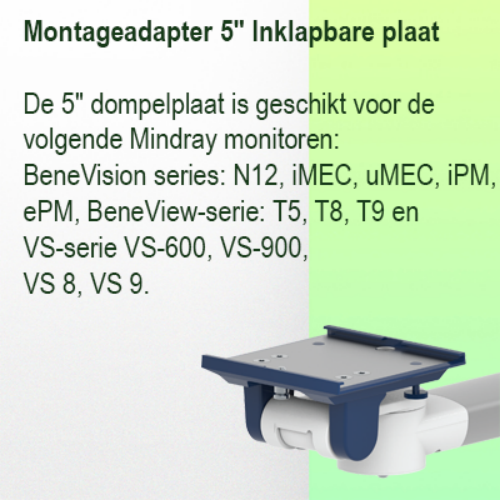

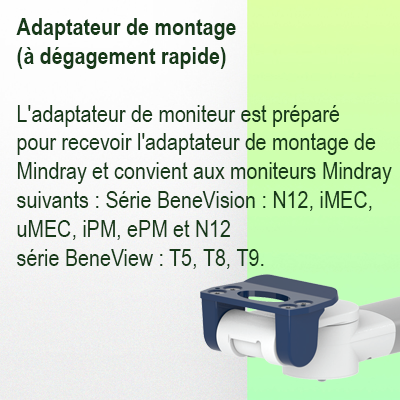

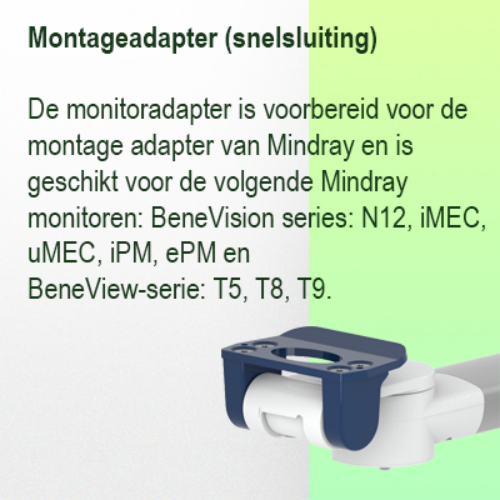

Horizontal 363 mm medical arm for monitoring. 5'' plate adaptation or Quick Release,

table column mounting.

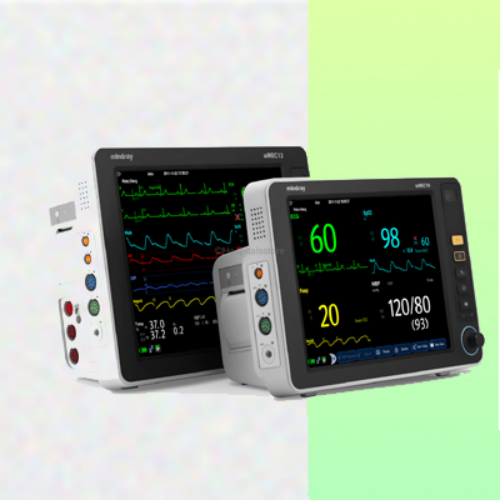

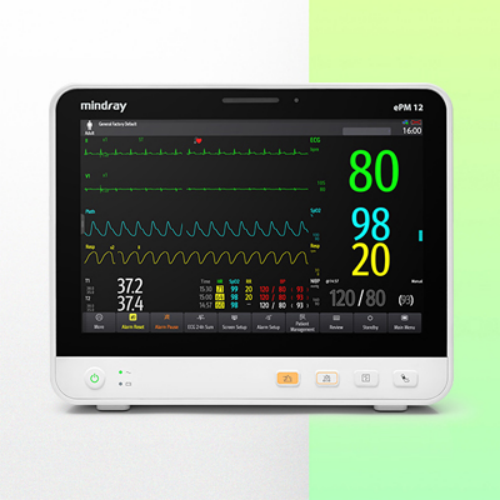

Mindray monitoring compatible.

Product number: WM 250.106MD - Horizontal 363 mm medical arm for monitoring.

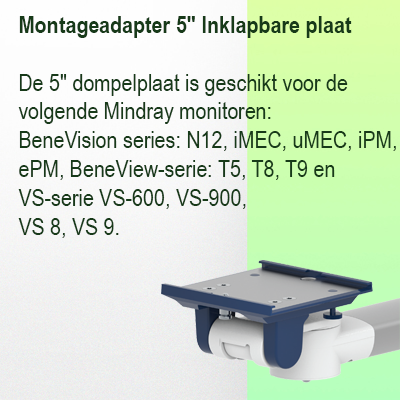

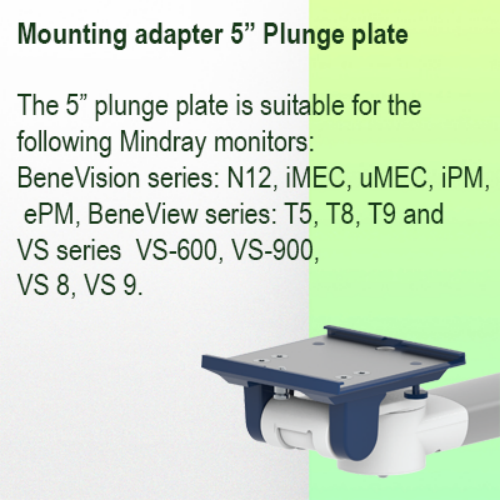

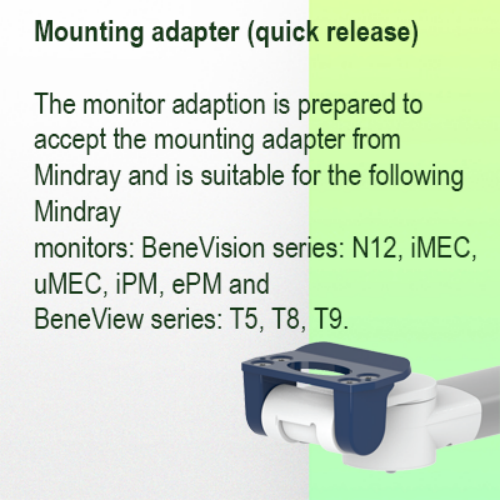

5'' plate adaptation or Quick Release, table column mounting.

Mindray monitoring compatible.

Product sheet PDF

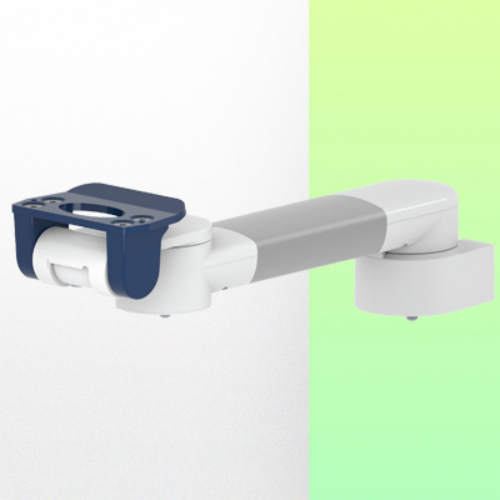

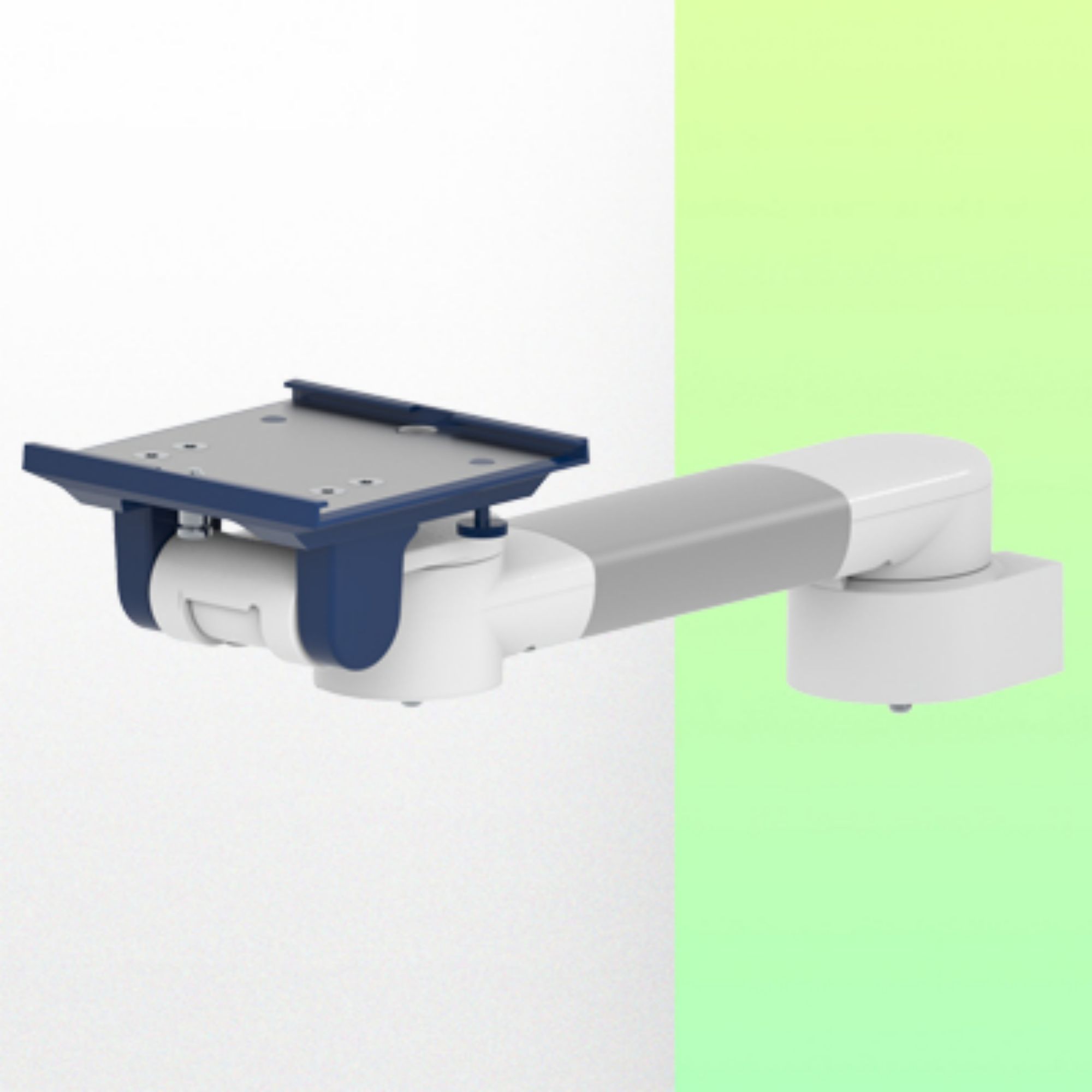

This 363 mm Horizontal Arm allows the monitor to be fixed, oriented and adjusted perfectly.

It is coated with an anti-microbial agent for hygiene and cleaning down to the smallest detail.

Its modern design has been specially developed for healthcare environments.

Technical specifications:

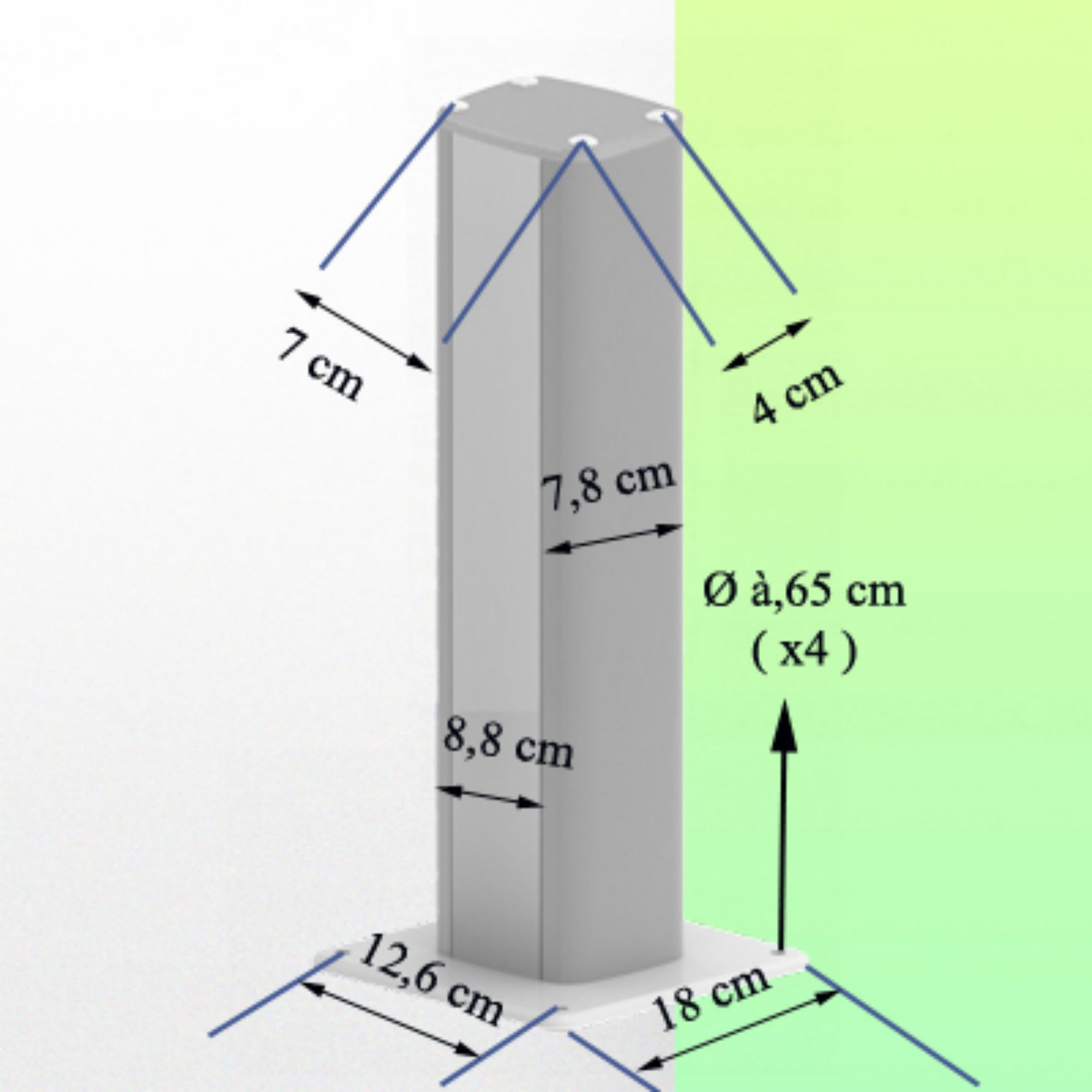

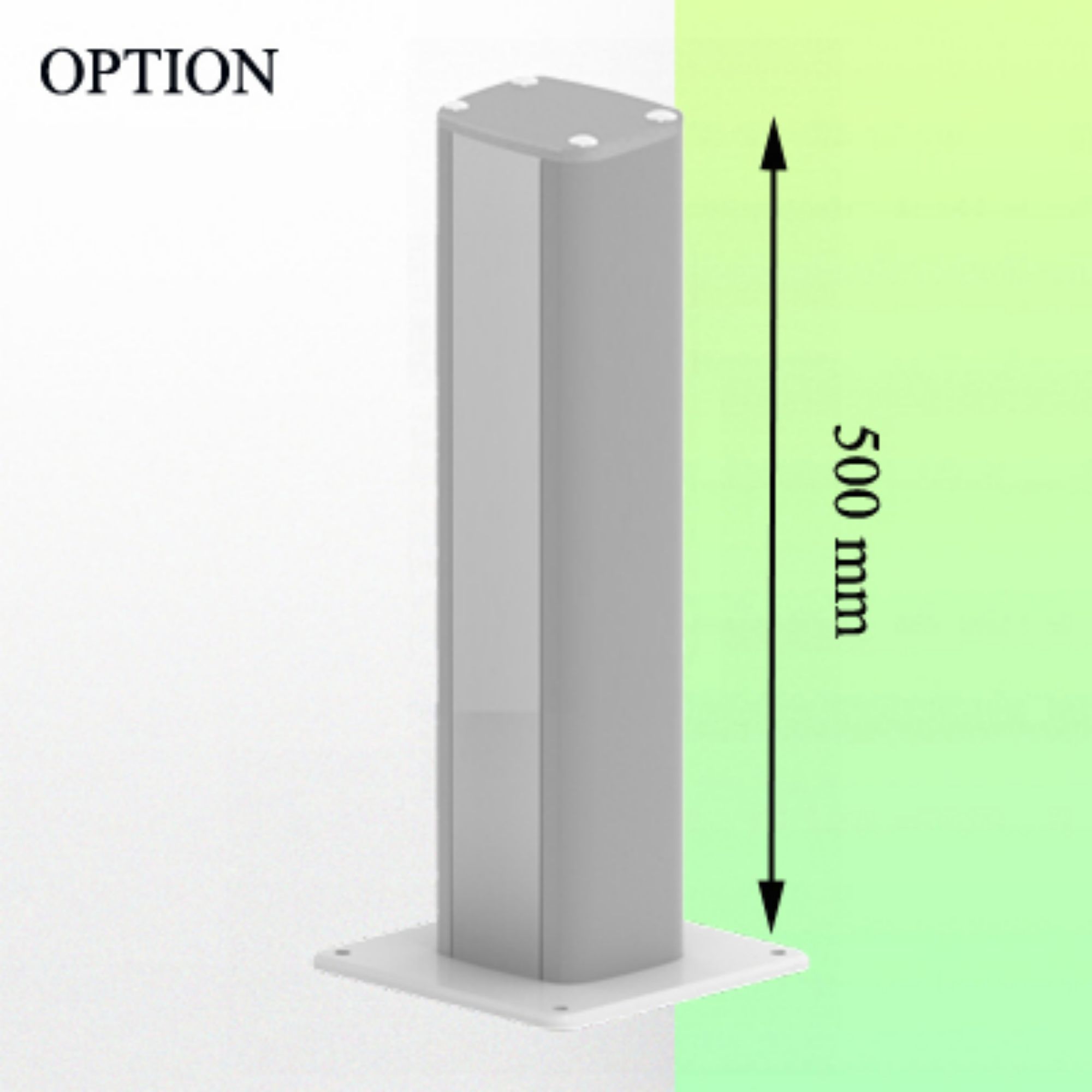

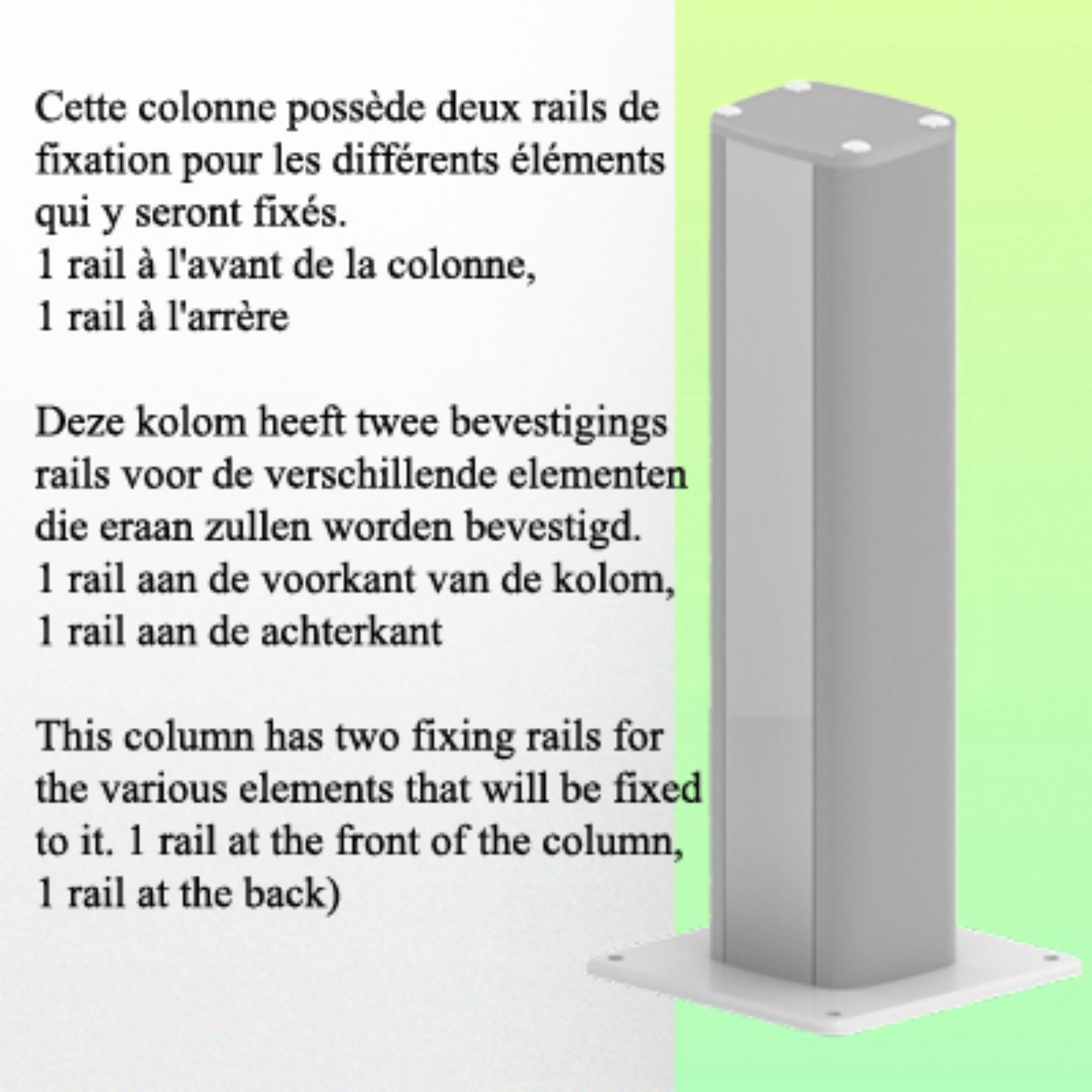

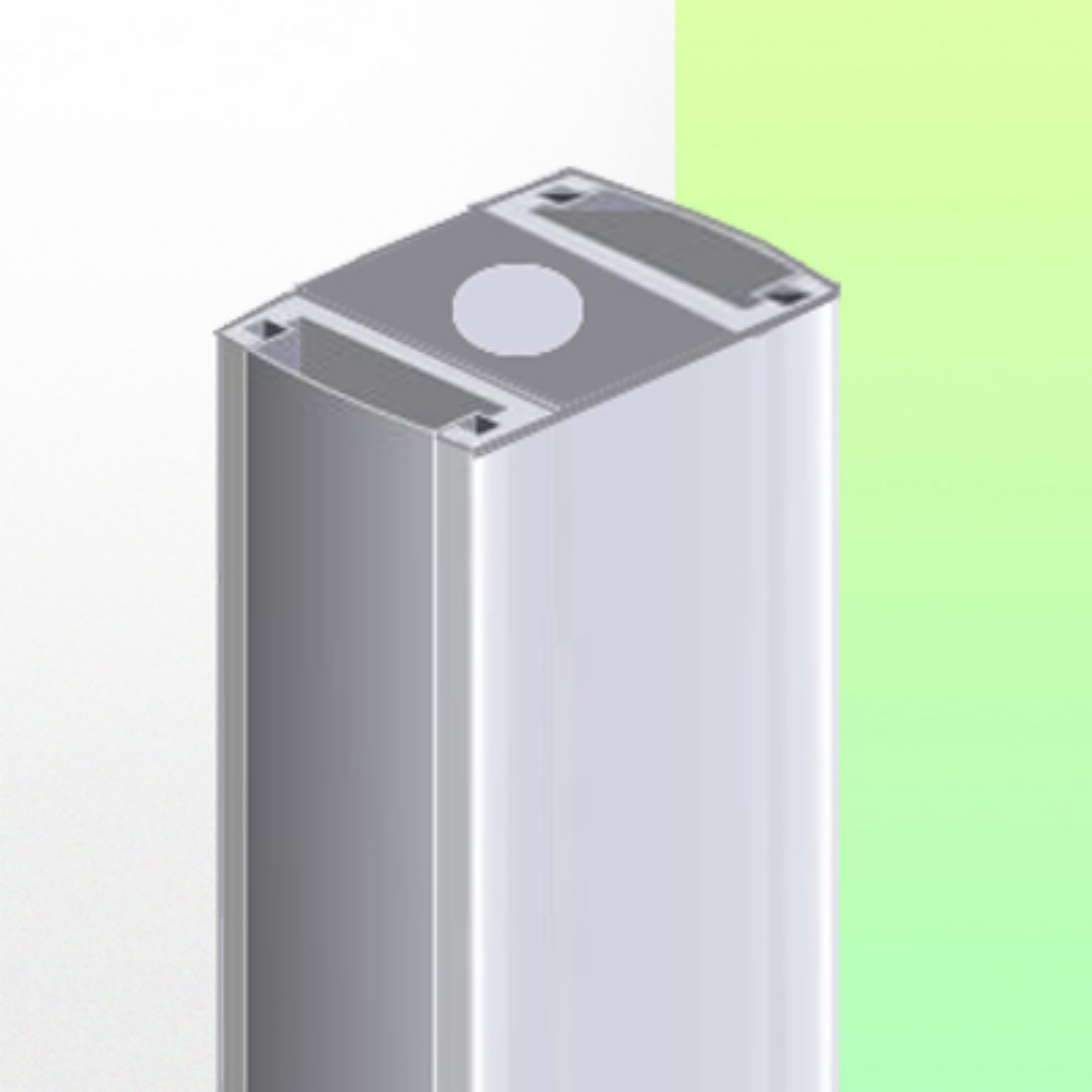

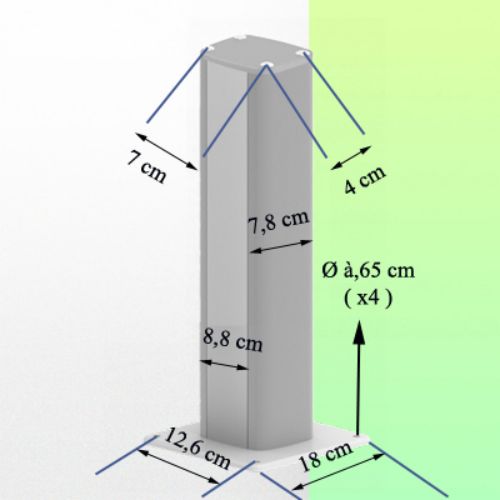

* Optional table column mounting, with several heights available (500 - 300 mm).

* These columns can be easily cut to size.

* All cables also pass through the column

* This 363 mm Horizontal Arm simply slides into the column rail, then adjusts to the required height and locks in place.

* It has no height adjustment

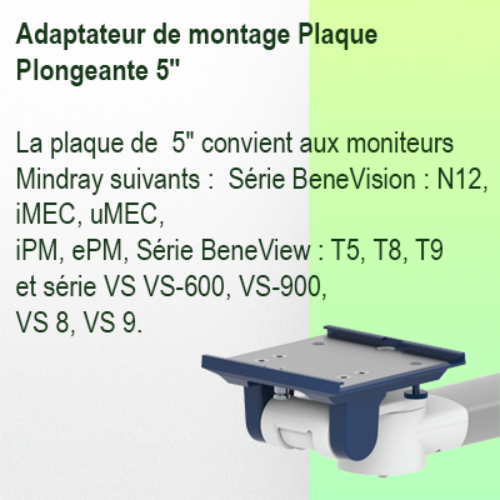

* The head of this arm complies with the mounting standard for Mindray monitors weighing up to 18 Kg.

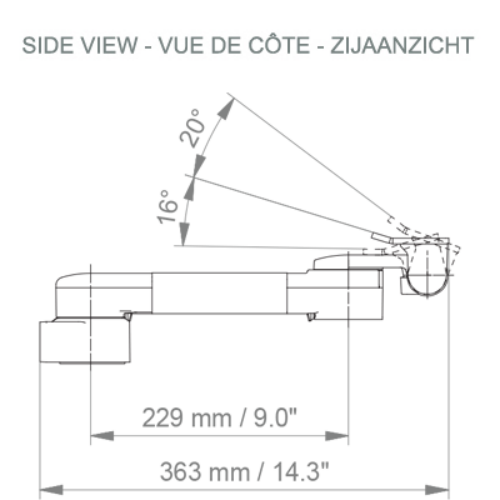

* Monitor tilt: 16° down and 20° up

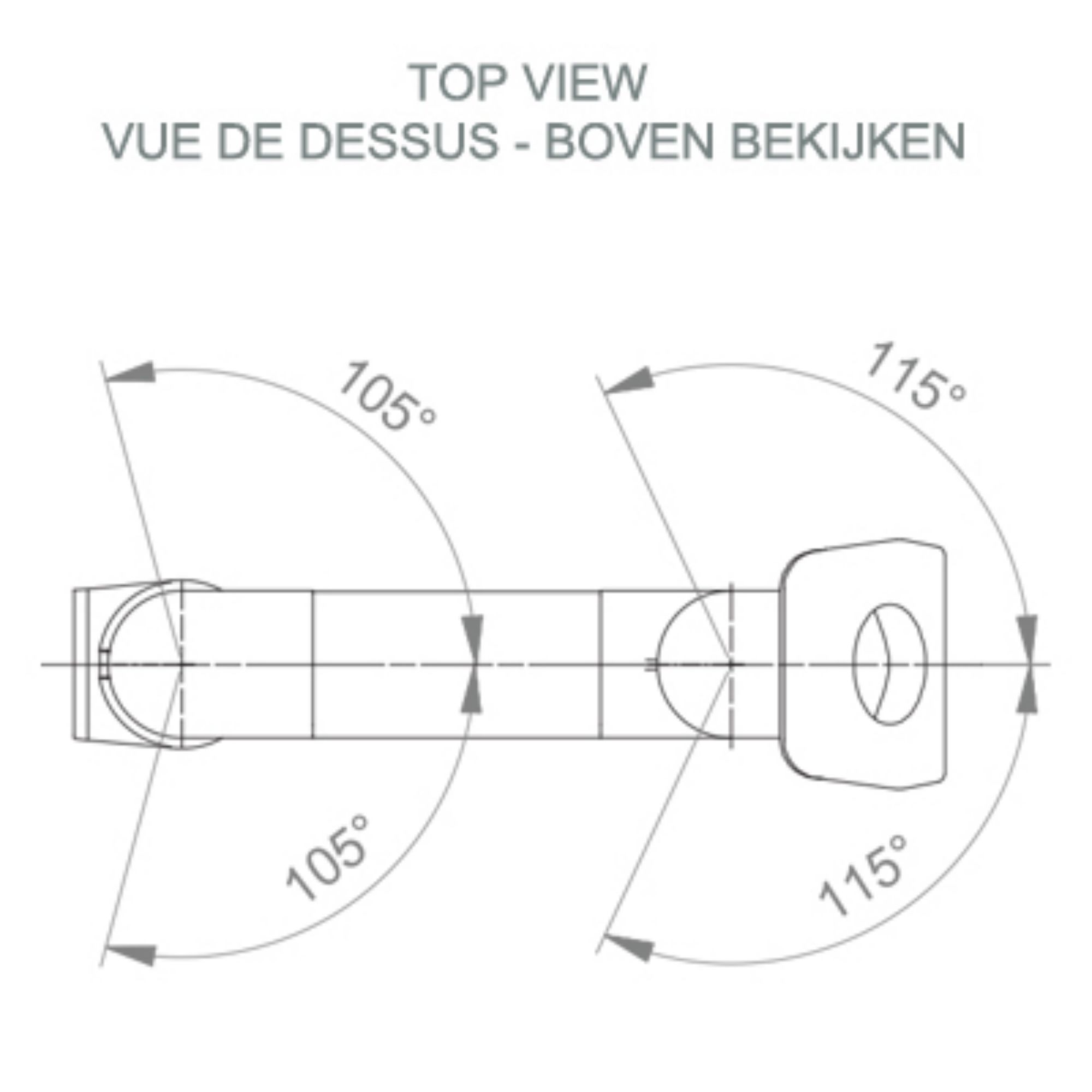

* Monitor rotation: 115° right, 115° left.

* Arm rotation: 105° right, 105° left.

* Total length: 363 mm Colour: RAL 5013 cobalt blue and RAL 9016 traffic white

* Warranty: 5 years
