Dual 595 mm Horizontal Medical Arm for monitoring.

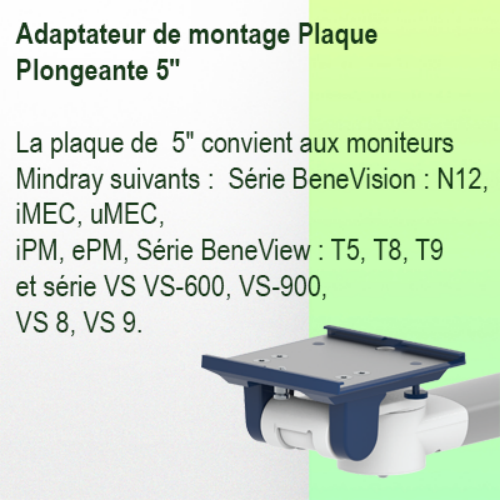

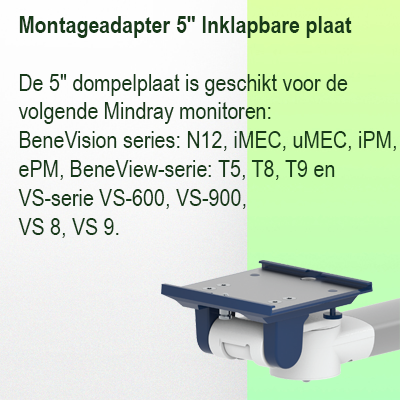

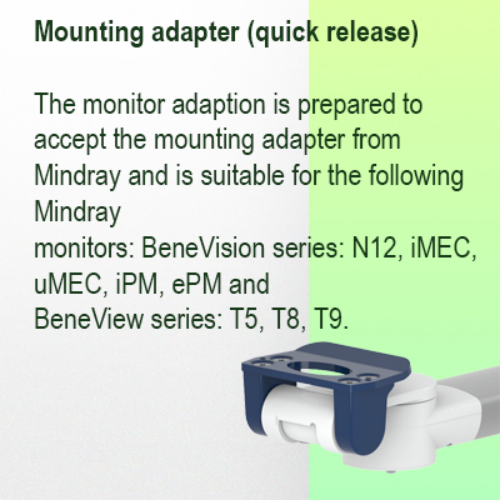

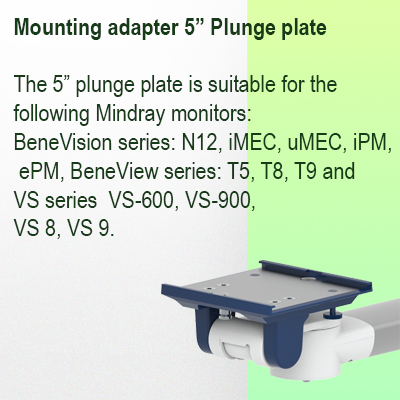

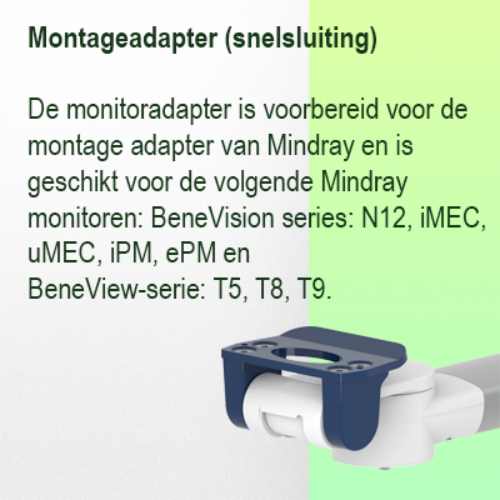

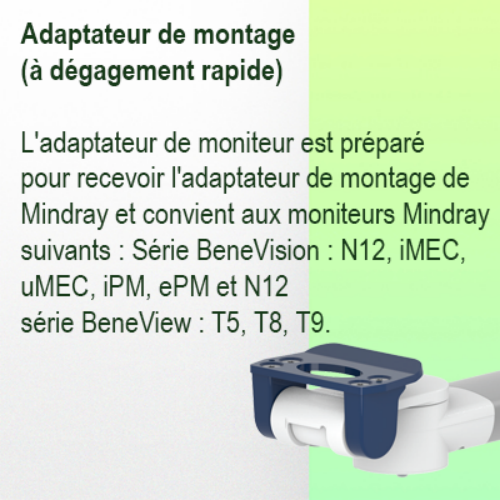

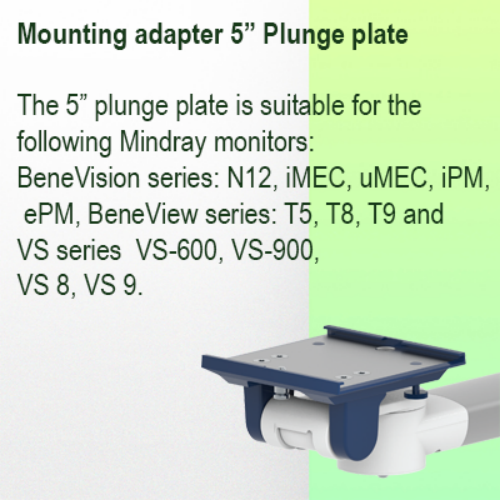

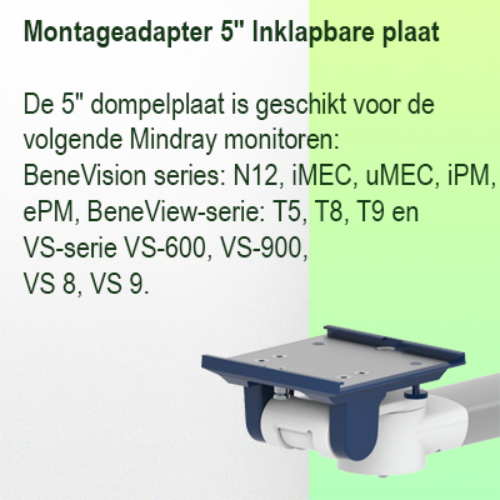

5'' plate adaptor or Quick Release, mounted on Din Horizontal Rail.

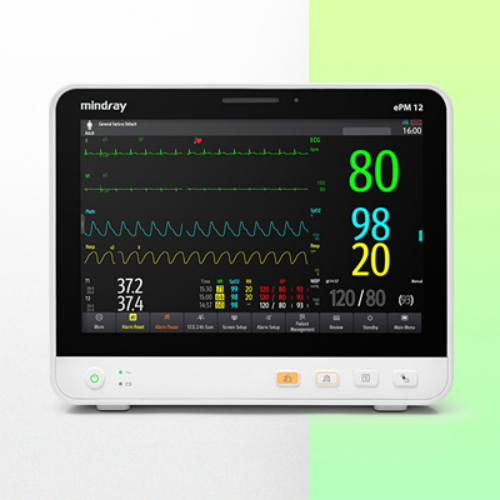

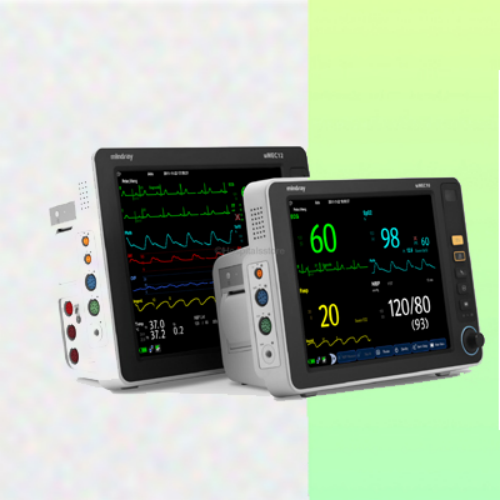

Mindray monitoring compatible.

Product number: WM 250.111MD - Dual 595 mm Horizontal Medical Arm for monitoring.

5'' plate adaptor or Quick Release, mounted on Din Horizontal Rail.

Mindray monitoring compatible.

Product sheet PDF

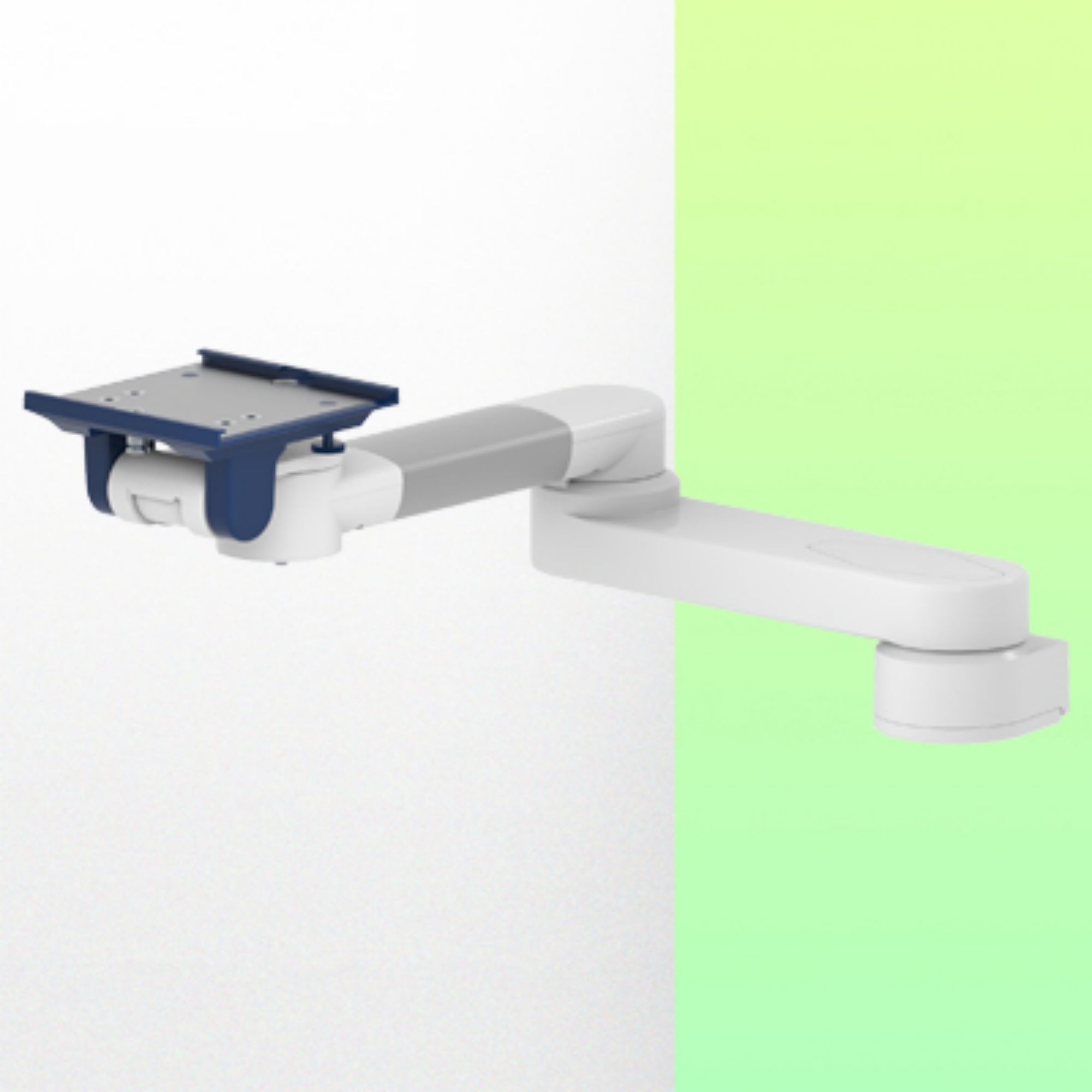

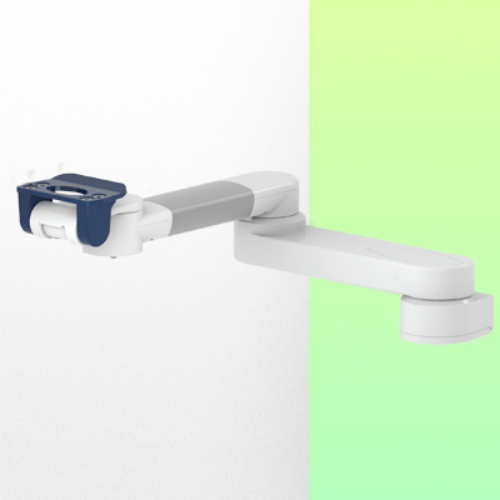

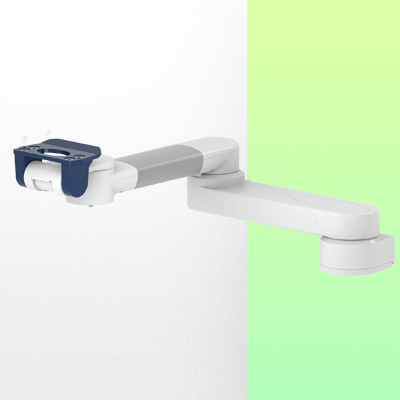

This dual 595 mm Horizontal Arm allows the monitor to be perfectly fixed, oriented and adjusted.

It is coated with an anti-microbial agent for hygiene and cleaning down to the smallest detail.

Its modern design has been specially developed for healthcare environments.

Technical specifications:

* Integral cable management

* For heavy-duty applications

* Din Horizontal rail mounting

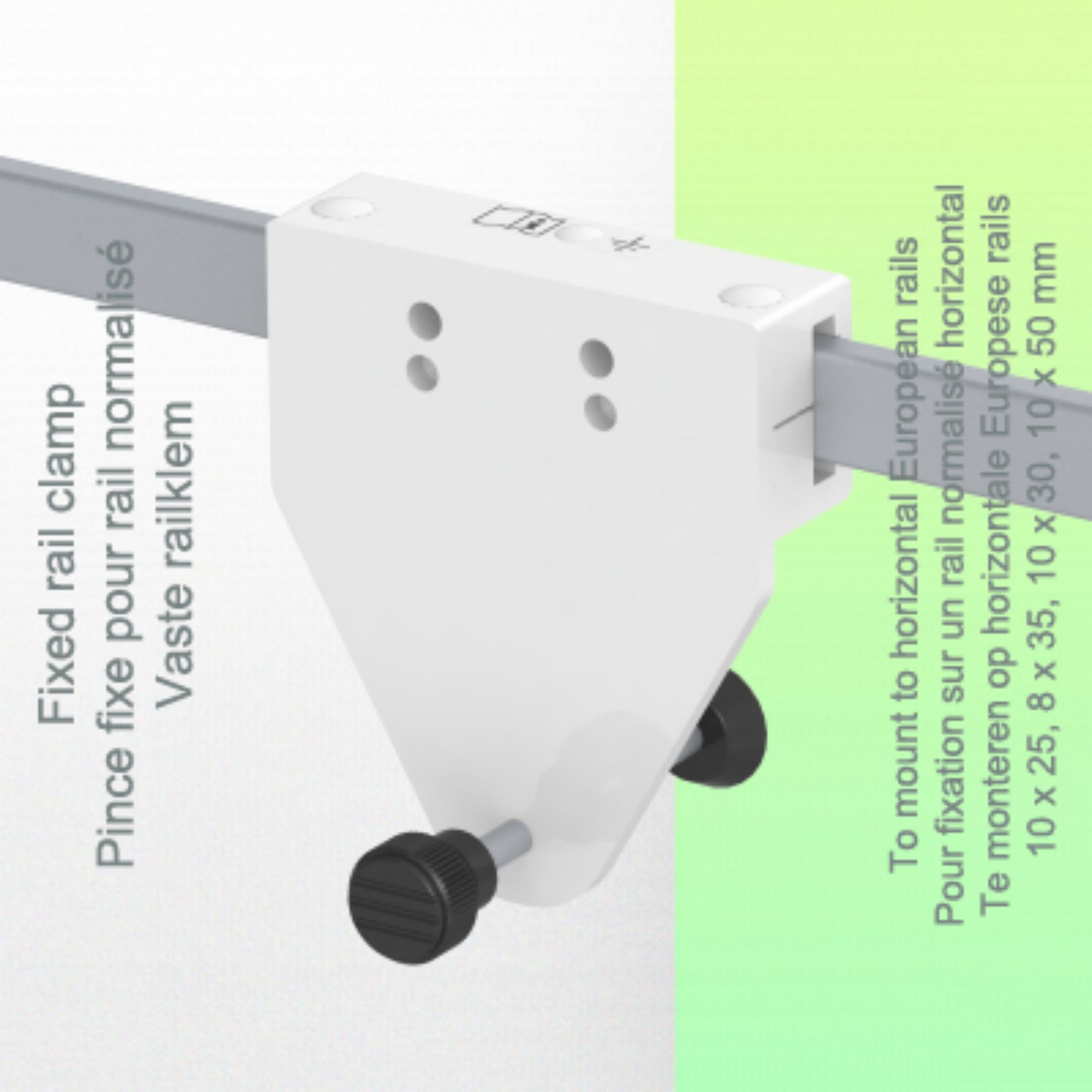

* Universal clamp included ( 10 x 25 mm, 8 x 35 mm, 10 x 30 mm, 10 x 50 mm )

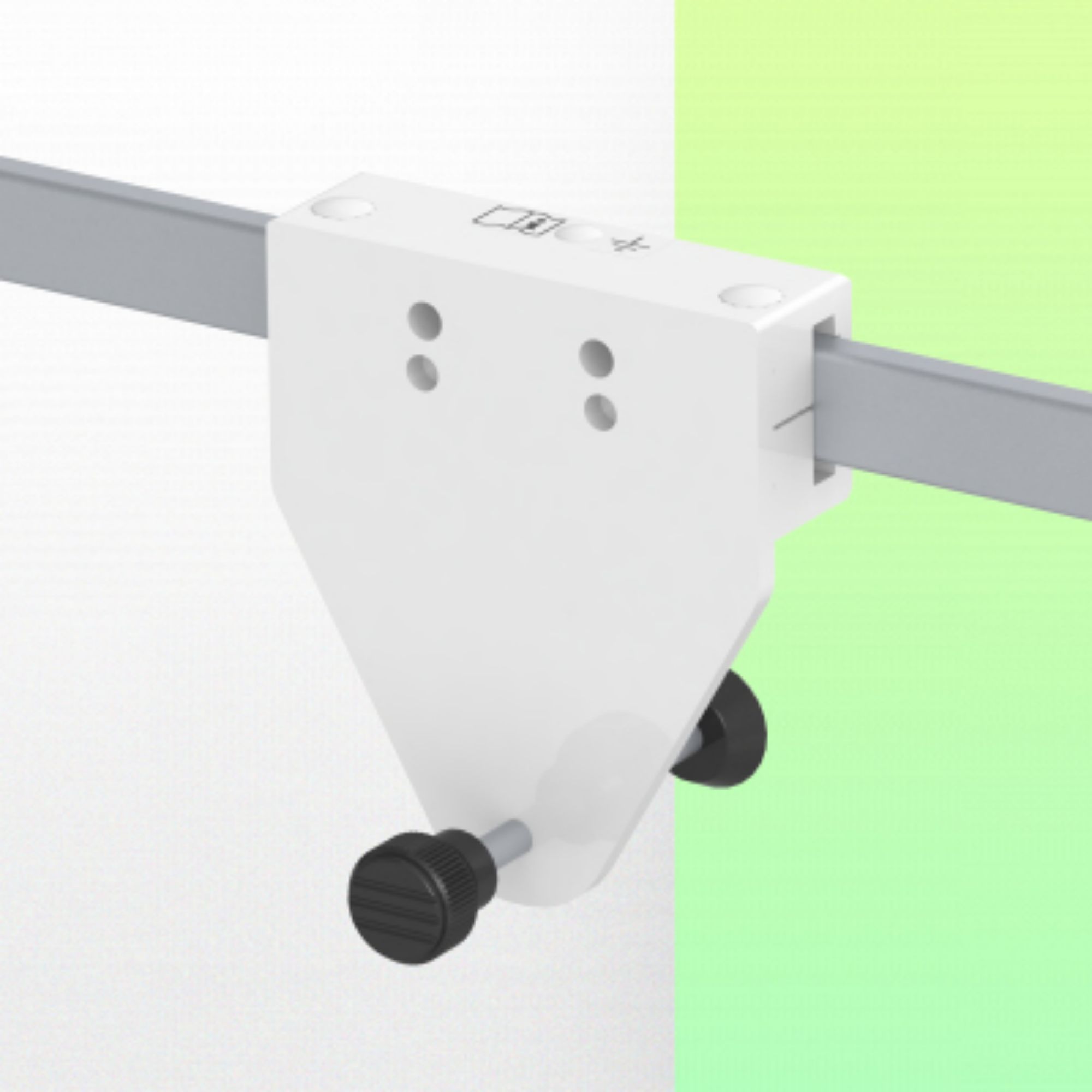

* This medical arm simply attaches to the Din Horizontal rail, then adjusts to the rail and clamps with the two grips.

* There is no height adjustment.

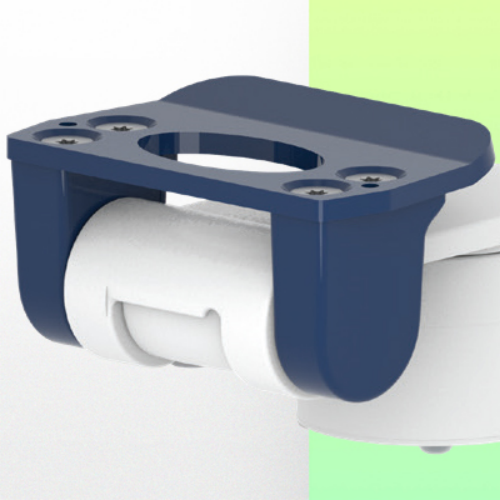

* The head of this arm complies with the mounting standard for Mindray monitors weighing up to 18 kg.

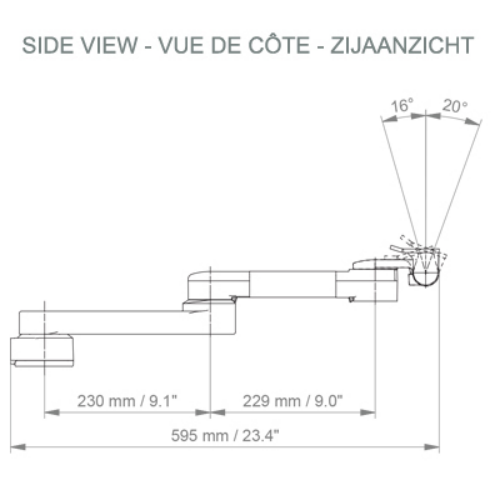

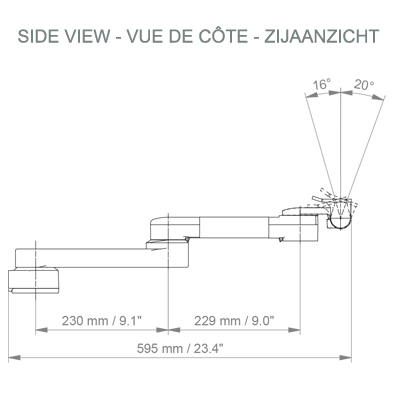

* Monitor tilt: 16° down and 20° up

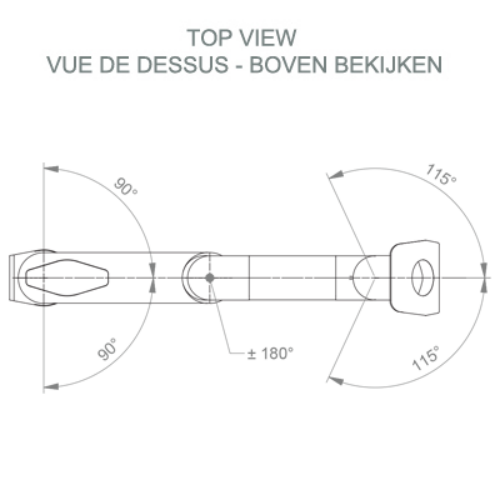

* Monitor rotation: 115° right, 115° left.

* Arm rotation: 90° right, 90° left.

* Total length: 595 mm

* Colour: RAL 5013 cobalt blue and RAL 9016 traffic white

* Warranty: 5 years
