Dual 615 mm Horizontal Medical Arm for monitoring.

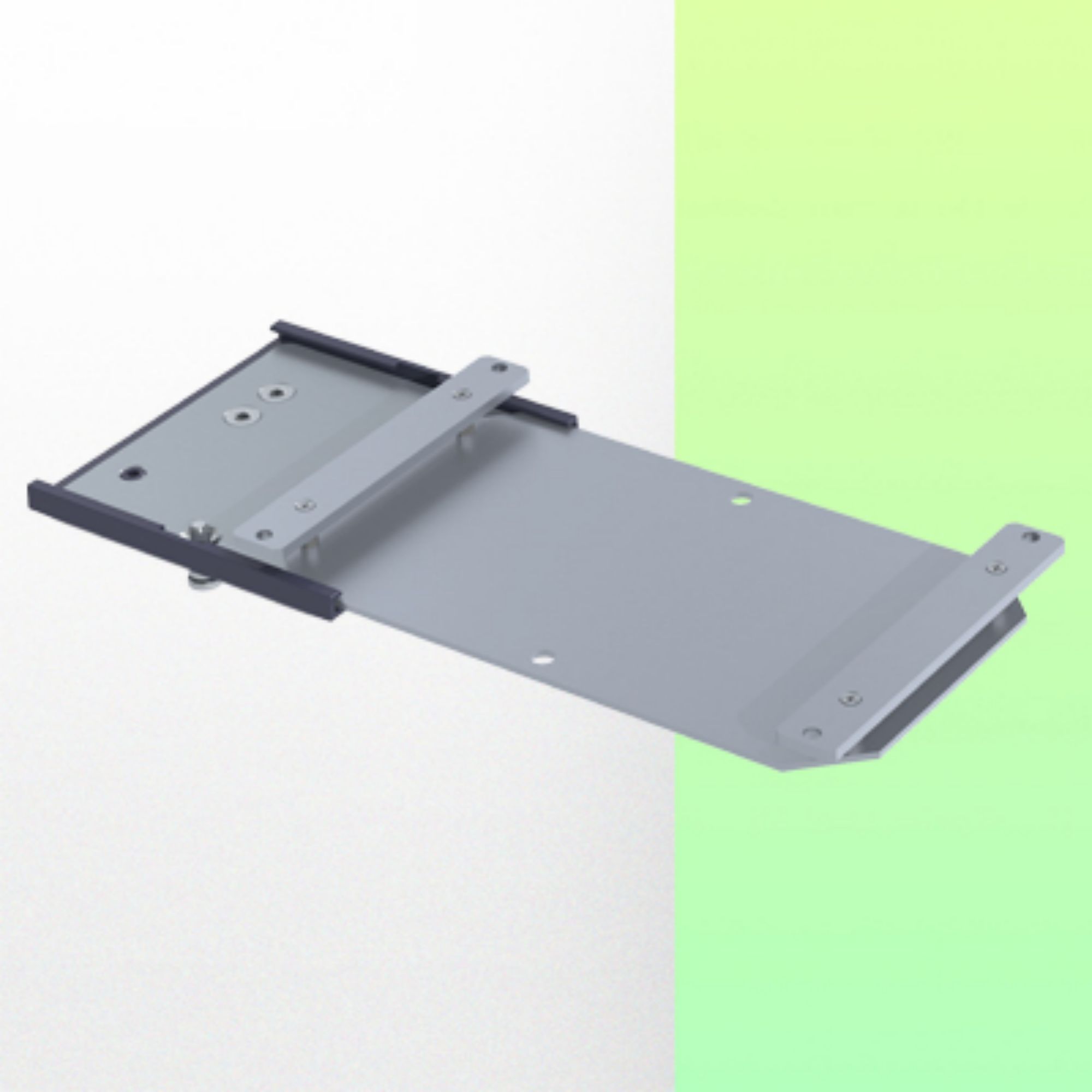

5'' plate adaptation and Nihon Kohden Interface

Din Vertical Rail mounting.

Nihon Kohden Monitoring compatible.

Product number: WM 250.113NK - Dual 615 mm Horizontal Medical Arm for monitoring.

5'' plate adaptation and Nihon Kohden Interface

Din Vertical Rail mounting.

Nihon Kohden Monitoring compatible.

Product sheet PDF

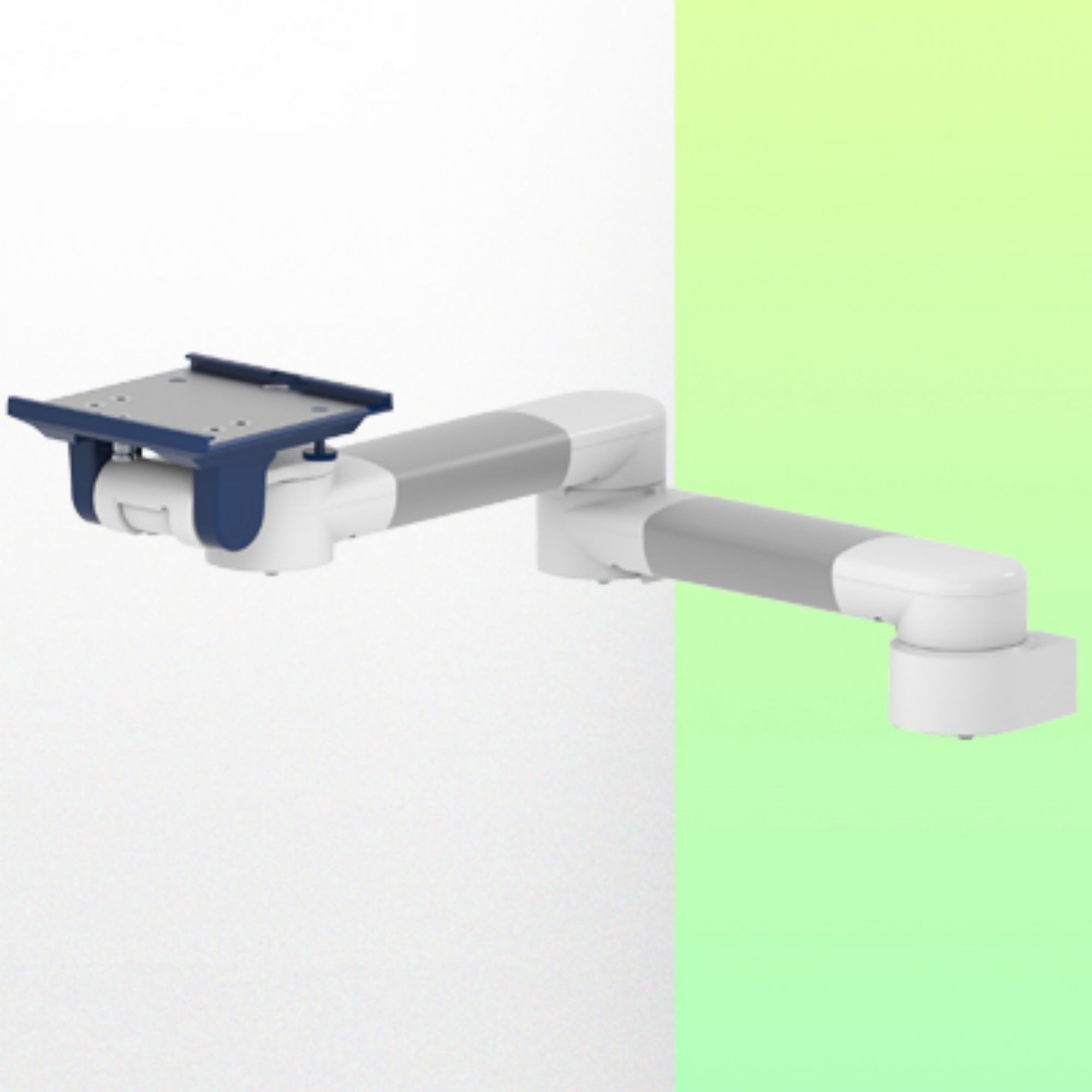

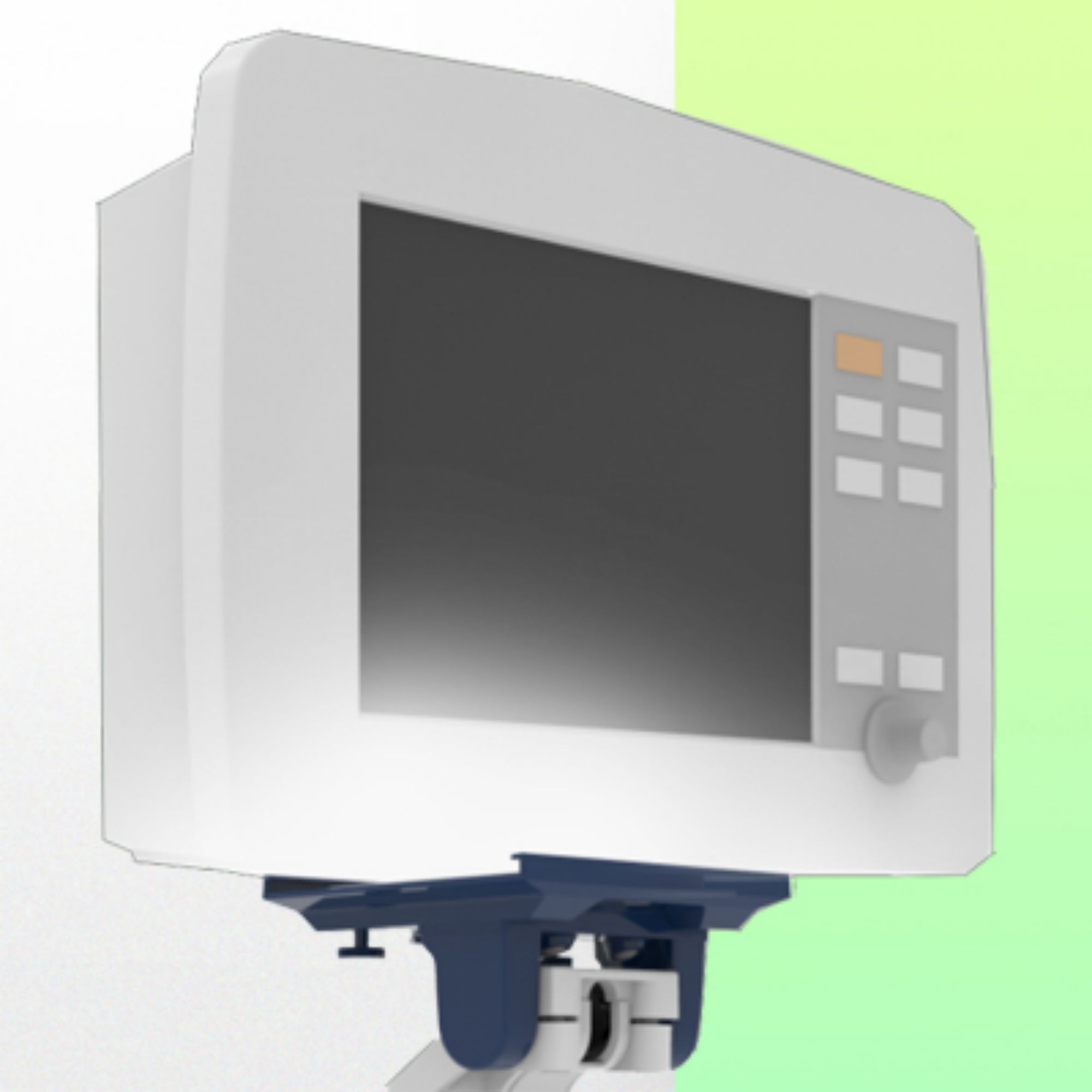

This dual 615 mm Vertical Arm allows the monitor to be fixed, oriented and adjusted perfectly.

It is coated with an anti-microbial agent for hygiene and cleaning down to the smallest detail.

Its modern design has been specially developed for healthcare environments.

Technical specifications:

* Integral cable management

* Lightweight application

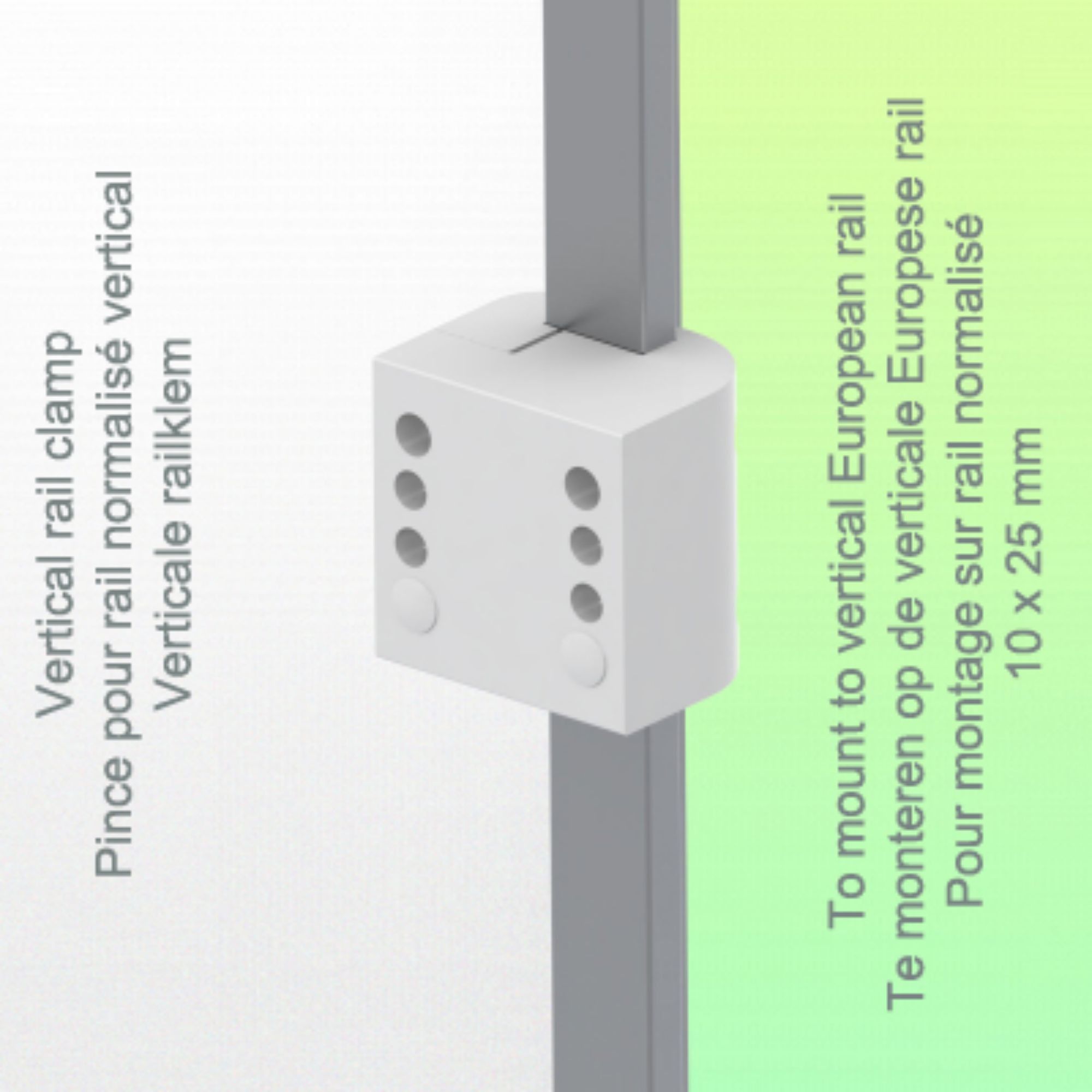

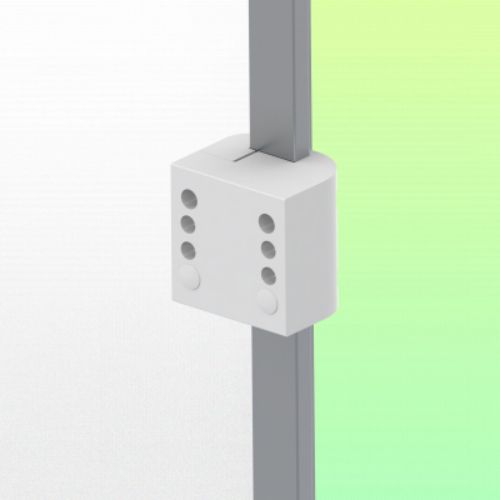

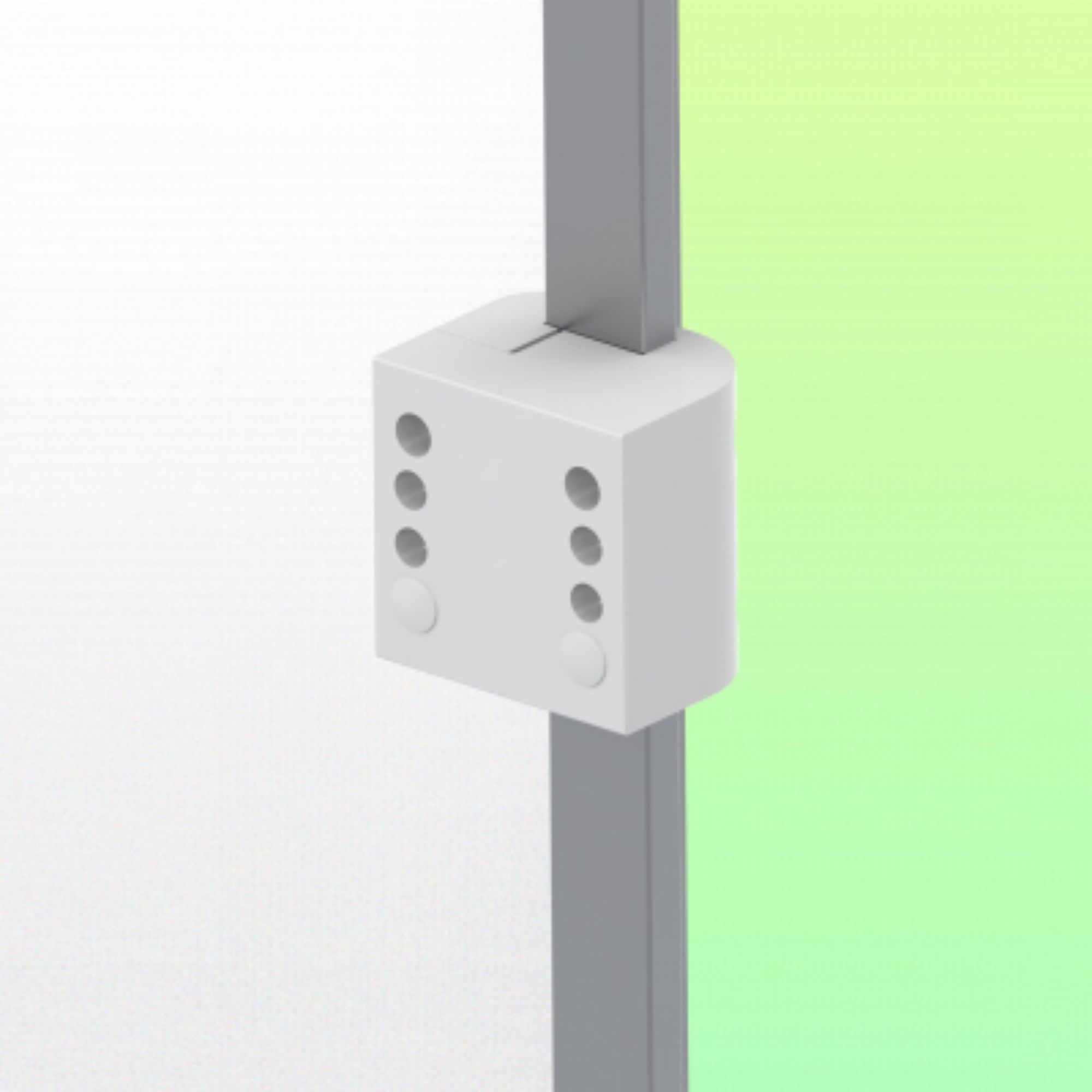

* Mounted on Din rail Vertical Universal clamp included ( 10 x 25 mm, 8 x 35 mm, 10 x 30 mm, 10 x 50 mm )

* This medical arm simply attaches to the Din rail Horizontal and then adjusts to the rail and clamped with the two grips.

* There is no height adjustment.

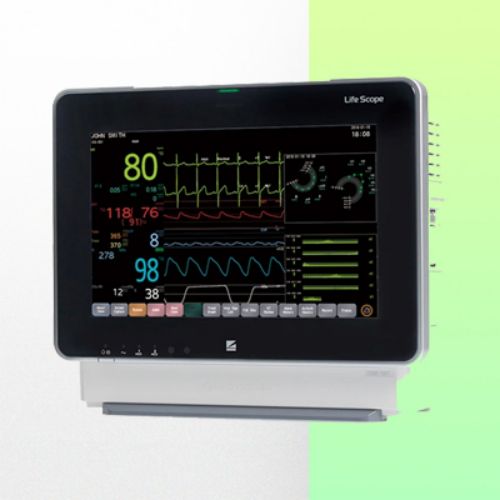

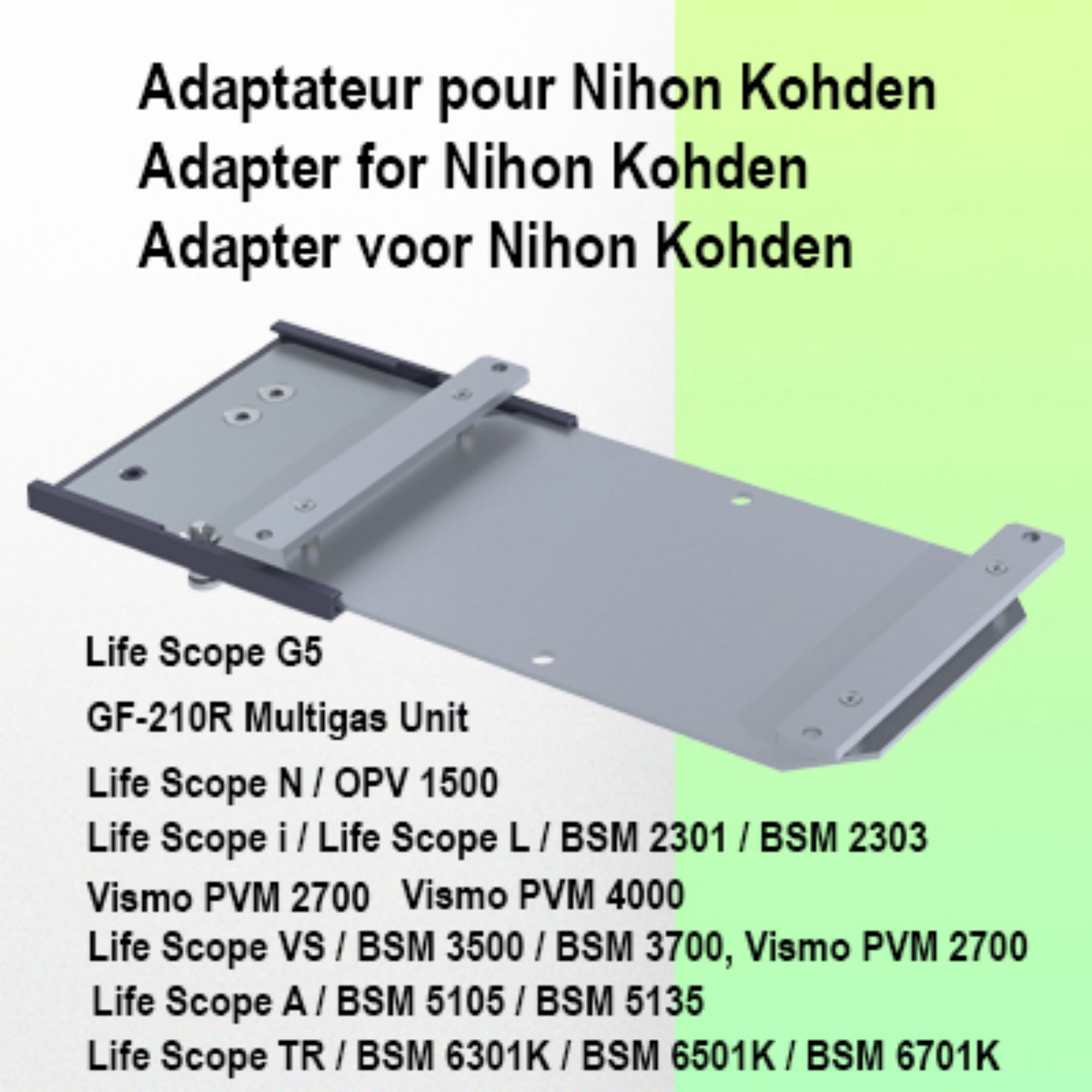

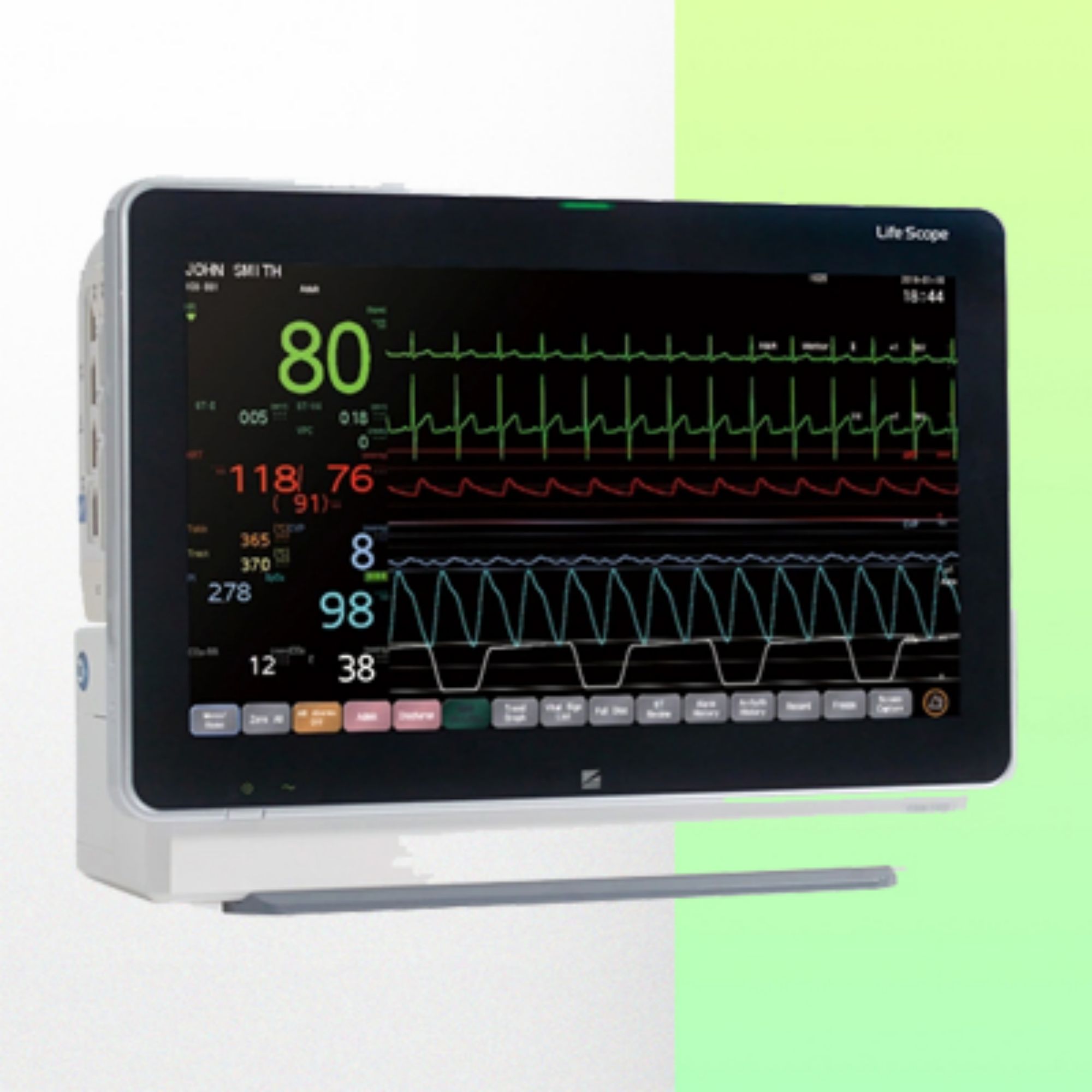

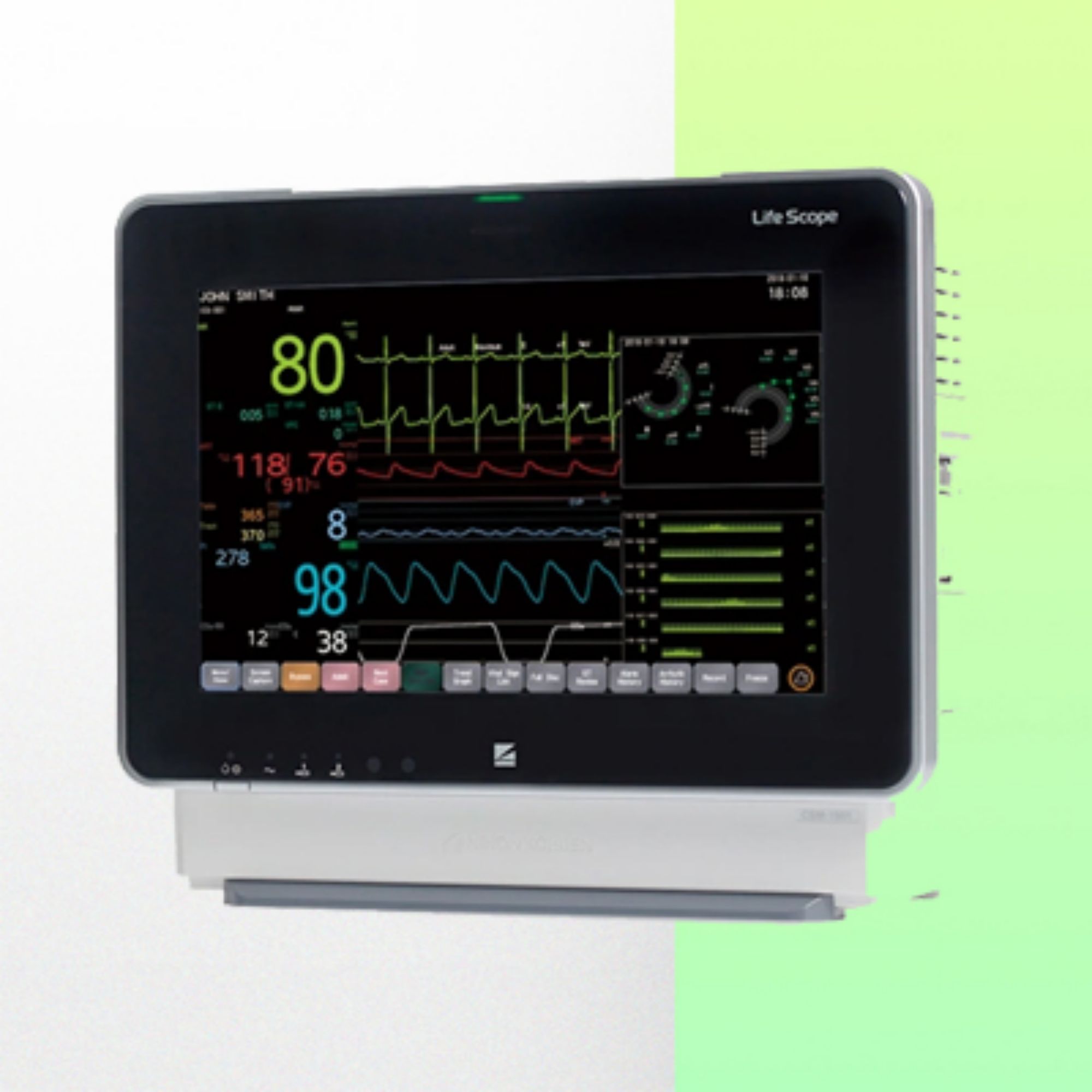

* The head of this arm complies with the mounting standard for Nihon Kohden monitors weighing up to 8 kg.

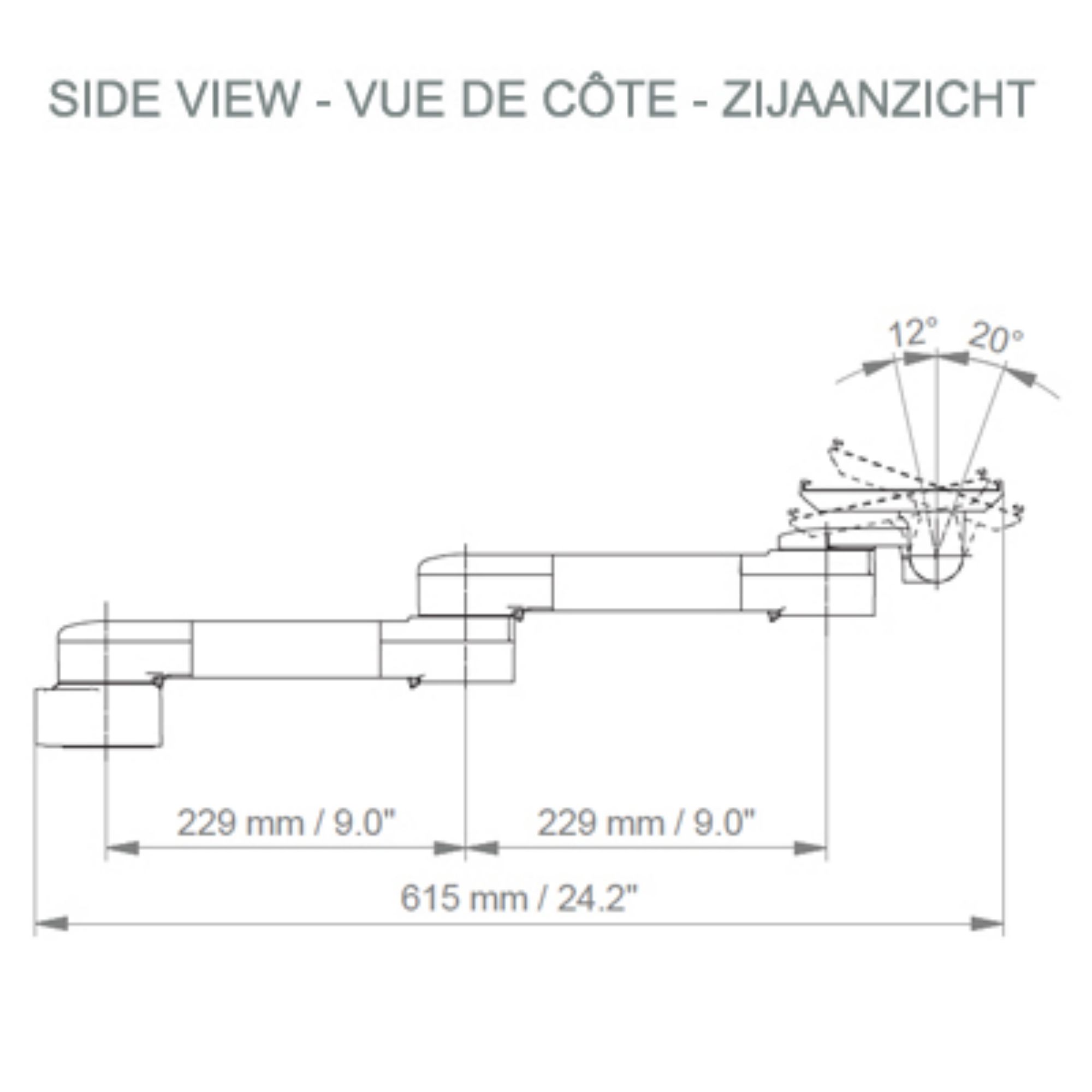

* Monitor tilt: 20° down and 12° up

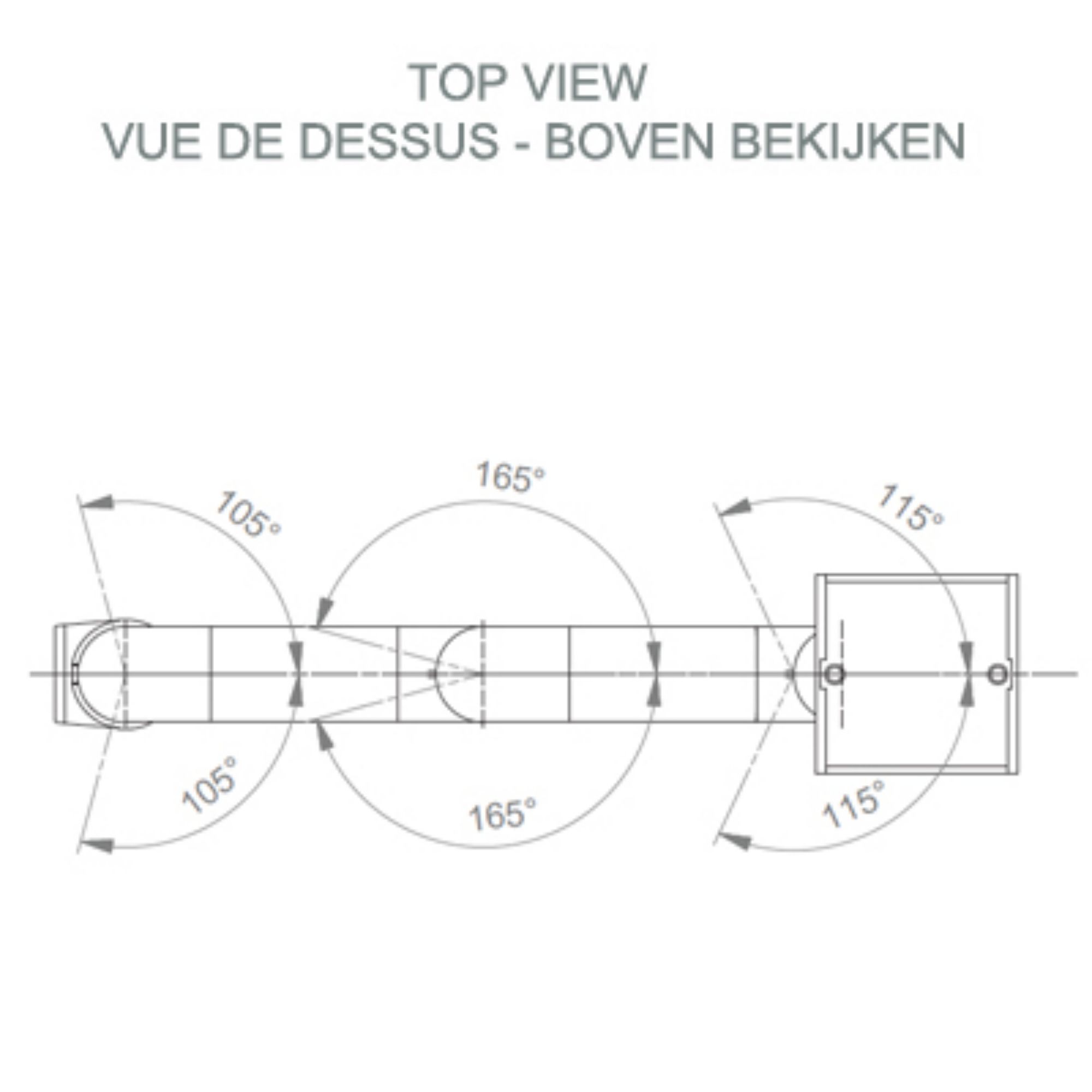

* Monitor rotation: 115° right, 115° left.

* Arm rotation: 105° right, 105° left.

* Total length 615 mm * Colour RAL 5013 cobalt blue and RAL 9016 traffic white

* Warranty: 5 years
