363 mm Horizontal Medical Arm for Monitoring Philips Intellivue Séries,

wall-mounted on vertical sliding rail

Product number: WM 260.100 - 363 mm Horizontal Medical Arm for Monitoring Philips Intellivue Séries,

wall-mounted on vertical sliding rail

Product sheet PDF

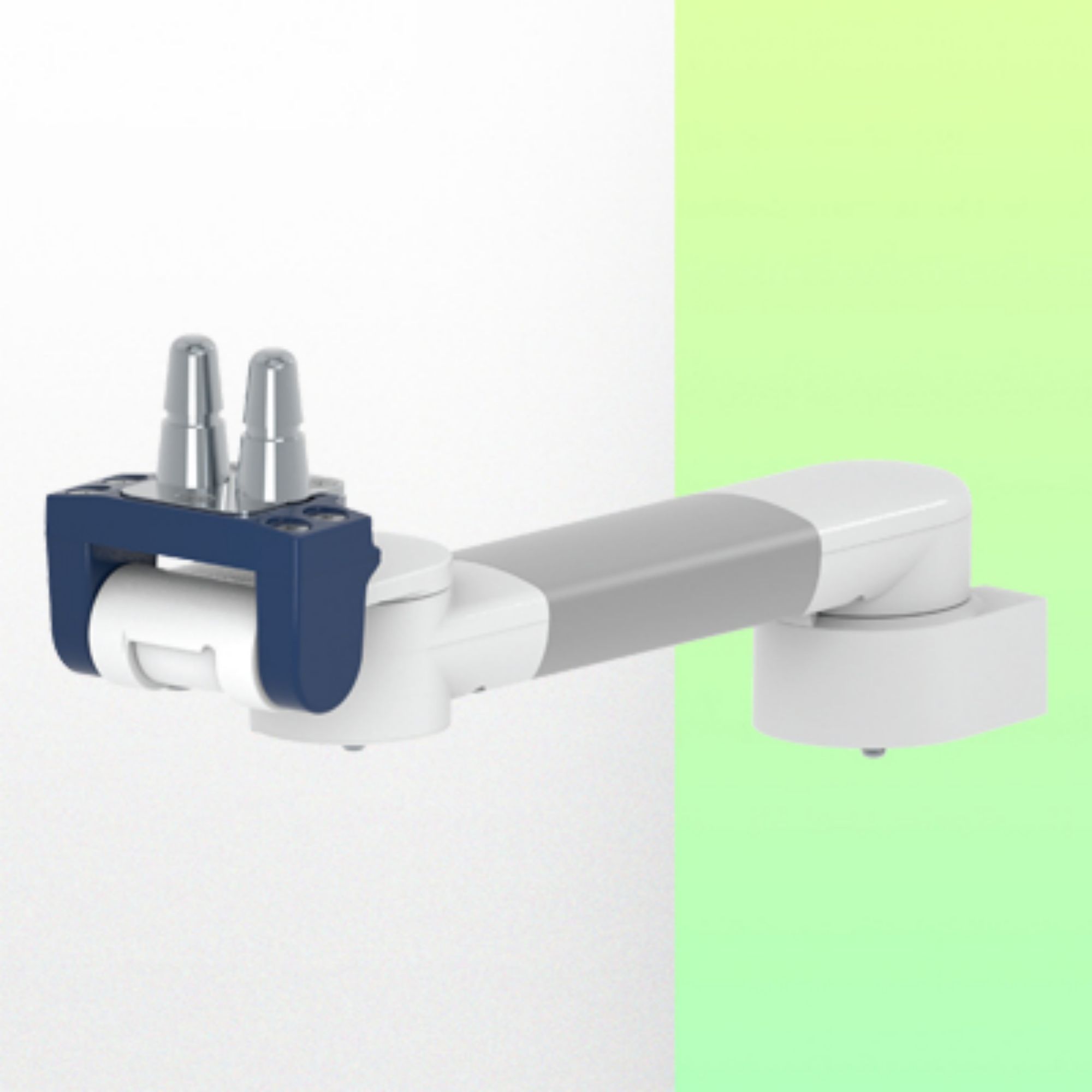

This 363 mm Horizontal Arm allows the monitor to be fixed, oriented and adjusted perfectly. It is coated with an anti-microbial agent to ensure hygiene and cleanliness down to the smallest detail. Its modern design has been specially developed for healthcare environments.

Technical specifications:

* Built-in cable entry

* Optional Vertical Wall Slide Rail mounting, available in various lengths
(480 mm - 720 mm - 960 mm - 1200 mm)

* These wall rails can be easily cut to size.

* All cables also run in the wall rail.

(See rail options below)

* This 363 mm Horizontal Arm simply slides into the wall rail, then adjusts to the required height and locks in place. It has no height adjustment

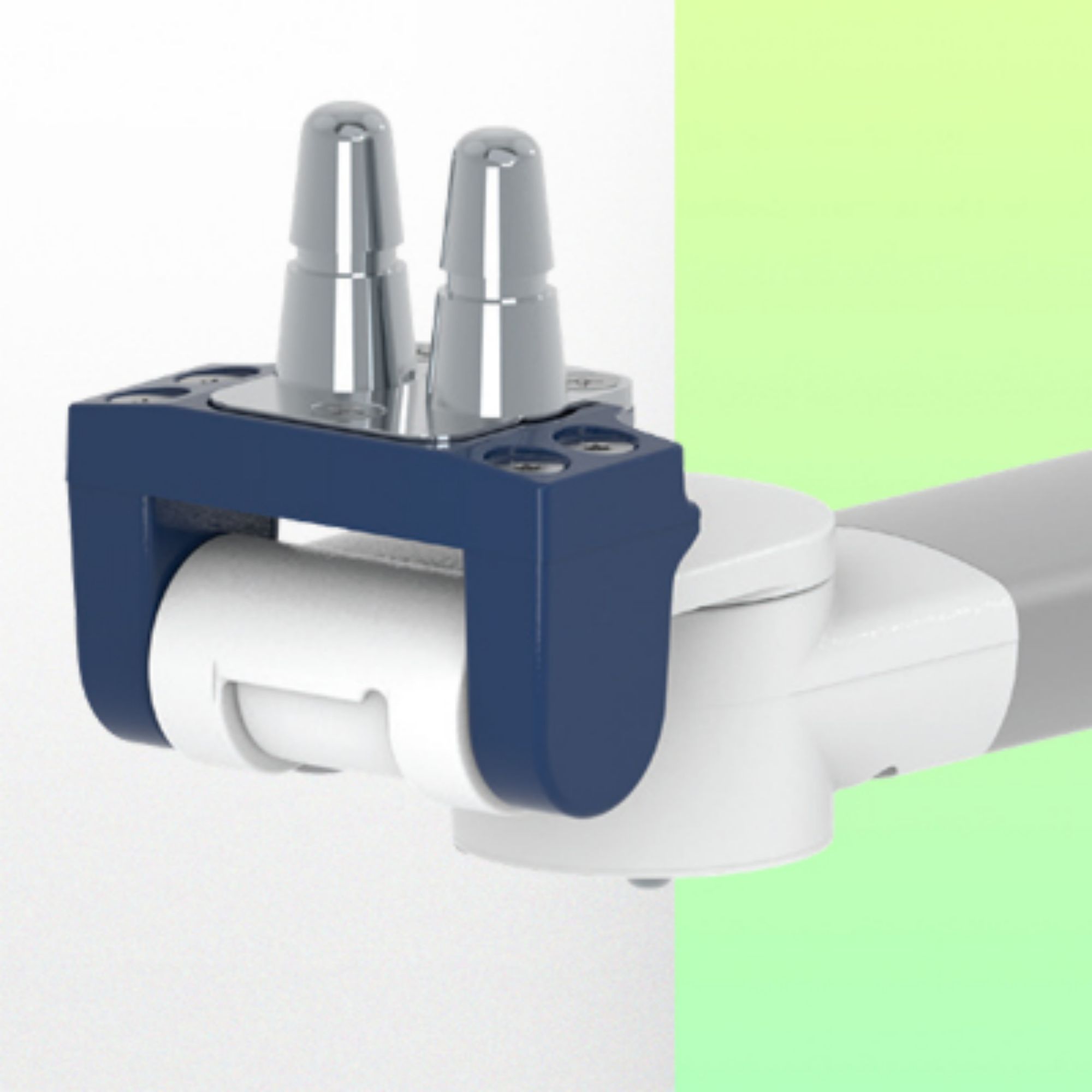

* The head of this arm complies with the mounting standard for Philips Intellivue Series monitors weighing up to 18 Kg.

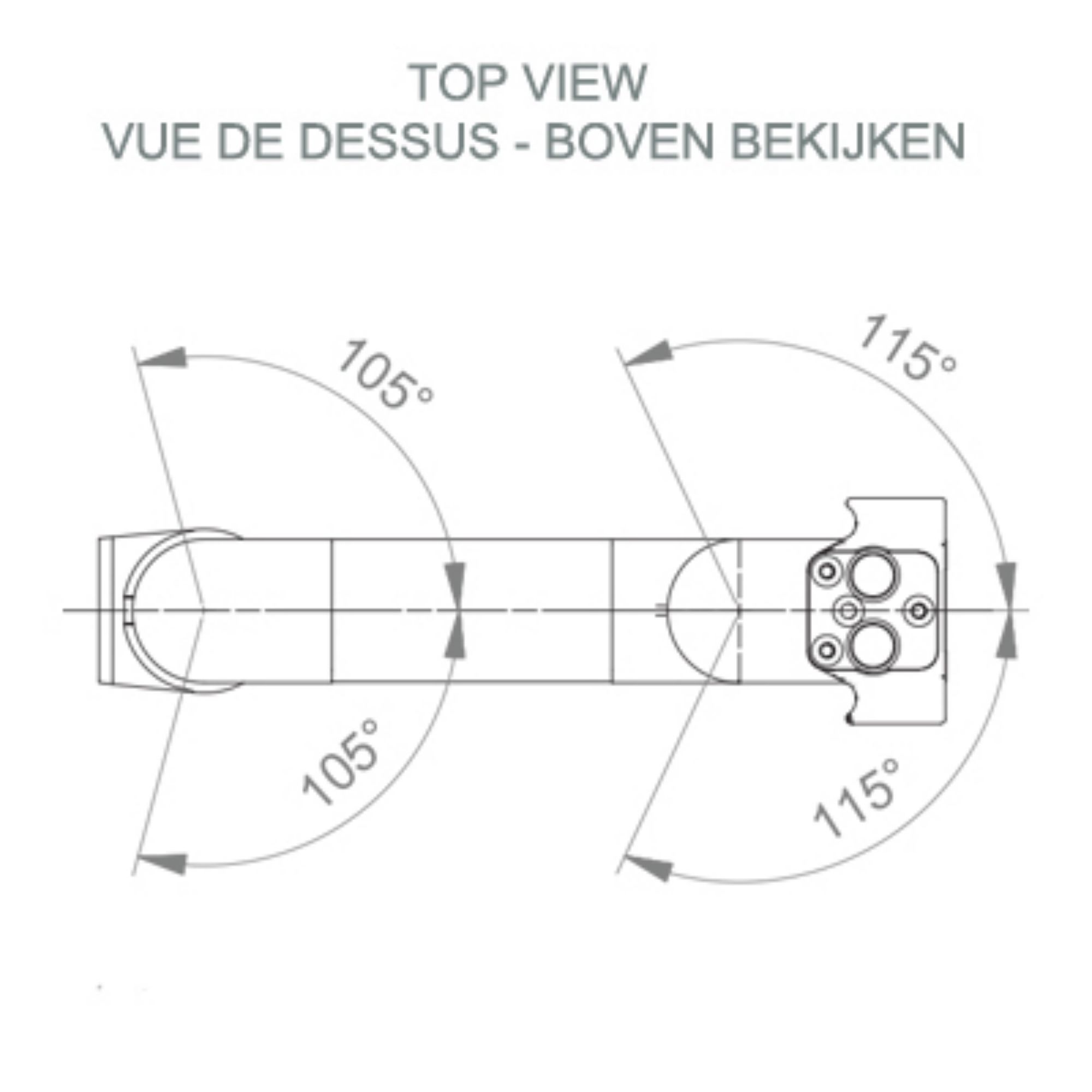

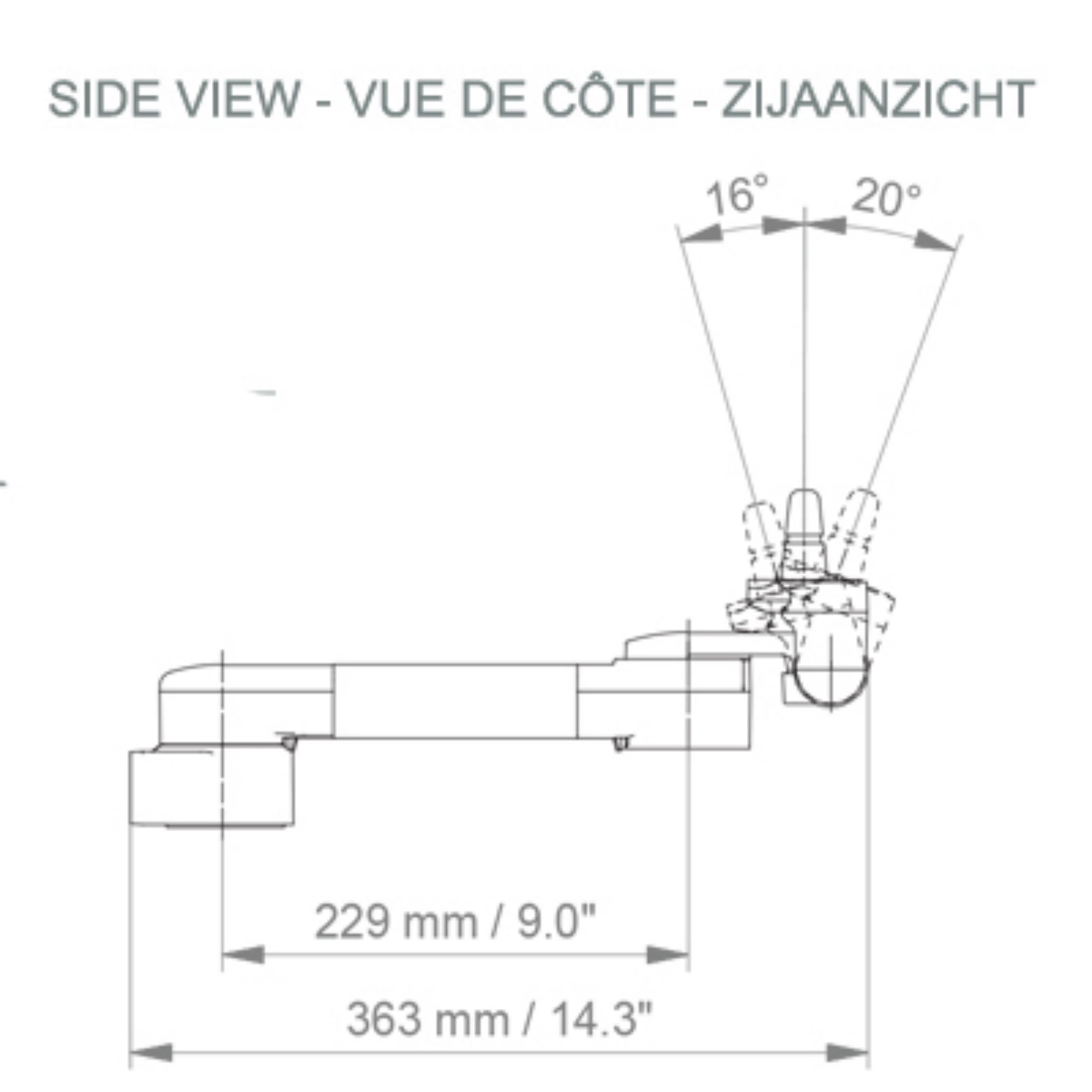

* Monitor tilt: 20° down, 12° up * Monitor rotation: 115° right, 115° left.

* Arm rotation: 105° right, 105° left.

* Total length: 363 mm

* Colour: RAL 5013 cobalt blue and RAL 9016 traffic white

* Warranty: 5 years
