2 x 300 mm swivelling Horizontal Medical Arm

for Monitoring Philips Intellivue Séries

(Heavy Duty applications up to 18 Kg),

floor or ceiling column mounting

Product number: WM 260.105 - 2 x 300 mm swivelling Horizontal Medical Arm

for Monitoring Philips Intellivue Séries

(Heavy Duty applications up to 18 Kg),

floor or ceiling column mounting

Product sheet PDF

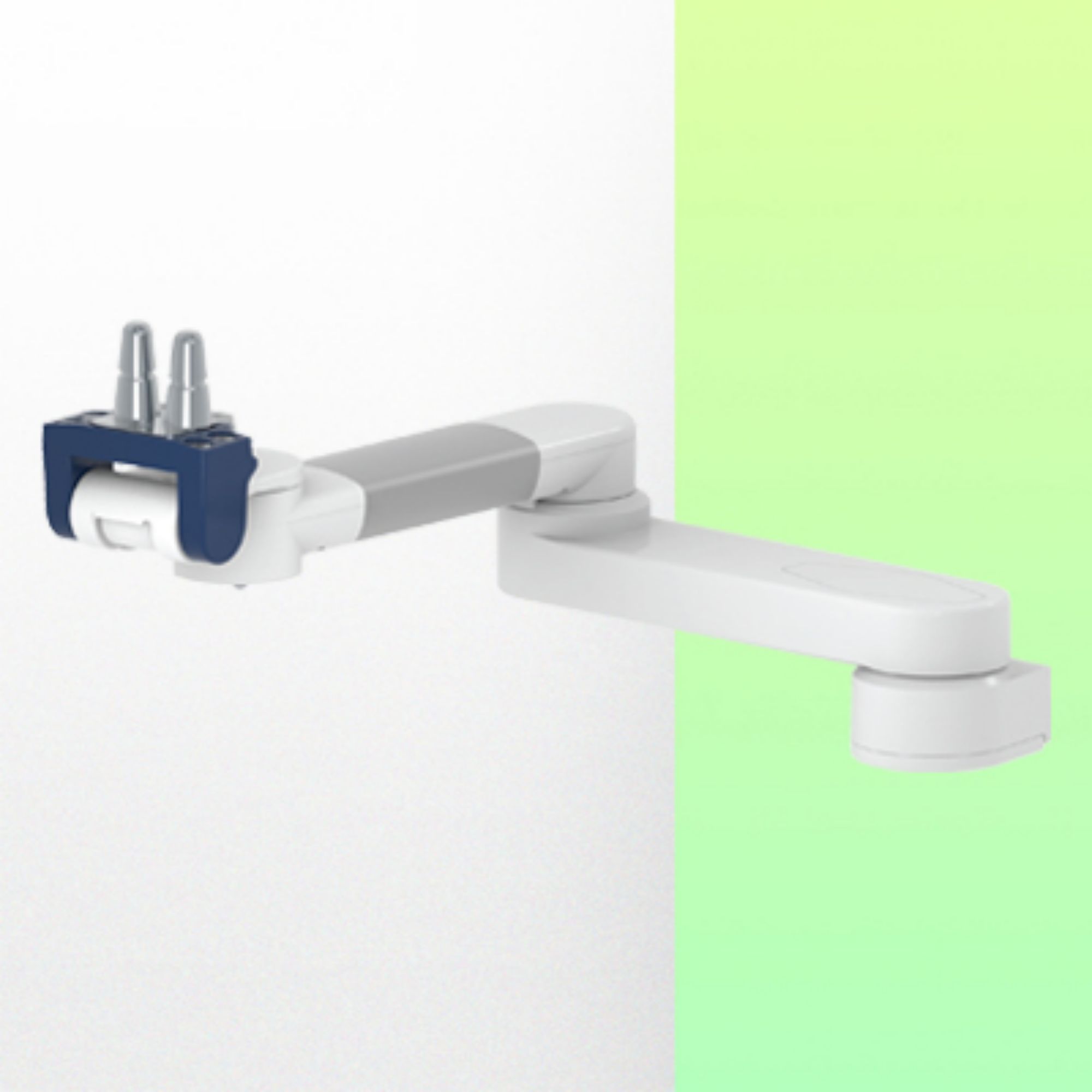

This dual 2 X 300 mm Horizontal Arm allows the monitor to be perfectly fixed, oriented and adjusted.

It is coated with an anti-microbial agent for hygiene and cleaning down to the last detail.

Its modern design has been specially developed for healthcare environments.

Technical specifications:

* Integral cable management

* Heavy-duty application

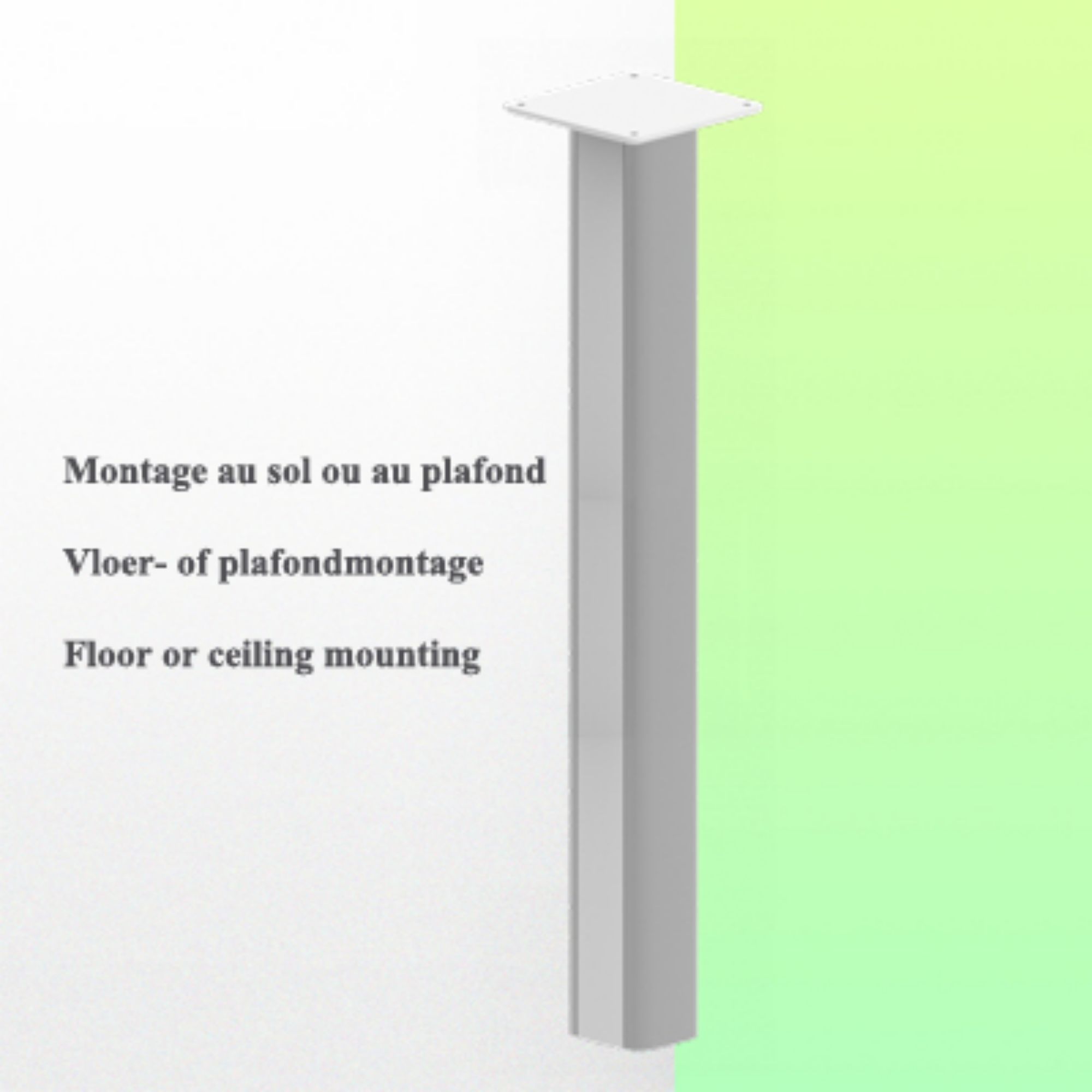

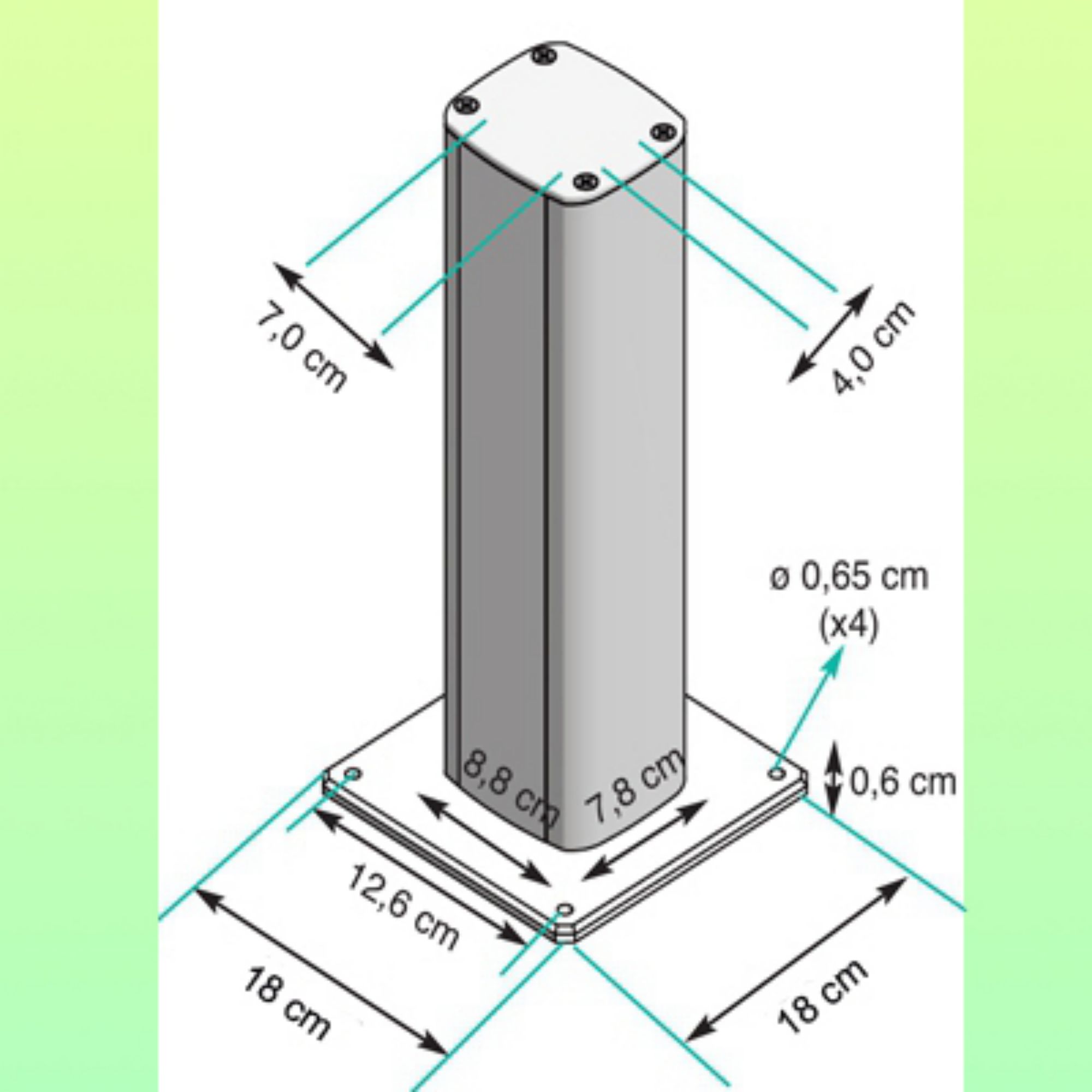

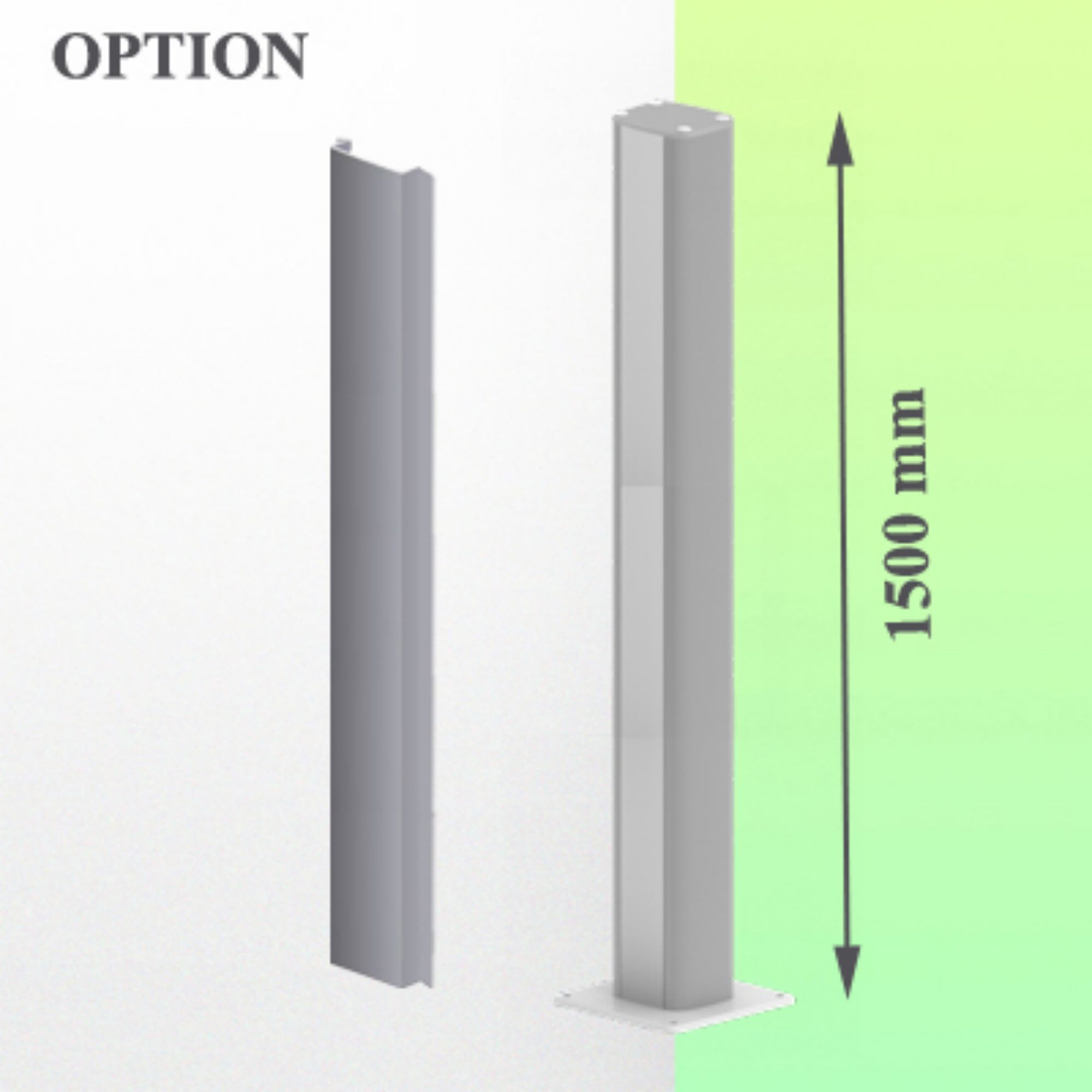

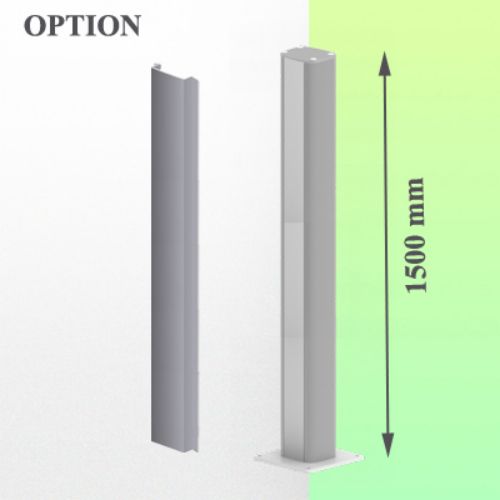

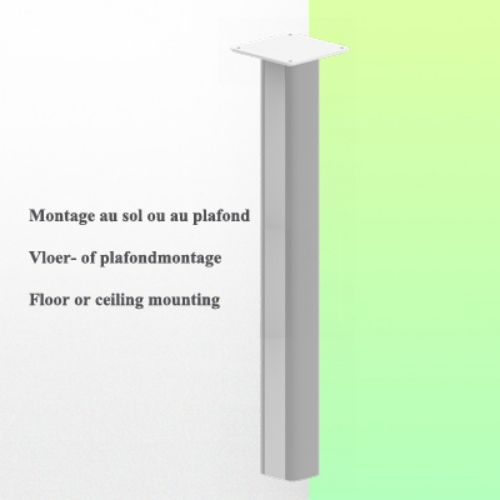

* Optional floor or ceiling column mounting, with several heights available (1500 - 2000 mm)

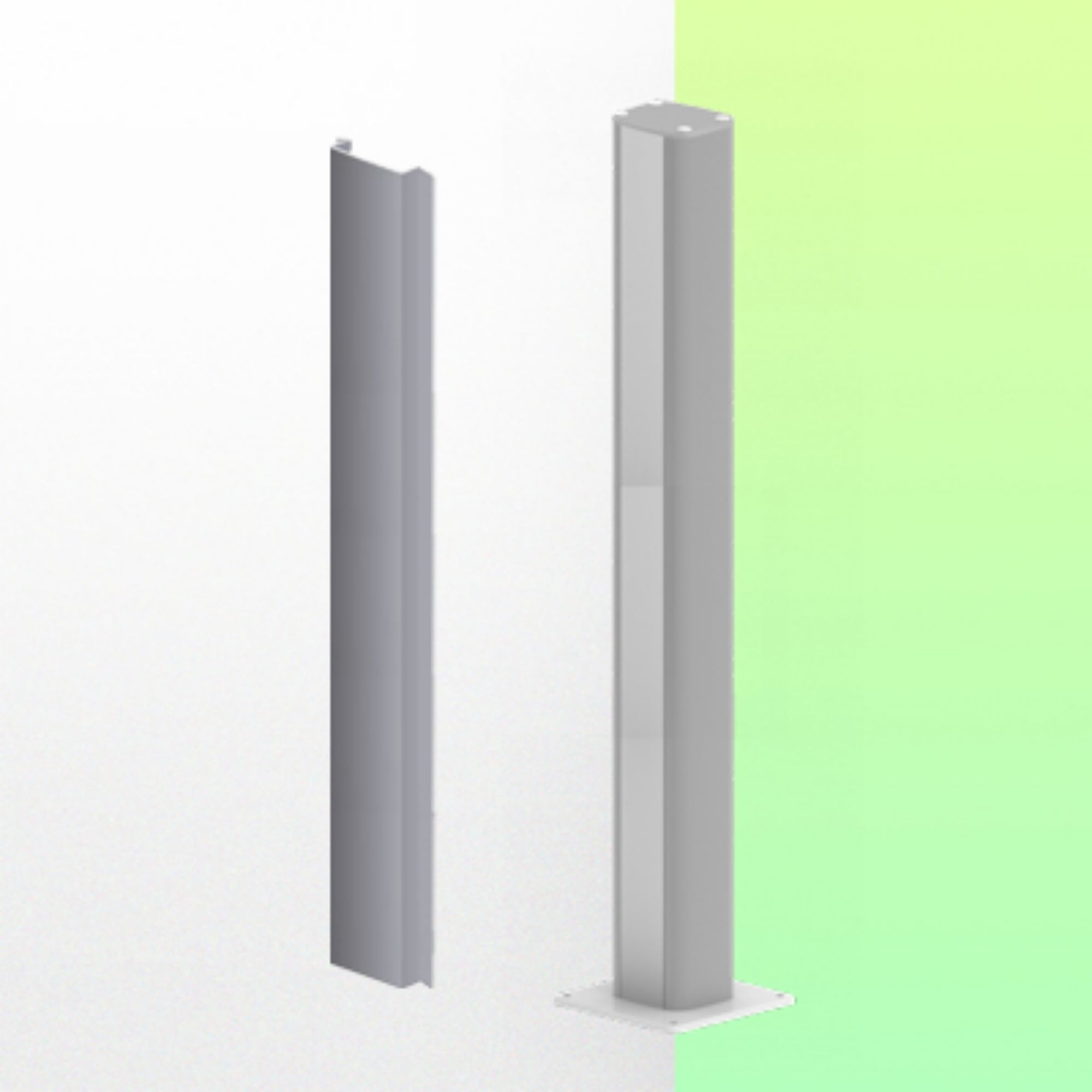

* These columns can be easily cut to size. All cables also pass through the column

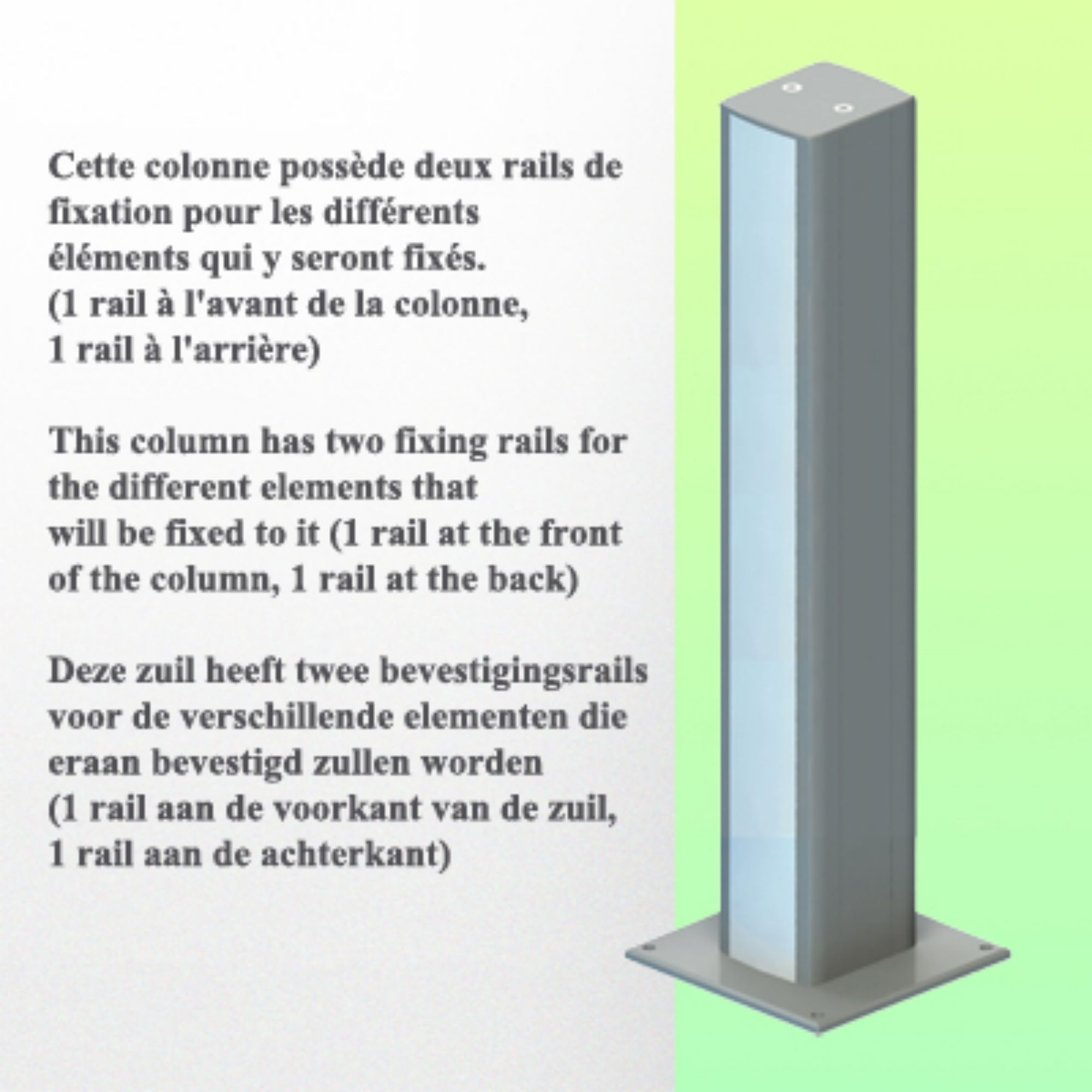

* This 2 X 300 mm Double Horizontal Arm simply slides into the column rail, then adjusts to the required height and locks in place.

* It has no height adjustment

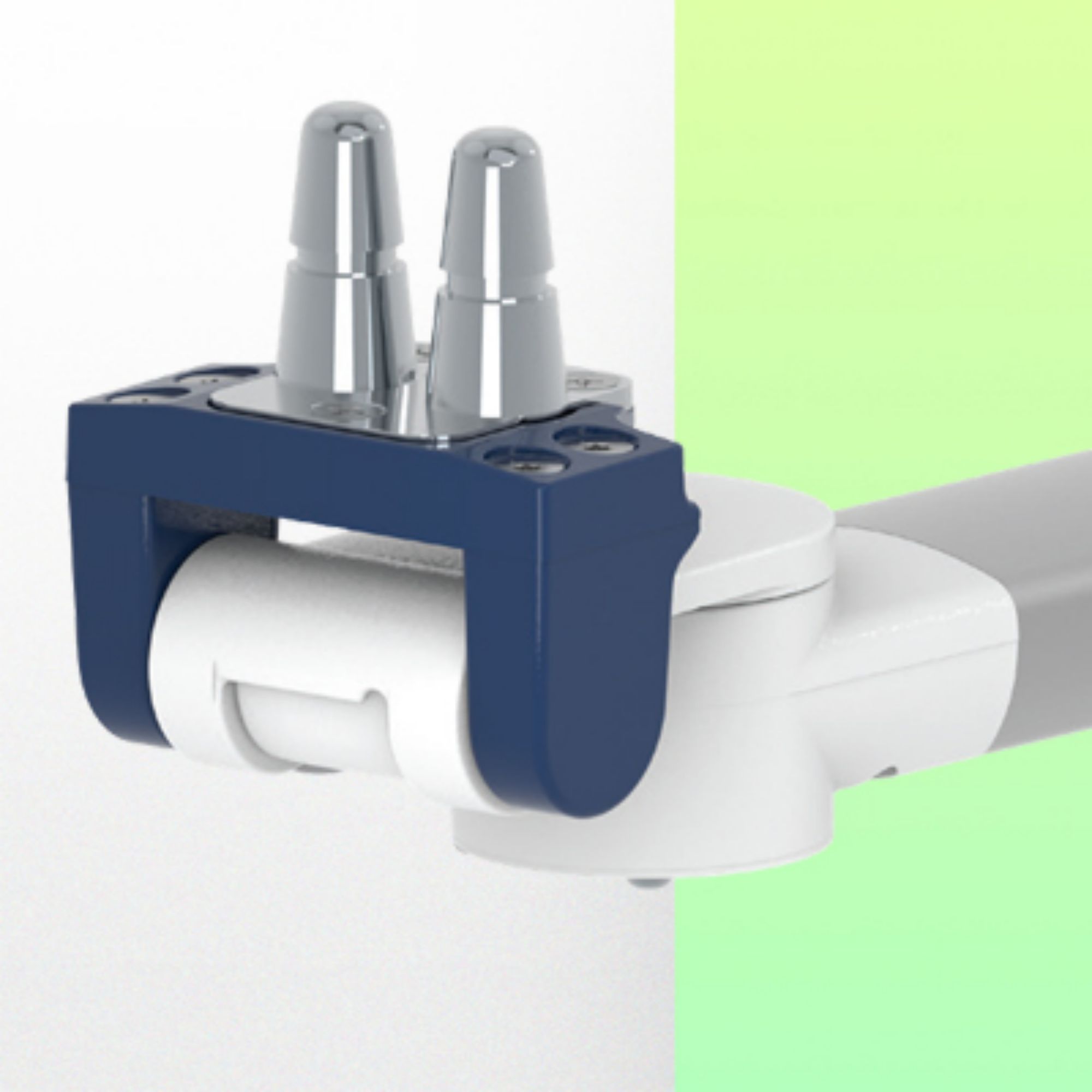

* The head of this arm complies with the mounting standard for Philips Intellivue Series monitors weighing up to 18 Kg.

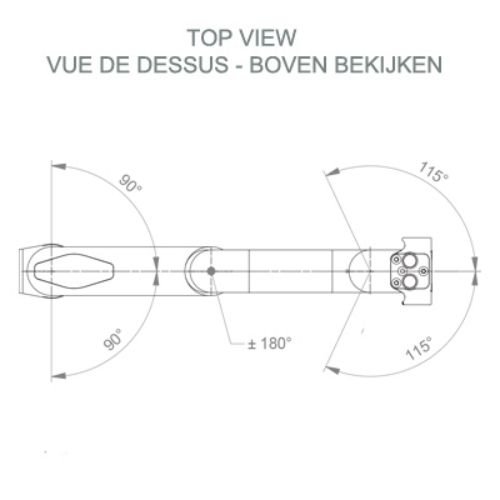

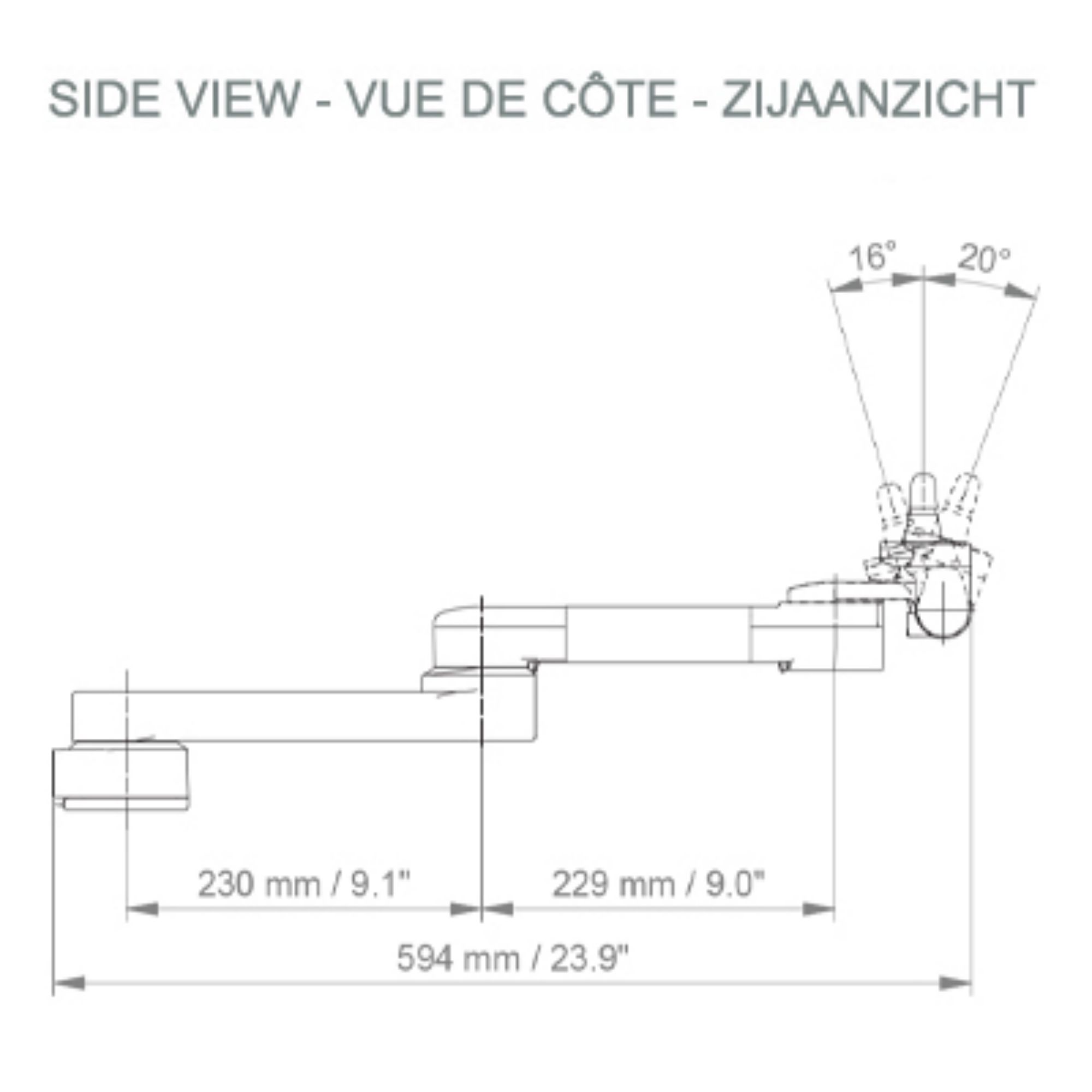

* Monitor tilt: 20° down, 12° up

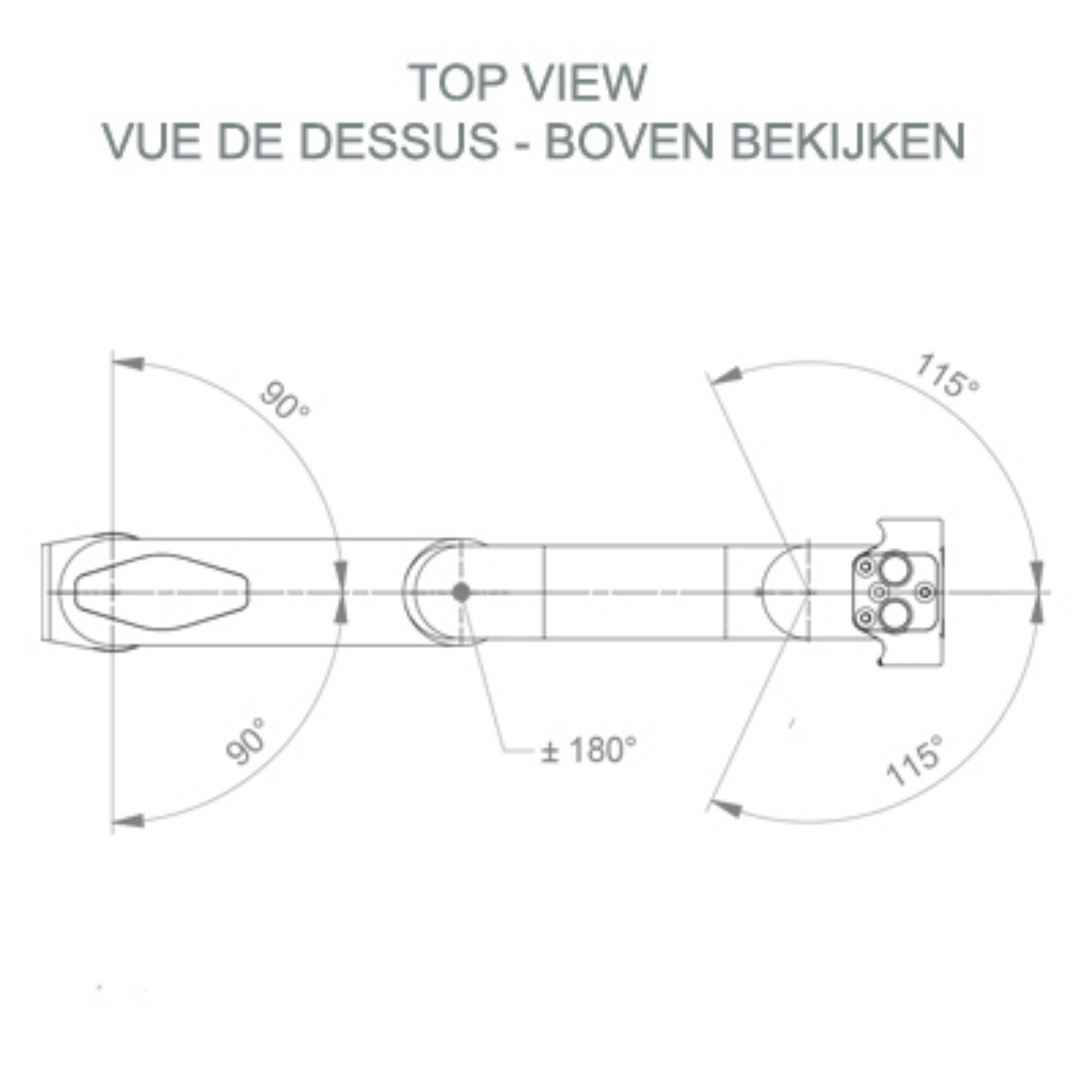

* Monitor rotation: 115° right, 115° left.

* Arm rotation: 90° right, 90° left.

* Total length: 594 mm

* Color: RAL 5013 cobalt blue and RAL 9016 traffic white

* Warranty: 5 years
