2 x 300 mm swivelling Horizontal Medical Arm

for monitoring Philips Intellivue Séries

(Heavy Duty applications up to 18 Kg)

Table column mounting.

Product number: WM 260.108CT - 2 x 300 mm swivelling Horizontal Medical Arm

for monitoring Philips Intellivue Séries

(Heavy Duty applications up to 18 Kg)

Table column mounting.

Product sheet PDF

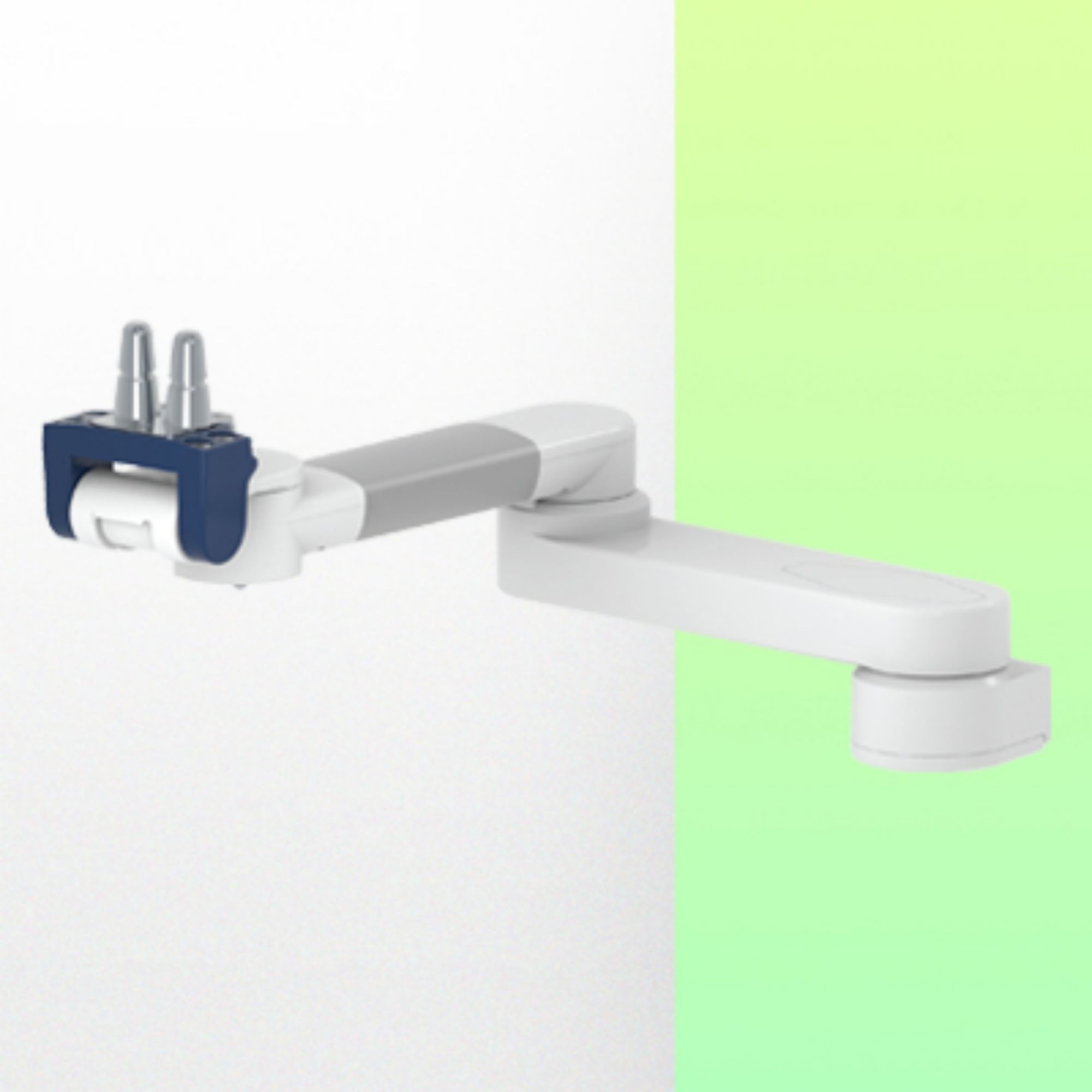

This dual 2 x 300 mm Horizontal Arm allows the monitor to be fixed, oriented and adjusted perfectly.

It is coated with an anti-microbial agent for hygiene and cleaning down to the smallest detail.

Its modern design has been specially developed for healthcare environments.

Technical specifications:

* Integral cable management

* For heavy-duty applications

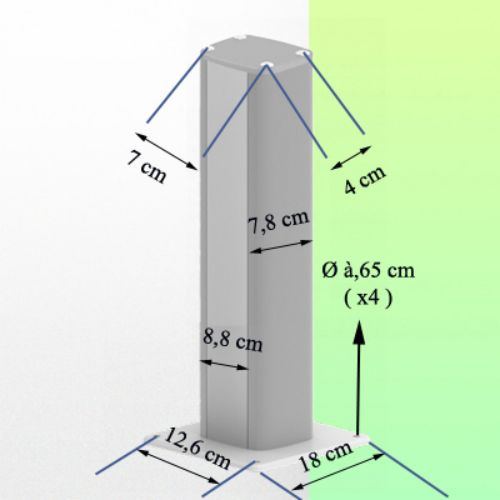

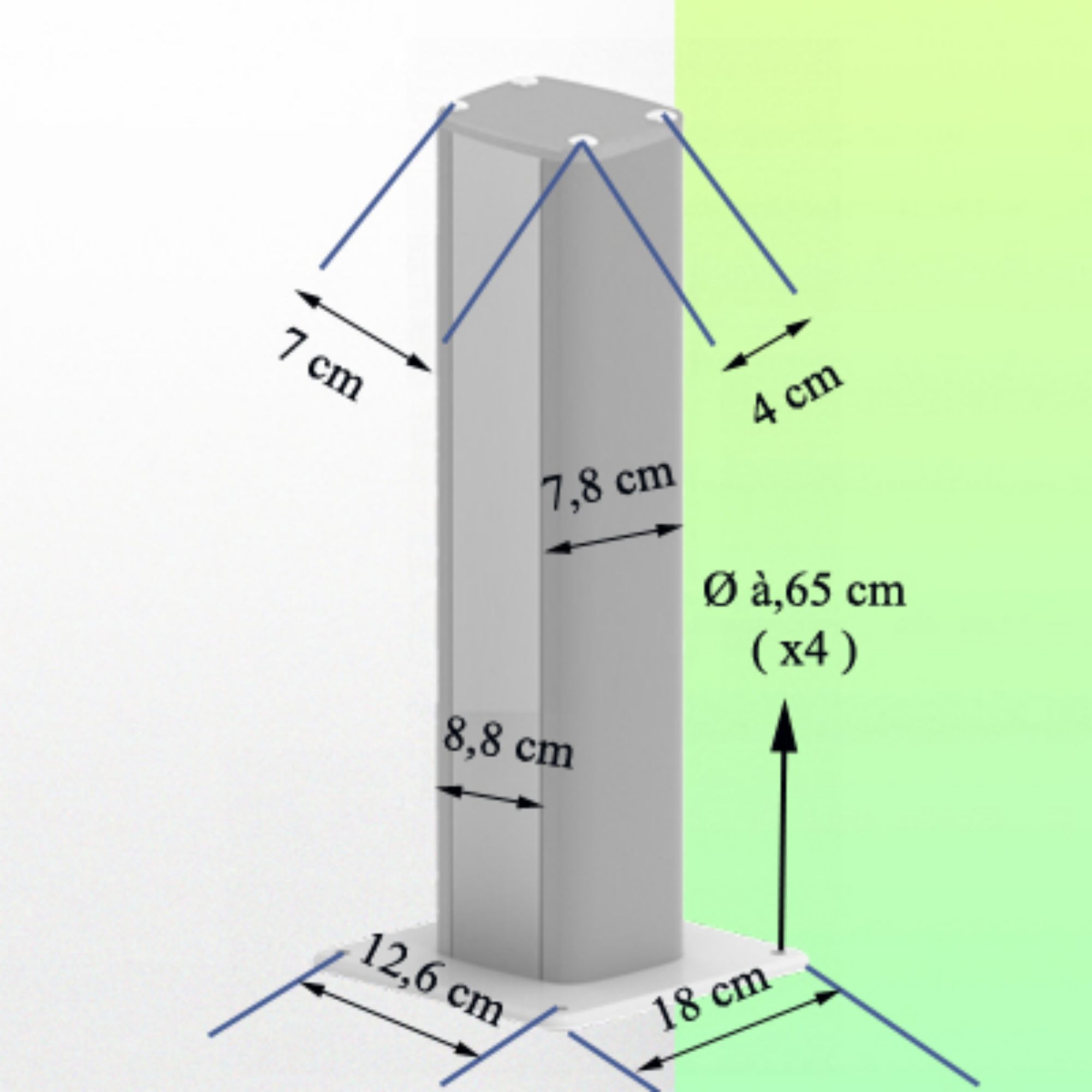

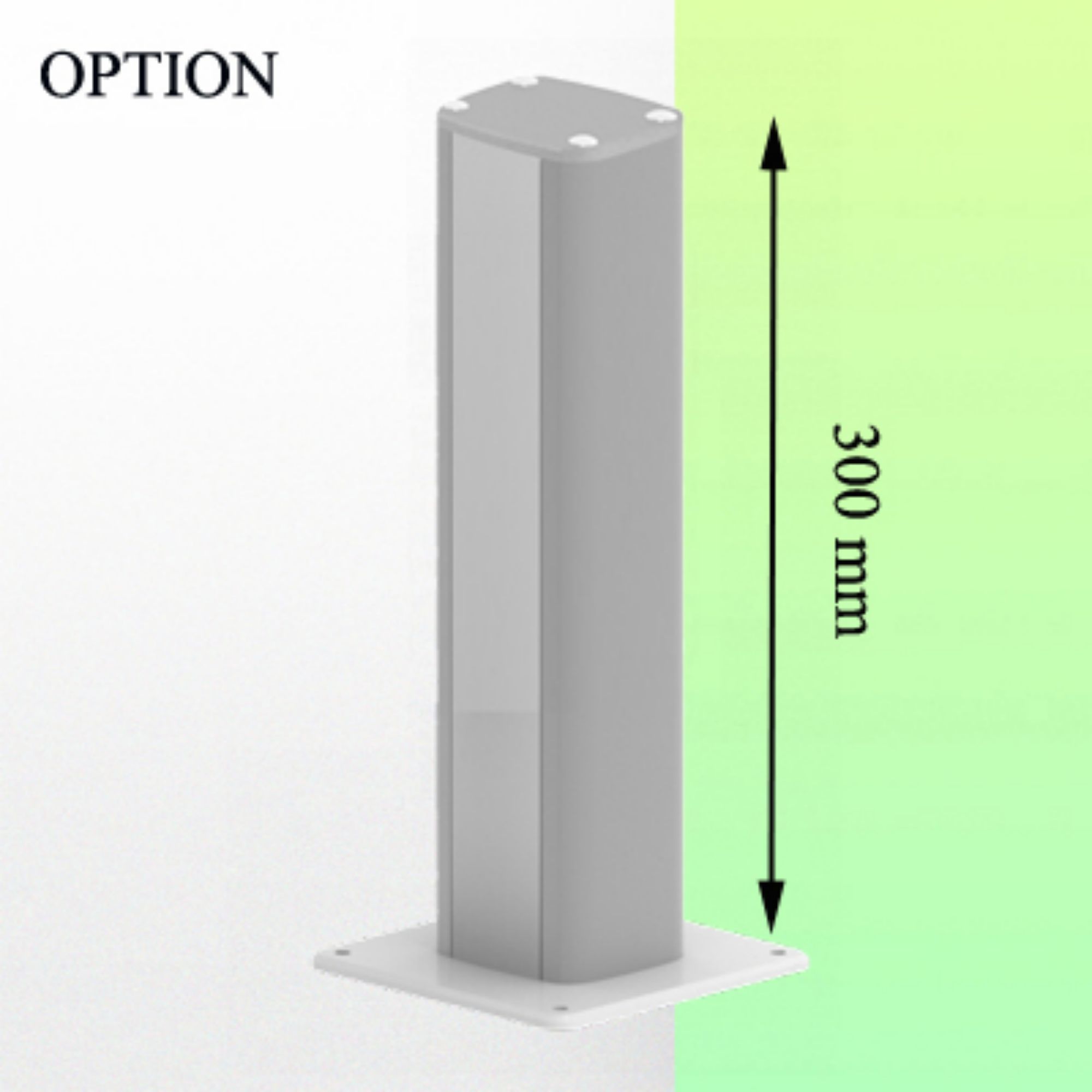

* Optional table column mounting available in a range of heights (500 - 300 mm mm).

* These columns can be easily cut to size.

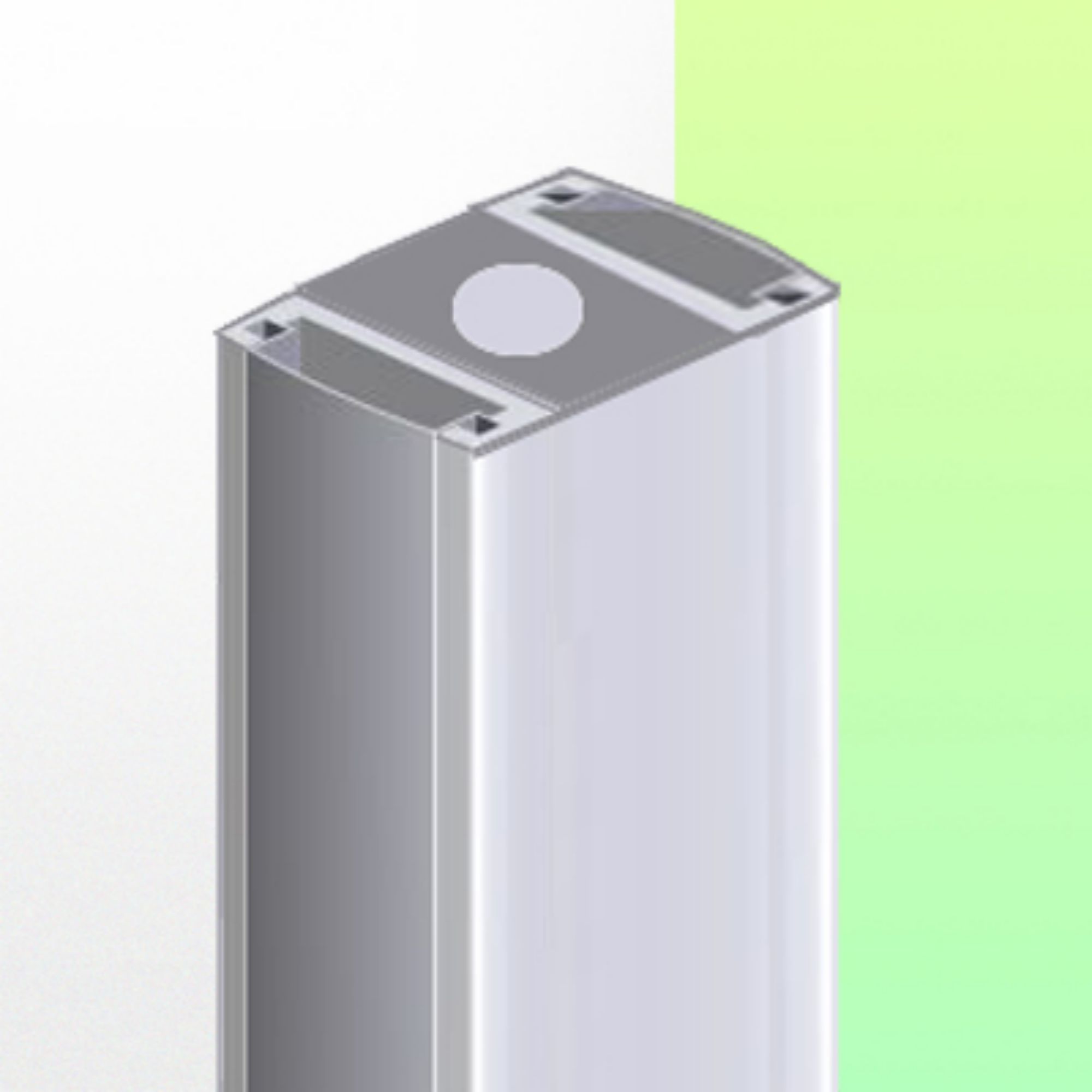

* All cables are also routed through the column

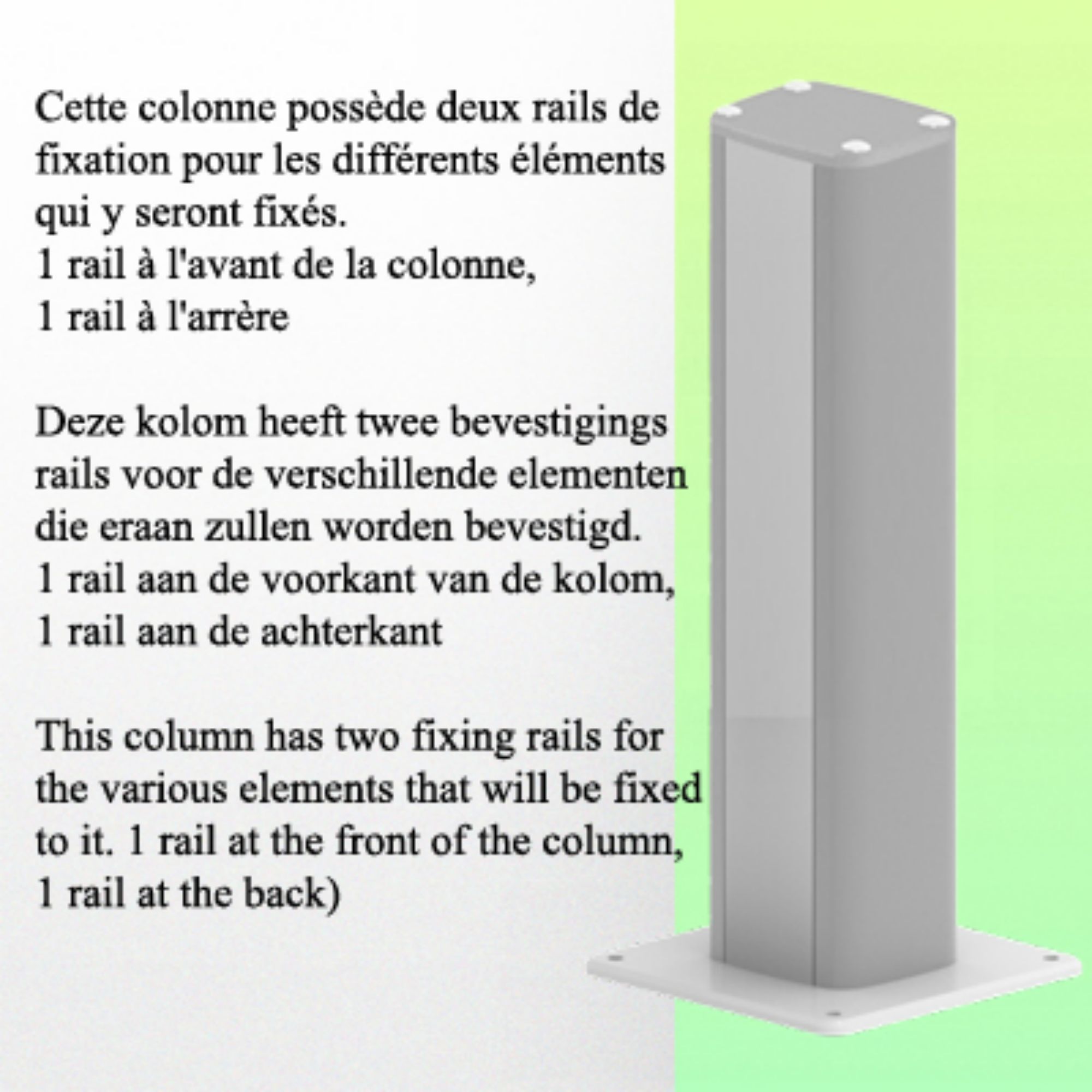

* This 2 x 300 mm Double Horizontal Arm simply slides into the column rail, adjusts to the required height and is fixed in place.

* It has no height adjustment

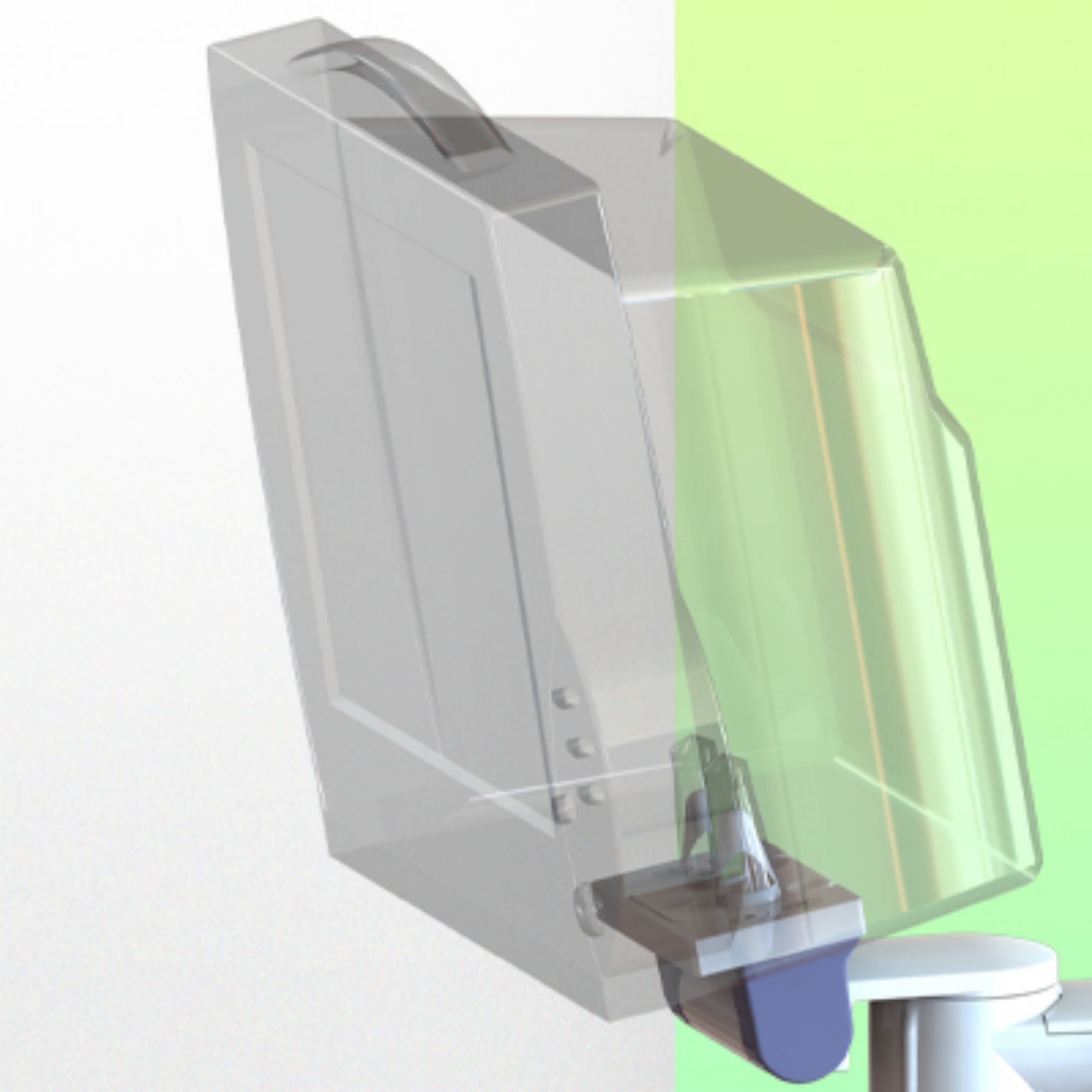

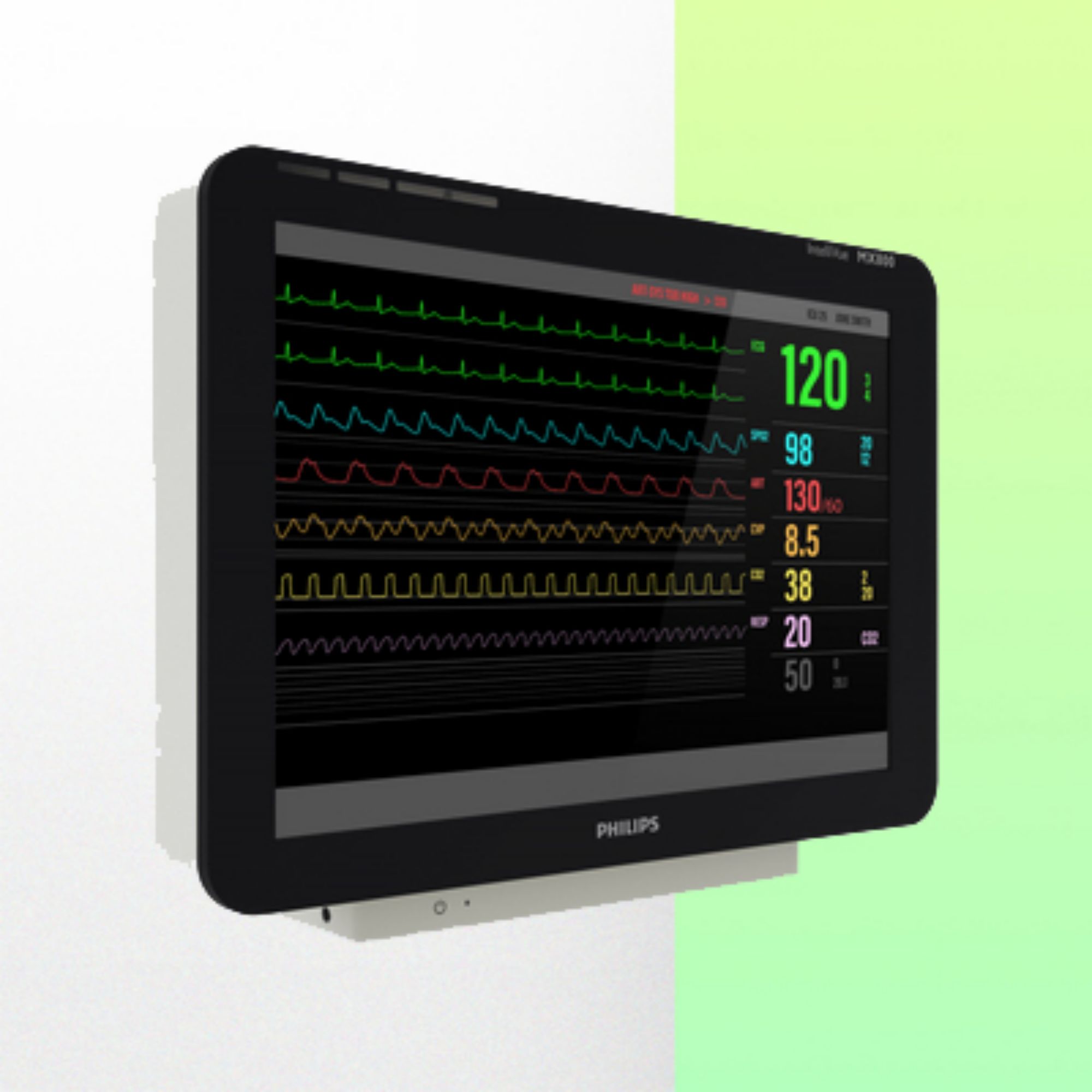

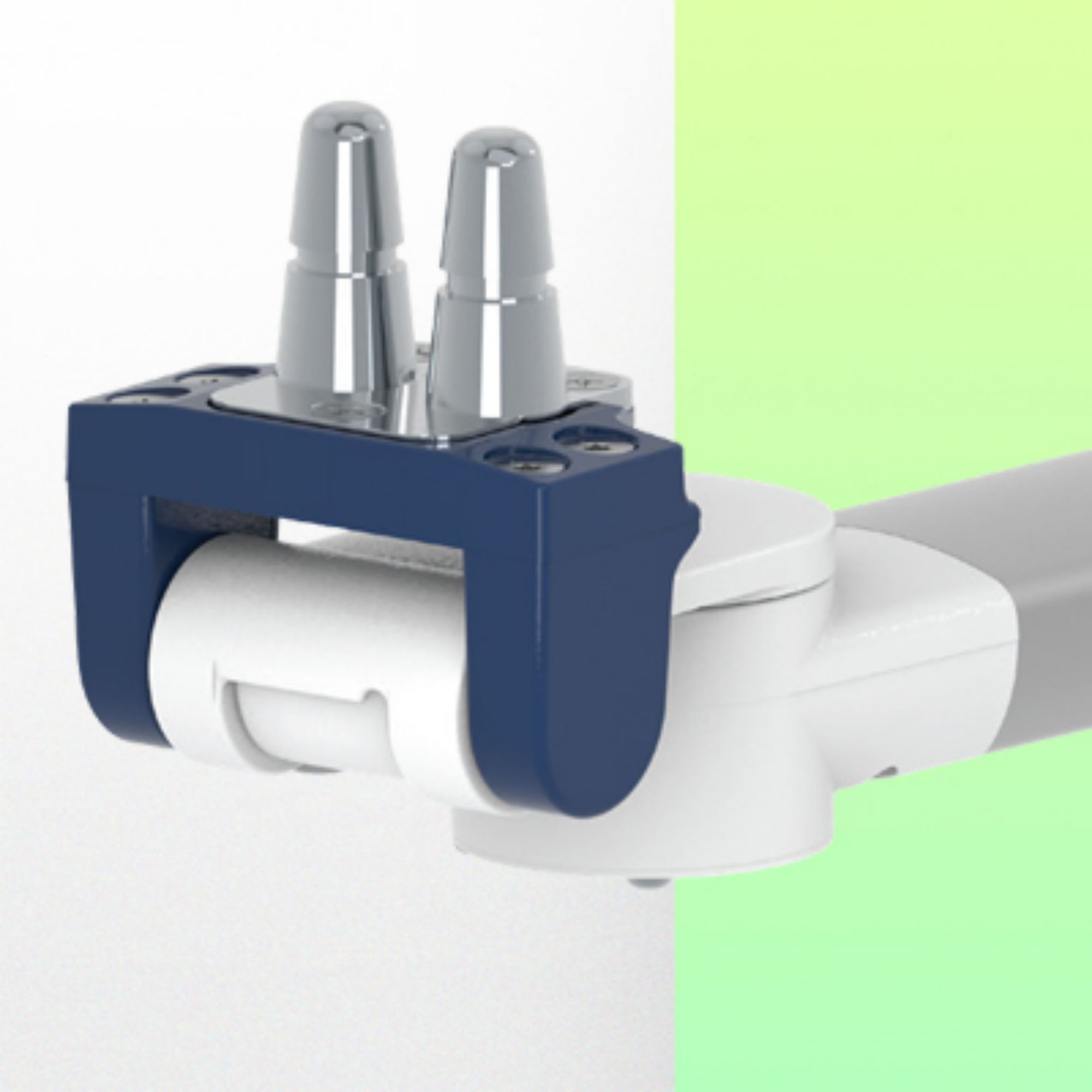

* The head of this arm complies with the mounting standard for Philips Intellivue Series monitors weighing up to 18 Kg.

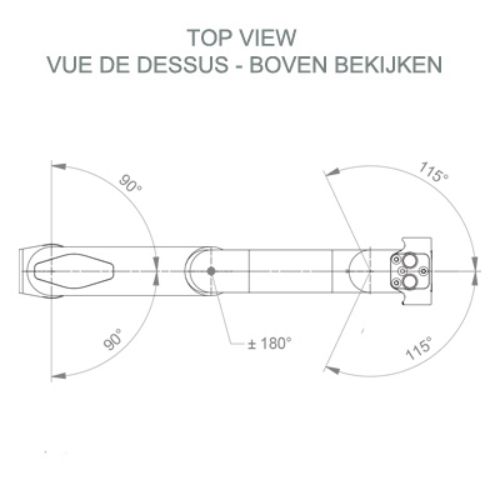

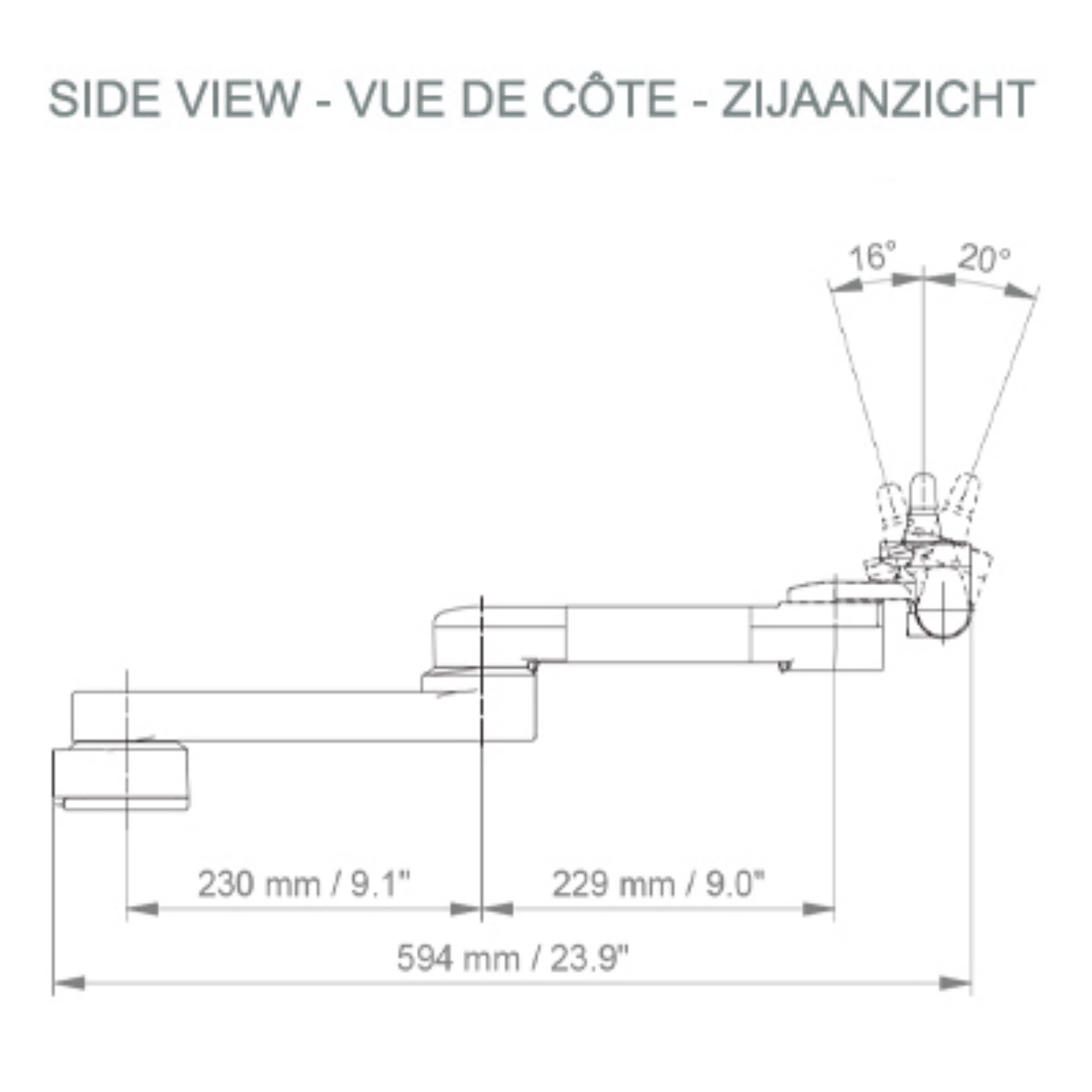

* Monitor tilt: 20° down and 12° up

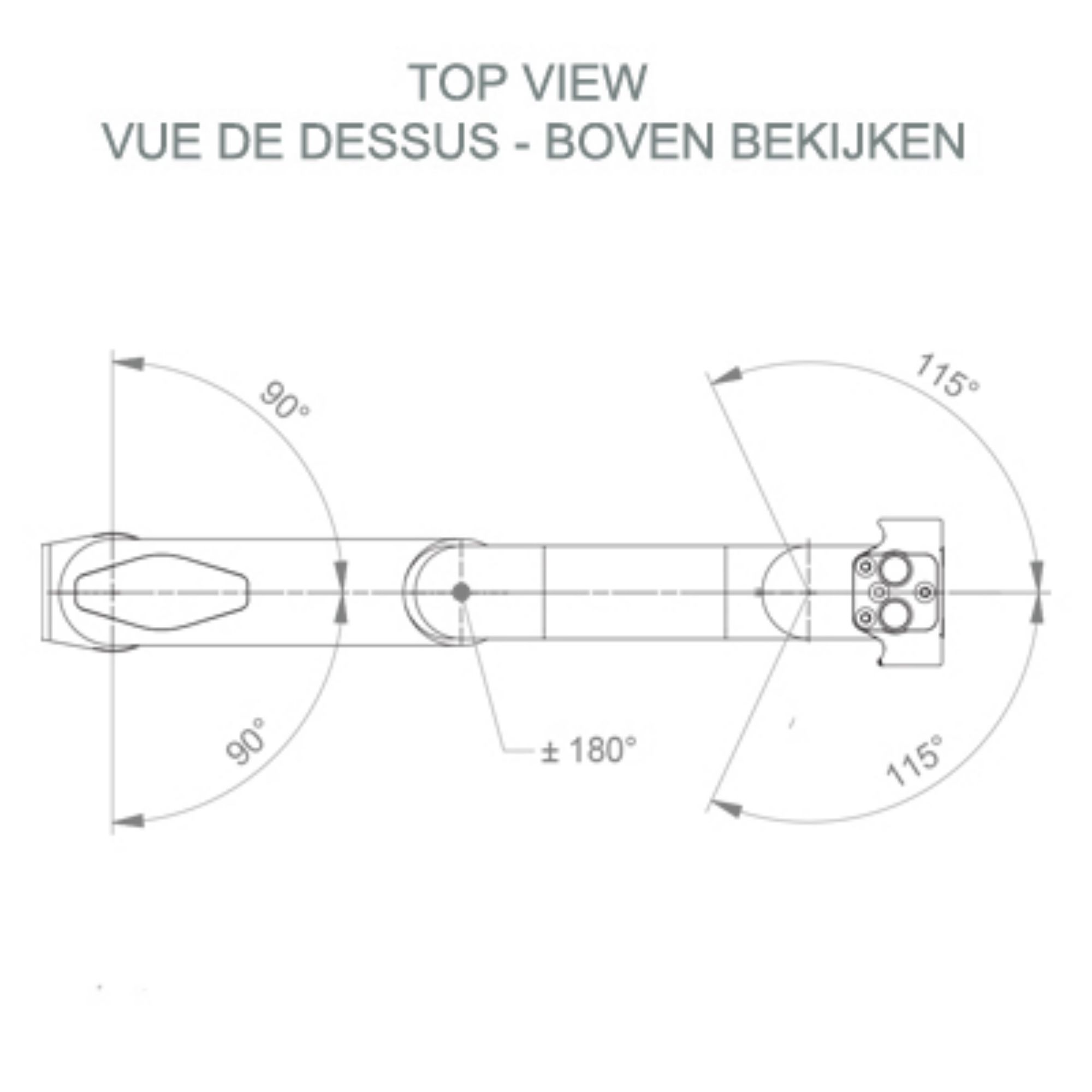

* Monitor rotation: 115° right, 115° left.

* Arm rotation: 90° right, 90° left.

* Total length: 594 mm

* Colour: RAL 5013 cobalt blue and RAL 9016 traffic white

* Warranty: 5 years
