363 mm Horizontal Medical Arm
for monitoring Philips Intellivue Séries
Din rail mount Vertical
Product number: WM 260.112 - 363 mm Horizontal Medical Arm
for monitoring Philips Intellivue Séries
Din rail mount Vertical
Part Number: WM 260.112
363 mm Horizontal Medical Arm
for monitoring Philips Intellivue Séries
Din rail mount Vertical

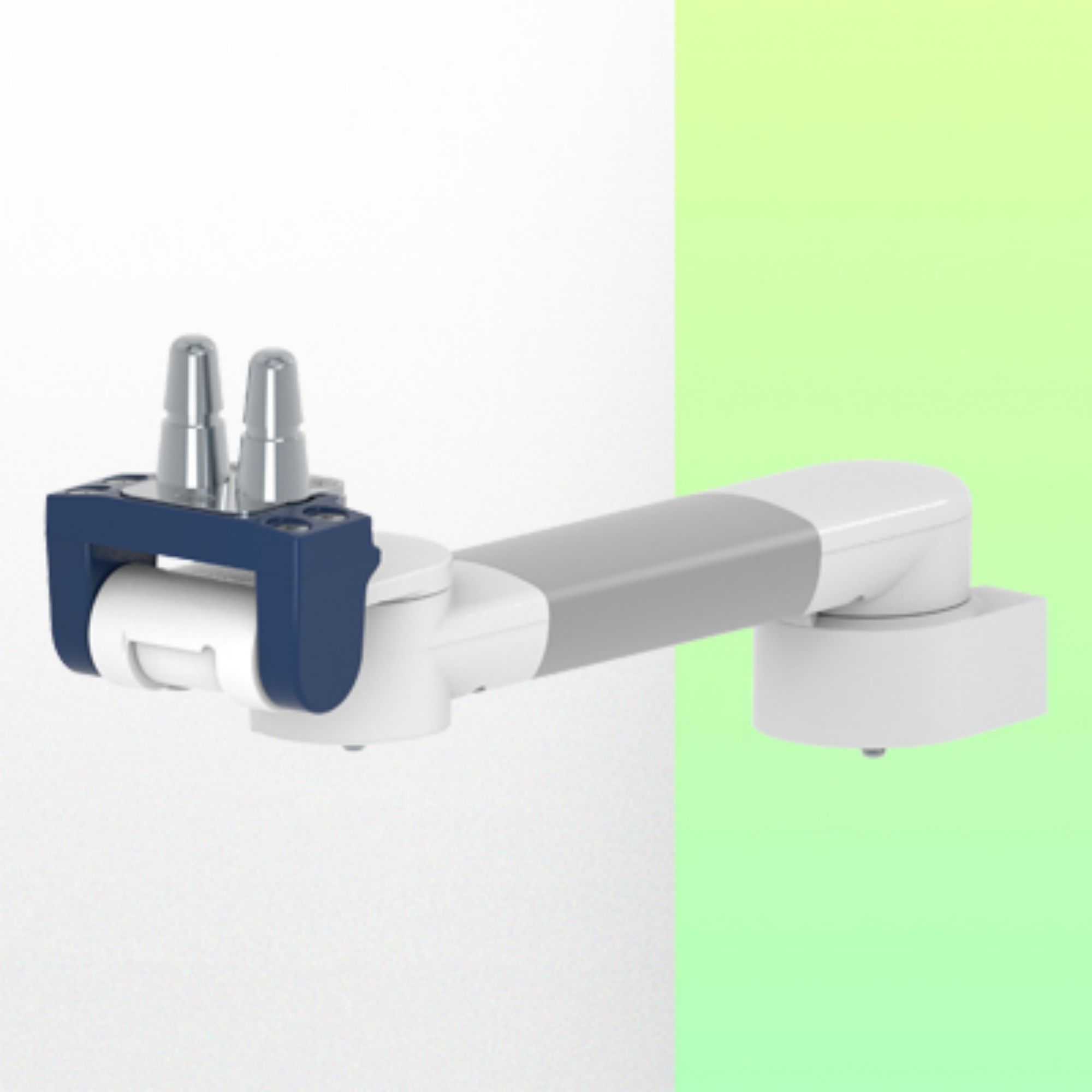

This 363 mm Horizontal Arm allows the monitor to be fixed, oriented and adjusted perfectly.
It is coated with an anti-microbial agent to ensure hygiene and cleanliness down to the smallest detail.
Its modern design has been specially developed for healthcare environments.
Technical specifications:

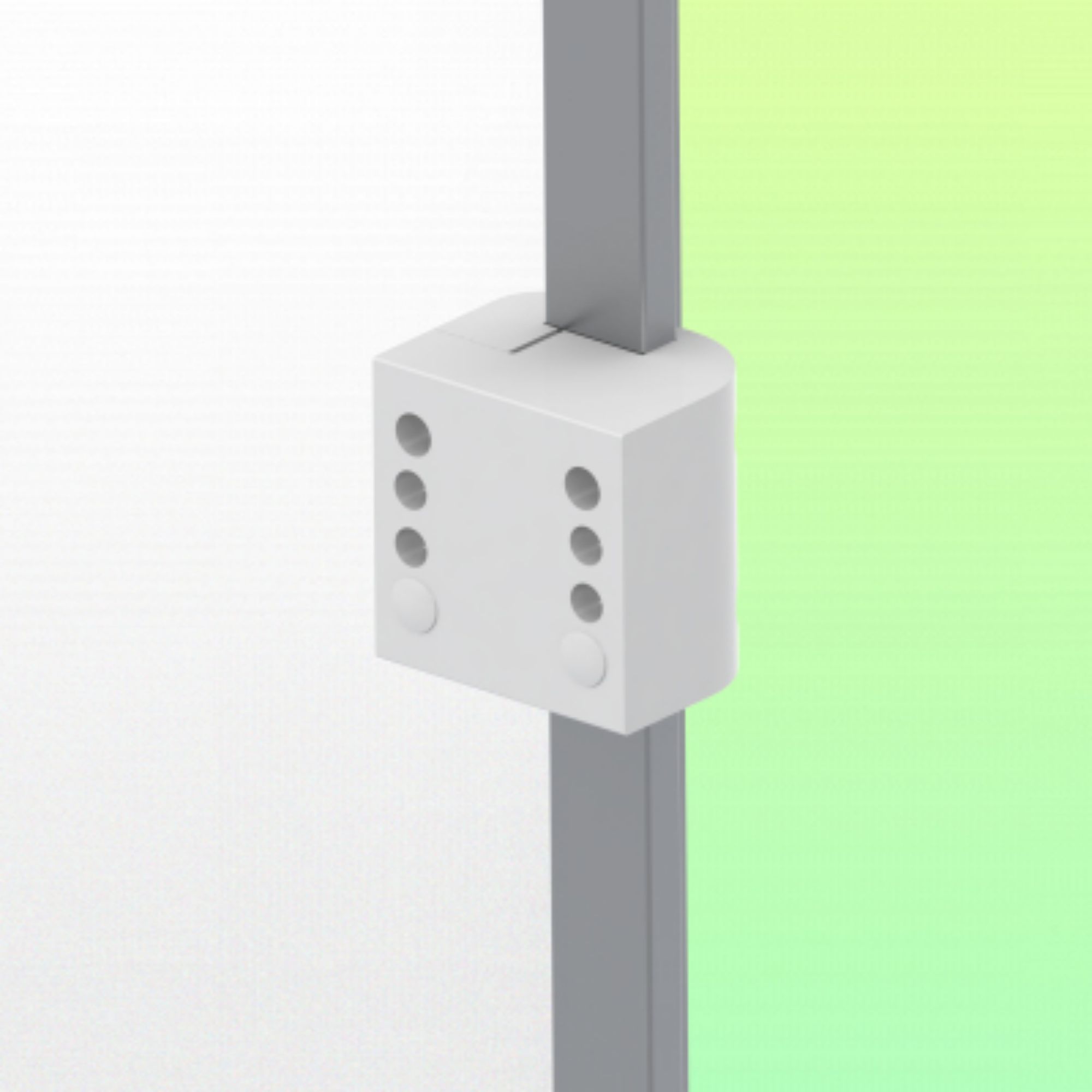

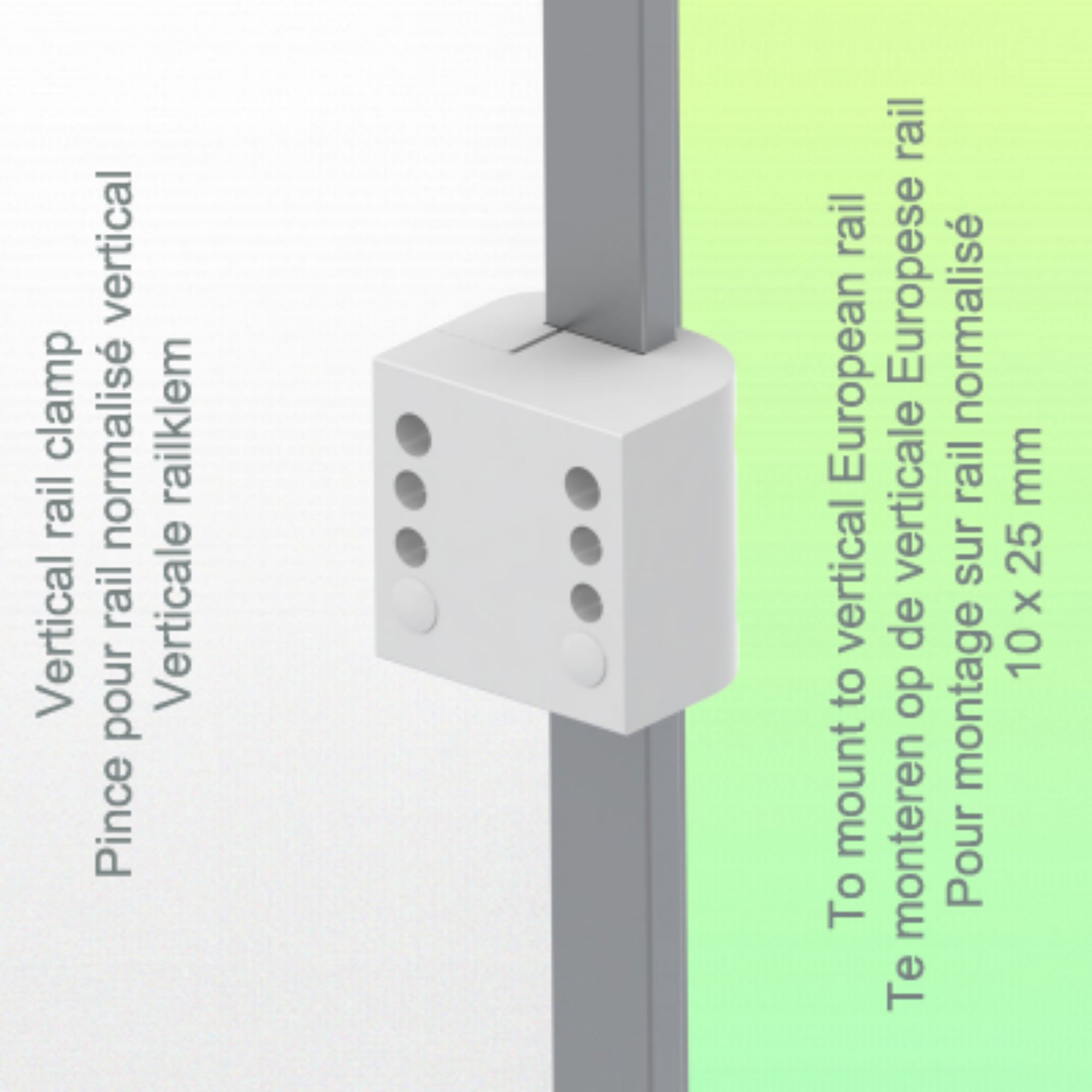

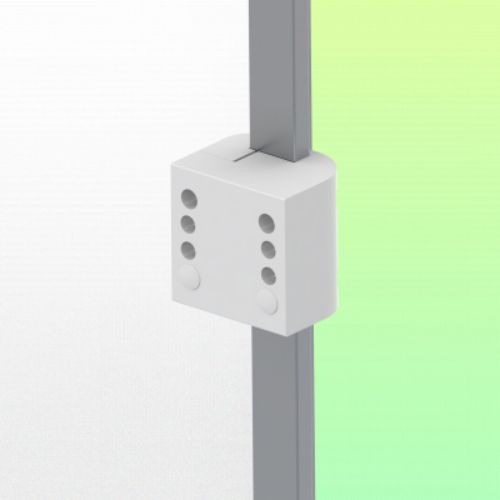

* Din Vertical Rail mounting Universal clamp included ( 10 x 25 mm, 8 x 35 mm, 10 x 30 mm, 10 x 50 mm )
* This medical arm simply attaches to the Din Vertical Rail and then adjusts to the rail and clamps with the two grips.
* There is no height adjustment.

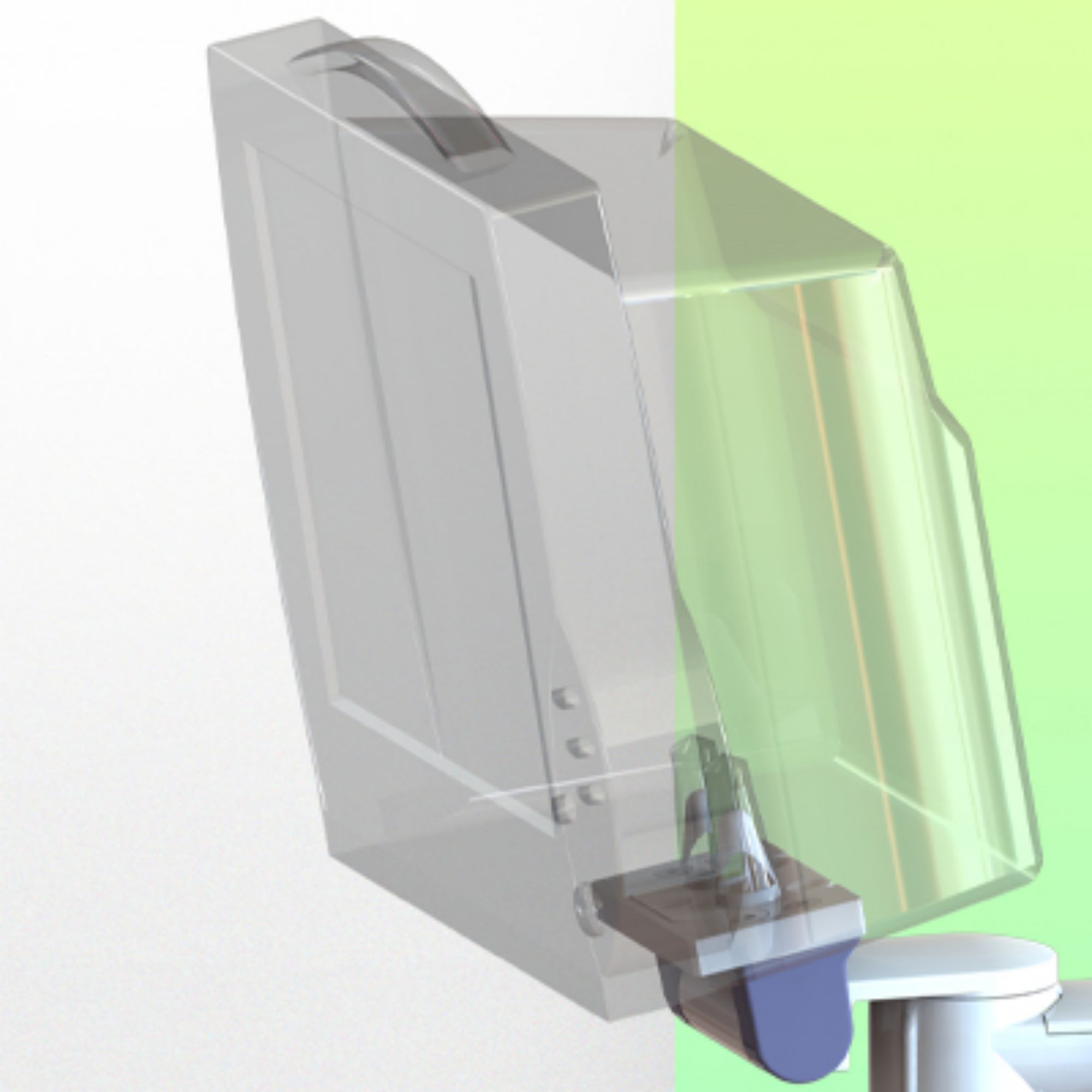

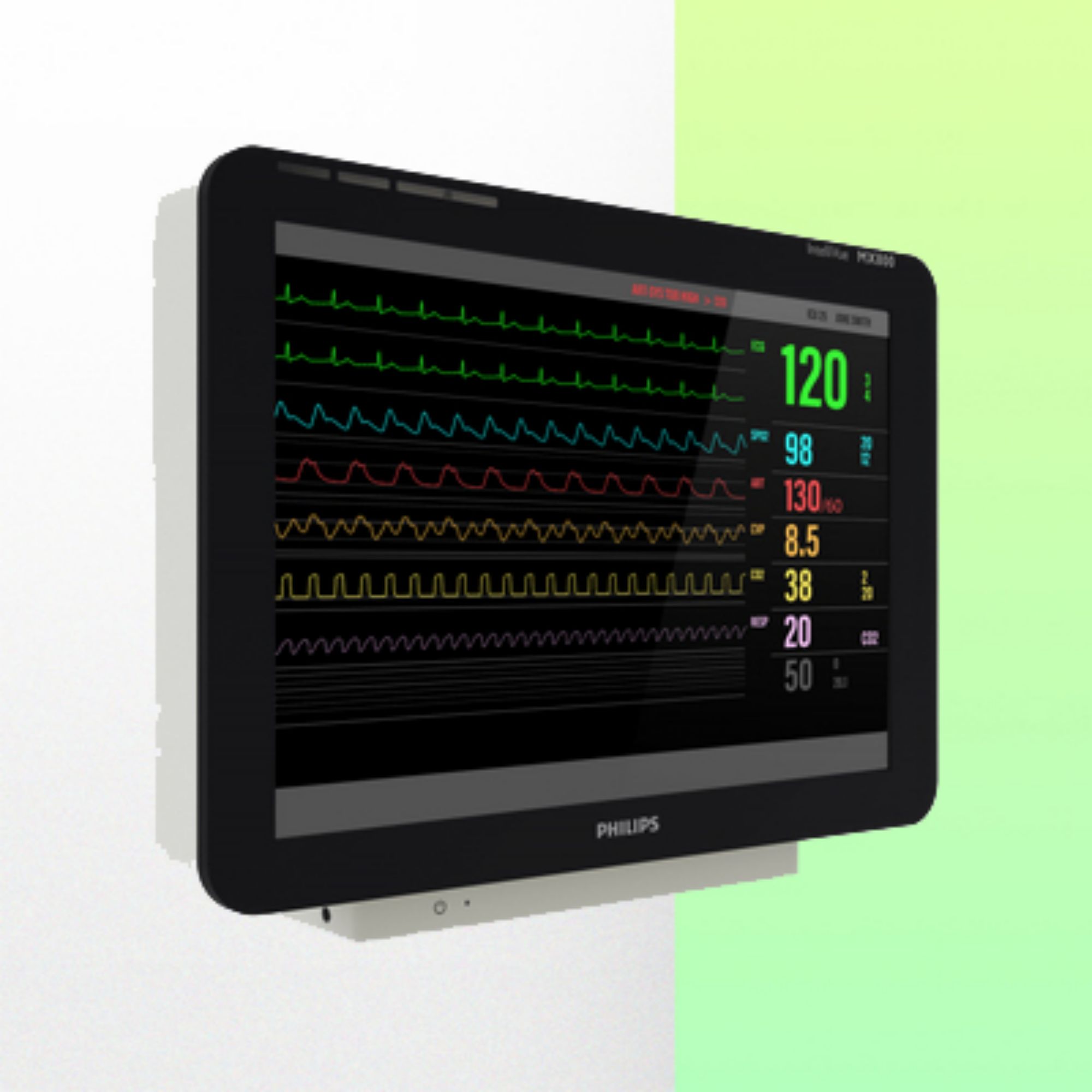

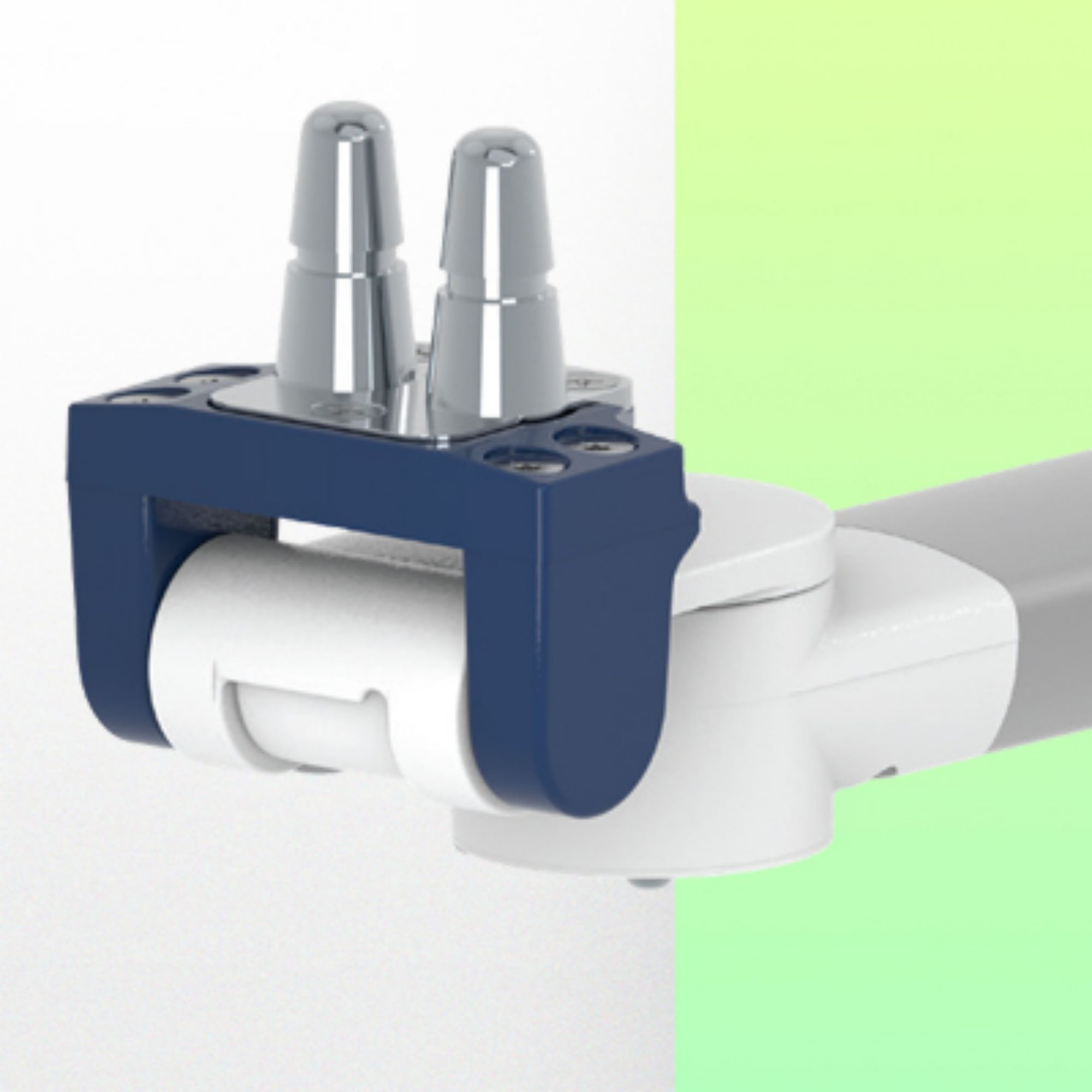

* The head of this arm complies with the mounting standard for Philips Intellivue Series monitors weighing up to 18 kg.

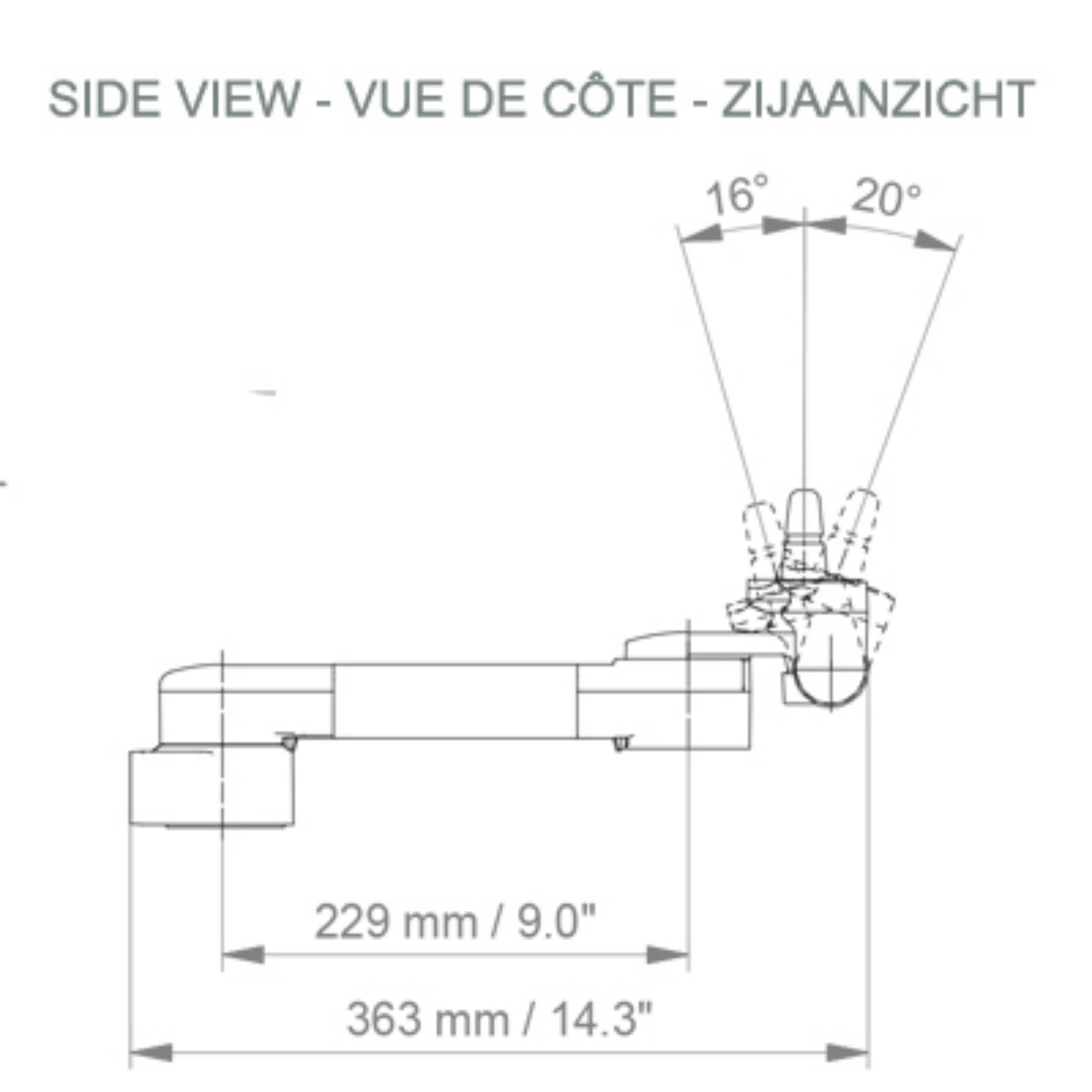

* Monitor tilt: 20° down and 12° up

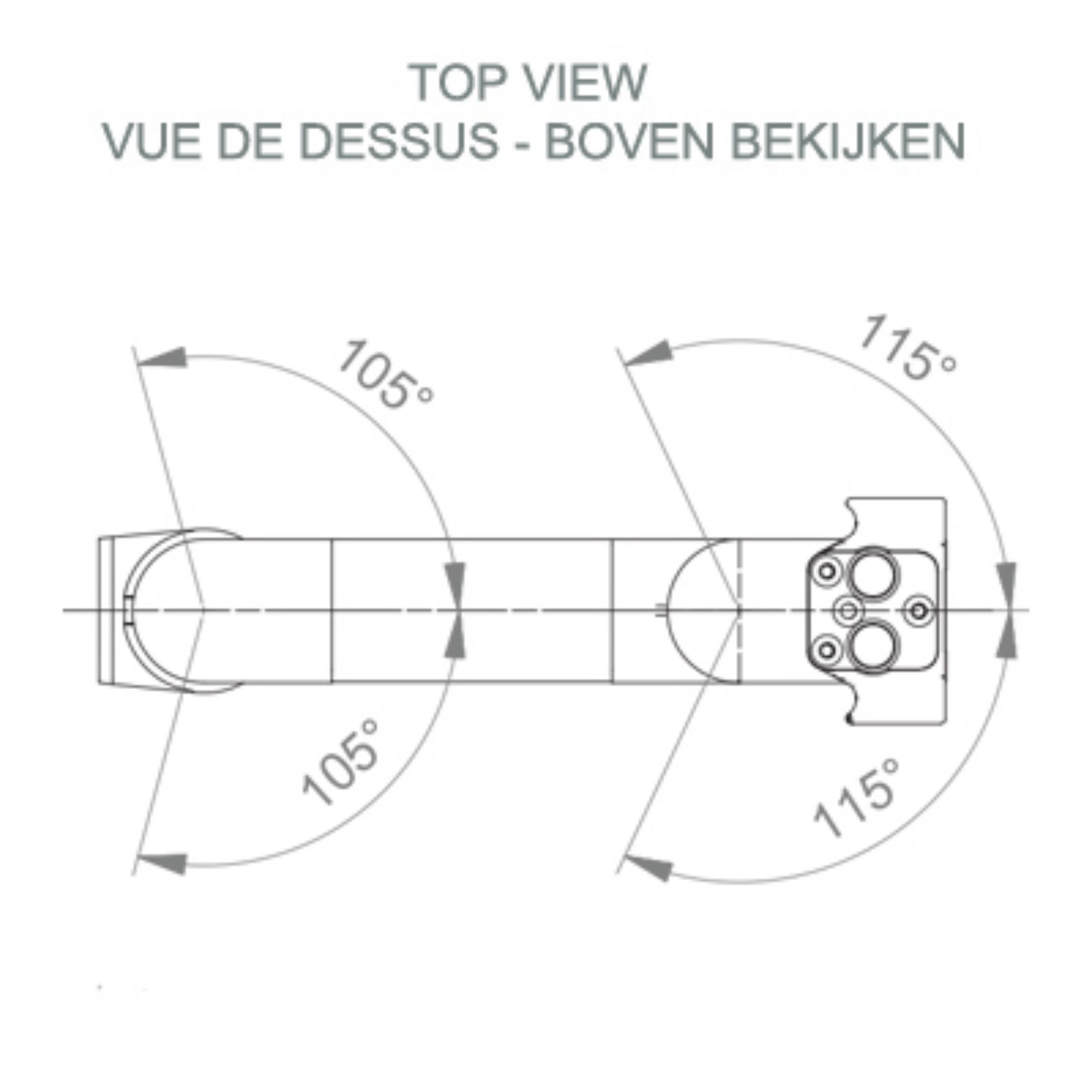

* Monitor rotation: 115° right, 115° left.
* Arm rotation: 105° right, 105° left.
* Total length: 363 mm
* Colour: RAL 5013 cobalt blue and RAL 9016 traffic white
* Warranty: 5 years
WM 260.112
Cobalt blue
& traffic white
18 Kg
Product packaging
on request
5 Year Warranty
