2 x 300 mm swivelling Horizontal Medical Arm

for monitoring Philips Intellivue Séries

(Heavy Duty applications up to 18 Kg)

Vertical Din rail mounting

Product number: WM 260.114 - 2 x 300 mm swivelling Horizontal Medical Arm

for monitoring Philips Intellivue Séries

(Heavy Duty applications up to 18 Kg)

Vertical Din rail mounting

Product sheet PDF

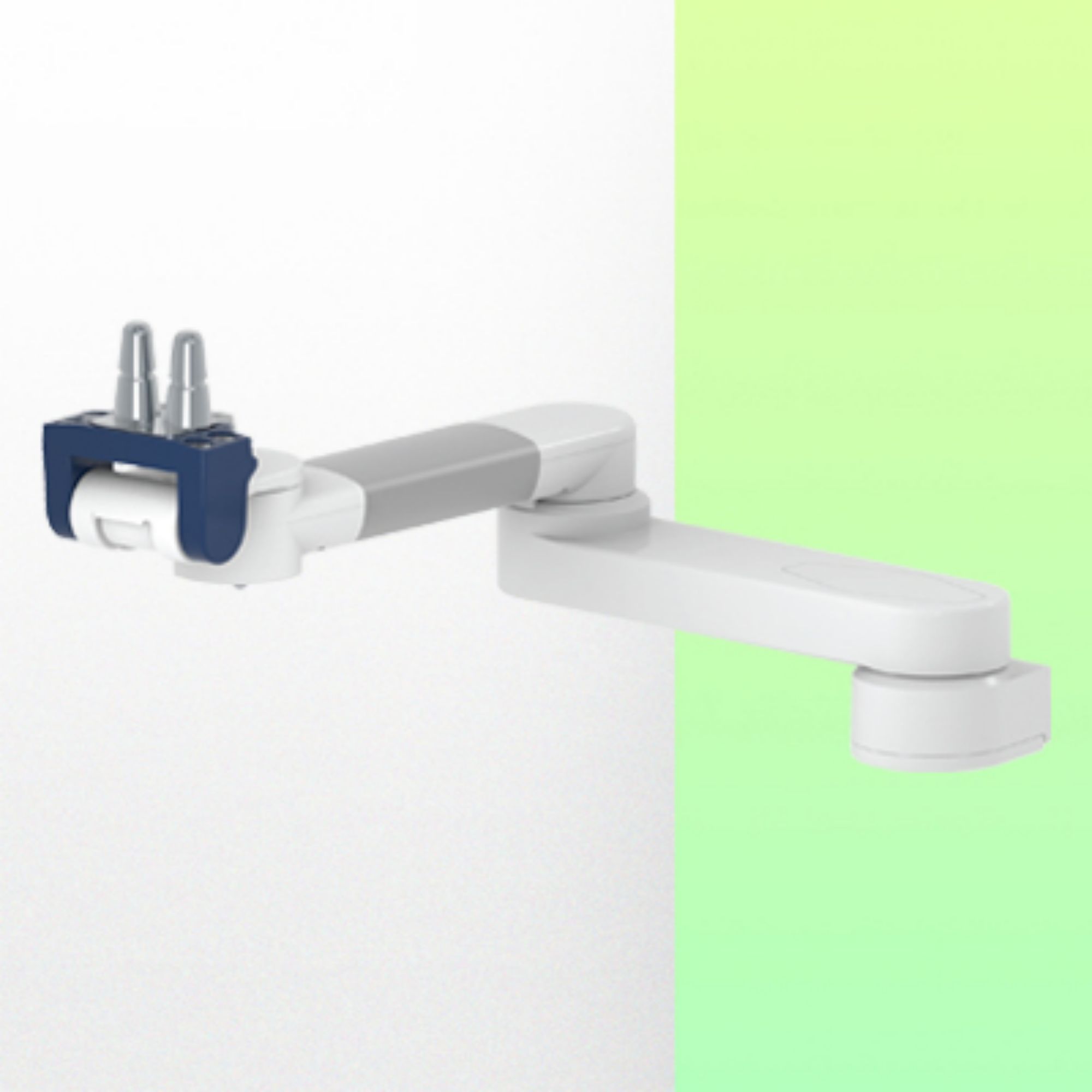

This dual 2 x 300 mm Horizontal Arm allows the monitor to be fixed, oriented and adjusted perfectly.

It is coated with an anti-microbial agent for hygiene and cleaning down to the smallest detail.

Its modern design has been specially developed for healthcare environments.

Technical specifications:

* Integrated cable management

* For heavy-duty applications

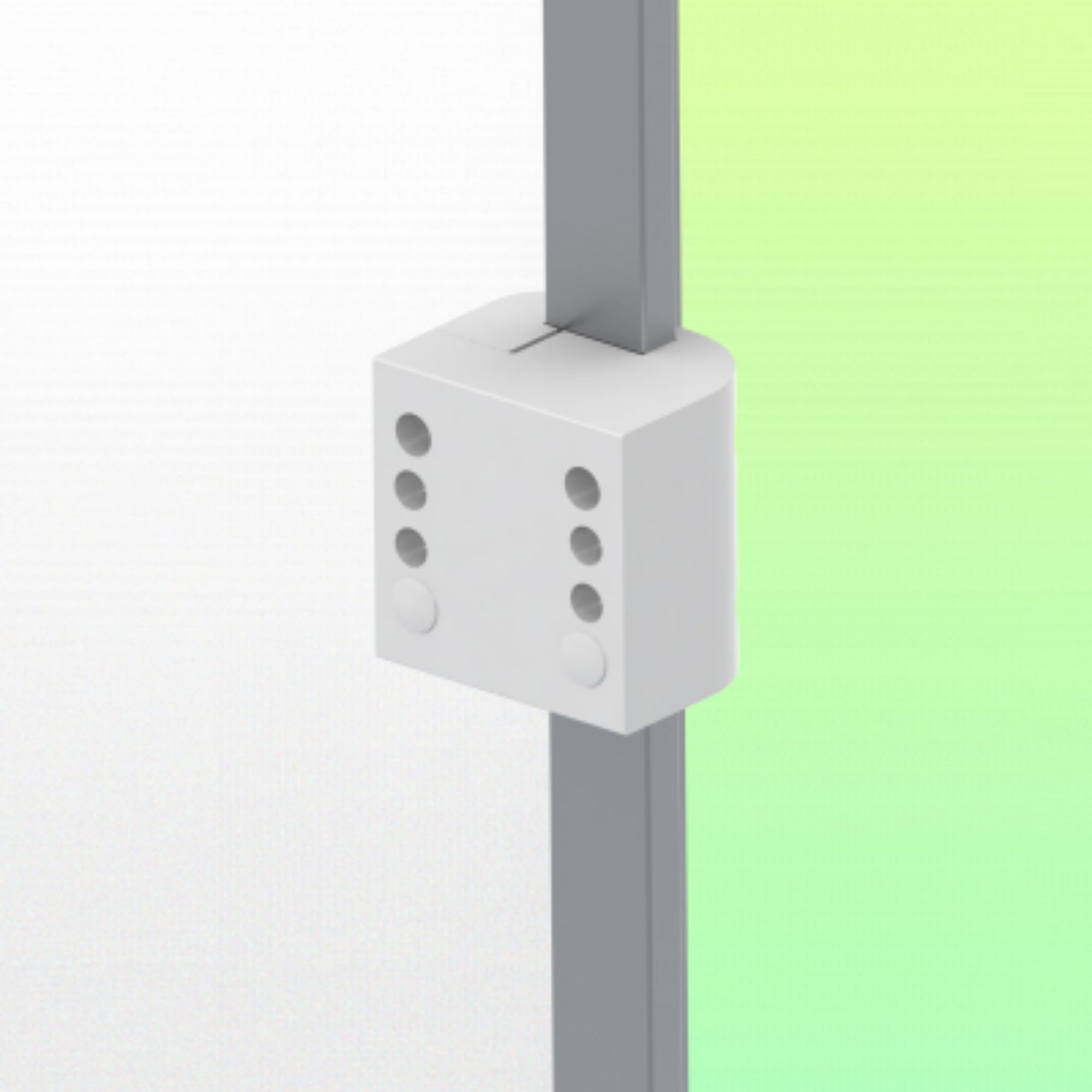

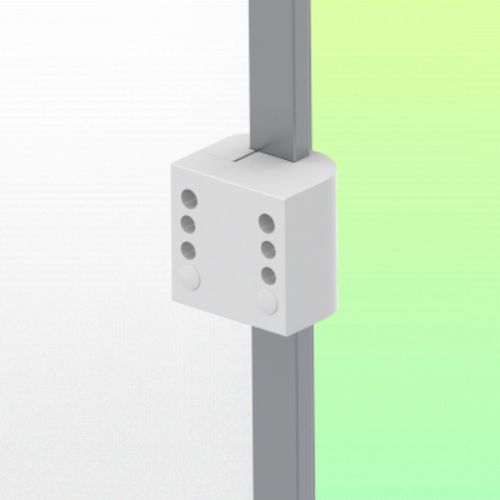

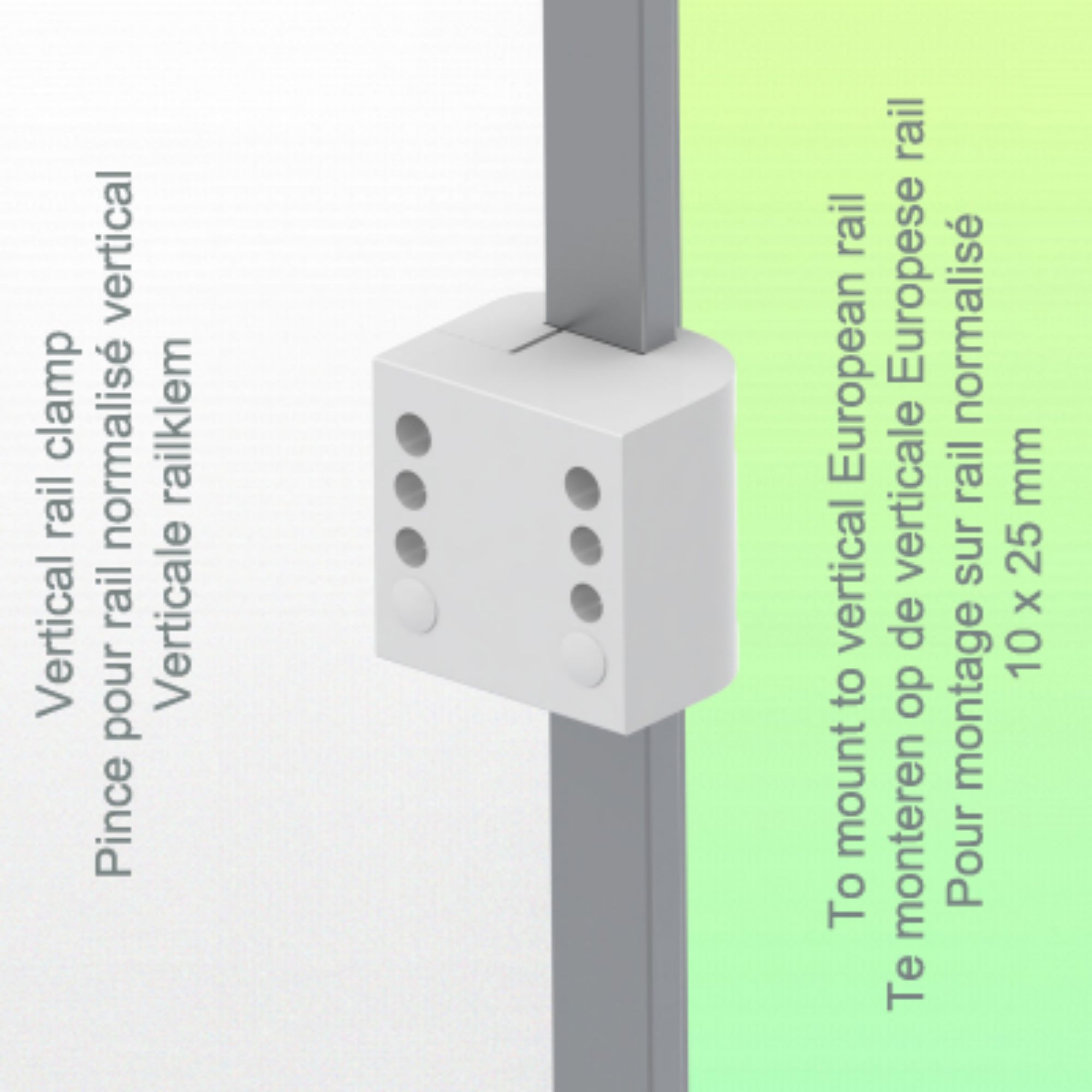

* Mounted on Din Vertical Rail Universal clamp included ( 10 x 25 mm, 8 x 35 mm, 10 x 30 mm, 10 x 50 mm )

* This medical arm simply attaches to the Din Vertical Rail, then adjusts to the rail and clamps with the two grips.

* There is no height adjustment.

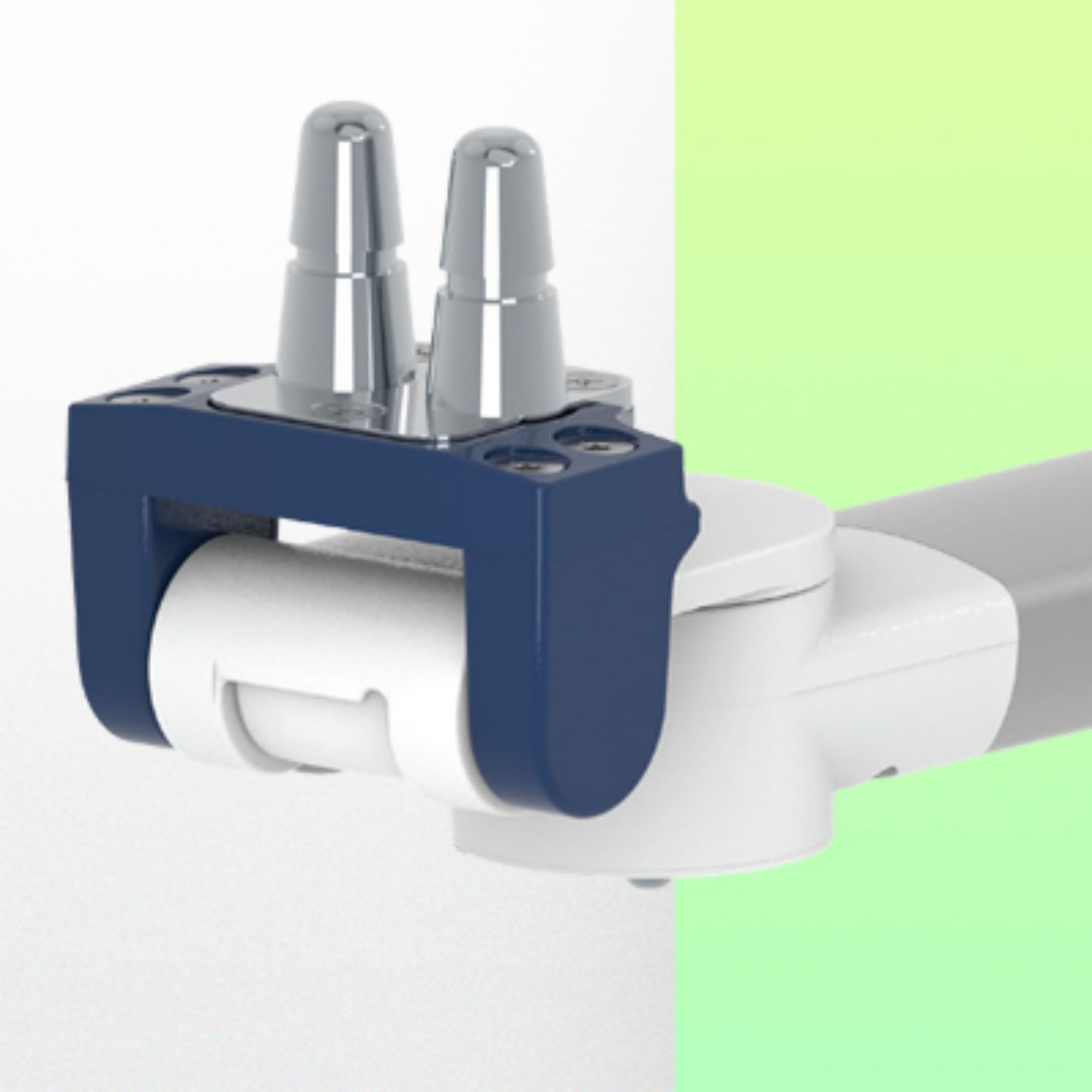

* The head of this arm complies with the mounting standard for Philips Intellivue Series monitors weighing up to 18 kg.

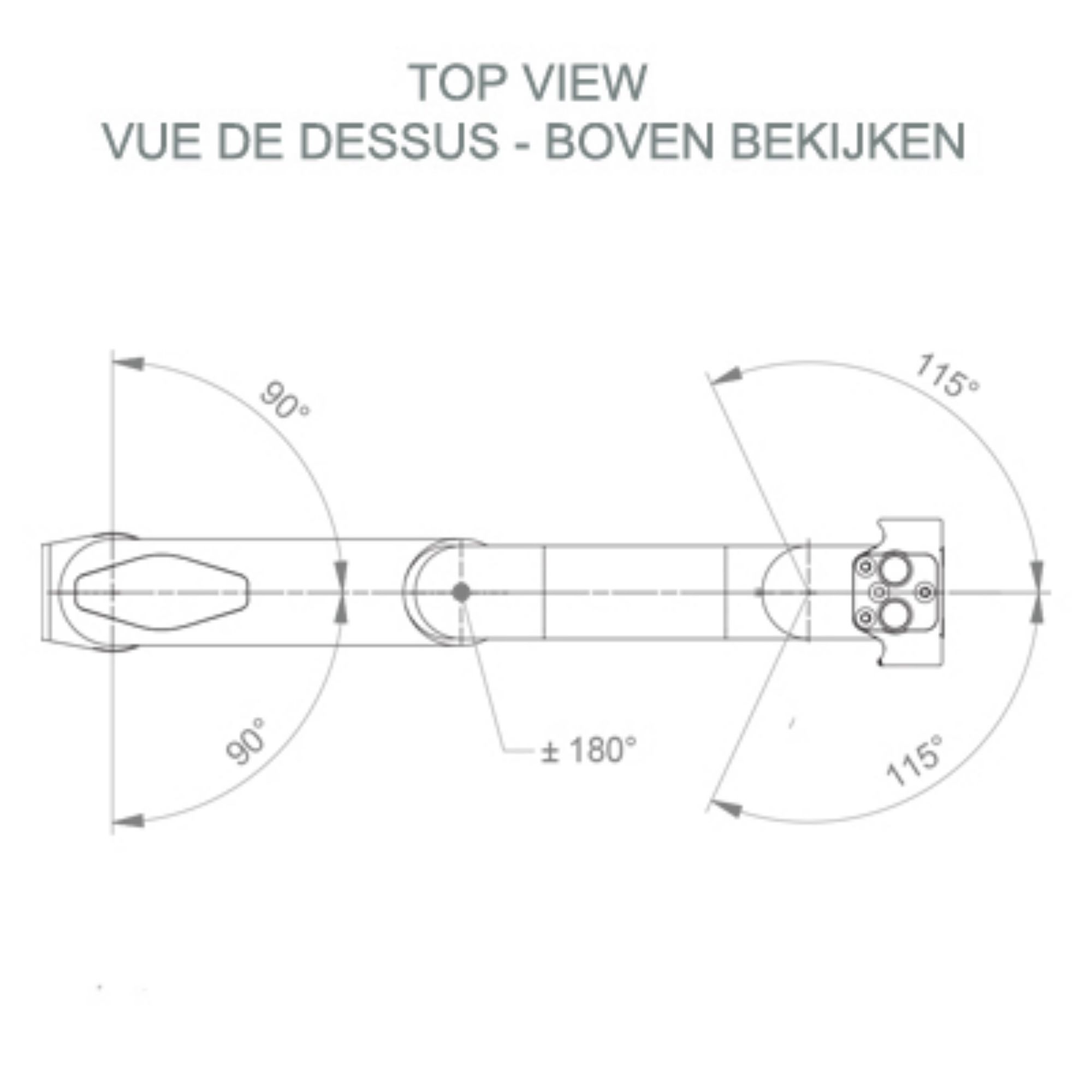

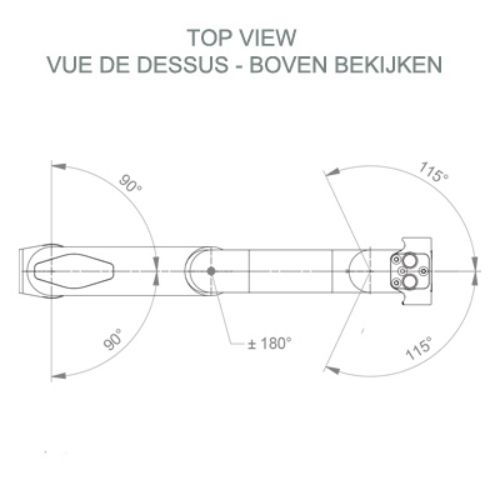

* Monitor tilt: 20° down and 12° up

* Monitor rotation: 115° right, 115° left.

* Arm rotation: 90° right, 90° left.

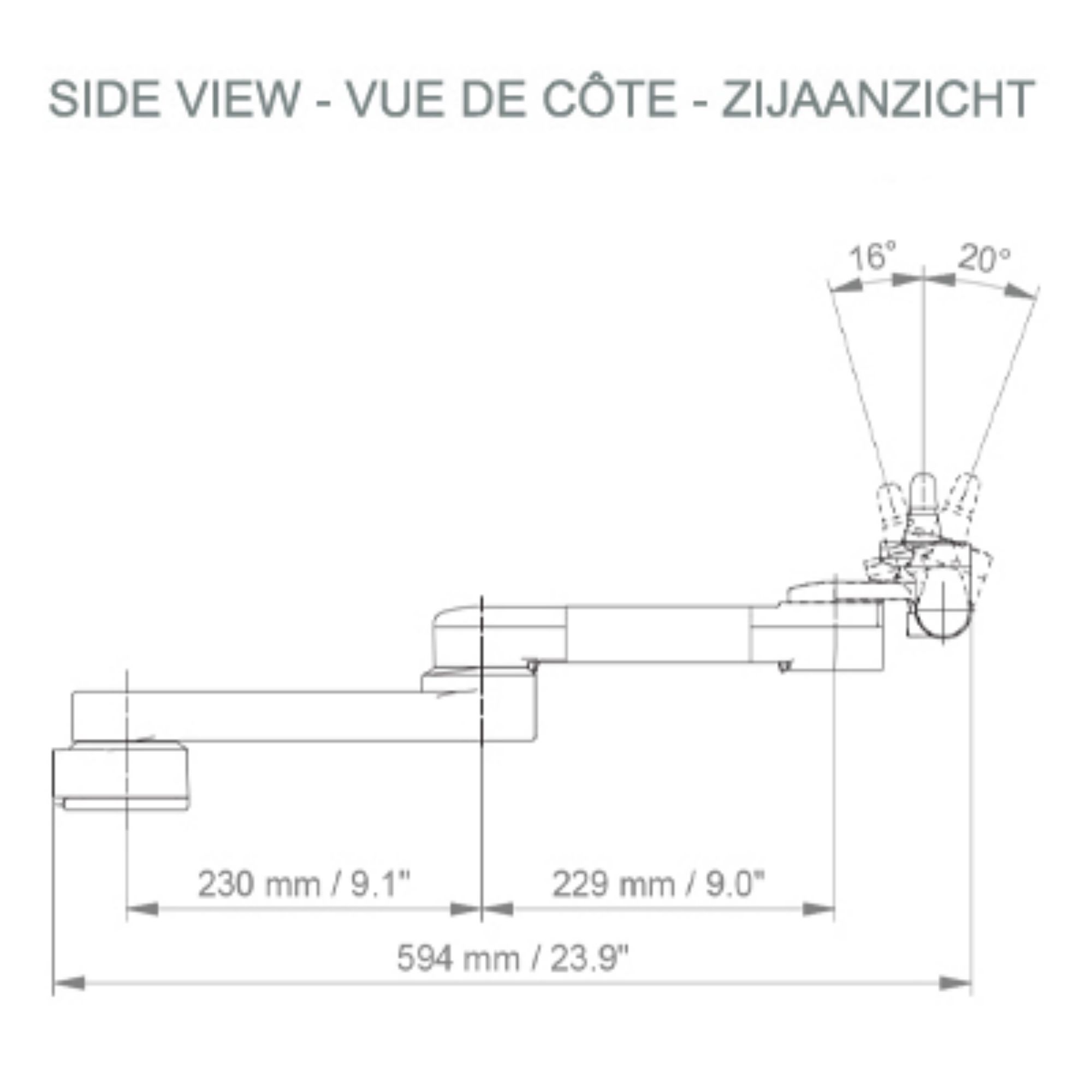

* Total length: 594 mm

* Colour: RAL 5013 cobalt blue and RAL 9016 traffic white

* Warranty: 5 years
