363 mm Horizontal Medical Arm

for monitoring Philips Intellivue Séries

Mounting on Amico medical device pendants and headwalls.

Product number: WM 260.124 - 363 mm Horizontal Medical Arm

for monitoring Philips Intellivue Séries

Mounting on Amico medical device pendants and headwalls.

Product sheet PDF

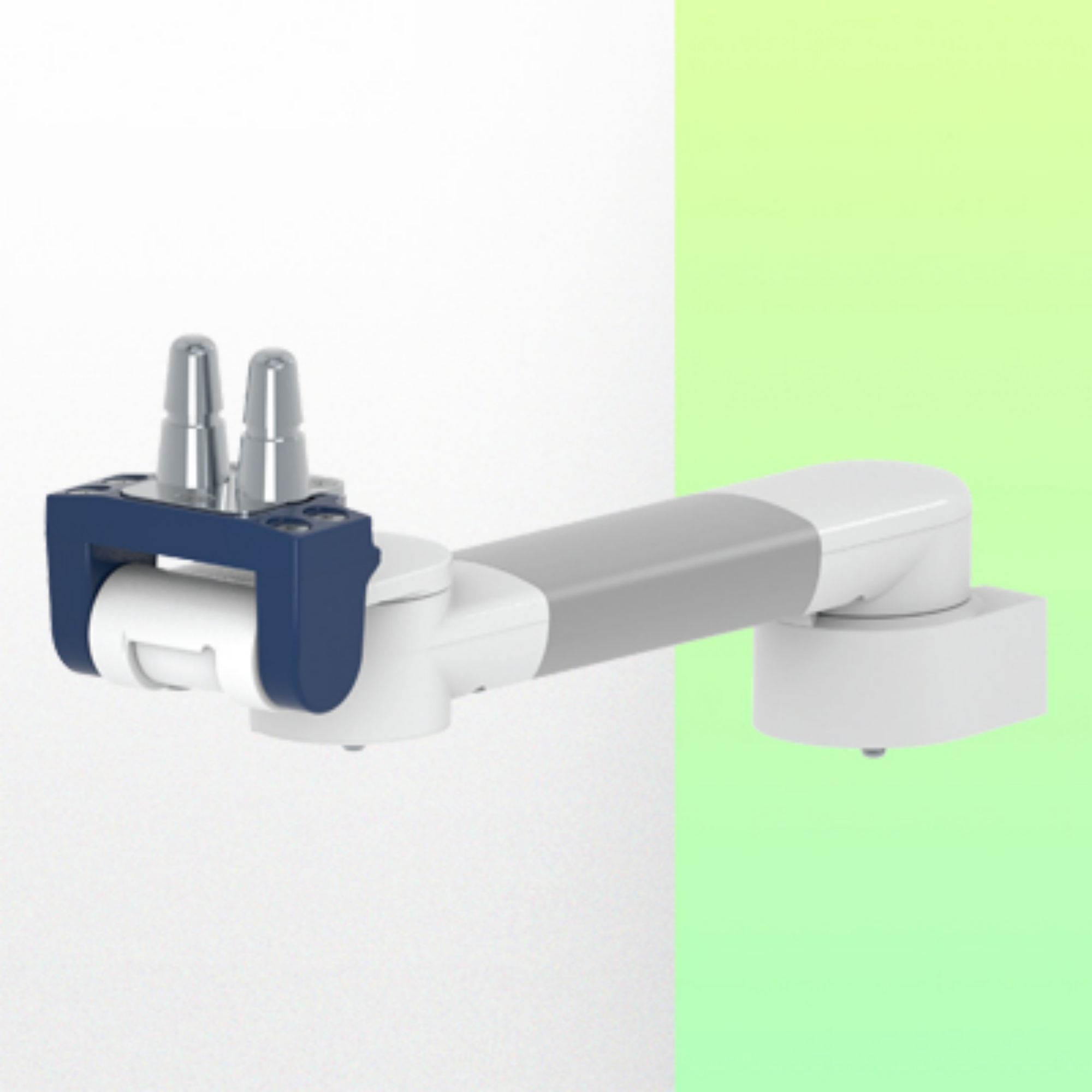

This 363 mm Horizontal Arm allows the monitor to be fixed, oriented and adjusted perfectly.

It is coated with an anti-microbial agent to ensure hygiene and cleanliness down to the smallest detail.

Its modern design has been specially developed for healthcare environments.

Technical specifications:

* Integrated cable management

* Mounting on Amico medical device pendants and headwalls

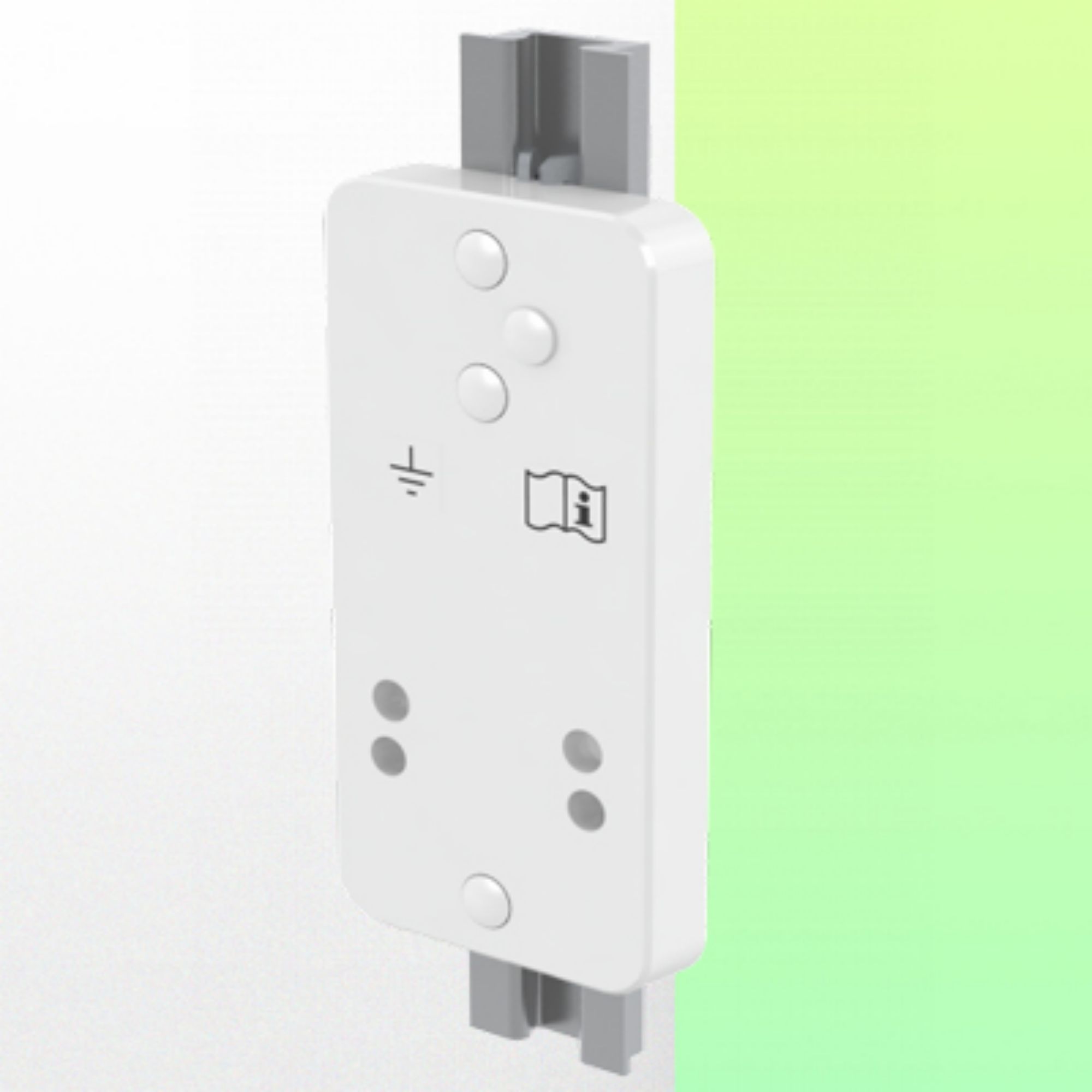

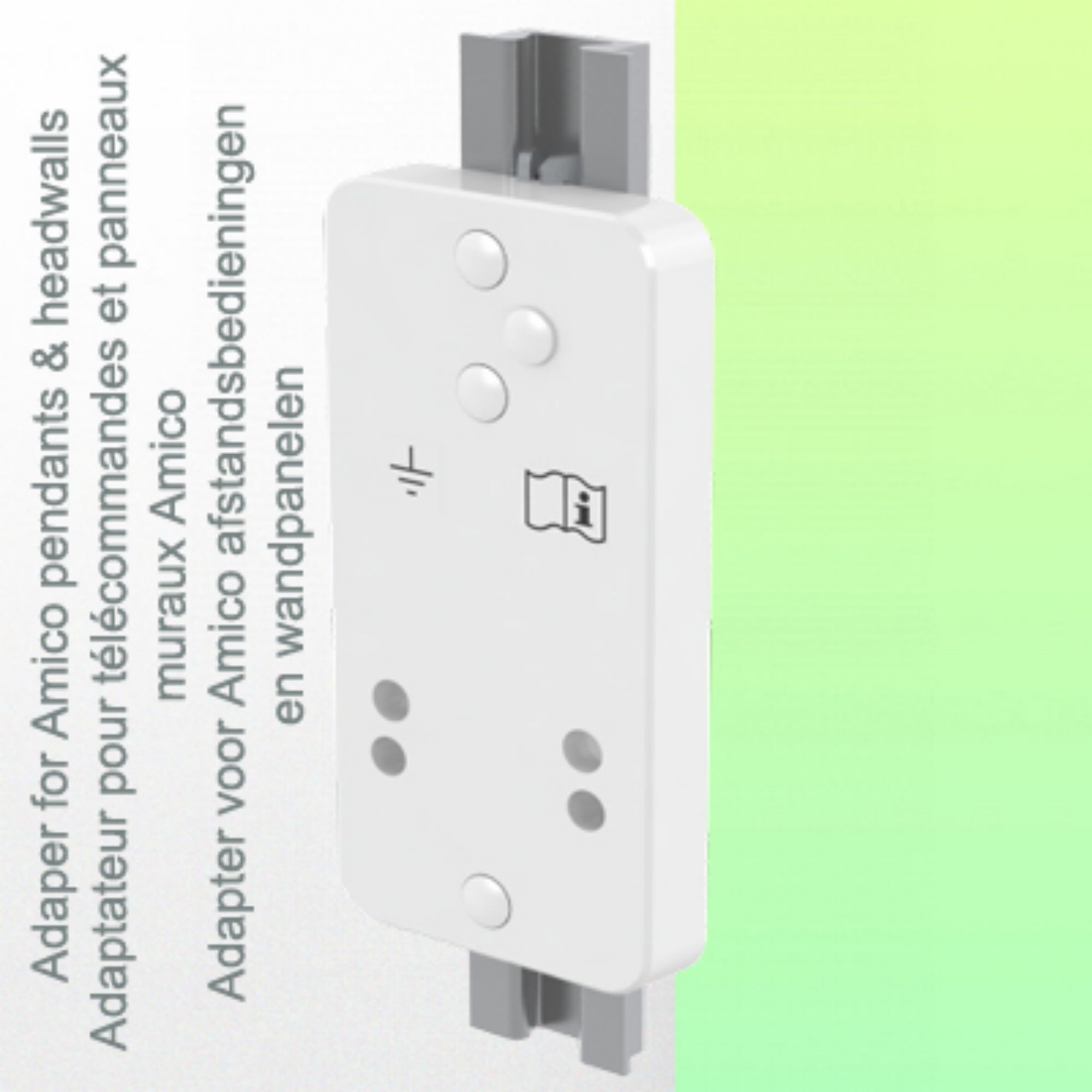

* This 363 mm arm simply attaches to the Amico unit using the adapter and adjusts to the desired height and fixed.

* It has no height adjustment.

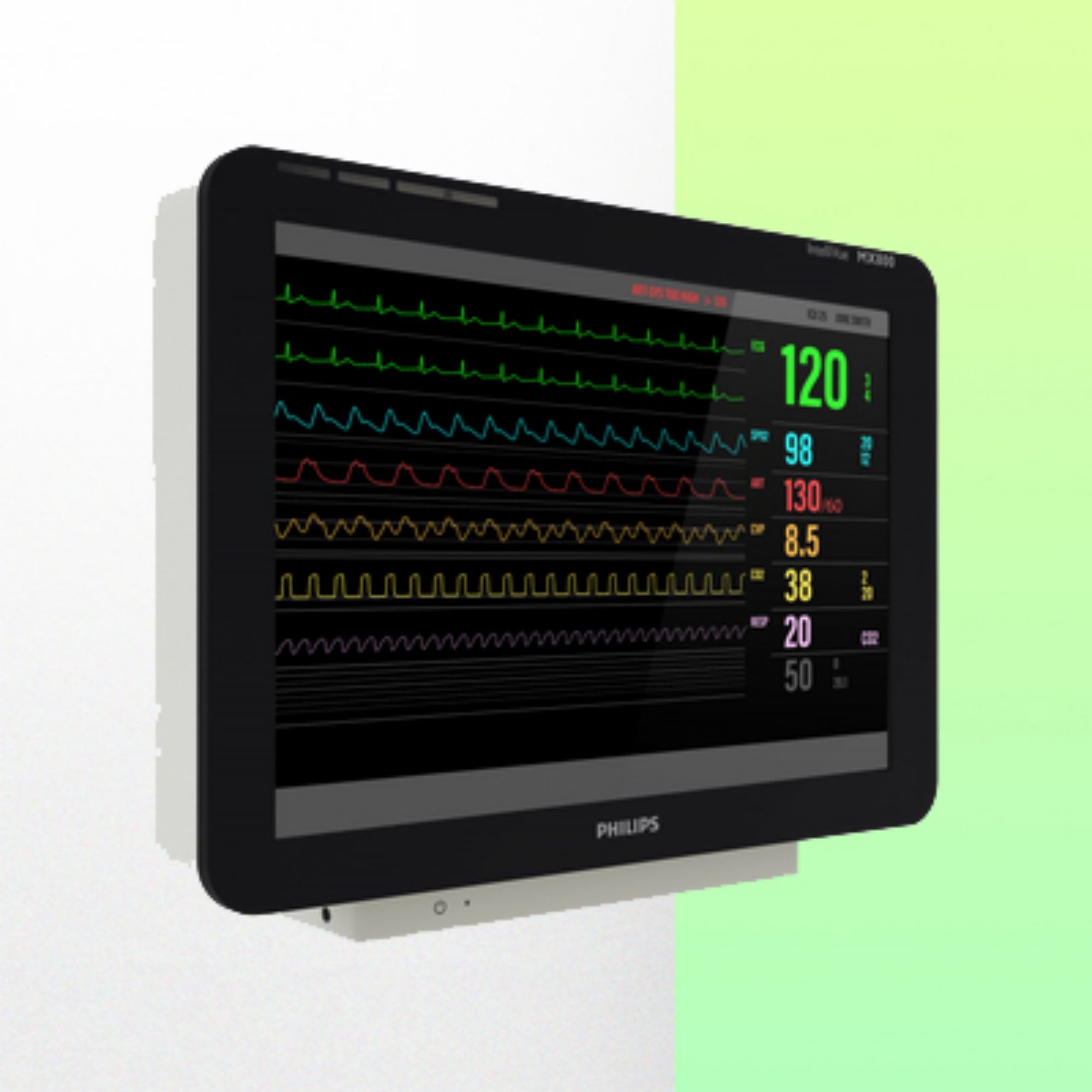

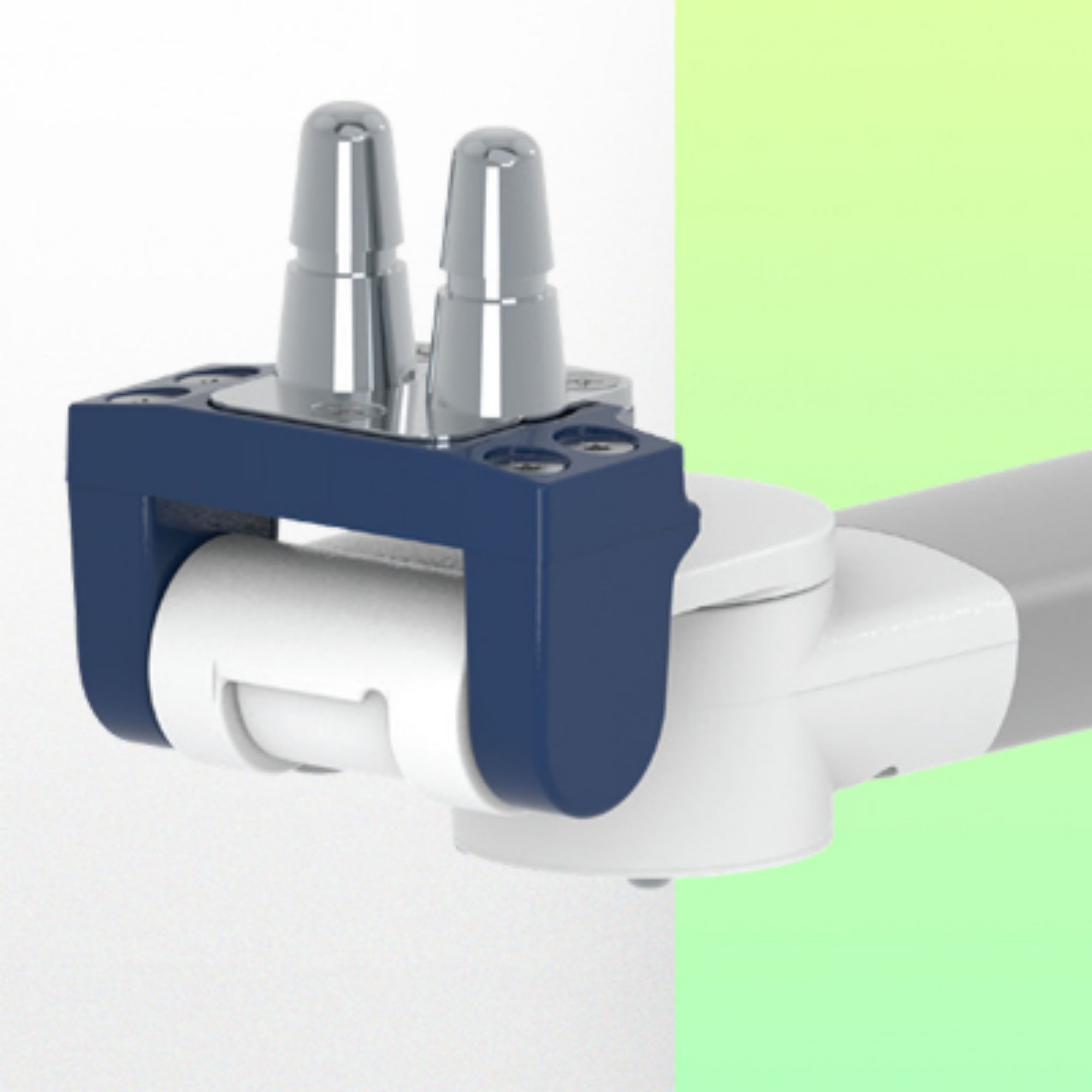

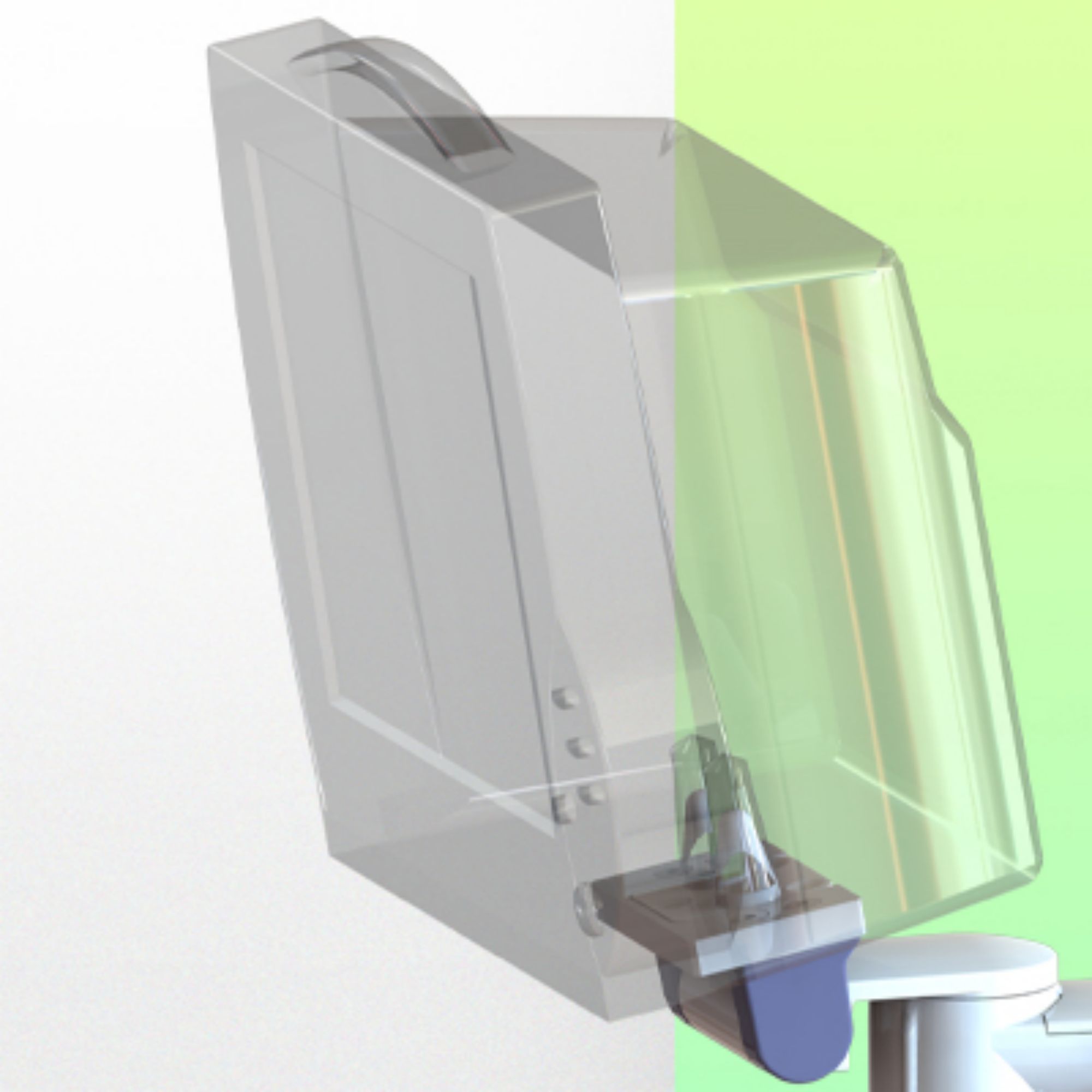

* The head of this arm complies with the mounting standard for Philips Intellivue Series monitors weighing up to 18 kg.

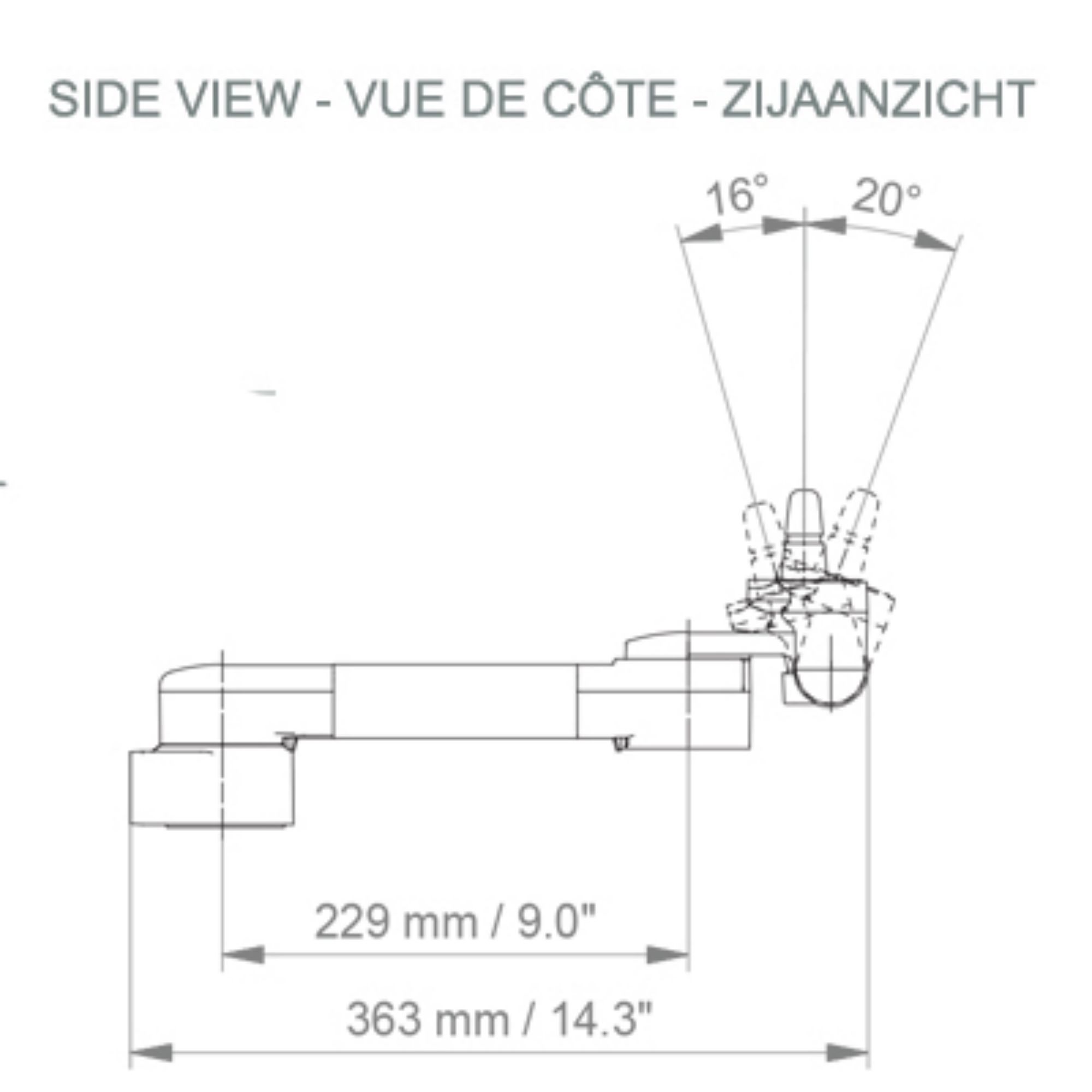

* Monitor tilt: 20° down and 12° up

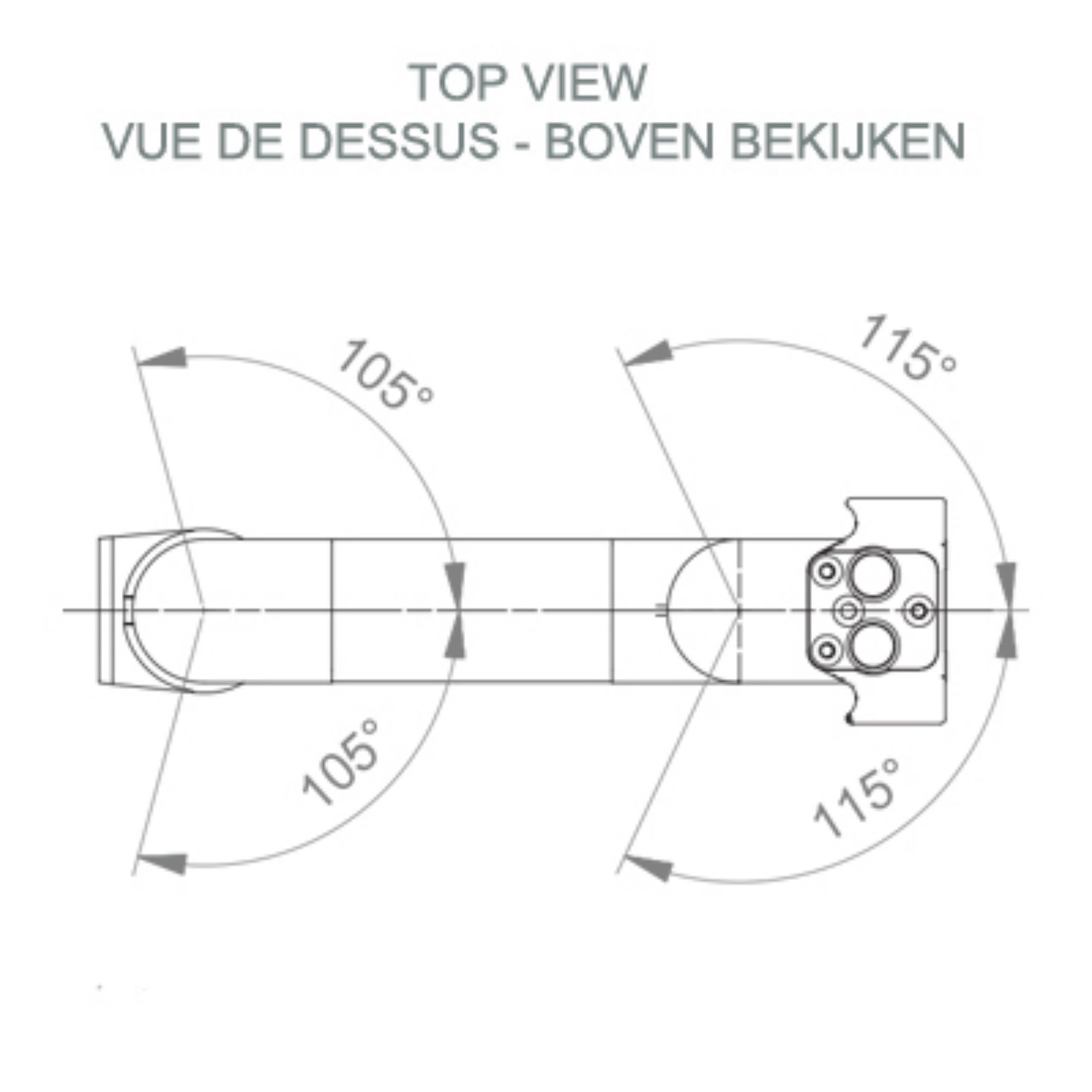

* Monitor rotation: 115° right, 115° left.

* Arm rotation: 105° right, 105° left.

* Total length: 363 mm

* Colour: RAL 5013 cobalt blue and RAL 9016 traffic white

* Warranty: 5 years
